Snapper WLT145H38GKV User manual

Parts Manual fo
r
Revision 4,
LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
COPYRIGHT
©
2006
McDonough, GA, 30253 U.S.A.
TP 400-5170-4-TC-N
2/24/2006 Manual No. 7006448
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
HYDRO DRIV
E
MODEL
ELT145H33GBV
LT145H33GB
V
LT145H38GB
V
LT150H38GK
V
WLT145H38GKV

Table Of Content
s
TP 400-5170-4-TC-N
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G" 3
PAGE GROUP
4Wheels, Front & Rear
6Hood, Bumper, Headlights & Components
8Steering Wheel, Console, Fuel Tank
10 Cast Front Axle
12 Frame, Clutch, Brake & Steering Components
18 Blade Engagement & Transmission Controls
22 Implement Lift Parts
24 Transmission Group (Hydro Drive)
26 Hydro Reservoir Assembly
28 Engine Components
30 Belt Guide Assembly
32 Seat, Rear Fender & Components
34 Decals (Part 1)
36 Decals (Part 2)
38 33" Cutting Deck, Belts, Brakes
44 Spindle - 33" Cutting Deck
46 38" Cutting Deck Assembly (Part 1)
48 38" Cutting Deck Assembly (Part 2)
52 38" Cutting Deck, Belts, Brakes
56 Spindle - 38" Cutting Deck
58 Electrical Components
60 Electrical Illustrated Diagram - Wiring Harness P/N 26616
62 Electrical Schematic - Wiring Harness P/N 26616

Wheels, Front & Rear
TP 400-5170-4-TC-N
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
4

Wheels, Front & Rear
Footnotes:
TP 400-5170-4-TC-N
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G" 5
Part No Descri
p
tionItem Qt
y
Note
1 7058515 ASSEMBLY, Front Tire & Rim (Includes items 2, 3, 4, 5 & 6)
(Models: LT145H33GBV &
ELT145H33GBV)
7058517 ASSEMBLY, Front Tire & Rim (Includes items 2A, 3, 4, 5 & 6)
(Model: LT145H38GBV &
LT150H38GBV)
2 7072702 TIRE, 13 x 5.00
2A 7072704 TIRE, 15 x 6.00
3 7022772 RIM, 6.00 x 3.50
4 7014483 4 BEARING, Wheel
5 7012234 4 VALVE, Air (Snap-in)
6 7076998 2 FITTING, Lube 1/4-28 Tapered Thread Was 13876
7 7034453 2 WASHER, Flat, 5/32 x 25/32" I.D. x 1-1/2" O.D.
8 7029618 4 WASHER, Hub-Cap Retaining
9 7029617 8 WASHER, Flat, 1/16 x 49/64 I.D. x 1-5/16" O.D.
10 7011022 4 HUB-CAP
11 7091516 2 COTTER-PIN, 5/32 x 1"
12 7010746 2 RING, External Retaining, 3/4" Was 29738
13 7058518 ASSEMBLY, Rear Tire & Rim (Includes items 5, 14 & 15)
14 7024454 RIM, 8 x 7.00
15 7072705 TIRE, 18 x 8.50-8

Hood, Bumper, Headlights & Components
TP 400-5170-4-TC-N
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
6

Hood, Bumper, Headlights & Components
Footnotes:
TP 400-5170-4-TC-N
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G" 7
Part No Descri
p
tionItem Qt
y
Note
1 7063298 HOOD Was 24605 (All Models except
ELT145H33GBV)
7024471 HOOD, Mozart (Model ELT145H33GBV)
2 7016766 ROD, Hood Support
3 7024718 LATCH, Spring
4 7090999 2 SCREW, 1/4-20 x 5/8" Truss Head, Torx
5 7076978 6 NUT, 1/4-20 Hex Nyloc
6 7022971 DECAL - SNAPPER, 8" Molded Logo, Silver Letters
7 7090803 4 BOLT, 1/4-20 x 5/8" Flat Head Carriage, Grade 5
8 7029572 PANEL, Hood (Left Hand) (Black) (Model ELT145H33GBV)
9 7029571 PANEL, Hood (Right Hand) (Black) (Model ELT145H33GBV)
10 7029076 DECAL, Hood (Right Hand) (Model ELT145H33GBV)
7029075 DECAL, Hood (Left Hand) (Model ELT145H33GBV)
11 7091095 8 RIVET, 1/8" Pop
12 7017175 DECAL, Clear Lens (Left Hand) (All Models except
ELT145H33GBV)
7017174 DECAL, Clear Lens (Right Hand) (All Models except
ELT145H33GBV)
13 7091106 5 SCREW, M4.8 x 1.59 x 16.00MM, Special
14 7029570 GRILLE, Hood (Model ELT145H33GBV)
15 7026482 CLIP, "J"
16 7026377 DECAL, Molded Medallion Was 71544
17 7029602 LENS, Grille (Headlights)
18 7026180 DECAL, Reflect (Left Hand) (Model ELT145H33GBV)
19 7026179 DECAL, Reflect (Right Hand) (Model ELT145H33GBV)
20 7022968 DECAL - SNAPPER, 4" Molded Logo (Silver Letters - Blue Stripe)
21 7090858 4 SCREW, 5/16-18 x 1/2" Self-Tapping, Grade 5
22 7024061 2 BOLT, Shoulder, 3/8-16 x 1-1/4" Hex Socket, Torx
23 7034324 BRACE, Hood Support
24 7011791 4 RETAINER, 5/16" Bolt
25 7026172 2 BULB, Headlights
26 7024709 2 SOCKET, Headlight Bulb
27 7026171 HARNESS, Headlight Wiring
28 7024893 LENS, Clear (Models with Headlights)
29 7029620 BUMPER, Front Hood Support

Steering Wheel, Console, Fuel Tank
TP 400-5170-4-TC-N
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
8

Steering Wheel, Console, Fuel Tank
Footnotes:
TP 400-5170-4-TC-N
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G" 9
Part No Descri
p
tionItem Qt
y
Note
1 7053746 ASSEMBLY, Console (Includes items 2 thru 7)
2 7028565 CONSOLE
3 7011791 4 RETAINER
4 7091495 2 SCREW, 1/4-20 x 3/4" Hex Head Cap, Grade 5
5 7052891 2 ASSEMBLY, Strap-Clinch Stud
6 7076978 2 NUT, 1/4-20 Hex Nyloc
7 7026196 ASSEMBLY, Flange Bearing
8 7091575 4 NUT, 5/16-18 Hex Center Lock, Grade 5
9 7022368 GEAR, Pinion, Steering Shaft
10 7022369 PIN, Dowel, 1/4 x 1-1/4"
11 7024641 TIE, Wire
12 7052907 ASSEMBLY, Fuel Tank (Includes item 13)
13 7012515 CAP, Fuel Tank Was 14363
14 7091290 2 NUT, #10-24 Hex Nyloc Was 91599
15 7026343 KEYSWITCH (Includes item 27)
16 7090951 NUT, 5/16-18 Hex Flange Center Lock
17 7033883 BRACKET, Hood Latch Catch
18 7022380 SHAFT, Steering
19 7012765 ROLL-PIN
20 7035496 BUSHING
21 7029595 STEERING WHEEL
22 7028561 DECAL, Console (Hydro Drive Models - With
Lights)
23 7011138 KEY, Pair
24 7091001 SCREW, 5/16-18 x 5/8" Truss Head, Torx
25 7023187 SWITCH, Lights
26 7029714 SPACER
27 7012685 NUT, 5/8-32 Hex Was 29721
28 7023506 BEZEL
29 7091188 2 SCREW, #10-24 x 5/8" Machine
30 7091018 NUT, #8-32 Hex
31 7023655 HANDLE, Throttle Control
32 7024642 CONTROL, Throttle
33 7091017 SCREW, #8-32 x 3/8" Cross-Recessed, Machine

Cast Front Axle
TP 400-5170-4-TC-N
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
10

Cast Front Axle
Footnotes:
TP 400-5170-4-TC-N
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G" 11
Part No Descri
p
tionItem Qt
y
Note
1 7010746 RING, 5/8 External Retaining
2 7010935 3 WASHER, 49/64 x 1-1/8 x 1/16" Flat
3 7014669 3 FITTING, 3/16 Lube
4 7019034 ARM, Steering
5 7072411 AXLE, Cast
6 7028666 2 SPACER, 25/64 x 1/2 x 1-13/16"
7 7028689 SPACER, Center
8 7031036 2 WASHER, Thrust
9 7033383 2 BRACKET, Deck Hanger
10 7074424 BRACKET, Cast Axle (Rear) Was 34740
11 7041245 WELDMENT, Right Hand Spindle Wheel (Long)
12 7041246 WELDMENT, Left Hand Spindle Wheel (Long)
13 7054515 ASSEMBLY, Cast Axle Front Bracket
14 7091299 2 NUT, 3/8-16 Hex Nyloc Was 76979
15 7090122 2 WASHER, 3/8 x 5/64" Flat
16 7091575 3 NUT, 5/16-18 Hex Center Lock Was 90184
17 7090250 3 WASHER, 1/2 x 3/32" Flat
18 7091557 2 SCREW, 3/8-16 x 2-3/4" Hex Head Cap, Grade 2 Was 90795
19 7090842 PIN, 1/4 x 1-1/4" Roll
20 7090831 2 SCREW, 5/16-18 x 2-3/4" Hex Head Cap, Grade 5
21 7091121 NUT, 1/2-13 Hex Nyloc
22 7091821 SCREW, 1/2-13 x 3" Hex Head Cap Grade 5 Was 91694
23 7028326 TIE ROD, Reduced Radius
24 7012706 2 BEARING, Sleeve
25 7091302 2 NUT, 3/8-16 Hex, Grade 5
26 7035372 2 SPACER, Steering Stop
27 7091497 2 SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Grade 5
28 7091320 2 WASHER, 3/8 Split Lock

Frame, Clutch, Brake & Steering Components
TP 400-5170-4-TC-N
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
12

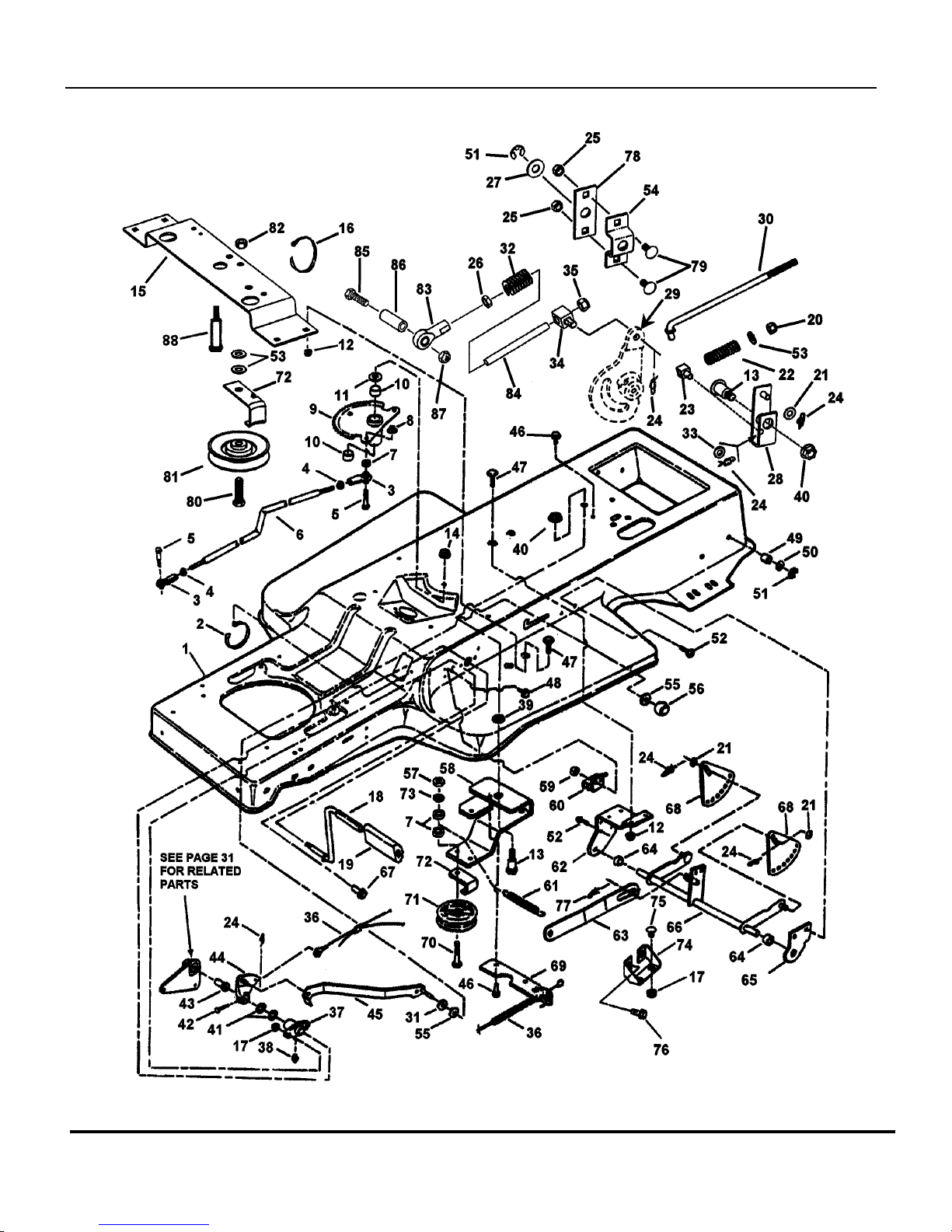

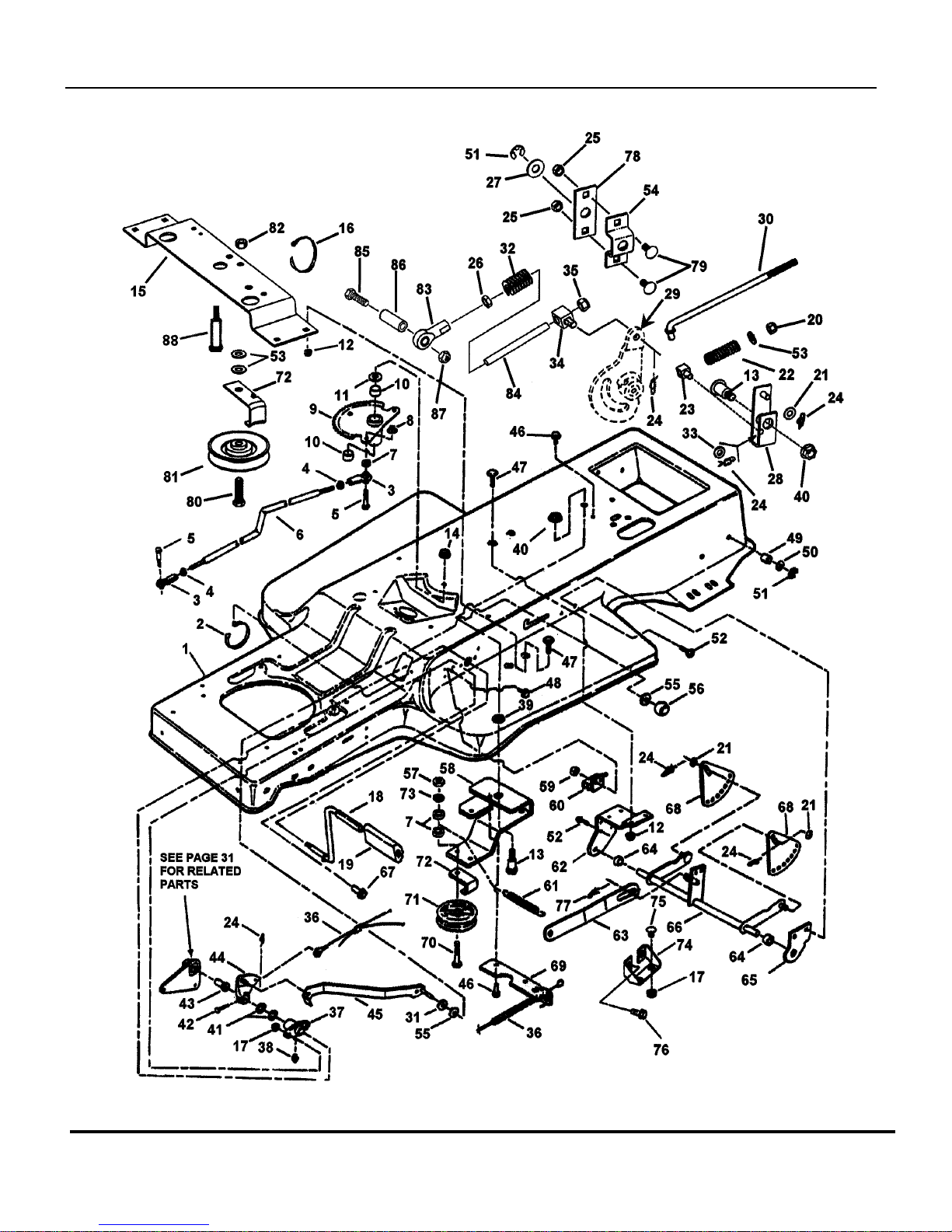

Frame, Clutch, Brake & Steering Components
Footnotes:
TP 400-5170-4-TC-N
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G" 13
Part No Descri
p
tionItem Qt
y
Note
1 7073345 FRAME, Tractor (1 piece)
2 7014451 TIE, Wire
3 7027936 2 ROD END
4 7090482 2 NUT, 3/8-24 Hex Jam
5 7090163 2 SCREW, 3/8-24 x 1-1/4" Hex Cap
6 7028420 LINK, Drag
7 7024180 2 SPACER
8 7091619 NUT, 3/8-16 Hex Flange Lock Was 90613
9 7053568 ASSEMBLY, Sector Gear (Includes 41267 Weldment &
item 10)
10 7012706 2 BEARING, Sector Gear
11 7031036 WASHER, 3/4" Thrust
12 7091584 6 NUT, 1/4-20 Hex Flange Lock Was 90583
13 7022381 2 BOLT, 1/2-13 x 2" Shoulder
14 7090975 NUT, 1/2-13 Hex Center Lock Gr. A
15 7072636 BRACE, Sector Gear
16 7012080 TIE, Cable 7"
17 7091601 4 NUT, 5/16-18 Hex Flange Lock, Gr. 5 Was 90585
18 7022743 PEDAL, Clutch Brake
19 7012661 PAD, Pedal
20 7091299 NUT, 3/8-16 Hex Nyloc
21 7090122 2 WASHER, 3/8 Bright Zinc, Flat
22 7024381 SPRING, Brake
23 7028037 SWIVEL, Inline Brake
24 7091593 5 PIN, 3/8 x 1-7/32" Cotter (Self Locking)
25 7091575 4 NUT, 5/16-18 Hex Center Lock
26 7092031 NUT, 5/16-24 Hex Jam Lock
27 7090517 WASHER, 44" ID Flat Was 91300
28 7058339 WELDMENT, Brake Arm
29 ARM, Speed Control
30 7072369 ROD, Brake
31 7090188 WASHER, 5/16" Flat
32 7046782 SPRING
33 7032070 2 WASHER, .406 I.D. Flat
34 7073607 SWIVEL, Brake Link
35 7092058 NUT, 5/16-24 Hex Top Lock
36 7072626 ASSEMBLY, Clutch/Brake Cable
37 7052431 ASSEMBLY, Foot Shaft Pivot (Includes item 38)

Frame, Clutch, Brake & Steering Components
TP 400-5170-4-TC-N
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
14

Frame, Clutch, Brake & Steering Components
Footnotes:
TP 400-5170-4-TC-N
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G" 15
Part No Descri
p
tionItem Qt
y
Note
38 7013864 LUBE FITTING, Straight (press-fit for .187 dia. Hole)
39 7090509 WASHER, 1/2" Internal Tooth Lock
40 7090619 NUT, 1/2-13 Hex Flange Lock
41 7027344 2 WASHER, 5/8" Flat Was 15992
42 7023645 PIN, 3/16 x 1-1/2" Clevis
43 7022742 BEARING, Flange
44 7041236 WELDMENT, Clutch Brake Arm
45 7041244 LATCH, Park Brake
46 7090361 3 SCREW, 5/16-18 x 5/8" Self-Tap
47 7090803 6 BOLT, 1/4-20 x 5/8" Carriage
48 7091240 2 SCREW, #10-32 x 5/8" Self-Tap
49 7011016 2 BUSHING, 1/2" Nylon
50 7091587 2 WASHER, 1/2" Flat
51 7014341 3 RING, 1/2" External Retaining
52 7091001 5 SCREW, 5/16-18 x 5/8" Truss
53 7090122 3 WASHER, 3/8" Flat Was 91514
54 7072298 BRACKET, Pivot Mounting
55 7023649 2 WASHER, 5/16" Nylon
56 7072403 KNOB, Clutch/Brake (5/16-18)
57 7091302 NUT, 3/8-16 Hex, Grade B or 5
58 7033557 ARM, Idler (Traction Drive)
59 7090376 2 NUT, #10-32 Hex Nyloc
60 7023355 SWITCH, DPDT NC/NO
61 7024383 SPRING, Traction Drive
62 7034410 BRACKET, Rear Lift/PTO Lever
63 7034347 LINK, Lift (33" Deck)
7034850 LINK, Lift (38" Deck)
64 7034384 2 SPACER
65 7033520 BRACKET, Deck Hang Pivot
66 7041249 WELDMENT, Rear Lift Arm (33" Deck)
7042597 WELDMENT, Rear Lift Arm (38" Deck)
67 7091000 2 SCREW, 5/16-18 x 7/8" Truss Head (Torx)
68 7034377 2 PLATE, Lift Sector
69 7034326 EXTENSION, Idler Arm
70 7091501 SCREW, 3/8-16 x 2-1/2" Cap Grade 5
71 7023954 PULLEY, Flat Idler, 3 47" O.D
72 7033556 2 GUIDE, Pulley
73 7091320 WASHER, 3/8" Split Lock

Frame, Clutch, Brake & Steering Components
TP 400-5170-4-TC-N
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
16

Frame, Clutch, Brake & Steering Components
Footnotes:
TP 400-5170-4-TC-N
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G" 17
Part No Descri
p
tionItem Qt
y
Note
74 7047072 BRACKET, Frame Brace
75 7090731 2 BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5
76 7091541 2 SCREW, 5/16-18 x 3/4" Self-Tap Was 90368
77 7091593 COTTER PIN, 1/16 x 1-7/32" Self Lock Was 24159
78 7072598 BRACKET, Mounting Brace
79 7090316 2 BOLT, 5/16-18 x 3/4" Carriage Was 91097
80 7091497 SCREW, 3/8-16 x 1-1/2" Cap, Grade 5
81 7024344 PULLEY, Idler V 3.30
82 7091585 NUT, 3/8-16 Hex Center Lock
83 7027139 LINKAGE
84 7073608 FOOD, Shift Linkage
85 7091540 SCREW, 5/16-18 x 1-1/2" Cap Was 91066
86 7029973 SPACER
87 7091575 NUT, 5/16-18 Hex Center Lock
88 7024604 BOLT, 12-13X3-7/8" Shoulder

Blade Engagement & Transmission Controls
TP 400-5170-4-TC-N
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
18

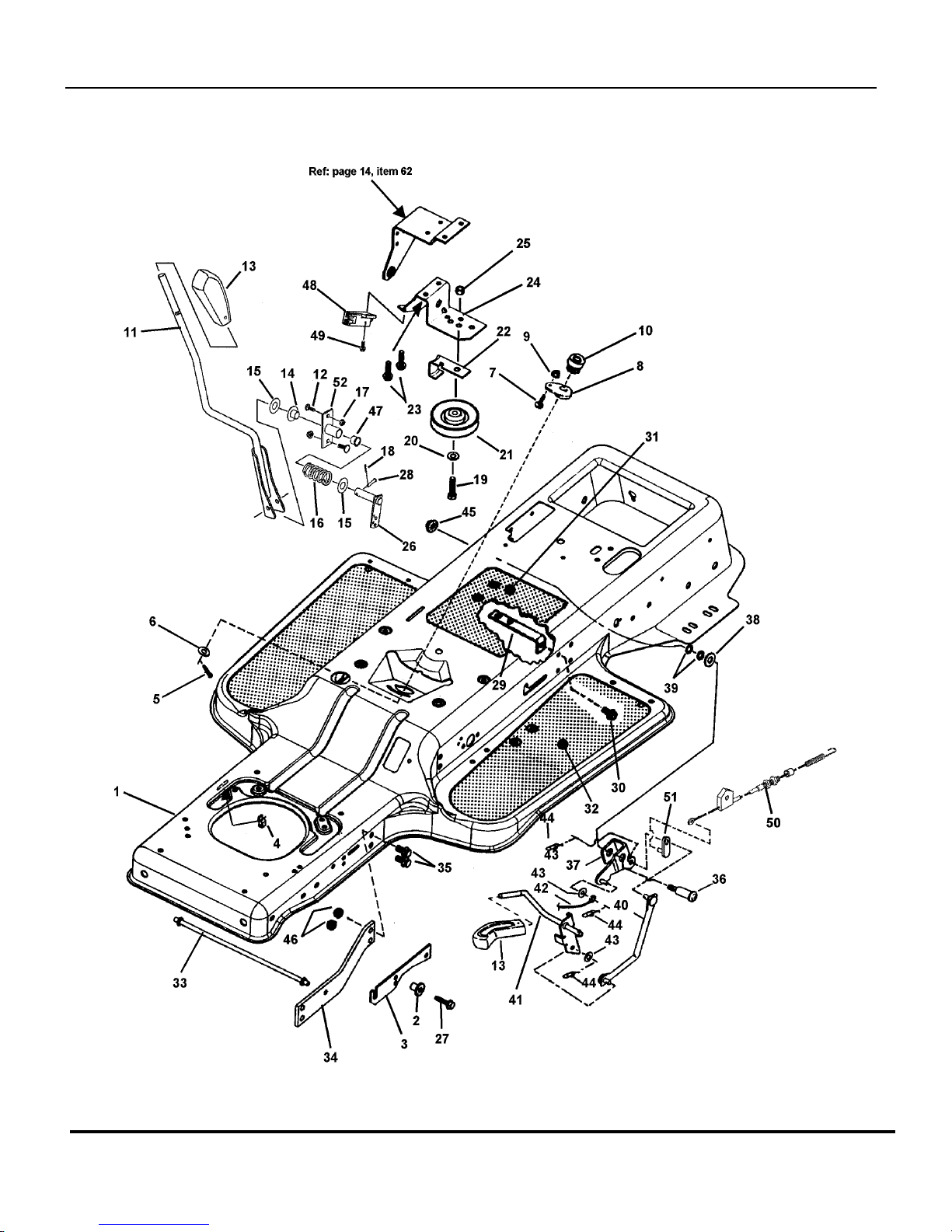

Blade Engagement & Transmission Controls
Footnotes:
TP 400-5170-4-TC-N
Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH
SERIES "G" 19
Part No Descri
p
tionItem Qt
y
Note
1 7073345 FRAME, Tractor (1 Piece)
2 7024616 2 BUSHING, Flange
3 7033488 BRACKET, Hood Pivot
4 7028630 CLIP, Wire
5 7091598 PIN, 1/8 x 3/4" Cotter
6 7014296 WASHER, 1/2 Shim
7 7091573 BOLT, 1/4-20 x 5/8" Short Neck Carriage, Grade 5
8 7052562 ASSEMBLY, Steering Adjuster
9 7091584 NUT, 1/4-20 Hex Flange Lock, Grade 5
10 7022368 GEAR, Steering Pinion
11 7058874 LEVER, Shift (Upper)
12 7091508 2 BOLT, 5/16-18 x 3/4" Carriage
13 7023656 2 KNOB, Deck Lift Lever
14 7019245 BUSHING, 314 Flange
15 7031036 WASHER, Thrust
16 7010754 SPRING, Shift Detent
17 7091601 2 NUT, 5/16-18 Flange Lock
18 7091597 PIN, 3/32 x 3/4" Cotter Was 90037
19 7091497 SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Grade 5
20 7090122 WASHER, 3/8" Flat Was 91514
21 7024344 PULLEY, Idler
22 7033556 GUIDE, Pulley Belt
23 7091524 3 SCREW, 5/16-18 x 1-1/4" Swage
24 7035524 SUPPORT, PTO Lever
25 7091585 2 NUT, 3/8-16 Hex Center Lock, Grade 5
26 7040598 STRUCTURE, Arm
27 7091524 4 SCREW, 5/16-18 x 1-1/4" Self-Tapping Was 91151
28 7023914 PIN, 1/4 x 1-5/8" Clevis
29 7033825 ANCHOR, Blade Brake
30 7091198 SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
31 7072756 DECAL, Instruction Frame Top
7072754 DECAL, Instruction Frame Top (Euro)
32 7028203 2 PAD, Foot (Rubber Deluxe)
33 7046900 GUIDE, Belt
34 7046899 2 BRACE, Frame
35 7091588 8 BOLT, 3/8-16 x 3/4" Hex Flange Lock Was 90612
36 7024518 BOLT, 1/2-13 Shoulder

Blade Engagement & Transmission Controls
TP 400-5170-4-TC-N
Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH
SERIES "G"
20
