SNEAKER THRONE The Sneaker Throne User manual

ULTIMATE LIGHT-UP SNEAKER DISPLAY

(THIS IS THE BOTTOM OF THE UNIT)
(THIS IS THE TOP OF THE UNIT)
(LEFT SIDE)
(RIGHT SIDE)
(THIS IS THE MIDDLE SHELF)
(BACK PANELS)

CAUTION: Please assemble the whole unit on top of carpet or soft surface to ensure
product is not scratched or damaged during assembly. If needed, please assemble on top
of a towel.
Using a screwdriver, screw in the above 12 screws securely. Please take note of the proper
hole location of each screw. There are two holes next to each other. Please be sure to use the
hole designated in the image above. Please do not over tighten as it may cause wood to
splinter.
Insert 6 wooden pegs into Panel E.
Insert Cam Locking Screws into Panels A, B and C.
Please pay special attention to the finish on all of
the panels. The side edges with the smooth finish
is the front of the unit. The side with the rough
finish should be facing the back of the rear of the
unit
(THIS IS THE BOTTOM OF THE UNIT)
The small arrow on the Cam Locking Screw should be
facing the screws extending from Panel E. Use screwdriver
to tighten securely, but avoid over tightening. It is best to
attach Panel A first, followed by Panel B and then Panel C.
(FRONT OF UNIT)

Insert 6 wooden pegs into sides of Panel A,
Panel B and Panel C. Insert Cam Locking
Screws into Panels A, B and C. Small arrows
on the Cam Locking Screw should be facing
the screws extending from Panel D. Place D
panel on top inserting all screws and wooden
pegs into appropriate holes.
Before tightening the Cam
Lock Screws, please add
the two acrylic doors.
Do not remove protective film from the acrylic
doors until the unit is entirely put
together. This will help decrease
chances of scratching the acrylic
doors. Use screwdriver to tighten
securely, but avoid over
tightening.
Carefully lay the unit on
the floor with the doors
facing down. Again,
towel is recommended
to avoid scratching.
The knobs should not
be on the front doors at
this time.
Using a screwdriver,
please screw in all 18
screws securely into G
Panels. Do not over
tighten the screws as it
may cause splintering.
(THIS IS THE BOTTOM OF THE UNIT)
(THIS IS THE BOTTOM OF THE UNIT)

VERY IMPORTANT:
DO NOT SCREW THE WOODEN
FEET INTO THE TOP OF THE
UNIT. THE WOODEN FEET
SHOULD BE SCREWED INTO
THE BOTTOM OF THE UNIT.
THERE ARE 4 TINY PRE-
DRILLED HOLES TO HELP
SCREW IN THE WOODEN FEET.
IF YOU DO NOT SEE THE
HOLES, DO NOT SCREW IN THE
FEET. CONTACT CUSTOMER
SERVICE IF YOU HAVE
QUESTION.
Please remove protective film from both sides
of the acrylic doors. Use 4 screws to attached
the 4 door knobs to the acrylic doors.
Use 4 screws to attach the 4 feet (H) to the
bottom of the unit. Do not over tighten in
order to avoid splintering.
THE TINY HOLES NEXT TO THE CAMLOCK SCREW
ARE TO BE USED FOR THE WOODEN FEET
(THIS IS THE BOTTOM OF THE UNIT)

Included in the LED lighting pack are 2 patches of Velcro. Affix one Velcro
patch onto the back of each black box. Attach the box towards the top corner
of the right side panel. The black box will need to have a line of sight to in
order for the remote to work properly.
Adhere the two light strips towards the back center of the top panels and
middle panel.

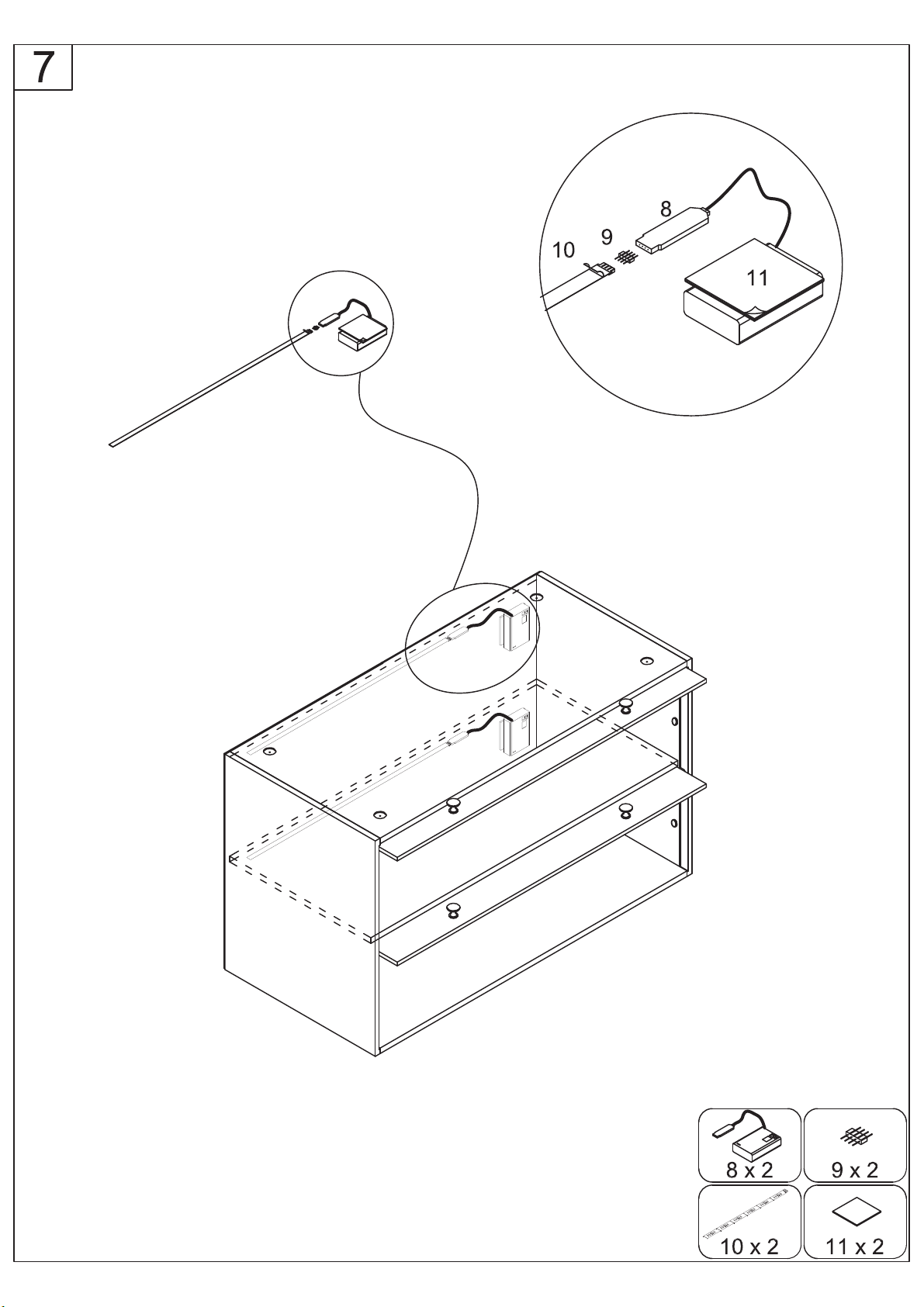

You will need a total of 6 AA Batteries for the LED lighting option. Please insert the batteries into
each of the black light boxes. Please attach the MALE pin connector (9) to the LED light strip (10) and
then attach the portion that is extending from the black box (8).
Now it is time to test the LED Lighting. Turn the lighting
unit to the ON position to test the remote control. Be sure
to remove plastic film from bottom of the remote controller.
If the lights do not turn on, you may need to adjust the pin
connection, double check the batteries or make sure the
ON/OFF switch of the black light box is in the ON position.
*In order to preserve battery life, please keep the
battery unit on each of the black light boxes in the
OFF position when not in use. The battery will
still be in use even though the lights are OFF
causing the battery to run out faster than
expected.
*

TIP OVER HAZARD:
Secure finished unit to a wall stud using L-Bracket and Wall Screw (not provided). When stacking units,
secure all units to wall studs using L-Bracket and Wall Screw. Please consult your local hardware store for
approriate mounting hardware. Do not stack more than one unit on top for a maximum stacking height of
40". Failure to install may result in product collapse or tip-over. Serious injury can occur.
FALLING HAZARD:
Do not hang units on a wall.
Designed in California
Made in China
Please visit www.thesneakerthrone.com for
additional information or questions. Please
contact [email protected]
for any questions or concerns.
