1General Information
This manual introduces AMASSTORE GTX3000 LFP Battery Product from
SOFAR. Please read this manual before you use the battery.
Any confusion, please contact SOFAR immediately for advice and clarification.
1.1 Validity
This user manual is applicable to AMASSTORE GTX3000.
This user manual contains AMASSTORE GTX3000 product information, usage
guidance, safety information, installation guide and details on common operating
issues and subsequent corrective actions.
1.2 Intended Use
AMASSTORE GTX3000 is an energy storage unit that is designed to be used in
residential or commercial on-grid applications with the capability for short-term
backup.
Notes regarding intended use:

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
2
AMASSTORE GTX3000 is not suitable for supporting life-sustaining medical
devices.
This product is intended for use only in accordance with the information provided
in the enclosed documentation and with the locally applicable standards and
regulations. Any other application may cause personal injury or property damage.
The illustrations in this manual are meant only to help explain system
configuration concepts, includes usage guidance, safety precautions, and common
operating issues and subsequent corrective actions.
Alterations to the product, e.g. changes or modifications, are only permitted with
the express written permission of SOFAR. Unauthorized alterations will void
warranty claims. SOFAR shall not be held liable for any damage caused by such
changes. Any use of the product other than that described in the Intended Use
section does not qualify as appropriate. The enclosed documentation is an integral
part of this product. Keep the documentation in a convenient place for future
reference and observe all instructions contained therein. The type label (see
Section 1.3) must remain attached to the product.
Please contact SOFAR or local after-service providers within 1 week once the user
decides to cease using their SOFAR Battery products.

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
3
1.3 Identifying The Product
The type labels were attached on the product, which contain the product
identification information. For safe usage, the user must be well-informed of the
contents in the type labels.
The type labels include:

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
4

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
5

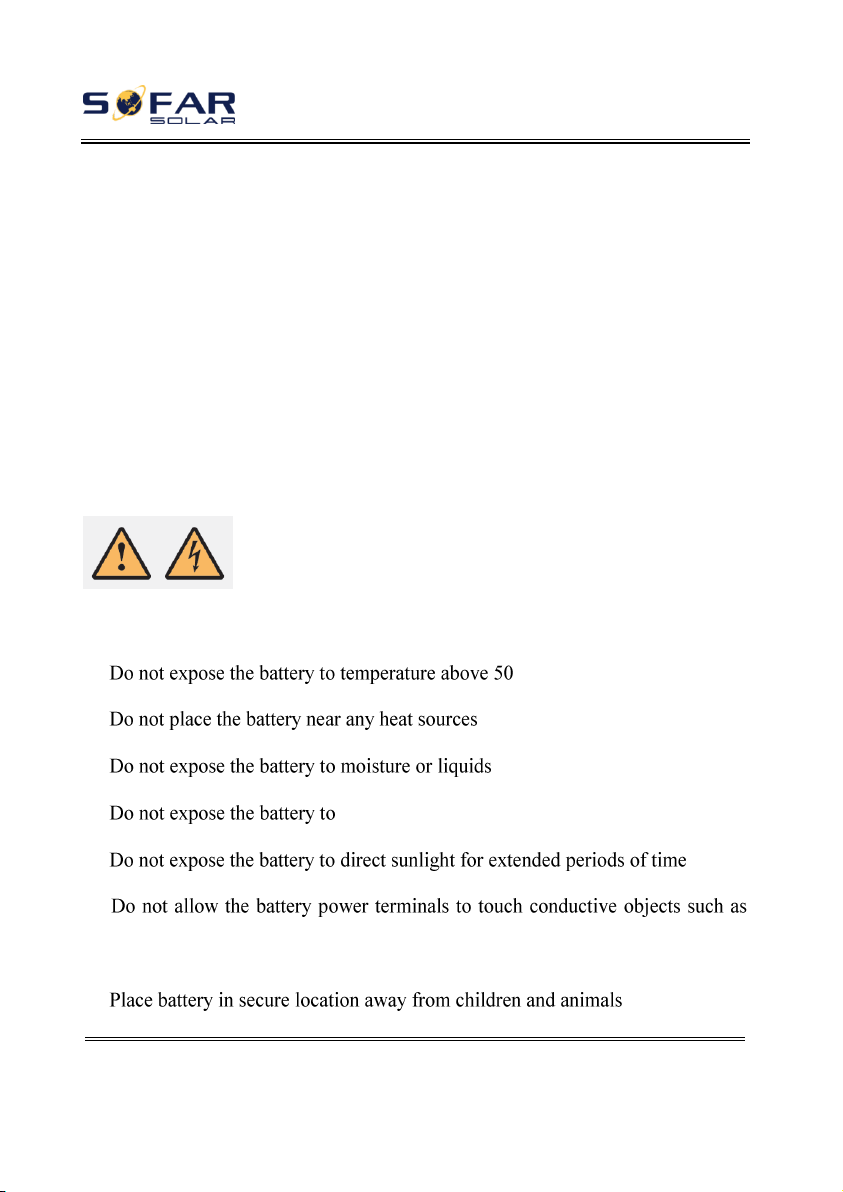

2Safety
This section contains safety information that must be observed at all times when
working on or with batteries. To prevent personal injury or property damage and
to ensure long-term operation of the batteries, read this section carefully and
observe all safety information at all times.
WARNING
Environmental Requirement
℃
corrosive gases or liquids
wires

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
6
Operation Precautions
tems that could product a
short circuit before installation and handling
ect battery from power/load and then power off battery before
installation and maintenance.
package. Packaged batteries should not be stacked more than specified number
stipulated on the package.
may cause severe injury due to electrical shock.

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
7
3Technical Data
Basic
Parameters
GTX3000-
H4
GTX3000-
H5
GTX3000-
H6
GTX3000-
H7
GTX3000-
H8
GTX3000-
H9
GTX300-
H10
Battery
module
quantity
4
5
6
7
8
9
10
Nominal
voltage
204.8V
256V
307.2V
358.4V
409.6V
460.8V
512V
MAX.
Charge
Voltage
230.4V
288V
345.6V
403.2V
460.8V
518.4V
576V
MIN.
Discharge
Voltage
182.4V
228V
273.6V
319.2V
364.8V
410.4V
456V
Nominal
energy
10kWh
12.5kWh
15kWh
17.5kWh
20kWh
22.5kWh
25kWh
available
energy(90%
DOD)
9kWh
11.25kWh
13.5kWh
15.75kWh
18kWh
20.25kWh
22.5kWh
Dimension
(W*D*H)
515*480
*770 mm
515*480
*895 mm
515*480
*1020 mm
515*480
*1145 mm
515*480
*1270 mm
515*480
*1395 mm
515*480
*1520 mm
Weight(Kg)
138
168
198
228
258
288
318

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
8
Protection
Class
IP65
Cooling
Natural
Nominal
charging
current
25A
Max.
Continuous
charging
current
30A
Nominal
discharge
current
25A
Max.
Continuous
discharge
current
30A
Working
Temperature
-20℃~ 60℃
Storage
Temperature
≤25℃，12months
≤35℃，6months
≤45℃，3months
Environment
al humidity
≤ 95%RH (No condensation)
Operating
Altitude
≤2000 m
Scale
Suggest no more than 4 parallel

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
9
Certificates
UN38.3、IEC62619、IEC62040-1、SAA etc.
Cycle Life
6000 @ 80% DOD / 25℃/ 0.5C / 60% EOL
Battery Module Parameters
Battery Type
LiFePO4，Lithium Iron Phosphate
Nominal
Voltage
51.2V
Nominal
capacity
50AH
Weight(kg)
30kg
Dimension(
W*H*D)
515*478.8*125 mm
Protection
IP65
Note:
1、Operating current adjust according to cell voltage and battery temperature.
2、The parameter will be changed in different string battery module numbers
(4~10 pcs battery modules).

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
10

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
11
4Technical Items
No.
Terms
Comment
1
Discharge
Battery output power for load
2
Charge
To put electricity into battery by charger
3
Full charge
Battery had been full charged, SOC is 100%.
4
Standby
Ready for charging or discharging
5
Shutdown
Power off
6
SOC
State of Charge(Useable capacity)
7
Battery voltage
The voltage between B+/B-
8
Cell voltage
Single cell voltage
9
Pack voltage
The voltage between P+/P-
10
Alarm
Indicate that the battery is in abnormal status
11
Protect
Battery stops charging or discharging and is
recoverable
12
Fault
Battery or BMS is broken, need to be replaced
13
Over discharged
Battery is lack of electricity, and needs to be
recharged in time

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
12

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
13

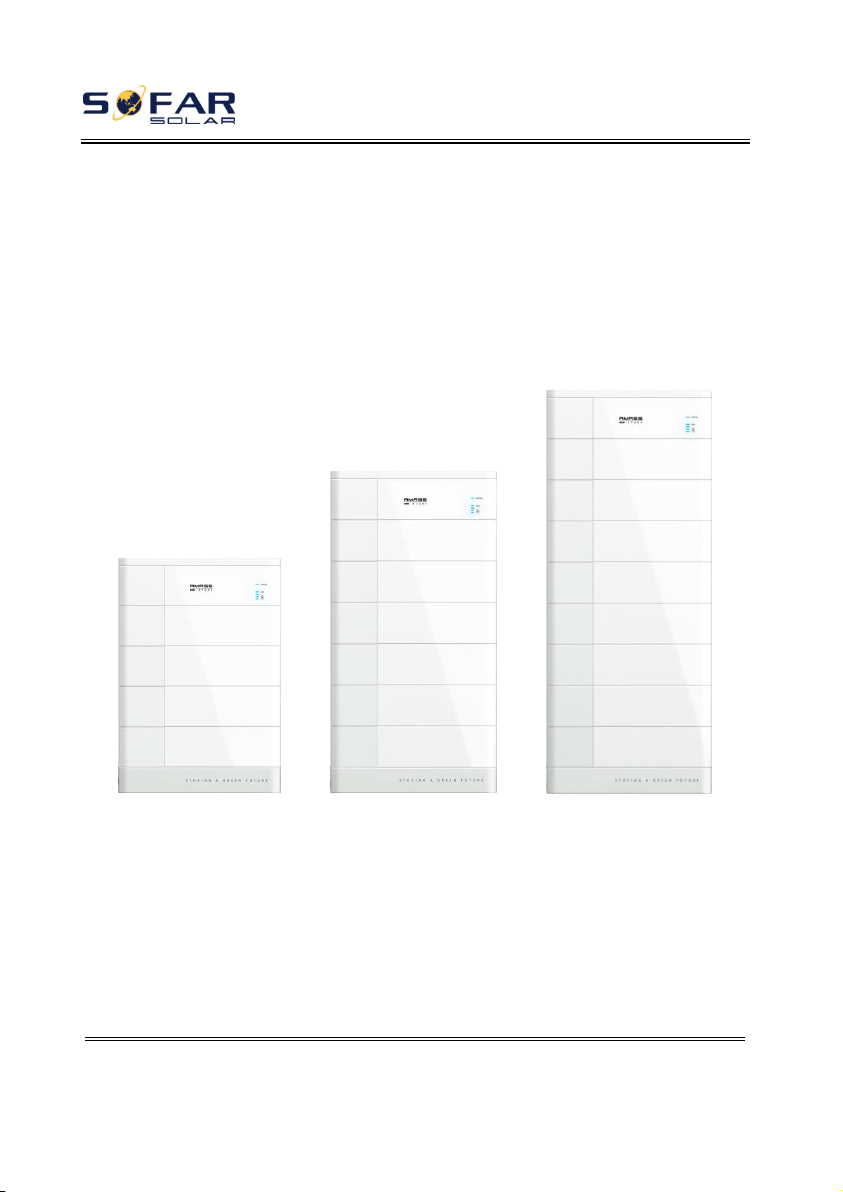

5Product Overview
5.1 Brief Introduction
Product overview
The AMASSTORE GTX3000 high-voltage lithium battery energy storage system
consisting of 4-10 pcs battery modules (51.2V / 50AH) and one BCU(Battery
Control Unit) in series with an operating voltage range between 180V—700V. It is

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
14
utilized in household / commercial energy storage applications and works together
with a high-voltage inverter to realize the goal of energy storage.
AMASSTORE GTX3000 has built-in BMS (Battery Management System, include
master BMS in BCU and slave BMS in battery modules), which can manage and
monitor cells information including voltage, current and temperature. What’s more,
BMS can balance cells charging to extend cycle life. BMS has protection
functions including over-discharge, over-charge, over-current and high/low
temperature; the system can automatically manage charge state, discharge state
and balance state.
AMASSTORE GTX3000 have soft-start circuit, so AMASSTORE GTX3000 can
support inverter without soft-start function, and also can support multiple battery
system connected in parallel to expand capacity and power for larger capacity and
longer power supporting duration requirements. AMASSTORE GTX3000 support
up to 8 parallel system operation.
AMASSTORE GTX3000 supports independent charging of each subsystem of the
parallel system. When one subsystem is fully charged, the other subsystems will
continue to charge until all subsystems are fully charged.
AMASSTORE GTX3000 could support the black start function of compatible

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
15
inverters. The ways to trigger this function are different when the battery systems
are operated with different inverters.

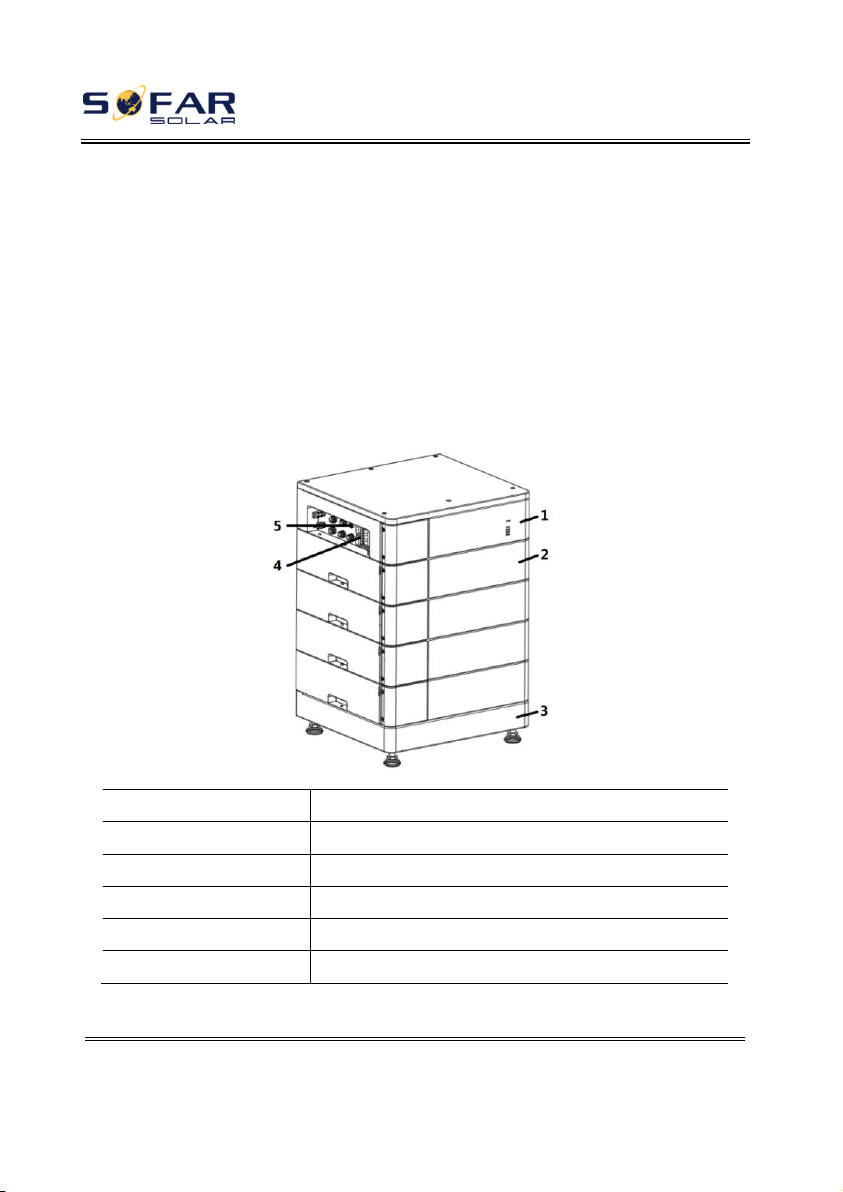

5.2 Battery System Overview
AMASSTORE GTX3000 series consist of GTX3000-H battery modules and
GTX3000-BCU (Battery Control Unit) connected in series.
NO.
Description
1
GTX3000-BCU(Battery Control Unit)
2
GTX3000-H (Battery Module)
3
GTX3000-Base
4
Power Switch
5
Start Button

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
16
5.3 GTX3000-BCU
BCU include master BMS, Breaker, DC fuse, Soft-start circuit, Charging circuit,
Discharge circuit, subsystem charging independent control circuit and 12V DCDC
power supply module.
Master BMS control charging voltage/current and discharge voltage/current
according to the cell voltage and temperature supply by slave BMS in battery
modules through CAN communication to PCS.

AMASSTORE GTX3000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
17

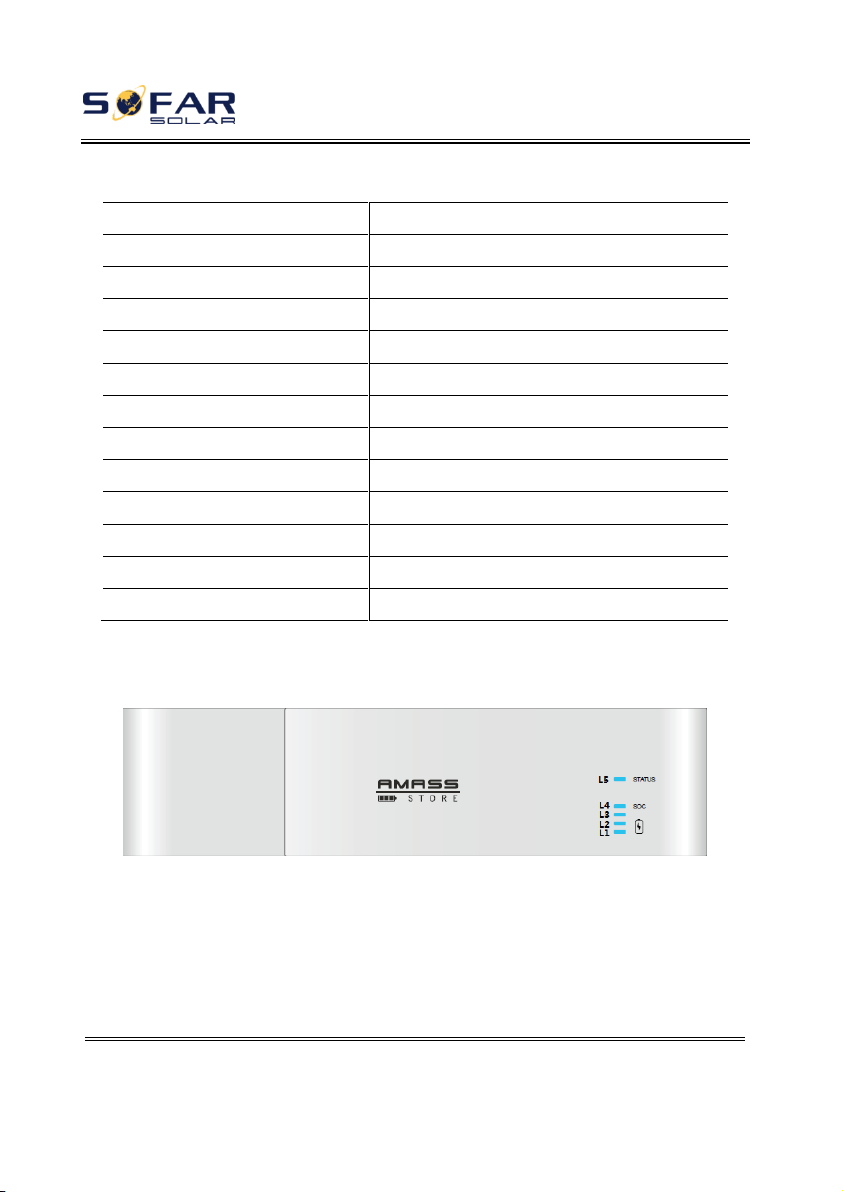

5.3.1 Technical Data
Parameters
Specification
Nominal Voltage
180V—750V
Nominal Current
25A
Maximum Current
30A
Working Temperature
-20℃~60℃
Environmental humidity
≤95%RH
Protection Class
IP65
Cooling
Natural
Weight(kg)
11 kg
Dimension(W*H*D)
515*478.8*144 mm
Communication
CAN / RS485 / RS232
Certificates
IEC62619、IEC62040-1、SAA etc..
Cycle Life
6000 @ 80% DOD / 25℃/ 0.5C
5.3.2LED Indicator Definition
L1 to L4: Blue, show the battery level.
L5: Green, long lighting when charging and flash when discharging.
L5: Red, long bright if equipment failure or protected.
