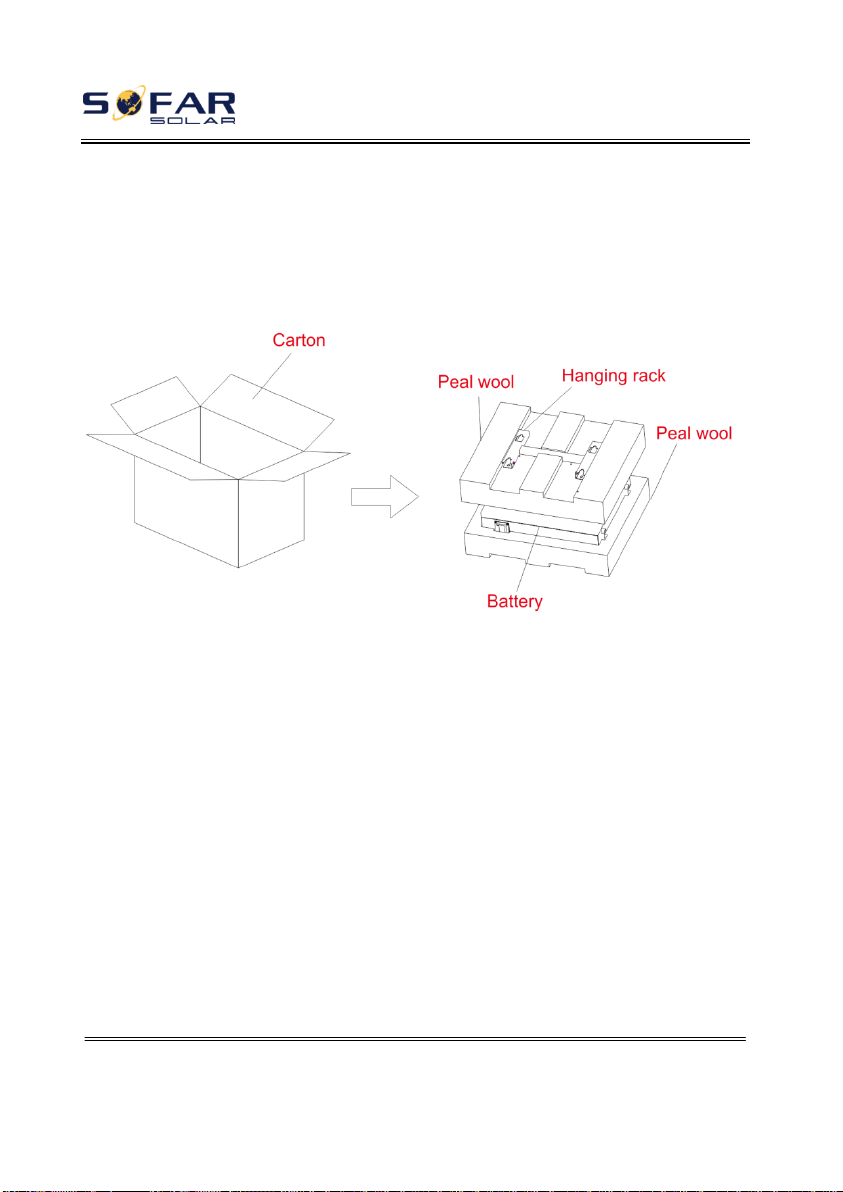

6.1.1 Checking Outer Packing Materials...............................................16

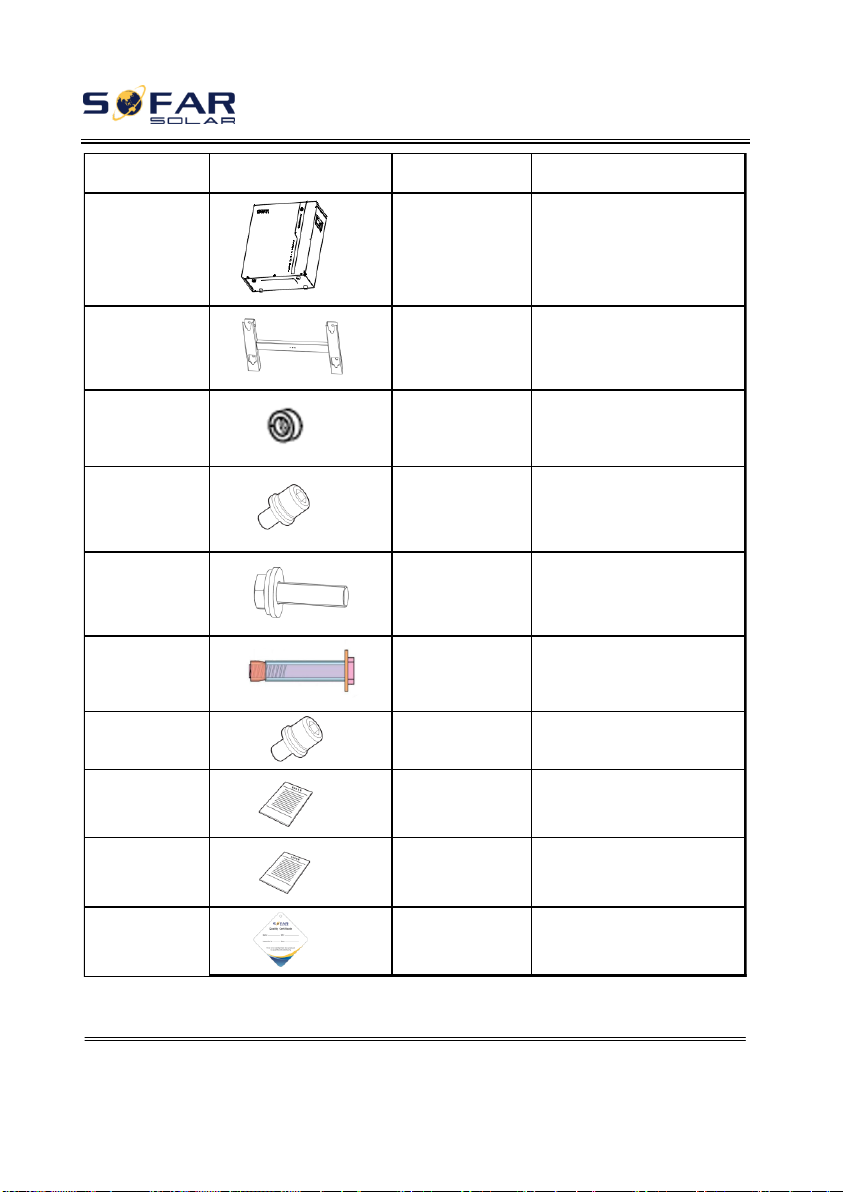

6.1.2 Checking Deliverables..................................................................16
6.2 Tools........................................................................................................22
6.3 Installation Requirements........................................................................22
6.3.1 Installation Environment Requirements .......................................22

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
II
6.3.2 Installation Carrier Requirements.................................................23
6.4 Installation Instructions ...........................................................................24
6.4.1 Dimensions...................................................................................24
6.4.2 Installation Step............................................................................26
6.5 Electrical Connection ..............................................................................29
6.5.1 Electrical Connection Process ......................................................29
6.5.2 Wiring Step...................................................................................29
6.5.3 Parallel System .............................................................................32
7 Cleaning and Maintenance .................................................................................38
7.1 Cleaning...................................................................................................38
7.2 Maintenance ............................................................................................38
7.2.1 Recharge Requirements During Normal Storage..........................38
7.2.2 Recharge Requirements When Over Discharged..........................39
7.2.3 Replacement or Expand capacity..................................................39
7.2.4 Emergency....................................................................................40

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
1
1General Information
This manual introduces AMASSTORE GTX5000-PRO LFP Battery Product from
SOFAR. Please read this manual before you use the battery.
Any confusion, please contact SOFAR immediately for advice and clarification.
1.1 Validity
This user manual is applicable to AMASSTORE GTX5000-PRO.
This user manual contains AMASSTORE GTX5000-PRO product information,
usage guidance, safety information,installation guide and details on common
operating issues and subsequent corrective actions.
1.2 Intended Use
AMASSTORE GTX5000-PRO is an energy storage unit that is designed to be
used in residential on-grid applications with the capability for short-term backup.
Notes regarding intended use:
AMASSTORE GTX5000-PRO is not suitable for supporting life-sustaining

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
2
medical devices.
This product is intended for use only in accordance with the information provided
in the enclosed documentation and with the locally applicable standards and
regulations. Any other application may cause personal injury or property damage.
The illustrations in this manual are meant only to help explain system
configuration concepts, includes usage guidance, safety precautions, and common
operating issues and subsequent corrective actions.
Alterations to the product, e.g. changes or modifications, are only permitted with
the express written permission of SOFAR. Unauthorized alterations will void
warranty claims. SOFAR shall not be held liable for any damage caused by such
changes. Any use of the product other than that described in the Intended Use
section does not qualify as appropriate. The enclosed documentation is an integral
part of this product. Keep the documentation in a convenient place for future
reference and observe all instructions contained therein. The type label (see
Section 1.3) must remain attached to the product.
Please contact SOFAR or local after-service providers within 1 week once the user
decides to cease using their SOFAR Battery products.

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
3

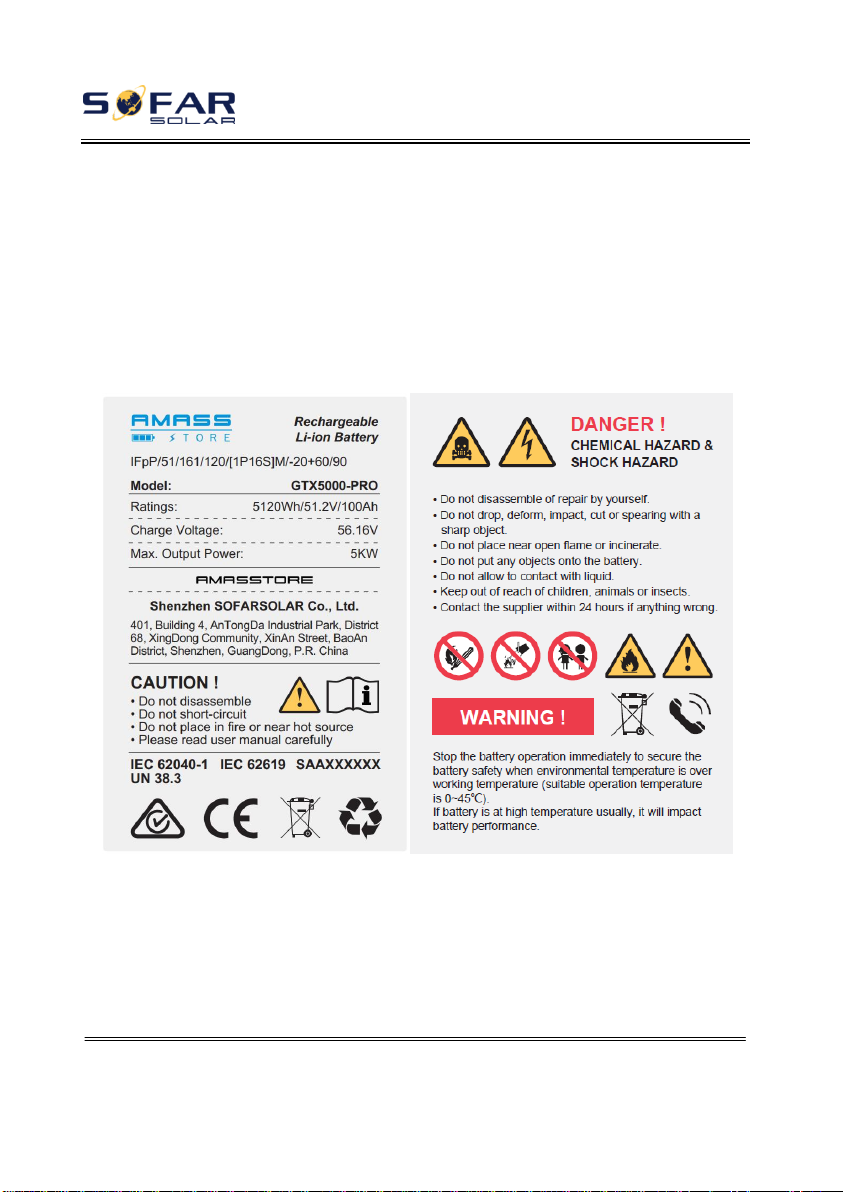

1.3 Identifying The Product
The type labels were attached on the product, which contain the product
identification information. For safe usage, the user must be well-informed of the
contents in the type labels.
The type labels include:

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
4
2Safety
This section contains safety information that must be observed at all times when
working on or with batteries. To prevent personal injury or property damage and
to ensure long-term operation of the batteries, read this section carefully and
observe all safety information at all times.
WARNING
Environmental Requirement
 Do not expose the battery to temperature above 50℃
 Do not place the battery near any heat sources
 Do not expose the battery to moisture or liquids
 Do not expose the battery to corrosive gases or liquids
 Do not expose the battery to direct sunlight for extended periods of time
 Do not allow the battery power terminals to touch conductive objects such as
wires
 Place battery in secure location away from children and animals
Operation Precautions

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
5
 Do not disassemble the battery
 Do not touch the battery pack with wet hands
 Do not crush, drop or puncture the battery
 Do not reverse the polarity or connect in series
 Do not short circuit the terminals, remove all jewelry items that could product a
short circuit before installation and handling
 Always dispose of the product according to local safety regulations
 Store and recharge battery in a manner in accordance with this user manual
 Ensure reliable grounding
 Disconnect battery from power/load and then power off battery before
installation and maintenance
 When storing or handing, do not stack up batteries when outside protective
package
 Packaged batteries should not be stacked more than specified number
stipulated on the package
 Continued operation of a damaged battery can result in dangerous situation that
may cause severe injury due to electrical shock.

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
6
3Technical Data
Basic Parameters
Specification
Battery Type
LiFePO4，Lithium Iron Phosphate
Nominal Capacity（Ah）
100AH
Nominal Voltage（V）
51.2Vdc
Total Energy
5120Wh
Usable Energy(90% DOD)
4600Wh
Charge Voltage（V）
55.68~56.16Vdc
Discharge Voltage（V）
45.6-56.16Vdc
Nominal Charge Current(A)
50A
Nominal Charge Power(W)
2560W
MAX. Charge Current(A)
100A
MAX Charge Power(W)
5000W
Nominal Discharge Current(A)
50A
Nominal Discharge Power(W)
2560W
Max. Discharge Current(A)
100A
Max. Discharge Power(W)
5000W
Short Current(A)
350A
Communication
RS232、RS485、CAN
Working Temperature
0℃~ 55℃
Storage Temperature
≤25℃，12 months;
≤35℃，6 months;
≤45℃，3 months
Operating humidity
≤95%RH
Storage humidity
≤95%RH

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
7
Max.Operating Altitude
≤2000m
Scalable
Suggest up to 4
Enclosure Protection Rating
IP20
Net Weight(Kg)
47Kg
Dimension（W * H * D mm）
480mm * 606mm *171.5 mm
Certification
IEC62619、UN38.3、IEC62040-1、SAA etc.
Cycle Life
6000 Cycles @ 80%DOD/ 25℃/ 0.5C，60% EOL
Complied Standards
IEC62619、UN38.3、IEC62040-1、SAA
Note:Operating currentderatingaccording to cell voltage and battery temperature.

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
8
4Technical Items
No.
Terms
Comment
1
Discharge
Battery output power for load
2
Charge
To put electricity into battery by charger
3
Full charge
Battery had been full charged, SOC is 100%.
4
Standby
Ready for charging or discharging
5
Shutdown
Power off
6
SOC
State of Charge(Useable capacity)
7
Battery voltage
The voltage between B+/B-
8
Cell voltage
Single cell voltage
9
Pack voltage
The voltage between P+/P-
10
Alarm
Indicate that the battery is in abnormal status
11
Protect
Battery stops charging or discharging and is
recoverable
12
Fault
Battery or BMS is broken, need to be replaced
13
Over discharged
Battery is lack of electricity, and needs to be
recharged in time

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
9
5Product Overview
5.1 Brief Introduction
Product overview
AMASSTORE GTX5000-PRO is a battery system with an operating voltage
range between 45.6~56.16V. It is utilized in household energy storage applications
and works together with a low-voltage PCS to realize the goal of energy storage
for the home.
AMASSTORE GTX5000-PRO has built-in BMS (battery management system),
which can manage and monitor cells information including voltage, current and

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
10
temperature. What’s more, BMS can balance cells chargingto extend cycle
life.BMShas protection functions including over-discharge, over-charge,
over-current and high/low temperature; the system can automatically manage
charge state, discharge state and balance state.
Multiple batteries can connected in parallel to expand capacity and powerfor
larger capacity and longer power supporting duration requirements,
AMASSTORE GTX5000-PRO support up to 4 parallel operation.
5.2 Interface Introduction (Front Side)
No.
Items
1
Start Button
Status Indicators
2
Battery Level Indicator
The maximum charge current supplied by all compatible inverters is 100A. The combined output of the battery
system (when 2-4 batteries are connected in parallel) is also restricted to less than 100A.

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
11
5.2.1Start Button
Start button integrated LED status Indicators, to show Battery running status or
warning status.
1、Press start button more than 3s and then release the button, LED will lights
from L7 to L1, and then enters to automatic coding, all LED lights flash and L7 is
shown as purple. After the automatic coding, L1 to L6 shows the normal capacity,
and L7 shows the running status:
L7: Blue, long lighting when charging and flash when discharging;
L7: Red, long bright if equipment failure orprotected.
2、In parallel system, connect the parallel communication wiring according to
section 5.3.1, then long press the start buttonoftheMaster PACK, after normal
startup, the battery system will automatically encode and assign ID to each
parallel PACK, and then the parallel system will run normally.
3、Press start button of Master PACK more than 3s and then release the button,
LED will lights from L1 to L7 to shut down the battery module. In parallel system,
the master pack will shut down after all slave packs shut down.

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
12
5.2.2LED IndicatorDefinition
L1 to L6: Blue, show the battery level, each light indicate 16.67% SOC.
L7: Blue or Red, show battery running status, blue is normal, red is abnormal.
LED Indicators Instructions
Charging Battery Level Indicators Instructions
RUN ALM
L6 L5 L4 L3 L2 L1
OFF OFF OFF OFF OFF OFF OFF OFF All OFF
Flash 1 OFF Indicates Standby
Normal Light OFF
The highest capacity indicator LED flashes
(flash 2), others lighting
Full Charged Light OFF Light Light Light Light Light Light Turn to standby status when charger off
Protection OFF Light OFF OFF OFF OFF OFF OFF Stop charging
Normal Flash 3 OFF
UVP OFF OFF OFF OFF OFF OFF OFF OFF Stop discharging
Protection OFF Light OFF OFF OFF OFF OFF OFF Stop discharging
OFF Light OFF OFF OFF OFF OFF OFF Stop Charging and Discharging
Charging
According to the battery level
Discharging
According to the battery level
Fault
Battery Level Indicator
Status
L7
Descriptions
Shut down
Standby
According to the battery level
0～17% OFF OFF OFF OFF OFF Flash2
18～33% OFF OFF OFF OFF Flash2 Light
34～50% OFF OFF OFF Flash 2 Light Light
51～66% OFF OFF Flash 2 Light Light Light
67～83% OFF Flash2 Light Light Light Light
84～100% Flash2 Light Light Light Light Light
L1
Status
Charging
Battery Level Indicators
L7
L6
L5
L4
L3
L2
Battery Level
（%）
Light

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
13
Discharging Battery Level Indicators Instructions
Note: The flashing instructions, flash 1 - light 0.25s / off 3.75 seconds; flash 2 -
0.5s light / 0.5s off; flash 3 - 0.5s light / 1.5s off.
5.3 Interface Introduction (Left Side)
No.
Items
No.
Items
1
Power Terminals
4
Link Port Out
2
CAN/RS485
5
RS232
3
Link Port In
6
Grounding
0～17% OFF OFF OFF OFF OFF Light
18～33% OFF OFF OFF OFF Light Light
34～50% OFF OFF OFF Light Light Light
51～66% OFF OFF Light Light Light Light
67～83% OFF Light Light Light Light Light
84～100% Light Light Light Light Light Light
L2
L1
Battery Level
（%）
Flash 3
Status
Discharging
Battery Level Indicators
L7
L6
L5
L4
L3

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
14
5.3.1Link Port andAutomatic Coding Function
Link Port In / Link Port Out Communicationfollow RS485 protocol, for
communicationbetween multiple parallel batteries.
After confirming the wiring is correct(refer to section 5.3.1), long press the startup
button of theMaster PACK,after normal startup, the parallel battery system will
automatically code and assign ID to each parallel PACK, and then the parallel
system will run normally(refer to section 5.2.1).
5.3.2CAN / RS485 Port
CAN / RS485 Communication Terminal(RJ45 port) follow CAN protocol / RS485
protocol, connect to communication port.
1、BMS controls the charging current/charging voltage or discharge
current/discharge cut-off voltage of the PCS through CAN communication
according to the battery voltage and battery temperature.
2、If the battery capacity is less than 8%, BMS controls the PCS to make
compulsory recharge through the CAN communication to avoid the damage
of the battery due to deep discharge.
3、If SOC was less than 97% for one consecutive month, BMS controlled PCS

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
15
by CAN communication to full charge the battery to corrected SOC and fully
charged capacity.
Note: Through the Sofar Solar PCS, skilled peoples can set the fully charged
time period.
PIN
Definition
Pin 1、Pin 8
RS485-B （to PCS, reserved）
Pin 2、Pin 7
RS485-A （to PCS, reserved）
Pin 3
NC
Pin 4
CANH（to PCS）
Pin 5
CANL（to PCS）
Pin6
GND
5.3.3RS232 Port
RS232 CommunicationTerminal(RJ45 port) follow RS232 protocol, for
manufacturer orprofessional engineer to debug or service.
PIN
Definition
Pin 8、Pin 1
GND
Pin 2、Pin 7
RS232_TX
Pin 3、Pin 6
RS232_RX
Pin 4、Pin 5
NC

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
16
6Installation Guide
Start Check before
installation Prepare installation tools Determine the installation position
Moving the battery
PACK
Installation the
battery pack
Electrical
Connection
END
Installation flowchart
6.1 Checking Before Installation
6.1.1Checking Outer Packing Materials
Packing materials and components may be damaged during transportation.
Therefore, checkthe outer packing materials before installing the battery.
Checking the surface of packingmaterials for damage, such as holes and cracks. If
any damage is found, do not unpack thebattery and contact the dealer as soon as
possible. You are advised to remove the packing materials within 24 hours before
installing the battery.
6.1.2Checking Deliverables
After unpacking the battery , check whether deliverables are intact and complete.

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
17
If anydamage is found or any component is missed, contact the dealer.
The below tableshows the components and mechanical parts that should be
delivered.

AMASSTORE GTX5000-PRO User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
18
NO. Pictures Quantity Description
11PCS Battery
21PCS Hanging rack
34PCS Fixed leg
41PCS M6*12
51PCS M6*60
64PCS
M10*60 Expansion
bolts
74PCS M6*16
81PCS Manual
91PCS Test report
10 1PCS Certificate
