Sofar solar AMASSTORE GTX5000 User manual

Shenzhen SOFARSOLAR CO., Ltd.
Lithium-Ion Storage Battery
Product Model: GTX5000
User manual
Version 1.1

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
I
Contents
1General Information....................................................................................... 1
1.1 Validity .............................................................................................. 1
1.2 Intended Use...................................................................................... 1
1.3 Identifying The Product..................................................................... 3
2Safety ............................................................................................................. 5
3Technical Data................................................................................................ 7
4Technical Items .............................................................................................. 9
5Product Overview..........................................................................................11
5.1 Brief Introduction .............................................................................11
5.2 Interface Introduction (Front Side)...................................................12
5.2.1 Start Button ..............................................................................13
5.2.2 LED Indicator Definition .........................................................14
5.3 Interface Introduction (Left Side).....................................................15
5.3.1 Wiring instructions...................................................................16
5.3.2 Link Port and Automatic Coding Function...............................18
5.3.3 CAN / RS485 Port....................................................................18
5.3.4 RS232 Port ...............................................................................19
5.3.5 Output Dry Contact Terminal...................................................20
5.3.6 Extend LCD Terminal ..............................................................20
6Installation Guide..........................................................................................23
6.1 Checking Before Installation ............................................................23
6.1.1 Checking Outer Packing Materials...........................................23
6.1.2 Checking Deliverables .............................................................24

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
II
6.2 Tools .................................................................................................26
6.3 Installation requirements ..................................................................26
6.3.1 Installation environment requirements.....................................26
6.3.2 Installation carrier requirements...............................................28
6.4 Installation Method...........................................................................28
6.5 Installation Instructions ....................................................................30
6.5.1 Dimensions...............................................................................30
6.5.2 Single Machine Installation Step..............................................31
6.5.3 Parallel Machine Installation Step............................................37
6.6 Electrical Connection........................................................................41
6.6.1 Electrical Connection Process..................................................41
6.6.2 Single machine electrical connection schematic ......................41
6.6.3 Single machine wiring step ......................................................42
6.6.4 Parallel machine electrical connection schematic diagram ......45
6.6.5 Parallel machine wiring step for suspended on wall ................46
6.6.6 Parallel machine wiring step for pedestal mounted..................53
7Cleaning and Maintenance............................................................................61
7.1 Cleaning............................................................................................61
7.2 Maintenance......................................................................................61
7.2.1 Recharge Requirements During Normal Storage .....................61
7.2.2 Recharge Requirements When Over Discharged (90%DOD
with new battery)...................................................................................62
8Compatible Inverter List ...............................................................................63
9Common Issues and Solutions ......................................................................65
9.1 Common Issues and Solutions..........................................................65
9.2 Emergency........................................................................................67

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
1
1General Information
This manual introduces AMASS GTX5000 LFP Battery Product from SOFAR.
Please read this manual before you use the battery.
Any confusion, please contact SOFAR immediately for advice and clarification.
1.1 Validity
This user manual is applicable to AMASS GTX5000.
This user manual contains AMASS GTX5000 product information, usage
guidance, safety information, installation guide and details on common operating
issues and subsequent corrective actions.
1.2 Intended Use
AMASS GTX5000 is an energy storage unit that is designed to be used in
residential on-grid applications with the capability for short-term backup.
Notes regarding intended use:
AMASS GTX5000 is not suitable for supporting life-sustaining medical devices.

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
2
This product is intended for use only in accordance with the information provided
in the enclosed documentation and with the locally applicable standards and
regulations. Any other application may cause personal injury or property damage.
The illustrations in this manual are meant only to help explain system
configuration concepts, includes usage guidance, safety precautions, and common
operating issues and subsequent corrective actions.
Alterations to the product, e.g. changes or modifications, are only permitted with
the express written permission of SOFAR. Unauthorized alterations will void
warranty claims. SOFAR shall not be held liable for any damage caused by such
changes. Any use of the product other than that described in the Intended Use
section does not qualify as appropriate. The enclosed documentation is an integral
part of this product. Keep the documentation in a convenient place for future
reference and observe all instructions contained therein. The type label (see
Section 1.3) must remain attached to the product.
AMASS GTX5000 series products must work with compatible inverters which are
listed in the “Compatible Inverter List” section of this manual.
Please contact SOFAR or local after-service providers within 1 week once the user
decides to cease using their SOFAR Battery products.

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
3
1.3 Identifying The Product
The type labels were attached on the product, which contain the product
identification information. For safe usage, the user must be well-informed of the
contents in the type labels.
The type labels include:

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
4

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
5

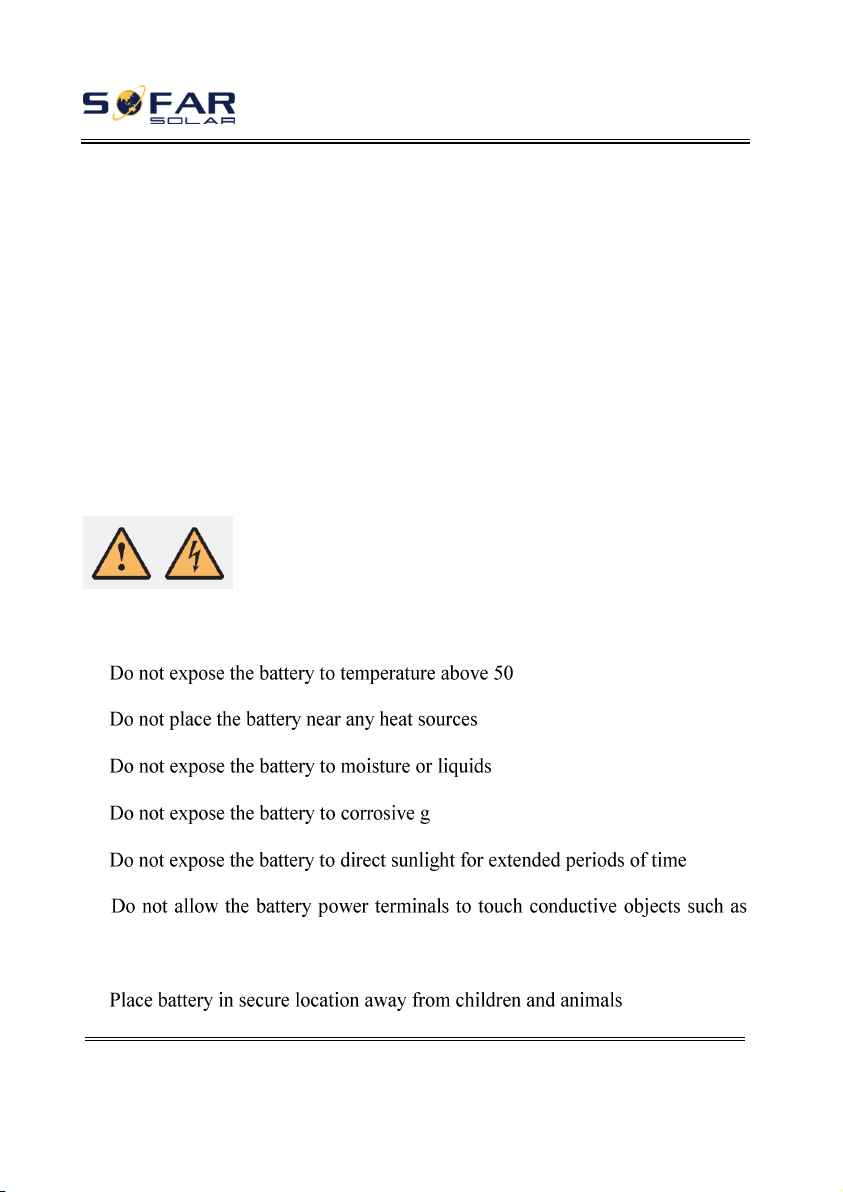

2Safety
This section contains safety information that must be observed at all times when
working on or with batteries. To prevent personal injury or property damage and
to ensure long-term operation of the batteries, read this section carefully and
observe all safety information at all times.
WARNING
Environmental Requirement
℃
ases or liquids
wires

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
6
Operation Precautions
ld product a
short circuit before installation and handling
rom power/load and then power off battery before
installation and maintenance
package
stipulated on the package
may cause severe injury due to electrical shock.

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
7
3Technical Data
Basic Parameters
Specification
Nominal Capacity（Ah）
100AH
Nominal Voltage（V）
51.2Vdc
Total Energy
5120Wh
Usable Energy(90% DOD)
4600Wh
Charge Voltage（V）
55.68~56.16Vdc
Discharge Voltage（V）
45.6-56.16Vdc
Nominal Charge Current(A)
50A
MAX. Charge Current(A)
50A
Nominal Discharge Current(A)
50A
Max. Discharge Current(A)
75A（3.5kw）
Communication
RS232、RS485、CAN
Working Temperature
-20℃~ 60℃
Storage Temperature
≤25℃，12 months;
≤35℃，6 months;
≤45℃，3 months
Operating humidity
≤95%RH
Storage humidity
≤95%RH
Max.Operating Altitude
≤2000m
Scalable
Up to 4
Enclosure Protection Rating
IP20

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
8
Net Weight(Kg)
55Kg
Dimension（mm）
480mm*211.5mm*600mm
Certification
IEC62619、UN38.3、IEC62040-1、SAA etc.
Cycle Life
6000 Cycles @ 80% DOD / 25℃/ 0.5C，60% EOL
Note: Operating current derating according to cell voltage and battery
temperature.

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
9
4Technical Items
No.
Terms
Comment
1
Discharge
Battery output power for load
2
Charge
To put electricity into battery by charger
3
Full charge
Battery had been full charged, SOC is 100%.
4
Standby
Ready for charging or discharging
5
Shutdown
Power off
6
SOC
State of Charge(Useable capacity)
7
Battery voltage
The voltage between B+/B-
8
Cell voltage
Single cell voltage
9
Pack voltage
The voltage between P+/P-
10
Alarm
Indicate that the battery is in abnormal status
11
Protect
Battery stops charging or discharging and is
recoverable
12
Fault
Battery or BMS is broken, need to be replaced
13
Over discharged
Battery is lack of electricity, and needs to be
recharged in time

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
10

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
11
5Product Overview
5.1 Brief Introduction
Product overview
AMASS GTX5000 is a battery system with an operating voltage range between
45.6~56.16V. It is utilized in household energy storage applications and works
together with a low-voltage inverter to realize the goal of energy storage for the
home.
AMASS GTX5000 has built-in BMS (battery management system), which can
manage and monitor cells information including voltage, current and temperature.

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
12
What’s more, BMS can balance cells charging to extend cycle life. BMS has
protection functions including over-discharge, over-charge, over-current and
high/low temperature; the system can automatically manage charge state,
discharge state and balance state.
Multiple batteries can connected in parallel to expand capacity and power for
larger capacity and longer power supporting duration requirements, AMASS
GTX5000 support up to 4 parallel operation.
5.2 Interface Introduction (Front Side)
No.
Items
1
Start Button
Status Indicators
2
Battery Level Indicator

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
13
5.2.1 Start Button
Start button integrated LED status Indicators, to show Battery running status or
warning status.
1、Press start button more than 3s and then release the button, LED will lights
from L7 to L1, and then enters to automatic coding, all LED lights flash and L7 is
shown as purple. After the automatic coding, L1 to L6 shows the normal capacity,
and L7 shows the running status:
L7: Blue, long lighting when charging and flash when discharging;
L7: Red, long bright if equipment failure or protected.
2、In parallel system, connect the parallel communication wiring according to
section 5.3.1, then long press the start button of the Master PACK, after normal
startup, the battery system will automatically encode and assign ID to each
parallel PACK, and then the parallel system will run normally.
3、Press start button of Master PACK more than 3s and then release the button,
LED will lights from L1 to L7 to shut down the battery module. In parallel system,
the master pack will shut down after all slave packs shut down.

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
14
5.2.2 LED Indicator Definition
L1 to L6: Blue, show the battery level, each light indicate 16.67% SOC.
L7: Blue or Red, show battery running status, blue is normal, red is abnormal.
LED Indicators Instructions
Charging Battery Level Indicators Instructions
RUN ALM
L6 L5 L4 L3 L2 L1
OFF OFF OFF OFF OFF OFF OFF OFF All OFF
Flash 1 OFF Indicates Standby
Normal Light OFF
The highest capacity indicator LED flashes
(flash 2), others lighting
Full Charged Light OFF Light Light Light Light Light Light Turn to standby status when charger off
Protection OFF Light OFF OFF OFF OFF OFF OFF Stop charging
Normal Flash 3 OFF
UVP OFF OFF OFF OFF OFF OFF OFF OFF Stop discharging
Protection OFF Light OFF OFF OFF OFF OFF OFF Stop discharging
OFF Light OFF OFF OFF OFF OFF OFF Stop Charging and Discharging
Charging
According to the battery level
Discharging
According to the battery level
Fault
Battery Level Indicator
Status
L7
Descriptions
Shut down
Standby
According to the battery level
0～17% OFF OFF OFF OFF OFF Flash2
18～33% OFF OFF OFF OFF Flash 2 Light
34～50% OFF OFF OFF Flash 2 Light Light
51～66% OFF OFF Flash 2 Light Light Light
67～83% OFF Flash2 Light Light Light Light
84～100% Flash 2 Light Light Light Light Light
L1
Status
Charging
Battery Level Indicators
L7
L6
L5
L4
L3
L2
Battery Level
（%）
Light

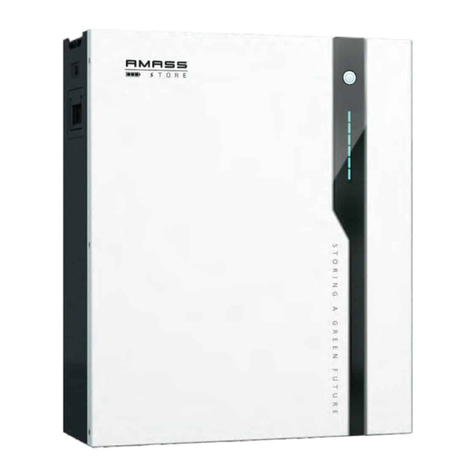

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
15
Discharging Battery Level Indicators Instructions
Note: The flashing instructions, flash 1 - light 0.25s / off 3.75 seconds; flash 2 -
0.5s light / 0.5s off; flash 3 - 0.5s light / 1.5s off.
5.3 Interface Introduction (Left Side)
No.
Items
No.
Items
1
Power Terminals
5
Link Port In
2
Dry Contact Terminal
6
Link Port Out
3
Extend LCD Interface
7
RS232
4
Grounding
8
CAN/RS485
0～17% OFF OFF OFF OFF OFF Light
18～33% OFF OFF OFF OFF Light Light
34～50% OFF OFF OFF Light Light Light
51～66% OFF OFF Light Light Light Light
67～83% OFF Light Light Light Light Light
84～100% Light Light Light Light Light Light
L2
L1
Battery Level
（%）
Flash 3
Status
Discharging
Battery Level Indicators
L7
L6
L5
L4
L3

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
16
5.3.1 Wiring instructions
Wiring Diagram
1、Power cable wiring instructions
Power cable terminals: there are two pair of power terminals, each pair with same
function.
Single module: Any of the terminals of each pair can be used.
Parallel system:
NOTE: P+ must connect to master pack, and P- must connect to last slave
pack.
Master pack: one of the P+ terminals connect to PCS, the other one paralleling to
another battery for capacity expanding.

AMASS GTX5000 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
17
Last slave pack: one of the P- terminals connect to equipment, the other one
paralleling to another battery for capacity expanding.
Other slave pack: for each pair terminals, paralleling to another battery for
capacity expanding.
2、Parallel communication cable wiring instructions
Link Port In / Link Port Out communication terminal (RJ45 port) is integrated
with the signal for automatic coding function.
NOTE: The connection order of Port In and Port Out should not be wrong,
otherwise it will lead to the automatic coding failed.
It is required that the Port In of the master PACK do not connected to the
communication line, and the parallel communication wire is connected to the Port
In of the first slave PACK from the Port Out of the master PACK. Then the Port
Out of the first slave PACK is connected to the Port In of the second slave PACK.
The Port Out of the second slave PACK is then connected to the Port In of the
third slave PACK. The parallel system support up to 4 parallel operation, and Port
Out of the last slave PACK do not connected to the communication line.
3、PCS communication cable wiring instructions
The CAN communication port of the Master pack is connected to PCS.
