Solas ONE6 FS User manual

2
AVERTISSEMENT: Assurez-vous de bien suivre
les instructions données dans cette notice pour
réduire au minimum le risque d’incindie ou
d’explosion ou pour éviter tout dommage
matériel, toute blessure ou la mort.
- Ne pas entreposer ni utilizer d’essence ni
d’autres vapeurs ou liquides inflammables dans
le voisinage de cet appareil ou de tout autre
appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE
GAZ:
 Ne pas tenter d’allumer d’appareil.
 Ne touchez à aucan interrupteur. Ne pas
vous servir des téléphones se trouvant
dans le bâtiment où vous trouvez.
 Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivezles instructions du fournisseur.
 Si vous ne pouvez rejoindre le fournisseur
de gaz, appelez le service des incindie.
- L’installation et l’entretien doivent être assurés
par un installateur ou un service d’entretien
qualifié ou par le fournisseur de gaz.
Cet appareil peut être installé dans une maison
préfabriquée (mobile) déjà installée à demeure
si kes règlements locaux le permettent.
Cet appareil doit être uniquement avec las type
de gaz indiqué sur la plaque signalétique. Cet
appareil ne peut être converti à d’autres gaz,
sauf si une trousse de conversion est utilisée.
Ne pas utiliser cet appareils’il a été plongé,
meme partiellement, dans l’eau. Appeler un
technician qualifié pour inspecter l’appareail et
remplacer toute partie du système de commande
et toute commande qui a été plongée dans /’eau.
Attention. Au moment de l’entretien des com-
mandes, étiquetez tous les fils avant de les dé-
brancher. Des erreurs de la câblage peuvent en-
traîner un fonctionnement inadequate et dan-
gereux.
S’assurer que l’appareil fonctionne adéquate-
ment une fois l’entretien terminé.
AVERTISSEMENT. Ne pas utiliser l’appareil
si le panneau frontal en verre n’est pas en place,
est craqué ou brisé. Confiez le remplacement du
panneau à un technician agree.
INSTALLATEUR: Laissez cette notice avec l’appareil.
COMSOMMATEUR: Conservez cette notice pour consultation ultérieur.

3
IMPORTANT SAFETY INFORMATION 4
SPECIFICATIONS 5
INSTALLATION REQUIREMENTS 6
MASSACHUSETTS REQUIREMENTS 7
VENTING 8
ASSEMBLY & INSTALLATION 15
GAS CONNECTION 22
LIGHTING AND OPERATION 23
MAXITROL CONTROL SYSTEM 25
MAINTENANCE 31
MAINTENANCE LOG FORM 33
REPLACEMENT PARTS LIST 34
CONTROL SCHEMATIC 35
INSTALLATION RECORD FORM 36
WARRANTY INFORMATION 37
TABLE OF CONTENTS
WE STRONGLY SUGGEST THAT YOU READ THIS MANUAL THOROUGHLY BEFORE
BEGININNG THE INSTALLATION OF THE FREESTANDING DIRECT VENT GAS
STOVE. ALTHOUGH THE BASIC REQUIREMENTS FOR THE INSTALLATION OF ALL DI-
RECT VENT GAS STOVES ARE SIMILAR, EACH SPECIFIC PRODUCT HAS ITS OWN
UNIQUE SET-UP AND INSTALLATION REQUIREMENTS THAT MUST BE FOLLOWED EX-
ACTLY. PLAN YOUR INSTALLATION IN ADVANCE BY CAREFULLY REVIEWING ALL
THE INFORMATION CONTAINED IN THIS MANUAL.

4
IMPORTANT SAFETY INFORMATION
The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1.
A manufactured home (USA only) or mobile home OEM installation must conform with the Manufactured
Home Construction and Safety Standard, Title 24 CFR, Part 3280 or when such a standard is not applica-
ble, the Standard for Manufactured Home Installations, ANSI/BCSBCS A225.1, or Standard for Gas
Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4.
The appliance and its appliance main gas valve must be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).
The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5
kPa).
The installation must provide for adequate ventilation air to the appliance.
This gas appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance.
The appliance, when installed, must be electrically grounded in accordance with local codes, or, in the
absence of local codes, with the National Electrical Code ANSI/NFPA 70, or the Canadian Electrical Code,
CSA C22. 1.
When the appliance is installed directly on carpeting or non-ceramic tile or other combustible material other
than wood flooring, the appliance shall be installed on a metal or wood panel extending the full width and depth
of the appliance. A commercially available hearth pad meets this requirement.
The appliance area must be kept clear and free from combustible materials, gasoline and other flammable vapors
and liquids.
The flow of combustion and ventilation air must not be obstructed.
Do not use this appliance if any part has been under water. Immediately call a qualifed service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid
burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to accidental contact burns. A physical barrier is recommended if
there are at-risk individuals in the house. To restrict access to a fireplace or a stove, install an adjustable safety
gate to keep toddlers, young children and other at-risk individuals out of the room and away from hot surfaces.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and
shall be installed for the protection of children and other at-risk individuals.
If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance.
Clothing or other flammable material should not be placed on or near the appliance.
Any screen or guard removed for servicing an appliance must be replaced prior to operating the appliance.
Installation and repair should be done by a qualified service person. The appliance should be inspected before
use and at least annually by a professional service person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. It is imperative that the control compartments, burners and
circulating air passageways of the appliance be kept clean.
WARNING: Do not operate the appliance with the glass front removed, cracked or broken.
Replacement of the glass should be done by a licensed or qualified service person.
WARNING: Use only glass assembly, P/N 16-510 which includes the glass panel, frame and gasket.
Do not use substitute materials. Do not strike or slam the glass front. Do not use
abrasive cleaners. Do not clean when hot.
CAUTION: DO NOT OPERATE WITH BROKEN GLASS

5
SPECIFICATIONS
INPUT Natural Gas Propane (LP)
Input Rating-Btu/hr 13,500 13,500
Min. Input-Btu/hr 7,500 7,500
Orifice-DMS #53 #58
GAS SUPPLY
Manifold Pressure 4.8”w.c. / 1.2kPa 10.0”w.c. / 2.5kPa
Min. Supply Pressure 5.5”w.c. / 1.4kPa 11.0”w.c. / 2.8kPa
Max. Supply Pressure 10.0”w.c. / 2.5kPa 13.0”w.c. / 3.3kPa
It is recommended that the pilot flame be turned off if the appliance will not be in use for an extended
period of time.
This appliance is equipped for use with the fuel type indicated on the rating plate.
This appliance has been certified by OMNI-Test Laboratories, Inc. to ANSI Z21.88-2014/CSA 2.33-2014
Vented Gas Fireplace Heaters and CAN/CGA-2.17-M91 (R2009), Gas-Fired Appliances for Use At High
Altitudes.
The Freestanding Stove is approved for installation at elevations up to 2000 feet in the U.S. and
1370 meters (4500 feet) in Canada without change. If your installation is at an elevation greater than these,
consult with the local authority having jurisdiction for gas product installations to determine their specific
requirements for high altitude installations.
Overall Dimensions

6
INSTALLATION REQUIREMENTS
MINIMUM CLEARANCES TO COMBUSTIBLE CONSTRUCTION
Stove to L. Side Wall (A) 1” (25mm) Stove top to Ceiling (E) 19” (483mm)
Stove to R. Side Wall (B) 1” (25mm) Stove Top To 12” Mantel (F) 7” (178mm)
Stove to Rear Wall (C) 1” (25mm) Vent Pipe to Adjacent Materials 1.5” (38mm)
Stove to Corner Wall (D) 1” (25mm)
When the appliance is installed directly on carpeting or non-ceramic tile or other combustible material oth-
er than wood flooring, the appliance shall be installed on a metal or wood panel extending the full width
and depth of the appliance. A commercially available hearth pad meets this requirement.
Several issues must be addressed when selecting a suitable location for your Freestanding Stove.
The minimum clearances to combustible construction are listed below. In addition, access to the gas supply
must be considered. The location of the stove will also affect the venting requirements and you must be
certain the location will allow compliance with the venting requirements shown on page 8. You must also
insure that your installation provides adequate accessibility clearance for servicing and proper opera-
tion.Installation and repair should be done by a qualified service person. The appliance should be inspected
before use and at least annually by a professional service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc. It is imperative that the control compartment,
burners and circulating air passageways of the appliance be kept clean.
CORNER
WALLS
A: Left Side Wall -1” (25mm)
B: Right Side Wall -1” (25mm)
C: Rear Wall -1” (25mm)
D: 1” (25mm)
E: Ceiling - 19” (483mm)
F: to Mantel - 5” (127mm)
G: Mantel Dept Max - 12” (305mm)
CEILING MANTEL
AB
D
C
D
EG
F

7
INSTALLATION REQUIREMENTS
The gas fireplace is shipped with a plugged 3/8” Stainless Steel Flex Connector exiting the bottom rear of
the stove. The gas supply piping should have a separate gas shutoff valve and a 1/8” NPT plugged tapping
upstream of the valve. The stove and its main control valve must be disconnected from the gas supply pip-
ing system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa). The
stove must be isolated from the gas supply piping system by closing the main control valve during any
pressure testing of the gas supply system at test pressures equal to or less than 1/2 psi (3.5kPa) After the gas
supply has been connected, use a commercial gas leak detector or apply a soapy water solution to all fit-
tings to check for gas leaks. Never use a flame to test for leaks.
REQUIREMENTS FOR THE COMMONWEALTH OF MASSACHUSETTS
This product must be installed by a licensed plumber or gas fitter when installed within the Com-
monwealth of Massachusetts. If this appliance is installed in a dwelling, building or structure used in
whole or in part for residential purposes and the installation includes a horizontal vent termination
that is less than seven (7) feet above the finished grade in the area of the venting, including but not
limited to decks and porches, a hard-wired carbon monoxide detector with an alarm and battery
back-up must be installed on the floor level of the dwelling, building or structure where the appli-
ance is to be installed.
Additionally, a hard-wired or battery operated carbon monoxide detector with an alarm must be in-
stalled on each additional level of the dwelling, building or structure served by the appliance. It shall
be the responsibility of the property owner to secure the services of qualified licensed professionals
for the installation of hard-wired carbon monoxide detectors.
In the event that the horizontally vented appliance is installed in a crawl space or attic, the hard-
wired carbon monoxide detector with alarm and battery back-up may be installed on the next adja-
cent floor level.
In the event that this requirement cannot be met at the time of completion of the installation of the
appliance, the owner shall have a period of thirty (30) days to comply with the requirement. Howev-
er, during said thirty (30) day period, a battery operated carbon monoxide detector with alarm must
be installed.
Each carbon monoxide detector as required in accordance with the above provisions must comply
with NFPA 720 and be ANSI/UL 2034 and IAS certified.
In addition when the vent termination is less than seven (7) feet above finished grade a metal or plas-
tic identification plate must be permanently mounted to the exterior of the building at a minimum
height of eight (8) feet above grade directly in line with the exhaust vent terminal. The sign shall
read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
A COPY OF THESE INSTRUCTIONS PLUS ALL VENTING INSTRUCTIONS WHICH IN-
CLUDE PARTS LISTS, AND/OR ALL VENTING DESIGN INSTRUCTIONS MUST REMAIN
WITH THE STOVE AT THE COMPLETION OF THE INSTALLATION.
ATTENTION INSTALLERS: Mark below which venting system was used in the installation. These
instructions must remain with the Installation & Operation Manual.
Simpson DuraVent GS/PRO® Selkirk Direct-Temp® Security Secure Vent™
AmeriVent Direct™Metal Fab Direct Vent ICC Direct Vent

8
VENTING
The Freestanding Direct Vent Gas Stove has been tested and listed for installation with 4” X 6
5/8” Simpson DuraVent GS/Pro®, Selkirk Direct-Temp®, Security Secure Vent™, AmeriVent Direct™, Metal
Fab Direct Vent and ICC EXCEL Direct venting components. Although you may use the pipe components
(straight pipe, elbows, etc.) from any of the listed manufacturers, you may only use the vent terminations
(caps) listed in the chart on page 8. For installations where a snorkel is needed, please note that only three
snorkels are approved for use. Please plan your installation accordingly.
For all specific venting installation requirements, follow the installation instructions included by the venting
manufacturer with the venting system components you have chosen.
Please note:
 For venting configurations that include no vertical rise, a total horizontal vent run of up to 30 inches
(and including one 45° elbow) is allowed. However, if your installation has room to add a vertical pipe
section, we suggest adding at least one foot of vertical rise to the system.
 For venting configurations that include vertical rise, it is assumed that the installation will include at
least one 90° elbow. Up to three additional 90° elbows (or equivalent 45° elbows) may also be used.
The total venting may not exceed 20 feet of vertical rise and/or 10 feet horizontal run. Refer to the
venting charts starting on pages 10 & 11 for specific details while you plan your installation. Note:
The number of elbows impacts the maximum allowable horizontal vent run.
 If the stove is top vented, the venting may be terminated with either a vertical or horizontal vent cap de-
pending on the specifics of the installation. Refer to the venting charts starting on pages 9&10 for spe-
cific venting requirements and see the chart on page 8 for a list of approved vent caps before you plan
your installation.
 There should be a 1 1/2” overlap of the vent and combustion air tubes, when telescopic joints are used.
The Freestanding Stove is shipped with a custom Simpson DuraVent GS® starter section that
is specifically designed for the . Regardless of the venting brand you chose, you must use the
starter section provided . All of the venting brands listed for use with the Freestanding are
compatible with the provided starter section. For venting system installation details, refer to the instruc-
tions provided with the venting system you have chosen. Each brand has specific installation require-
ments that must be followed to insure a safe and functional venting system for your stove.

9
Just as with any other vented device, vertical vent rise creates draft (negative pressure) in the firebox as the
exhaust gases heat up. If this draft becomes excessive, it can affect the performance or appearance of the fire.
The Freestanding Stove includes air and exhaust restrictors that are used to balance the draft in the
fireplace to the optimal level for installations where excessive draft might occur. The venting charts on pages
9 and 10 provide an easy means for determining whether your specific installation requires inlet air or exhaust
restrictors or both. To make the determination about whether air or exhaust restrictors are needed, a venting
chart worksheet is provided on page 11. Follow the instructions and fill in the worksheet for your particular
installation. This will allow you to determine the recommended restrictor settings for your exact installation.
Although this might appear to be a complicated process at first glance, it is really quite straight-forward and
the result will be a fire that looks and performs as intended. Several examples of worksheet calculations are
shown on page 12 to help guide you.
Please be sure to note that:
1. There are separate venting charts for Natural Gas and LP Gas. Refer to the appropriate chart for your fuel
type to determine your specific restrictor requirements. The settings in the charts have been determined
based on extensive testing.
2. Determine the total vertical vent rise and total horizontal vent run for your installation. All measurements
are made from the center of the vent opening in the back of the fireplace.
3. If your stove will not be venting directly though an outside wall to a horizontal termination or if more than
30” of horizontal vent run is required, some vertical vent rise will be required for the fireplace to function
and vent properly. Elbows will also be required for those installations. However, installations are limited
to a maximum of four 90° elbows (or 45° elbow equivalents).
4. Note: Two 45° elbows equal one 90° elbow.
5. The recommended restrictor settings in the venting charts allow up to two 90° elbows (or 45° elbow equiv-
alents) to be used without affecting the restrictor settings. Additional elbows will require that you calculate
a new equivalent horizontal run for your installation to account for the additional flow resistance caused by
the extra elbows. For the purposes of calculating the equivalent horizontal vent run, each additional 90°
elbow is equivalent to three feet of horizontal vent run. The total horizontal vent run including elbow
equivalents can not exceed 10 feet.
6. The maximum vertical vent rise can not exceed 20 feet.
7. There are two exhaust restrictors that are provided with your Solas Nua Stove . They are labeled “A” and
“B”. The A restrictor provides less exhaust restriction than B.
8. An air restrictor plate is also provided with your stove. It is a ring with bendable tabs that can be set to ad-
just the amount of restriction in the air supply system. Once the appropriate number tabs are bent open (in
accordance with the requirements for your installation), the plate is inserted between the stove and the vent
starter pipe.
USING THE VENTING CHARTS
 The location of the vent termination must meet the requirements of the current edition of ANSI Z223.1/
NFPA 54, National Fuel Gas Code or CAN B419.1, Natural Gas and Propane Installation Code and the
requirements shown on page 15 of this manual.

10
0122½ 345678910
20 B4BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 20 19 B4BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 19 18 B4BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 18 17 B4BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 17 16 B4BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 16 15 B4BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 15 14 BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 14 13 BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 13 12 BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 12 11 BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 11 10 BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 10
9BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 9 8BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 8 7BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 7 6BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 6 5BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 5 4BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 4 3BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 3 2ANU ANU ANU ANU ANU ANU ANU ANU A4A4A42 1ANU ANU ANU ANU ANU ANU ANU ANU A4A4A41 0NU NU NU NU NU NU NU NU 0
0122½ 345678910
VERTICAL RISE IN FEET
HORIZONTAL RUN IN FEET
EXHAUST RESTRICTOR
A or B
NU = NOT USED
AIR RESTRICTOR
1— 6 TABS OPEN
NU = NOT USED
KEY
VERTICAL TERMINTIONS
NOT ALLOWED
NOT ALLOWED

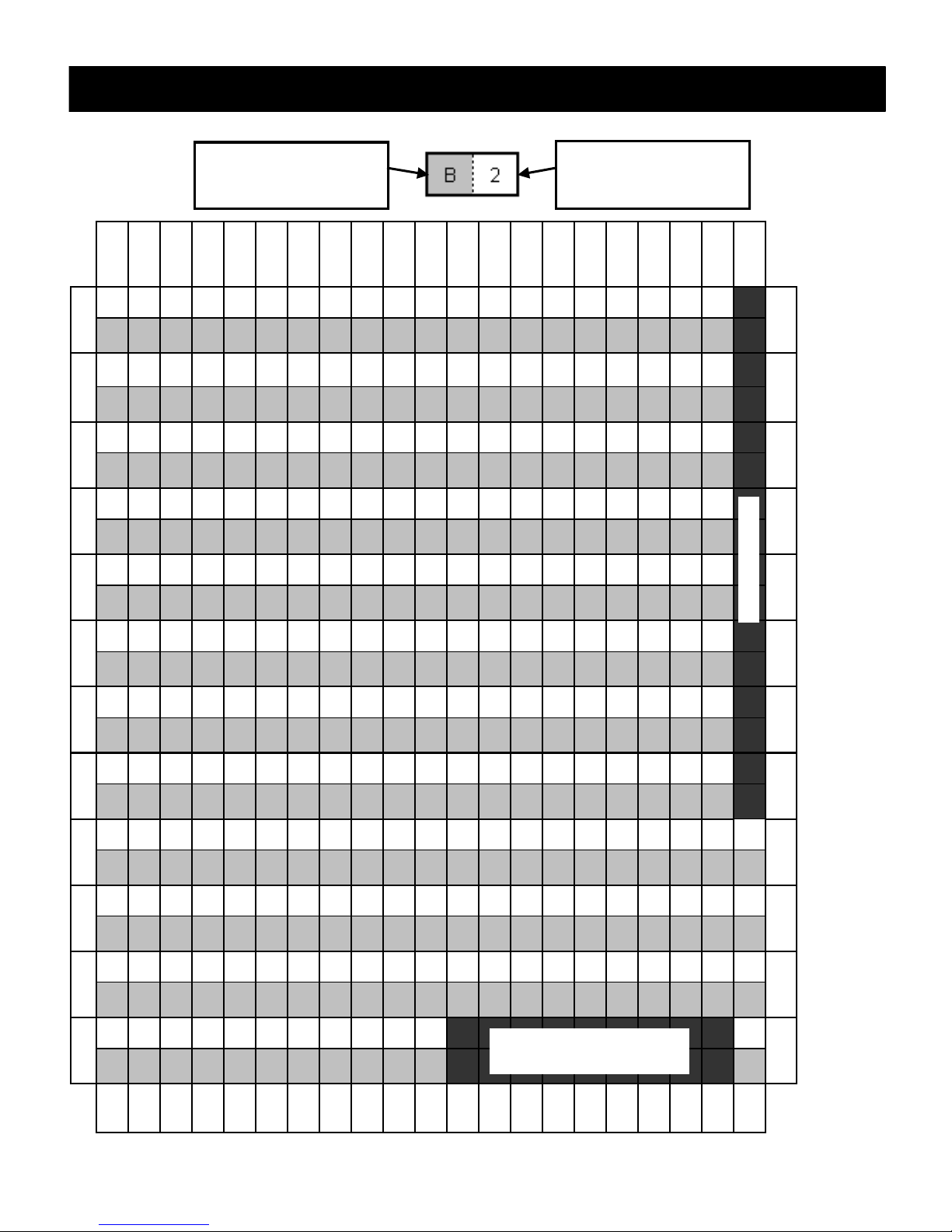

NATURAL GAS VENTING CHART

11
0122½ 345678910
20 B4B5B5B5B5B5B5B5B5B5B5B520 19 B3B5B5B5B5B5B5B5B5B5B5B519 18 B3B5B5B5B5B5B5B5B5B5B5B518 17 B3B5B5B5B5B5B5B5B5B5B5B517 16 B2B4B4B4B4B4B4B4B4B4B4B416 15 B2B4B4B4B4B4B4B4B4B4B4B415 14 B2B2B2B2B2B2B2B2B2B2B2B214 13 B2B2B2B2B2B2B2B2B2B2B2B213 12 B2B2B2B2B2B2B2B2B2B2B2B212 11 B3B3B3B3B3B3B3B3B3B3B3B311 10 B3B3B3B3B3B3B3B3B3B3B3B310
9B3B3B3B3B3B3B3B3B3B3B39 8B4B4B4B4B4B4B4B4B4B4B48 7B4B4B4B4B4B4B4B4B4B4B47 6B4B4B4B4B4B4B4B4B4B4B46 5BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 5 4BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 4 3BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU BNU 3 2ANU ANU ANU ANU ANU ANU ANU ANU ANU ANU ANU 2 1ANU ANU ANU ANU ANU ANU ANU ANU ANU ANU ANU 1 0NU NU NU NU NU NU NU NU 0
0122½ 345678910
VERTICAL RISE (FEET)
HORIZONTAL RUN (FEET)
NOT ALLOWED
EXHAUST RESTRICTOR
A or B
NU = NOT USED
AIR RESTRICTOR
1— 6 TABS OPEN
NU = NOT USED
KEY
LP GAS VENTING CHART
VERTICAL TERMINATIONS
NOT ALLOWED

12
VENTING CHART WORKSHEET
A. FUEL TYPE: NATURAL GAS LP GAS (PROPANE)
B. TOTAL VERTICAL VENT RISE (MEASURED FROM HORIZONTAL CENTERLINE OF VENT OPENING ON THE
BACK OF THE STOVE FOR REAR VENT APPLICATIONS, OR FROM THE STOVE TOP FOR VERTICAL VENT AP-
PLICATIONS, TO THE HORIZONTAL CENTERLINE OF THE VENT CAP (FOR HORIZONTAL VENT CAPS) OR TO
THE FLANGE ON THE CAP (FOR VERTICAL CAPS): _____________ FEET
C. TOTAL HORIZONTAL VENT RUN (MEASURED FROM THE VERTICAL CENTERLINE OF THE VENT OPENING
ON THE BACK OF THE STOVEFOR REAR VENT APPLICATIONS, OR FROM THE STOVE TOP FOR VERTICAL
VENT APPLICATIONS, TO THE FLANGE ON THE CAP (FOR HORIZONTAL CAPS) OR TO THE VERTICAL CEN-
TERLINE OF THE CAP (FOR VERTICAL CAPS): _____________ FEET
NOTE: THE VERTICAL VENT RISE AND HORIZONTAL VENT RUN ARE THE OFFSETS IN THE LOCATIONS OF VENT
CAP RELATIVE TO THE VENT OPENING ON THE FIREPLACE. VENT PIPE THAT RUNS AT 45° HAS BOTH A VERTI-
CAL RISE AND HORIZONTAL RUN. SNORKEL CAPS HAVE BUILT-IN VERTICAL RISE THAT MUST BE COUNTED.
D. TOTAL NUMBER OF 90° ELBOWS: _______ NOTE: SNORKELS COUNT AS 2- 90° ELBOWS
E. TOTAL NUMBER OF 45° ELBOWS: _______
TERMINATION (CAP) TYPE: HORIZONTAL VERTICAL SNORKEL
VENT BRAND:
Simpson DuraVent GS/Pro® Selkirk Direct-Temp®Security Secure Vent™
AmeriVent Direct™ Metal Fab Direct Vent ICC EXCELDirect
VENT CAP MOD- EL NO: _______________ NOTE: SEE APPROVED VENT
CAPS ON PAGE 8
EXHAUST AND AIR INLET RESTRICTORS CALCULATOR
A. Fuel Type ________
B. Total Vertical Vent Rise: ________ feet
C. Total Horizontal Vent Run (Actual): ________ feet
D. 90° Elbows Needed: ________
E. 45° Elbows Needed: ________
F. Total 90° Elbows Equivalent: D +(E x ½) =________
G. 90° Elbows in Excess of 2: F - 2 =________
H. Additional Horiz. Feet Equivalent: G x 3 =________ feet
I. Horizontal Vent Run (Equivalent): C + H = ________ feet
Find _____ Chart Settings for:
B._________ feet Vertical Rise and I.__________ feet Horizontal Run (Equivalent).
Exhaust Restrictor Required: N Y IF YES: A or B
Air Restrictor Required: NYIF YES: Number of Tabs Open:
_______

13
A. Fuel: Natural Gas
B. Total Vertical Vent Rise: 12 feet
C. Total Horiz. Vent Run (Actual): 0 feet
D. 90° Elbows Needed: 1
E. 45° Elbows Needed: 0
F. Total 90° Elbows Equivalent : 0
G. 90° Elbows in Excess of 2: 0
H. Additional Horiz. Feet Equivalent 0
I. Total Horizontal Vent Run (Equivalent): 0
Use Natural Gas Chart Settings for:
12 feet Vertical Rise, 0 feet Horizontal Run.
Exhaust Restrictor Used: B
Air Restrictor Tabs Open: Restrictor Not Used
A. Fuel: Natural Gas
B. Total Vertical Vent Rise: 6 feet
C. Total Horizontal Vent Run (Actual): 6 feet
D. 90° Elbows Needed: 3
E. 45° Elbows Needed: 0
F. Total 90° Elbows Equivalent: 3+(0 x ½) = 3
G. 90° Elbows in Excess of 2: 3 - 2 = 1
H. Additional Horiz. Feet Equivalent: 1 X 3 = 3
I. Total Horiz. Vent Run (Equivalent) 6 + 3 = 9
Use Natural Gas Chart Settings for:
6 feet Vertical Rise, 9 feet Horizontal Run.
Exhaust Restrictor Required: B
Air Restrictor Tabs Open: Restrictor Not Used
A. Fuel: LP Gas
B. Total Vertical Vent Rise: 10 feet
C. Total Horizontal Vent Run (Actual): 7 feet
D. 90° Elbows Needed: 2
E. 45° Elbows Needed: 2
F. F. Total 90° Elbows Equivalent:2+(2 x ½) = 3
G. 90° Elbows in Excess of 2: 3 - 2 = 1
H. Additional Horiz. Feet Equivalent: 1 x 3 = 3
I. Total Horiz. Vent Run (Equivalent): 7 + 3 = 10
Use LP Gas Chart Settings for:
10 feet Vertical Rise, 10 feet Horizontal Run.
Exhaust Restrictor Required: B
Air Restrictor Tabs Open: 3
A. Fuel: LP Gas
B. Total Vertical Vent Rise: 2 feet
C. Total Horizontal Vent Run (Actual): 10 feet
D. 90° Elbows Needed: 2
E. 45° Elbows Needed: 0
F. Total 90° Elbows Equivalent: 2+(0 x ½) = 2
G. 90° Elbows in Excess of 2: 2 - 2 = 0
H. Additional Horiz. Feet Equivalent: 0 x 3 = 0
I. Total Horiz.Vent Run (Equivalent): 10 + 0 = 10
Use LP Gas Chart Settings for:
2 feet Vertical Rise, 10 feet Horizontal Run.
Exhaust Restrictor Used: A
Air Restrictor Tabs Open: Restrictor Not Used
A. Fuel: Natural Gas
B. Total Vertical Vent Rise: 0 feet
C. Total Horiz. Vent Run (Actual): 0 feet
D. 90° Elbows Needed: 0
E. 45° Elbows Needed: 0
F. Total 90° Elbows Equivalent : 0
G. 90° Elbows in Excess of 2: 0
H. Additional Horiz. Feet Equivalent 0
I. Total Horizontal Vent Run (Equivalent): 0
Use Natural Gas Chart Settings for:
0 feet Vertical Rise, 0 feet Horizontal Run.
Exhaust Restrictor Used: Restrictor Not Used
Air Restrictor Tabs Open: Restrictor Not Used
A. Fuel: LP Gas
B. Total Vertical Vent Rise: 1 feet
C. Total Horizontal Vent Run (Actual): 3 feet
D. 90° Elbows Needed: 2
E. 45° Elbows Needed: 0
F. F. Total 90° Elbows Equivalent:2+(0 x ½) = 2
G. 90° Elbows in Excess of 2: 2 - 2 = 0
H. Additional Horiz. Feet Equivalent: 0 x 3 = 0
I. Total Horiz. Vent Run (Equivalent): 3 + 0 = 3
Use LP Gas Chart Settings for:
1 feet Vertical Rise, 3 feet Horizontal Run.
Exhaust Restrictor Used: Restrictor Not Used
Air Restrictor Tabs Open: Restrictor Not Used
VENTING CHART WORKSHEET EXAMPLES

14
VENT TERMINAL CLEARANCES
Venting terminals shall not be recessed into a wall or siding.

15
UNPACKING AND INSTALLING THE FREESTANDING STOVE
By now, you will have removed the packaging from around the Stove. Locate the box containing the mis-
cellaneous components required to complete the unit. This box will contain the following items:
1) Installation and operation Manual
2) A/C Adapter
3) Vent Restrictor Kit
4) Glass Media (burner)
5) Remote Control
6) Battery Pack
7) Levelling bolts(4)
8) Blow-Off Relief Door
The stove has been bolted to the pallet from underneath the pallet using 4 hex head bolts.
These bolts should be removed, and the stove carefully lifted from the pallet.
Tilt the stove and fit the 4 leveling bolts as shown.
ASSEMBLY & INSTALLATION
1
2
3
4
5
67
8
Leveling Bolts

16
ASSEMBLY & INSTALLATION
Venting Installation:
The Freestanding Stove is shipped with a custom Simpson DuraVent GS® starter section that
is specifically designed for the Solas Nua. Regardless of the venting brand you chose, you must use the
starter section provided . All of the venting brands listed for use with the Freestanding are
compatible with the starter section provided . For venting system installation details, refer to the instruc-
tions provided with the venting system you have chosen. Each brand has specific installation require-
ments that must be followed to insure a safe and functional venting system for your stove.
The Freestanding is shipped from the factory configured for either Rear Venting or Top Vent-
ing as requested.
Prior to connecting your vent system to the stove, please refer to the venting section (pages 7-13) of this
manual to determine whether your installation will require the addition of flow restrictors to the com-
bustion air inlet system or the exhaust outlet or both. Refer to the venting section that starts on page 7
to make that determination.
If your installation does require an air restrictor or exhaust restrictor or both, these must be installed be-
fore you connect your vent system to the stove. Again, refer to the venting information starting on page
8 to determine the specific restrictor requirements for your specific installation. To install the Air Intake
and Exhaust Restrictors please proceed as follows:
1. Remove the top panel of the stove by unscrewing the 4 decorative fasteners.
2. Remove the rear panel of the stove.
3. Remove the Vent adapter attached to the unit by 4 #10
Sheetmetal screws, taking car not to damage the ceramic fiber
gasket.
4. The exhaust restrictor is installed by placing it through the
exhaust outlet pipe and resting it on the internal baffle in the
firebox. It is held in place with a movable retainer clip.
Simply hold the restrictor down against the baffle and push
the retainer up and tighten screw to secure the restrictor.
Note: Please take care to insure that the exhaust restrictor is
centered in the exhaust outlet. Improper alignment could ad-
versely affect the appearance of the flames. Refer to the adja-
cent photographs for placement of the exhaust restrictor and
clip.
INSERTING THE EXHAUST
RESTRICTOR
EXHAUST RESTRICTOR
PROPERLY INSTALLED

17
5. If the air restrictor ring is required, first
determine the number of tabs that must be
bent open. Before bending any tabs, align
the mounting holes in the ring over the four
mounting holes on the back of the stove.
When selecting the tabs to bend, it is im-
portant to maintain the most symmetrical pat-
tern possible. The first tabs bent must be op-
posite each other and oriented horizontally.
If only one tab is specified, orient the ring
over the pilot holes so the split tabs are ori-
ented horizontally and bend up two opposing
half-tabs. Additional tabs should be evenly
spaced relative to the first two. With the ap-
propriate tabs bent, re-align the mounting
holes in over the pilot holes keeping the
proper orientation AND with the bent tabs
facing away from the stove body.
6. Place the vent starter pipe gasket on the back of the stove aligning the holes in the gasket with the
pilot holes on the rear of the fireplace.
7. Align the inner pipe of the vent starter pipe with the exhaust outlet pipe on the fireplace. The vent
pipe will fit tightly over the fireplace pipe. Gently push the starter pipe on to the fireplace pipe until the
outer pipe flange makes contact with the vent pipe gasket. Be sure that the holes in the starter pipe
flange align with the gasket and pilot holes. When the flange contacts the gasket, install the four #10
sheet metal screws to secure in place.
If the optional convection blower kit, # FS-Blower, was purchased for this installation, it should
be installed at this time. Please refer to the installation instructions supplied with the blower kit
for detailed installation instructions.
8. Refit the stoves rear panel.
ASSEMBLY & INSTALLATION
AIR RESTRICTOR
RING Vent Starter
TABS FACING
AWAY FROM
FIREBOX
GASKET

18
ASSEMBLY & INSTALLATION
Final Firebox Assembly
1. Remove the front stove panel as shown.
2. Using a 7/16” socket or wrench loosen and remove the 3 hex retaining bolts
at the top of the glass frame.
3. While holding the glass panel and glass frame along the outer edges, tip the
top of the glass frame forward a few inches.
4. Wrap your fingers around the frame and hold
the glass and frame together while you lift the
frame up and out of the lower glass retainer. Set
the glass and frame assembly aside in a safe
place.
Placing the Burner Glass Media
The burner glass media poly-bag that you set
aside when you unpacked the stove contains the
correct amount of glass material to cover the burner. The entire contents of the bag should be evenly distribut-
ed over the burner tray.
1. Locate the burner in the stove. Refer to the adjacent
illustration.
2. Carefully clip one corner of the poly-bag to form a
pouring spout. The opening should be large enough to
allow the glass media to flow but not so large that you
can’t control the flow.
3. You will notice that the burner surface is designed
with turned-up edges that form a tray to hold the glass
media.
4. Starting at one end, pour the glass media onto the
burner tray, keeping the pouring spout on the poly-bag
toward the center of the burner to avoid spillage of
glass pieces over the sides of the burner. See the adja-
cent illustrations.
5. Once you have poured all of the glass burner media
into the burner tray, carefully smooth the glass pieces
out so they have a uniform depth over the entire sur-
face of the burner. When the burner glass media is
properly placed, it should look like the adjacent illus-
trations.
6. Note: If a few pieces of glass escape over the edges of
the burner tray during installation, it is not a problem.
They will simply land in the area below the burner and
will do no harm.
BURNER GLASS MEDIA
FULLY INSTALLED
BURNER GLASS MEDIA
PARTIALLY INSTALLED

19
Relief Door Installation
1. The top relief door is shipped separated from the fireplace and must be installed on the top of the fire-
box at this point in the installation. Note: The relief door includes a gasket that covers the full bottom
surface. Use care in handling the relief door to avoid damage to the gasket material.
2. The first illustration below shows the relief openings and relief door retainers.
3. The relief door includes line-up tabs that correspond to slotted retainers on the firebox.
4. Tip the relief door enough to allow the rear line-up tab to engage the rear retainer slot. Refer to the sec-
ond illustration below.
5. Rotate the front edge of each relief door so they line-up over front retainers.
6. Gently spring the front forward so it will allow the relief door front line-up tab to engage on the retain-
er.
7. The relief door should be able to move up and down freely on the retainers if properly installed.
8. When the relief door installation is complete, the door should be in the full down position.
9. Draft relief openings must not be covered or blocked.
ASSEMBLY & INSTALLATION
RETAINERS
RELIEF OPENINGS
RELIEF DOOR REAR TAB ENGAGED
IN REAR RETAINERS
RELIEF DOOR FRONT TABS
RELIEF DOOR SHOWN IN ITS
PROPER OPERATING POSITION
RELIEF DOOR FRONT TAB
ENGAGED ON RETAINERS

20
ASSEMBLY & INSTALLATION
Installing or Replacing the Batteries
1. The valve control module is powered by four “AA” batteries. The batteries are mounted within the
Valve Receiver Module located underneath the fireplace, behind the surround, attached to a slide-
out mounting bracket for easy accessibility.
2. Loosen the thumb screw on the module slide-out mounting bracket by turning counter-clockwise
until the threads are fully disengaged from the base bracket.
3. Rotate the Valve Receiver Module and mounting bracket. Toward you 90 degrees.
4. Slide off the Battery compartment cover.
5. Install the 4 “AA” batteries, supplied, using the guides inside the battery pack to show you the cor-
rect battery orientation.
6. Replace the battery compartment cover. Rotate the Valve Receiver Module and mounting bracket
into its home position and tighten the thumb screw to secure.
7. The remote handset is powered by three “AAA” batteries. The access panel is located on the back
of the handset and simply snaps open to provide access to the battery compartment. Install the three
batteries as shown on the label inside the remote control battery compartment
8. Replace the remote handset access panel.
