Euroheat Harmony 15 Release note

PART NUMBER
SERIAL NUMBER
Installation &
Servicing Instructions
Harmony 15
Stanford 15
Balanced Flue Gas Stoves
IN1159 Edition F March 2012

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed.F
1
When installing the stove this document should be used in
conjunction with Euroheat’s Balanced Flue Technical Guide,
Document No: IN1105.

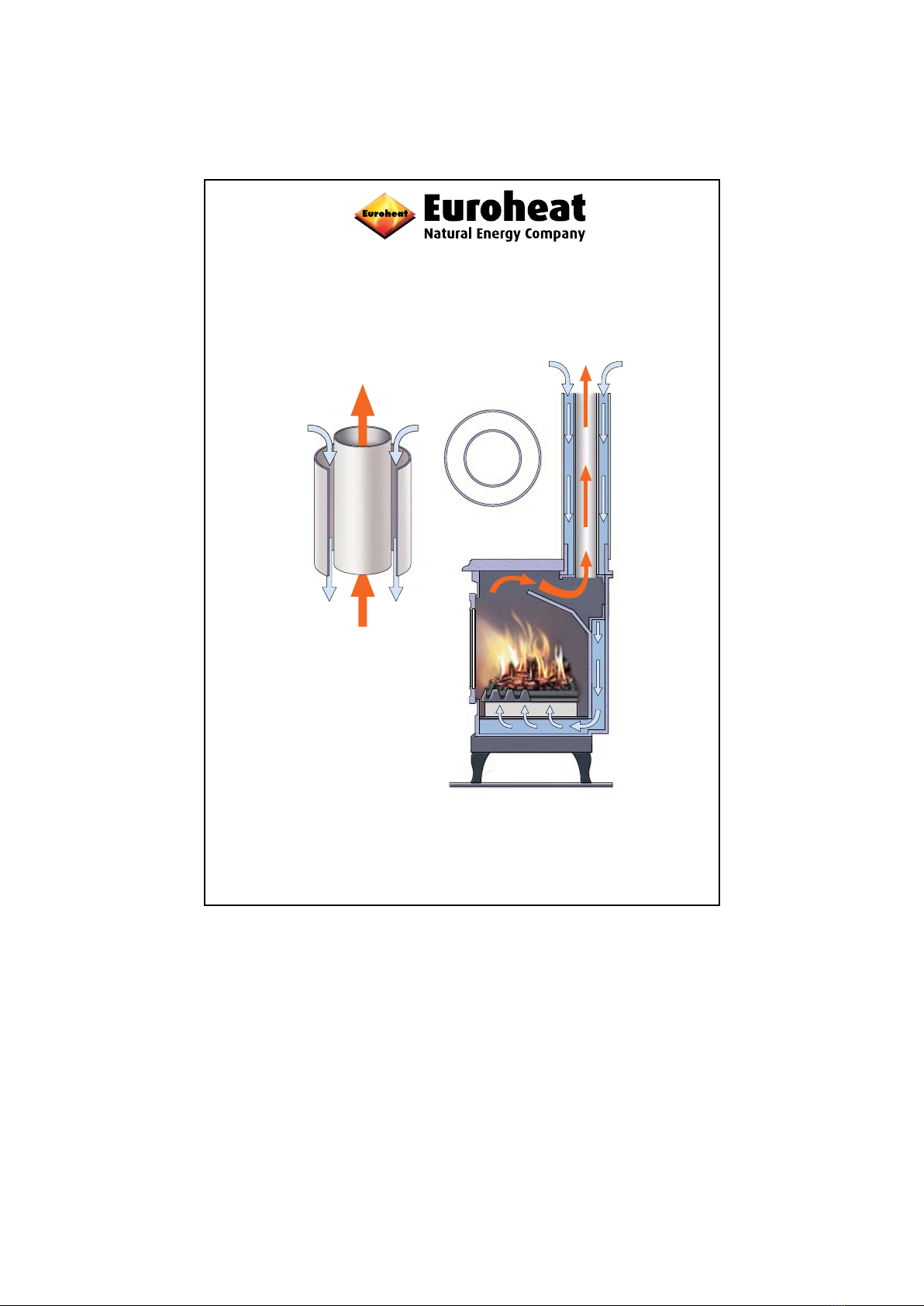

Balanced Flue Stove
Technical Guide
Document No: IN1105
Information from the Euroheat Technical Team
Euroheat and Nestor Martin have a policy of continual research and development and reserve the right to
modify its appliances without prior notice. We make every effort to ensure that the information provided in
this document is correct and accurate at the time of printing. Continued updates occur to adapt documents to
customer requirements and appliance changes. For the latest editions of all Euroheat documentation visit our
web site www.euroheat.co.uk.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed F
2
Contents
Safety Precautions 3
Technical Data with Mertik Maxitrol GV34 Gas Valve 4
Accessories Supplied with Stove 5
Hearth and Fireplace Clearances 7
Appliance Location 8
Installation of the Gas Supply 8
Flue Spigot Fitting 9
Installation of the Flue System 12
12Installation of the Gas Log Effect 13
Placement of the Ember Glow Fibres 14
Installation of the Gas Coal Effect 16
Gas Connection 19
Gas Pressure Test Nipple Locations 21
Fitting the Remote Control 22
Information for Users which must be Advised by the Installer Verbally or in Writing 23
Spare Parts for Servicing H15 and S15 Gas Stoves 23
Servicing Instructions 24
Burner Removal and Replacement 25
Changing Gas Operating Type 27
Primary Air Collar Adjustment 27
Thermocouple Replacement 28
Door Handle Adjustment 30
Lower Door Opening and Level Adjustment 30
Manufacturers Identification Plate
The identification plate is located below the gas valve. To access the plate swing outwards.
The Euroheat Appliance Serial Number
The serial number can be found at 5 locations:
1: On the front page of this manual.
2: On the front page of the operating instructions.
3: On the identification plate located below the gas valve.
4: On the registration form.
5: On the registration certificate returned to the user after
successful registration.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed.F
3
Safety Precautions
a) The stove should be visually inspected and if damaged should not be installed.
b) It is a requirement of the Gas Safety (Installation and Use) Regulations that these instructions,
together with the Appliance User Instructions, be left intact with the user.
c) In your own interest, and those of safety, and in accordance with the Gas Safety (Installation
and Use) Regulations, Euroheat stoves must be installed by a suitably qualified Gas Safe
technician using the appropriate fittings for the gas type being used, and the stove must not
be modified in anyway. The gas technician will be responsible for the installation conforming
to all current regulations and standards, during the life of this publication these standards may
be superceded and it is the installer’s responsibility to ensure the installation conforms to the
whatever standards are current at the time of installation. Failure to install the appliance
correctly could lead to prosecution.
BS 1251 : 1987 Fireplace Components
BS 5871 : PT 1 2005 Installation of Gas Fires
BS 5482 : PT 1 1994 LPG Installations
BS 6891 : 1998 Pipe Work Installation
d) It is important to ensure that the flue system on which the appliance is to be installed is
fitted in accordance to Euroheat’s Balanced Flue Technical Guide, Document No: IN1105.
It is therefore important, in the interests of safety, that these instructions are strictly followed,
together with the legal Statutes and Codes of Practice, current at the time of installation.
e) It is important that the stove is installed so that the clearances specified in these instructions are
complied with, see page 7.
f) The stove must NOT be run with its door open.
g) It is also important that the occupiers of the property have their attention drawn to the high
temperatures which are normally present on the external surfaces of the stove during operation.
h) Fireguards, in accordance with current British Standards, should be fitted when the appliance is
in the presence of young children, the elderly or infirm.
i) Do not use the stove if any of the ceramic log or coal effect components are damaged or broken
during transportation. Check all gas joints within the stove for gas tightness as vibration during
transportation may loosen them.
j) Ensure that all transport packaging is removed from inside and outside of the stove.
k) The plastic bags used to protect components of this appliance are a potential hazard to young
children, and should be disposed of immediately.
l) The stove must be serviced annually by a suitably qualified Gas Safe technician.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed F
4
Harmony 15 and Stanford 15 Gas Balanced Flue
Model Number
Harmony 15 H15
Stanford 15 S15
Heat Output Maximum
G20 Natural Gas 4.05kW
G31 Propane 4.03kW
Standard supply appliance is configured for Natural Gas; for LPG specify at time of order
Gas Input Maximum
G20 Natural Gas 4.7kW
G31Propane 4.64kW
Primary Air Collar Setting
G20 Natural Gas 3mm
G31 Propane 5mm
Free Air Requirement NIL
Fuel Effect Type: Wood Ceramic burner, 4 Ceramic logs,
1g Bag platinum ember glow fibres
Fuel Effect Type: Coal Ceramic burner, 3 molded & 2 loose coals,
1g bag platinum ember glow fibres
(specify at time of order)
Heat Control Manual with remote control option
Ignition Type Piezo
Pilot Flame Yes
Flame Failure Yes
Fuel Outlet Options Top or Rear
Flue Size 150mm (6”) External diameter
Warranty Standard 1 Year
Colour Options Cast Black, Satin Black Enamel,
Bottle Green Enamel (H13 ONLY)
Decorative Cast Iron Plinth Optional extra
Seasonal Efficiency
The efficiency of this appliance has been measured as specified in BS EN 613:2001 and the result is 78% Nat
Gas and 81% LPG. The gross calorific value of the fuel has been used for this efficiency calculation, the Net
efficiency being 87% Nat Gas and 88% LPG. The test data from which it has been calculated has been certified
by BELTEST. The efficiency value may be used in the Government’s Standard Assessement Procedure (SAP) for
energy rating of dwellings.

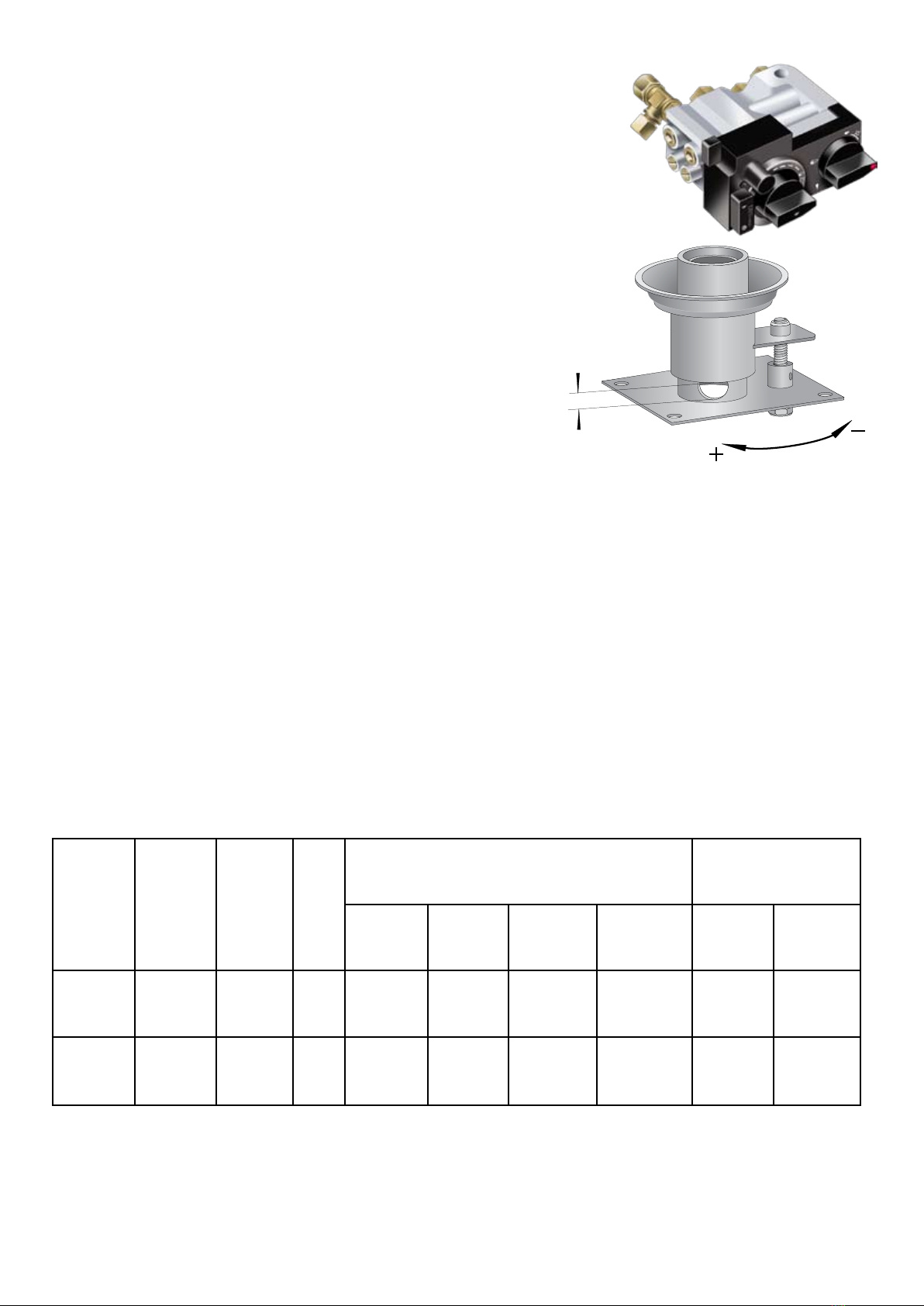

Technical Data with Mertik Maxitrol GV34 Gas Valve
Gas
Type
Gas
Pressure
mbar
Main Jet
mm
Pilot
Jet
Maximum output
Control set to Maximum
Minimum output
Control set to
Minimum
Hourly
Flow
High
Burner
Pressure
Net
Efficiency
%
Gross
Efficiency
%
Hourly
Flow
Low
Burner
Pressure
G20
Natural
Gas
20
1 jet
with
4 x 0.87
27.2 0.49
m3/h 17 mbar 87 78 0.38 m3/h 10 mbar
G31
LPG 37
1 jet
with
4 x 0.57
22.1 0.38
m3/h 31 mbar 88 81 0.29 m3/h 18 mbar

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed.F
5

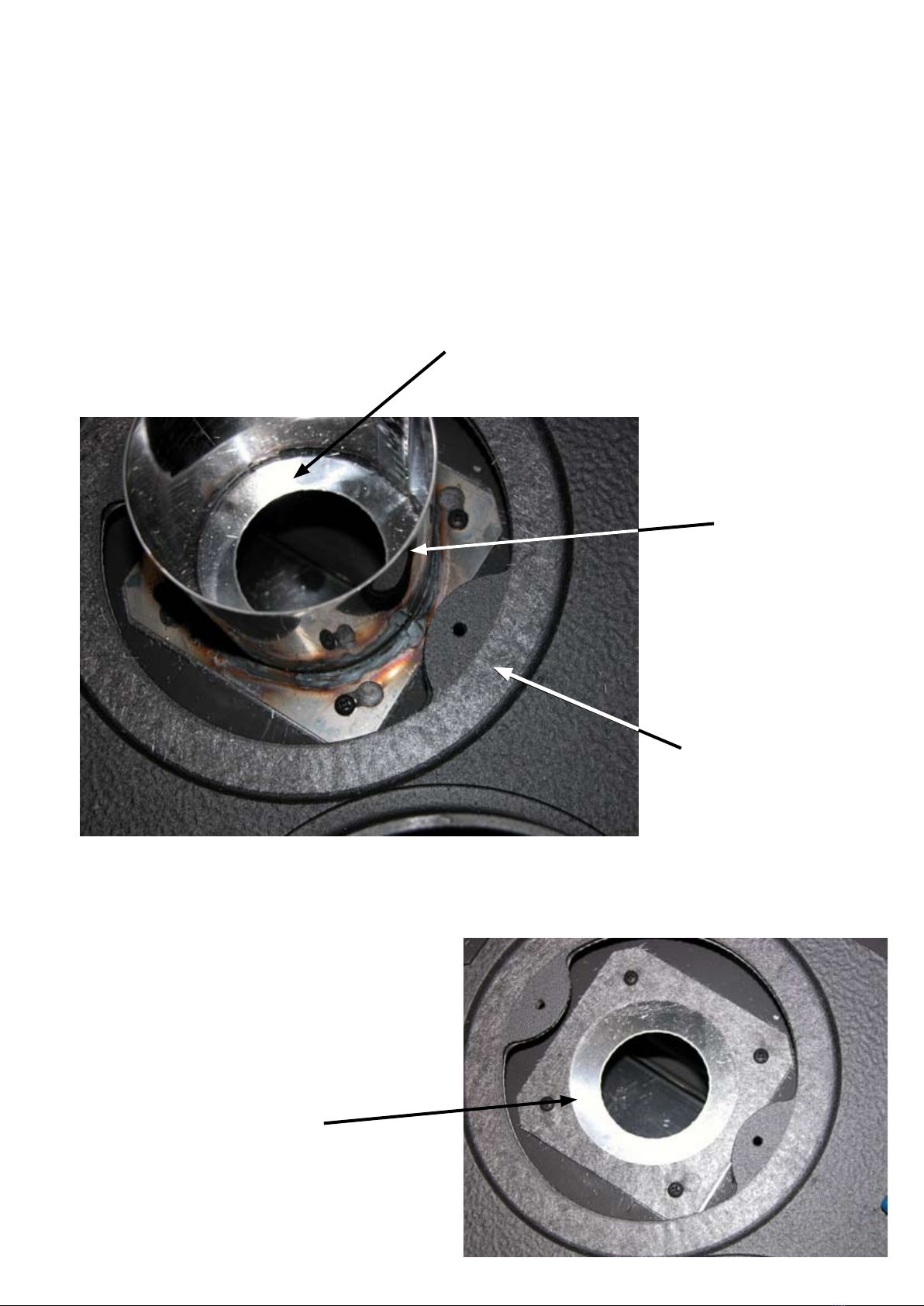

Flue Spigot (Collar) and Choke Plate
The flue spigot (collar), inner flue pipe
and choke plate may be found either
screwed to the pallet on which the
stove is delivered or within the body
of the stove.
Elbow for Gas Fitting
Accessories Supplied with Stove
Supplied with the balanced flued gas stoves are a number of installation accessories and instruction manuals.
Nut
Olive
Elbow
Foot Levelling Screws and Triangular Hearth Protectors
In the plastic bag within the stove there will be 4 foot
levelling grub screws and 4 plastic triangular hearth
protectors. The grub screws should be fitted to the feet
prior to installation to allow for levelling the stove on an
uneven hearth.
The plastic hearth protectors can be put under the feet to
protect the hearth when sliding the stove into position,
but should be removed unless required to help level the
stove.
Enamel Repair Touch Up
(Enamel Stoves Only)
In the plastic bag within the stove there
will be a bottle or tube of enamel touch
up which will match the enamel finish
on the stove. This can be used to repair
any minor chips on the enamel surface
of the stove.
Grub Screw
Plastic Hearth Protector
EMBERGLOW
Platinum
Bright
Embers
Ember Glow
Small squares of platinum
embers which when teased
out give an ash effect with
the ceramic log or coal effect
(see page 13).
Flue Spigot (collar)
Inner Flue Pipe
Choke Plate

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed F
6

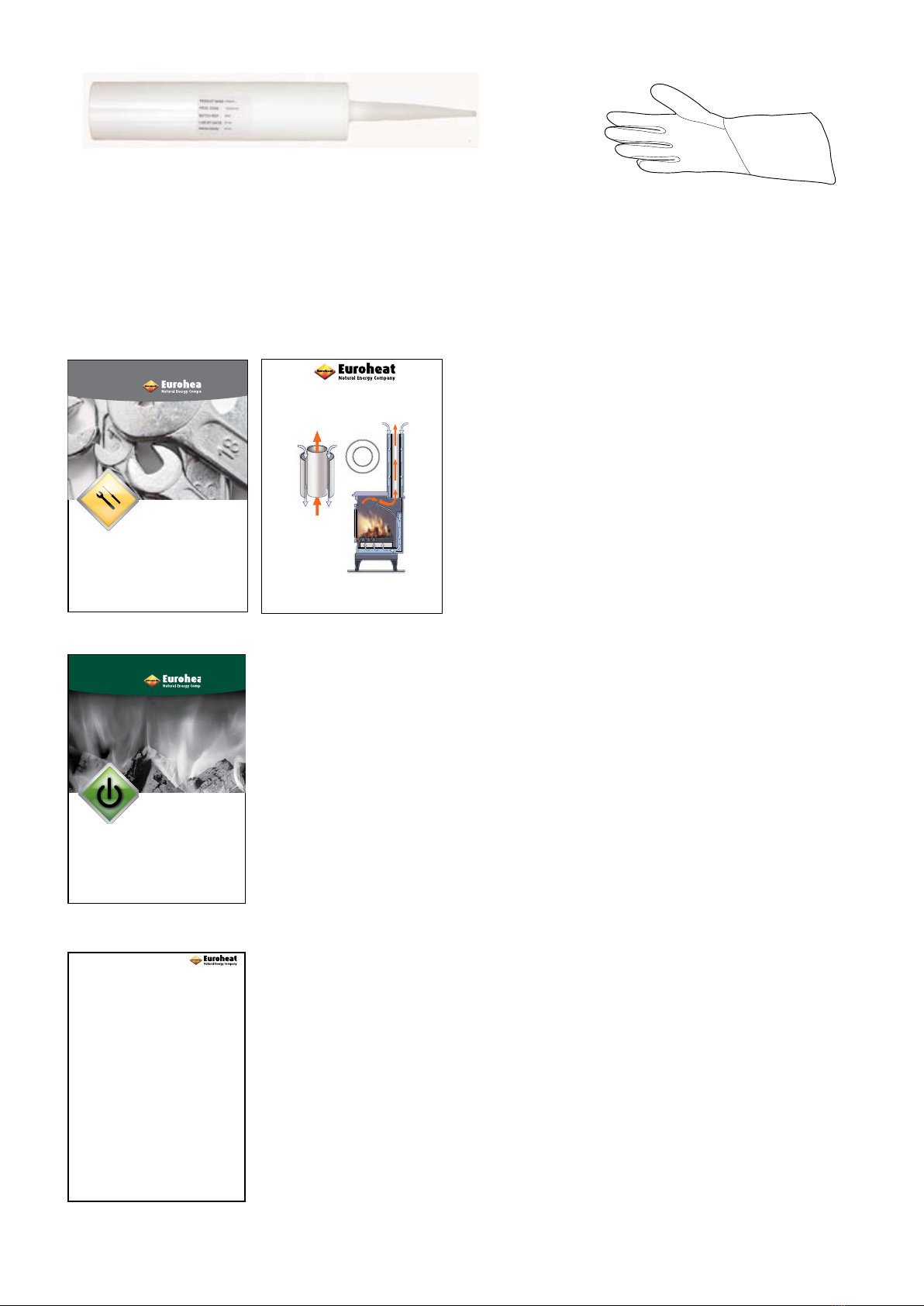

Glove
A heat proof glove is also supplied
with the stove. This is for use by the
installing and servicing engineer if
they have to open the main firebox
door when hot.
Installation Instructions and Balanced Flue
Technical Guide IN1105
For the use of the suitably qualified engineer for the
installation and servicing of the stove.
MUST be handed to the owner of the stove.
Operating Instructions
For the use of the person for the safe operation of the
stove.
MUST be handed to the owner of the stove.
If there are any of the above documents missing from your stove
upon delivery please contact Euroheat with the serial number of the
stove and we will immediately despatch a replacement.
Balanced Flue Stove
Technical Guide
Document No: IN1105
Fraxfill (MS9045)
Fraxfill is a pliable white ceramic fibre gap fill and
should be used for sealing all the flue joints. It is
supplied for use with a sealant gun. It is odourless
and recommended for applications with operating
temperatures of 1200°C.
PART NUMBER
SERIAL NUMBER
Installation &
Servicing Instructions
Harmony 15
Stanford 15
Balanced Flue Gas Stoves
IN1159 Edition E June 2009
PART NUMBER
SERIAL NUMBER
Operating Instructions
Harmony
Stanford
Conventional Flue & Balanced Flue
Gas Stoves
IN1123 Edition G June 2009
GAS STOVE REGISTRATION
Please complete the form on pages 3 and 4 and return it with a
copy of your sales receipt from your Euroheat approved supplier
to obtain your
THREE GOOD REASONS
Why you should have your stove commissioned.
It is vital for the longevity and efficient and safe operation of the stove to have the stove installed and
commissioned by a competent qualified heating engineer.
1. Installation
The stove should be installed by a competent qualified heating engineer, who will be conversant with the
Building Regulations and Codes of Practice current at the time of installation. Installation instructions are
supplied with the stove which contain instructions specific to the appliance.
Incorrect installation may lead to poor performance of the stove and ultimately damage to the appliance.
2. Operating
The operation of the stove should be demonstrated by a competent person, so you, as the operator, are
conversant with the operation of the controls. Instructions on the use of the controls can be found in the
operating instructions supplied with the stove.
Incorrect operation of the controls of the stove may lead to poor performance from the stove and ultimately
damage the appliance.
3. Maintenance
Routine maintenance as described in the operating instructions, supplied with the stove, should be
undertaken by a competent person.
Failure to perform the routine maintenance may adversely effect the performance of the stove and
ultimately damage the appliance.
Registration Form
To be completed by both the owner of the stove and the installing/
commissioning engineer.
It MUST be returned to Euroheat for the registration to be completed.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed.F
7
Hearth and Fireplace Requirements
Do not be tempted to fit the stove into an unsuitable fireplace. Beyond the requirements
of the building regulations and access to facilitate servicing the stove, providing a
setting which will complement the stove is not a luxury, it is the practicality of making
the most of an investment. A good builder will be able to transform even the most
utilitarian of fireplaces, whether altering its proportions to those of the “Golden Mean”
ideal, exposing a wooden lintel, stone or simply removing superfluous detailing for
comparatively small costs, and the result will be a pleasure for many years.
Minimum clearance
from combustible
materials
Minimum clearance
from non
combustible
materials
A 12" 300mm** 9" 230mm
B 6" 150mm** 4" 100mm
C 1" 25mm** N/A
D 2" 50mm** 2" 50mm
E 6" 150mm** 4" 100mm
F12mm of non
combustable material.
12mm of non
combustable material.
Curtains and furnishings should be a minimum of
1m from the stove.
The stove can be placed on a combustible
floor providing it can support the weight,
and providing a non combustible hearth
plinth with a minimum thickness of
12mm is utilized.
** The measurements provided are
for guidance only.
In all installations any surrounding
flammablematerialsmustnotbeallowed
to exceed 80°C or a non combustible
shield provided in accordance with
current regulations. The stove must
always stand perfectly level and have
sufficient space allowing for service
work.
A
B
D
C
E
F
1/3 2/3
“Golden Mean”
Side Profile
1
2/3 2/3
“Golden Mean”
Front View

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed F
8
Appliance Location
a) In a fireplace recess the stove can be mounted on a 12mm thick decorative hearth or plinth, if
a constructional hearth of the correct dimensions is in place. In a free standing situation, as the
hearth temperature does not exceed 100ºC, a constructional hearth is not required. The stove
can be mounted on a 12mm thick non-combustible decorative hearth of the correct size i.e. a
cast iron plinth, provided that the floor can support the weight.
b) Combustible material at the rear of the stove shall be protected against the effects of heat.
c) There must be a minimum of 300mm from the top of the stove to the underside of any combustible
shelf. Note that for every 50mm increase on clearance, the shelf may project by a further 50mm.
d) The appliance, being room sealed, may be installed in a room or space which will be used by the
occupants for sleeping.
e) Any manufactured surround used with this stove should comply with the appropriate British Standard.
f) Do not place furniture, furnishing or combustible objects within 1 metre of the stove.
If any of these conditions are not fulfilled,
DO NOT FIT THE STOVE until this has been rectified.
Installation of the Gas Supply
BS 6891
NOTE:
Ensure that the gas supply is capable of delivering the required amount of gas, and is in accordance with
the relevant current standards.
It is generally preferred to conceal the gas supply by bringing it under the hearth, or through masonry to the
side of the fireplace. Any pipe work in 8mm tube connecting the stove to the main pipe work should be kept
as short as possible with as few fittings as possible to prevent restrictions.
a) Whenever a gas pipe passes through any masonry it must have a sleeve of non combustible material
sealed at both ends to prevent the gas supply from coming in contact with masonry or lime based
mortars.
b) The gas pipe should be adequately supported over longer lengths.
c) Soft copper tubing and soft soldered joints are suitable, providing the tube is not closer than 150mm
to the stove casing i.e. the temperature must not exceed 100°C.
d) A means of isolating the gas supply to the appliance must be provided independent of any appliance
control. This may be a gas cock, ideally of the nursery type to prevent children interfering with the
gas supply.
e) Any gas tubing that has been passed through masonry, should be purged to expel any foreign
materials that may have entered the supply.
f) Care should be taken to ensure that pipe work brought through metal structures has been secured to
prevent chaffing, but allow for thermal expansion.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed.F
9
Flue Spigot Fitting
The flue can be either top or rear exit. The flue collar (spigot) is supplied attached to the pallet on which the
stove is delivered or within the body of the stove. It will need fitting to the stove depending on which flue kit
you are using, rear exit can only be used on the rear to horizontal low-level flue kit.
Fitting Top Flue Spigot
The stove comes with the inner top flue pipe adapter fitted to the stove with a choke plate fitted below it, see
picture below. Ensure that the choke plate fitted is correct for the gas type and flue configuration to be installed,
this information is in the Balanced Flue Stove Technical Guide: IN1105, page 24. If not replace with the correct
choke plate which can be found in the bag of installation accessories.
Inside the stove in the bag of installation accessories will be the flue spigot gasket and two M5 screws to fit the
cast iron spigot. Fit the gasket as shown above and then attach the flue spigot using the two screws.
Fitting Flue Spigot and Inner Adapter Pipe
to the Rear of the Stove.
1) Remove the inner adapter pipe, see above, and
choke plate from the top of the stove. The choke plate
is not required for the rear flue option.
Choke plate
Ceramic gasket
Inner flue pipe
adapter
Choke plate

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed F
10

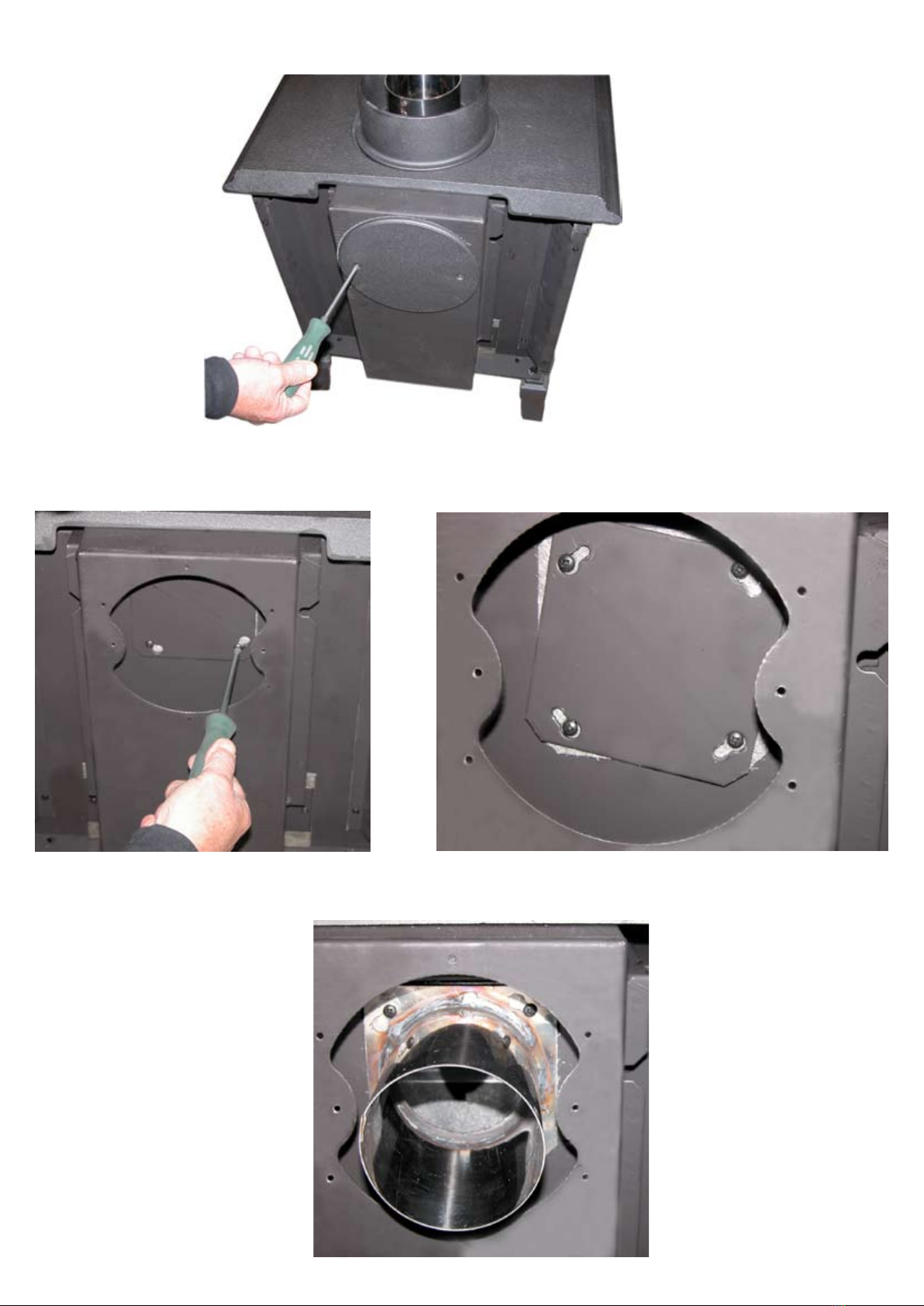

2) Remove the cast iron blanking plate from the rear of the stove.
3) Loosen the four screws on the inner steel blanking plate on the rear of the stove. Twist the blanking plate
so that the plate lifts over the screws.
4) Align the inner flue adapter pipe with the screws and twist it so it locks into position. Tighten the four screws
to ensure a good seal.
NOTE:
Do not fit the choke plate to the
rear outlet as it will restrict the
air flow and stall the flue gasses
and the stove will not work.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed.F
11

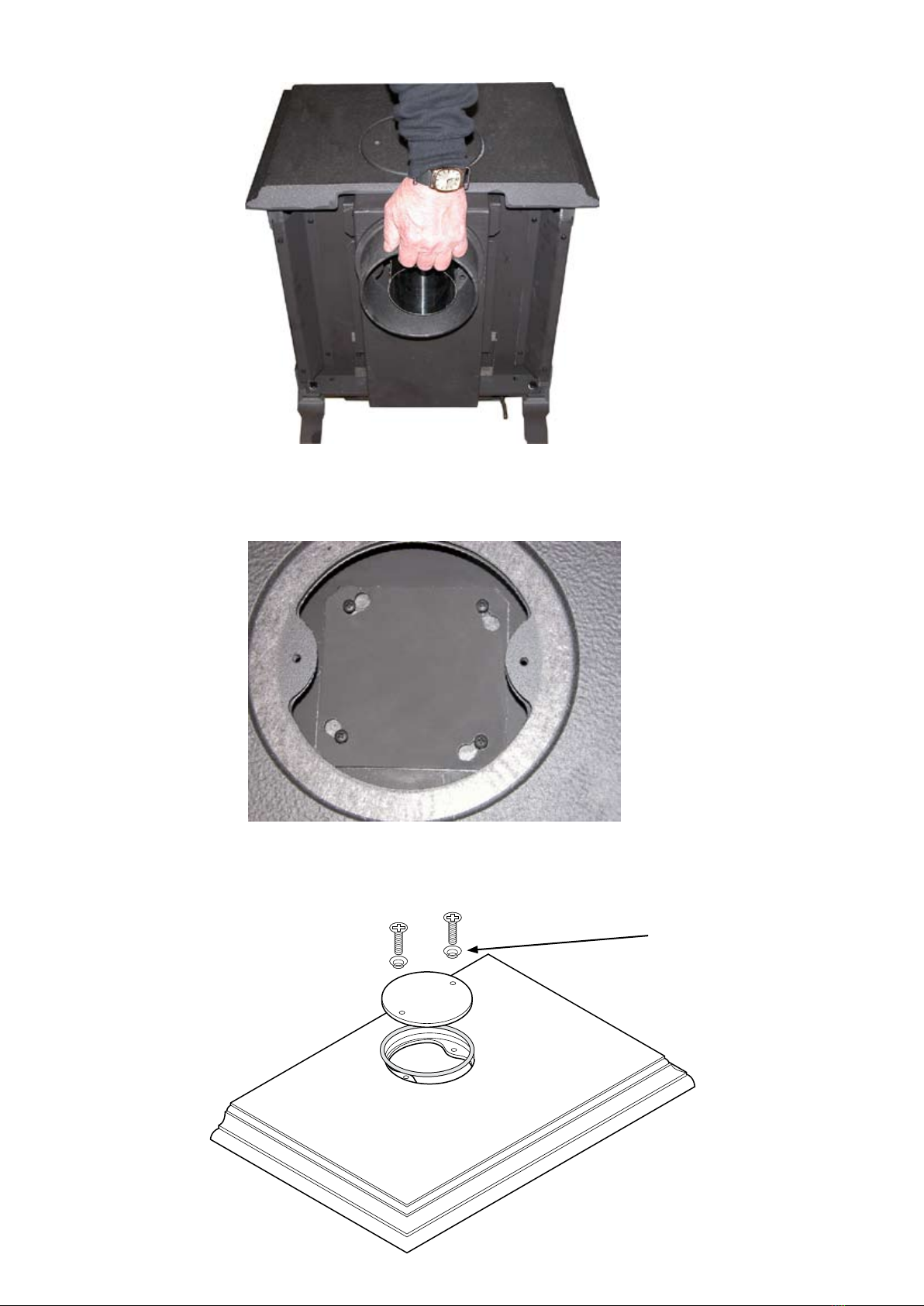

5) Fit the spigot gasket and flue spigot to the rear of the stove.
6) Fit the rear inner blanking plate to the top of the stove, see picture below. The stove will not run if this part
is omitted.
7) Fit the gasket and rear blanking plate onto the top flue exit using the countersunk screws. If it has an enamel
finish the cup washers should also be used to protect the enamel finish.
Cup washer for
enamelled finished
stoves

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed F
12
Installation of the Flue System
All the information regarding the three types of flue kits can be found in the Euroheat Balanced Flue Technical
Guide, Document No: IN1105.
IMPORTANT
To the Installer, Please Read Prior
To Installation
There have been a number of reports of stoves giving
off an unpleasent smell after the curing process has
finished. In most cases it has been found that some form
of Mastik has been used to join the flue pipes together
and to the flue spigot (collar) on the stove.
Some of these so called “Heat Proof” mastiks will only
stand a temperature of 300°C before they start breaking
down. In many cases they may give off an obnoxious
smell at temperatures much lower than this.
Please ensure that the jointing compound used is
suitable, if in doubt contact the manufacturer of the sealing compound before you use it.
We would advise the use of Fraxfill on all flue joints and for all fuel types, available from your Euroheat dealer
or directly from Euroheat.
Fraxfill 300g cartridge. Part No: MS9045
Top to Horizontal High-level
Flue Kit: MS91102
Top to Vertical High-level
Flue Kit: MS91100
Rear to Horizontal Low-level
Flue Kit: MS91097

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed.F
13
Installation of the Gas Log Effect
If any of the components of the log effect or burner are broken DO NOT INSTALL . Contact your stove supplier
for replacements. The log effect kit is not covered by the stoves warranty for accidental damage, so great care
should be taken when handling the ceramic burner and logs. It is important that the logs and ember fibres are
installed in accordance with these instructions as any deviation may cause poor combustion. The addition of
further ceramic logs or coals is strictly prohibited.
Back Log
Identified by one round hole and one slot, which locate the log on the ceramic burner base.
Right Hand Log
Identified by the
“V” at one end.
Left Hand Log
Identified by the
knot on one side.
Front Log
Identified by the one round hole which locates the log on the ceramic burner base.
Slot must
locate onto
tongue
Round hole
must locate
onto peg
Round hole
must locate
onto peg

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed F
14
Do not compress the embers or force into
position.
Placement of the Ember Glow Fibres
Platinum ember glow fibres are for use in vented gas appliances only. Platinum ember glow fibres are made from
high grade ceramic wool. The wool is similar to fibreglass and should be handled carefully. We recommend the
use of suitable dust mask, gloves or tweezers when placing the embers in position. Wash hands immediately
after touching to avoid irritation. Do not store the embers close to flammable liquids.
The embers must be placed correctly in order
to function properly. Tease out the fabric to
form loose, irregular shapes.
Ember Glow Fibres Placement
In front of burner jets
To left side of burner jets
By rubbing embers into the faces of the logs which are heated by the gas jets, the fibres which adhere to the
logs will glow. With suitable gloves take a square of ember glow and gently rub the material into the areas of
logs which glow when in operation (see the log fitting instructions which follow).
The pack containing the ember glow fibres contains more than required. The additional embers should be kept
for further service requirements.
Use of embers
With the embers correctly placed they glow and flicker similar to glowing ash. Their placement is important as
the effect produced can only occur when they are heated by the gas jets or by direct radiated heat.
Important:
Tease out fabric to form
loose, irregular shapes.
To right side of
burner jets
In front of burner jets

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed.F
15
1. Fit the largest log with the hole and slot in the base corresponding to the peg and tongue at the back of the
ceramic burner, ensuring that the peg goes into the hole on the log and the tongue goes into the slot. Place
2-3 pieces of teased out ember glow fibres (A) just to the left hand side of the burner jets. Place 3-4 pieces
of teased out ember glow fibres (B) just to the right hand side of the burner jets. Place 6-7 teased out ember
glow fibres (C) just in front of the burner jets.
Note: if not teased out or placed over the burner jets, flame height will be greatly reduced.
2. Fit the second largest log with the one hole in the base locating it on the peg in the middle of the ceramic
burner. Place 6-7 ember glow fibres (D) just in front of the burner jets.
3. Fit the right hand log (E) with the “V” corresponding to the two indentations, in the burner base at the right
hand end of the front log. The other end of the log resting upon the back log. Fit the left hand log (F) with the
knot corresponding to the indentations, at the left hand end of the front log. The other end of the log resting
upon the back log.
(A)
Position
of 2-3
teased out
embers (B) Position of
3-4 teased out
embers
(D)
Position 6-7
teased out
embers
(C)
Position 6-7
teased out
embers
Rub ember glow
into the surface
of the burnt
section
Rub ember glow
into the surface
of the burnt
section
Place in
indentations
provided
(E)
(F)

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed F
16
Installation of the Gas Coal Effect
If any of the components of the coal effect or burner are broken DO NOT INSTALL . Contact your stove supplier
for replacements. The coal effect kit is not covered by the stoves warranty for accidental damage, so great care
should be taken when handling the ceramic burner and coals. It is important that the coals and ember fibres
are installed in accordance with these instructions as any deviation may cause poor combustion. The addition
of further ceramic logs or coals is strictly prohibited.

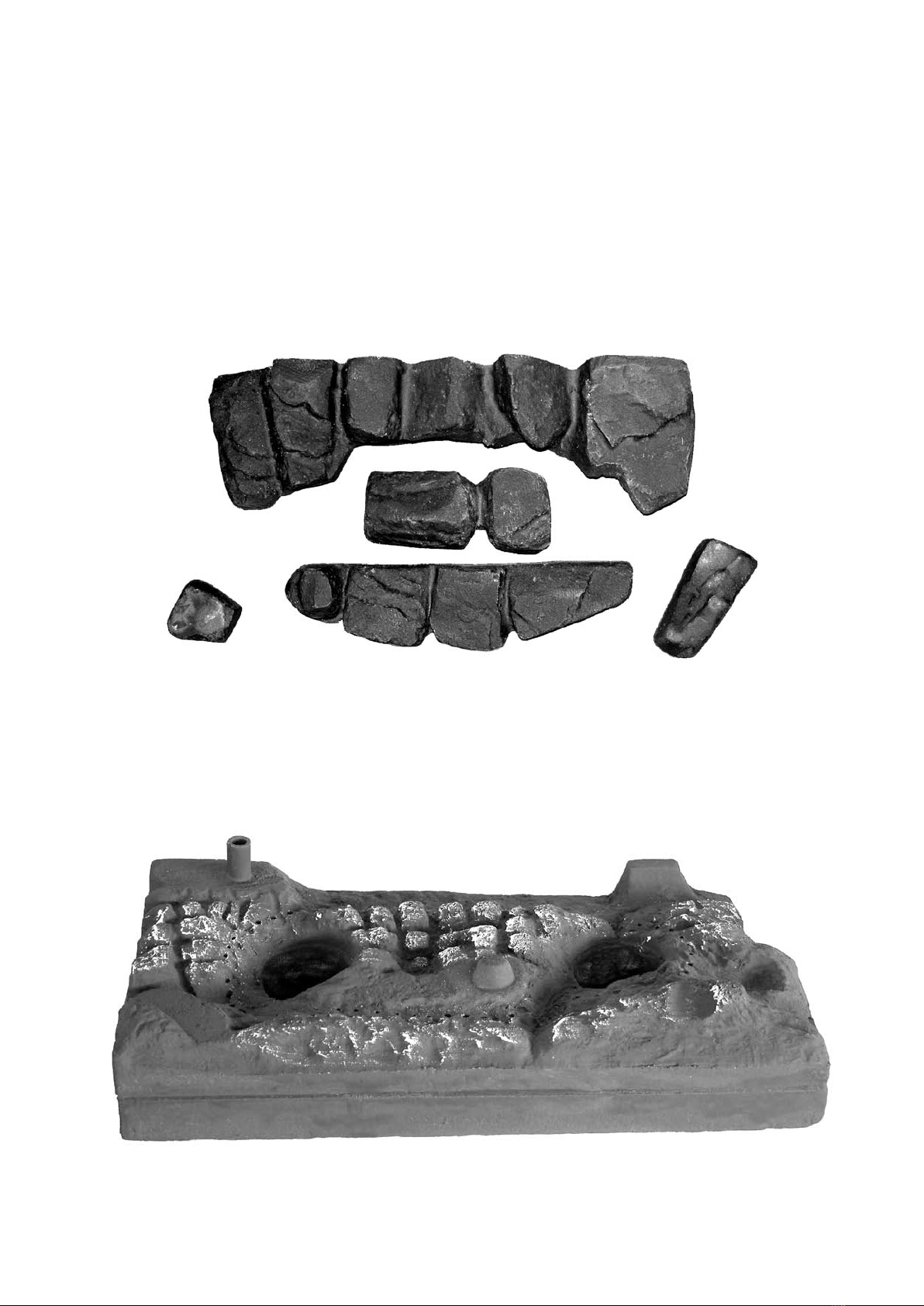

The Set of Coal Pieces
The Burner

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed.F
17

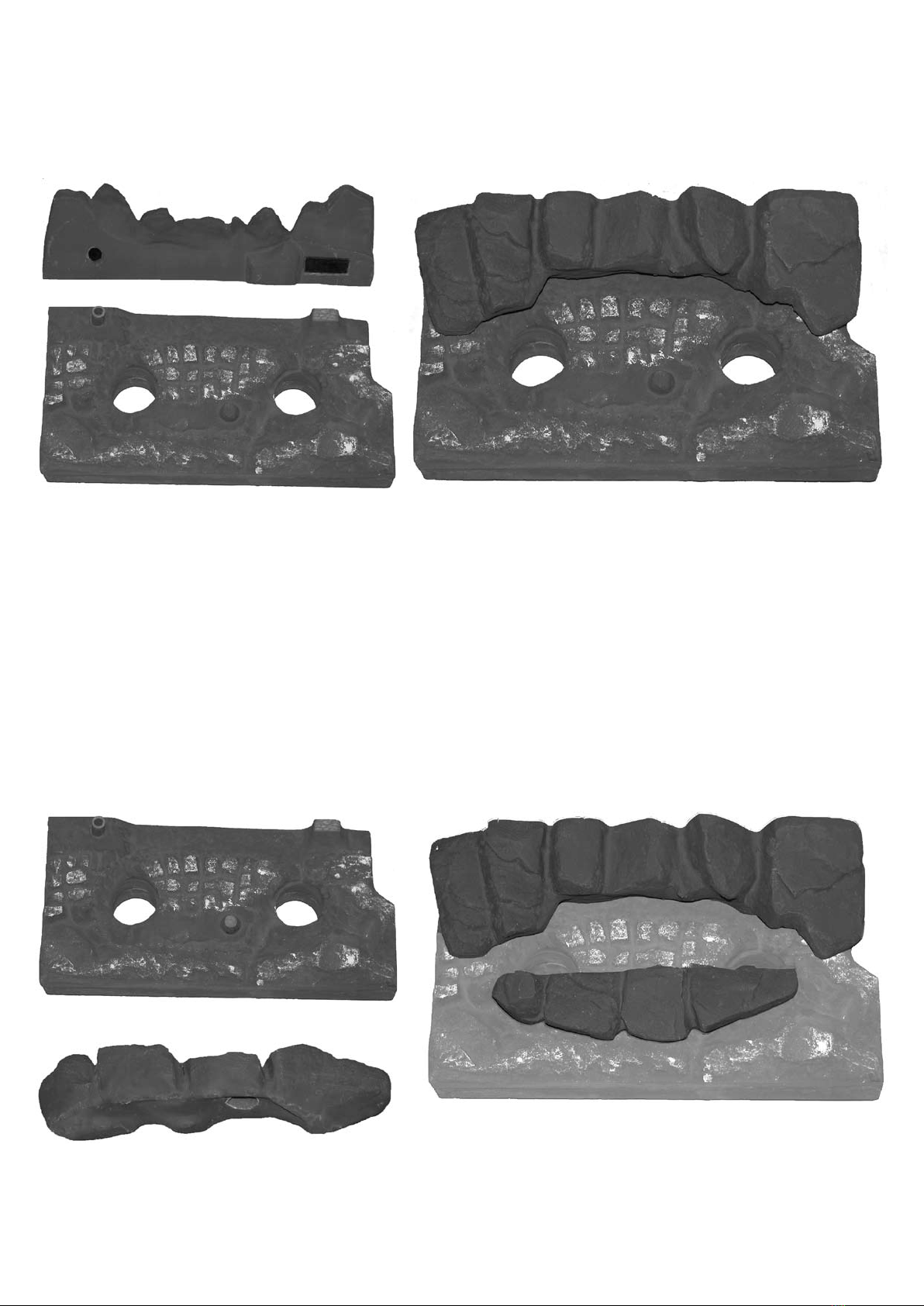

The front coal, the second largest of the coals, when turned upside down will be seen to have one circular
indentation corresponding with a raised locator on the burner. Place the front coal so that the locator fits into
the coal and gently position the coal until its shaped underside fits snugly into the undulations of the burner.
When fitted correctly the back and front coals will look
like this.
Turning over the back coal piece, the largest of the set, will reveal a round hole and an oblong hole. These
correspond to the round and square peg and raised locators on the burner. Position the back coal so round and
oblong locators fit snugly into the corresponding holes in the back coal.
When fitted the back coal should be positioned on the
burner to look like this.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed F
18

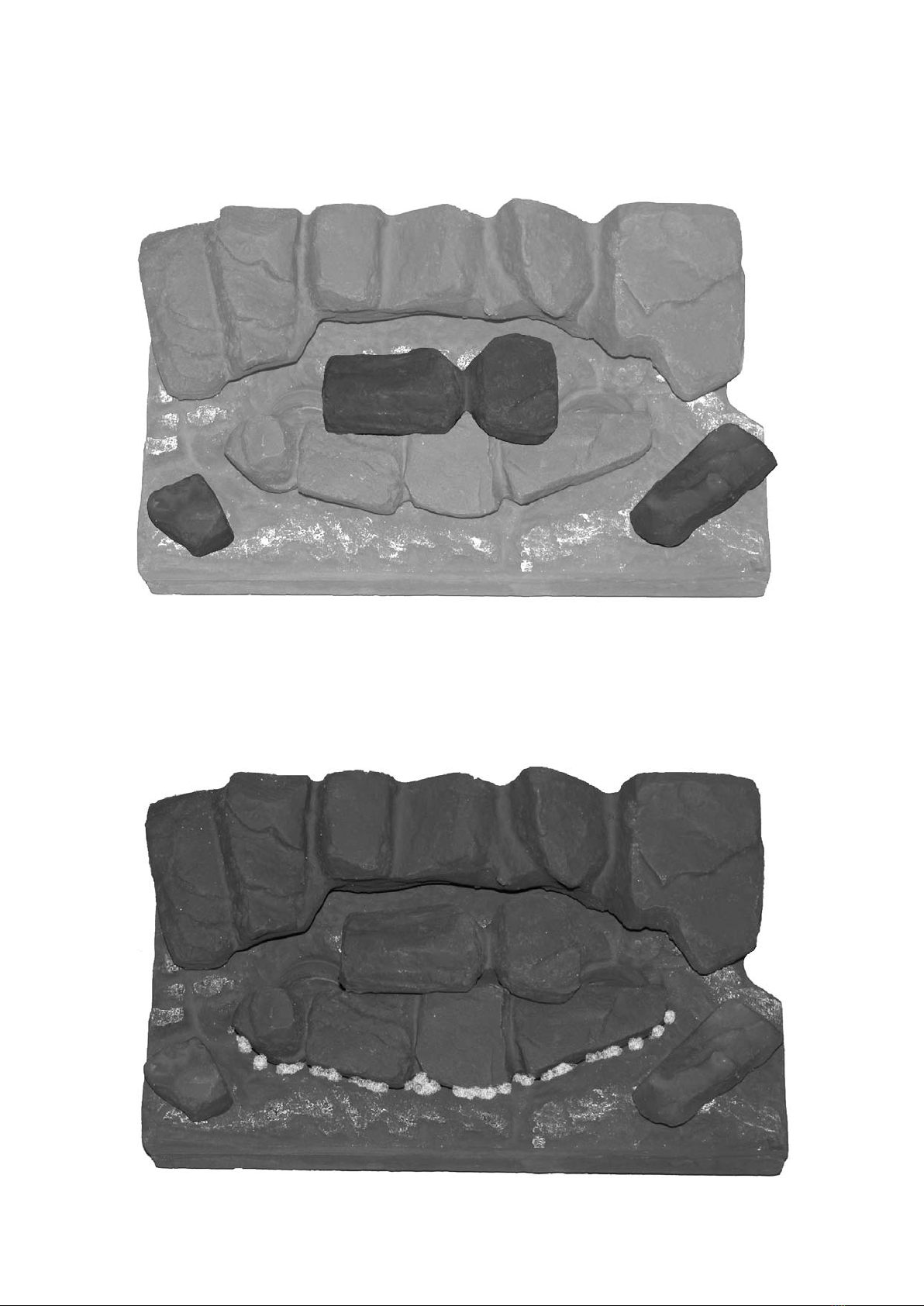

Place the third largest coal so that it rests on the burner, against and overhanging the coal in front. It is formed
to engage with the coal in front to fix its lateral position.
Finally the last two small coals can be put in the positions as below.
With the coals in position a small amount of Ember glow that has been teased carefully into very loose shapes
can be added. It should be put over the jets of the burner in front of the front coal

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. March 2012 E & OE Instructions Part number IN1159 Ed.F
19
Gas Connection
a) Connect the gas supply pipe to the 8mm connection under the base of the appliance. We advise that
no more than 1 meter of 8mm pipe is used to connect from the 15mm gas feed.
b) Connect a suitable gas pressure gauge to the test nipple on the gas valve, see page 21, turn the gas
supply on and check that the gas connections are sound. If satisfactory light the appliance.
Check all the gas connections on the appliance for leaks. The appliance is factory tested, but it is
possible for a connection to have been disturbed during transportation and installation.
c) Set the control to the high setting, and check that the gas pressure is as stated on the data table.
d) Turn off the gas, remove the pressure gauge and refit the test point screw, turn the gas supply
on and check that the test nipple is gas sound.
Lighting
Ensure the pipe work has been purged prior to following the lighting procedure.
Turn the on/off knob, smaller right hand control knob, towards the ignition position and press and turn anti-
clockwise. There will be an audible click as the Piezo spark is generated. If the pilot lights hold down the control
knob for 30 seconds, if it has not lit then repeat the pilot lighting procedure to maximum of 6 attempts. If after
6 attempts the pilot has not ignited leave the appliance for 5 minutes before attempting again.
Once the pilot has been established, let out the control knob and turn it fully anti-clockwise.
Manual Control
Turn the larger left hand control anti-clockwise to increase, clockwise to decrease the desired heat output.
Ensure that the main burner lights within 3 seconds.

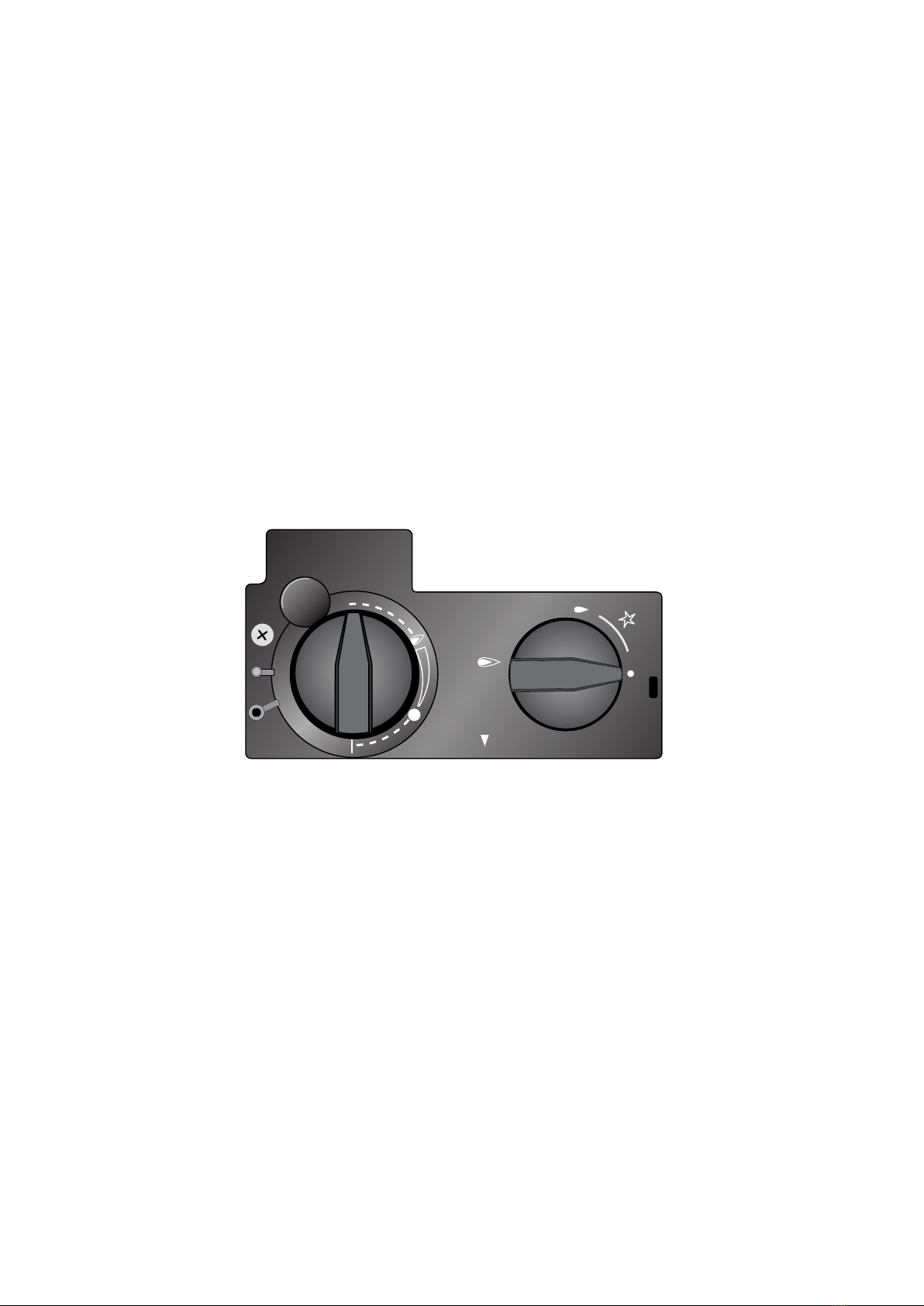

Manual Control
The manual control will
set the output from the
burner, from maximum
to minimum output.
On/Off
Pilot Setting and
Ignition Control
Mertik Maxitrol GV34 Gas Valve
