Solera SL-SAL-OG-30W-50K-SF-BK-G1 User manual

STEP 2: SLIPFITTER MOUNTING
The slipfitter mounting fits a 2 3/8” O.D. tenon. Place
the slipfitter over the tenon and secure the fixture
with the two Set Screws on the side of the slipfitter.
Off-Grid Area Light
STEP 1: Take o u t t h e f i xtu r e an d th e too l s f r o m t h e pa c k a ge .
v
Please be sure to check that
everything is in the box
1 x Remote (CU-ALL2)
1 x Solar Panel
a. Adjust the angle of the fixture. Align the white
lines w/ numbers and the arrows on the
fixture. Loosen the screws and swivel the
fixture to the desired angle, then re-tighten the
screws.
b.
INSTALLATION INSTRUCTIONS
SL-SAL-OG-30W-50K-SF-G1
READ CAREFULLY BEFORE INSTALLING THE FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. This product must be installed in accordance with the applicable installation code by a person familiar with
the construction and operation of the product and the hazards involved.
1 x Fixture
1 x 5mm allen wrench
1 x 6mm allen wrench
2 x AA Batteries
1 x Manual
1 x Solar Panel Base
1 x Slipfitter
*(4 set screws pre attached)
*(3 set screws pre attached to top of fixture, remove
*(2 set screws included in Box 1,
attaches to the solar panel hinge)
BOX 1
BOX 2
BOX 3
and reinstall once solar panel base is placed)

STEP 5: Once the fixture is completely installed, plug the
cable from the solar panel to the cable on the back of the
fixture to activate the fixture. The light will turn on
approximately 15-20 minutes after sunset has officially
started.
STEP 3: Adjust the solar panel base hinge. Use the marking on the solar panel
hinge base to line up with the number on the fixture that best suites the installation.
For optimal results, always face the panel facing the equator. In the northern
hemisphere, solar panels charge most optimally when installed facing South. West &
East facing panels won’t get as much light as a southern facing panel but will still
collect good sunlight. A North facing panel will work, but it will take longer to charge
than any other direction, meaning solar charging may be less than optimal in
installations facing this way.

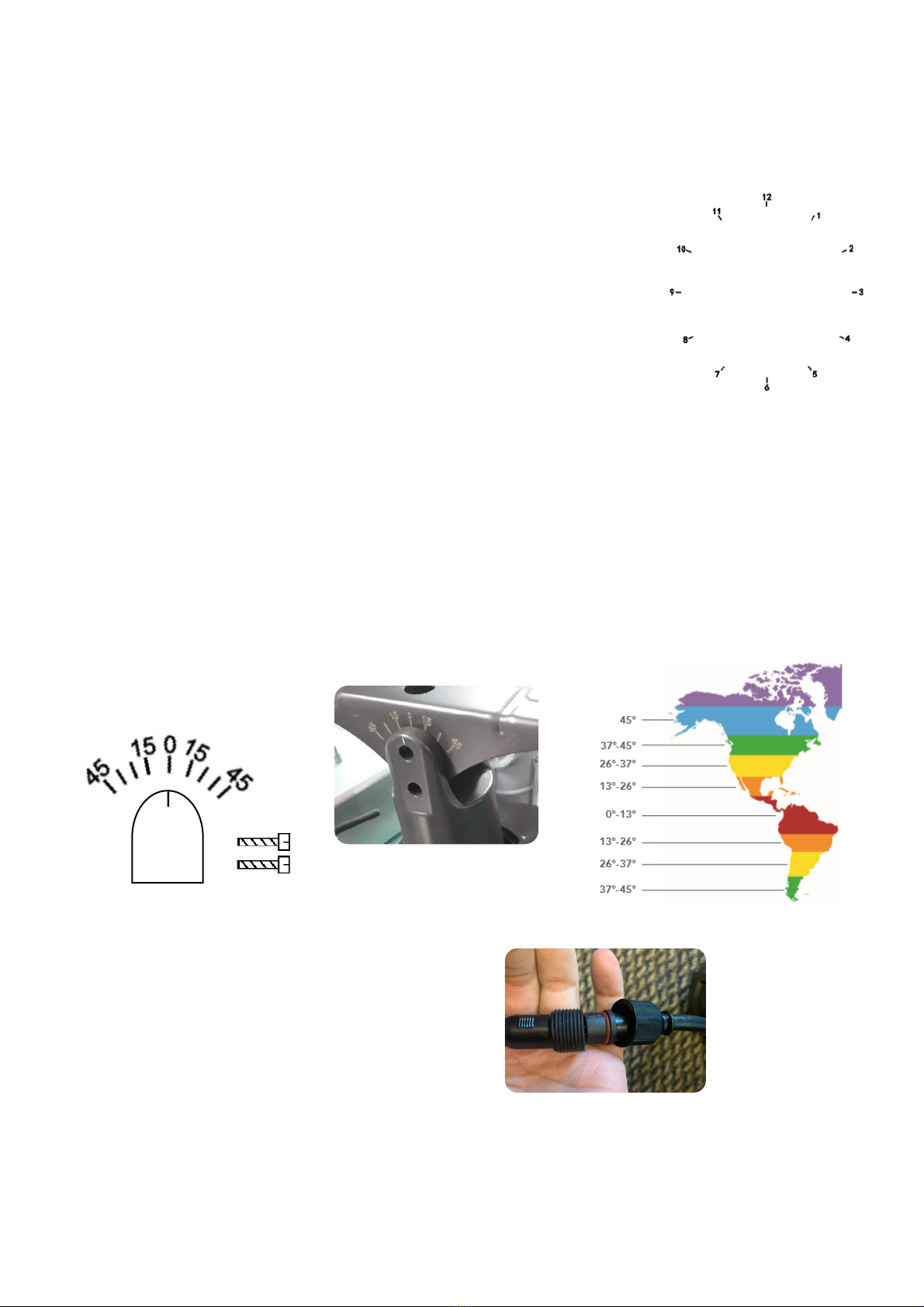

STEP 4: Adjust the solar panel to the optimal angle for your location. for best results, use the
same latitude angle of location that you are installing at. For example, Chicago is 45 degrees.
Please refer to the image below for more info. Place the 2 set screws & tighten with pre attached
washers. Set as close as possible. Use the line located on the top of the solar panel hinge to line
up with the angle of your choosing.

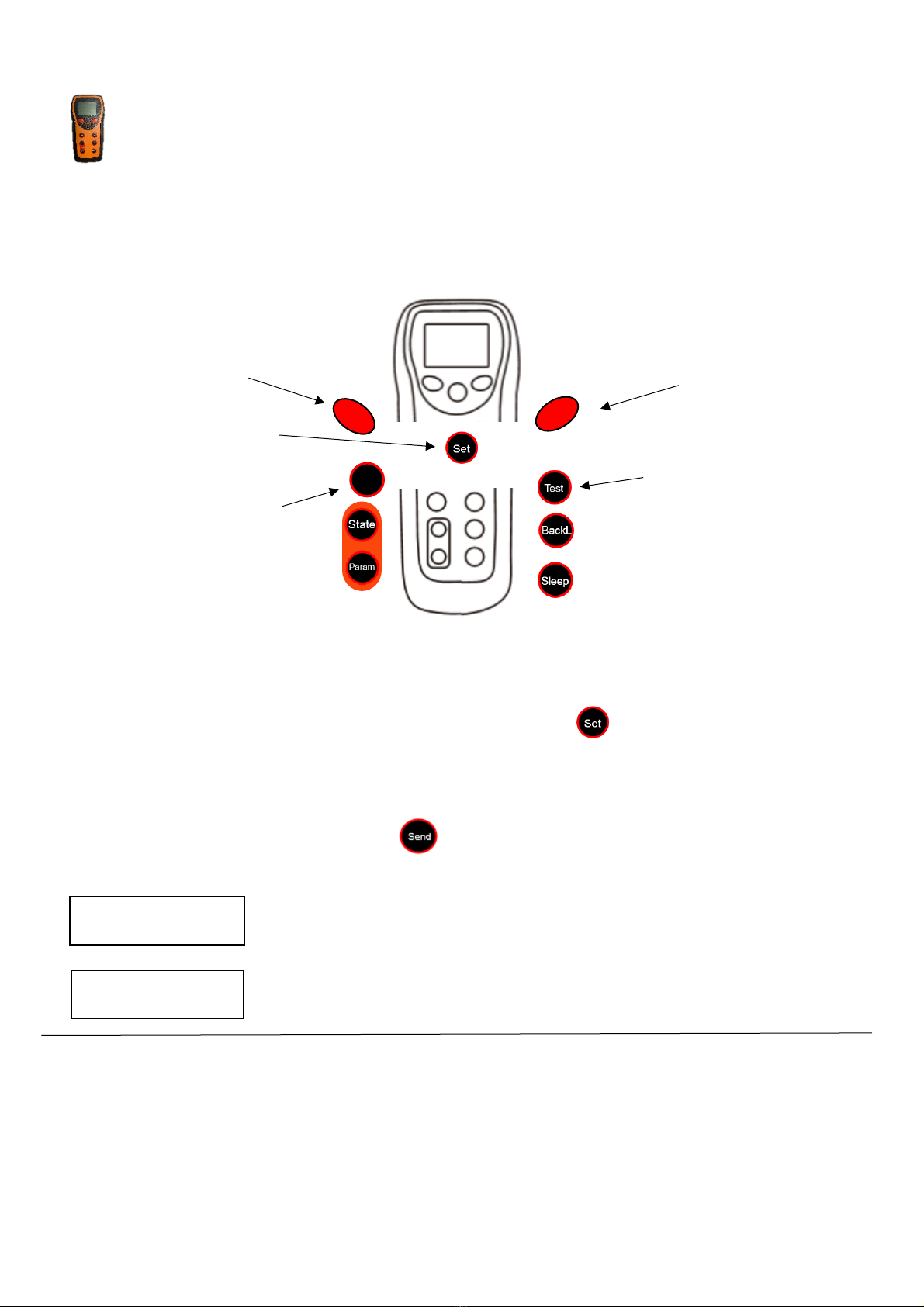

Introduction: Remote-Control
The default setting is Dusk ‘til Dawn @80% First 2 hours, 50% constant & 80% w/ motion for the
remainder of the night, *remote does not need to be connected or adjusted if your lighting goals are met.
The remote connects to the fixture via IR and has up to 24ft of distance
The remote does not need to be connected to the fixture to operate! It is automatically set to the default
You may want to adjust the settings based off your geographical area to attain more solar powered operation,
rather than pulling from the grid. We can change the settings by following the below:
Quick Start Guide
Main Features
a. Menu page down
b. Decrease the data
a. Menu page up
b. Increase the data
Set Parameters
Send Working Parameters
+
-
Send
Tes t m u l ti p l e l i g h t l e v el s
Operating Modes
Start up the remote by clicking any button
Controls the Dawn start up time: The fixture must be set at 2 hours
minimum, the motion sensor is disabled during this time.
1st Time: 2~15 hrs
1st Power: 0-100%
Controls the power output setting of the LEDs brightness for the first-time
selection.
Click the SET button to set any parameters that are changed
Once the parameters are set, click SEND. If successful you will hear a beep and see a !"#$%
face on the controller in the top right area of the screen. Make sure you are within 24ft
and underneath the fixture to set.
If you would like to add motion sensing options, this can be done in the selections listed
below, these time slots start to take effect after the 1st Time duration ends.

2nd Time: 0~ 15hrs
2nd Power: 0~ 100%
3rd Time: X
3rd Power: 0~ 100%
Time Duration begins after 1st Time Duration is complete, set hours and
output you would like the light to behave when motion is sensed. The
motion sensor will stay active for 30 seconds unless motion is still active
Default, please ignore
Set the power output when motion is idle during the 2nd Time duration,
no motion detected output
M Time: X
Set Pre-Dawn Time 0 ～ 15 hours
Set Pre-Dawn Power 0～100%
*The motion sensor is disabled during this period
*You can leave the values 0 here, unless you would like a constant output
added into the custom scheme
M Power: X
3rd Time: X (Default cannot be
changed)
3rd Power: 50% (Applied to 2nd
Time Power when idle
For the first 2 hours the product runs at 80% output, the next 12 hours after the first 2, it will
run it at 50% idle & 80% when motion is sensed until dawn. The motion sensor output stays
on for 30 seconds unless motion is still detected.
2nd Time: 12
2nd Power: 80%
1st Time: 2
1st Power: 80%
M Time: 0
M Power: 0%
Time Control Mode w/ motion
Default runtime scheme below.
Can be adjusted following instructions above

FIXTURE
Product Model
SL-SAL-OG-30W-50K-SF-BK-G1
Actual Power/ Lumen
30W / 5600LM
Dimension L x W x H
Main body: 16.33 x 10.5 X 3.15 in
LED rated life
>50,000 HRS
Mounting
Slip Fitter Φ2 3/8 in
Working Mode
Default- 80% on for first 2 hours, after 2 hours runs 50%
output, 80% when motion sensed until dawn
Color Temperature
5000K
Material
Aluminum Alloy + Polycarbonate
Charge Time
About 9-10 hours of good sunlight
Beam Angle/ Lens Type
140° Type 3 Optics
IP Rating
IP65
Recommended Install Height
10-25ft
Weight
30 lbs.
Warranty
3 YEARS
Packing
QTY/CTN: 1pc
Battery Charing Temp
Charging Temperature -4°F ~ 140°F
Discharging Temp
-40°F ~ 140°F
Fixture Operating Temp
-40°F ~ 140°F
Surge Protection
3kV
EPA Rating
4.45 ft2
1st Time: 14
1st Power: 100%
2nd Time: 0
2nd Power: 0%
3rd Time: 0
3rd Power: 0%
M Time: 0
M Power: 0%
1st Time: 14
1st Power: 50%
2nd Time: 0
2nd Power: 0%
3rd Time: 0
3rd Power: 0%
M Time: 0
M Power: 0%
Constant Control Mode
100% Dusk 2 Dawn
50% Dusk 2 Dawn

BATTERY
Battery Type
LiFePO4
Battery Charging Temp
-4°F ~ 140°F
Battery Discharging Temp
-40°F ~ 140°F
Replaceable Battery
YES
Charges
1000 Cycles
Charge Voltage
14.6V
mAh
23.4
W/h
300
Battery Weight
5.73 lbs.
Dimensions
8.27 x 4.72 x 3.15 in
SOLAR PANEL
Solar Panel Type
Monocrystalline
Solar Panel Watt
50W
Solar Panel Voltage
12V
Solar Panel Adjustable
YES
Charging Time
7-10 Hrs.
Solar Panel Dimensions
15.75 *31*1.75 in
Weight
10.58 lbs.
Bi-Pass Diodes
Single Cell, no cutoff
Efficiency
18-21%
Warning and Attention:
1. Before installation, please ensure the light pole foundation is solid enough to withstand
the lighting fixture.
2. Position the lighting fixture to optimize its exposure to sunlight. Always face the equator if possible
(solar panel to face south if in northern hemisphere for example).
3. In order to allow self-cleaning, please have a minimum angle of 10 degrees.
4. For best results, install on a day with optimal sunshine.
5. Adjust the angle of the fixture to optimize its exposure to sunlight, avoid north facing panels in the
USA
6. The fixture is on and active once the solar panel is connected to the fixture’s solar panel connector
wire. 7. Please make sure the panel is installed under direct sunlight. The red light should be flashing,
indicating that it is charging.
8. The lighting fixture will automatically turn on at night and turn off during daylight. The solar panel is the
photocell.
9. Please select the right operating mode according to the local legislation needs and the local sunshine
conditions.
10. The battery of the solar streetlight fixture will stop charging when the ambient temperature is below -
4°F or above 140°F. The working temperature of the solar fixture is -40°F (-40°C) to +140°F (+60°C).
When operating in an environment with a temperature lower than -40°F (-20°C), line voltage will kick in
to operate the light.
