LED SOLAR AREA LIGHT
SOLAR
LIGHTS
INSTRUCTIONS
STEP 1: TAKE OUT THE FIXTURE AND THE TOOLS FROM THE PACKAGE
PART # WATTAGE LUMENS* NET WEIGHT DIMMING
RP-SAL-8W-XXX-SF-GY-G2 8W 1600 18 LBS. USE THE REMOTE
CONTROL TO ADJUST
RP-SAL-30W-XXX-SF-GY-G2 30W 6000 39 LBS. USE THE REMOTE
CONTROL TO ADJUST
STEP 2: REMOVE THE SMALL PLASTIC ON THE BOTTOM OF THE REMOTE
STEP 3: COVER UP THE SOLAR PANEL
(you can use the package to cover up the solar panel entirely or ip the xture, so the
solar panel is facing the ground) and check if the light module turns on once power
is pressed on the remote. When the light is on, a green light will be displayed either
ashing or still, depending on its charge state. If the xture does not turn on, please
charge it with the included charger before installing, as the battery may need to
charge. For the light to charge, it needs to be ON and under sunlight or connected
to the charger, model number RP-SAL-CHARGER-G2. Please wait a few minutes with
the light under the sun and then press the power button on the remote. If charging
by the charger, you can click power on the remote right away. Make sure the red
light is blinking which indicates that it is on and charging properly. If your light has
a button on the bottom of the housing, make sure that it is pressed in all the way
and then turn on the remote power button to begin charging under the sun. Do not
install the light up on the pole until it is working.
STEP 4: USE THE REMOTE CONTROL TO POWER UP AND SET UP THE
NECESSARY MODE.
(THE RP-SAL-G2 REMOTE CONTROLS ARE NOT COMPATIBLE WITH THE G1 PRODUCTS)
The light module will ash twice when it receives the signal from remote control
(The default setting is motion sensor mode 40%-100%). Please refer to page
2 for the different mode options. Pay special attention to your local sunshine
and refer to the Best Practices Solar Guide for additional understanding. The
document can be found here under the documents section and inside the box:
https://solera-solar.com/product/off-grid-led-solar-area-light/
* Lumen Output for 5000K LED. Output will vary for other options.

LIGHT EFFICIENT DESIGN HEADQUARTERS 188 S. Northwest Highway •Cary, IL 60013
INNOVATION & MANUFACTURING CENTER 30 Log Bridge Road, Building 200 •Middleton, MA 01949
847.380.3540 •led-llc.com
10.11.22 Information is subject to change without notice.
LED SOLAR AREA LIGHT
SOLAR
LIGHTS
INSTRUCTIONS
STEP 5: ASSEMBLE THE MOUNTING BRACKET TO THE LIGHT AND ADJUST
THE ANGLE OF THE LED PANEL.
STEP 6: INSTALL THE LIGHT TO THE POLE OR MOUNTING SURFACE. ONCE PROPERLY
POSITIONED, TIGHTEN ALL SCREWS AND NUTS.
MPPT - DCLI CONTROLLER LED INDICATIONS AND FAULTS & ALARMS

LIGHT EFFICIENT DESIGN HEADQUARTERS 188 S. Northwest Highway •Cary, IL 60013
INNOVATION & MANUFACTURING CENTER 30 Log Bridge Road, Building 200 •Middleton, MA 01949
847.380.3540 •led-llc.com
10.11.22 Information is subject to change without notice.
LED SOLAR AREA LIGHT
SOLAR
LIGHTS
INSTRUCTIONS

LIGHT EFFICIENT DESIGN HEADQUARTERS 188 S. Northwest Highway •Cary, IL 60013
INNOVATION & MANUFACTURING CENTER 30 Log Bridge Road, Building 200 •Middleton, MA 01949
847.380.3540 •led-llc.com
10.11.22 Information is subject to change without notice.
LED SOLAR AREA LIGHT
SOLAR
LIGHTS
INSTRUCTIONS

LIGHT EFFICIENT DESIGN HEADQUARTERS 188 S. Northwest Highway •Cary, IL 60013
INNOVATION & MANUFACTURING CENTER 30 Log Bridge Road, Building 200 •Middleton, MA 01949
847.380.3540 •led-llc.com
10.11.22 Information is subject to change without notice.
LED SOLAR AREA LIGHT
SOLAR
LIGHTS
INSTRUCTIONS
6. ADJUST THE ANGLE OF THE FIXTURE TO OPTIMIZE ITS EXPOSURE TO SUNLIGHT. ADJUST THE LED
MODULE ANGLE TOWARD THE AREA TO BE ILLUMINATED.
7. THE FIXTURE IS ON ONCE THE POWER BUTTON ON THE REMOTE IS PRESSED AND AIMED AT THE
FIXTURE. PLEASE MAKE SURE THE PANEL IS INSTALLED UNDER DIRECT SUNLIGHT. THE RED LIGHT
SHOULD BE FLASHING, INDICATING THAT IT IS CHARGING. YOU CAN ALSO HIT THE TEST BUTTON
ON THE REMOTE TO ENSURE THAT IT IS ON AND WILL RECEIVE 2 FLASHES BACK FROM THE LED
LIGHT.
8. SELECT THE NECESSARY OPERATION MODE WITH THE REMOTE CONTROL. PLEASE REFER TO
PAGE 2 FOR FURTHER INFORMATION. NOTE: THE REMOTE HAS A RANGE OF 25FT
9. USE THE DEDICATED TOOL TO DISASSEMBLE THE ANTI-THEFT SCREWS. NOTE: DEDICATED TOOL
IS INCLUDED IN THE BOX OF EACH LAMP.
10. THE LIGHTING FIXTURE WILL AUTOMATICALLY TURN ON AT NIGHT AND TURN OFF DURING
DAYLIGHT.
11. PLEASE SELECT THE RIGHT OPERATING MODE ACCORDING TO THE LOCAL LEGISLATION NEEDS
AND THE LOCAL SUNSHINE CONDITIONS.
WARNING AND ATTENTION:
1. THE AVERAGE SUNSHINE IN THE INSTALLATION AREA SHOULD BE ABOVE 3.5H/DAY IN ORDER TO
ENSURE FULL FUNCTION OF THE LIGHTING FIXTURE.
2. BEFORE INSTALLATION, PLEASE ENSURE THE LIGHT POLE FOUNDATION IS SOLID ENOUGH TO
WITHSTAND LIGHTING FIXTURE.
3. POSITION THE LIGHTING FIXTURE TO OPTIMIZE ITS EXPOSURE TO SUNLIGHT. ALWAYS FACE THE
EQUATOR (SOLAR PANEL TO FACE SOUTH IF IN NORTHERN HEMISPHERE FOR EXAMPLE WHEN
POSSIBLE).
4. IN ORDER TO ALLOW SELF-CLEANING, PLEASE HAVE A MINIMUM ANGLE OF 10-15 DEGREES.
5. FOR BEST RESULTS, INSTALL ON A DAY WITH FULL SUNLIGHT. IF THE BATTERY IS TOTALLY
DEAD, PLEASE ALLOW THE BATTERY TO CHARGE UNDER SUN OR WITH THE CHARGER BEFORE
PROGRAMMING IT ACCORDINGLY. (PLEASE REMOVE SMALL PLASTIC FROM REMOTE)

LIGHT EFFICIENT DESIGN HEADQUARTERS 188 S. Northwest Highway •Cary, IL 60013
INNOVATION & MANUFACTURING CENTER 30 Log Bridge Road, Building 200 •Middleton, MA 01949
847.380.3540 •led-llc.com
10.11.22 Information is subject to change without notice.
LED SOLAR AREA LIGHT
SOLAR
LIGHTS
INSTRUCTIONS
12. THE BATTERY OF THE LEDSAL SOLAR STREETLIGHT FIXTURE WILL STOP CHARGING WHEN THE
AMBIENT TEMPERATURE IS BELOW 32°F OR ABOVE 149°F. THE WORKING TEMPERATURE OF THE
SOLAR FIXTURE IS -4°F (-20°C) TO +122°F (+50°C). WHEN OPERATING IN AN ENVIRONMENT WITH A
TEMPERATURE LOWER THAN 32°F (0°C) OR EQUAL TO OR ABOVE 149°F (65°C) THE BATTERY WILL
STOP CHARGING, EVEN IF THERE IS SUNLIGHT. IN THAT TEMPERATURE RANGE THE BATTERY SELF
PROTECTS WHICH WILL SHOW A FLASHING RED INDICTOR LIGHT. THIS FEATURE HELPS PROTECT
THE BATTERY FROM DAMAGE. THE SOLAR AREA LIGHT WILL STILL LIGHT EVEN IN THOSE EXTREME
TEMPERATURES UNTIL THE BATTERY IS COMPLETELY DEPLETED.
13.) THE WORKING TEMPERATURE OF THE SOLAR FIXTURE IS -4°F~+122°F. WHEN OPERATING IN
AN ENVIRONMENT WITH A TEMPERATURE LOWER THAN 32°F; THE BATTERY WILL STOP CHARGING,
EVEN IF THERE IS SUNLIGHT, BUT THE LIGHTING FIXTURE CAN STILL BE DISCHARGED IF YOU WANT
TO USE.
14. WHEN THE AMBIENT TEMPERATURE IS ≤ 32°F OR ≥ 149°F, THE BATTERY WILL TURN INTO SELF-
PROTECTION MODE.
A. WHEN THE BATTERY CHARGE IS ONLY 40%, THE LUMINANCE WILL AUTOMATICALLY BE REDUCED
BY HALF.
B. WHEN THE GREEN INDICATOR BEGINS TO FLICKER SLOWLY, IT MEANS THAT THERE IS ONLY 10%
BATTERY CHARGE.
C. WHEN THERE IS ONLY 5% BATTERY CHARGE, THE LUMINAIRE WILL AUTOMATICALLY SHUT DOWN,
THEN ENTER THE PROTECTION STATE AND NOT DISCHARGE.

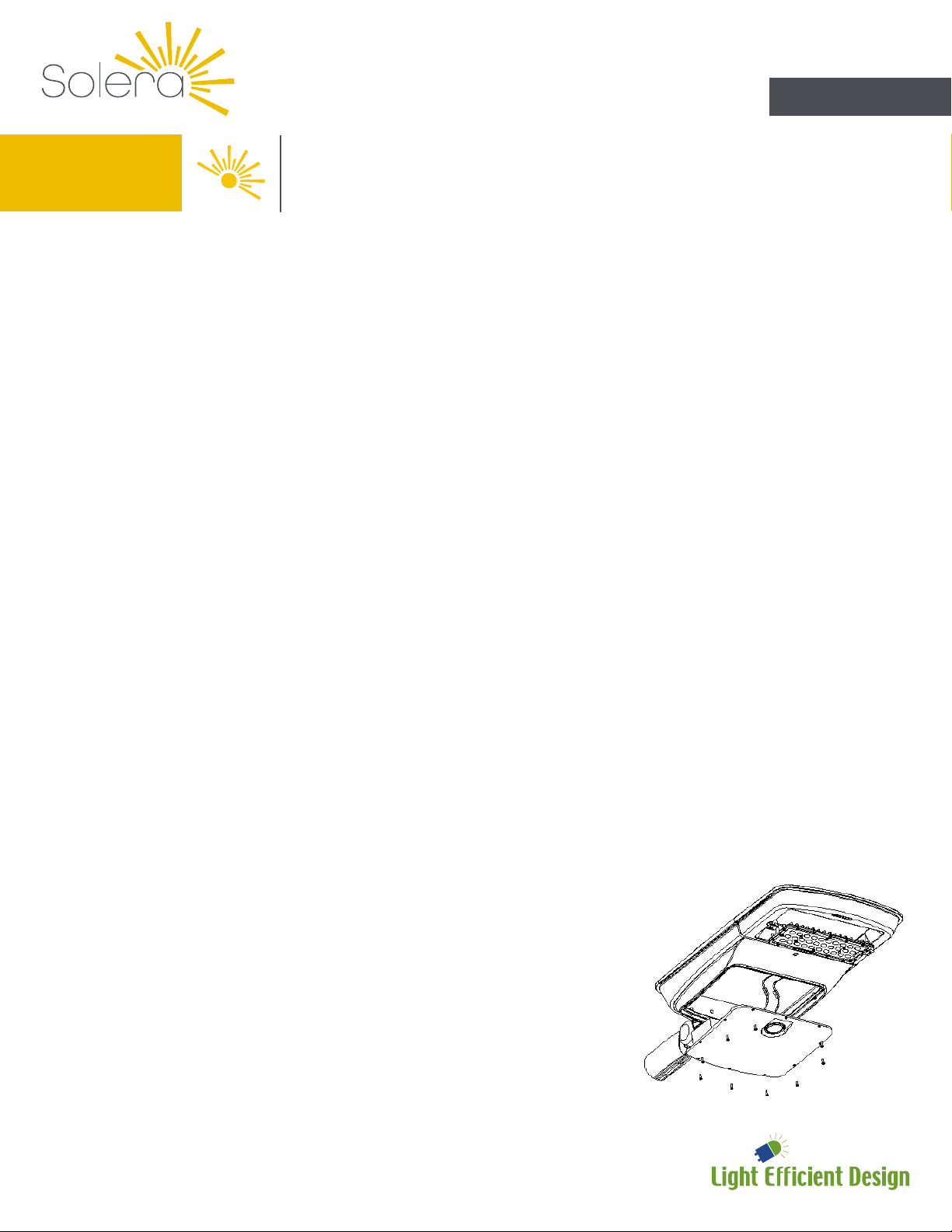

BATTERY REPLACEMENT
