Solplanet SOL APOLLO Series User manual

UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523 1
Thank you for choosing our Solplanet Smart EV Charger.
The Solplanet Smart EV Charger is an AC power charging station, it supplies
AC power to cargers: SOL7.4H, SOL11H, SOL22H.
Please read and follow the instructions in this manual carefully.

2 UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523
Table of Contents
1 Notes on this Manual ..................................................................................... 4
1.1 Area of validity......................................................................................... 4
1.2 Target group............................................................................................ 4
1.3 Symbols used in this manual................................................................... 5
1.4 Terms and definitions.............................................................................. 6
2 Safety............................................................................................................. 7
2.1 Intended use............................................................................................ 7
2.2 Safety standards...................................................................................... 7
2.3 Important safety information.................................................................... 7
2.4 Symbols on label ..................................................................................... 9
2.5 Basic safety protection ............................................................................ 9
3 Scope of delivery.......................................................................................... 10
4 Overview ...................................................................................................... 11
4.1 Overview of the product......................................................................... 11

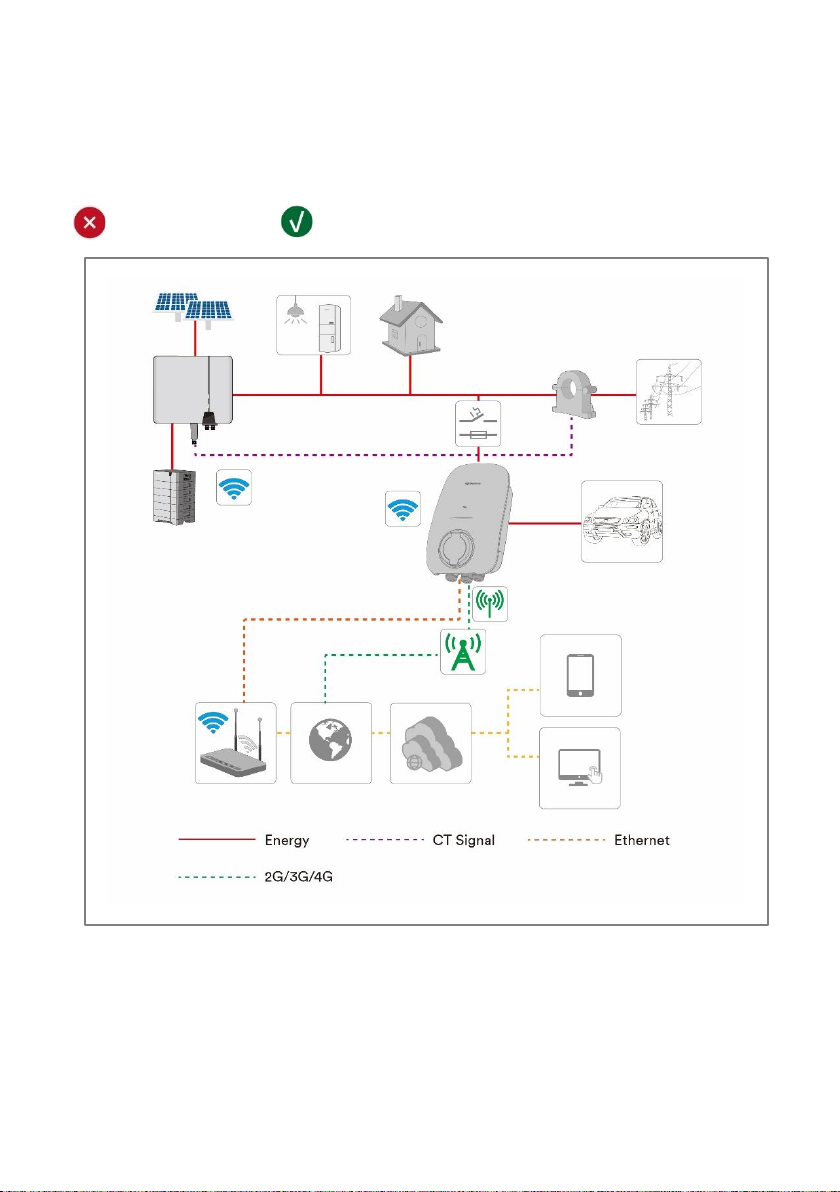

4.2 System overview with power management........................................... 13
4.3 LED Indicators....................................................................................... 26
4.4 Interfaces............................................................................................... 27
4.5 Special Features.................................................................................... 28
5 Mounting....................................................................................................... 29
5.1 Planning the Installation ........................................................................ 29
5.2 Site Requirements................................................................................. 29
5.3 Selecting the mounting location ............................................................ 31
5.4 Mounting the product............................................................................. 31

UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523 3
6 Commissioning and operation...................................................................... 47
6.1 Mechanical checks................................................................................ 47
6.2 Electrical checks.................................................................................... 48
6.3 Establish a connection to the Ai-charging app...................................... 48
6.4 Activate the RFID card .......................................................................... 48
6.5 Charging EV .......................................................................................... 49
6.6 Stop charging ........................................................................................ 51
7 Cleaning and Maintenance .......................................................................... 53
8 Troubleshooting ........................................................................................... 54
9 Technical data.............................................................................................. 57
9.1 Inputs and Outputs (AC)....................................................................... 57
9.2 General data ......................................................................................... 58
9.3 Safety regulations.................................................................................. 60
9.4 Wireless network specifications............................................................ 61
10 Recycling and disposal .............................................................................. 62
11 EU declaration of conformity...................................................................... 62
12 Contacts..................................................................................................... 63

4 UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523
1 Notes on this Manual
General Notes
The Solplanet Smart EV Charger is an AC power charging station, it supplies
AC power to charge electric vehicles.
1.1 Area of validity
This manual describes the mounting, installation, commissioning, operation
and maintenance of the following SOL APOLLO EV chargers:
⚫SOL7.4H
⚫SOL11H
⚫SOL22H
The series listed above is equipped with a variety of interfaces, please check
the technical specifications in section 9 Technical data to confirm the interfaces
that are available on the EV charger.
1.2 Target group
This document is intended for qualified persons and end users. Only qualified
persons are allowed to perform the activities marked in this document with a
warning symbol " ". The tasks with no " " symbol may also be
performed by end users.
Qualified persons must have the following skills:
⚫Knowledge of how the EV charger works and is operated;
⚫Identify the hazards (in terms of a risk assessment), relevant to the working
conditions on the site;
⚫Trained in the installation and commissioning of electrical devices and
installations;
⚫Knowledge of all applicable laws, standards and directives;
⚫Knowledge of and compliance with this document and all safety information.

UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523 5
1.3 Symbols used in this manual
The safety precautions and general information are used in this manual as
follows:
DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, can
result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, can
result in minor or moderate injury.
NOTICE indicates a situation which, if not avoided, can result in
property damage.
INFORMATION provides tips which are valuable for the optimal
installation and operation of the EV charger.

6 UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523
1.4 Terms and definitions
For the purposes of this document, the terms and definitions given in this
document.
Sheet 1
object
Abbreviation
Definition
1
DLB
Dynamic Load Balance
2
EV
Electric vehicle
3
OBC
On-board charger
4
BLE
Bluetooth Low Energy
5
EPS
Emergency Power Supply
6
RFID
Radio Frequency Identification
7
WLAN
Wireless Local Area Networks
8
NFC
Near Field Communication
9
CP
Control pilot, used to monitor and control the
interaction between the EV and the EV supply
equipment.

UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523 7
2 Safety
2.1 Intended use
The EV charger is an AC charging device.
The EV charger may automatically adjust its output power during operation due
to non-ideal conditions e.g., extremely high ambient temperatures.
The EV charger can only be operated in accordance with the information
provided in the enclosed documentation and with the locally applicable laws,
regulations and standards. Any other application may cause personal injury or
property damage.
The EV charger must be used as a stationary device.
All components of the EV charger must remain within their permitted operating
ranges at all times.
Adapters, extension cables and conversion cables must not be used with either
version of the EV chargers.
2.2 Safety standards
SOL APOLLO EV chargers comply with the EU Low-Voltage Directive
2014/35/EU and the EMC Directive 2014/30/EU. The EV charger also compli-
es with the requirement for safety and EMC in European market. They are la-
beled with the CE mark.
For more information about certificates in other countries and regions, please
visit website ( www.solplanet.net ).
2.3 Important safety information
Before installing, operating or maintaining this product, it is important to read
and ensure that the contents of the following Guide are fully understood. Failure
to follow all the specified instructions and procedures, will invalidate the warran-
ty and as such Solplanet will not be liable for any claims for compensation.

8 UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523
Danger to life due to electric shock when live components or cables
are touched！
• Do not open the EV charger under load or when it is not electrically
isolated.
•Do not use the EV charger if it is damaged.
•Do not extend the charging cable with an extension lead.
•Do not touch or insert foreign objects into the EV charger socket or the
cable plug.
•Do not install the EV charger near flammable, explosive, or combustible
materials.
Risk of injury due to electric shock！
•All work on the equipment must only be carried out by qualified personnel
who have read and fully understood all safety information and installation
requirements contained in this manual.
•The EV charger must be out of reach from children.
•The EV charger must be connected to a protective earth conductor.
•The electrical installation must comply with all applicable local safety
requirements, standards and guidelines.
•No modifications, not limited to mechanical or electrical, must be made
to the EV charger.
•Components should not be changed or replaced by the end-user or
unqualified personnel.
•Do not use conversion adapters or cord extension sets with the EV
charger.

UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523 9
2.4 Symbols on label
Symbol
Explanation
Risk of danger, warning and caution！
Safety information, important for human safety. Failure to
observe the safety information in this manual may result in
injury or death.
Be ware of high voltage and operating current.
The EV charger operates at high voltage and current. Work
on the EV charger must only be carried out by skilled and
authorized electricians.
Certified safety.
The product is TUV-tested and complies with the
requirements of the EU Equipment and Product Safety Act.
CE mark.
The EV charger complies with the requirements of the
applicable CE guidelines.
Do not dispose of the EV charger with household waste.
For more information on disposal, please refer to Section 10
“Recycling and disposal”.
Refer to the manual accompanying the EV charger.
2.5 Basic safety protection
The EV charger provides the following safety protection functions:
1) Over-voltage, under-voltage protection;
2) Over-frequency, under-frequency protection;
3) Over-current protection;
4) Residual current monitoring;
5) Grounding conductor monitoring;
6) Relay fault monitoring;
7) Phase lost monitoring;
8) Over-temperature monitoring.

10 UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523
3 Scope of delivery
Inspect the product packaging for any external visible damage and ensure that
all items in the table below have been included. Contact your supplier if the
accessories delivered are incomplete or if the EV charger or accessories show
signs of damage.
Sheet 2
Sheet 3
A
B
C
D
E
F
G
H
I
Object
Description
Quantity
A
EV charger
1 piece
B
Rubber seal kit
1 set
C
Screw accessory kit:
Wall anchors and hexagon bolts (×3)
M4×10mm screw (×2)
M4×6mm screw (×1)
ST3×10mm screw (×2)
1 set
D
Mounting template
1 piece
E
RFID card
3 pieces
F
AC Input cable fastener
1 piece
G
Energy meter (Optional)
1 piece
H
Cable holder (for cable version)
1 piece
I
Quick installation guide
1 piece

UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523 11
4 Overview
4.1 Overview of the product
Socket Version
Figure 1: Overview of the socket version
Sheet 4
Position
Description
A
RFID / NFC Reader
Area for RFID card scanning or for use with NFC authorized
smart devices.
B
LED strip
Indicates the operating state of the EV charger.
C
Socket
D
Input cable gland
E
Communication cable gland
F
Type label
G
QR code
H
Knockout entry reserved for input AC cable.

12 UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523
Cable Version
Figure 2: Overview of the cable version
Sheet 5
Position
Description
A
RFID / NFC Reader
Area for RFID card scanning or for use with NFC authorized
smart devices.
B
LED strip
Indicates the operating state of the EV charger.
C
Charging plug
D
Input cable gland
E
Communication cable gland
F
Type label
G
QR code
H
Charging plug cable

UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523 13
I
Knockout entry reserved for input AC cable.
4.2 System overview with power management
The SOL APOLLO EV charger provides the Dynamic Load Balance function for
users when installed together with an energy meter. This function automatically
adjusts the charging power depending on the power flow within the system.
When the homes power consumption is stable and the PV power increases, the
EV charger charging power will increase accordingly. The increase of power will
be no greater than 32A and can be also limited by the EV on-board charger
(OBC).
And the system overview in different application are like the pictures below:
The product provide disconnection means and a residual current monito-
ring for detecting 6 mA direct residual current. In order to guarantee safety
in accordance with IEC 61851-1 that RCD Type A and appropriate equip-
ment that ensures the disconnection of the supply in case of DC fault
current above 6 mA. The additional overcurrent protection and approved
RCD Type A need to be provided in the installation as well.

14 UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523

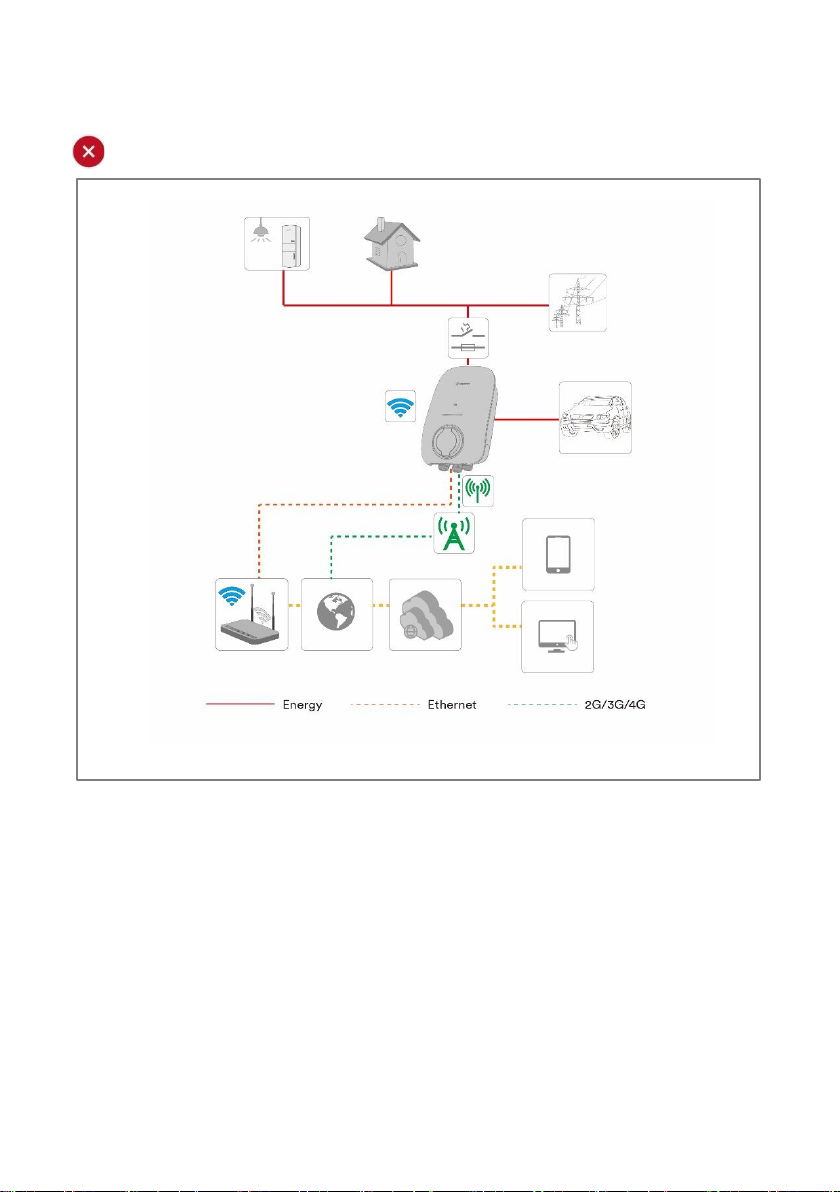

a) System Overview with EV-Charger Only
EV Charger DLB
Figure 3

UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523 15

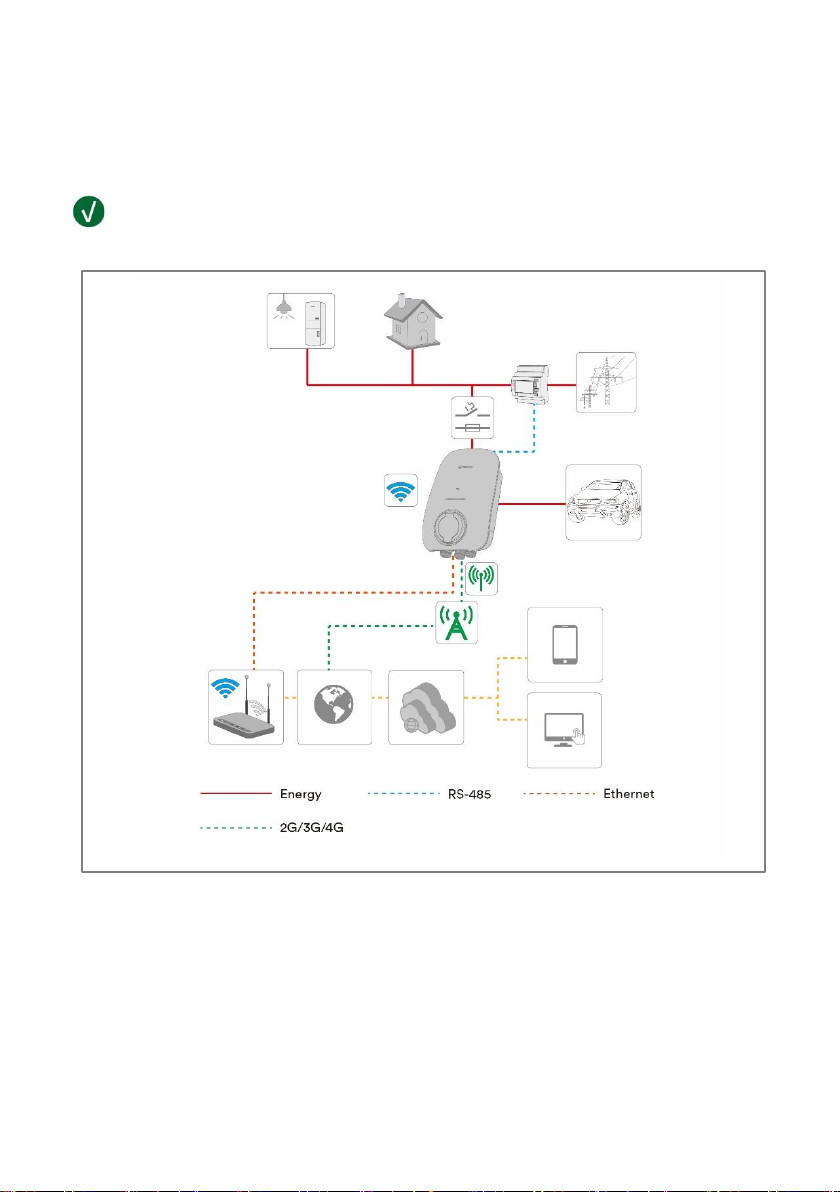

EV Charger DLB
Figure 4

16 UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523
b) System Overview with EV-Charger and Ongird Inverter

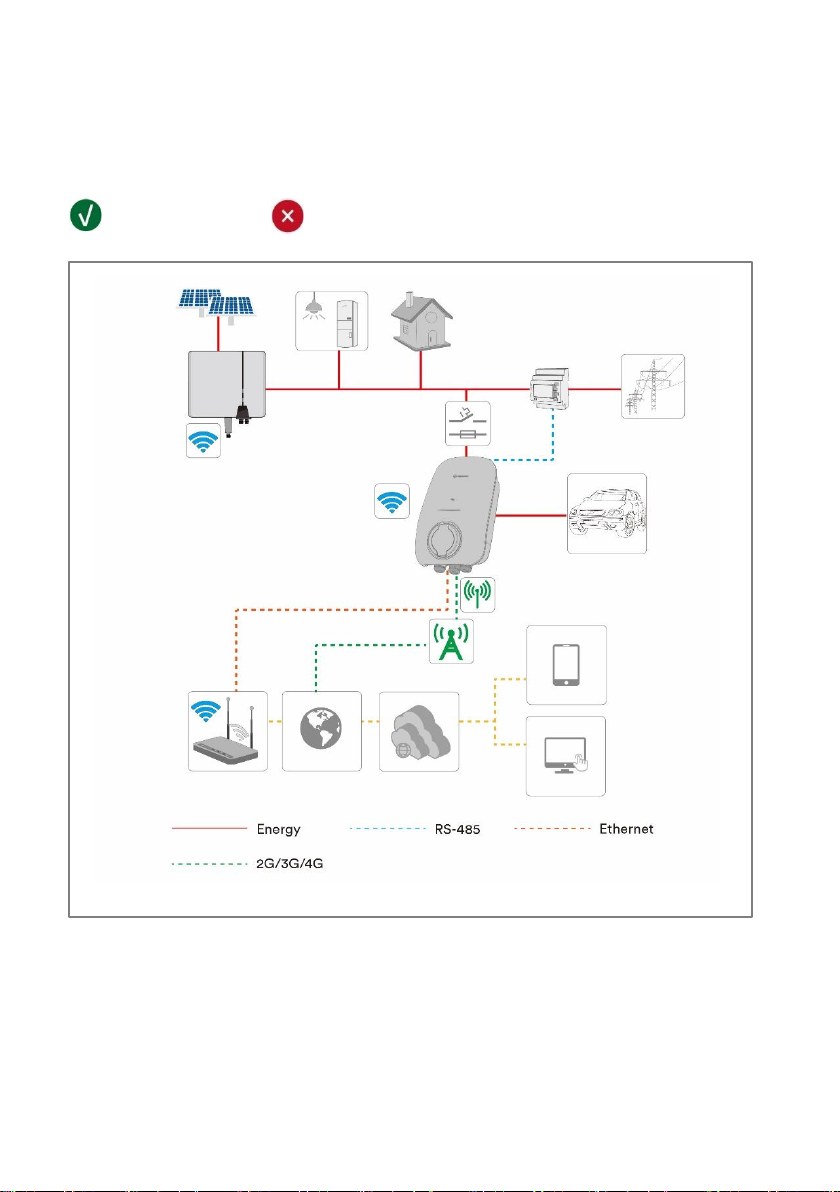

EV Charger DLB Ongrid inverter 0-export
Figure 5

UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523 17

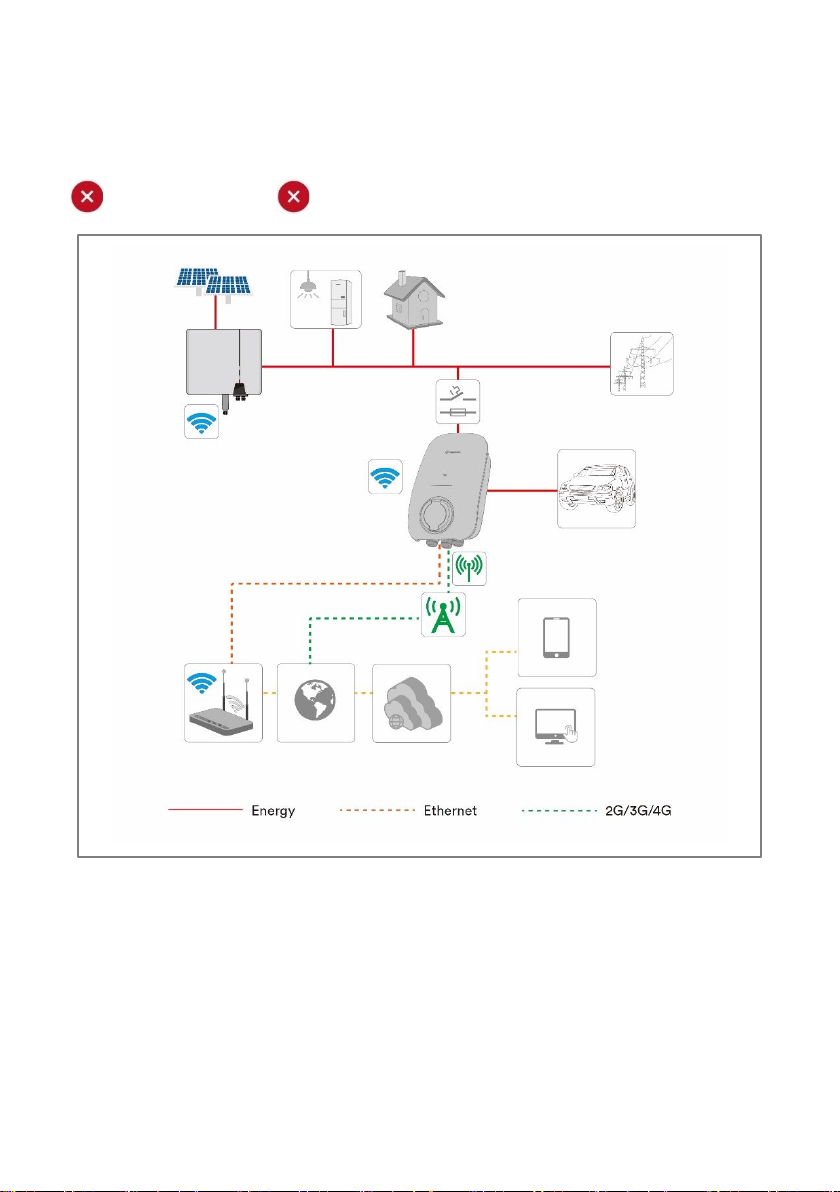

EV Charger DLB Ongrid inverter 0-export
Figure 6

18 UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523

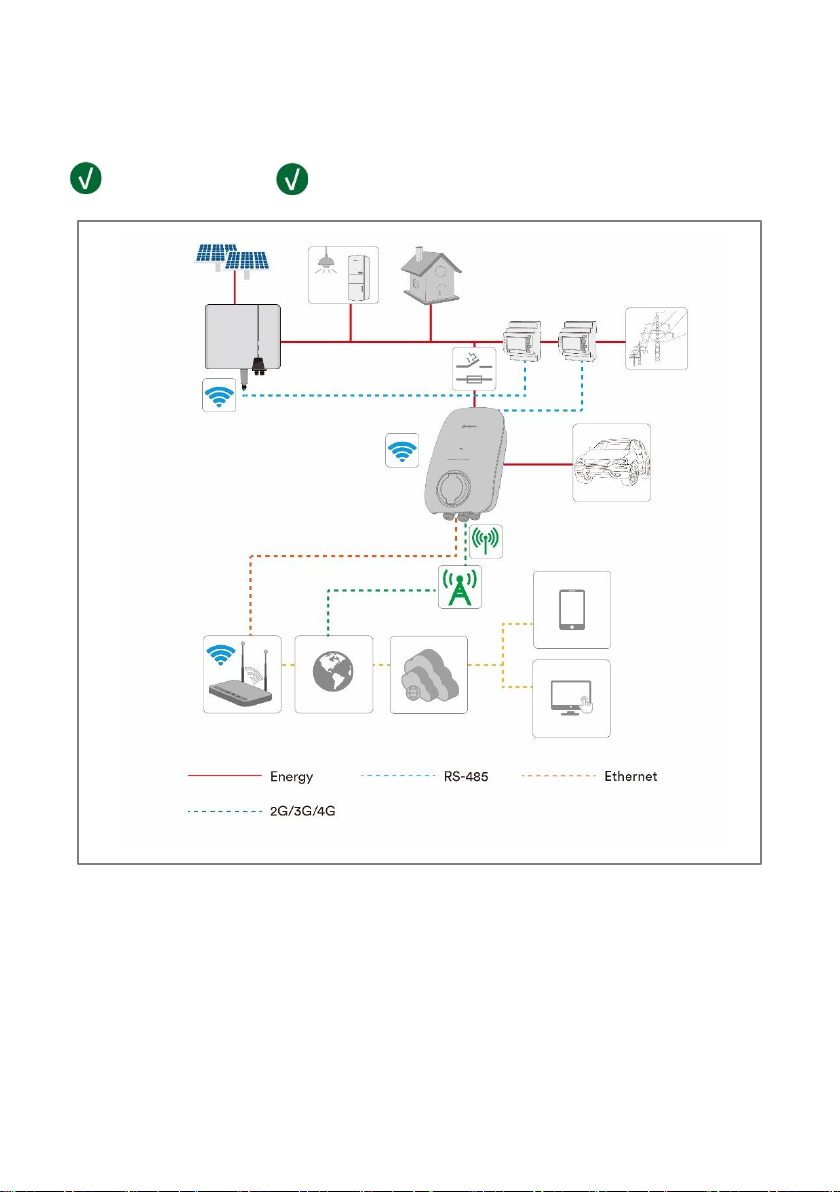

EV Charger DLB Ongrid inverter 0-export
Figure 7

UM0027_ SOL APOLLO Series 7.4-22K_EN_V02_0523 19
c) System Overview with EV-Charger and Hybrid Inverter
EV Charger DLB Hybrid inverter 0-export
Figure 8
