Solt GGSWC193 User manual

E S S E N T I A L S FOR LIFE
User
Manual
MODEL
GGSWC193
V 1.0 | 0821
193 Bottle Dual Zone Wine Cabinet

2
Purchase Details
For future reference, please record the following information which can be found on the rating plate
and the date of purchase which can be found on your sales invoice.
STORE DETAILS
STORE NAME

ADDRESS

TELEPHONE

PURCHASE DATE

PRODUCT DETAILS
MODEL NO.

SERIAL NO.*


Contents 2Purchase Details
5Welcome
6General Safety Instructions
10 Your Wine Cabinet
11 Getting Started
12 Installation
18 Operating Instructions
20 Bottle Arrangement
21 Tips for Wine Storage
22 Cleaning & Maintenance
23 FAQ's & Troubleshooting
24 Technical Specifications
25 Attach Your Receipt
26 Warranty Information
Customer Care
Sôlt recommends the use of original spare parts. When contacting our customer service team, please ensure
that you have the following information at hand (which can be found on your appliances’ rating plate).
— Model Number
— Serial Number
T . 1300 11 4357 | E. su[email protected]

This page
is intentionally
left blank

Welcome Congratulations on purchasing
your new Wine Cabinet!
The Sôlt brand is proudly
distributed within Australia
by Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this manual
for information regarding your product’s parts and labour
warranty, or visit us online at www.residentia.group
At Residentia Group, we are customer obsessed and our
Support Team are there to ensure you get the most out of
your appliance. Should you want to learn more about your
appliance features, and importantly taking care of your
appliance when cleaning, our Support Team are here
to help.
You can use our online Support Centre at anytime by
visiting http://support.residentiagroup.com.au, or you can
contact us via calling us on 1300 11 HELP (4357).
It is important that you read through the following use and
care manual thoroughly to familiarise yourself with the
installation and operation requirements of your appliance
to ensure optimum performance.
Again, thank you for choosing an Sôlt appliance and we
look forward to being of service to you.
Kind Regards,
The Residentia Team
Residentia Group
—
Head Office.
165 Barkly Ave
Burnley
Victoria 3121
Australia
—
ACN.
600 546 656
—
Online.
residentia.group
Sôlt
—
Online.
www.solt.house
—
Instagram.
/solt.house
—
Facebook.
/solt.appliances

6
IMPORTANT INFORMATION THAT MAY IMPACT YOUR
MANUFACTURER’S WARRANTY
Adherence to the directions for use and installation
guidelines within this manual is extremely important for
both your health and safety. Failure to strictly adhere
to the requirements within this manual may result in
personal injury, property damage and affect your ability
to make a claim under the Solt manufacturer’s warranty
provided with your product. Products must be used,
installed and operated in accordance with this manual.
You may not be able to claim on the Solt manufacturer’s
warranty in the event that your product fault is due to
failure to adhere to this manual.
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read this manual thoroughly before first use, even if
you are familiar with this type of product. The safety
precautions enclosed herein reduce the risk of fire,
electric shock and injury when correctly adhered to.
Make sure you understand all instructions and warnings.
Keep the manual in a safe place for future reference,
along with the completed warranty card and purchase
receipt. If you sell or transfer ownership of this product,
pass on these instructions to the new owner.
Always follow basic safety precautions and accident
prevention measures when using an electrical appliance,
including the following:
IMPORTANT: Pay particular attention to messages that
contain the words DANGER, WARNING or CAUTION.
These words are used to alert you to a potential hazard
that can seriously injure you and others. The instructions
will tell you how to reduce the chance of injury and let
you know what can happen if the instructions are not
followed.
The refrigerant isobutane (R600) is contained within
the refrigerant circuit of the appliance, a gas with a
high level of environmental compatibility, which is
nevertheless flammable. During transportation and
installation of the appliance, ensure that none of the
components of the refrigerant circuit become damaged.
WARNING: Do not damage the refrigerant circuit! Never
use an appliance with a damaged refrigerant circuit!
If the refrigerant circuit becomes damaged, avoid
proximity to open fires and all types of heat and ignition
sources. Thoroughly ventilate the room in which the
appliance is located.
DANGER: It is hazardous for anyone other than an
authorised service person to service this appliance.
In Queensland, the authorised service person MUST hold
a Gas Work Authorisation for hydrocarbon refrigerants
to carry out servicing or repairs which involve the
removal of covers.
The room for installing the appliance must be at
least 1m. per 8g of refrigerant. The amount and type
of refrigerant in the appliance can be found in the
Technical Specifications section of this user manual and
on the rating plate, found on the rear of the appliance.
The information in this user manual is subject to
modification without any prior notice. Updated manuals
will be made available online via the Solt website.
Solt offers no guarantee for our Wine Cabinet if it is
being used for any purpose other than that for which it
was specifically designed.
Solt cannot be held responsible for any error in this
manual.
USAGE CONDITIONS AND RESTRICTIONS
• Domestic use only: This appliance is intended for
indoor household use only. It is not intended for
commercial, industrial or outdoor use. It is not
intended for use in a recreational vehicle.
• Purpose: Do not use this appliance for anything
other than its intended purpose. Other uses are not
recommended and may cause fire, electric shock or
personal injury.
• Attachments: The use of attachments is not
recommended by the appliance manufacturer and
distributor as they may be hazardous.
• Improper use: Damage due to improper use, or
repairs made by unqualified personnel will void your
warranty. We assume no liability for any eventual
damages caused by misuse of the product or
noncompliance with these instructions.
General Safety Instructions
This symbol alerts you to
take care as this appliance
contains a flammable
refrigerant (isobutane)
and insulation blowing gas
(cyclopentane).
Do not expose it to high heat,
sparks and open flames.

7
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
• Usage restriction: This appliance is not intended for
use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been
given supervision or instructions concerning use
of the appliance by a person responsible for their
safety.
• Children: Supervise young children to ensure they
do not play with the appliance. Never allow children
to operate, play with, climb or crawl inside the
appliance.
• WARNING: Do not use electrical appliances
inside the appliance, unless they are of the type
recommended by the manufacturer.
• Explosive or flammable substances: Do not store
explosive substances such as aerosol cans with a
flammable propellant in this appliance. Do not store
or use petrol or any other flammable vapours and
liquids in the vicinity of this or any other appliance.
Do not use such substances for cleaning the
appliance. The fumes can create a fire hazard or an
explosion.
• Damage: Do not use the appliance if the power
cord, plug or the appliance itself is damaged. If the
cord is damaged, contact the after sales support line
and have the cord replaced by qualified personnel
in order to avoid a hazard.
• WARNING: Do not damage the refrigerant circuit.
• Do not modify: Do not attempt to alter or modify this
appliance in any way.
• Repair: Do not attempt to repair or replace any
part of this appliance unless it is specifically
recommended in this manual. All other servicing
should be referred to a qualified technician. Contact
our Customer Care team for advice.
• WARNING: Do not locate power-boards or portable
power supplies at the rear of the appliance.
• Usage: The gaps between cooler door and cooler
body are small- be careful to avoid jamming your
fingers in these areas. Please be gentle when closing
or opening the Wine Cabinet door.
• Care: Never stand on the base of the Wine Cooler or
any of the shelving.
ELECTRICAL SAFETY
• Voltage: Before connecting and turning on the
appliance, ensure the electrical voltage and circuit
frequency correspond to that indicated on the
appliance rating label.
• Earthing: This appliance should be properly earthed
for your safety. The power cord of this appliance
is equipped with a three-prong plug for use in
standard wall outlets to minimise the possibility of
electrical shock. Do not modify the cord and/or plug
provided with the appliance. Improper use of the
earthed plug can result in the risk of electric shock.
• Connection: This appliance requires a standard 220-
240 V AC 50Hz electrical outlet. Do not overload the
electrical circuit.
• Power cord: Do not kink or damage the power cord;
do not leave it exposed or dangling. Secure it at the
back of the appliance so no one steps on or places
anything on the cord or against it. Keep the cord out
of reach of children. When moving the appliance,
make sure not to damage the power cord. When
removing the power cord, firmly grasp the plug and
pull out it from the socket directly.
• Auxiliary Items: Do not use an inverter, adaptor or
extension cord with this appliance. If the cord is too
short, have a qualified electrician install an outlet
near the appliance. Use of an extension cord and an
inverter can negatively affect the performance of
the unit.
• Protect from moisture: To protect against the risk
of electric shock, do not immerse the unit, cord or
plug in water or spray it with any other liquid. Do
not connect or disconnect the electric plug when
your hands are wet. Turn the power switch off before
removing the plug from the socket.
• WARNING:Disconnect! To reduce the risk of fire,
electric shock or personal injury, always unplug the
appliance from the socket when not in use, when
moving and before cleaning or servicing. Never
unplug the unit by pulling the power cord. Always
grip the plug firmly and pull straight out from the
power point.
• Electrical work: Any electrical work required for the
installation of this appliance should be carried out
by a qualified electrician.
• Internal LED lighting: Your appliance is fitted with
long life LED lighting. In the unlikely event the LED
lights should fail, then the LED lights should be
serviced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a
hazard.
Never use this appliance with a damaged refrigerant
circuit! If the coolant circuit becomes damaged, avoid
proximity to open fires and all types of heat sources.
The room in which the appliance is located should be
ventilated for a few minutes.
WARNING: Leaking Gas: In the case of leaking gas, turn
off the valve of the leaking gas, open the doors and
windows in case of leakage of gas and other flammable
gases. Do not unplug the cooler and other electrical
appliances considering that spark may cause a fire.

8
INSTALLATION
Heavy: This appliance is heavy, take care when moving
it. To avoid back or other injury, consider a two person
lift or mechanical aid when installing it. Failure to do so
can result in a back or other injury.
Damage: When unpacking, check the appliance
carefully for damage. If it is damaged, do not install the
appliance. Contact our after sales support centre on
1300 11 43 57 for advice on examination or return of the
damaged appliance.
Protect from moisture: Install the appliance in an indoor
area protected from wind, rain, water spray or drips.
Protect from heat: Do not install the appliance next to
an oven, grill or other source of high heat, or where it
will be exposed to direct sunlight.
WARNING: Ventilation: To ensure proper ventilation,
keep any ventilation openings, in the appliance
enclosure or in the built-in structure, clear of
obstructions. Ensure adequate air circulation around the
appliance to prevent overheating. This is a freestanding
model which can be built-in providing the ventilation
requirements are followed within this manual.
Level: Install the appliance level in order to ensure
proper operation.
Location: To ensure safety, the location of your Wine
Cabinet should:
• be unencumbered and well ventilated;
• be well away from any heat source and direct
sunlight;
• be well ventilated and not too damp (i.e. avoid
laundries, bathrooms, etc);
• be indoors (avoid outdoor environments such as
garages, even where they are roofed);
• have a flat, solid and level floor;
• have a standard and reliable electricity supply
(including normal power outlet which is earthed);
Note! It’s not recommended connecting your wine
cabinet or beverage centre to a power-board or
extension lead.
• have a surge protector fitted to the electrical outlet;
• be away from any microwave ovens. Certain
microwave ovens do not have wave interference
shields and when placed within 1 meter of your wine
cabinet, they may affect its operation.
• be located where the ambient temperature is
between 5*C and 35*C. If the ambient temperature
is outside (above or below) this range, the
performance of your appliance may be affected.
Children: Do not give packaging and other components
to children to play with. The bending board and
plastic film may lead to suffocation! Children should
be supervised to ensure that they do not play with the
appliance. Never allow children to enter or climb the
wine cabinet in order to prevent children from being
sealed inside or injured by the falling appliance.
CLEANING AND MAINTENANCE
Disconnect: Unplug the appliance before cleaning or
servicing. Failure to do so can result in electric shock,
injury or death. Do not connect or disconnect the plug
when your hands are wet.
Flames: Do not let open flames or ignition sources enter
the appliance.
Flammable/explosive substances: Never clean this
appliance with flammable fluids. Do not store or use
volatile, flammable or explosive propellants or liquids
in or close to this or any other appliance. The fumes can
create a fire hazard or explosion.
Washing: Do not spray or wash the appliance; do not
put the wine cabinet in moist places that could allow the
appliance to be easily splashed with water so as not to
affect the electrical insulation properties of the cooler.
Solvents: Do not use solvent based cleaning agents
or abrasives on the interior as these may damage or
discolour the surfaces of the appliances.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process. Never use
a sharp or metal instrument to remove frost or clean the
appliance. Use a plastic scraper, if necessary.
Service: Do not attempt to repair, modify or replace any
part of the appliance unless specifically recommended
in this manual. Refer all other servicing to a qualified
technician, or contact our Customer Care team for
advice on examination or repair of the appliance.
General Safety Instructions (Cont.)

9
WARNINGS RELATED TO PLACING ITEMS
• Objects: Do not place heavy objects on the top of
the Wine Cabinet considering that objects may fall
when open or close the door, and accidental injuries
might be caused.
• Items in the cooler: Do not put flammable,
explosive, volatile and highly corrosive items in the
cooler to prevent damages to the product or fire
accidents.
• Flammable items: Do not place flammable items
near the cooler to avoid fires.
• Usage: This product is household cooler and this
equipment can only be used for the storage of wine.
According to the standard requirements, household
cooler shall not be used for other purposes, such as
storage of blood, drugs or biological products.
• Keys: This model is fitted with a lockable door.
Always ensure that the keys are kept out of the reach
of children and not in the vicinity of the appliance, in
order to prevent children from accessing.
ENERGY WARNINGS
• Wine Cabinet might not operate consistently when
used for an extended period of time below the cold end
of the range of temperatures for which the appliance is
designed for.
RESPONSIBLE DISPOSAL
Note: At the end of its working life, do not throw this
appliance out with your household rubbish. Electrical
and electronic products contain substances that can
have a detrimental effect on the environment and
human health if disposed of inappropriately. Observe
any local regulations regarding the disposal of electrical
consumer goods and dispose of it appropriately for
recycling and recovery of the refrigerant and blowing
agent. Contact your local council for advice on recycling
facilities in your area. When the wine cooler is scrapped,
disassemble the doors, and remove gasket of door and
shelves; put the doors and shelves in a proper place, so
as to prevent entrapment of any children.
WARNING! This refrigeration appliance contains
flammable refrigerants and insulation blowing gases,
which must be removed before disposal. Contact your
municipal authorities for any codes or regulations
concerning the disposal of such materials.
For more detailed information about treatment,
recovery and recycling of this product, please contact
your local city office, your household waste disposal
service or the shop where you purchased the product.

10
PRODUCT OVERVIEW
Your Wine Cabinet
Note: The diagram in Figure 1 above is for general reference only and your physical appliance may differ.
Tip! We recommend that the upper and lower zones of your wine cabinet are set at 12ºC for improved
energy efficiency. The shelves have been positioned in the most energy-efficient positions during assembly.
Note: The wine cabinet relative humidity is maintained between 50% and 80%.
Note: The wine cabinet temperature range for each zone is 5-18ºC and is only intended for storing
unopened bottled wine.
Important! Never place food within the wine cooler, in order to prevent bacterial contamination.
Figure 1- Diagram of your Solt wine cabinet layout.

11
UNPACKING
• Packaging materials: This appliance has been packaged to protect it against transportation damage. Remove
all packaging materials from around and inside the appliance including the bottom cushions, foam pads, tapes
inside the cooler, tear off the protective film on the door and the cooler body. Keep the original packaging
carton and materials in a safe place. It will help prevent any damage if the product needs to be transported
in the future, and you can use it to store the appliance when it is not in use. In the event the carton is to be
disposed of, please recycle all packaging materials where possible.
• Check: to see if all items are present.
• Inspect: the equipment and accessories for transport damage. In case of complaints, the supplier is to be
informed immediately.
• Suffocation: Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all
packaging materials are out of their reach and disposed of safely.
• Power cord: Unwind the power cord to its full length and inspect it for damage. Do not use the appliance if it or
its cord have been damaged or are not working properly. In case of damage, contact our after sales support
line for advice on examination, repair or return of the damaged product.
• Read the manual: Read this manual to familiarise yourself with the appliance. Pay particular attention to the
safety instructions on the previous pages.
• Clean: To remove any dust from transit and storage, clean the interior and exterior surfaces of the appliance
with lukewarm water and a soft cloth. Dry thoroughly.
Important! Do not use harsh or abrasive detergents or powders as these will damage the finish.
FIRST USE
Before turning on your wine cabinet for the first time;
• The appliance must be rested for at least 24 hours in its location, before connecting power and switching on.
• Clean the inner chamber and leave the door open during this 24-hour resting period to allow any residual
odours to clear.
• Do not connect the appliance to an electronic energy saving plug or converter that can convert DC into AC
(E.g.: solar energy system. ship grid).
• Water drop or frost will be generated on back side of wine cooler when compressor is running. This is a normal
function of wine cabinets, wiping out frost or water drop is not required as they will evaporate automatically.
The defrosted water will be collected into drain tank and then inflow into water disposal pan above the
compressor and vaporized.
Getting Started

12
Installation
Floor surface: This appliance must be properly
positioned on a dry, sturdy, level surface that is strong
enough to support it when it is fully loaded. Rotate left
or right to adjust the levelling feet if unstable. If it is to
be placed on carpet, support it with a wooden board
underneath. Please use a spirit level to ensure your wine
cabinet is level on both the side and front.
Clearances (Freestanding): Ensure that air can circulate
freely around the back of the cabinet, which is necessary
to cool the compressor and condenser. Allow at least
30mm clear space at the back and at the sides of the
appliance and 30cm at the top. Failure to do so will
increase compressor’s power and further increase power
consumption. It is also necessary to maintain distance
for doors to open at least 90 degrees.
Important! Failure to allow for these clearances with
the positioning of your wine cabinet will void your
Manufacturer’s Warranty.
In-built installation: Where installing the wine cabinet
as a freestanding unit against a wall or built into a
cavity or lined up with other appliances, it is important
that the appliance is well ventilated and that air can
circulate unhindered above, below and around it. Figure
2 below illustrates the minimum necessary air circulation
for an in-built installation.
Figure 2 – Minimum ventilation requirements when
building-in the appliance.
Tip! When building the appliance into a cabinet (with
the required ventilation) or next to another appliance,
you will need to leave a small clearance space on the
side the door is hinged. This is to allow for the door to
open.
DO NOT install/use the appliance in the following
locations/situations:
• In moist areas or areas of high humidity (i.e.
laundries, bathrooms, etc).
• In a recreational vehicle, or for use with an inverter.
• In direct sunlight, near heat sources, next to an open
flame, cooking or heating appliance, or near any
other source of high heat.
• Direct sunlight may affect the acrylic coating
and heat sources may increase the unit’s power
consumption. For best energy efficiency install the
appliance in the coolest area of the room.
• In an area with extreme cold ambient temperatures.
Never install your wine cabinet in enclosed outdoor
environments including garages.
• In an area with excessive moisture and high
humidity. Make sure it is protected from elements
such as wind, rain, water spray or drips.
• In an area where petrol or other explosive and/or
flammable liquids or fumes are used or stored. The
fumes can create a fire hazard or explosion.
ENERGY SAVING TIPS
• The appliance should be placed in the coolest area
of the room, away from heat producing appliances
or heating ducts. A suitable insulation board shall be
applied if necessary.
• Please avoid placement in direct sunlight.
• Try to shorten opening time of cooler’s door. Regular
opening of your Wine Cabinet door may lead to
condensation on the glass door, particularly if the
external air is humid.
HANDLE INSTALLATION
• Remove the door handle accessory package from
within the Wine Cabinet and remove the handle
from the packaging. Hold the handle on to the glass
door, aligning the holes on the handle with those
pre-drilled on the door side. Use the Alen key wrench
to screw the screws into place.
Figure 3 – Installing the handle on to the door.

13
REVERSING THE DOOR
If you would like to reverse the hinging of your Wine Cabinet door, please follow the steps below.
Parts to be used when reversing the door:

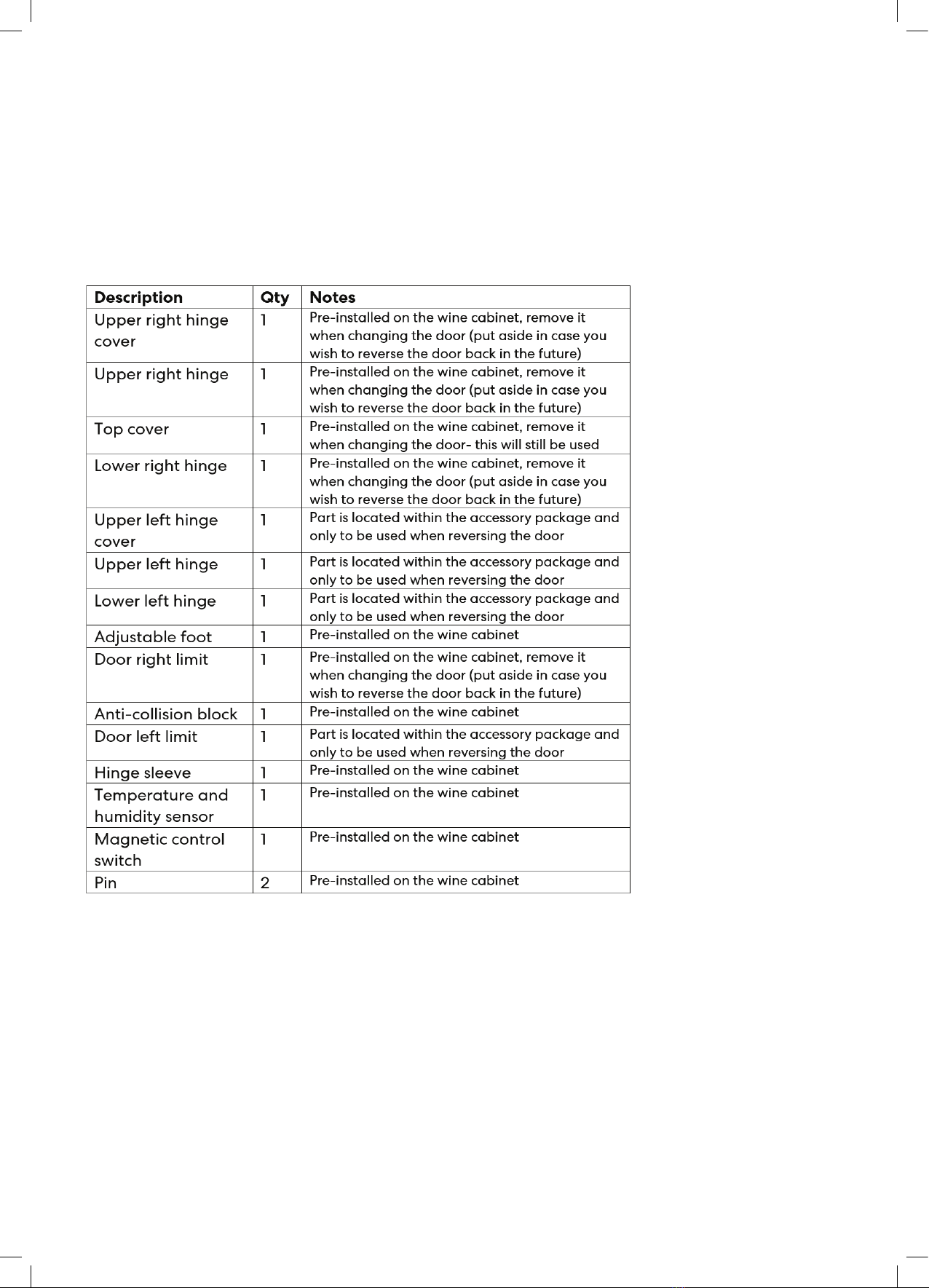

Table 1- Parts to be used when reversing the door.

14
Follow these steps to reverse your Wine Cabinet door hinging.
Important! The glass door is heavy and this process will require at least two able bodied people to safely undertake.
1. Unscrew the two screws (1) holding the Upper Right Hinge Cover (2) in place. Also unscrew the one screw (4)
securing the Top Cover (3) in place.
2. Remove the Upper Right Hinge (5) by unscrewing the three screws (4), then remove the glass door (6) (this is
heavy, please be careful!).
Figure 4 – Reversing the door: Steps 1 & 2.
3. Remove the ambient temperature sensor (13) and magnetic control switch (14) located in the upper right hinge
cover (2) and unplug the two wire terminals (15) and (16) connected to the cabinet.
Figure 5 – Reversing the door: Step 3.
4. Remove the lower right hinge (8) by removing the 3 screws (7). Also unscrew the adjustable foot on the left (9).
Figure 6 – Reversing the door: Step 4.
Installation (Cont.)

15
5. Take the Lower Left Hinge (10) from the accessory package and fix it into place using the 3 screws removed from
the right side in step 4.
Figure 7 – Reversing the door: Step 5.
6. Remove the 2 screws (1) on the lower side of the door, remove the Door right limit (18) on the right side of the
door, as well as the anti-collision block (19) installed on the left side.
Take out the Door left limit from the accessory pack and install it on the left side of the door. At the same time, install
the anti-collision block (19) on the right side of the door.
Take our the hinge sleeve (17) on the upper right side of the door and install it on the left side. Remove the pins (21) in
the holes on the right side of the door and insert them into the holes on the left.
Figure 8 – Reversing the door: Step 6.

16
7. After positioning the glass door on the cabinet through the lower hinge (10), take out the upper left hinge (11)
and the upper left hinge cover (12) from the accessory package and install the hinge on to the cabinet with the
3 screws (4) removed from step 1. The ambient temperature sensor (13) and the magnetic control switch (14)
remove in step 2 are installed in the hinge cover, connecting the wire terminal (15) and (16). The Left upper hinge
cover (12) and the top cover (3) and respectively installed with the two screws (1) and one screw (4) on the left
and right hand sides of the cabinet.
Figure 9 – Reversing the door: Step 7..
8. Lastly, install the handle on the right hand side of the door, using the pre-drilled holes.
Figure 10 – Reversing the door: Step 8.
Tip! Keep the left over hinges, cover and door limit for future use in case you wish to reverse the door back to the
original configuration.
REPLACE THE HUMIDIFICATION FILTER ELEMENT (OPTIONAL)
Remove the humidification filter cover installed on the zone partition board (the filter cover clicks into place) and
take out the humidification filter from its housing. Replace the filter purchased from Solt or an equivalent distributor
and reinstall the filter cover.
Note: You do not need to remove the zone partition board to complete this process.
Figure 11 – Accessing the humidification filter.
Installation (Cont.)

17
This page
is intentionally
left blank

18
TEMPERATURE CONTROL
Figure 12 – Touch control panel.
Note: Figure 12 above is for general reference only and your physical appliance may differ.
A Standby button
B Light button
C Temperature display for the upper zone
D Temperature display for the lower zone
E Increase button
F Decrease button
G Zone selector (Upper or Lower)
FIRST OPERATION
When your Wine Cabinet is powered on initially, the LED display will light up all elements for 3 seconds and an
audible start-up tone will sound. After 3 seconds, the display will be enabled for normal operation.
Note: The LED display will be used to display any error codes in the event of an issue or component failure.
CAUTION: The wine cabinet can be controlled using the touch control panel through gently touching the buttons on
the touch screen. Please keep this touch control panel away from magnetic fields and high-humid environments, as
these can effect its operation.
Standby Function
Press and hold the Standby button for 5 seconds to Power On or Power Off your Wine Cabinet.
Light
Your wine cabinet features long-life LED lighting which will automatically switch on when the wine cabinet door
is opened and will switch off when the door is closed. You can also turn on or off the lighting by pressing the Light
button. Once the light button has been used to turn the lights on or off, the lighting will no longer be controlled
through the door opening or closing (this can be reset by turning the appliance off).
Adjusting the Temperature
To adjust the temperature for your selected zone, firstly select the zone you wish to set the temperature for by
pressing the Zone Selector button.
Then use the Increase button and Decrease button to adjust your temperature setting within the range of 5-18ºC.
The temperature will increase or decrease by 1ºC with each press.
Once you have set your preferred temperature, the setting will take effect automatically after 30 seconds.
Converting between Celcius or Fahrenheit
Your wine cabinet will be set to displaying the temperature as Celcius, however you can change this to Fahrenheit if
this is your preferred setting. To change your display, simply press and hold both the Increase and Decrease buttons
simultaneously for 3 seconds.
Tip! When set to Fahrenheit, the temperature range for each zone changes to 41-64ºF.
Operating Instructions
A B C D E F G

19
This page
is intentionally
left blank

20
BOTTLE ARRANGEMENT:
• To maintain good air circulation in the cooler, do not let any bottles touch the back wall of wine cooler.
• The bottle number here may be different from bottles in different shape and size.
• The capacity for bottle storage in the wine cabinet is based on the following marked bottle size. Oversized
bottle may have impact on the number of bottle storage in the wine cabinet.
Figure 13 – Standard wine bottle measurements.
Figure 14 – Diagram showing the layout of the wine bottles to achieve maximum capacity.
Bottle Arrangement
