Delfield SAW1-G User manual
SPECIFICATION LINE: SELF-CONTAINED GLASS DOOR WINE CABINET REACH-IN
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
Specifi cation Line
Self-Contained Glass Door Wine Cabinet Reach-In
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfi eld.com
Phone: 800-733-8948
Fax: 800-669-0619
Email: info@delfi eld.com
Approval _________________
Date ____________________
SSW2-G
SPECIFICATIONS
Exterior: Cabinet exterior sides, front and shroud
shall be 22-gauge, corrosion resistant stainless steel.
Upper shroud shall be hinged, with stay-open feature
to provide easy access to refrigeration system.
Interior: Cabinet interior shall be 22-gauge, corrosion
resistant stainless steel (SS models) or heavy gauge
aluminum (SA models). Bottom and top surfaces are
die stamped to provide radius corners and recessed
fl oor. Four chrome plated wine shelves are provided
per section. Shelves rest on clips which are adjustable
in 1” increments on stainless steel pilasters affi xed
to the cabinet interior. Each section can hold up
to 8 wine shelves. Each wine shelf holds 10 to 12
bottles. Pilasters are removable without tools for
cleaning. Interior light mounted to the interior ceiling
is controlled automatically through a switch mounted
in the hinge assembly to protect against breakage.
Door openings are protected with heavy gauge stainless
steel breaker strips. An air duct is mounted to the ceiling
assuring low velocity, even air movement throughout the
cabinet interior.
Doors: Double paned tempered thermopane glass.
Constructed with a combination of extruded aluminum
and PVC. Each door has two edgemount, self-closing, cam
lift style hinges. Doors can be removed from the cabinet
without the use of tools. Door handle is continuous along
vertical dimension of the door. Door gaskets are magnetic
and mount to the door, snapping in place and removable
with out tools. Keyed door lock is mounted to the door.
Lock is mounted to the door. Lock engages into a heavy
duty strike mounted to the cabinet face.
Refrigeration system: All components are mounted
to the exterior cabinet ceiling, outside the food zone and
are assembled as one piece and can be removed as one
piece. Environmentally friendly R404A refrigerant is
used. System has the capability of maintaining between
50˚F and 60˚F in heavy use food service operations.
Refrigerant is metered using a highly responsive
thermostatic expansion valve. System is controlled using
Delfi eld’s ACT-Advanced Control Technology electronic
temperature control, which provides improved pull
down times, reducing compressor cycling and longer
compressor life with lower energy consumption.
Control system uses adaptive defrost to assure
evaporator coil is free of ice and operating at optimum
effi ciency. Evaporator condensate is eliminated using an
energy effi cient hot gas system.
Electrical: Standard electrical connections shall be 115V,
60Hz, single phase. A 10’ cord and plug is supplied
attached to a junction box mounted on the exterior top
of the cabinet.
MODELS
❑ SSW1-G 1 section stainless interior
full door
❑ SSW1-GH 1 section stainless interior
half door
❑ SAW1-G 1 section aluminum interior
full door
❑ SAW1-GH 1 section aluminum interior
half door
❑ SSW2-G 2 section stainless interior
full door
❑ SSW2-GH 2 section stainless interior
half door
❑ SAW2-G 2 section aluminum interior
full door
❑ SAW2-GH 2 section aluminum interior
half door
❑ SSW3-G 3 section stainless interior
full door
❑ SSW3-GH 3 section stainless interior
half door
❑ SAW3-G 3 section aluminum interior
full door
❑ SAW3-GH 3 section aluminum interior
half door
STANDARD FEATURES
• Stainless steel interior and exterior (SS)
• Stainless steel exterior, aluminum interior (SA)
• Built in door locks with heavy duty strikes
• Exterior digital thermometer
• Easy to use electronic control
• Easy access “fl ip up” shroud
• Three chrome plated wine shelves per section
• 10’ attached cord and plug standard on 115V units
• 6” adjustable stainless steel legs
• Stainless steel breaker strips
• Energy savings door heater switch
• 50˚F to 60˚F temperature range
• Two year parts & labor warranty
OPTIONS AND ACCESSORIES
❑ Additional shelves
❑ Tray slides
❑ Stainless steel back
❑ Laminate on shroud, sides and back
❑ Bottom mount electrical
❑ Stainless steel banking strip
❑ Heat shield end
❑ Stainless steel kick plate
❑ Laminate kick plate
❑ 4” stainless steel utility base
❑ Alarm control display
❑ 220-50-1 electrical
❑ 220-60-1 electrical
Specification Line: Self-contained glass door wine cabinet reach-in
Model #__________
CSI Section 11400
Printed in the USA.
10/06
DSSSWG
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: 800-733-8948
Fax: 800-669-0619
Email: info@delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice.
Mechanical Data
MODEL
NUMBER VOLTAGE AMPS STORAGE SHELVES SQ.FT. NO. OF
SHELVES
UNIT
H.P.
BTU/HR CAB
LOAD
BTU/HR
SYSTEM CAP SHIP WEIGHT NEMA PLUG
SSW1-G, SSW1-GH,
SAW1-G, SAW1-GH 115 8.5 24.96 12.81 3 1/4 758 2015 418 5-15P
SSW2-G, SSW2-GH,
SAW2-G, SAW2-GH 115 12.8 51.92 27.54 6 1/3 1374 2522 650 5-20P
SSW3-G, SSW3-GH,
SAW3-G, SAW3-GH 115 8.9 78.89 42.47 9 1/2 1971 3637 830 5-15P

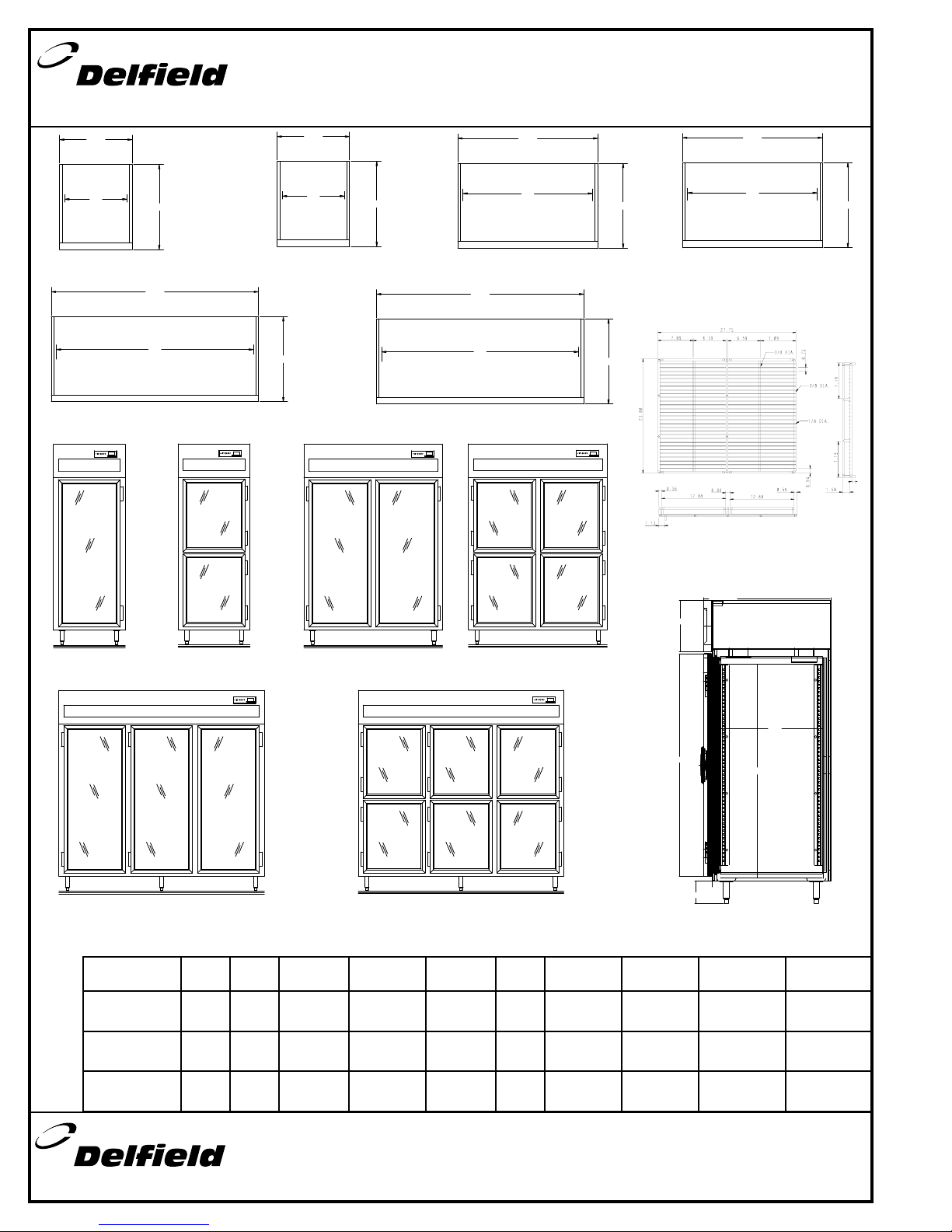

END SECTION VIEW
ALL MODELS
ELEVATION VIEW
SSW1-G, SAW1-G
ELEVATION VIEW
SSW1-GH, SAW1-GH
ELEVATION VIEW
SSW2-G, SAW2-G
ELEVATION VIEW
SSW2-GH, SAW2-GH
PLAN VIEW
SSW1-G, SAW1-G
PLAN VIEW
SSW1-GH, SAW1-GH PLAN VIEW
SSW2-G, SAW2-G
PLAN VIEW
SSW2-GH, SAW2-GH
PLAN VIEW
SSW3-G, SAW3-G PLAN VIEW
SSW3-GH, SAW3-GH
ELEVATION VIEW
SSW3-G, SAW3-G
ELEVATION VIEW
SSW3-GH, SAW3-GH
WINE SHELF
ALL MODELS
