Sonic BS-H200 User manual

Phone Adapter 2
Installation Guide
User Guide
www.sonici.com

Table of Contents
General Warnings 7
Introduction 9
Phone Adapter 2 Overview 10
Installation 11
Activating the Phone Adapter 2
for the First Time 12
Setting Up the Phone Adapter 2 13
Pairing SoundGate with the Phone Adapter 2 16
Instructions for Use 19
Additional Information 24
Visual Indicators 25
Technical Information 26
Information and Explanation of Symbols 31
Service 32
03

04

05
Congratulations on the purchase of your
new Phone Adapter 2 wireless accessory.
Your Phone Adapter 2 is intended to be used
together with Sonic SoundGate devices and
Sonic hearing instruments. This enables
you to communicate wirelessly with a phone
conversation partner via a landline phone
(analogue/PSTN). Great care and attention
has been paid to ensure that your device
has the highest quality and is easy to use
and maintain.
Please read the entire contents of this booklet before
using your Phone Adapter 2. It contains instructions
and important information about its use and handling.

06

General Warnings
Familiarize yourself with the following general
warnings before using your Phone Adapter 2.
Products to be connected to external equipment
The safety of the use of the Phone Adapter 2
with the auxiliary input cable is determined by
the external signal source. When the input cable
is connected to mains-operated equipment,
this equipment must comply with IEC-60065,
IEC-60601, IEC-60950, or equivalent safety
standards.
The Phone Adapter 2 is designed to comply
with the most stringent Standards of International
Electromagnetic Compatibility. However,
the Phone Adapter 2 may cause interference
with other medical devices. Please contact
relevant personnel to obtain permission before
using the Phone Adapter 2 in hospitals
or similar venues.
07

The Phone Adapter 2 is not a toy and therefore
should be kept out of the reach of children
or anyone else who might swallow parts or
otherwise cause injury to themselves. Special
attention should be paid to smaller components
in order to prevent children from swallowing
them and choking. If a part is swallowed, see
a doctor immediately.
The Phone Adapter 2 is intended for residential
use with an analog phone line. The Phone
Adapter 2 is not intended for use with digital
phones that may be part of a digital/commercial
system. Unintended use with a digital phone
system may result in lack of functionality,
malfunction or damage to the Phone Adapter 2
and will invalidate the warranty. If you are unsure
of the type of phone system in use in your home,
or at your workplace, we recommend that
you contact your local phone company before
installing the Phone Adapter 2.
08

Introduction
The following items are included within your Phone
Adapter 2 package and will be covered within this
instruction guide:
Phone Adapter 2
Model: BS-H200
SN2_ILLU_NewPhoneCableToOut_BW_HI
40
Standard analog phone cable
SN2_ILLU_Charger_HI
5
Power adapter
Installation Guide
and User Guide
Phone Adapter 2
Installation Guide
User Guide
www.sonici.com
09

Phone Adapter 2 Overview
1 2
SN2_ILLU_PhoneAdapter_backside_BW_HI
3 4 5 6
1 Power indicator
2 Status indicator
3 Power input
4 AUX input*
5 Phone “IN“ connector
6 Phone “OUT“ connector
* For a wireless headset connection to digital office phones using
the Phone Adapter 2 Office Phone Kit. For further information,
please ask your hearing care provider.
10

INSTALLATION
11

Activating the Phone Adapter 2
for the First Time
Before using with your landline telephone, the Phone
Adapter 2 must be connected to a power outlet and
an active landline telephone.
The following pages offer easy step-by-step
instructions on how to install and operate your
Phone Adapter 2 device.
12

Setting Up the Phone Adapter 2
Ensure the Phone Adapter 2 is connected to a power
outlet using the power adapter included in the
Phone Adapter 2 packaging. The power indicator on
the Phone Adapter 2 will illuminate green when
power is connected.
13

Remove the telephone cable from an active landline
telephone (or base station).*
Insert the telephone cable removed from the landline
phone into the Phone “IN” connector of the Phone
Adapter 2.
SN2_ILLU_RemovePhoneCableFromPhone_BW_HI
38
SN2_ILLU_InsertPhoneCableToAdapterIn_BW_HI
14

Insert one end of the standard analog phone cable
included in the Phone Adapter 2 packaging into
the Phone “OUT” connector of the Phone Adapter 2.
Insert the opposite end of the same standard analog
phone cable into the landline telephone (or base
station).*
Lift the handset from your landline phone. You should
now be able to hear the dial tone from the handset
speaker.
* If your telephone or base station does not have a detachable
plug for the landline connection, you should either try using
an alternative phone or a technician must be contacted to
complete this installation.
15

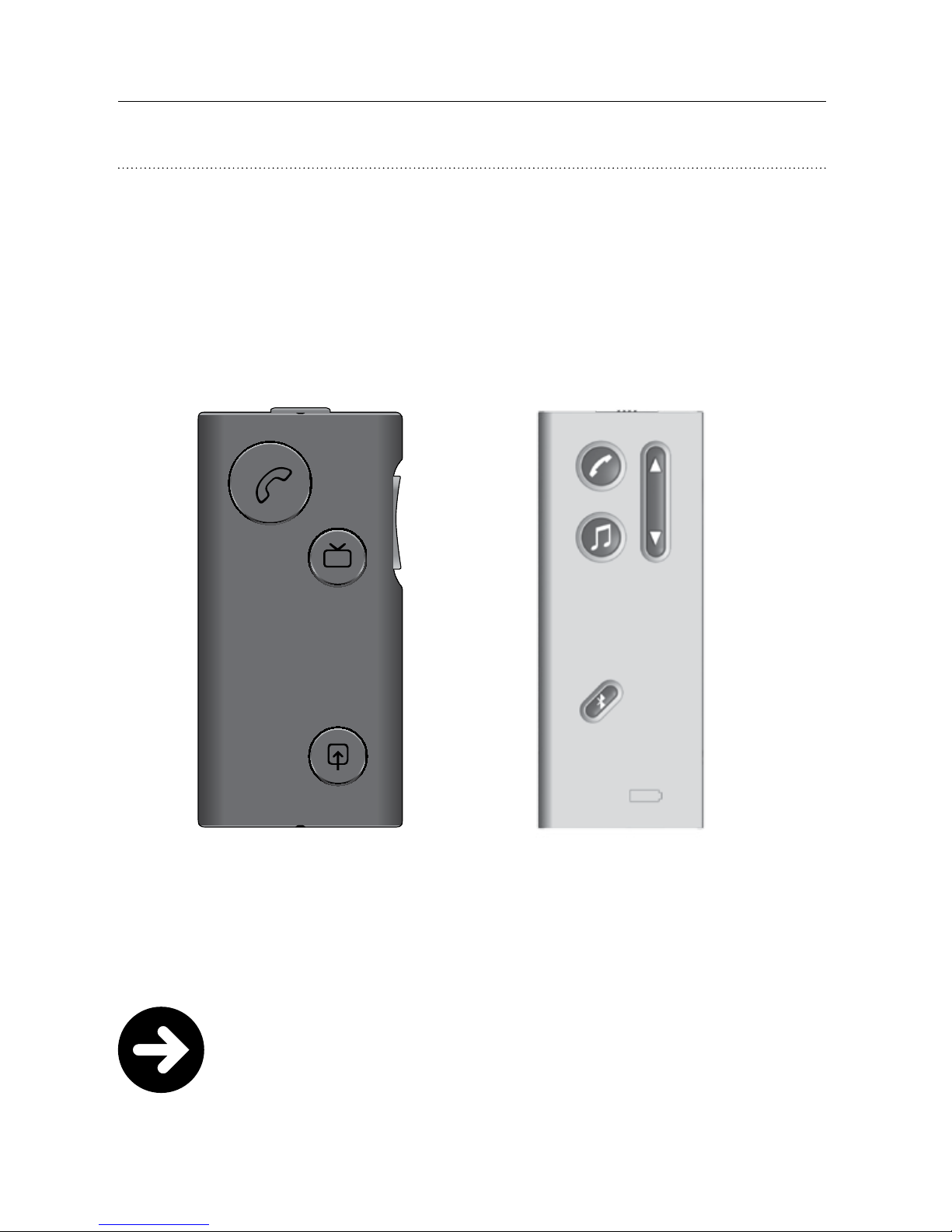

Pairing SoundGate with the Phone Adapter 2
Phone Adapter 2 may be used with all versions
of SoundGate. Please follow the instructions below,
specific to the version of your SoundGate.
SN2_ILLU_SoundgateProfile_HI
1
SoundGate 2 SoundGate
Note!
Pairing is done only once and will normally
not have to be repeated.
16

Pairing with SoundGate 2
Ensure the Phone Adapter 2 is connected to a power
outlet and the SoundGate 2 battery is charged and
powered ON. The power indicator on the Phone
Adapter 2 and the SoundGate 2 should be illuminated
green.
1. Press and hold the SoundGate 2 power key for
5–6 seconds until the SoundGate 2 status indicator
starts flashing blue rapidly.
2. Place the SoundGate 2 on top of the
Phone Adapter 2 – the pairing can take up
to 60 seconds. The pairing is completed
when the Phone Adapter 2 power indicator
turns stable blue.
SN2_ILLU_TopLedFlashingBlue_HI
30
17

Pairing with SoundGate
Ensure the Phone Adapter 2 is connected to a power
outlet and the SoundGate battery is charged and
the key lock is in the unlocked (green) position.
The power indicator on the Phone Adapter 2 should
be illuminated green.
1. Press and hold the Bluetooth®key for 6–8 seconds
until the blue light flashes rapidly.
2. Place the SoundGate on top of the
Phone Adapter 2 – the pairing can take up
to 60 seconds. The pairing is completed
when the Phone Adapter 2 power indicator
turns stable blue.
18

INSTRUCTION FOR USE
19

For optimal use with the Phone Adapter 2, ensure
the SoundGate is worn with the neck strap antenna
and that the hearing instruments are powered on.
Make a phone call
1. Press the SoundGate phone key. You will hear
a dial tone in the hearing instruments and
the SoundGate phone key will illuminate green.
The Phone Adapter 2 status indicator will also
be illuminated green while streaming a call.
2. Pick up the handset from your landline phone
and dial a phone number. Then return the handset
to the landline phone cradle. You will now hear
the call tone.
3. When the other party answers the call, the phone
conversation can begin. To ensure optimal sound
quality for the person you are speaking with, it is
recommended to wear your neck loop and position
the SoundGate microphone 4–12 inches (10–30 cm)
from your mouth.
