Sonneck ACCU 450 User manual

Operating Instructions
English

20
Operating Instructions ACCU 450ENGLISH
1 SwitchboxwithswitchesforLEDlight
and discharge chute control
2 Safetybar
3 LEDlight
4 Batterycompartment
5 Dischargechutewithadjustment
6 Rotor
7 Scraper blade
ScopeofSupply ....................21
SafetyInstructions ................22
Assembly.............................24
Startup ...............................27
Operation ............................29
DeviceShutdown ..................30
Batteryremoval....................30
BatteryCare ........................31
Scraper Blade Exchange ........32
Spare Parts.........................32
TechnicalData......................33
Warranty.............................34
Service & Support ................35
Registration .........................35
1
6
7
5
4
3
2
Content

21
Operating Instructions ACCU 450 ENGLISH
Scope of Supply
Packaging content–Afteropeningthepackaging
check the completeness of the supplied components!
4x
1x
1x
1x
2x
2x
2x
1x
Congratulations on the purchase of your Sonneck
SNOWMASTER product!
Readtheusermanualcarefullyandfamiliarizeyourself
with the operating elements and the use of the de-
vice. The user is responsible for accidents with other
personsortheirproperty.Pleaseobserveallinstruc-
tions and regulations.
Persons who are not familiar with the user manual
must NOT use the device. Children and teenagers un-
der16yearsofageareforbiddentousethedevice.
Localregulationsmayspecifyotherrulesconcerning
the minimum age.
General Information
• Thisdeviceisintendedforsnowclearinginthe
privatesector.Duetotheriskofinjurytotheuser
or other persons, the use of the device for other
purposes is forbidden.
• Switchoffthedeviceimmediatelywhenpersons,
especiallychildrenandanimals,arenearby.
• Ensuregoodlightingconditionswhenclearingsnow.

22
Operating Instructions ACCU 450ENGLISH
Safety Instructions
Bedeutung der Symbole
Read the user ma-
nual before setting
into operation!
Donotreachinto
rotating parts or into
the discharge chute!
Warning! Risk
ofinjuryif
disregarded!
Ensure adequate
safetydistance!
Warning! Risk of
injuryfromrotating
parts!
Keepobjectsaway
from the rotor!
Keep third parties
awayfromthe
danger area!
Alwayswearsturdy
footwear when using
the device!
Current conducting
device.Avoidshort
circuits!
Keep hands and feet
awayfromrotating
parts!
Disconnectpower
supplybeforeperforming
servicing work!
Before snow clearing
• Wearsturdyfootwearandsuitableclothing.Avoid
loose-filling clothing and scarves: these can be caught
bythecutter!
• Onlypositionthedeviceonsolidground.Clearthe
area of objects and stones that could be caught and
thrown out.
• Checkcables,batteryandswitchesandonlyusethe
device when it is in perfect condition.
• Checkallpartsofthedevicefortightseating,wear
and deformation.
• DonotlookdirectlyintotheLEDlight.Thiscancause
damagetotheeyes.
• Ifyouhaveanysuspicionsordoubt,havethetestand
repaircarriedoutbyanauthorizedspecialist.
During snow clearing
• Onlyswitchthemotoronwhenthedeviceisfar
enoughawayfrompersons,limbs,animalsorob-
jects.
• Switchthedeviceoffwhenyoutransportortiltthe
device.

23
Operating Instructions ACCU 450 ENGLISH
• ATTENTION:Neverreachintorotatingparts!
• Thedischargechutemustneverpointtowardsper-
sons or objects!
• Switchthedeviceoffandremovethebatteryand
safetykey,if:
-youleave,cleanorhandlethedeviceorwishto
adjust the discharge chute.
- the rotor is blocked.
- if the device has collided with an obstruction:
Immediatelycheckwhetherthedeviceorrotoris
damaged. If so, then first arrange to have it repai-
red.
-ifthedevicevibratesgreatlyduetounbalance:
Shutdownimmediatelyandcheckforthecause!
-ifinstalledcables/lineshavebeendamaged.
• Neveruseongravelsurfacesorpaths–stoneim-
pact!
• Wearprotectivegogglesforyourownsafety!
Servicing, Cleaning
• Onlyservice,cleanandvisuallyinspectthedevice
whenitisstationaryandafterthebatteryandsafety
keyhavebeenremoved
• Checktightseatingoffasteningscrews,nutsand
rotaryknobs.
• Havedamagedpartsrepairedorreplacedimmedia-
tely.
• Ensurethatnoliquidsgetintothedevice.
• UseonlySonneckoriginalreplacementpartsanddo
notopenthehousingyourselfunderanycircumstan-
ces,otherwisethewarrantyofyourdevicewillexpire.
OnlyauthorizetheServiceandRepairservicerespon-
sibleforyourarea–seebackpage.
• Exchangethescraperbladeinaccordancewiththe
instructions.
• Cleanthesnowblowerafterclearingsalt.
• Chargethebattery2-3timesperyear.Therebyob-
serve the manual and instructions!
Disposal
Electrical devices must not be disposed of as
domestic waste. Bring accessories, packa-
ging,wearingpartstoanenvironmentally
friendlyrecyclingplant.

24
Operating Instructions ACCU 450ENGLISH

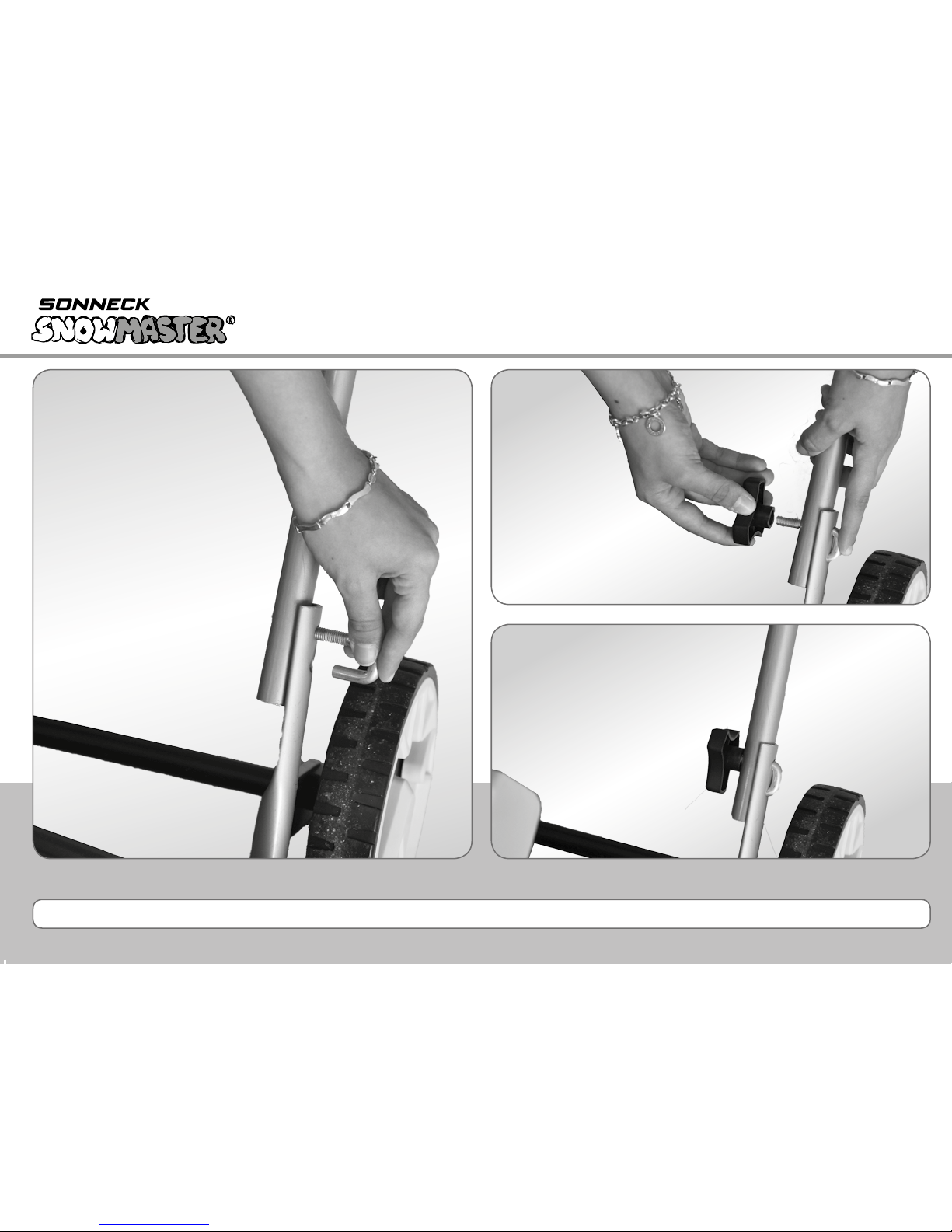

Assembly
1. 2.
3.

25
Operating Instructions ACCU 450 ENGLISH

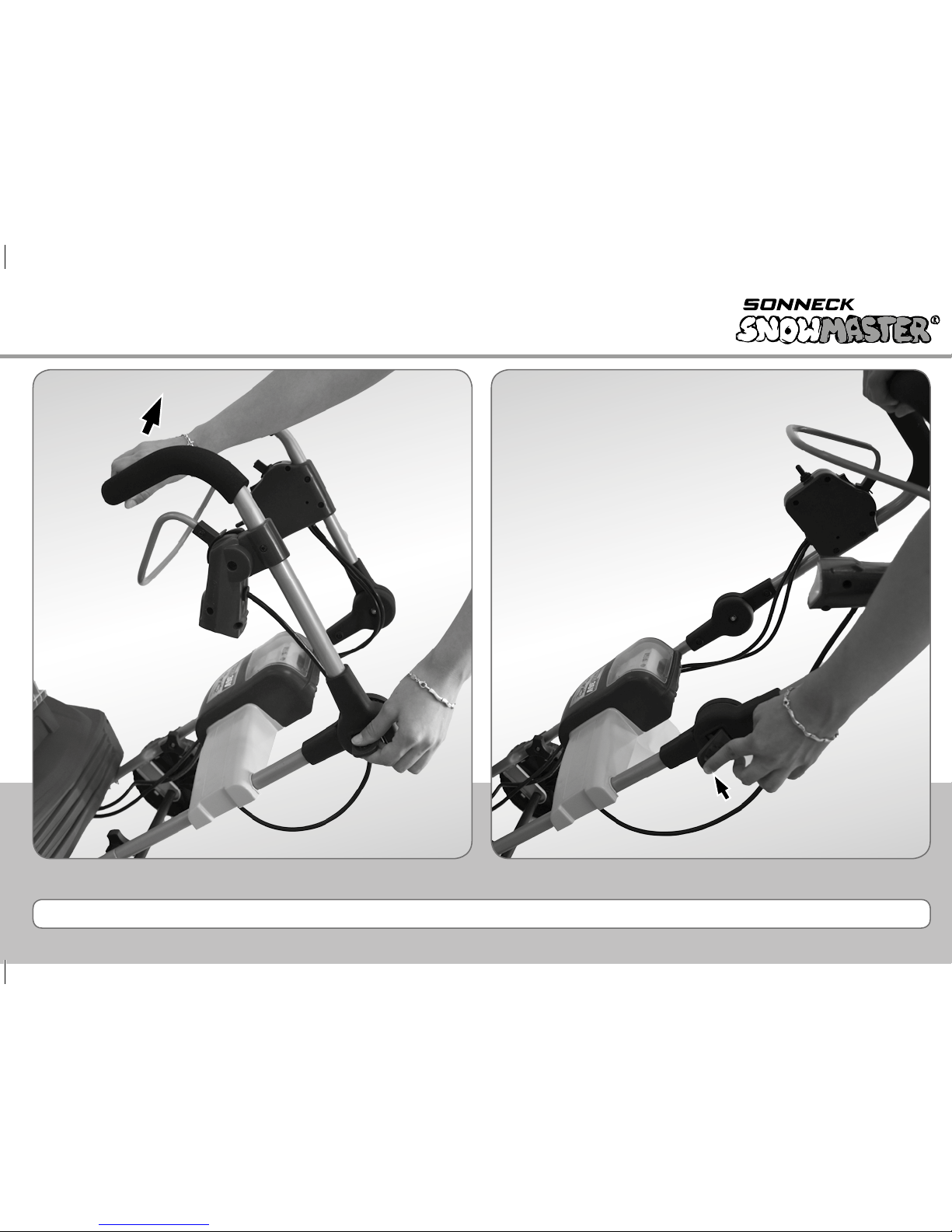

4. 5.

26
Operating Instructions ACCU 450ENGLISH

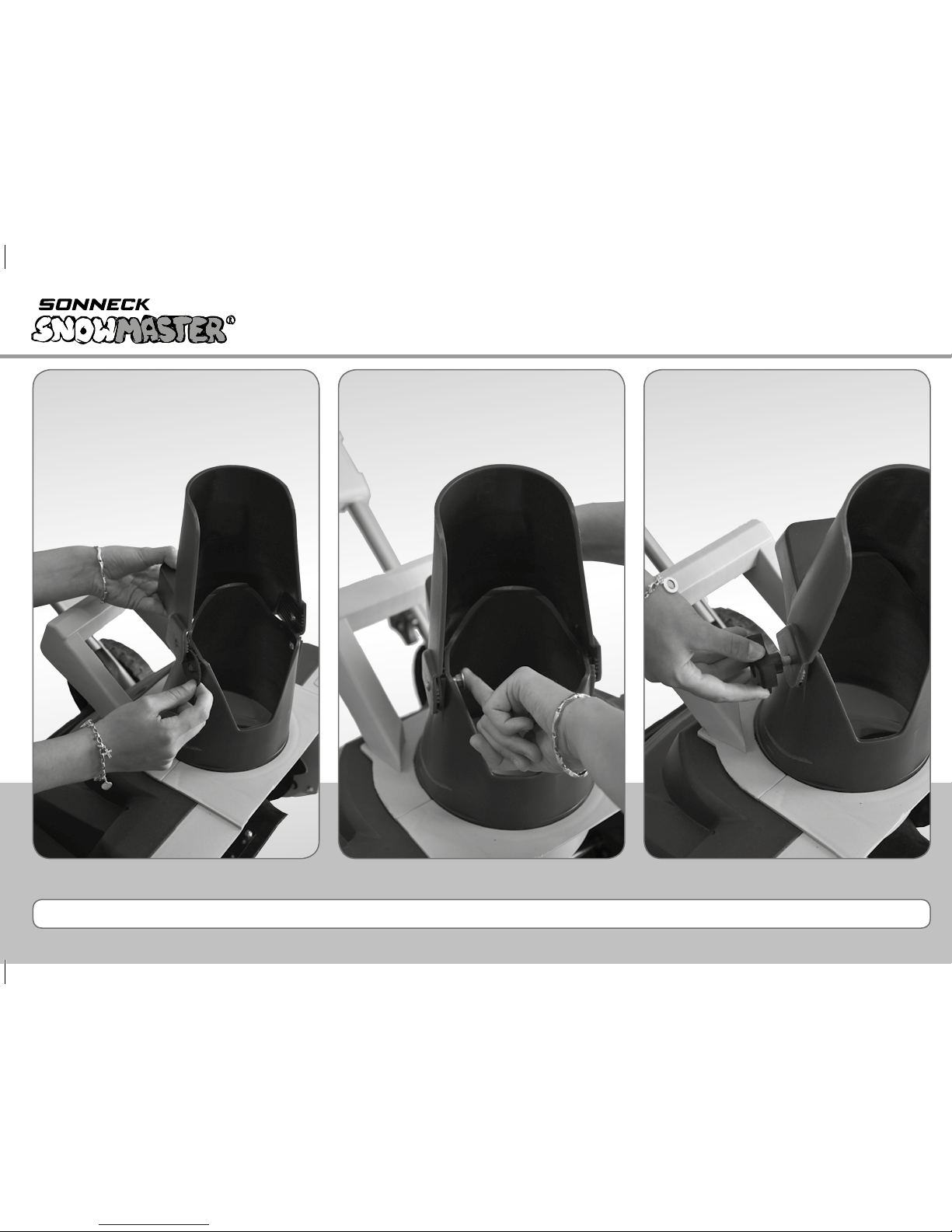

6.Assemblethedischargechute
 andtthetwosealsprecisely
between the plastic parts.
7. Push the screws through the
holes from the inside at both
sides.
8. Secure the two screws with the
knurled nuts and tighten them.

27
Operating Instructions ACCU 450 ENGLISH
2.1.Fullychargethebattery.
Charging operation takes
approx. 90 minutes.
Denitelyobservethe
instructionsforbatterycare!
ObserveLEDdisplay:
red + green = battery charging
2x green = battery charged
3.
Startup

28
Operating Instructions ACCU 450ENGLISH
4.Pressthesafety
button and keep it
depressed…
5.…whileyoupullthestart
 levertowardsyourself.
6.Nowyoucanrelease
 thesafetybutton.

29
Operating Instructions ACCU 450 ENGLISH
Operation
7.SwitchLEDlighton
and off
8. Swing dis-
charge chute
to the left
9. Swing dis-
charge chute
to the right

30
Operating Instructions ACCU 450ENGLISH
Device shutdown/battery removal
1. Release the switch
bar to shut down
2.Openthebattery
compartment
and remove
 thesafety
 key.
3.Removethebatteryforcharging
or if the device is not used for a
prolonged period.

31
Operating Instructions ACCU 450 ENGLISH
Battery care
Observe LED display:
red + green = battery charging
2x green = battery charged
2x red = battery/charger
unit defective.
Contact Support.
Charge status check
Pressthebuttononthebattery:
Battery low – please charge
Battery approx. half charged
Fully charged
Servicing and storage:
• Keepthechargerunitonlyin
dryrooms.
• Chargethebatteryinwarm
anddryrooms.
• Protectthebatteryandchar-
ger unit from the effects of
the weather!
• ATTENTION: Fully charge
the battery at least 2–3x
per year, so that it remains
fullyfunctionalandnolow
discharge occurs.

32
Operating Instructions ACCU 450ENGLISH
Scraper blade exchange/spare parts
1. Make sure that the
 batteryandsafety
 keyhavebeen
removed from
the device
 beforeyou
handle it!
2.Youwillrequireareplace-
ment scraper blade and a
crosshead screw driver.
3.Loosenthe4screwsonthe
bottom of the device.
4. Replace the used scraper
blade with the new one.
5.Fixthescraperbladeby
screwing in and tightening the
4 screws.
Replacement scraper blade
ArtikelNo.EAAK450
EAN9002766100483
Replacement
battery
ArtikelNo.
AK36V
EAN
9002766036997
Replacement
charger
unit
ArtikelNo.
AKLAD36V
EAN
9002766036973

33
Operating Instructions ACCU 450 ENGLISH
Snow clearing capacity: 150 m2
Battery: 36V,2,6Ah,Lithium-Ionbattery
Operating time: approx.30min./battery
Charging time: approx. 90 min.
Snow clearing width: 450 mm
Throwing distance: 4-5 m
Throwing height: 3-5m
Noise emission: 82 dB
Art. No./EAN: EA450/9002766100407
VE: 1 unit
Weight: Net 15 kg, Gross 18 kg
Li-Ion battery inside
Technical inquiries and
orders for spare parts:
+43 1 / 911 63 00-20
offi[email protected]
Technical data
TIPS:
• Clearingjustaftersnowfall
makes the work easier
• Forheavywetsnoworvery
deep snow, use half the
snow clearing width
• Youcanuseanon-stick
sprayforwheelsand
discharge chute. Please
verifythecompatibilityand
observe all the manufacturer
detailsonthespraylabel!

34
Operating Instructions ACCU 450ENGLISH
Warranty
Youhavetherighttothestatutory
warrantyperiodforyourquality
product. This is governed accor-
ding to the regulations valid in the
respective countries.
• Fullychargethebatteryimmedia-
telyafterpurchase.
• ATTENTION: Fully charge the
battery at least 2–3x per
year!Sothatitremainsfully
functional and no low discharge
occurs.
• TIP:Ifyouleavethebatteryin
the charger unit following the
chargingoperation,thebattery
willnotsufferanydamagedue
tolowdischarge.Withverylow
power consumption, the char-
ger unit connected to the power
supplysystemalsomaintainsthe
chargestatusofthebatteryover
a prolonged period.
• Topreservethemanufacturer’s
warranty,pleaseobserveand
follow all instructions in this user
manual.
• Nevermanipulatethedeviceor
individualcomponentsyourself,
unlessthishasbeenexplicitly
described in the user manual.
Repairsmayonlybecarriedout
bytheidentiedservicepartner.
Winter hardy
battery for the
whole year!
Thebatteryhasalsobeenoptimi-
zedespeciallyforuseattempe-
raturesbelowzero.Yourbattery
supplies full power between -20°
and +45°C!
Batteryandchargerunitcanalso
be used in summer with compa-
tible devices! Support and Service
willbehappytoinformyouabout
theavailabilityofadditionaland
compatible products!
36V
+45oC -20oC
Lithium Ion

35
Operating Instructions ACCU 450 ENGLISH
Service & Support
 Warrantyservices
Spare parts such as
 batterychargerunit
and scraper blades
Technical inquiries
Information about
additional products
Repair & Service
Thereforepleasedirectyourcon-
cerns in complete confidence to
the Service-Center:
Pospischil Tools GmbH
Lütowgasse 12–14
1140 Wien, Austria
FAX: [phone]
Web: www.pospischil.at
Your satisfaction is particularly important to us! Register your device
…simplyonlineat
www.sonneck.com/service
within10daysofpurchase.
Youcanalsollouttheregist-
ration card and drop it into the
nearest postbox.
Free
Reminder
Wewouldbehappytoremind
youattheoptimalcharging
cyclesfreeofchargeperSMSor
Email.Todothissimplyspecify
yourmobiletelephonenumberor
Email address when registering.
Yourdatawillnotbepassedon
to third parties.
SERVICE-TELEPHONE
+43 1/911 63 00-20
SUPPORT-EMAIL:
[email protected]
