Sony XM-444W User manual
1
SERVICE MANUAL
US Model
XM-444W
STEREO POWER AMPLIFIER
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
35 watts per channel minimum continuous average power into 4 ohms,
both channels driven from 20 Hz to 20 kHz with no more than 0.04% total
harmonic distortion per Car Audio Ad Hoc Committee standards.
Other Specifications
Circuit system OTL (output transformerless) circuit Pulse
power supply
Inputs RCA pin jacks
High level input connector
Input level adjustment range
0.3 – 6 V (RCA pin jacks),
0.6 – 12 V (High level input)
Outputs Speaker terminals
Speaker impedance 2 – 8 Ω(stereo)
4 – 8 Ω(when used as a bridging amplifier)
Maximum outputs
4 Speakers: 80 W ×4 (at 4 Ω)
3 Speakers: 80 W ×2 + 222 W ×1 (at 4 Ω)
2 Speakers: 222 W ×2 (at 4 Ω)
Rated outputs (supply voltage at 14.4V)
4 Speakers: 35 W ×4 (20 Hz – 20 kHz, 0.04% THD, at 4 Ω)
40 W ×4 (20 Hz – 20 kHz, 0.1% THD, at 2 Ω)
2 Speakers: 80 W ×2 (20 Hz – 20 kHz, 0.1% THD, at 4 Ω)
Frequency response 5 Hz – 80 kHz ( dB)
Harmonic distortion 0.005% or less (at 1 kHz, 4 Ω, 10 W)
Low-pass filter 80 Hz, –18 dB/oct
High-pass filter 80 Hz, –12 dB/oct
Power requirements 12 V DC car battery
(negative ground)
Power supply voltage 10.5 – 16 V
Current drain at rated output : 20A (4 Ω, 35 W ×4)
Remote input : 1.5 mA
Dimensions Approx. 260 ×55 ×180 mm (w/h/d) not incl.
projecting parts and controls
Mass Approx. 2.4 kg not incl. accessories
Supplied accessories Mounting screws (4)
High level input cord (1)
Protection cap (1)
Design and specifications are subject to c hange without
notice.
SPECIFICATIONS
+0
–3
Ver 1.1 2003. 02
9-873-977-02
2003B0400-1
© 2003. 02
Sony Corporation
e Vehicle Company
Published by Sony Engineering Corporation
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2
TABLE OF CONTENTS
1. GENERAL
Connections ............................................................................. 3
2. DISASSEMBLY
2-1. Bottom Plate ........................................................................ 5
2-2. Heat Sink ............................................................................. 6
2-3. Amp Board .......................................................................... 6
3. DIAGRAMS
3-1. Block Diagram –Front Section– ......................................... 7
3-2. Block Diagram –Rear/Power Section– ............................... 8
3-3. Schematic Diagram –Amp Section– ................................... 9
3-4. Schematic Diagram –Power Section– ............................... 10
3-5. Printed Wiring Board ........................................................ 11
4. EXPLODEDVIEW........................................................... 12
5. ELECTRICAL PARTS LIST......................................... 13
Notes on Chip Component Replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
XM-444W
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
PROTECTOR OPERATION CHECK
Thermal Protect
1. Short across TH801 with the power on.
2. Verify that the protector is operated and LD801 illuminates red.
3. Verify that the protector is released and LD801 illuminates green
when the short is removed.
4. Likewise, perform items 1 to 3 for TH802 and TH803.
Over Current Protect
1. Short between the positive and negative sides of the speaker
output terminal CN802 with the power on.
(Perform this shorting for each channel on FRONT and REAR.)
2. Verify that the protector is operated and LD801 illuminates red.
3. Verify that the protector is not released and LD801 remains red
even when the short is removed.
4. Verify that the protector is released and LD801 illuminates green
when the power is turned off and then on again.
Offset Protect
1. Short between the +12V terminal of CN801 and the BTL+ or
BTL– of the speaker output terminal CN802.
(Short between +12V terminal and BTL+ and between +12V
terminal and BTL–.)
2. Verify that the protector is operated and LD801 illuminates red.
3. Verify that the protector is not released and LD801 remains red
even when the short is removed.
4. Verify that the protector is released and LD801 illuminates green
when the power is turned off and then on again.
Chassis Short Protect
1. Short between the +12V terminal of CN801 and the chassis with
the power on.
2. Verify that the pilot lamp PL801 goes on.
3. Verify that PL801 goes off when the short is removed.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
5
XM-444W
SECTION 2
DISASSEMBLY
2-1. BOTTOM PLATE
(Page 5)
2-2. HEAT SINK
(Page 6)
SET
2-3. AMP BOARD
(Page 6)
Note : This set can be disassemble according to the following sequence.
Note : Follow the disassembly procedure in the numerical order given.

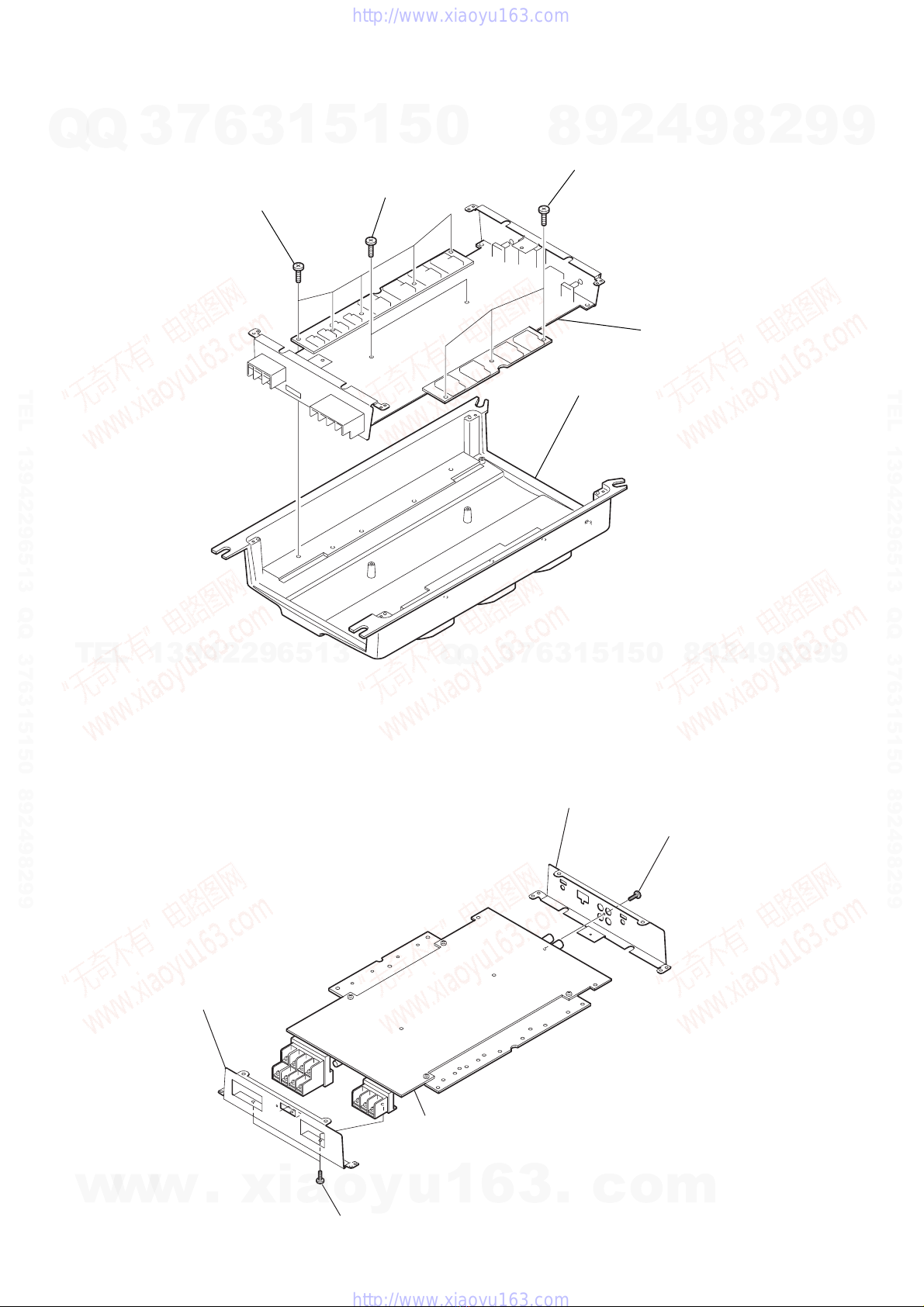

2-1. BOTTOM PLATE
1
BTP 3x
6
2
BTP 3x6
3
bottom plate
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
6
XM-444W
2-2. HEAT SINK
2-3. AMP BOARD
1
BVTP 3x8
4
AMP board
5
heat sink
2
BVTP 3x8
3
BVTP 3x8
1
BVTP 3x
8
2
rear panel
3
BVTP 3x8
4
front panel
5
AMP board
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
77
XM-444W

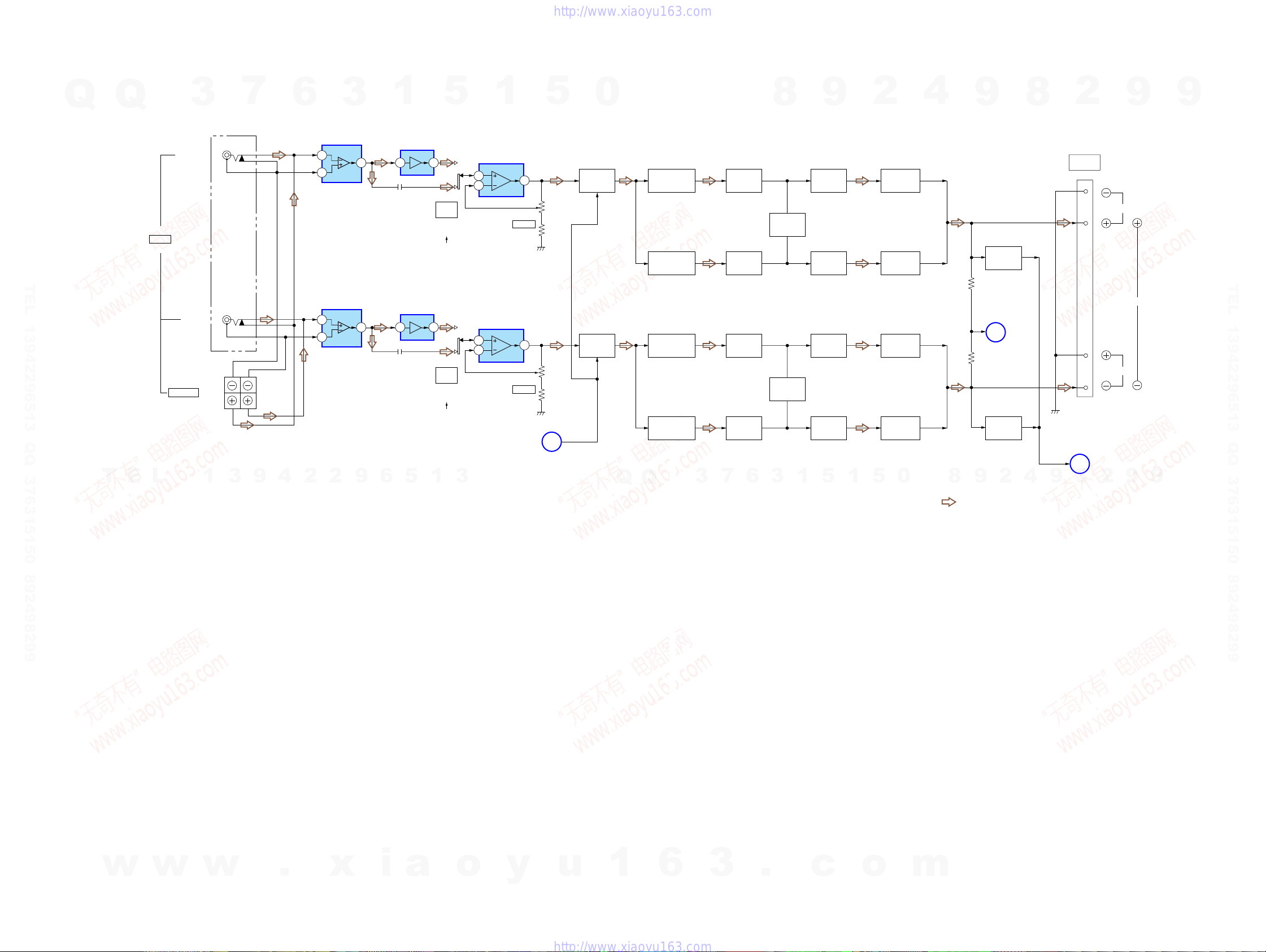

3-1. BLOCK DIAGRAM — FRONT SECTION —
SECTION 3
DIAGRAMS
DIFFERENTIAL
AMP
Q102
DRIVE AMP
Q104
S801-1
HPF
(80Hz)
DRIVE AMP
Q108
DIFFERENTIAL
AMP
Q103
DRIVE AMP
Q105
DRIVE AMP
Q109
POWER AMP
Q110
POWER AMP
Q111
BIAS
Q106,107
7
DIFFERENTIAL
AMP
Q202
DRIVE AMP
Q204
SWITCH
Q201
DRIVE AMP
Q208
DIFFERENTIAL
AMP
Q203
DRIVE AMP
Q205
DRIVE AMP
Q209
POWER AMP
Q210
POWER AMP
Q211
OVERLOAD
DET
Q212
1
6
1
3
CN802 (1/2)
SPEAKER
OUT
BIAS
Q206,207
3
2
2
5
6
(FRONT)
ON
OFF
(FRONT)
ON
OFF
S801-2
HPF
(80Hz)
PRE AMP
IC801 (1/2)
PRE AMP
IC801 (2/2)
HPF
IC802 (1/2) GAIN CONTROL
AMP
IC803 (1/2)
GAIN CONTROL
AMP
IC803 (2/2)
-1
-2
-2
R
CNJ802 (1/2) VR801-2
LEVEL
(FRONT)
HI LEVEL
INPUT
(FRONT)
CNJ801 (1/2)
L
LR
R
BTL
-1
L (BTL)
OVERLOAD
DET
Q112
B
A
C
5 7
HPF
IC802 (2/2)
5
VR801-1
LEVEL
(FRONT)
3 1
7
SWITCH
Q101
(FRONT)
• Signal path
: AUDIO (FRONT)
(Page 8)
(Page 8)
(Page 8)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
88
XM-444W

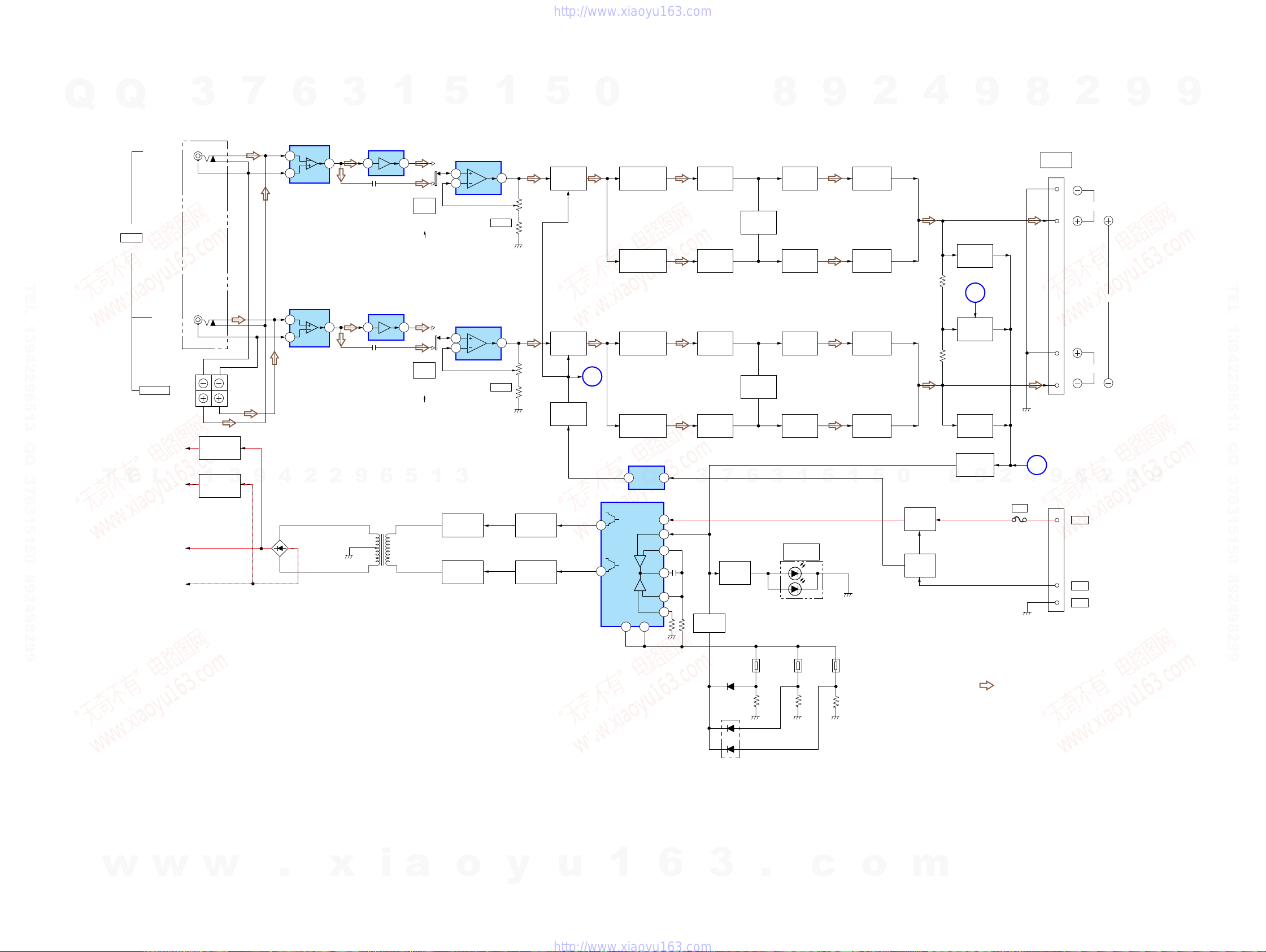

3-2. BLOCK DIAGRAM — REAR/POWER SECTION —
DIFFERENTIAL
AMP
Q302
DRIVE AMP
Q304
S802-1
LPF
(80Hz)
DRIVE AMP
Q308
DIFFERENTIAL
AMP
Q303
DRIVE AMP
Q305
DRIVE AMP
Q309
POWER AMP
Q310
POWER AMP
Q311
BIAS
Q306,307
7
DIFFERENTIAL
AMP
Q402
DRIVE AMP
Q404
SWITCH
Q401
MUTE
Q851
DRIVE AMP
Q408
DIFFERENTIAL
AMP
Q403
DRIVE AMP
Q405
DC DET
IC851
DRIVE AMP
Q409
POWER AMP
Q410
POWER AMP
Q411
OVERLOAD
DET
Q412
PROTECTOR
Q802
POWER/
PROTECTOR
LD801
1
4 2
12
1
3
16
13 14
B+
SWITCH
Q902
POWER
ON/OFF
Q901
INVERTER
Q903
INVERTER
Q904
15V REG
Q905,D905
6
1
3
CN802 (2/2)
SPEAKER
OUT
(REAR)
CN801
BIAS
Q406,407
9
DRIVER
Q907
DRIVER
Q908 10 LED
DRIVE
Q803
TH801
D804
TH802
D802
TH803
3
2
2
5
6
(REAR)
ON
OFF
S802-2
LPF
(80Hz)
(REAR)
ON
OFF
PRE AMP
IC804 (1/2)
PRE AMP
IC804 (2/2)
LPF
IC805 (1/2) GAIN CONTROL
AMP
IC806 (1/2)
GAIN CONTROL
AMP
IC806 (2/2)
CNJ802 (2/2) VR802-2
LEVEL
(REAR)
LPF
IC805 (2/2)
B+
(14.8V)
B-
(-14.8V)
B+
(23.5V)
B-
(-23.5V)
DC-DC CONVERTER
TRANSFORMER
T901
RECT
D903,904
15
ERROR
ERROR
DC-DC CONVERTER
IC901
THERMAL
Q801
F901
40A
+12V
HI LEVEL
INPUT
(REAR)
CNJ801 (2/2)
REM
GND
L
LR
R
BTL
-4
R
-4
-3
L (BTL)
-3
OFFSET
DET
Q852,853
OVERLOAD
DET
Q312
7
B
A
C
3 1
5
5 7
SWITCH
Q301
2
VR802-1
LEVEL
(REAR)
-15V REG
Q906,D906
• Signal path
: AUDIO (REAR)
(Page 7)
(Page 7)
(Page 7)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
99
XM-444W

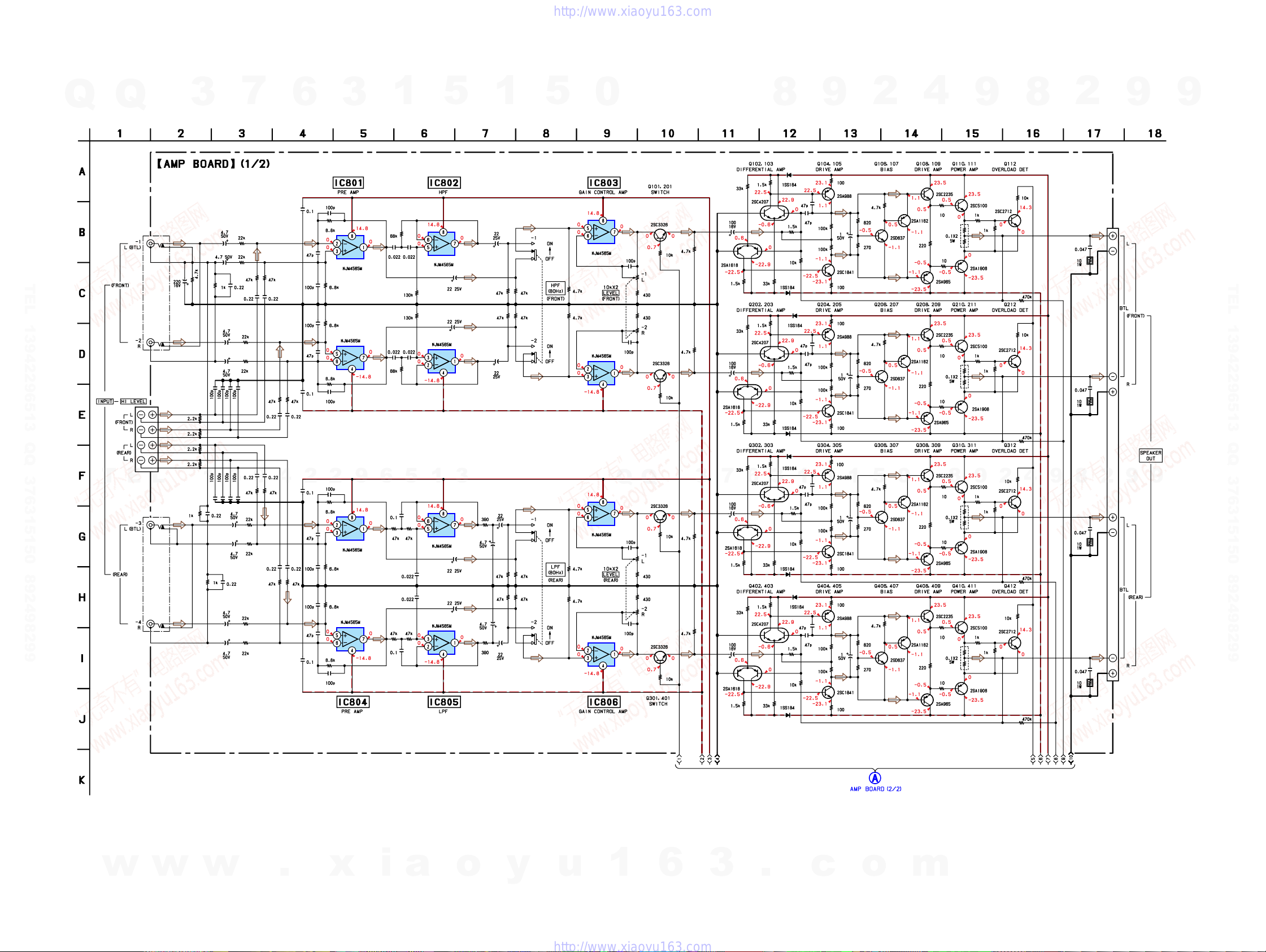

3-3. SCHEMATIC DIAGRAM — AMP SECTION — • Refer to page 12 for Common Note on Schematic Diagrams.
C101
C201
C202
C105
C205
C103
C203
C104
C204
C111
C211
R101
R102
R201
R202
R103
R104
R204
R203
R110 R111
R112 R113
R213
R211
R212
R210
Q101
Q201
C102
S801
Q107
Q108
Q109
Q110
Q111
Q112
R115 R117 D102 R121
C114
R120
R119
R114 R116 D101
C113
R122
R123
R124
R125
R126
R127
R129
R130
R133
R118
Q105
Q104
Q102
Q103
C112 R131
R215
R214
R216
Q202
D201
C213
R218
Q204
R219
C214
R220
Q205
R217 D202
C212 R231
R221
R232
R223
R222
R224
Q207
C215
R225
Q208
R226
Q210
R229
R233
Q212
R230
R227
Q211
Q209
C116
C216
R235
R135
C115 Q106
R132
Q203
Q206
R136
R236
R106
C107 C108
R107
C857
C861 R862 C862
R206
C207 C208
R207
C858
R138 R139
R238 R239
C119 C120
C219 C220
Q304
Q305
Q303
Q306
Q307
Q308
Q309
Q312
C314
C313
C312
Q404
Q405
Q403
Q406
Q407
Q408
Q409
Q412
C414
C413
C415
C412
C315
Q310
Q410
Q302
R314 R316
R319
R320
R317 R321
R323
R322
R324
R325
R326
R327
R329
R330
R333
R318
D301
D302
R315
R331
R332
Q402
R414
R416
R419
R420
R417 R421
R423
R422
R424
R425
R426
R427
R429
R430
R433
R418
D401
D402
R415
R431
R432
Q311
R336
Q411
R436
C416
R435
C316
R335
Q301
Q401
C305
C405
C303
C403
C404
C304
C311
C411
C401
C402
C319C320
C420 C419
R301
R302
R403
R304
R404
R303
R311
R411
R412
R312 R313
R413
R310
R410
R401
R402
R338R339
R439 R438
C306
R409R408
R309R308
R209R208
R109R108
C307
C308
R306 R307
C859
C864
R864
R863 C863
R861
R406 R407
C407
C408
C406
C117
C118
C217
C218
C317
C318
C417
C418
R137
R237
R337
R437
C301
C302
IC801 (1/2)
IC801 (2/2)
IC802 (1/2)
IC802 (2/2)
IC803 (1/2)
IC803 (2/2)
IC804 (1/2)
IC804 (2/2)
IC805 (1/2)
IC805 (2/2)
IC806 (1/2)
IC806 (2/2)
R128
R228
R328
R428
C860
CN802
C110
C210
C109
C209
VR801
R305 C309
S802 VR802
R405 C409
C410
C310
CNJ802CNJ801
(Page 10)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
10 10
XM-444W

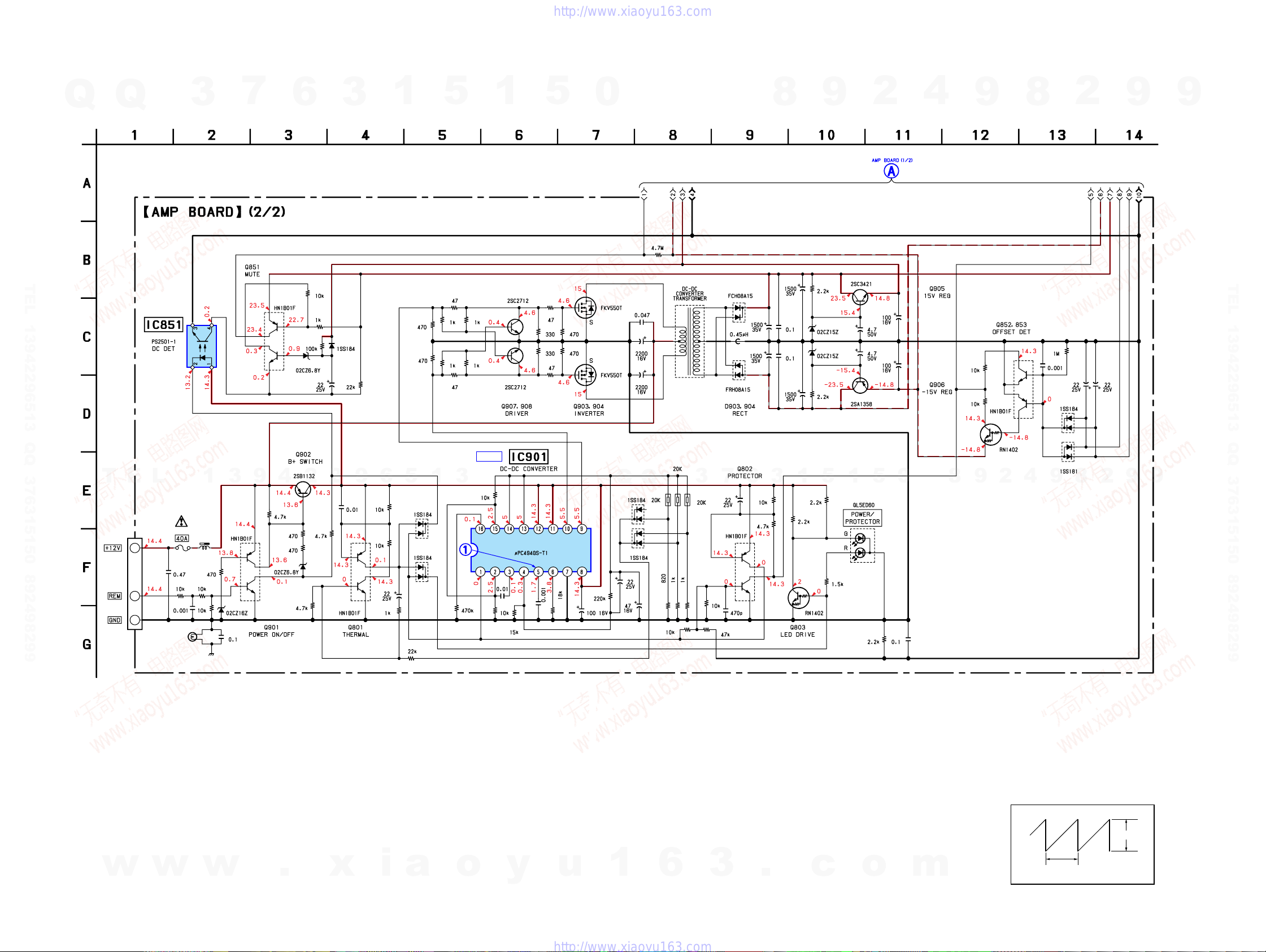

3-4. SCHEMATIC DIAGRAM — POWER SECTION — • Refer to page 12 for IC Block Diagram and Common Note on Schematic Diagrams.
IC B/D
C907
C908
Q852
R856
R857
R858
R851
R852
R853
R854
D852
D851
Q853
Q851
L901
R901 R902
R903
R904
Q901
D901
R905
R906
D902
Q902
C801 R801
R803
R802
D803
D801
R804
IC901
R913 R912
C909
R914
C903
C905
R910
D802
R808
R807
C803
R809
R810 R811
R812
Q803
R813
LD801
R859
C805
PL801
R855
C901
R961 C959
R907
R815
TH802
TH801D804
R911
R806
R805
R814
D805
C910
R927
R928
R923
R925
Q907
Q908
R921
R922
R919
R920
R916
R918
R915
R917
C913
C914
C911
C912
C915
C916
R929
R930
D905
D906
C917
C918
Q905
Q906
C919
C920
IC851
R909
Q801
F901
CN801
R924
R926
D904
Q903
Q904
T901
D903
D806
TH803
Q802
C851
L951
C852
C853 C854
C804
C904
C906
C802
R865
C902
• Waveform
IC901 5
11V/DIV, 5µsec/DIV
15µsec
3.4Vp-p
(Page 9)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
11 11
XM-444W
3-5. PRINTED WIRING BOARD • Refer to page 12 for Semiconductor Location and Common Note on Printed Wiring Boards.
1
A
B
C
D
E
F
G
H
I
23456789101112 13 14 15
R
G
R419
R429
R430
R422
R433
R420
R431
R415
R432
R426 R427 R326 R327
R333
R855
R861
R863
JR10
R121
R132
R961
R864
R862
R126
R127
R226
R227
R928R926
R225 R125
R337
JR9
R437
R137 R237
JR2
R212
R318
R332
R930
R851
R929
R112
R418
R425
R428 R328
R228
R128
C413
R336
R423
BCE
R424
R421
R414
R417
JR4
R413
R329
R330
R316
R325
R323
R324
C313 C314 R314
R317
R313
R852
Q851
Q853
Q901
Q801
Q802
C414
C860
R402
R302
C319 C320
CNJ802
HI LEVEL
(REAR)
(FRONT)
C219
C220
C119
C120
C420
C419
C308
C304
R303
C307
R409
R310
R408
C311
C408
R407
R321
R338
R301
JR1
C104
R103 R138
R101
C959
C862
C111
R113
R114
R117
R118
R110
R133
1-684-682-
C114
R210
R206
IC802
14
85
14
85
85
14
8
5
1
4
8
5
1
4
1
4
8
5
IC803
IC901
IC801
IC805
IC806
IC804
R106
R107
C107
C108
R108
R109
R115
C113
C214 R217
R214
R233
R213
R915
R904
R906
R907
C805
R917
R927
R924
R925
R923
T901
DC-DC CONVERTER
TRANSFORMER
R901
R920
R918
R919
R922
R921
R913
R914
R815
R859
C853 C415
C412
C804
C802
C854
C905
C903
81
916
C914
C913
C915
C916
C917
C851
C312
C215 C115
C112
C920
C209
C210
C109
C110
C212
C918 C919
C315 C410
C309
C409
C406
C310
C306
C101
C102
C202
C861
C402
C302
JW20
C301
C401
C201
C904
C908
TH801
C910 C907
C901
C116
C416C216
C911
C912
C316
R802
R810
LD801
R808
R807
C803
R436
R814
R905
R865
R916
R805
R806
R909
C852
JW152
R135
R435
R235
JW155
R335
JW154
JW153
JW150
JW145
JW99
JW76
JW136
JW135
JW144
JW142
JW143
JW139
JW138 JW124
JW151
JW131
JW156
JW133
JW110
JW109
JW108
JW107
JW105
JW104
JW106
JW102
JW101
JW72
JW73
JW113
JW112
JW111
JW114
JW115
JW116
JW117
JW53
JW132
JW103
JW75
JW78
JW90
JW91
JW96
L951
JW95
JW94
JW93
JW88
JW89
JW92 JW87
JW2
JW11
JW32
JW54
JW55
JW19
JW18
JW21
JW31
JW30
JW10
JW86
JW85
JW69
JW70
JW71
JW84
JW67
JW68
JW66
JW74
JW77
JW65
JW64
JW63
JW62
JW61
JW60
JW79
JW83
JW1
JW6
JW4
JW5
JW12
JW3
JW13
JW17 JW29
JW33
JW28
JW35
JW38
JW36
JW37
JW39
JW34
JW27
JW42
JW40
JW47
JW46
JW41
JW43
JW45
JW44
JW26
JW16
JW15
JW14
JW22
JW23
JW24
JW25
JW9
JW8
JW7
JW80
JW81
JW82
JW100
JW134
JW149
JW146
JW137
JW140
JW141
JW147
JW148
R858
R813
R811
R812 R236 R136
JR8
R809
R803
R801
C801
R902
C902
R903
R912
C909
R911
R910
C906
D804
JR7
R856
R857
R804
C213
R215
R129
R223
R224
R123
R124
Q107
R319
R320
R331
R322
R854
R412
R312 R315
R339
R309
R307
R306
R411
R311
R410
C859
R305
C118
C117
C864
C863
R308
C411
C417
C418
C317
C318
C217
C218
C303
R406
C407
R405
R304
C305
JR3
R853
JR6
JR5
C857
R131
R130
R122
B C E
Q112
B C E
D101
D102
Q101
E C B
Q203
D201
D202
Q201
E C B
D905
D402
Q401
E C B
D852
D906
Q301
E C B
Q307
E C B
Q803
B C E
Q412
B C E
D802
D801
D803
IC851
Q852
E C B
Q902
B E
C
Q407
E C B
Q312
E C B
D301
JW56
JW57
JW58
JW48
JW49
TH803
JW51
JW50
JW52
JW119
JW120
JW128
JW129
JW118
JW130
JW127
JW126
JW125
JW123
JW122
JW121
JW59
D851
D805
D806
D302
Q302
Q303
Q402
Q403
Q202
Q103
Q102
Q212
E C B
Q907
E C B
D401
D902
D901
Q908
E C B
Q207
B C E
R120
R222
R229
R231
R232
R221
R230
R218
R216
R220
R219
R119
R116
R207
R208
R209
C208
C207
R211
C211
R111
C858
C403
C404
C405
R404
R401
R403
R438
R439
C203
C204
C205
R204
R201
R203
R239
R238
R202 R102
R139
C103
R104
C105
R416
Q408 Q409
Q406
BCE
Q306
Q405
Q404
Q308
Q305
Q304
Q309
Q209 Q208
Q204
Q205
Q109
Q905
Q906
Q206
TH802
PL801
Q106
Q108
Q105
Q104
S801
VR801
VR802
CE
ECBECB
BC
D904
KAK
D903
AKA
Q211
BCE
-1
-2
-1
-2
F901
40A
CN801
REM
+12V
GND
S801
HPF(80Hz)
(FRONT)
VR801
LEVEL
(FRONT)
ON
OFF
S802
LPF(80Hz)
(REAR)
VR802
LEVEL
(REAR)
ON
OFF
CNJ801
INPUT
(REAR)
(FRONT)
-3
L (BTL) -4
R
-1
L (BTL) -2
R
-2 -1
S802
-2 -1
R
L
R
L
11
AMP BOARD
ECB
Q410
ECB
Q411
ECB
Q310 Q311
ECB
Q111
B
Q110
E
Q210
BCE
Q904
GDS
Q903
GDS
L901
POWER/
PROTECTOR
LD801
L
R
BTL
SPEAKER OUT
(REAR) (FRONT)
CN802
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
12 12
XM-444W
IC901 µPC494GS-T1
16 15 14 13 12 11 10 9
1 2 3 4 5 6 7 8
OSC
REF. REG.
ERROR
ERROR
0.1V
• IC Block Diagram
THIS NOTE IS COMMON FOR PRINTEDWIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
for schematic diagram:
•All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
•2: nonflammable resistor.
•A: B+ Line.
•B: B– Line.
•Power voltageisdc14.4Vandfed with regulated dc power
supply from +12V and REM terminals.
•Voltage is dc with respect to ground under no-signal
condition.
•Voltagesare taken with aVOM(Input impedance10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
•Circled numbers refer to waveforms.
•Signal path.
F: AUDIO
for printed wiring boards:
•X: parts extracted from the component side.
•: Pattern from the side which enables seeing.
Note: The components identified by mark 0or dotted line
with mark 0are critical for safety.
Replace only with part number specified.
SECTION 4
EXPLODEDVIEW
NOTE:
•The mechanical parts with no reference
number in the exploded views are not supplied.
•Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
•Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
•Accessories are given in the last of this parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
RR
13-240-650-01 PLATE, BOTTOM
23-238-669-01 PANEL, FRONT
33-238-668-21 HEAT SINK
43-238-670-01 PANEL, REAR
5A-3274-222-A AMP BOARD, COMPLETE
67-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
77-685-545-14 SCREW +BTP 3X6 TYPE2 N-S
83-240-642-01 HEAT SINK (SUB 2CH)
93-240-651-01 HEAT SINK (SUB 4CH)
10 3-225-184-01 SCREW (+PS.TT.3X6)
11 3-225-183-01 SCREW (+PSW.TT.3XL)
12 3-912-432-01 SCREW (+–B)
0F901 1-533-743-11 FUSE (BLADE TYPE) (AUTO FUSE) 40A
The components identified by
mark 0or dotted line with mark.
0are critical for safety.
Replace only with part number
specified.
•Semiconductor Location
D101 F-12
D102 F-11
D201 F-10
D202 F-9
D301 C-10
D302 C-11
D401 D-7
D402 C-8
D801 E-3
D802 E-6
D803 D-3
D804 E-4
D805 D-5
D806 D-5
D851 D-9
D852 D-9
D901 F-3
D902 F-4
D903 H-7
D904 H-6
D905 E-10
D906 D-10
IC801 E-12
IC802 G-13
IC803 F-12
IC804 D-11
IC805 C-11
IC806 B-12
IC851 D-3
IC901 E-4
LD801 E-3
Q101 F-11
Q102 F-11
Q103 F-11
Q104 G-11
Q105 F-11
Q106 H-11
Q107 G-10
Q108 F-11
Q109 F-10
Q110 H-11
Q111 H-10
Q112 G-12
Q201 E-9
Q202 F-9
Ref.No. Location Ref. No. Location
Q203 F-9
Q204 G-9
Q205 F-9
Q206 H-8
Q207 G-8
Q208 F-8
Q209 F-8
Q210 H-9
Q211 H-8
Q212 F-10
Q301 D-10
Q302 C-10
Q303 C-10
Q304 C-10
Q305 C-10
Q306 B-9
Q307 C-9
Q308 C-9
Q309 C-9
Q310 B-9
Q311 B-10
Q312 D-9
Q401 D-10
Q402 C-8
Q403 C-8
Q404 C-7
Q405 C-7
Q406 B-7
Q407 B-7
Q408 C-6
Q409 C-7
Q410 B-6
Q411 B-7
Q412 B-6
Q801 E-3
Q802 E-3
Q803 D-2
Q851 D-10
Q852 D-4
Q853 D-4
Q901 F-3
Q902 E-4
Q903 H-5
Q904 H-4
Q905 E-10
Q906 E-10
Q907 F-6
Q908 G-6
1
2
3
F901
546
7
7
6
6
10 10
6
9
11
11
6
8
11
12
12
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
13
XM-444W
SECTION 5
ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
AMP
NOTE:
•Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
•RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
•Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
•CAPACITORS
uF : µF
•COILS
uH : µH
A-3274-222-A AMP BOARD, COMPLETE
*********************
1-537-479-11 TERMINAL
3-225-183-01 SCREW (+PSW.TT.3XL)
3-225-184-01 SCREW (+PS.TT.3X6)
3-240-642-01 HEAT SINK (SUB 2CH)
3-240-651-01 HEAT SINK (SUB 4CH)
3-912-432-01 SCREW (+–B)
< CAPACITOR >
C101 1-126-963-11 ELECT 4.7uF 20% 50V
C102 1-126-963-11 ELECT 4.7uF 20% 50V
C103 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C104 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C105 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C107 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C108 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C109 1-128-551-11 ELECT 22uF 20% 25V
C110 1-128-551-11 ELECT 22uF 20% 25V
C111 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C112 1-126-933-11 ELECT 100uF 20% 16V
C113 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C114 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C115 1-126-960-11 ELECT 1uF 20% 50V
C116 1-136-161-00 FILM 0.047uF 5% 50V
C117 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C118 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C119 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C120 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C201 1-126-963-11 ELECT 4.7uF 20% 50V
C202 1-126-963-11 ELECT 4.7uF 20% 50V
C203 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C204 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C205 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C207 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C208 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C209 1-128-551-11 ELECT 22uF 20% 25V
C210 1-128-551-11 ELECT 22uF 20% 25V
C211 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C212 1-126-933-11 ELECT 100uF 20% 16V
C213 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C214 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C215 1-126-960-11 ELECT 1uF 20% 50V
C216 1-136-161-00 FILM 0.047uF 5% 50V
C217 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C218 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C219 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C220 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C301 1-126-963-11 ELECT 4.7uF 20% 50V
C302 1-126-963-11 ELECT 4.7uF 20% 50V
C303 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C304 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C305 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C306 1-126-963-11 ELECT 4.7uF 20% 50V
C307 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C308 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C309 1-128-551-11 ELECT 22uF 20% 25V
C310 1-128-551-11 ELECT 22uF 20% 25V
C311 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C312 1-126-933-11 ELECT 100uF 20% 16V
C313 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C314 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C315 1-126-960-11 ELECT 1uF 20% 50V
C316 1-136-161-00 FILM 0.047uF 5% 50V
C317 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C318 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C319 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C320 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C401 1-126-963-11 ELECT 4.7uF 20% 50V
C402 1-126-963-11 ELECT 4.7uF 20% 50V
C403 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C404 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C405 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C406 1-126-963-11 ELECT 4.7uF 20% 50V
C407 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C408 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C409 1-128-551-11 ELECT 22uF 20% 25V
C410 1-128-551-11 ELECT 22uF 20% 25V
C411 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C412 1-126-933-11 ELECT 100uF 20% 16V
C413 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C414 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C415 1-126-960-11 ELECT 1uF 20% 50V
C416 1-136-161-00 FILM 0.047uF 5% 50V
C417 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C418 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C419 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C420 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C801 1-163-021-00 CERAMIC CHIP 0.01uF 10% 50V
The components identified by
mark 0or dotted line with mark.
0are critical for safety.
Replace only with part number
specified.
When indicating parts by reference
number, please include the board.
The components identified by
mark 0or dotted line with mark.
0are critical for safety.
Replace only with part number
specified.
When indicating parts by reference
number, please include the board.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
14
XM-444W
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C802 1-128-551-11 ELECT 22uF 20% 25V
C803 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C804 1-128-551-11 ELECT 22uF 20% 25V
C805 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C851 1-128-551-11 ELECT 22uF 20% 25V
C852 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C853 1-128-551-11 ELECT 22uF 20% 25V
C854 1-128-551-11 ELECT 22uF 20% 25V
C857 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C858 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C859 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C860 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C861 1-126-934-11 ELECT 220uF 20% 16V
C862 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C863 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C864 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C901 1-137-194-81 FILM 0.47uF 5% 50V
C902 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C903 1-126-947-11 ELECT 47uF 20% 16V
C904 1-128-551-11 ELECT 22uF 20% 25V
C905 1-126-933-11 ELECT 100uF 20% 16V
C906 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C907 1-136-161-00 FILM 0.047uF 5% 50V
C908 1-131-731-11 ELECT 2200uF 20% 16V
C909 1-163-021-00 CERAMIC CHIP 0.01uF 10% 50V
C910 1-131-731-11 ELECT 2200uF 20% 16V
C911 1-136-165-00 FILM 0.1uF 5% 50V
C912 1-136-165-00 FILM 0.1uF 5% 50V
C913 1-165-949-11 ELECT 1500uF 35V
C914 1-165-949-11 ELECT 1500uF 35V
C915 1-165-949-11 ELECT 1500uF 35V
C916 1-165-949-11 ELECT 1500uF 35V
C917 1-126-963-11 ELECT 4.7uF 20% 50V
C918 1-126-963-11 ELECT 4.7uF 20% 50V
C919 1-126-933-11 ELECT 100uF 20% 16V
C920 1-126-933-11 ELECT 100uF 20% 16V
C959 1-164-156-11 CERAMIC CHIP 0.1uF 25V
< TERMINAL BOARD >
CN801 1-537-477-11 TERMINAL BOARD (3P) (REM,+12V,GND)
CN802 1-694-902-11 TERMINAL BOARD (8P) (SPEAKER OUT
(FRONT/REAR))
< JACK >
CNJ801 1-779-078-21 JACK, PIN 4P (INPUT (FRONT/REAR))
< CONNECTOR >
CNJ802 1-580-283-11 PIN, CONNECTOR (PC BOARD) 8P (HI LEVEL
(INPUT (FRONT/REAR)))
< DIODE >
D101 8-719-801-78 DIODE 1SS184
D102 8-719-801-78 DIODE 1SS184
D201 8-719-801-78 DIODE 1SS184
D202 8-719-801-78 DIODE 1SS184
D301 8-719-801-78 DIODE 1SS184
D302 8-719-801-78 DIODE 1SS184
D401 8-719-801-78 DIODE 1SS184
D402 8-719-801-78 DIODE 1SS184
D801 8-719-801-78 DIODE 1SS184
D802 8-719-801-78 DIODE 1SS184
D803 8-719-801-78 DIODE 1SS184
D804 8-719-801-78 DIODE 1SS184
D805 8-719-801-78 DIODE 1SS184
D806 8-719-820-05 DIODE 1SS181
D851 8-719-025-34 DIODE 02CZ6.8-TE85L
D852 8-719-801-78 DIODE 1SS184
D901 8-719-025-50 DIODE 02CZ16-TE85L
D902 8-719-025-34 DIODE 02CZ6.8-TE85L
D903 6-500-209-01 DIODE FCH08A15
D904 6-500-210-01 DIODE FRH08A15
D905 8-719-025-49 DIODE 02CZ15-TE85L
D906 8-719-025-49 DIODE 02CZ15-TE85L
< FUSE >
0F901 1-533-743-11 FUSE (BLADE TYPE) (AUTO FUSE) 40A
< IC >
IC801 8-759-710-28 IC NJM4565M-A
IC802 8-759-710-28 IC NJM4565M-A
IC803 8-759-710-28 IC NJM4565M-A
IC804 8-759-710-28 IC NJM4565M-A
IC805 8-759-710-28 IC NJM4565M-A
IC806 8-759-710-28 IC NJM4565M-A
IC901 8-759-144-88 IC uPC494GS
< PHOTO COUPLER >
IC851 8-719-156-72 PHOTO COUPLER PS2501-1-K
< JUMPER RESISTOR >
JR1 1-216-864-11 METAL CHIP 0 5% 1/16W
JR2 1-216-296-11 SHORT 0
JR3 1-216-864-11 METAL CHIP 0 5% 1/16W
JR4 1-216-864-11 METAL CHIP 0 5% 1/16W
JR5 1-216-864-11 METAL CHIP 0 5% 1/16W
JR6 1-216-864-11 METAL CHIP 0 5% 1/16W
JR7 1-216-864-11 METAL CHIP 0 5% 1/16W
JR8 1-216-296-11 SHORT 0
JR9 1-216-296-11 SHORT 0
JR10 1-216-296-11 SHORT 0
AMP
The components identified by
mark 0or dotted line with mark.
0are critical for safety.
Replace only with part number
specified.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
15
XM-444W
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< COIL >
L901 1-411-756-11 COIL, CHOKE
L951 1-410-396-41 INDUCTOR, FERRITE BEAD 0.45uH
< DIODE >
LD801 8-719-076-62 LED GL5ED60 (POWER/PROTECTOR)
< PILOT LAMP >
PL801 1-517-156-11 LAMP, PILOT
< TRANSISTOR >
Q101 8-729-202-38 TRANSISTOR 2SC3326N-A
Q102 8-729-014-86 TRANSISTOR 2SC4207-YGR-TE85L
Q103 8-729-232-66 TRANSISTOR 2SA1618-Y
Q104 8-729-140-82 TRANSISTOR 2SA988-PAFAEA
Q105 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
Q106 8-729-902-11 TRANSISTOR 2SC2021-Q
Q107 8-729-230-46 TRANSISTOR 2SA1162-YG
Q108 8-729-020-80 TRANSISTOR 2SC2235-O/Y(TPE6)
Q109 8-729-232-32 TRANSISTOR 2SA965
Q110 8-729-024-79 TRANSISTOR 2SC5100-P
Q111 8-729-024-76 TRANSISTOR 2SA1908-P
Q112 8-729-230-49 TRANSISTOR 2SC2712-YG
Q201 8-729-202-38 TRANSISTOR 2SC3326N-A
Q202 8-729-014-86 TRANSISTOR 2SC4207-YGR-TE85L
Q203 8-729-232-66 TRANSISTOR 2SA1618-Y
Q204 8-729-140-82 TRANSISTOR 2SA988-PAFAEA
Q205 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
Q206 8-729-902-11 TRANSISTOR 2SC2021-Q
Q207 8-729-230-46 TRANSISTOR 2SA1162-YG
Q208 8-729-020-80 TRANSISTOR 2SC2235-O/Y(TPE6)
Q209 8-729-232-32 TRANSISTOR 2SA965
Q210 8-729-024-79 TRANSISTOR 2SC5100-P
Q211 8-729-024-76 TRANSISTOR 2SA1908-P
Q212 8-729-230-49 TRANSISTOR 2SC2712-YG
Q301 8-729-202-38 TRANSISTOR 2SC3326N-A
Q302 8-729-014-86 TRANSISTOR 2SC4207-YGR-TE85L
Q303 8-729-232-66 TRANSISTOR 2SA1618-Y
Q304 8-729-140-82 TRANSISTOR 2SA988-PAFAEA
Q305 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
Q306 8-729-902-11 TRANSISTOR 2SC2021-Q
Q307 8-729-230-46 TRANSISTOR 2SA1162-YG
Q308 8-729-020-80 TRANSISTOR 2SC2235-O/Y(TPE6)
Q309 8-729-232-32 TRANSISTOR 2SA965
Q310 8-729-024-79 TRANSISTOR 2SC5100-P
Q311 8-729-024-76 TRANSISTOR 2SA1908-P
Q312 8-729-230-49 TRANSISTOR 2SC2712-YG
Q401 8-729-202-38 TRANSISTOR 2SC3326N-A
Q402 8-729-014-86 TRANSISTOR 2SC4207-YGR-TE85L
Q403 8-729-232-66 TRANSISTOR 2SA1618-Y
Q404 8-729-140-82 TRANSISTOR 2SA988-PAFAEA
Q405 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
Q406 8-729-902-11 TRANSISTOR 2SC2021-Q
Q407 8-729-230-46 TRANSISTOR 2SA1162-YG
Q408 8-729-020-80 TRANSISTOR 2SC2235-O/Y(TPE6)
Q409 8-729-232-32 TRANSISTOR 2SA965
Q410 8-729-024-79 TRANSISTOR 2SC5100-P
Q411 8-729-024-76 TRANSISTOR 2SA1908-P
Q412 8-729-230-49 TRANSISTOR 2SC2712-YG
Q801 8-729-049-77 TRANSISTOR HN1B01F-GR(T5LSONY)
Q802 8-729-049-77 TRANSISTOR HN1B01F-GR(T5LSONY)
Q803 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q851 8-729-049-77 TRANSISTOR HN1B01F-GR(T5LSONY)
Q852 8-729-027-43 TRANSISTOR DTC114EKA-T146
Q853 8-729-049-77 TRANSISTOR HN1B01F-GR(T5LSONY)
Q901 8-729-049-77 TRANSISTOR HN1B01F-GR(T5LSONY)
Q902 8-729-106-60 TRANSISTOR 2SB1115A
Q903 8-729-053-05 FET FKV550T
Q904 8-729-053-05 FET FKV550T
Q905 8-729-207-82 TRANSISTOR 2SC3421-Y
Q906 8-729-207-89 TRANSISTOR 2SA1358-Y
Q907 8-729-230-49 TRANSISTOR 2SC2712-YG
Q908 8-729-230-49 TRANSISTOR 2SC2712-YG
< RESISTOR >
R101 1-216-837-11 METAL CHIP 22K 5% 1/16W
R102 1-216-837-11 METAL CHIP 22K 5% 1/16W
R103 1-218-867-11 RES-CHIP 6.8K 5% 1/10W
R104 1-218-867-11 RES-CHIP 6.8K 5% 1/10W
R106 1-216-843-11 METAL CHIP 68K 5% 1/16W
R107 1-218-332-11 RES-CHIP 130K 5% 1/10W
R108 1-216-841-11 METAL CHIP 47K 5% 1/16W
R109 1-216-841-11 METAL CHIP 47K 5% 1/16W
R110 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R111 1-218-482-11 RES-CHIP 430 5% 1/10W
R112 1-216-222-00 RES-CHIP 10K 5% 1/8W
R113 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R114 1-216-839-11 METAL CHIP 33K 5% 1/16W
R115 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R116 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R117 1-216-839-11 METAL CHIP 33K 5% 1/16W
R118 1-216-809-11 METAL CHIP 100 5% 1/16W
R119 1-216-845-11 METAL CHIP 100K 5% 1/16W
R120 1-216-845-11 METAL CHIP 100K 5% 1/16W
R121 1-216-174-00 RES-CHIP 100 5% 1/8W
R122 1-216-820-11 METAL CHIP 820 5% 1/16W
R123 1-216-814-11 METAL CHIP 270 5% 1/16W
R124 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R125 1-216-182-00 RES-CHIP 220 5% 1/8W
R126 1-216-150-00 RES-CHIP 10 5% 1/8W
R127 1-216-150-00 RES-CHIP 10 5% 1/8W
R128 1-205-991-11 METAL 0.1X2 10% 5W
R129 1-216-821-11 METAL CHIP 1K 5% 1/16W
R130 1-216-821-11 METAL CHIP 1K 5% 1/16W
AMP
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
16
XM-444W
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R131 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R132 1-216-222-00 RES-CHIP 10K 5% 1/8W
R133 1-216-833-11 METAL CHIP 10K 5% 1/16W
R135 1-215-857-31 METAL OXIDE 10 5% 1W F
R136 1-216-853-11 METAL CHIP 470K 5% 1/16W
R137 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R138 1-216-841-11 METAL CHIP 47K 5% 1/16W
R139 1-216-841-11 METAL CHIP 47K 5% 1/16W
R201 1-216-837-11 METAL CHIP 22K 5% 1/16W
R202 1-216-837-11 METAL CHIP 22K 5% 1/16W
R203 1-218-867-11 RES-CHIP 6.8K 5% 1/10W
R204 1-218-867-11 RES-CHIP 6.8K 5% 1/10W
R206 1-216-843-11 METAL CHIP 68K 5% 1/16W
R207 1-218-332-11 RES-CHIP 130K 5% 1/10W
R208 1-216-841-11 METAL CHIP 47K 5% 1/16W
R209 1-216-841-11 METAL CHIP 47K 5% 1/16W
R210 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R211 1-218-482-11 RES-CHIP 430 5% 1/10W
R212 1-216-222-00 RES-CHIP 10K 5% 1/8W
R213 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R214 1-216-839-11 METAL CHIP 33K 5% 1/16W
R215 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R216 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R217 1-216-839-11 METAL CHIP 33K 5% 1/16W
R218 1-216-809-11 METAL CHIP 100 5% 1/16W
R219 1-216-845-11 METAL CHIP 100K 5% 1/16W
R220 1-216-845-11 METAL CHIP 100K 5% 1/16W
R221 1-216-174-00 RES-CHIP 100 5% 1/8W
R222 1-216-820-11 METAL CHIP 820 5% 1/16W
R223 1-216-814-11 METAL CHIP 270 5% 1/16W
R224 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R225 1-216-182-00 RES-CHIP 220 5% 1/8W
R226 1-216-150-00 RES-CHIP 10 5% 1/8W
R227 1-216-150-00 RES-CHIP 10 5% 1/8W
R228 1-205-991-11 METAL 0.1X2 10% 5W
R229 1-216-821-11 METAL CHIP 1K 5% 1/16W
R230 1-216-821-11 METAL CHIP 1K 5% 1/16W
R231 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R232 1-216-222-00 RES-CHIP 10K 5% 1/8W
R233 1-216-833-11 METAL CHIP 10K 5% 1/16W
R235 1-215-857-31 METAL OXIDE 10 5% 1W F
R236 1-216-853-11 METAL CHIP 470K 5% 1/16W
R237 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R238 1-216-841-11 METAL CHIP 47K 5% 1/16W
R239 1-216-841-11 METAL CHIP 47K 5% 1/16W
R301 1-216-837-11 METAL CHIP 22K 5% 1/16W
R302 1-216-837-11 METAL CHIP 22K 5% 1/16W
R303 1-218-867-11 RES-CHIP 6.8K 5% 1/10W
R304 1-218-867-11 RES-CHIP 6.8K 5% 1/10W
R305 1-216-816-11 METAL CHIP 390 5% 1/16W
R306 1-216-841-11 METAL CHIP 47K 5% 1/16W
R307 1-216-841-11 METAL CHIP 47K 5% 1/16W
R308 1-216-841-11 METAL CHIP 47K 5% 1/16W
R309 1-216-841-11 METAL CHIP 47K 5% 1/16W
R310 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R311 1-218-482-11 RES-CHIP 430 5% 1/10W
R312 1-216-222-00 RES-CHIP 10K 5% 1/8W
R313 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R314 1-216-839-11 METAL CHIP 33K 5% 1/16W
R315 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R316 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R317 1-216-839-11 METAL CHIP 33K 5% 1/16W
R318 1-216-174-00 RES-CHIP 100 5% 1/8W
R319 1-216-845-11 METAL CHIP 100K 5% 1/16W
R320 1-216-845-11 METAL CHIP 100K 5% 1/16W
R321 1-216-809-11 METAL CHIP 100 5% 1/16W
R322 1-216-820-11 METAL CHIP 820 5% 1/16W
R323 1-216-814-11 METAL CHIP 270 5% 1/16W
R324 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R325 1-216-182-00 RES-CHIP 220 5% 1/8W
R326 1-216-150-00 RES-CHIP 10 5% 1/8W
R327 1-216-150-00 RES-CHIP 10 5% 1/8W
R328 1-205-991-11 METAL 0.1X2 10% 5W
R329 1-216-821-11 METAL CHIP 1K 5% 1/16W
R330 1-216-821-11 METAL CHIP 1K 5% 1/16W
R331 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R332 1-216-222-00 RES-CHIP 10K 5% 1/8W
R333 1-216-222-00 RES-CHIP 10K 5% 1/8W
R335 1-215-857-31 METAL OXIDE 10 5% 1W F
R336 1-216-853-11 METAL CHIP 470K 5% 1/16W
R337 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R338 1-216-841-11 METAL CHIP 47K 5% 1/16W
R339 1-216-841-11 METAL CHIP 47K 5% 1/16W
R401 1-216-837-11 METAL CHIP 22K 5% 1/16W
R402 1-216-837-11 METAL CHIP 22K 5% 1/16W
R403 1-218-867-11 RES-CHIP 6.8K 5% 1/10W
R404 1-218-867-11 RES-CHIP 6.8K 5% 1/10W
R405 1-216-816-11 METAL CHIP 390 5% 1/16W
R406 1-216-841-11 METAL CHIP 47K 5% 1/16W
R407 1-216-841-11 METAL CHIP 47K 5% 1/16W
R408 1-216-841-11 METAL CHIP 47K 5% 1/16W
R409 1-216-841-11 METAL CHIP 47K 5% 1/16W
R410 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R411 1-218-482-11 RES-CHIP 430 5% 1/10W
R412 1-216-222-00 RES-CHIP 10K 5% 1/8W
R413 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R414 1-216-839-11 METAL CHIP 33K 5% 1/16W
R415 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R416 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R417 1-216-839-11 METAL CHIP 33K 5% 1/16W
R418 1-216-174-00 RES-CHIP 100 5% 1/8W
R419 1-216-845-11 METAL CHIP 100K 5% 1/16W
R420 1-216-845-11 METAL CHIP 100K 5% 1/16W
R421 1-216-809-11 METAL CHIP 100 5% 1/16W
R422 1-216-820-11 METAL CHIP 820 5% 1/16W
R423 1-216-814-11 METAL CHIP 270 5% 1/16W
AMP
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
17
XM-444W
R424 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R425 1-216-182-00 RES-CHIP 220 5% 1/8W
R426 1-216-150-00 RES-CHIP 10 5% 1/8W
R427 1-216-150-00 RES-CHIP 10 5% 1/8W
R428 1-205-991-11 METAL 0.1X2 10% 5W
R429 1-216-821-11 METAL CHIP 1K 5% 1/16W
R430 1-216-821-11 METAL CHIP 1K 5% 1/16W
R431 1-216-823-11 METAL CHIP 1.5K 5% 1/16W
R432 1-216-222-00 RES-CHIP 10K 5% 1/8W
R433 1-216-833-11 METAL CHIP 10K 5% 1/16W
R435 1-215-857-31 METAL OXIDE 10 5% 1W F
R436 1-216-853-11 METAL CHIP 470K 5% 1/16W
R437 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R438 1-216-841-11 METAL CHIP 47K 5% 1/16W
R439 1-216-841-11 METAL CHIP 47K 5% 1/16W
R801 1-216-833-11 METAL CHIP 10K 5% 1/16W
R802 1-216-833-11 METAL CHIP 10K 5% 1/16W
R803 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R804 1-216-837-11 METAL CHIP 22K 5% 1/16W
R805 1-216-821-11 METAL CHIP 1K 5% 1/16W
R806 1-216-821-11 METAL CHIP 1K 5% 1/16W
R807 1-216-833-11 METAL CHIP 10K 5% 1/16W
R808 1-216-833-11 METAL CHIP 10K 5% 1/16W
R809 1-216-833-11 METAL CHIP 10K 5% 1/16W
R810 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R811 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R812 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R813 1-216-202-00 RES-CHIP 1.5K 5% 1/8W
R814 1-216-820-11 METAL CHIP 820 5% 1/16W
R815 1-216-821-11 METAL CHIP 1K 5% 1/16W
R851 1-216-222-00 RES-CHIP 10K 5% 1/8W
R852 1-216-821-11 METAL CHIP 1K 5% 1/16W
R853 1-216-845-11 METAL CHIP 100K 5% 1/16W
R854 1-216-837-11 METAL CHIP 22K 5% 1/16W
R855 1-216-286-00 RES-CHIP 4.7M 5% 1/8W
R856 1-216-833-11 METAL CHIP 10K 5% 1/16W
R857 1-216-833-11 METAL CHIP 10K 5% 1/16W
R858 1-216-857-11 METAL CHIP 1M 5% 1/16W
R859 1-216-841-11 METAL CHIP 47K 5% 1/16W
R861 1-216-214-00 RES-CHIP 4.7K 5% 1/8W
R862 1-216-198-00 RES-CHIP 1K 5% 1/8W
R863 1-216-198-00 RES-CHIP 1K 5% 1/8W
R864 1-216-198-00 RES-CHIP 1K 5% 1/8W
R865 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R901 1-216-222-00 RES-CHIP 10K 5% 1/8W
R902 1-216-833-11 METAL CHIP 10K 5% 1/16W
R903 1-216-833-11 METAL CHIP 10K 5% 1/16W
R904 1-216-190-00 RES-CHIP 470 5% 1/8W
R905 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R906 1-216-190-00 RES-CHIP 470 5% 1/8W
R907 1-216-190-00 RES-CHIP 470 5% 1/8W
R909 1-216-849-11 METAL CHIP 220K 5% 1/16W
R910 1-216-836-11 METAL CHIP 18K 5% 1/16W
R911 1-216-835-11 METAL CHIP 15K 5% 1/16W
R912 1-216-833-11 METAL CHIP 10K 5% 1/16W
R913 1-216-853-11 METAL CHIP 470K 5% 1/16W
R914 1-216-833-11 METAL CHIP 10K 5% 1/16W
R915 1-216-190-00 RES-CHIP 470 5% 1/8W
R916 1-216-821-11 METAL CHIP 1K 5% 1/16W
R917 1-216-190-00 RES-CHIP 470 5% 1/8W
R918 1-216-821-11 METAL CHIP 1K 5% 1/16W
R919 1-216-166-00 RES-CHIP 47 5% 1/8W
R920 1-216-166-00 RES-CHIP 47 5% 1/8W
R921 1-216-821-11 METAL CHIP 1K 5% 1/16W
R922 1-216-821-11 METAL CHIP 1K 5% 1/16W
R923 1-216-186-00 RES-CHIP 330 5% 1/8W
R924 1-216-190-00 RES-CHIP 470 5% 1/8W
R925 1-216-186-00 RES-CHIP 330 5% 1/8W
R926 1-216-190-00 RES-CHIP 470 5% 1/8W
R927 1-216-166-00 RES-CHIP 47 5% 1/8W
R928 1-216-166-00 RES-CHIP 47 5% 1/8W
R929 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R930 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R961 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
< SWITCH >
S801 1-771-271-11 SWITCH, SLIDE (HPF(80Hz) (FRONT))
S802 1-771-271-11 SWITCH, SLIDE (LPF(80Hz) (REAR))
< TRANSFORMER >
T901 1-437-744-11 TRANSFORMER, DC-DC CONVERTER
< THERMISTOR >
TH801 1-808-877-11 THERMISTOR 20K
TH802 1-808-877-11 THERMISTOR 20K
TH803 1-808-877-11 THERMISTOR 20K
< VARIABLE RESISTOR >
VR801 1-225-459-11 RES, VAR, CARBON 10KX2 (LEVEL (FRONT))
VR802 1-225-459-11 RES, VAR, CARBON 10KX2 (LEVEL (REAR))
*************************************************************
ACCESSORIES
************
3-244-242-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
*************************************************************
PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
51 3-367-410-01 SCREW (DIA.5X15), TAPPING
52 1-823-952-11 CORD, CONNECTION 8P (0.2m)
53 3-013-264-01 COVER, 3P TERMINAL BOARD
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
AMP
φ5 x 15
(x 4) 0.2 m
51 52 53
Ver 1.1
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
18
XM-444W
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper on the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
1.0 2002. 04 New
1.1 2003. 02 Part number correction of S801, 802. (SPM-03002)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
Other manuals for XM-444W
1
Table of contents
Other Sony Amplifier manuals
Sony
Sony TA-E731X User manual
Sony
Sony TA-E1 Operating Instructions (primary... User manual
Sony
Sony XM-GS4 User manual
Sony
Sony TA-EX660 User manual
Sony
Sony XM-5ES User manual
Sony
Sony XM-222 User manual
Sony
Sony TA-VA777ES User manual
Sony
Sony XM-D400P5 Product Guide User manual
Sony
Sony XM554ZR - XM Amplifier User manual
Sony
Sony TA-FA30ES User manual
