Sony TA-VE610 User manual

3-861-069-11(1)
1997 by Sony Corporation
Integrated AV
Amplifier
Operating Instructions
Mode d’emploi
Gebruiksaanwijzing
Bruksanvisning
EN
F
NL
S
TA-VE610

2EN
WARNING
To prevent fire or shock
hazard, do not expose
the unit to rain or
moisture.
To avoid electrical shock,
do not open the cabinet.
Refer servicing to
qualified personnel only.
Do not install the
appliance in a confined
space, such as a bookcase
or built-in cabinet.
Precautions
On safety
• Should any solid object or liquid fall
into the cabinet, unplug the amplifier
and have it checked by qualified
personnel before operating it any
further.
On power sources
• Before operating the amplifier, check
that the operating voltage is identical
with your local power supply. The
operating voltage is indicated on the
nameplate at the rear of the amplifier.
• The amplifier is not disconnected
from the AC power source as long as
it is connected to the wall outlet, even
if the amplifier itself has been turned
off.
• If you are not going to use the
amplifier for a long time, be sure to
disconnect the amplifier from the
wall outlet. To disconnect the AC
power cord, grasp the plug itself;
never pull the cord.
• One blade of the plug is wider than
the other for the purpose of safety
and will fit into the wall outlet only
one way. If you are unable to insert
the plug fully into the outlet, contact
your dealer.
• AC power cord must be changed only
at the qualified service shop.
On placement
• Place the amplifier in a location with
adequate ventilation to prevent heat
buildup and prolong the life of the
amplifier.
• Do not place the amplifier near heat
sources, or in a place subject to direct
sunlight, excessive dust or
mechanical shock.
• Do not place anything on top of the
cabinet that might block the
ventilation holes and cause
malfunctions.
On operation
• Before connecting other components,
be sure to turn off and unplug the
amplifier.
On cleaning
• Clean the cabinet, panel and controls
with a soft cloth slightly moistened
with a mild detergent solution. Do
not use any type of abrasive pad,
scouring powder or solvent such as
alcohol or benzine.
If you have any question or problem
concerning your amplifier, please
consult your nearest Sony dealer.

3EN

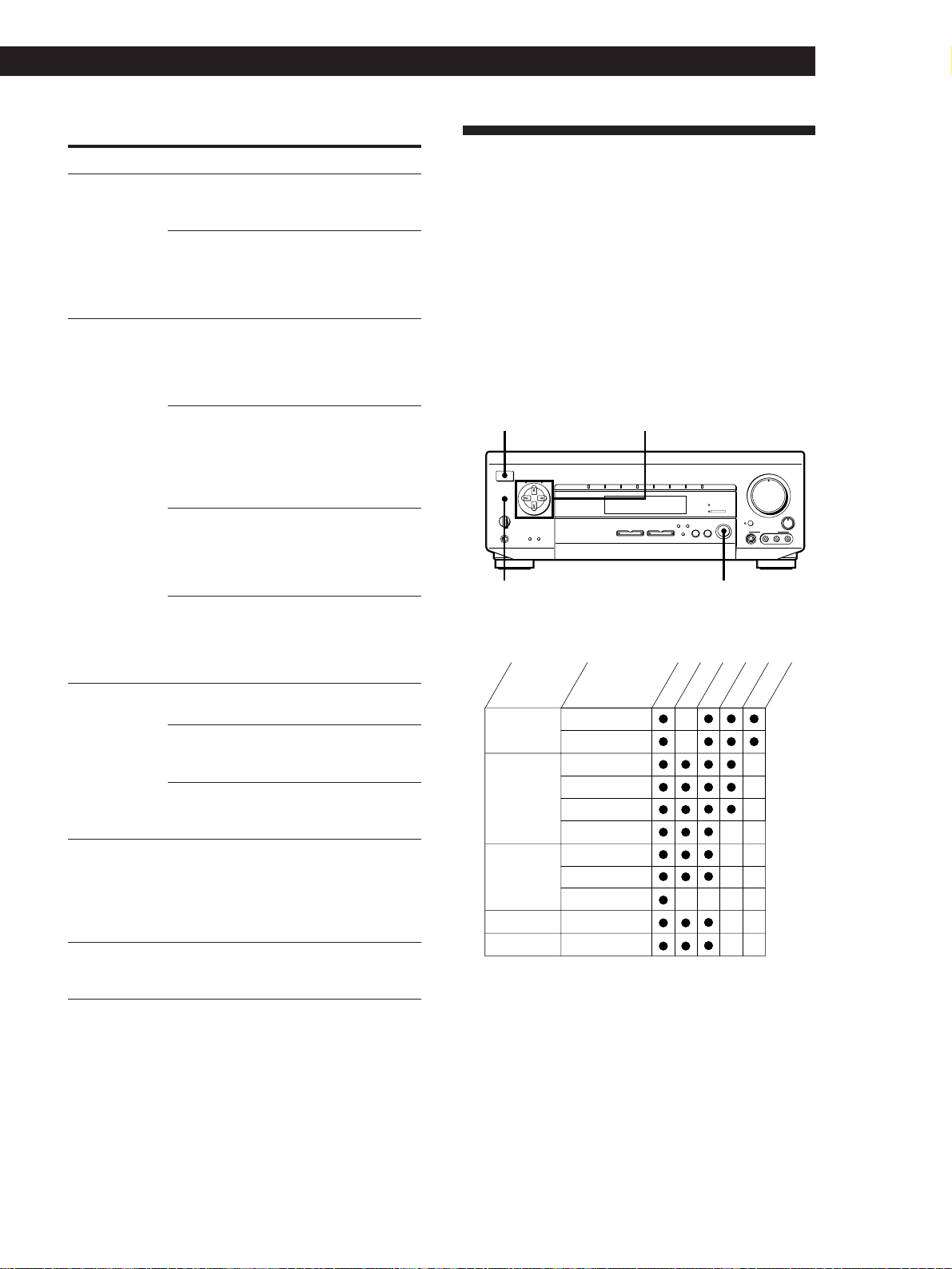

TABLE OF CONTENTS
Getting Started
Unpacking 4
Hookup Overview 4
Audio Component Hookups 5
Speaker System Hookups 5
TV/VCR Hookups 7
AC Hookups 8
Before You Use Your Amplifier 9
Basic Operations
Selecting a Component 9
Indexing Program Sources 12
Recording 13
Using the Sleep Timer 14
Dolby Surround Setup
Dolby Pro Logic 14
Sound Adjustment
Using Pre-programmed Sound Fields 16
Customizing the Sound Fields 17
Advanced Remote Operations
Operating One Component While Using Another (background operation)
19
Changing the Factory Setting of a FUNCTION Button 20
Additional Information
Troubleshooting 21
Specifications 22
Glossary 23
Table of Functions of the SET UP Button 24
Rear Panel Descriptions 25
Remote Button Descriptions 26
Index 28
Quick Reference Guide 29
About This Manual
The instructions in this manual are for
model TA-VE610.
Conventions
• The instructions in this manual
describe the controls on the amplifier.
You can also use the controls on the
remote if they have the same or
similar names as those on the
amplifier.
• A “Quick Reference Guide” is
supplied on page 29.
• The “Remote Button Descriptions”
section on page 26 provides an
overview of the remote buttons.
• The following icons are used in this
manual:
ZIndicates that you can use only
the remote to do the task.
zIndicates hints and tips for
making the task easier.
This amplifier incorporates the Dolby*
Pro Logic Surround system.
* Manufactured under license from
Dolby Laboratories Licensing
Corporation. DOLBY, the double-D
symbol aand “PRO LOGIC” are
trademarks of Dolby Laboratories
Licensing Corporation.
EN

4EN
Getting Started
Front
speaker
(L)
Front
speaker
(R)
Rear
speaker
(L)
Rear
speaker
(R)
CD player
Tuner
Tape deck
MD deck
Turntable
Center
speaker
Unpacking
Check that you received the following items with the
amplifier:
• Remote commander (remote) RM-U501 (1)
• Size AA (R6) batteries (2)
Inserting batteries into the remote
Insert two size AA (R6) batteries with the + and – on
the battery compartment. When using the remote,
point it at the remote sensor gon the amplifier.
}
}
]]
zWhen to replace batteries
Under normal use, the batteries should last for about 6
months. When the remote no longer operates the
amplifier, replace both batteries with new ones.
Notes
• Do not leave the remote in an extremely hot or humid
place.
• Do not use a new battery with an old one.
• Do not expose the remote sensor to direct sunlight or
lighting apparatuses. Doing so may cause a malfunction.
• If you don’t use the remote for an extended period of time,
remove the batteries to avoid possible damage from
battery leakage and corrosion.
TV
VCR
LD player
Speaker
System
Hookups
(5) TV/VCR Hookups (7)
Hookup Overview
The amplifier allows you to connect and control the
following audio/video components. Follow the
hookup procedures for the components that you want
to connect to the amplifier on the pages specified. To
learn the locations and names of each jacks, see “Rear
Panel Descriptions” on page 25.
Before you get started
• Turn off the power to all components before making
any connections.
• Do not connect the AC power cords until all of the
connections are completed.
• Be sure to make connections firmly to avoid hum
and noise.
• When connecting an audio/video cable, be sure to
match the color-coded pins to the appropriate jacks
on the components: Yellow (video) to Yellow; White
(left, audio) to White; and Red (right, audio) to Red.
Getting Started
Wireless
rear
speaker
5.1
INPUT
VIDEO FUNCTION AUDIO FUNCTION
GENRE
TONE
SUR INDEX
SET UP
DIRECT
PASS
MODE
DIRECT PASS
SOUND FIELD
ON / OFF
BASS
BOOST
BALANCE
LR
5.1 INPUT
5
0
1
3
9
7
46
28
10
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
PHONES
POWER
SPEAKERS
DPC
MODE
A
OFF
A
+ B
B
g
MASTER VOLUME
VIDEO 1 VIDEO 2 VIDEO 3 TV/LD TAPE/MD CD TUNER PHONO
DISPLAYDIMMER
S VIDEO RLVIDEO AUDIO
VIDEO 3 INPUT
Video camera
recorder
Video game
Audio Component
Hookups (5)
Active
woofer

5EN
Getting Started
Getting Started
Audio Component Hookups
Overview
This section describes how to connect your audio
components to the amplifier.
WIRELESS
REAR
SPEAKER
FRONT SPEAKERS
A
R
B
A
L
B
SURROUND SPEAKERS
IMPEDANCE USE 4–16 Ω
REAR
IMPEDANCE USE 4–16 Ω
+
–
++––
++––
+
–
R
R
WOOFER
AUDIO
OUT
VIDEO
OUT
OUT
INOUT
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
IN
IN
L
R
RECOUTINININ
FRONT
CENTER
REAR
SIGNAL
GND
WOOFER
AUDIO
IN
L
R
L
RAUDIO
OUT
AUDIO
IN
AUDIO
OUT
AUDIO
IN
y
5.1 INPUT
PHONO TAPE / MD
MONITORVIDEO 1VIDEO 2
TV / LD
L
L
CENTER
TUNER CD
AC OUTLET
SWITCHED 100W MAX
PHONO CD
TAPE/MDTUNER

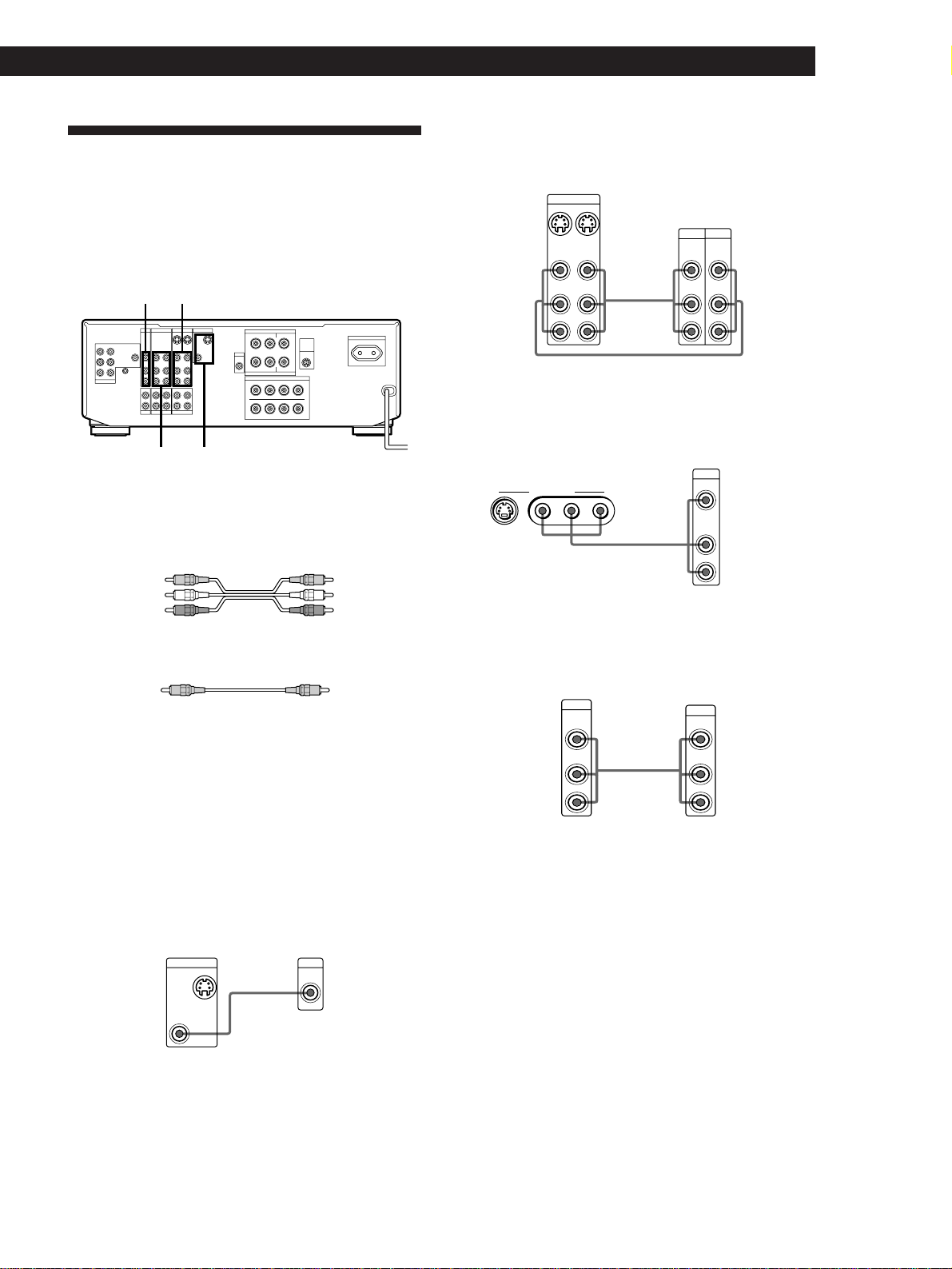

What cords will I need?
Audio cords (not supplied) (1 for each CD player, tuner, and
turntable; 2 for each tape deck or MD deck)
White (L) White (L)
Red (R) Red (R)
Hookups
The arrow çindicates signal flow.
CD player
Amplifier CD player
Ç
L
R
IN
CD
L
R
LINE
OUTPUT
Tuner
Amplifier Tuner
Ç
L
R
IN
TUNER
L
R
LINE
OUTPUT
Tape deck or MD deck
Amplifier Tape deck or MD deck
Ç
ç
L
R
LINE
OUTPUT
L
R
LINE
INPUT
INRECOUT
TAPE/MD
Turntable
Amplifier Turntable
Ç
PHONO
L
R
IN
L
R
LINE
OUTPUT
If your turntable has an earth lead
To prevent hum, connect the earth lead to the ySIGNAL
GND terminal on the amplifier.
Speaker System Hookups
Overview
This section describes how to connect your speakers to
the amplifier. Although front (left and right) speakers
are required, center and rear speakers are optional.
Adding center and rear speakers will enhance the
surround effects. Connecting an active woofer will
increase bass response.
WIRELESS
REAR
SPEAKER
FRONT SPEAKERS
A
R
B
A
L
B
SURROUND SPEAKERS
IMPEDANCE USE 4–16 Ω
REAR
IMPEDANCE USE 4–16 Ω
+
–
++ ––
++ ––
+
–
R
R
WOOFER
AUDIO
OUT
VIDEO
OUT
OUT
INOUT
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
IN
IN
L
R
RECOUTINININ
FRONT
CENTER
REAR
SIGNAL
GND
WOOFER
AUDIO
IN
L
R
L
RAUDIO
OUT
AUDIO
IN
AUDIO
OUT
AUDIO
IN
y
5.1 INPUT
PHONO TAPE / MD
MONITORVIDEO 1VIDEO 2
TV / LD
L
L
CENTER
TUNER CD
AC OUTLET
SWITCHED 100W MAX
WOOFER
FRONT SPEAKERS A WIRELESS
REAR SPEAKER
SURROUND
SPEAKERS REAR SURROUND SPEAKERS CENTER
What cords will I need?
• Speaker cord (not supplied) (1 for each speaker)
(+) (+)
(–) (–)
Twist the stripped ends of the cord about 2/3 inch (15
mm). Be sure to match the speaker cord to the appropriate
terminal on the components: + to + and – to –. If the cords
are reversed, the sound will be distorted and will lack
bass.
• Monaural audio cord (not supplied) (1 for an active
woofer)
Black Black

6EN
Getting Started
Hookups
Front speakers
]]}}
FRONT SPEAKERS
A
R
B
A
L
B
IMPEDANCE USE 4–16 Ω
++––
++––
To connect the speaker cords
]}
]}
√
Rear and center speakers
SURROUND SPEAKERS
IMPEDANCE USE 4–16 Ω
REAR
+
–
+
–
R
R
L
L
CENTER
]] }]}
}
Active woofer
Amplifier Active woofer
ç
WOOFER
AUDIO
OUT
INPUT
Wireless rear speaker
When using an optional Sony wireless rear speaker system,
connect the transmitter to the WIRELESS REAR SPEAKER
jack.
Note
Do not connect any other component to the WIRELESS
REAR SPEAKER jack.
zIf you have an additional front speaker system
Connect them to the FRONT SPEAKERS B terminals.
Note
If you use front speakers with low maximum power input,
adjust the volume carefully to avoid excessive output on the
speakers.
Rear speaker
(R) Rear speaker (L)Center speaker
Amplifier
Front speaker
(R) Front speaker
(L)
Amplifier
Set SPEAKERS selector to
A
B
A+B
To drive
Speaker system A (connected
to the FRONT SPEAKERS A
terminals)
Speaker system B (connected
to the FRONT SPEAKERS B
terminals)
Both speaker systems A and B
(parallel connection)

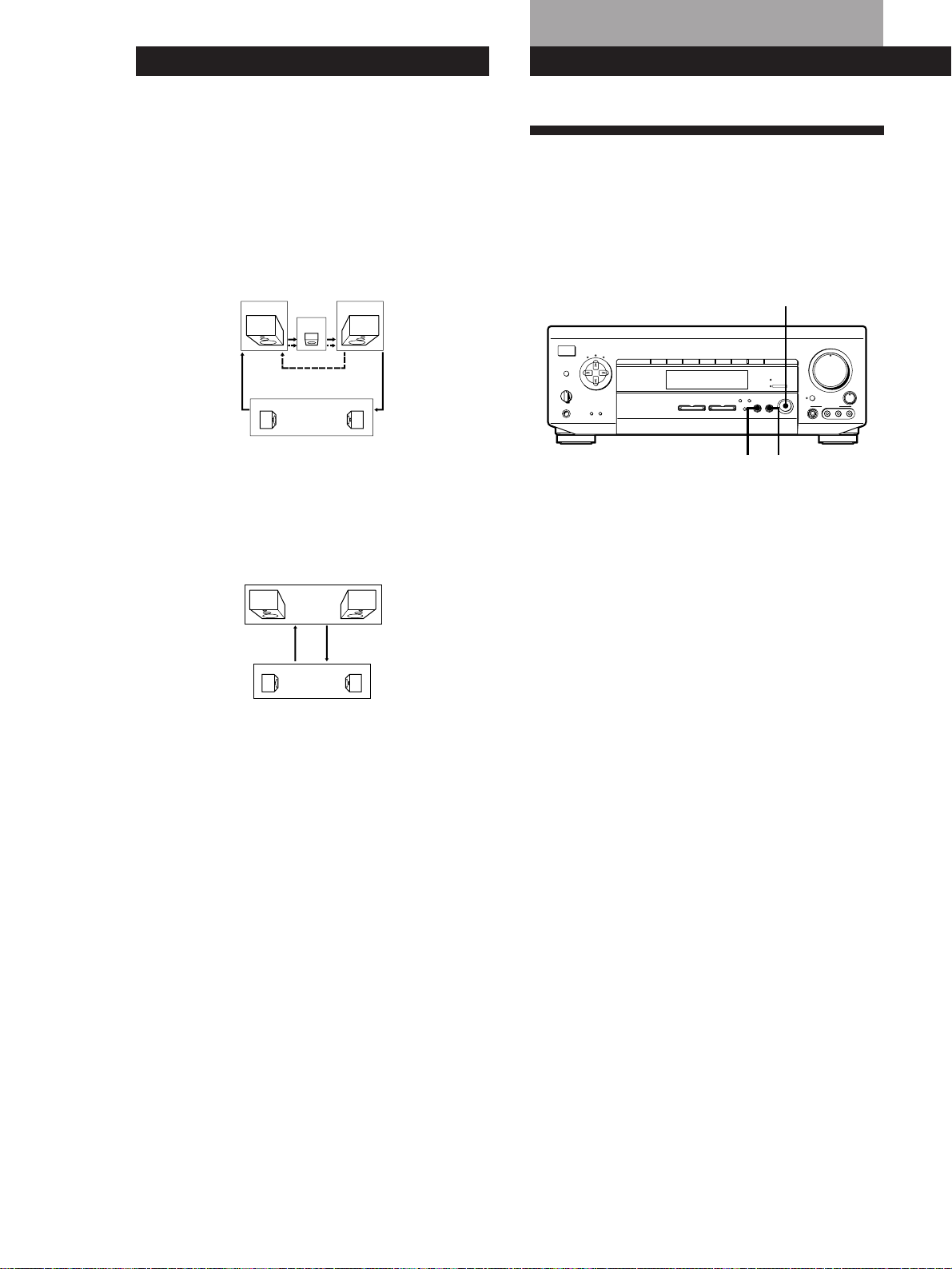

Speaker placement
For optimum surround sound effect, place your
speakers as shown below.
Selecting the speaker system
If you connect only one set of front speakers, set the
SPEAKERS selector on the front panel to A. If you
connect two sets of front speakers, see the following:
Rear speaker
60 - 90 cm
Front speaker
45°

7EN
Getting Started
Getting Started
TV/VCR Hookups
Overview
This section describes how to connect video
components to the amplifier.
WIRELESS
REAR
SPEAKER
FRONT SPEAKERS
A
R
B
A
L
B
SURROUND SPEAKERS
IMPEDANCE USE 4–16 Ω
REAR
IMPEDANCE USE 4–16 Ω
+
–
++ ––
++ ––
+
–
R
R
WOOFER
AUDIO
OUT
VIDEO
OUT
OUT
INOUT
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
IN
IN
L
R
RECOUTINININ
FRONT
CENTER
REAR
SIGNAL
GND
WOOFER
AUDIO
IN
L
R
L
RAUDIO
OUT
AUDIO
IN
AUDIO
OUT
AUDIO
IN
y
5.1 INPUT
PHONO TAPE / MD
MONITORVIDEO 1VIDEO 2
TV / LD
L
L
CENTER
TUNER CD
AC OUTLET
SWITCHED 100W MAX
VIDEO 1TV/LD
VIDEO 2 MONITOR
What cables will I need?
• Audio/video cable (not supplied ) (1 for each TV or LD
player; 2 for each VCR)
Yellow Yellow
White (L) White (L)
Red (R) Red (R)
• Video cable (not supplied) (1 for a TV monitor)
Yellow Yellow
zIf you want to watch higher quality video images
You can connect an S-VIDEO cable (not supplied) to the
VIDEO 1, VIDEO 3, or MONITOR jack.
Hookups
The arrow çindicates signal flow.
TV monitor
If you use a TV monitor, do not connect anything to the TV/
LD VIDEO IN jack.
Amplifier TV monitor
ç
VIDEO
INPUT
VIDEO
OUT
OUT
MONITOR
VCR (via the VIDEO 1/2 jacks)
If you have two VCRs, connect the second one to the VIDEO
2 jacks. Amplifier
Ç
ç
OUTPUT INPUT
VIDEOVIDEO
AUDIO
L
R
AUDIO
INOUT
VIDEO
IN
VIDEO
OUT
AUDIO
IN
L
R
AUDIO
OUT
VIDEO 1
Video camera recorder or video game
Use the VIDEO 3 INPUT jacks on the front panel.
Ç
OUTPUT
VIDEO
L
R
AUDIO
S VIDEO RLVIDEO AUDIO
VIDEO 3 INPUT
TV or LD player
If you have an additional TV or LD player, connect it to the
VIDEO 2 jacks.
Amplifier TV or LD player
Ç
L
R
L
R
OUTPUT
TV/LD
VIDEO
IN
AUDIO
IN
VIDEO
AUDIO
(Continued)
Amplifier
Video camera recorder or
video game
VCR

8EN
Getting Started
zYou can play decoded Dolby Digital (AC-3)
soundtracks through the speakers connected to the
amplifier
If you have a Dolby Digital (AC-3) decoder, you can use
the amplifier to amplify a decoded Dolby Digital (AC-3)
soundtrack with the following connections. Refer to the
instruction manual supplied with your Dolby Digital
(AC-3) decoder.
Ç Ç
Ç
Ç Ç Ç
VIDEO
IN
FRONT
CENTER
REAR
WOOFER
L
R
5.1 INPUT
REAR
CENTER
WOOFER
PRE OUT
FRONT
R AUDIO L
LINE OUT
VIDEO
DIGITAL
IN
DIGITAL
OUT
Dolby Digital
(AC-3) decoder
etc.
Amplifier
DVD player
AC Hookups
Connecting the AC power cord
Connect the AC power cord from this amplifier and
from your audio/video components to a wall outlet.
If you connect another audio component to AC
OUTLET on the amplifier, the amplifier can supply
power to the connected component so you can turn
on/off whole system when you turn on/off the
amplifier.
WIRELESS
REAR
SPEAKER
FRONT SPEAKERS
A
R
B
A
L
B
SURROUND SPEAKERS
IMPEDANCE USE 4–16 Ω
REAR
IMPEDANCE USE 4–16 Ω
+
–
++––
++––
+
–
R
R
WOOFER
AUDIO
OUT
VIDEO
OUT
OUT
INOUT
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
IN
IN
L
R
RECOUTINININ
FRONT
CENTER
REAR
SIGNAL
GND
WOOFER
AUDIO
IN
L
R
L
RAUDIO
OUT
AUDIO
IN
AUDIO
OUT
AUDIO
IN
y
5.1 INPUT
PHONO TAPE / MD
MONITORVIDEO 1VIDEO 2
TV / LD
L
L
CENTER
TUNER CD
AC OUTLET
SWITCHED 100W MAX
AC OUTLET
b
to a wall
outlet
Caution
Make sure that the power consumption of the component
connected to amplifier’s AC OUTLET does not exceed the
wattage stated on the rear panel. Do not connect high-
wattage electrical home appliances such as electric irons,
fans, or TVs to this outlet.

9EN
Getting Started
Basic Operations
Before You Use Your Amplifier
Before you start using your amplifier, make sure that
you have:
• Turned MASTER VOLUME to the leftmost position
(0).
• Selected the appropriate speaker system. (For
details, see “Selecting the speaker system” on
page 6.)
• Set BALANCE to the center position.
Turn on the amplifier and check the following
indicator.
• Press MUTING on the remote if “MUTING” appears
in the display.
Clearing the amplifier’s memory
Before you use your amplifier for the first time or
when you want to clear the amplifier’s memory,
do the procedure below.
5.1
INPUT
VIDEO FUNCTION AUDIO FUNCTION
GENRE
TONE
SUR INDEX
SET UP
DIRECT
PASS
MODE
DIRECT PASS
SOUND FIELD
ON / OFF
BASS
BOOST
BALANCE
LR
5.1 INPUT
5
0
1
3
9
7
46
28
10
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
PHONES
POWER
SPEAKERS
DPC
MODE
A
OFF
A
+ B
B
g
MASTER VOLUME
VIDEO 1 VIDEO 2 VIDEO 3 TV/LD TAPE/MD CD TUNER PHONO
DISPLAYDIMMER
S VIDEO RLVIDEO AUDIO
VIDEO 3 INPUT
POWER AUDIO FUNCTION
VIDEO FUNCTION MODE
1Turn off the amplifier.
2Press down VIDEO FUNCTION , AUDIO
FUNCTION , MODE, and POWER
simultaneously.
The contents of the memory (e. g., parameter
settings) are erased.
Getting Started
Selecting a Component
To listen to or watch a connected component, first
select the function on the amplifier or with the remote.
Before you begin, make sure you have:
• Connected all components securely and correctly as
indicated on pages 4 to 8.
• Turned MASTER VOLUME to the leftmost position
(0) to avoid damaging your speakers.
5.1
INPUT
VIDEO FUNCTION AUDIO FUNCTION GENRE
TONE
SUR INDEX
SET UP
DIRECT
PASS
MODE
DIRECT PASS
SOUND FIELD
ON / OFF
BASS
BOOST
BALANCE
LR
5.1 INPUT
5
0
1
3
9
7
46
28
10
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
PHONES
POWER
SPEAKERS
DPC
MODE
A
OFF
A+B
B
g
MASTER VOLUME
VIDEO 1 VIDEO 2 VIDEO 3 TV/LD TAPE/MD CD TUNER PHONO
DISPLAYDIMMER
S VIDEO RLVIDEO AUDIO
VIDEO 3 INPUT
POWER SET UPDIRECT PASS
VIDEO/AUDIO
FUNCTION
MASTER VOLUME
5.1 INPUT BASS
BOOST BALANCE
PHONES
DIMMER
SPEAKERS
1Press POWER to turn on the amplifier.
The STANDBY indicator turns off.
2Select the component you want to use:
To watch or
listen to To light up
VIDEO
FUNCTION
AUDIO
FUNCTION
VIDEO
FUNCTION
VIDEO
FUNCTION
AUDIO
FUNCTION
Press
(repeatedly)
Digital processing
control buttons
Video tapes
Laser discs
TV programs
Audio tapes
Compact Discs (CD)
VIDEO 1 or VIDEO 2
TV/LD
TV/LD
TAPE/MD
CD
VIDEO
FUNCTION
Video camera
recorder or video
game
VIDEO 3
MiniDiscs (MD) AUDIO
FUNCTION TAPE/MD
Basic Operations
(Continued)

10EN
Basic Operations
AUDIO
FUNCTION
AUDIO
FUNCTION
3Turn on the component, for example, a CD player,
and then start playing.
4Turn MASTER VOLUME to adjust the volume.
To adjust the volume of the TV’s speakers, use the
volume control on the TV.
To play the decoded Dolby Digital (AC-3) program
source connected to the 5.1 INPUT jacks
Press 5.1 INPUT so that the 5.1 INPUT indicator lights
up.
Radio programs
Records
TUNER
PHONO
To watch or
listen to To light upPress (repeatedly)
To Do this
Mute the sound ZPress MUTING on the remote. Press
again to restore the sound.
Reinforce the bass Press BASS BOOST to turn on the
BASS BOOST indicator
Adjust the balance of
front speakers Turn BALANCE left or right
zWhen you listen with headphones
Connect the headphones to the PHONES jack and set
SPEAKERS to OFF.
zWhen you want to enjoy high quality sound
Press DIRECT PASS (or DIRECT on the remote) to
bypass the tone controls, bass reinforcement, and
surrround effects.
The DIRECT PASS indicator lights up.
zTo select another component when a decoded Dolby
Digital (AC-3) program source is selected
Press VIDEO/AUDIO FUNCTION to turn off the 5.1
INPUT indicator.
Note
BASS BOOST, DIRECT PASS, and SOUND FIELD ON/
OFF buttons do not operate when the 5.1 INPUT
indicator is on.
zYou can adjust the brightness of the display
Press DIMMER repeatedly to select the brightness.
Watching TV/video programs
To watch Do this
TV programs Turn on both the TV and the amplifier
and press VIDEO FUNCTION
repeatedly until the TV/LD indicator
lights up
Videos or laser discs 1Press VIDEO FUNCTION
repeatedly to select the component
(for example, VIDEO 1).
2Turn on the TV and set the TV’s
video input to match your video
component.
3Turn on the component (VCR or LD
player), and start playback.
zWhen you watch TV or video programs
We recommend you play audio portion through the
amplifier instead of your TV’s speakers. This lets you
take advantage of the amplifier’s surround sound
effects, like Dolby Surround, and lets you use the
amplifier’s remote to control the audio.
Turn off the speakers on your TV before you start so
you can enjoy the surround sound from your amplifier.

11EN
Getting Started
Basic Operations

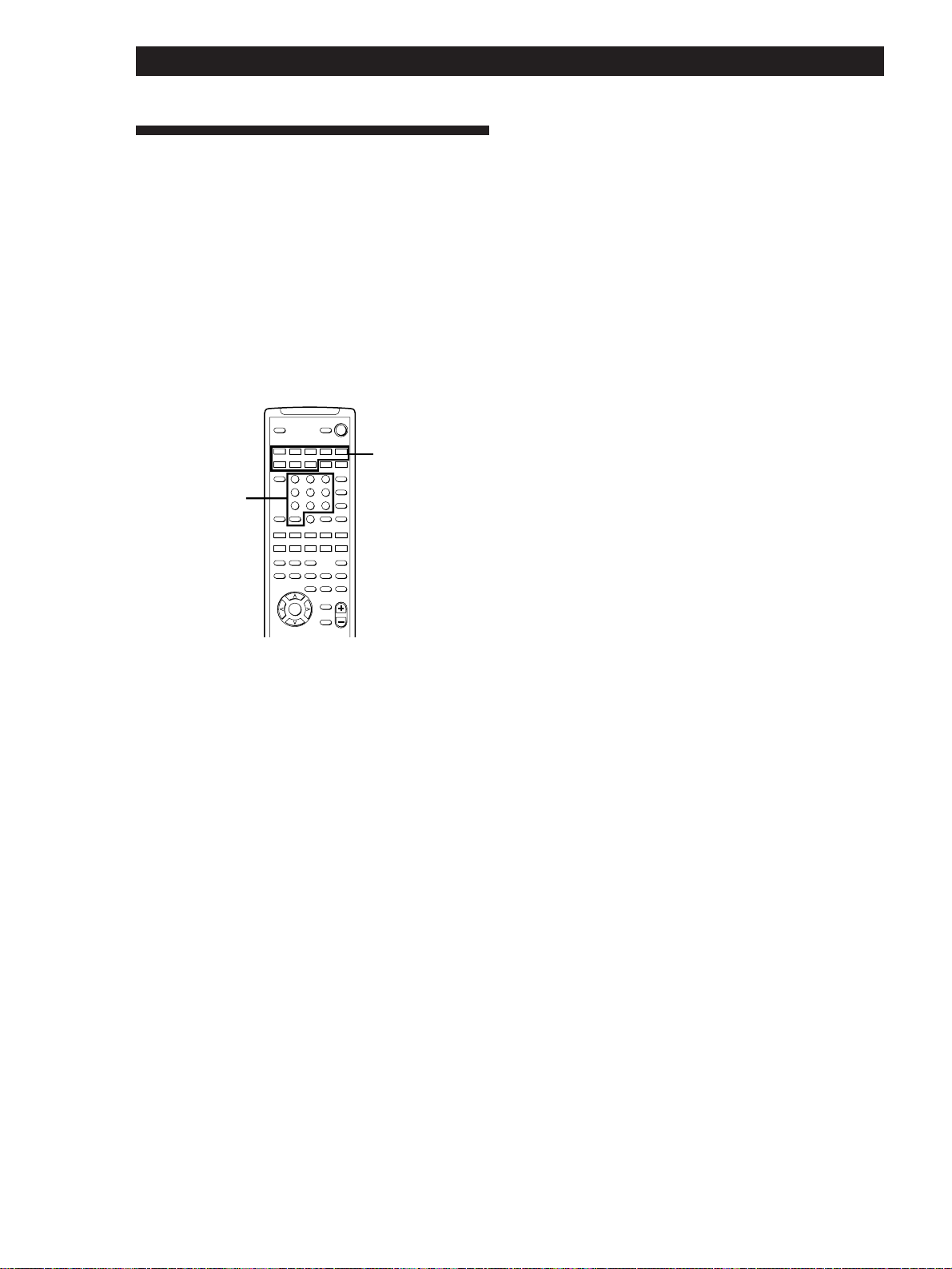

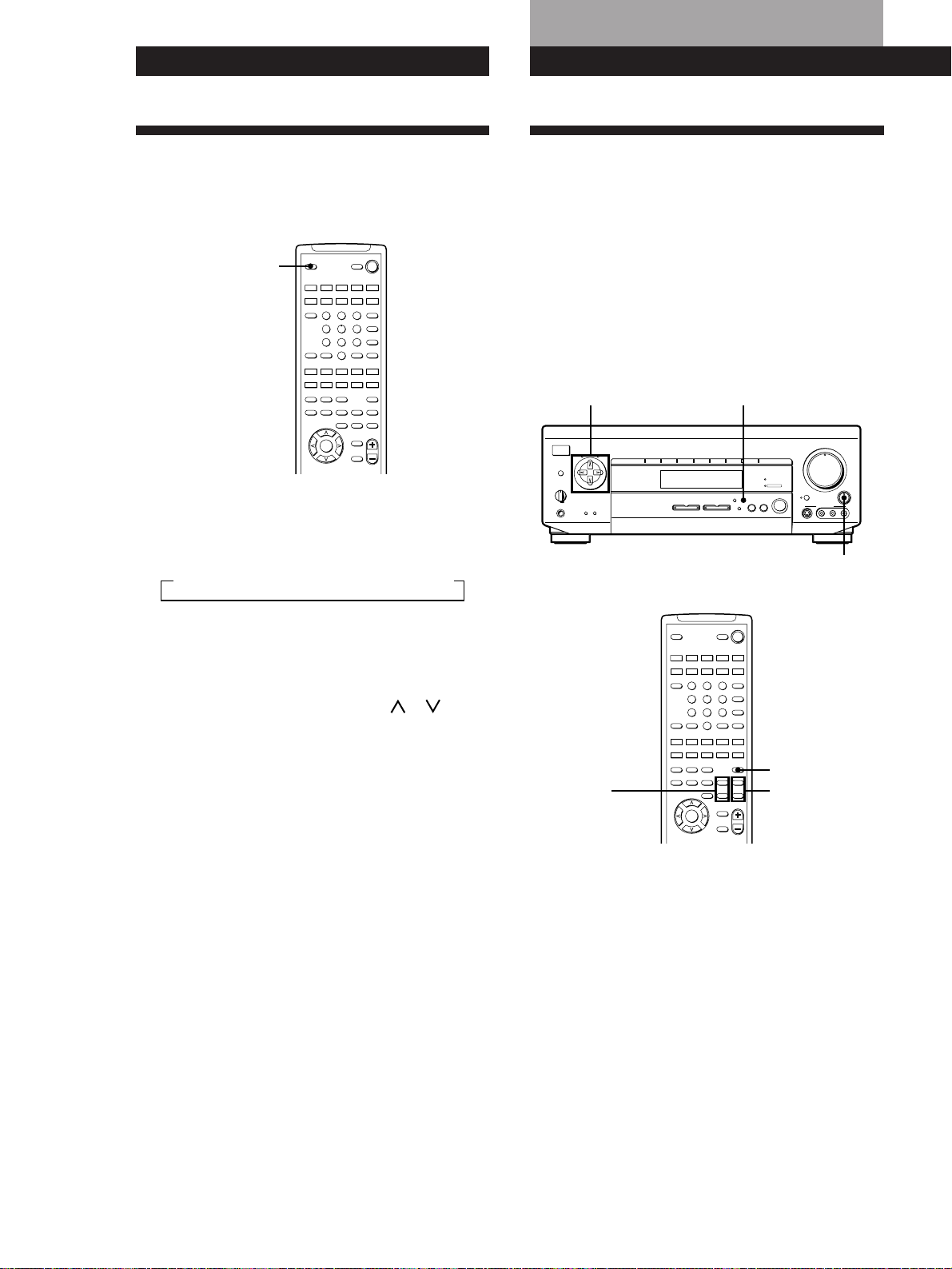

Using the remote Z
The remote lets you operate the amplifier and the Sony
components that are connected to it.
SYSTEM OFF
SYSTEM
CONTROL/
FUNCTION
TV CONTROL
ON 5.1 INPUT
21 3
SLEEP VISUAL
POWER
SYSTEM OFF
SLOPEBAND
EQ/
TONE
DIGTAL
PROCESSING
CONTROL
PROGRAMMABLE
— LEVEL —
DIRECT REAR
BASS
BOOST
MUTING
CENTER
MASTER
VOL
MODEGENRE
— SOUND FIELD —
ON/OFF TEST
TONE
TV
CONTROL 5.1 INPUT
54 6
TV/VIDEO
87 9
D.TUNING
DISC
0
BACK
GROUND
SHIFT ENTER
RMS/START
CH/
PRESET
SYSTEM CONTROL / FUNCTION
VIDEO 3VIDEO 2VIDEO 1 LD TV
(AUTO CATEGORIZE SYSTEM)
CD
DAT/MD
> 10
TAPE
ON
TUNER PHONO
++
––
+
–
POSITION – SUB CH +
— RMS —
SWAP ANT
TV/VTR
=)0+
D. SKIP
CLEARDIRECTION P IN P JUMP
p(
DPC
MODE
9Pr
1Press one of the SYSTEM CONTROL/
FUNCTION buttons to select the component you
want to use.
The amplifier and the selected component turn on.
The SYSTEM CONTROL/FUNCTION buttons on
the remote are factory-set as follows:
To play Press
Records PHONO
Radio programs TUNER
Compact Discs (CD) CD
MiniDiscs (MD) DAT/MD
Audio tapes TAPE
TV programs TV
Video tapes
Laser discs LD
VIDEO 1 (VTR 3*),
VIDEO 2 (VTR 1*) or
VIDEO 3 (VTR 2*)
*Sony VCRs are operated with a VTR 1, 2, or 3 setting
that corresponds to Beta, 8mm, and VHS,
respectively.
Note
Pressing a SYSTEM CONTROL/FUNCTION button
will activate the component indicated for that button
(i.e., the component connected to the respective
connector). If, however, the connected component is
different from the one indicated for the button, the
component will not be activated when the button is
pressed only once.
For example, to watch Sony LD player connected to the
VIDEO 2 jacks (page 7):
Press VIDEO 2 to switch the function, then press LD to
set the remote control to operate the LD player.
To play the decoded Dolby Digital (AC-3)
program source connected to the 5.1 INPUT
jacks
Press 5.1 INPUT so that the 5.1 INPUT indicator on
the main unit lights up.
If you want to change the factory setting of a
button
See page 20.
If the component does not turn on
Press the power switch on the component.
2Start playing.
See “Remote Button Descriptions” on page 26 for
details.
To turn off the components
Press SYSTEM OFF. This will also turn off the video/
audio component connected to AC OUTLET on the
back of this unit at the same time.
zIf you use a Sony TV
When you press TV to watch a TV program, the TV
turns on and switches to the TV input. The TV also
turns on automatically and switches to the appropriate
video input when you press VIDEO 1 or VIDEO 2. If the
TV does not switch to the appropriate input
automatically, press TV/VIDEO on the remote.
zWatching TV without the amplifier (for Sony TVs
only)
Press TV CONTROL ON to set the remote to operate TV
functions only. When you press this button, the TV
turns on and switches to the TV input. If the TV does
not automatically switch to the TV input, press TV/
VIDEO.
(Continued)

12EN
Basic Operations
zTo select another component when a decoded Dolby
Digital (AC-3) program source is selected
Press any SYSTEM CONTROL/FUNCTION button to
turn off the 5.1 INPUT indicator on the main unit.
Making components selectable/
unselectable
You can do these settings so that certain components
become unselectable even if you press AUDIO/VIDEO
FUNCTION.
1Press SET UP repeatedly to select FUNC HOOK
UP.
2Use the digital processing control buttons ( /
) to select a component.
3Use the digital processing control buttons ( /
) to select –Y– (selectable) or –N–
(unselectable).
Note
If you try to select the component which is set to –N– by
using the remote, “CANNOT USE” appears in the display.
Indexing Program Sources
You can enter a name of up to 8 characters for program
sources. These index names (for example, “VHS”)
appear in the amplifier’s display when a program
source is selected.
Note that no more than one name can be entered for
each program source.
This function is useful for distinguishing components
of the same kind; 2 VCRs, for example, can be specified
as “VHS” and “8MM,” respectively. It is also handy for
identifying components connected to jacks meant for
another type of component; for example, a second CD
player connected to the TUNER jacks.
Digital processing
control buttons
5.1
INPUT
VIDEO FUNCTION AUDIO FUNCTION
GENRE
TONE
SUR INDEX
SET UP
DIRECT
PASS
MODE
DIRECT PASS
SOUND FIELD
ON / OFF
BASS
BOOST
BALANCE
LR
5.1 INPUT
5
0
1
3
9
7
46
28
10
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
PHONES
POWER
SPEAKERS
DPC
MODE
A
OFF
A
+ B
B
g
MASTER VOLUME
VIDEO 1 VIDEO 2 VIDEO 3 TV/LD TAPE/MD CD TUNER PHONO
DISPLAYDIMMER
S VIDEO RLVIDEO AUDIO
VIDEO 3 INPUT
DPC MODE
DISPLAY VIDEO/AUDIO FUNCTION
1Select the program source (component) to be
named.
2Press DPC MODE repeatedly until the INDEX
indicator lights up.
3Create an index name by using the digital
processing control buttons as follows:
Press or to select a character, and then press
to move the cursor to the next position.
The index name is stored automatically.
To insert a space
Press or until a blank space appears in the
display (the space is between “]” and “A”).
If you’ve made a mistake
Press or repeatedly until the character you
want to change flashes. Then select the right
character.
To assign index names to other sources
Repeat the procedure above.

13EN
Getting Started
Basic Operations
Playback component
(program source)
c ç
ç
c
4Start recording on the recording deck and then
start playing the component.
Note
Sound adjustments do not affect the signal output from the
TAPE/MD RECOUT jacks.
Recording on a video tape
You can record from a VCR, a TV, or an LD player
using the amplifier. You can also add audio from a
variety of audio sources when editing a video tape. See
your VCR or LD player’s instruction manual if you
need help.
1Select the program source to be recorded.
2Set the component to be ready for playing.
For example, insert the laser disc you want to
record from into the LD player.
3Insert a blank video tape into the VCR (VIDEO 1
or VIDEO 2) for recording.
4Start recording on the recording VCR and then
start playing the video tape or laser disc you want
to record.
zYou can record sound from a different audio source
onto a video tape while copying from a video tape
or laser disc
Locate the point where you want to start recording from
another audio source, select the program source, then
start playback. The audio from that source will be
recorded onto the audio track of the video tape instead
of the audio from the original.
To resume audio recording from the original, select the
video source again.
Notes
• You cannot record audio from a program source
connected to the 5.1 INPUT jacks.
• Sound adjustments do not affect the signal output from
the VIDEO 1, 2 AUDIO OUT jacks.
zYou can display either the program source name or
component originally meant for the selected jacks
Each time you press DISPLAY, the display switches
between the component originally meant for the
selected jacks and the program source name.
zYou can create an index name for the component
connected to the 5.1 INPUT jacks
Press 5.1 INPUT and do the procedure on page 12
starting from Step 2.
Recording
This amplifier makes it easy to record to and from the
components connected to the amplifier. You don’t
have to connect playback and recording components
directly: once you select a program source on the
amplifier, you can record and edit as you normally
would using the controls on each component.
Before you begin, make sure you’ve connected all
components properly.
5.1
INPUT
VIDEO FUNCTION AUDIO FUNCTION GENRE
TONE
SUR INDEX
SET UP
DIRECT
PASS
MODE
DIRECT PASS
SOUND FIELD
ON / OFF
BASS
BOOST
BALANCE
LR
5.1 INPUT
5
0
1
3
9
7
46
28
10
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
PHONES
POWER
SPEAKERS
DPC
MODE
A
OFF
A+B
B
g
MASTER VOLUME
VIDEO 1 VIDEO 2 VIDEO 3 TV/LD TAPE/MD CD TUNER PHONO
DISPLAYDIMMER
S VIDEO RLVIDEO AUDIO
VIDEO 3 INPUT
VIDEO/AUDIO FUNCTION
ç: Audio signal flow
c: Video signal flow
Recording on an audio tape or MiniDisc
You can record on a cassette tape or MiniDisc using the
amplifier. See the instruction manual of your cassette
deck or MD deck if you need help.
1Select the component to be recorded.
2Set the component to be ready for playing.
For example, insert a CD into the CD player.
3Insert a blank tape or an MD into the recording
deck and adjust the recording level, if necessary.
Recording component
(tape deck, MD deck,
VCR)

14EN
Dolby Surround Setup
Using the Sleep Timer Z
You can set the amplifier to turn off automatically at a
time you specify.
SLEEP
21 3
SLEEP VISUAL
POWER
SYSTEM OFF
SLOPEBAND
EQ/
TONE
DIGTAL
PROCESSING
CONTROL
PROGRAMMABLE
— LEVEL —
DIRECT REAR
BASS
BOOST
MUTING
CENTER
MASTER
VOL
MODEGENRE
— SOUND FIELD —
ON/OFF TEST
TONE
TV
CONTROL 5.1 INPUT
54 6
TV/VIDEO
87 9
D.TUNING
DISC
0
BACK
GROUND
SHIFT ENTER
RMS/START
CH/
PRESET
SYSTEM CONTROL / FUNCTION
VIDEO 3VIDEO 2VIDEO 1 LD TV
(AUTO CATEGORIZE SYSTEM)
CD
DAT/MD
> 10
TAPE
ON
TUNER PHONO
++
––
+
–
POSITION – SUB CH +
— RMS —
SWAP ANT
TV/VTR
=)0+
D. SKIP
CLEARDIRECTION P IN P JUMP
p(
DPC
MODE
9Pr
Press SLEEP on the remote while the power is on.
Each time you press SLEEP, the time changes as shown
below.
n2-00-00 n1-30-00n1-00-00 n0-30-00 nOFF
The display dims after you specify the time.
zYou can freely specify the time
Press SLEEP first, then specify the time you want using
the digital processing control buttons ( or ). The
sleep time changes in 1 minute intervals. You can
specify up to 5 hours.
zYou can check the time remaining before the
amplifier turns off
Press SLEEP. The remaining time appears in the
display.
Basic Operations Dolby Surround Setup

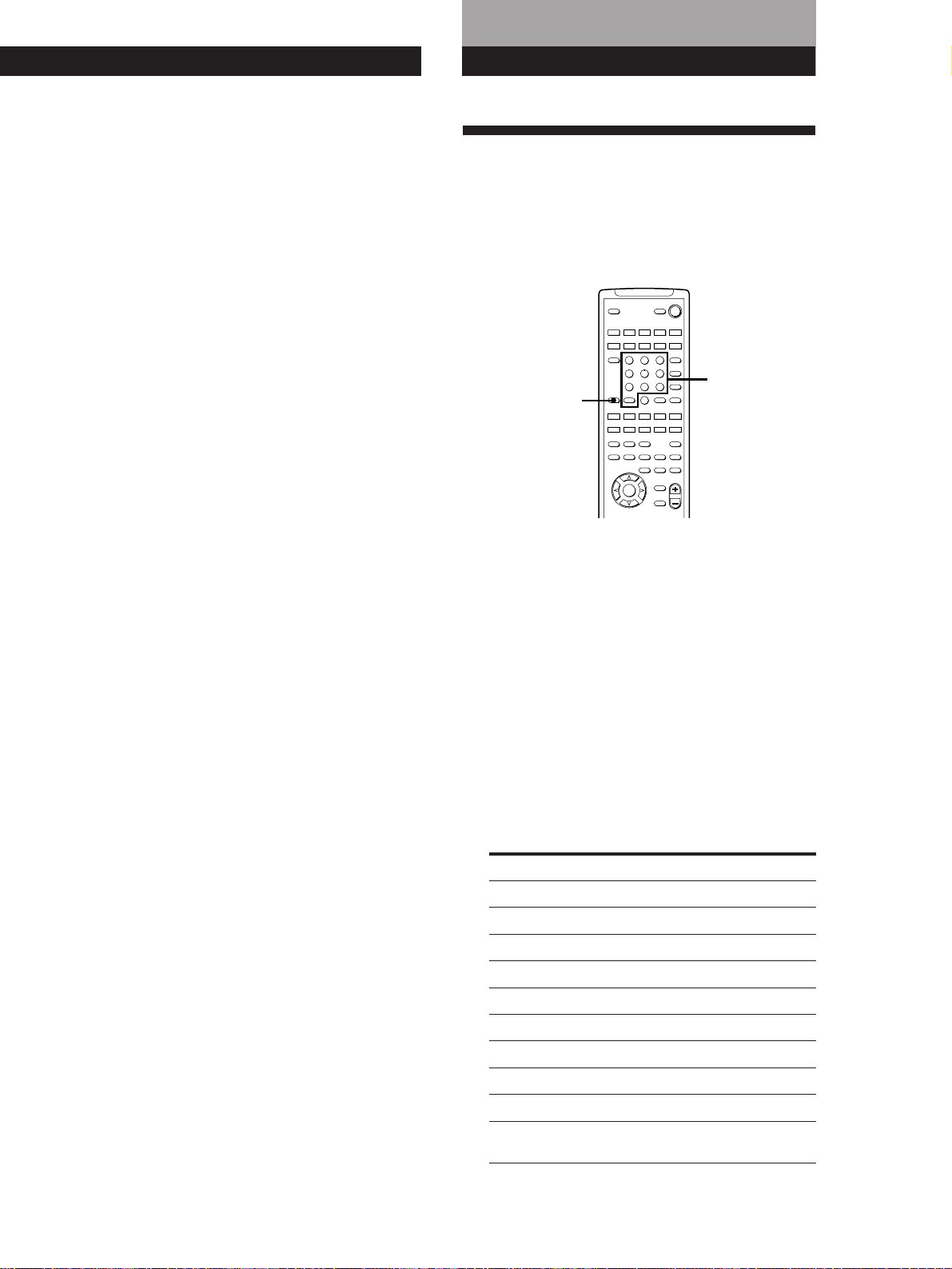

Dolby Pro Logic
To obtain the best possible Dolby Pro Logic Surround
sound, first select the center mode according to your
speaker system. Then, adjust the sound parameters of
the PRO LOGIC sound field.
Note that you must have at least one additional pair of
speakers and/or one center speaker to do the following
adjustments.
Digital processing
control buttons
5.1
INPUT
VIDEO FUNCTION AUDIO FUNCTION
GENRE
TONE
SUR INDEX
SET UP
DIRECT
PASS
MODE
DIRECT PASS
SOUND FIELD
ON / OFF
BASS
BOOST
BALANCE
LR
5.1 INPUT
5
0
1
3
9
7
46
28
10
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
PHONES
POWER
SPEAKERS
DPC
MODE
A
OFF
A
+ B
B
g
MASTER VOLUME
VIDEO 1 VIDEO 2 VIDEO 3 TV/LD TAPE/MD CD TUNER PHONO
DISPLAYDIMMER
S VIDEO RLVIDEO AUDIO
VIDEO 3 INPUT
BALANCE
SET UP
TEST TONE
CENTER
LEVEL
+ / –
REAR
LEVEL
+ / –
21 3
SLEEP VISUAL
POWER
SYSTEM OFF
SLOPEBAND
EQ/
TONE
DIGTAL
PROCESSING
CONTROL
PROGRAMMABLE
— LEVEL —
DIRECT REAR
BASS
BOOST
MUTING
CENTER
MASTER
VOL
MODEGENRE
— SOUND FIELD —
ON/OFF TEST
TONE
TV
CONTROL 5.1 INPUT
54 6
TV/VIDEO
87 9
D.TUNING
DISC
0
BACK
GROUND SHIFT ENTER
RMS/START
CH/
PRESET
SYSTEM CONTROL / FUNCTION
VIDEO 3VIDEO 2VIDEO 1 LD TV
(AUTO CATEGORIZE SYSTEM)
CD
DAT/MD
>10
TAPE
ON
TUNER PHONO
++
––
+
–
POSITION–SUB CH +
— RMS —
SWAP ANT
TV/VTR
=)0+
D. SKIP
CLEARDIRECTION P IN P JUMP
p(
DPC
MODE
9Pr

15EN
Getting Started
Dolby Surround Setup
If you have So thatSelect
Front and rear
speakers, no center
speaker
PHANTOM The sound of the
center channel is
output from the
front speakers
Front and center
speakers, no rear
speaker
3 CH LOGIC
(3 Channel
Logic)
The sound of the
rear channel is
output from the
front speakers
Front and rear
speakers, and a small
center speaker
NORMAL The bass sound of
the center channel
is output from the
front speakers
(because a small
speaker cannot
produce enough
bass)
Front and rear
speakers, and a
center speaker
equivalent to your
front speakers
WIDE You can obtain
“complete” Dolby
Pro Logic Surround
sound
Selecting the center mode
The amplifier offers you four center modes:
PHANTOM, 3 CH LOGIC, NORMAL, and WIDE. Each
mode is designed for a different speaker configuration.
Select the mode that best suits your speaker system
configuration.
1Press SET UP on the main unit repeatedly to
select CTR MODE.
2Use the digital processing control buttons ( /
/ / ) to select the center mode you want
by referring to the following table.
Adjusting the speaker volume Z
The test tone feature lets you set the volume of your
speakers to the same level. (If all of your speakers have
equal performance, you don’t have to adjust the
speaker volume.)
Using the controls on the remote lets you adjust the
volume level from your listening position.
1Do Steps 1 to 3 on page 16 to select the PRO
LOGIC sound field.
2Make sure the center mode setting is correctly
made (see the table on this page).
3Press TEST TONE on the remote.
You will hear the test tone from each speaker
sequentially.
4Adjust the volume levels so that you hear the test
tone from each speaker at the same volume level
when you are in your listening position:
• To adjust the balance of the front right and front
left speakers, use the BALANCE control on the
front of the main unit.
• To adjust the level of center speaker, press
CENTER LEVEL + or – on the remote.
• To adjust the level of rear speakers, press REAR
LEVEL + or – on the remote.
5Press TEST TONE on the remote to turn off the
test tone.
zYou can adjust all the speakers at one time
Press MASTER VOL + or – on the remote.
zYou can increase the output level of the rear
speakers
You can raise the output of the rear speakers by 5 dB.
When turning on the amplifier, press POWER and
MODE simultaneously to display “GAIN UP.” To
return the output level to normal, repeat this procedure
to display “GAIN NORM.”
(Continued)

16EN
Sound Adjustment
3 CH LOGIC
Center Front (R)Front (L)
NORMAL/WIDE
Rear (L, R)
Rear (L, R)
PHANTOM
Front (L, R)
zWhat is the test tone?
Signal given out by the amplifier for adjusting the
speaker volume. The test tone will come out as follows:
• In a system with a center speaker (NORMAL/WIDE/
3 CH LOGIC modes)
The test tone is output from the front L (left), center,
front R (right), and rear speakers in succession.
• In a system without a center speaker (PHANTOM
mode)
The test tone is output from the front and the rear
speakers alternately.
Dolby Surround Setup Sound Adjustment
Using Pre-programmed Sound
Fields
You can take advantage of surround sound simply by
selecting one of the pre-programmed sound fields
according to the program you want to play.
5.1
INPUT
VIDEO FUNCTION AUDIO FUNCTION
GENRE
TONE
SUR INDEX
SET UP
DIRECT
PASS
MODE
DIRECT PASS
SOUND FIELD
ON / OFF
BASS
BOOST
BALANCE
LR
5.1 INPUT
5
0
1
3
9
7
46
28
10
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
PHONES
POWER
SPEAKERS
DPC
MODE
A
OFF
A
+ B
B
g
MASTER VOLUME
VIDEO 1 VIDEO 2 VIDEO 3 TV/LD TAPE/MD CD TUNER PHONO
DISPLAYDIMMER
S VIDEO RLVIDEO AUDIO
VIDEO 3 INPUT
SOUND FIELD ON/OFF
MODEGENRE
1Press SOUND FIELD ON/OFF to turn on the
sound field.
One of the indicators lights up in the display.
2Press GENRE to select the type of sound field you
desire.
3Press MODE to select the mode you desire from
the respective genre.
Select the appropriate sound field according to the
chart on page 17.
To play without surround effects
Select “ACOUSTIC” from MUSIC. The surround
effects are defeated but you can still adjust the tone
parameter (see page 18).
To turn off the sound fields
Press SOUND FIELD ON/OFF.
zYou can find Dolby Surround-encoded software by
looking at the packaging
However, some videos and laser discs may use Dolby
Surround sound even if it’s not indicated on the
package.
Note
Sound fields are turned off whenever the program source
connected to the 5.1 INPUT jacks is selected.

17EN
Getting Started
Sound Adjustment
Customizing the Sound Fields
Each sound field is composed of a tone parameter
(bass/treble) and surround sound parameters —
variables of sound that create the sound image. You
can customize the sound fields by adjusting some of
the sound parameters to suit your listening situation.
Once you customize the sound fields, they are stored in
memory unless the amplifier is unplugged for about 1
week. To change a customized sound field, make new
adjustments to the sound field.
5.1
INPUT
VIDEO FUNCTION AUDIO FUNCTION
GENRE
TONE
SUR INDEX
SET UP
DIRECT
PASS
MODE
DIRECT PASS
SOUND FIELD
ON / OFF
BASS
BOOST
BALANCE
LR
5.1 INPUT
5
0
1
3
9
7
46
28
10
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
PHONES
POWER
SPEAKERS
DPC
MODE
A
OFF
A
+ B
B
g
MASTER VOLUME
VIDEO 1 VIDEO 2 VIDEO 3 TV/LD TAPE/MD CD TUNER PHONO
DISPLAYDIMMER
S VIDEO RLVIDEO AUDIO
VIDEO 3 INPUT
DPC MODE SOUND FIELD ON/OFF
POWER
Adjustable parameters for each sound field
PRO LOGIC
ENHANCED
C STUDIO A
C STUDIO B
THEATER
MONO MOVIE
HALL
JAZZ CLUB
ACOUSTIC
STADIUM
GAME
DELAY
CENTER
REAR
EFFECT
TONE
MODE GENRE
PRO LOGIC
MOVIE
MUSIC
SPORTS
GAME
***
***
***
***
***
*Adjustable only when center mode is set to
PHANTOM, NORMAL, or WIDE (see page 15).
**Adjustable only when center mode is set to 3 CH
LOGIC, NORMAL, or WIDE (see page 15).
Note
The EFFECT parameter allows you to adjust the overall
presence of the sound field.
Digital processing
control buttons
Sound fields
GENRE MODE To
PRO LOGIC*PRO LOGIC Decode programs
processed with
Dolby Surround
ENHANCED Provide additional
output to the rear
speakers after
decoding the Dolby
Surround program
MOVIE C(INEMA) STUDIO A Reproduce the
acoustics of a sound
stage of a studio
producing regular
movies
C(INEMA) STUDIO B Reproduce the
acoustics of a sound
stage of a studio
producing SFX or
action movies with
lots of sound effects
THEATER Add the acoustic
reflections of a
theater to decoded
Dolby Surround
signals
MONO MOVIE Create a theater-like
environment from
movies with
monaural
soundtracks
MUSIC HALL Reproduce the
acoustics of a hall
JAZZ CLUB Reproduce the
acoustics of a jazz
club
ACOUSTIC** Reproduce normal 2
channel stereo. (No
surround effects)
SPORTS STADIUM Reproduce the
feeling of a large
open-air stadium.
Great for sporting
events or electric
sounds.
GAME GAME Obtain maximum
audio impact from
video game software
*Be sure to adjust the volume level of the center and/or
rear speakers to get the most out of the Dolby Pro Logic
Surround Sound (page 15).
**The hookups of the center and/or rear speakers are
unnecessary.

18EN
Sound Adjustment
Before you get started
To take advantage of Dolby Surround sound, go to
“Dolby Pro Logic” on page 14. This section describes
how to adjust the levels of your speaker system and
customize the PRO LOGIC sound field.
Adjusting the tone parameter
Adjust the tone (bass or treble) of the front speakers for
optimum sound. You can adjust the tone of all sounds
fields, including Dolby Surround.
1Press DPC MODE repeatedly until the TONE
indicator lights up.
2Use the digital processing control buttons ( /
) to select BASS or TREBLE.
3Use the digital processing control buttons ( /
) to adjust the tone level.
The adjusted tone level is stored automatically.
zYou can turn off the tone adjustments without
erasing them
The tone adjustments and on/off setting are stored
separately for each sound field. Press DPC MODE
repeatedly to turn off the TONE indicator.
Adjusting the delay time
You can make the surround sound more effective by
delaying the output from the rear speakers (delay
time). You can select a delay time of 15 ms (S), 20 ms
(M), and 30 ms (L). Set a short delay time when the rear
speakers are located in a large room or far from your
listening position.
1Start playing a program source encoded with
Dolby surround sound.
2Press DPC MODE repeatedly until the SUR
indicator lights up.
3Use the digital processing control buttons ( /
) to select the delay time.
The current delay time appears in the display.
4Use the digital processing control buttons ( /
) to adjust the delay time.
Adjusting surround sound parameters
Change the surround parameters to fit your listening
situation. See the chart on page 17 for parameters you
can adjust in each sound field.
To adjust the parameters of the PRO LOGIC sound
field, see “Dolby Pro Logic” on page 14.
1Press DPC MODE repeatedly until the SUR
indicator lights up.
2Use the digital processing control buttons ( /
) to select the parameter you want.
3Use the digital processing control buttons ( /
) to adjust the level of the parameter.
The adjusted parameters are stored automatically.
Note
If you make new adjustments to a sound field, the previous
settings are replaced by the new ones.

19EN
Getting Started
Sound Adjustment
Resetting customized sound fields to the
factory settings
1If the power is on, press POWER to turn off the
power.
2Hold down SOUND FIELD ON/OFF and press
POWER.
“SURR CLEAR” appears in the display and all the
sound fields are reset at once.
Operating One Component
While Using Another
(background operation)
You can temporarily operate other components while
listening to or watching a program.
BACKGROUND
21 3
SLEEP VISUAL
POWER
SYSTEM OFF
SLOPEBAND
EQ/
TONE
DIGTAL
PROCESSING
CONTROL
PROGRAMMABLE
— LEVEL —
DIRECT REAR
BASS
BOOST
MUTING
CENTER
MASTER
VOL
MODEGENRE
— SOUND FIELD —
ON/OFF TEST
TONE
TV
CONTROL 5.1 INPUT
54 6 TV/VIDEO
87 9 D.TUNING
DISC
0
BACK
GROUND SHIFT ENTER
RMS/START
CH/
PRESET
SYSTEM CONTROL / FUNCTION
VIDEO 3VIDEO 2VIDEO 1 LD TV
(AUTO CATEGORIZE SYSTEM)
CD
DAT/MD
>10
TAPE
ON
TUNER PHONO
++
––
+
–
POSITION–SUB CH +
— RMS —
SWAP ANT
TV/VTR
=)0+
D. SKIP
CLEARDIRECTION P IN P JUMP
p(
DPC
MODE
9Pr
1Hold down BACKGROUND.
2Press both the corresponding button of the
component you’re going to use (see the table
below) and one of the following buttons at the
same time; VISUAL POWER, TV/VIDEO, CH/
PRESET +/–, ANT TV/VTR, D.SKIP, (, 9, p,
0/), =/+, P, r.
Example: To start recording on a tape deck while
listening to a CD
While holding down BACKGROUND,
press 4 (or 5) and press r+ (at the
same time.
The following buttons correspond to the
components.
The button Corresponds to
1 CD player
2 DAT deck
3 MD deck
4 Tape deck A
5 Tape deck B
6 LD player
7 VCR (remote control mode VTR 1*)
8 VCR (remote control mode VTR 2*)
9 VCR (remote control mode VTR 3*)
>10 DBS (Digital Broadcasting System)
tuner
*Sony VCRs are operated with a VTR 1, 2 or 3 setting
that corresponds to Beta, 8mm, and VHS,
respectively.
Numeric
buttons
Advanced Remote OperationsSound Adjustment

20EN
Sound Adjustment
Changing the Factory Setting
of a FUNCTION Button
If the factory settings of the SYSTEM CONTROL/
FUNCTION buttons (page 11) don’t match your
system components, you can change them. For
example, if you connect a Sony LD player to the
VIDEO 2 jacks, you can assign the VIDEO 2 button to
set the remote to control the LD player.
Note that the settings of the TUNER and PHONO
buttons cannot be changed.
SYSTEM
CONTROL/
FUNCTION
21 3
SLEEP VISUAL
POWER
SYSTEM OFF
SLOPEBAND
EQ/
TONE
DIGTAL
PROCESSING
CONTROL
PROGRAMMABLE
— LEVEL —
DIRECT REAR
BASS
BOOST
MUTING
CENTER
MASTER
VOL
MODEGENRE
— SOUND FIELD —
ON/OFF TEST
TONE
TV
CONTROL 5.1 INPUT
54 6
TV/VIDEO
87 9
D.TUNING
DISC
0
BACK
GROUND
SHIFT ENTER
RMS/START
CH/
PRESET
SYSTEM CONTROL / FUNCTION
VIDEO 3VIDEO 2VIDEO 1 LD TV
(AUTO CATEGORIZE SYSTEM)
CD
DAT/MD
> 10
TAPE
ON
TUNER PHONO
++
––
+
–
POSITION – SUB CH +
— RMS —
SWAP ANT
TV/VTR
=)0+
D. SKIP
CLEARDIRECTION P IN P JUMP
p(
DPC
MODE
9Pr
1Hold down the SYSTEM CONTROL/FUNCTION
button whose function you want to change
(VIDEO 2, for example).
2Press the corresponding numeric button of the
component you want to assign to the SYSTEM
CONTROL/FUNCTION button (6 - LD player,
for example).
For the numeric buttons, see the table in
“Operating One Component While Using
Another” on page 19.
Now you can use the VIDEO 2 button to control
your Sony LD player.
To reset the setting to the factory setting
Repeat the above procedure.
Numeric
buttons
Advanced Remote Operations
