SERVICE MANUAL
US Model
Canadian Model
AEP Model
UK Model
E Model
XM-D1000P5
MONAURAL POWER AMPLIFIER
Other Specifications
Circuit system Class D Technology
Pulse power supply
Inputs RCA pin jacks
High level input connector
Outputs Speaker terminals
Through out pin jacks
Suitable speaker impedance
2 – 8 Ω
Maximum outputs 1,000 W (at 4 Ω)
1,600 W (at 2 Ω)
Rated outputs (supply voltage at 14.4V)
500 W (20 – 300 Hz, 0.2% THD, at 4 Ω)
900 W (20 – 300 Hz, 0.6% THD, at 2 Ω)
Frequency response 5 – 300 Hz ( dB)
Harmonic distortion 0.06% or less (at 100 Hz, 4 Ω)
Input level adjustment range
0.3 – 6.0 V (RCA pin jacks)
1.2 – 12.0 V (High level input)
Low-pass filter 50 – 300 Hz, –12 dB/oct
Low boost 0 – 10 dB (40 Hz)
Power requirements 12 V DC car battery
(negative ground)
Power supply voltage 10.5 – 16 V
Current drain at rated output : 90 A (at 2 Ω)
Remote input : 2 mA
Dimensions Approx. 347 ×57 ×339 mm
(13 3/4 ×2 1/4 ×13 3/8 in.) (w/h/d) not incl.
projecting parts and controls
Mass Approx. 3.8 kg (8 lb. 6 oz.) not incl. accessories
Supplied accessories Mounting screws (5)
High level input cord (1)
Protection cap (1)
Design and specifications are subject to change without
notice.
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS (US MODEL)
POWER OUTPUTAND TOTAL HARMONIC DISTORTION
500 watts minimum continuous average power into 4 ohms,
20 Hz to 300 Hz with no more than 0.2% total harmonic
distortion per Car Audio Ad Hoc Committee standards.
+0.5
–3
Notes on Chip Component Replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Ver 1.1 2003. 09
Sony Corporation
e Vehicle Company
Published by Sony Engineering Corporation
9-877-039-02
2003I04-1
© 2003. 09

2
TABLE OF CONTENTS
1. GENERAL
Location and Function of Controls.......................................... 3
Connections ............................................................................. 4
2. DISASSEMBLY
2-1. Bottom Plate ........................................................................ 6
2-2. Main Board Section ............................................................. 7
2-3. Disassembly and Assembly of Ornamental Plate ................ 7
2-4. Main Board .......................................................................... 8
2-5. LED Board ........................................................................... 8
3. DIAGRAMS
3-1. IC Block Diagram................................................................ 9
3-2. Printed Wiring Boards –Main Section (1/2)– .................... 10
3-3. Printed Wiring Boards –Main Section (2/2)– .................... 11
3-4. Schematic Diagram –Main Section (1/2)– ........................ 12
3-5. Schematic Diagram –Main Section (2/2)– ........................ 13
4. EXPLODEDVIEWS
4-1. Heat Sink (Main) Section .................................................. 15
4-2. Main Board Section ........................................................... 16
5. ELECTRICAL PARTS LIST......................................... 17
XM-D1000P5
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUESET LA LISTE DESPIÈCESSONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

3
XM-D1000P5
SECTION 1
GENERAL This section is extracted
from instruction manual.
Location and Function of Controls
1POWER/PROTECTOR indicator
Lights up in green during operation.
When the PROTECTOR is activated the indicator will change from green
to red.
When the PROTECTOR is activated refer to the TroubleShooting Guide.
2Cut-off frequency adjustment control
Sets the cut-off frequency (50 – 300 Hz) for the low-pass filters.
3LOW BOOST level control
Turn this control to boost the frequencies around 40 Hz to a maximum of
10 dB.
4LEVEL adjustment control
The input level can be adjusted with this control. Turn it in the clockwise
direction when the output level of the car audio unit seems low.
Emplacement et fonction des commandes
1Indicateur POWER/PROTECTOR
S’allume en vert en cours de fonctionnement.
Lorsque PROTECTOR est activé, le voyant passe du vert au rouge.
Lorsque PROTECTOR est activé, reportez-vous au guide de dépannage.
2Commandes de réglage de la fréquence de coupure
Règle la fréquence de coupure (50 – 300 Hz) pour les filtres passe-bas.
3Commande de niveau LOW BOOST
Tournez cette commande pour amplifier les fréquences autour de 40 Hz à un
maximum de 10 dB.
4Commande de réglage LEVEL
Le niveau d’entrée peut se régler avec cette commande. Tournez cette
commande dans le sens des aiguilles d’une montre lorsque le niveau de sortie
de l’autoradio semble faible.
Circuit Diagram/
Schéma du circuit
POWER/PROTECTOR
LEVEL
Buffer
AMP
Power
Lch
INPUT
THROUGH
OUT
Rch
Lch
Rch
LOW BOOST
LPF
Low boost/
Amplification de basses fréquences
Hz
dB
10
10
0
40 100 1k
dB
Low Pass Filter/
Filtre passe-bas
10
0
-10
-20
-30
-40
-50
-60 10 100 1k 2
k
50Hz
LOW PASS
100Hz
300Hz
LEVEL
0+10dB
LPF
50 300Hz 6
2
4
0.3V
0.5
70 100
LOW BOOST
(40Hz)
Hz
Frequency/Fréquence Frequency/Fréquence

4
XM-D1000P5
Fuse Replacement
If the fuse blows, check the power connection and
replace all fuses. If the fuse blows again after
replacement, there may be an internal malfunction.
In such a case, consult your nearest Sony dealer.
Warning
When replacing the fuse, be sure to use one
matching the amperage stated above the fuse
holder. Never use a fuse with an amperage rating
exceeding the one supplied with the unit as this
could damage the unit.
∗ Protectioncircuit
This amplifier is provided with a protection circuit
that operates in the following cases:
— when the unit is overheated
— when a DCcurrent isgenerated
— when the speaker terminals are short circuited.
The POWER/PROTECTOR indicator lights up in red
and the unit will shut down.
If this happens, turn off the connected
equipment, take out the cassette tape or disc, and
determine the causeof the malfunction. If the
amplifier has overheated, wait until the unit cools
down before use.
If you have any questions or problems concerning
your unit that are not covered in this manual,
please consult your nearest Sony dealer.
Précautions
•Cet appareil est conçu pour fonctionner sur du
courant continu 12 V à masse négative.
•Utilisez des haut-parleurs d’une impédance
appropriée.
—2à 8 Ω.
•Ne raccordez pas de haut-parleurs actifs (avec
amplificateurs intégrés) aux bornes de haut-
parleurs de cet appareil. Cette opération pourrait
endommager les haut-parleurs actifs.
•N’installez pas l’appareil à un endroit exposé à :
—de hautes températures comme sous le
rayonnement direct du soleil ou près d’un
conduit de chauffage
—la pluie ou à l’humidité
—de la poussière ou à des saletés
•Si votre voiture est garée en plein soleil et que la
température à l’intérieur de l’habitacle a
considérablement augmenté, laissez refroidir
l’appareil avant de l’utiliser.
•Lorsque vous installez l’appareil à l’horizontale,
veillez à ne pas recouvrir la grille d’aération avec
le tapis, etc.
•Si cet appareil est placé trop près de l’autoradio
ou de l’antenne, il se peut que des interférences
se produisent. Dans ce cas, éloignez
l’amplificateur de l’autoradio ou de l’antenne.
•Si l’autoradio n’est pas alimenté, vérifiez les
branchements.
•Cet amplificateur de puissance utilise un circuit
de protection * visant à protéger les transistors et
les haut-parleurs en cas de dysfonctionnement de
l’amplificateur. Ne tentez pas de tester les
circuits de protection en couvrant l’accumulateur
de chaleur ou en branchant des charges
inadéquates.
•N’utilisez pas cet appareil avec une batterie
faible car les performances optimales de
l’appareil dépendent d’une bonne alimentation
électrique.
•Pour des raisons de sécurité, gardez le volume de
votre installation audio de voiture à un niveau
permettant encore la perception des bruits
extérieurs.
•This unit is designed for negative ground 12 V
DC operation only.
•
Use speakers with suitable impedance.
—2to 8 Ω.
•Do not connect any active speakers (with built-in
amplifiers) to the speaker terminals of the unit.
Doing so may damage the active speakers.
•Avoid installing the unit in areas subject to:
—high temperatures such as from direct
sunlight or hot air from the heater
—rain or moisture
—dust or dirt
•If your car is parked in direct sunlight and there
is a considerable rise in temperature inside the
car, allow the unit to cool down before use.
•When installing the unit horizontally, be sure not
to cover the fins with the floor carpet etc.
•If this unit is placed too close to the car audio
unit or antenna, interference may occur. In this
case, relocate the amplifier away from the car
audio unit or antenna.
•If no power is being supplied to the car audio
unit, check the connections.
•This power amplifier employs a protection
circuit * to protect the transistors and speakers if
the amplifier malfunctions. Do not attempt to test
the protection circuits by covering the heat sink
or connecting improper loads.
•Do not use the unit on a weak battery as its
optimum performance depends on a good power
supply.
•For safety reasons, keep your car audio volume
moderate so that you can still hear sounds
outside your car.
Precautions
Connections
Caution
•Before making any connections, disconnect
the ground terminal of the car battery to avoid
short circuits.
•Be sure to use speakers with an adequate
power rating. If you use small capacity
speakers, they may be damaged.
•Do not connect the #terminal of the speaker
system to the car chassis, and do not connect
the #terminal of the right speaker with that
of the left speaker.
•Install the input and output cords away from
the power supply wire as running them close
together can generate some interference noise.
•This unit is a high powered amplifier.
Therefore, it may not perform to its full
potential if used with the speaker cords
supplied with the car.
•If your car is equipped with a computer
system for navigation or some other purpose,
do not to remove the ground wire from the
car battery. If you disconnect the wire, the
computer memory may be erased. To avoid
short circuits when making connections,
disconnect the +12 V power supply wire until
all the other wires have been connected.
Connexions
Attention
•Avant d’effectuer les connexions, débranchez
la borne de masse de la batterie de voiture
pour éviter tout court-circuit.
•Veillez à utiliser des haut-parleurs de
puissance adéquate. Si vous utilisez des haut-
parleurs de faible capacité, ils risquent d’être
endommagés.
•Ne raccordez pas la borne #du système de
haut-parleurs à la carrosserie de la voiture ni
la borne #du haut-parleur droit avec celle du
haut-parleur gauche.
•Eloignez les câbles d’entrée et de sortie du
câble d’alimentation pour éviter les
interférences.
•Cet appareil est un amplificateur de haute
puissance. Il ne peut donc déployer sa pleine
puissance que si les câbles de haut-parleurs de
la voiture lui sont raccordés.
•Si votre voiture est équipée d’un système de
navigation ou d’un ordinateur de bord, ne
retirez pas le câble de terre de la batterie de la
voiture, sinon les données mémorisées seront
effacées. Pour éviter un court-circuit lorsque
vous effectuez les branchements, branchez le
câble d’alimentation +12 V après avoir
branché tous les autres câbles.
Power Connection Wires
Câbles d’alimentation
Car audio unit
Autoradio
Fuse (150 A)
Fusible (150 A)
+12 V carbattery
Batterie de voiture +12 V
Remote output *
Sortie de
télécommande
*
(REMOUT)
to a metal point
of the car
versune partie
métallique de la
carrosserie
*
If you have the factory original or some other car audio unit without a remote output on the amplifier,
connect the remote input terminal (REMOTE) to the accessory power supply.
* Sivous disposez du modèle d’origine ou d’un autre autoradio dont l’amplificateur ne comporte pasde
sortie de télécommande, raccordez la borne d’entrée de télécommande (REMOTE) à la prise
d’alimentation accessoires.
Notes on the power supply
• Connect the +12 V power supply wire only after
all the other wires have been connected.
• Be sure to connect the ground wire of the unit
securelyto a metal point of the car. A loose
connectionmay causea malfunction of the
amplifier.
• Be sure to connect the remote control wire of the
car audio unit to the remote terminal.
•When using a car audio unit without a remote
output on the amplifier, connect the remote
input terminal (REMOTE)to the accessorypower
supply.
• Usethe power supply wire with a fuse attached
(150 A).
• Place the fuse in the power supply wire as close as
possible to the car battery.
• Make sure that the wires to be connected to the
+ 12 V and GND terminals of this unit are at least
4-Gauge (AWG-4) or have a sectional area of
more than 22.0 mm
2
.
Remarquessur l’alimentation électrique
• Raccordez le câble d’alimentation +12 V
uniquement après avoir réalisé toutes les autres
connexions.
• Raccordezcorrectementle câble de masseà une
partie métallique de la voiture. Une connexion
lâchepeut provoquer un dysfonctionnement de
l’amplificateur.
• Veillez à raccorder le fil de télécommande de
l’autoradio à la borne de télécommande.
• Si vous utilisez un l’autoradio dont l’amplificateur
ne comporte pas de sortie de télécommande,
raccordez la borne d’entrée de la télécommande
(REMOTE)à la prise d’alimentation accessoires.
• Utilisez un câble d’alimentation muni d’un fusible
(150 A).
• Fixez le câble d’alimentation le plus près possible
de la batterie de voiture.
• Assurez-vous que les câbles à raccorder aux
bornes +12V et GND de cet appareil sont d’un
calibre d’au moins 4 (AWG-4) ou d’une section
supérieure à 22, 0 mm
2
.
Make the terminal connections as illustrated below.
Effectuez les connexions des bornes comme illustré ci-dessous.
REM
+
12V GND
Pass the wires through the cap,connect
the wires, then cover the terminals with
the cap.
Note
When you tighten the screw, be careful not to
apply too much torque
* as doing so may damage
the screw.
* The torque value should be lessthan 1 N•m.
Faitespasserlescâblespar le cache,
raccordezlescâbles,puisrecouvrezles
bornesavec le cache.
Remarque
Lorsque vous vissez la vis, faites attention à ne
pas appliquer une trop grande force
* , car cela
pourrait endommager la vis.
*
Le couple de torsion doit être inférieur à 1 N•m.
33
cRemplacement du fusible
Si le fusible fond, vérifiez le branchement de
l’alimentation et remplacez tous les fusibles. Si le
fusible grille encore après ce remplacement, il est
possible qu’il y ait un dysfonctionnement interne.
Dans ce cas, adressez-vous à votre distributeur
Sony le plus proche.
Avertissement
Lors du remplacement du fusible, veillez à
respecter l’ampérage indiqué au-dessus du
logement du fusible. N’utilisez jamais un fusible
d’ampérage supérieur à celui fourni avec
l’appareil, car cela pourrait endommager
l’appareil.
* Circuitde protection
Cet amplificateur est équipé d’un circuit de
protection qui s’active dans les cas suivants :
—en casde surchauffe de l’appareil
—en casde génération d’un courant continu
—lorsque les bornes de haut-parleurs sont court-
circuitées.
L’indicateur POWER/PROTECTOR s’allume en
rouge et l’appareil s’arrête.
Dans ce cas,éteignez tout équipement raccordé,
retirez la cassetteou le disque et déterminez la
causedu dysfonctionnement. Sil’amplificateur a
surchauffé, attendez que l’appareil refroidisse
avant de le réutiliser.
Si vous avez des questions ou des problèmes
concernant votre appareil qui ne sont pas abordés
dans ce mode d’emploi, adressez-vous à votre
distributeur Sony le plus proche.

5
XM-D1000P5
* When you use two terminals with speakers, each
of terminal resistance is 4
Ω at a minimum.
(Two terminals are connected with each other in
the unit.)
* Lorsque vous utilisez deux bornes avec des haut-
parleurs, la résistance de chaque borne doit au
moins être égale à 4
Ω .
(Lesdeux bornes sont raccordées l’une à l’autre
dans l’appareil.)
Input Connections
For details on the settings of switches and controls, refer to “Location and Function of Controls.” Connexions d’entrée
Pour plus de détails sur les réglages des commutateurs et commandes, reportez-vous à “Emplacement
et fonction des commandes”.
Line Input Connection (with Speaker Connection
1or 2)
Connexion d’entrée de ligne (avec connexion de haut-
parleur 1ou 2)
AA
AA
A
Line Input Connection (with Speaker Connection 3)
Connexion d’entrée de ligne (avec connexion de haut-
parleur 3)
BB
BB
B
Line Input Connection (with Speaker Connection 4)
Connexion d’entrée de ligne (avec connexion de haut-
parleur 4)
CC
CC
C
High Level Input Connection (with Speaker Connection
1)
Connexion à l’entrée de haut niveau (avec connexion
de haut-parleur 1)
DD
DD
D
Car audio unit
Autoradio
LINE OUT*
*
• You can connect either output terminal.
• The minimum resistance must be 2
Ω in total.
* •Peu importe la borne de sortie que vous raccordez.
•La résistance minimale doit être égale à 2
Ω au total.
Car audio unit
Autoradio
LINE OUT*
Right channel
Canaldroit
Left channel
Canalgauche
Lorsque vous raccordez des amplificateurs à l’aide
des prises à broches THROUGH OUT, vous pouvez
raccorder jusqu’à 3 amplificateurs au maximum.
Sinon les niveaux de sortie requis ne peuvent pas
être obtenus et votre autoradio risque d’être
endommagé.
Utilisez la borne THROUGHOUT lorsque vous
installez plusieurs amplificateurs. Lessignaux sont
sortis comme ils sont entrés. (LOW BOOSTne
fonctionnent pas.)
When you connect amplifiers using with the
THROUGH OUT pin jacks, it allows you to connect
up to a maximum of three.
Otherwise the necessaryoutput levels can not be
obtained, and your car audio unit may be
damaged.
Use the THROUGHOUT terminal when you install
more amplifiers. The signals are output asthey
were input. (LOW BOOSTdo not work.)
Car audio unit
Autoradio
LINE OUT
THROUGH OUT
INPUT INPUT
Car audio unit
Autoradio
Left speaker
Haut-parleur gauche
Right speaker
Haut-parleur droit
2
1-Speaker System (with Input Connection Aor D)
Système à 1 haut-parleur (avec connexion d’entrée Aou
D)
Raccordement de haut-parleurs
Pour plus de détails sur les réglages des commutateurs et commandes, reportez-vous à “Emplacement
et fonction des commandes”.
Speaker Connections
For details on the settings of switches and controls, refer to “Location and Function of Controls.”
11
11
1
2-Speaker System (with Input Connection A)
Système à 2 haut-parleurs (avec connexion d’entrée A)
22
22
2
1-Speaker System (with Input Connection B)
Système à 1 haut-parleur (avec connexion d’entrée B)
33
33
3
2-Way System (with Input Connection C)
Système à 2 voies (avec connexion d’entrée C)
44
44
4
Subwoofer (min. TOTAL 2 Ω)
Caisson de grave (min.TOTAL 2 Ω)
Right subwoofer
(min. TOTAL 2 Ω)
Caisson de grave droit
(min. TOTAL 2 Ω)
Left subwoofer (min. TOTAL 2 Ω)
Caisson de grave gauche (min.TOTAL 2 Ω)
Subwoofer*
(min. TOTAL 4 Ω)
Caisson de grave*
(min. TOTAL 4 Ω)
Subwoofer*
(min. TOTAL 4 Ω)
Caisson de grave*
(min. TOTAL 4 Ω)
Subwoofer (min. TOTAL 2 Ω)
Caisson de grave (min.TOTAL 2 Ω)
*
• You can connect either output terminal.
• The minimum resistance must be 2
Ω in total.
* •Peu importe la borne de sortie que vous raccordez.
•La résistance minimale doit être égale à 2
Ω au total.
Full range speakers
Haut-parleurs à large bande
Grey/Black
striped
Rayégris/noir
White/Black
striped
Rayéblanc/noir
Grey
Gris White
Blanc

6
XM-D1000P5 SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
2-1. BOTTOM PLATE
Note : This set can be disassemble according to the following sequence.
2-1. BOTTOM PLATE
(Page 6)
2-2. MAIN BOARD SECTION
(Page 7)
2-5. LED BOARD
(Page 8)
SET
2-4. MAIN BOARD
(Page 8) 2-3. DISASSMBLY AND ASSEMBLY
OF ORNAMENTAL PLATE
(Page 7)
4 bottom plat
e
5 insulating sheet
1 P 3x6
2 P 3x6
3 P 3x6

7
XM-D1000P5
2-3. DISASSEMBLY AND ASSEMBLY OF ORNAMENTAL PLATE
2-2. MAIN BOARD SECTION
heat sink (main
)
2 BTP 3x14
3 BTP 3x14
4 BTP 3x14
1 P 3x8
6 CNT2
5 MAIN board section
heat sink (main)
At disassembly:
At assembly:
ornamental plate
cut
welding
heat sink (main)
ornamental plate

8
XM-D1000P5
2-4. MAIN BOARD
2-5. LED BOARD
1 P 3x8
2 P 3x8
3 panel (front)
4 MAIN board
1 P 3x6
2 LED board heat sink (main)

99
XM-D1000P5

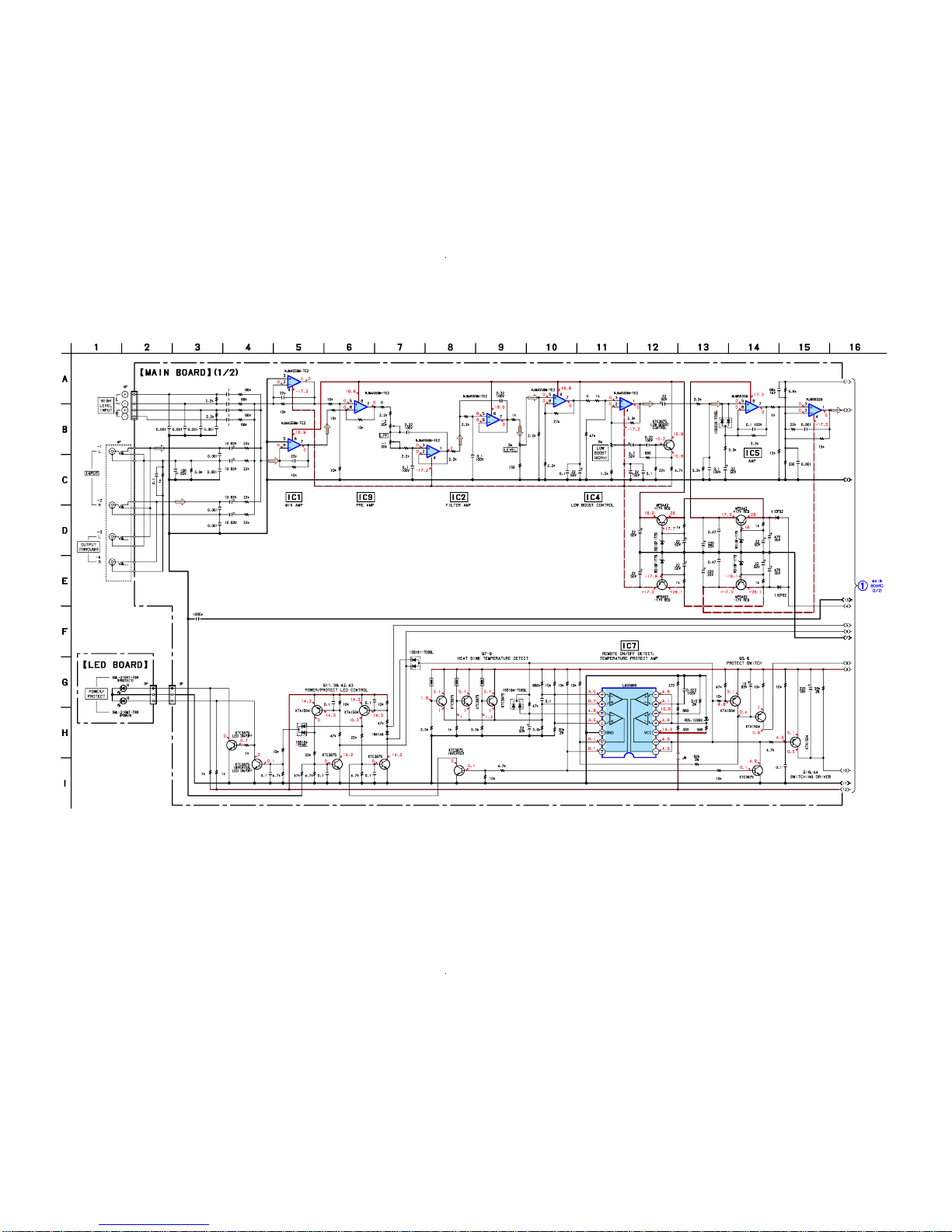

3-1. IC BLOCK DIAGRAM
IC6 TL494CN
SECTION 3
DIAGRAMS
OSC
REF 5V
ERROR
ERROR
0.1V
16 15 14 13 12 11 10 9
1 2 3 4 5 6 7 8
NON INV VREF VCC C2 E1 E2 OUT
+IN
-IN
COMP EN
CT
RT
C1
GND
TIME
•A: B+ Line.
•B: B– Line.
•Total current is measured with no-signal condition.
•Power voltageis dc14.4V andfedwith regulated dc power
supply from +12V and REM terminals.
•Voltage is dc with respect to ground under no-signal
condition.
•Voltages are taken with aVOM(Input impedance 10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
•Circled numbers refer to waveforms.
•Signal path.
F: AUDIO
for printed wiring boards:
Note:
•X: parts extracted from the component side.
•: Pattern from the side which enables seeing.
(The other layer’s patterns are not indicated.)
THIS NOTE IS COMMON FOR PRINTEDWIRING BOARDS
AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
for schematic diagram:
Note:
•All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
•%: indicates tolerance.
•2: nonflammable resistor.
Caution:
Pattern face side: Partson thepatternfaceside seenfrom the
(Side B) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side A) parts face are indicated.
Note:
The components identi-
fied by mark 0or dotted
line with mark 0arecriti-
cal for safety.
Replace only with part
number specified.
Note:
Lescomposants identifiés par
une marque 0sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.

10 10
XM-D1000P5
3-2. PRINTED WIRING BOARDS — MAIN SECTION (1/2) — • Refer to page 9 for Common Note on Printed Wiring Boards.
1
A
B
C
D
E
F
G
H
I
234567891011
R170
R103 R106
D26
R108
C44
R85
R104
R97
Q17
MAIN BOARD (SIDE A)
LED BOARD
(SIDE A)
LED3
(PROTECT)
LED2
(POWER)
1-688-330-
(11)
11
R
POWER/PROTECT
G
R114
R63
R134
C8
R123
R56
R57
C39
RV9
R27
R28
R26
C9
R169
R16
R15
R174
R51
C14
R43
R50
R5
R24
R23
R25
RS1 RS2
R4 R3
R156
R2
C21
R159
R172
R173
RC3
RC1
RC2
RC4
R126
R130
C7
R132
R14
C54
R84
R125
C40
R149
C18
C19
R91
C37
C42
R92
R48 R47
R46
R45R102
R202
R302
C6
C22
R78
R70
CF9
R58
CF10
R83R98
R86
C34
R166 R71
C36
R55
C43
R180
R183
R154 R184 R96
R73
R175
C48
R105
R158
C20
R1
R157
R164
C50
R7
R6
C51
R163
C28
C53
C27
C30
C52
C29
C2C23
C12
R8
R155C1
C13
R54
C35
R81
R82
R182 R181
C38 R17 R18
R20
RS5
R131
R19
R113
R112
R213
R129
R127
R62
R61
C41
R107
R133
R151
R150
R87
C11
R152
R128
R72
R90
C32
R88
R66
R64
CF1
R171
R65
R76
R75 R74
C33
R77 R67
C31
R80
R79 R69 R68
R11R10
R136
IC1
IC9
IC8
IC2
IC5
IC4
R110
R119
R109
R53
R52
C15
R60
C16
R59
Q37
BCE
Q10
BCE
D11
Q11
BCE
BCE
Q34
Q43
BCE
ECB
Q35
ECB
Q15
BCE
Q14
BCE
Q45
BCE
AKA
Q16
BCE
BCEBCEBCE
BCE
D5
Q13
BCE
Q5
BCE
Q36
BCE
Q6
BCE
Q42
BCE
AKA
D23
D3
KAK
Q39
ECB
IC7
Q44
Q9 Q8 Q7
D9
R117
THR3
R111
R211
R29
R12
C10
R13
R116 R118
R215 R115
4
58
1
4
58
1
4
58
1
4
58
1
4
58
1
7
8
1
1
85
4
14
1-688-329- (11)
11

THR1
D3 G-6
D5 G-7
D9 E-3
D11 E-3
D23 G-5
D26 G-6
IC1 G-3
IC2 F-3
IC4 E-3
IC5 E-3
IC7 G-7
IC8 F-5
IC9 F-3
LED2 G-11
LED3 G-11
Q5 F-6
Q6 F-6
Q7 G-7
Q8 G-7
Q9 G-7
Q10 G-4
Q11 G-4
Q13 H-8
Q14 G-6
Q15 G-5
Q16 G-6
Q17 G-5
Q34 G-5
Q35 F-5
Q36 F-6
Q37 E-2
Q39 G-6
Q42 G-6
Q43 G-4
Q44 G-7
Q45 G-6
•Semiconductor
Location (Side A)
Ref. No. Location

11 11
XM-D1000P5
3-3. PRINTED WIRING BOARDS —MAIN SECTION (2/2) —•Refer to page 9 for Common Note on Printed Wiring Boards.
1
A
B
C
D
E
F
G
H
I
234567891011
R122
R124
R93
RJ3
1-688-329- (11)
11
R139
-1 -2
-1 -2
-1 -2
C17
MC6
MC7 MC5
MC10
MC25
MC11
R148
R147
R146
R145
R144
R143
D21
D19 FET12 FET11 FET10 FET9
D20 D22
S D G S D G S D G S D G
MC4
MC3
MC9
MC28
MC27
MC22
MC12
MC19
IC6
T1
MC15
FET8
G D S G D S G D S G D S G D S
G D S
G D S
G D S
FET7
FET6
FET5
FET4
FET3
FET2
FET1
MC26
PT1
MC16
MC24 MC23
MC18
MC17
MC20
MC29
MC30
THR2
MC21
MC31
EC20
EC21
EC16
EC1
EC54
EC5
ZD1
ZD6
EC6
ZD2
ZD4
ZD3
EC8
EC7
EC61
D12
D13
EC11
EC50
EC2
CV3
CV4
EC55
EC56
EC10
EC9
EC52
EC53
EC51
EC29
EC4
EC3
EC58
EC23 EC22
EC15 EC25 EC24
EC28
EC13
CNT2
PTC1
PTC2
EC12
EC17
EC14
EC27 EC26
EC38
EC39
EC40
EC33
EC32 EC31
EC30
EC37
Q23 Q27
Q29
FET20 FET19 FET18 FET17 FET16 FET13
S D G
S D G S D G S D G
S D G
S D G
S D G
S D G
FET14
FET15
Q25
Q31
C B E
Q3
D16
D8
D15
C B E
Q4
C B E
Q2
C B E
Q1
C B E
Q20
D2
ZD5
C B E
Q12
B C E
Q47
B C E Q46
B C E
Q19
B C E
Q18
Q22
B C E
C B E
BD1 BD2 BD3 BD4 BD5 BD6
R121
B C E B C E
B C E B C E
Q21
B C E
Q30
B C E
98
10
1
RG8
RG7
RG12
RG11
RG10
RG9
34
21
43
12
R101
R137
LED BOARD
(SIDE B)
1-688-330-
(11)
11
CON2
LF2
LF3
YEL
BLK
ORG
31
ORG
BLK
YEL
1
3
-3
L
-4
R
-1
L
-2
R
INPUT
LEVEL
OUTPUT
(THROUGH)
VR1
LPF
VR3
LOW
BOOST
(40Hz)
VR2
JK1
MAIN BOARD (SIDE B)
HIGH LEVEL INPUT
CNT1
-4 -2
-2 -4
-1 -3
-3 -1
RL
REM
40A
FUSE1
40A
FUSE2
40A
FUSE3
+12VGND
(L+R)
SPEAKER OUT
TER1
(L+R)
RG6
RJ1
RJ2
RG5
RG4
RG3
RG2
RG1
D2 F-6
D8 E-4
D12 E-6
D13 E-6
D15 E-4
D16 E-4
D19 A-7
D20 B-8
D21 B-7
D22 B-8
FET1 G-9
FET2 G-9
FET3 G-9
FET4 F-9
FET5 F-10
FET6 E-10
FET7 E-10
FET8 D-10
FET9 C-10
FET10 C-9
FET11 C-9
FET12 B-8
FET13 A-6
FET14 A-5
FET15 B-5
FET16 B-4
FET17 B-4
FET18 C-4
FET19 C-3
FET20 C-3
IC6 F-7
PTC1 F-6
PTC2 F-6
Q1 F-4
Q2 F-4
Q3 F-4
Q4 F-4
Q12 H-9
Q18 D-3
Q19 D-3
Q20 E-6
Q21 D-4
Q22 D-3
Q23 D-3
Q25 D-3
Q27 D-3
Q29 D-3
Q30 D-3
Q31 D-4
Q46 E-7
Q47 E-7
ZD1 F-5
ZD2 F-5
ZD3 F-5
ZD4 F-5
ZD5 F-5
ZD6 G-7
•Semiconductor
Location (Side B)
Ref. No. Location

12 12
XM-D1000P5
3-4. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) — • Refer to page 9 for Common Note on Schematic Diagram.
D15
D16
Q5
Q6
Q7
Q8
Q9
Q11
Q16
Q39
Q42
Q43
Q44
ZD1
ZD2
ZD3
ZD4
CNT1
MC3
MC4
MC5
MC6
MC7
EC3
EC4
EC5
EC6
EC7
EC8
EC12
EC56
EC53
R55R54
R180R181
R66
R64
R78
R79
R68
R74R75
R152 R150
R84
R77
R155
R4
R3 R20
R23 R24
R25
R5
R169
R29
R12
R14
R15
R16 R174 R52
R50
R43
R51
R53
R60
R59
R57
R62
R61
R17
R18
R73
R80
R106
EC9
EC10
EC11
EC50
EC51
EC52
R28
R8
EC28
EC29
R26
RV9
RS5
R183
R10
R11
C51 C52 C50 C53
C12
C35 C36
C43C38C54
MC10
C14
C15
C31
C39
C17
EC1
EC54
R1
R156
EC55
EC2
R157
R2
C28
C27
C30
C29
R159
R158
R13
D11
MC9
C16
D3
R149
R154
R81
R182
D5
C6
R67
IC1(1/2)
IC1(2/2)
IC9(2/2)
IC2(1/2)
IC2(2/2)
VR3
RS2
RS1
VR1 VR2
IC4(2/2) IC4(1/2)
Q3
Q4
Q1
Q2
CNT2CON2
Q14
Q15
D23
JK1
Q37
Q45
IC7
R70
R65
R88
RJ3
THR3THR2THR1
IC5(2/2) IC5(1/2)
R27
R163
R6
R164
R7
C1
C13
C2
C23
C21
C20
C9 CV3 CV4 C10
R136
R63
MC31
LED3
LED2
R87
R96 R82
D26
R76
R184
R171R170
R69
ZD6
R103
R104
R97
MC19
R85
(Page 13)

13 13
XM-D1000P5
3-5. SCHEMATIC DIAGRAM — MAIN SECTION (2/2) — • Refer to page 9 for Common Note on Schematic Diagram and IC Block Diagram.
•Waveform
IC6 5
11V/DIV, 5µsec/DIV
15µsec
3.4Vp-p
IC B/D
IC6
D2
D12
D13
Q13
Q17
Q20
Q22
Q31
Q35
Q36
FET1 FET2 FET3 FET4 FET5 FET6
FET7 FET8 FET9 FET10 FET11 FET12
FET13
FET14
FET15
FET16
FET17
FET18
FET19
FET20
Q23
Q25
Q27
Q29
MC11
MC15
MC20
MC21
MC22
MC23
MC24
MC25
MC26
MC27
MC28
EC14
EC61
R101
R91
R90
R56
R110
R134
R133
R125
R151 R131
R107
R105
R166R86
R71
R127
D22
D21
D20
D19
C42
C19
C37
R48
R46
C32
R58
R117
CF1
R114
R115 R215 R112
R19
R118
C41
C40
RG1 RG2 RG3 RG4
RG7 RG8 RG9 RG10 RG11 RG12
RG6
RG5
R83
C34
C11
D9
R111 R211
C18
MC12
R102
R202
R302
C8 R123
R72
ZD5
EC13
R132
R126
R143 R144 R145 R146 R147 R148
EC27
EC26
EC25
EC24
EC23
EC22
CF9 CF10
IC8
R109
PTC2
PTC1
LF2
RC3
RC4
BD1
BD2
BD3
BD4
BD5
BD6
RC2
RC1
R130
Q10
Q34
Q12
TER1
FUSE1
FUSE2
FUSE3
MC18
RJ2
RJ1
PT1
T1
EC30
EC37
EC31
EC38
EC32
EC39
EC33
EC40
R92
LF3
Q18
Q19
Q21
R113
R121
R116
R122
EC16
EC17
EC21
EC20
R175C48
R172
EC58 R173
MC30
R98
MC29
C22
MC16
MC17
R137
Q46
Q47
R45
R47
EC15
C33
R119
D8
Q30 C44
R108
R128
C7
R129
R139
R124
R213
R93
(Page 12)

14 14
XM-D1000P5
MEMO

15
XM-D1000P5
•Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
•Accessories are given in the last of this parts list.
RR
NOTE:
•The mechanical parts with no reference
number in the exploded views are not supplied.
•Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
SECTION 4
EXPLODEDVIEWS
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
4-1. HEAT SINK (MAIN) SECTION
13-253-053-01 PLATE, ORNAMENTAL
23-253-052-01 HEAT SINK (MAIN)
33-253-054-01 PLATE, LIGHT GUIDE
43-253-056-01 PANEL (REAR)
0FUSE1 1-533-743-11 FUSE (BLADE TYPE) (AUTO FUSE) (40A)
0FUSE2 1-533-743-11 FUSE (BLADE TYPE) (AUTO FUSE) (40A)
0FUSE3 1-533-743-11 FUSE (BLADE TYPE) (AUTO FUSE) (40A)
#1 7-685-645-79 SCREW +P 3X6 TYPE2 NON-SLIT
#2 7-685-549-19 SCREW +BTP 3X14 TYPE2 N-S
#3 7-685-646-79 SCREW +P 3X8 TYPE2 NON-SLIT
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
1
2
3
4
#1
#1
#2
not supplied
not supplied
(LED board)
#2
#2
#1 #3
#1
FUSE2
FUSE3
FUSE1

16
XM-D1000P5
4-2. MAIN BOARD SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51 3-253-055-01 PANEL (FRONT)
52 A-3274-813-A MAIN BOARD, COMPLETE
53 3-253-061-01 HEAT SINK (SUB)
54 3-253-062-01 PLATE, RETAINER
55 3-225-183-11 SCREW (+PSW.TT.3XL)
56 3-912-431-01 SCREW (+–P)
57 3-912-432-01 SCREW (+–B)
58 3-253-537-01 SCREW (M5X11)
#1 7-685-645-79 SCREW +P 3X6 TYPE2 NON-SLIT
#3 7-685-646-79 SCREW +P 3X8 TYPE2 NON-SLIT
51
52
53
53
53
54
54
54
55
55 55
56
57
58
not supplied
not supplied
not supplied
#3 #1
#1
#1
#3

17
XM-D1000P5
SECTION 5
ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
NOTE:
•Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
•RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
•Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
•CAPACITORS
uF : µF
•COILS
uH : µH
LED BOARD
**********
< DIODE >
LED2 8-719-060-99 LED SML-210MT-T86 (POWER/PROTECT
(POWER))
LED3 8-719-066-99 LED SML-210VT-T86 (POWER/PROTECT
(PROTECT))
*************************************************************
A-3274-813-A MAIN BOARD, COMPLETE
*********************
3-253-061-01 HEAT SINK (SUB)
3-253-062-01 PLATE, RETAINER
< FERRITE BEAD >
BD1 1-410-396-41 INDUCTOR, FERRITE BEAD 0.45uH
BD2 1-410-396-41 INDUCTOR, FERRITE BEAD 0.45uH
BD3 1-410-396-41 INDUCTOR, FERRITE BEAD 0.45uH
BD4 1-410-396-41 INDUCTOR, FERRITE BEAD 0.45uH
BD5 1-410-396-41 INDUCTOR, FERRITE BEAD 0.45uH
BD6 1-410-396-41 INDUCTOR, FERRITE BEAD 0.45uH
< CAPACITOR >
C1 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C2 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C6 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C7 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V
C8 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V
C9 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C10 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C11 1-164-005-11 CERAMIC CHIP 0.47uF 25V
C12 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C13 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C14 1-164-005-11 CERAMIC CHIP 0.47uF 25V
C15 1-164-005-11 CERAMIC CHIP 0.47uF 25V
C16 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C17 1-117-219-11 CERAMIC 68PF 5% 1KV
C18 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C19 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C20 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C21 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C22 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C23 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C27 1-164-346-11 CERAMIC CHIP 1uF 16V
C28 1-164-346-11 CERAMIC CHIP 1uF 16V
C29 1-164-346-11 CERAMIC CHIP 1uF 16V
C30 1-164-346-11 CERAMIC CHIP 1uF 16V
C31 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C32 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C33 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C34 1-164-005-11 CERAMIC CHIP 0.47uF 25V
C35 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C36 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C37 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C38 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C39 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C40 1-164-005-11 CERAMIC CHIP 0.47uF 25V
C41 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C42 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C43 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C44 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V
C48 1-163-019-11 CERAMIC CHIP 0.0068uF 10% 50V
C50 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C51 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C52 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C53 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V
C54 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
CF1 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
CF9 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
CF10 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
< CONNECTOR >
*CNT1 1-691-785-11 PIN, CONNECTOR (PC BOARD) 4P
(HIGH LEVEL INPUT)
*CNT2 1-569-596-11 PLUG, CONNECTOR (2.5mm) 3P
< CAPACITOR >
CV3 1-126-965-11 ELECT 22uF 20% 50V
CV4 1-126-965-11 ELECT 22uF 20% 50V
< DIODE >
D2 8-719-110-72 DIODE RD30ES-B2
D3 8-719-820-05 DIODE 1SS181
D5 8-719-801-78 DIODE 1SS184
D8 8-719-160-29 DIODE RD6.2F-B2
D9 8-719-800-76 DIODE 1SS226
D11 8-719-800-76 DIODE 1SS226
LED MAIN
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.

18
XM-D1000P5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
D12 8-719-987-67 DIODE 11EFS2
D13 8-719-987-67 DIODE 11EFS2
D15 8-719-987-67 DIODE 11EFS2
D16 8-719-987-67 DIODE 11EFS2
D19 8-719-076-60 DIODE FCH20A15
D20 8-719-076-61 DIODE FRH20A15
D21 8-719-076-60 DIODE FCH20A15
D22 8-719-076-61 DIODE FRH20A15
D23 8-719-801-78 DIODE 1SS184
D26 8-719-987-63 DIODE 1N4148M
< CAPACITOR >
EC1 1-128-582-11 ELECT 10uF 20% 63V
EC2 1-128-582-11 ELECT 10uF 20% 63V
EC3 1-126-965-11 ELECT 22uF 20% 50V
EC4 1-126-965-11 ELECT 22uF 20% 50V
EC5 1-126-965-11 ELECT 22uF 20% 50V
EC6 1-126-965-11 ELECT 22uF 20% 50V
EC7 1-126-965-11 ELECT 22uF 20% 50V
EC8 1-126-965-11 ELECT 22uF 20% 50V
EC9 1-104-666-11 ELECT 220uF 20% 25V
EC10 1-104-666-11 ELECT 220uF 20% 25V
EC11 1-128-582-11 ELECT 10uF 20% 63V
EC12 1-126-965-11 ELECT 22uF 20% 50V
EC13 1-126-965-11 ELECT 22uF 20% 50V
EC14 1-128-149-11 ELECT 100uF 20% 160V
EC15 1-128-339-11 ELECT 2200uF 20% 16V
EC16 1-107-947-11 ELECT 220uF 20% 160V
EC17 1-107-947-11 ELECT 220uF 20% 160V
EC20 1-107-947-11 ELECT 220uF 20% 160V
EC21 1-107-947-11 ELECT 220uF 20% 160V
EC22 1-115-814-11 ELECT 0.001F 20% 35V
EC23 1-115-814-11 ELECT 0.001F 20% 35V
EC24 1-115-814-11 ELECT 0.001F 20% 35V
EC25 1-115-814-11 ELECT 0.001F 20% 35V
EC26 1-115-814-11 ELECT 0.001F 20% 35V
EC27 1-115-814-11 ELECT 0.001F 20% 35V
EC28 1-126-951-11 ELECT 470uF 20% 35V
EC29 1-126-951-11 ELECT 470uF 20% 35V
EC30 1-100-587-11 ELECT 1000uF 100V
EC31 1-100-587-11 ELECT 1000uF 100V
EC32 1-100-587-11 ELECT 1000uF 100V
EC33 1-100-587-11 ELECT 1000uF 100V
EC37 1-100-587-11 ELECT 1000uF 100V
EC38 1-100-587-11 ELECT 1000uF 100V
EC39 1-100-587-11 ELECT 1000uF 100V
EC40 1-100-587-11 ELECT 1000uF 100V
EC50 1-126-934-11 ELECT 220uF 20% 16V
EC51 1-126-965-11 ELECT 22uF 20% 50V
EC52 1-126-965-11 ELECT 22uF 20% 50V
EC53 1-126-963-11 ELECT 4.7uF 20% 50V
EC54 1-128-582-11 ELECT 10uF 20% 63V
EC55 1-128-582-11 ELECT 10uF 20% 63V
EC56 1-104-665-11 ELECT 100uF 20% 25V
EC58 1-104-665-11 ELECT 100uF 20% 25V
EC61 1-126-966-11 ELECT 33uF 20% 16V
< TRANSISTOR >
FET1 8-729-056-77 FET RFP70N06
FET2 8-729-056-77 FET RFP70N06
FET3 8-729-056-77 FET RFP70N06
FET4 8-729-056-77 FET RFP70N06
FET5 8-729-056-77 FET RFP70N06
FET6 8-729-056-77 FET RFP70N06
FET7 8-729-056-77 FET RFP70N06
FET8 8-729-056-77 FET RFP70N06
FET9 8-729-056-77 FET RFP70N06
FET10 8-729-056-77 FET RFP70N06
FET11 8-729-056-77 FET RFP70N06
FET12 8-729-056-77 FET RFP70N06
FET13 8-729-056-78 FET SSP45N20A
FET14 8-729-056-78 FET SSP45N20A
FET15 8-729-056-78 FET SSP45N20A
FET16 8-729-056-78 FET SSP45N20A
FET17 8-729-056-78 FET SSP45N20A
FET18 8-729-056-78 FET SSP45N20A
FET19 8-729-056-78 FET SSP45N20A
FET20 8-729-056-78 FET SSP45N20A
< FUSE >
0FUSE1 1-533-743-11 FUSE (BLADE TYPE) (AUTO FUSE) (40A)
0FUSE2 1-533-743-11 FUSE (BLADE TYPE) (AUTO FUSE) (40A)
0FUSE3 1-533-743-11 FUSE (BLADE TYPE) (AUTO FUSE) (40A)
< IC >
IC1 8-759-394-81 IC NJM4559M-TE2
IC2 8-759-394-81 IC NJM4559M-TE2
IC4 8-759-394-81 IC NJM4559M-TE2
IC5 8-759-700-94 IC NJM5532M
IC6 8-759-904-94 IC TL494CN
IC7 8-759-085-67 IC LM339NS
IC8 8-759-980-04 IC LM311PS
IC9 8-759-394-81 IC NJM4559M-TE2
< JACK >
JK1 1-779-078-41 JACK, PIN 4P (INPUT,OUTPUT (THROUGH))
< COIL >
LF2 1-424-885-11 COIL, CHOKE 230uH
LF3 1-424-884-11 COIL, CHOKE 11.3uH
< CAPACITOR >
MC3 1-137-401-11 MYLAR 0.22uF 5% 100V
MC4 1-137-401-11 MYLAR 0.22uF 5% 100V
MC5 1-130-777-00 MYLAR 0.1uF 5% 100V
MC6 1-137-401-11 MYLAR 0.22uF 5% 100V
MC7 1-130-777-00 MYLAR 0.1uF 5% 100V
MC9 1-130-777-00 MYLAR 0.1uF 5% 100V
MC10 1-130-777-00 MYLAR 0.1uF 5% 100V
MC11 1-137-401-11 MYLAR 0.22uF 5% 100V
MC12 1-137-391-11 MYLAR 0.0047uF 5% 100V
MC15 1-137-350-11 MYLAR 0.015uF 5% 100V
MC16 1-130-777-00 MYLAR 0.1uF 5% 100V
MC17 1-130-777-00 MYLAR 0.1uF 5% 100V
MAIN
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Neles remplacer quepar une piéce
portant le numéro spécifié.

19
XM-D1000P5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
MC18 1-136-175-00 FILM 0.68uF 5% 50V
MC19 1-137-351-11 MYLAR 0.022uF 5% 100V
MC20 1-137-352-11 MYLAR 0.033uF 5% 100V
MC21 1-137-401-11 MYLAR 0.22uF 5% 100V
MC22 1-137-401-11 MYLAR 0.22uF 5% 100V
MC23 1-137-401-11 MYLAR 0.22uF 5% 100V
MC24 1-137-401-11 MYLAR 0.22uF 5% 100V
MC25 1-137-398-11 MYLAR 0.068uF 5% 100V
MC26 1-107-357-11 MYLAR 0.47uF 5% 100V
MC27 1-104-987-11 MYLAR 0.001uF 5% 100V
MC28 1-104-987-11 MYLAR 0.001uF 5% 100V
MC29 1-136-137-00 FILM 1uF 5% 50V
MC30 1-164-303-11 CERAMIC 0.1uF 25V
MC31 1-102-074-00 CERAMIC 0.001uF 10% 50V
< TRANSFORMER >
PT1 1-439-759-11 TRANSFORMER, DC-DC CONVERTER
< PHOTO COUPLER >
PTC1 8-719-902-56 PHOTO COUPLER PC817
PTC2 8-719-902-56 PHOTO COUPLER PC817
< TRANSISTOR >
Q1 8-729-931-36 TRANSISTOR MPSA42
Q2 8-729-056-82 TRANSISTOR MPSA92
Q3 8-729-931-36 TRANSISTOR MPSA42
Q4 8-729-056-82 TRANSISTOR MPSA92
Q5 8-729-034-50 TRANSISTOR KTA1504
Q6 8-729-034-50 TRANSISTOR KTA1504
Q7 8-729-034-51 TRANSISTOR KTC3875
Q8 8-729-034-51 TRANSISTOR KTC3875
Q9 8-729-034-51 TRANSISTOR KTC3875
Q10 8-729-034-51 TRANSISTOR KTC3875
Q11 8-729-034-50 TRANSISTOR KTA1504
Q12 8-729-040-76 TRANSISTOR KTA1273-Y-AT
Q13 8-729-034-51 TRANSISTOR KTC3875
Q14 8-729-034-51 TRANSISTOR KTC3875
Q15 8-729-034-51 TRANSISTOR KTC3875
Q16 8-729-034-51 TRANSISTOR KTC3875
Q17 8-729-034-51 TRANSISTOR KTC3875
Q18 6-500-660-01 TRANSISTOR KTC3206
Q19 6-500-660-01 TRANSISTOR KTC3206
Q20 8-729-056-82 TRANSISTOR MPSA92
Q21 6-550-247-01 TRANSISTOR KTA1659A
Q22 8-729-056-79 TRANSISTOR 2N5401
Q23 8-729-053-87 TRANSISTOR KTC4370A
Q25 6-550-247-01 TRANSISTOR KTA1659A
Q27 8-729-053-87 TRANSISTOR KTC4370A
Q29 6-550-247-01 TRANSISTOR KTA1659A
Q30 8-729-053-87 TRANSISTOR KTC4370A
Q31 8-729-056-79 TRANSISTOR 2N5401
Q34 8-729-038-53 TRANSISTOR KRA101S
Q35 8-729-034-50 TRANSISTOR KTA1504
Q36 8-729-034-51 TRANSISTOR KTC3875
Q37 8-729-034-51 TRANSISTOR KTC3875
Q39 8-729-034-50 TRANSISTOR KTA1504
Q42 8-729-034-51 TRANSISTOR KTC3875
Q43 8-729-034-51 TRANSISTOR KTC3875
Q44 8-729-034-50 TRANSISTOR KTA1504
Q45 8-729-034-51 TRANSISTOR KTC3875
Q46 6-550-660-01 TRANSISTOR KTC3206-0
Q47 6-550-660-01 TRANSISTOR KTC3206-0
< RESISTOR >
R1 1-216-081-00 METAL CHIP 22K 5% 1/10W
R2 1-216-081-00 METAL CHIP 22K 5% 1/10W
R3 1-216-073-00 METAL CHIP 10K 5% 1/10W
R4 1-216-073-00 METAL CHIP 10K 5% 1/10W
R5 1-216-049-11 METAL CHIP 1K 5% 1/10W
R6 1-216-093-00 METAL CHIP 68K 5% 1/10W
R7 1-216-093-00 METAL CHIP 68K 5% 1/10W
R8 1-216-049-11 METAL CHIP 1K 5% 1/10W
R10 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R11 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R12 1-216-089-00 METAL CHIP 47K 5% 1/10W
R13 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R14 1-216-053-00 METAL CHIP 1.5K 5% 1/10W
R15 1-216-045-00 METAL CHIP 680 5% 1/10W
R16 1-216-081-00 METAL CHIP 22K 5% 1/10W
R17 1-216-049-11 METAL CHIP 1K 5% 1/10W
R18 1-216-049-11 METAL CHIP 1K 5% 1/10W
R19 1-216-105-00 METAL CHIP 220K 5% 1/10W
R20 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R23 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R24 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R25 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R26 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R27 1-216-083-00 METAL CHIP 27K 5% 1/10W
R28 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R29 1-216-049-11 METAL CHIP 1K 5% 1/10W
R43 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R45 1-216-190-00 RES-CHIP 470 5% 1/8W
R46 1-216-222-00 RES-CHIP 10K 5% 1/8W
R47 1-216-190-00 RES-CHIP 470 5% 1/8W
R48 1-216-222-00 RES-CHIP 10K 5% 1/8W
R50 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R51 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R52 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R53 1-216-049-11 METAL CHIP 1K 5% 1/10W
R54 1-216-073-00 METAL CHIP 10K 5% 1/10W
R55 1-216-073-00 METAL CHIP 10K 5% 1/10W
R56 1-216-021-00 METAL CHIP 68 5% 1/10W
R57 1-216-077-00 METAL CHIP 15K 5% 1/10W
R58 1-216-198-00 METAL CHIP 1K 5% 1/8W
R59 1-216-037-00 METAL CHIP 330 5% 1/10W
R60 1-216-075-00 METAL CHIP 12K 5% 1/10W
R61 1-216-049-11 METAL CHIP 1K 5% 1/10W
R62 1-216-049-11 METAL CHIP 1K 5% 1/10W
R63 1-216-081-00 METAL CHIP 22K 5% 1/10W
R64 1-216-073-00 METAL CHIP 10K 5% 1/10W
R65 1-208-529-61 RES-CHIP 62K 2% 1/10W
R66 1-216-073-00 METAL CHIP 10K 5% 1/10W
R67 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R68 1-216-089-00 METAL CHIP 47K 5% 1/10W
R69 1-216-117-00 METAL CHIP 680K 5% 1/10W
R70 1-208-813-11 RES-CHIP 20K 2% 1/10W
Ver 1.1

20
XM-D1000P5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
R71 1-216-073-00 METAL CHIP 10K 5% 1/10W
R72 1-216-049-11 METAL CHIP 1K 5% 1/10W
R73 1-216-089-00 METAL CHIP 47K 5% 1/10W
R74 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R75 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R76 1-216-049-11 METAL CHIP 1K 5% 1/10W
R77 1-216-073-00 METAL CHIP 10K 5% 1/10W
R78 1-216-063-00 METAL CHIP 3.9K 5% 1/10W
R79 1-216-073-00 METAL CHIP 10K 5% 1/10W
R80 1-216-073-00 METAL CHIP 10K 5% 1/10W
R81 1-216-089-00 METAL CHIP 47K 5% 1/10W
R82 1-216-089-00 METAL CHIP 47K 5% 1/10W
R83 1-216-198-00 METAL CHIP 1K 5% 1/8W
R84 1-216-049-11 METAL CHIP 1K 5% 1/10W
R85 1-208-775-11 RES-CHIP 510 2% 1/10W
R86 1-216-073-00 METAL CHIP 10K 5% 1/10W
R87 1-216-073-00 METAL CHIP 10K 5% 1/10W
R88 1-208-813-11 RES-CHIP 20K 2% 1/10W
R90 1-216-073-00 METAL CHIP 10K 5% 1/10W
R91 1-216-073-00 METAL CHIP 10K 5% 1/10W
R92 1-208-789-11 RES-CHIP 2K 2% 1/10W
R93 1-260-106-11 CARBON 3.9K 5% 1/2W
R96 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R97 1-216-035-00 METAL CHIP 270 5% 1/10W
R98 1-216-073-00 METAL CHIP 10K 5% 1/10W
R101 1-215-880-11 METAL OXIDE 10 5% 2W F
R102 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R103 1-216-037-00 METAL CHIP 330 5% 1/10W
R104 1-216-045-00 METAL CHIP 680 5% 1/10W
R105 1-216-089-00 METAL CHIP 47K 5% 1/10W
R106 1-216-043-00 METAL CHIP 560 5% 1/10W
R107 1-216-097-00 METAL CHIP 100K 5% 1/10W
R108 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R109 1-216-648-11 METAL CHIP 3K 2% 1/10W
R110 1-216-009-00 METAL CHIP 22 5% 1/10W
R111 1-216-166-00 RES-CHIP 47 5% 1/8W
R112 1-216-246-00 RES-CHIP 100K 5% 1/8W
R113 1-208-473-11 RES-CHIP 300 2% 1/8W
R114 1-216-190-00 RES-CHIP 470 5% 1/8W
R115 1-216-196-00 RES-CHIP 820 5% 1/8W
R116 1-216-198-00 METAL CHIP 1K 5% 1/8W
R117 1-216-198-00 METAL CHIP 1K 5% 1/8W
R118 1-216-198-00 METAL CHIP 1K 5% 1/8W
R119 1-216-194-00 RES-CHIP 680 5% 1/8W
R121 1-260-094-11 CARBON 390 5% 1/2W
R122 1-260-094-11 CARBON 390 5% 1/2W
R123 1-216-097-00 METAL CHIP 100K 5% 1/10W
R124 1-215-897-11 METAL OXIDE 6.8K 5% 2W F
R125 1-216-073-00 METAL CHIP 10K 5% 1/10W
R126 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R127 1-216-089-00 METAL CHIP 47K 5% 1/10W
R128 1-216-073-00 METAL CHIP 10K 5% 1/10W
R129 1-216-087-00 METAL CHIP 39K 5% 1/10W
R130 1-208-789-11 RES-CHIP 2K 2% 1/10W
R131 1-216-107-00 METAL CHIP 270K 5% 1/10W
R132 1-216-049-11 METAL CHIP 1K 5% 1/10W
R133 1-216-121-00 METAL CHIP 1M 5% 1/10W
R134 1-216-073-00 METAL CHIP 10K 5% 1/10W
R136 1-216-067-00 METAL CHIP 5.6K 5% 1/10W
R137 1-216-899-11 METAL OXIDE 15K 5% 2W F
R139 1-216-897-11 METAL OXIDE 6.8K 5% 2W F
R143 1-207-612-00 WIREWOUND 0.1 10% 3W F
R144 1-207-612-00 WIREWOUND 0.1 10% 3W F
R145 1-207-612-00 WIREWOUND 0.1 10% 3W F
R146 1-207-612-00 WIREWOUND 0.1 10% 3W F
R147 1-207-612-00 WIREWOUND 0.1 10% 3W F
R148 1-207-612-00 WIREWOUND 0.1 10% 3W F
R149 1-216-089-00 METAL CHIP 47K 5% 1/10W
R150 1-216-049-11 METAL CHIP 1K 5% 1/10W
R151 1-216-089-00 METAL CHIP 47K 5% 1/10W
R152 1-216-049-11 METAL CHIP 1K 5% 1/10W
R154 1-216-081-00 METAL CHIP 22K 5% 1/10W
R155 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R156 1-216-081-00 METAL CHIP 22K 5% 1/10W
R157 1-216-081-00 METAL CHIP 22K 5% 1/10W
R158 1-216-073-00 METAL CHIP 10K 5% 1/10W
R159 1-216-073-00 METAL CHIP 10K 5% 1/10W
R163 1-216-093-00 METAL CHIP 68K 5% 1/10W
R164 1-216-093-00 METAL CHIP 68K 5% 1/10W
R166 1-216-073-00 METAL CHIP 10K 5% 1/10W
R169 1-216-029-00 METAL CHIP 150 5% 1/10W
R170 1-216-073-00 METAL CHIP 10K 5% 1/10W
R171 1-216-073-00 METAL CHIP 10K 5% 1/10W
R172 1-216-121-00 METAL CHIP 1M 5% 1/10W
R173 1-216-113-00 METAL CHIP 470K 5% 1/10W
R174 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R175 1-216-073-00 METAL CHIP 10K 5% 1/10W
R180 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R181 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R182 1-216-081-00 METAL CHIP 22K 5% 1/10W
R183 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R184 1-216-073-00 METAL CHIP 10K 5% 1/10W
R202 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R211 1-216-164-00 RES-CHIP 39 5% 1/8W
R213 1-208-473-11 RES-CHIP 300 2% 1/8W
R215 1-216-200-11 RES-CHIP 1.2K 5% 1/8W
R302 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
RC1 1-216-238-00 RES-CHIP 47K 5% 1/8W
RC2 1-216-238-00 RES-CHIP 47K 5% 1/8W
RC3 1-216-238-00 RES-CHIP 47K 5% 1/8W
RC4 1-216-238-00 RES-CHIP 47K 5% 1/8W
RG1 1-247-807-31 CARBON 100 5% 1/4W
RG2 1-247-807-31 CARBON 100 5% 1/4W
RG3 1-247-807-31 CARBON 100 5% 1/4W
RG4 1-247-807-31 CARBON 100 5% 1/4W
RG5 1-247-807-31 CARBON 100 5% 1/4W
RG6 1-247-807-31 CARBON 100 5% 1/4W
RG7 1-247-807-31 CARBON 100 5% 1/4W
RG8 1-247-807-31 CARBON 100 5% 1/4W
RG9 1-247-807-31 CARBON 100 5% 1/4W
RG10 1-247-807-31 CARBON 100 5% 1/4W
RG11 1-247-807-31 CARBON 100 5% 1/4W
RG12 1-247-807-31 CARBON 100 5% 1/4W
RS1 1-216-073-00 METAL CHIP 10K 5% 1/10W
RS2 1-216-073-00 METAL CHIP 10K 5% 1/10W
RS5 1-216-295-00 METAL CHIP 0 5% 1/10W
