3D Production System
The new dimension in creativity

2
The world is going 3D. From cinematic spectaculars to stadium concerts to live sports on television, 3D is
transforming entertainment. From movie theaters to epic videogames to Blu-ray Disc packaged media,
3D is everywhere, adding a new dimension of realism, immersion and excitement.
Sony should know. We're active in every aspect of 3D from the sound stages of Hollywood to the playing
fields of international sports to the projection rooms of cinemas everywhere. We know 3D from the lens
to the living room and all points in between. It's no accident that our best broadcast cameras are
designed to be mounted using "T" adaptors in 3D rigs. It's no coincidence that we introduced our
HDCAM SR™ portable recorder years ago with 3D capability built in.
We've been listening to—and working with—the leading content creators in this 3D revolution. You see
some of the results on these pages. But this is just the beginning. Sony continues to address the
formidable challenges of 3D workflow, to make 3D a practical reality for professionals at every level.
Sony: Leading the way in 3D
3D begins with a pair of cameras capturing images from the
position of both the right and left human eyes. 3D ends with a
display and glasses capable of presenting these images properly
to the left and right eye. In between camera and display, the
entire production chain must handle the two information streams
with high resolution and perfect synchronization. This impacts
every stage of the workflow, from production to transmitting;
recording, editing, and final presentation on the screen. That is
the formidable challenge of 3D content creation. And to this
challenge, Sony has a full range of practical solutions.
We can capture the image with a range of cameras suitable for 3D
mounting. In fact, many of the most successful and visible 3D
projects to date were shot with Sony cameras. Sony meets the
challenge of 3D recording with the HDCAM SR field recorder and
studio deck, which record dual streams of exceptional quality. For
broadcasting, our MVS-8000G and MVS-8000X production
switchers offer Dual Stream mode. In the theater, our SRX-R320
digital cinema projector helps today's 3D movies look their best.
These are landmark 3D systems. But at Sony, we consider them
simply the starting point. We continue to devote intelligence and
imagination to the challenges of 3D production.
3D Production
Cameras
To perform in the real world, a 3D camera rig must combine high
performance, light weight and compact size. Sony has anticipated
these challenges.
HDC-1500 portable camera / HKC-T1500 adaptor
Our HDC-1500 Series portable camera is a fixture in television
studios and major league sporting venues. Sony has created an
option for even smaller size and lighter weight. The HKC-T1500
adaptor enables operators to actually take the "business end" of
the camera, the CCD block, out of the body and shoot with it. It's
perfect for today's 3D rigs.
HDC-P1 point-of-view camera
For even greater portability, we took the essence of our HDC-1500
Series and built it into an ultra-compact point-of-view camera.
Because side-by-side 3D rigs put an emphasis on slender
cameras, the HDC-P1 is just 86 mm (3-1/2") wide. Features
include three full HD 2/3-inch CCDs, 1080i and 720p possibilities,
even Neutral Density and Color Correction filter wheels—
everything professionals expect from a Sony camera. Sony also
offers a 1080/24/25/30p option, the HCZ-PSFP1 software upgrade.

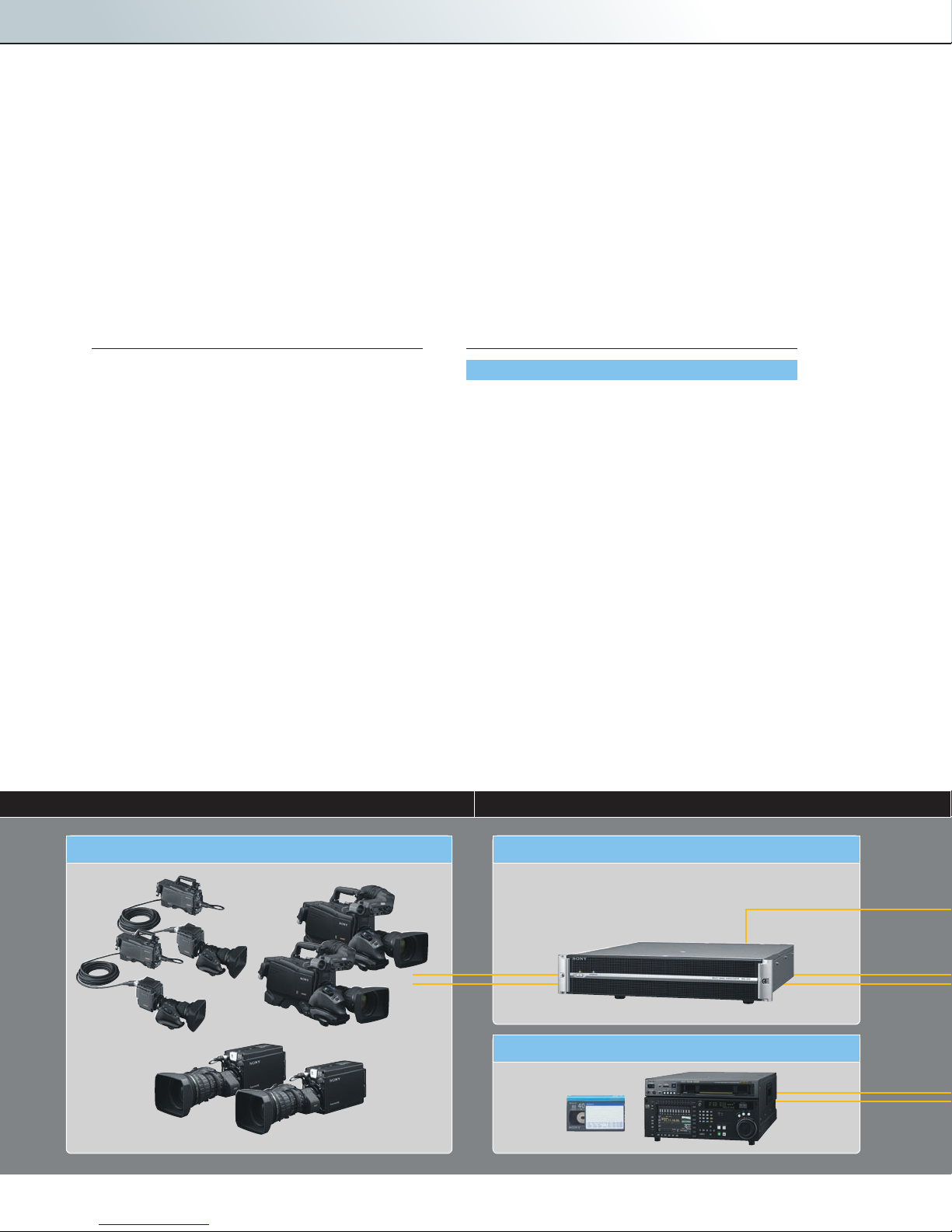

ACQUISITION CORRECTION EDITING
3D Camera System with 3D Rig
HDC-1500R
HKC-T1500
HDC-P1
MPE-200 with MPES-3D01
software
SRW-5100
LMD-2451TD LMD-4251TD
HDCAM-SR Tape
SRW-5800
HDCAM-SR Tape
MVS-8000G
with 3D Utility Software
CCP-8216
3D DME Wipe
3D Key Depth Control
Left
Right
Left
Right
Stereo Image Processor
HDCAM-SR VTR
HDCAM-SR VTR
3D Monitor Switcher
Sony’s 3D Production System

3
3D Recorders
After close consultation with Hollywood visionaries, Sony built the
SRW-1 HDCAM-SR field recorder expressly for 3D capture, with the
ability to record simultaneous left-eye and right-eye HD streams of
exceptional quality. In Dual Stream mode, the images from two
cameras can be recorded simultaneously. And in 3D Field
Sequence mode, it’s easy to monitor 3D images using a
compatible 3D monitor.
Stereo image processor
To simplify the 3D workflow, Sony offers the sophisticated MPE-200
multi-image processor and optional stereo software. These
empower you to analyze 3D images and make fine adjustments.
You can use the MPE-200 to produce high-quality 3D from even
simple camera rigs.
The processor is also versatile, providing a variety of 3D monitoring
methods including 50% mix, above/below, anaglyph, difference,
and side-by-side.
3D monitors
Professional 3D requires professional-grade monitoring. That's why
Sony has created the LUMA™ Series LMD-4251TD and LMD-2451TD.
These cover a range of applications with 42-inch and 24-inch
screens (1067-mm and 613-mm viewing area, measured
diagonally).
A micro polarizer screen attached to the LCD panel works in
conjunction with supplied passive 3D glasses to separate right-eye
and left-eye images. Because the glasses use circular polarization,
you'll see virtually flicker-free 3D images, a huge advantage when
you're spending countless hours in front of the monitor.
As with other high-specification LUMA monitors, these models offer
Sony's ChromaTRU™ color matching, full HD resolution and wide
viewing angle. With optional dual-stream HD-SDI interface boards,
these monitors support 1080/59.94i, 1080/50i, 1080/24PsF and
1080/23.98PsF signals.
3D editing
You can play back stereo 3D tapes from the SRW-1 field recorder
using the SRW-5800 and SRW-5100 studio decks. These
machines are already fixtures in Hollywood movie studios,
postproduction houses, broadcast centers and mobile production
units. Both decks excel in linear and non-linear editing rooms.
3D live production
From the rock concert to the basketball arena to the football field
and the soccer pitch, Sony equipment is well established in 3D live
production. Sony's acclaimed MVS-8000G and MVX-8000X
production switchers enable 3D production with the same familiar
control surface and same operating facilities as in HD production.
Optional software upgrades enable the switchers to stream
simultaneous right-eye and left-eye images in full HD, and to
output these images to 3D monitors, 3D projectors and 3D
distribution channels.
ACQUISITION CORRECTION EDITING
3D Camera System with 3D Rig
HDC-1500R
HKC-T1500
HDC-P1
MPE-200 with MPES-3D01
software
SRW-5100
LMD-2451TD LMD-4251TD
HDCAM-SR Tape
SRW-5800
HDCAM-SR Tape
MVS-8000G
with 3D Utility Software
CCP-8216
3D DME Wipe
3D Key Depth Control
Left
Right
Left
Right
Stereo Image Processor
HDCAM-SR VTR
HDCAM-SR VTR
3D Monitor Switcher
Superior 3D Creative Content Workflow for Cinema Production and Live Shooting

3D cinema projection
As delighted moviegoers can attest, Sony's 4K SXRD™ projector, the SRX-R320 excels at 3D cinema
presentation. The projector presents 3D in conjunction with an optional 3D dual lens adaptor and
3D filters. Conventional digital 3D projectors use a "triple-flash" system, rapidly alternating between
left-eye and right-eye pictures. Sony 4K projection has enough resolution to present both complete
2K images simultaneously. So both eyes receive all the resolution, all the time. It's, bright, realistic,
high-quality 3D with more faithful reproduction of motion. Another part of the solution is Sony's
LMT-300 Media Block, a digital cinema server that plays back industry-standard DCI Digital Cinema
Package files.
Operating in 3D, the SRX-R320 projector supports screens up to 15 meters (50 feet) wide in Side
Masking mode, up to 12 meters (40 feet) wide in Top-bottom Masking mode.
3D Projector
3D SCREENING
Digital Cinema Projector
SRX-R320 with Digital Cinema System
SRW-5800
HDCAM-SR Tape
HDCAM-SR VTR
Left
Right
V-2465 (MK10670V1)
©2010 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
Sony, ChromaTRU, CineAlta, HDCAM SR and LUMA, make.believe
and SXRD are trademarks of Sony.
Printed in USA (4/10)
