Operating Instructions
Manual de instrucciones
ｻ鄙ｳｸｭ
2000 Sony Corporation
WX-C5000
Changer Control
Audio Master
GB
ES
CT
KR

2
Welcome !
Thank you for purchasing the Sony Changer
Control Audio Master. This unit lets you enjoy
a variety of features as well as an optional
rotary commander.
In addition to the CD playback, tape playback
and radio operations, you can expand your
system by connecting an optional MD/CD
unit*.
*You can connect a CD changer, an MD changer, a
CD player and an MD player.
Precautions
• If your car was parked in direct sunlight
resulting in a considerable rise in
temperature inside the car, allow the unit to
cool off before operating it.
• If no power is being supplied to the unit,
check the connections first. If everything is in
order, check the fuse.
• If no sound comes from the speakers of
two-speaker systems, set the fader control to
the centre position.
•If your car is equipped with a power aerial, it
will extend automatically while the unit is
operating.
If you have any questions or problems
concerning your unit that are not covered in
this manual, please consult your nearest Sony
dealer.
Moisture Condensation
On a rainy day or in a very damp area,
moisture may condense on the lenses inside
the CD player. Should this occur, the unit will
not operate properly. In such a case, remove
the disc and wait for about an hour until the
moisture has evaporated.
To maintain high quality sound

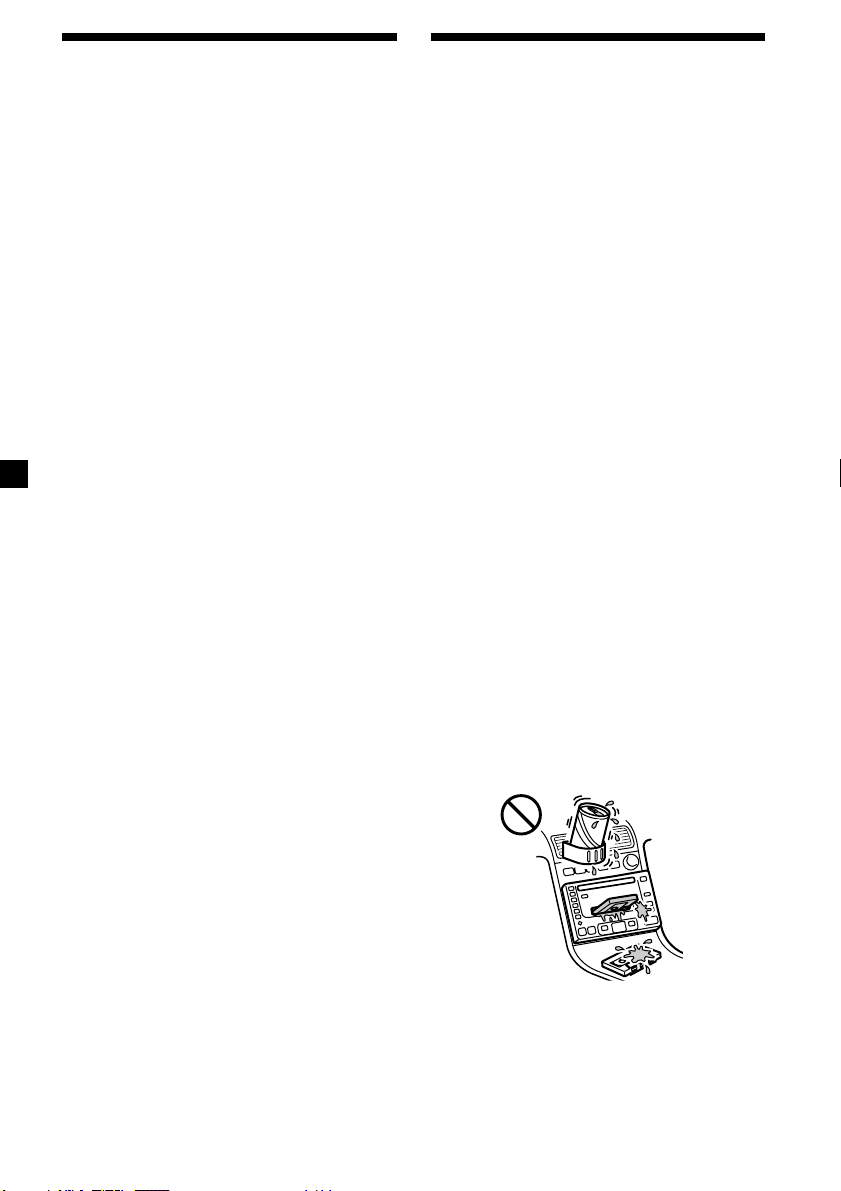

If you have drink holders near your audio
equipment, be careful not to splash juice or
other soft drinks onto the unit and CD/
cassette. Sugary residues on the unit or CD/
cassette may contaminate the lenses or
playback heads inside the unit, reduce the
sound quality, or prevent sound reproduction
altogether.
Cassette cleaning kits cannot remove sugar
from the tape heads.

3
Table of Contents
This Unit Only
Location of controls ............................................ 4
Notes on CDs ....................................................... 6
Notes on Cassettes .............................................. 7
Getting Started
Resetting the unit ................................................ 8
Using the dummy cover .................................... 8
Setting the clock .................................................. 8
CD Player
Listening to a CD ................................................ 9
Playing a CD in various modes ...................... 10
Cassette Player
Listening to a tape ............................................. 10
Playing a tape in various modes ..................... 11
Radio
Memorising stations automatically
— Best Tuning Memory (BTM) ................. 12
Memorising only the desired stations............ 12
Receiving the memorised stations .................. 12
Other Functions
Labelling the rotary commander .................... 13
Using the rotary commander .......................... 14
Adjusting the sound characteristics ............... 15
Quickly attenuating the sound ....................... 15
Changing the sound and beep tone ............... 16
Selecting the spectrum analyzer ..................... 16
Changing the brightness of the display
automatically
— Auto dimmer ........................................... 16
With Optional Equipment
CD/MD unit
Playing a CD or MD ......................................... 17
Playing tracks repeatedly
— Repeat Play .............................................. 17
Playing tracks in random order
— Shuffle Play .............................................. 18
Additional Information
Maintenance....................................................... 18
Specifications ..................................................... 19
Troubleshooting guide ..................................... 20

4

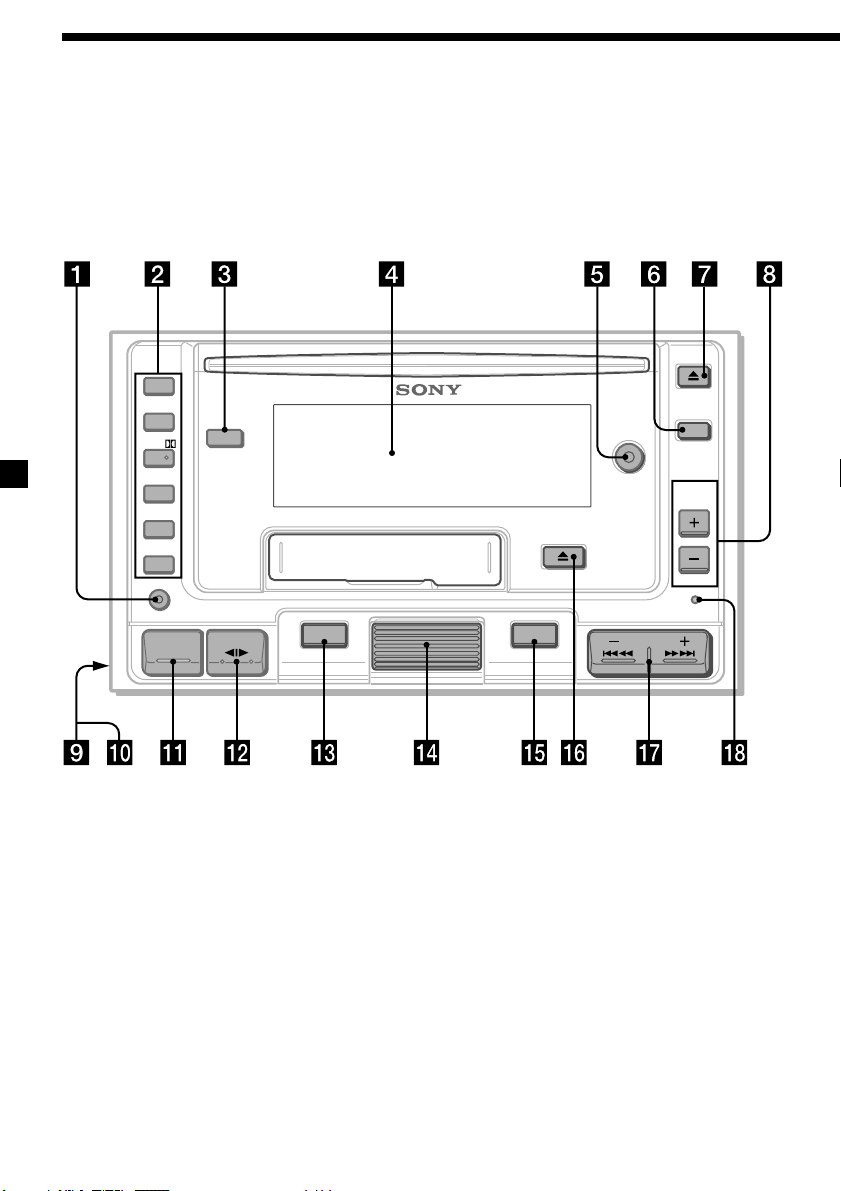

Location of controls
CD
TAPE
DISC
PRESET/
REPEAT
D-BASS
SOUND
SHUF/
METAL
ATA
BL SKIP
DSPL
SENS
BTM
1
2
3
4
5
6
SA
MODE
OFF
SEEK/AMS
SOURCE

5
Refer to the pages for details.
1SENS/BTM (sensitivity adjust/best
tuning memory) button 12, 13
2During tuner reception:
Preset number buttons 12
During tape/CD/MD playback:
(2) REPEAT button 10, 11, 17
(3) SHUF/;(Shuffle/Dolby) button
10, 11, 18
(4) METAL button 11
(5) ATA (Automatic Tuner Activation)
button 11
(6) BL SKIP (Blank Skip) button 11
3SA (Spectrum Analyzer) button 16
4Display window
5D-BASS button 16
6OFF button 9, 10
7CD Z(eject) button 9
8PRESET/DISC button
During radio reception:
Preset station search 13
During CD/MD playback:
Disc select 17
9Frequency Select switch (located on the
left side of the unit)
See “Frequency Select Switch” in the
Installation/Connections manual.
0POWER SELECT switch (located on the
left side of the unit)
See “POWER SELECT Switch” in the
Installation/Connections manual.
qa SOURCE (source select) button 9, 10, 12,
17
qs MODE/o(band/unit select/tape
transport direction change) button
10, 12, 17
qd DSPL (display mode change) button
8, 9, 11, 13, 17
qf Jog roller (volume/bass/treble/balance/
fader) 8, 15
Jog roller usually functions as a volume
control except in some adjusting modes.
qg SOUND button 8, 15, 16
qh TAPE Z(eject) button 10
qj SEEK/AMS (seek/Automatic Music
Sensor/manual search) button 10, 11,
12, 13, 17
qk Reset button 8
When the positions of switch 9and 0have
been changed, be sure to press the reset button
after connecting power.

6
Notes on CDs
A dirty or defective disc may cause sound
dropouts while playing. To enjoy optimum
sound, handle the disc as follows.
Handle the disc by its edge. To keep the disc
clean, do not touch the surface.
Do not stick paper or tape on the disc.
Do not expose the discs to direct sunlight or
heat sources such as hot air-ducts, or leave
them in a car parked in direct sunlight where
there can be a considerable rise in temperature
inside the car.
Before playing, clean the discs with an optional
cleaning cloth. Wipe each disc from the centre
out.
Do not use solvents such as benzine, thinner,
commercially available cleaners, or antistatic
spray intended for analog discs.
Notes on discs
If you use the discs explained below, the sticky
residue can cause the CD to stop spinning and
may cause malfunction or ruin your discs.
Do not use second-hand or rental CDs that
have a sticky residue on the surface (for
example, from peeled-off stickers or from ink,
or glue leaking from under the stickers).
There are paste residue.
Ink is sticky.
Do not use rental CDs with old labels that are
beginning to peel off.
Stickers that are
beginning to peel away,
leaving a sticky residue.
Do not use your CDs with labels or stickers
attached.
Labels are attached.
Notes on CD-R discs
•You can play CD-Rs (recordable CDs) on this
unit. However depending on the conditions
of the recording equipment or the CD-R disc
itself, some CD-Rs cannot be played on this
unit.
•You cannot play a CD-R that is not finalized
(Finalization is necessary for a recorded CD-
R disc to be played on the audio CD player).
•You cannot play CD-RWs (rewritable CDs)
on this player.
When you play 8 cm CDs
Use the optional Sony compact disc single
adaptor (CSA-8) to protect the CD player from
damage.

7
Notes on Cassettes
Cassette care
• Do not touch the tape surface of a cassette, as
any dirt or dust will contaminate the heads.
• Keep cassettes away from equipment with
built-in magnets such as speakers and
amplifiers, as erasure or distortion on the
recorded tape could occur.
• Do not expose cassettes to direct sunlight,
extremely cold temperatures or moisture.
• Slack in the tape may cause the tape to be
caught in the machine. Before you insert the
tape, use a pencil or similar object to turn the
reel and take up any slack.
• Distorted cassettes and loose labels can cause
problems when inserting or ejecting tapes.
Remove or replace loose labels.
•The sound may become distorted while
playing the cassette. The cassette player head
should be cleaned after each 50 hours of use.
Cassettes longer than 90 minutes
The use of cassettes longer than 90 minutes is
not recommended except for long continuous
play. The tapes used for these cassettes are
very thin and tend to be stretched easily.
Frequent playing and stopping of these tapes
may cause them to be pulled into the cassette
deck mechanism.
Slack

8
Setting the clock
The clock uses a 12-hour digital indication.
Example: Set the clock to 10:08
1Press (DSPL) for two seconds.
The hour digit flashes.
1Set the hour.
2Press (SOUND).
The minutes digits flash.
3Set the minute.
Getting Started
Resetting the unit
Before operating the unit for the first time or
after replacing the car battery, you must reset
the unit.
Press the reset button with a pointed object,
such as a ballpoint pen.
CD
TAPE
REPEAT
OFFD-BASS
SOUND
SEEK/AMS
1
2
SHUF/
3
METAL
4
ATA
5
BL SKIP
6
DSPL
SA
SENS
MODE
SOURCE
DISC
PRESET/
BTM
Reset button
Notes
• Pressing the reset button will erase the clock and
some memorised functions.
• When you connect the power supply cord to the
unit or reset the unit, wait for about 10 seconds
before you insert a disc. If you insert a disc
within these 10 seconds, the unit will not be
reset, and you will have to press the reset button
again.
Using the dummy cover
To deter theft of this unit, use the dummy
ashtray cover when not using your car.
Note
If the unit does not extend 6 mm from the
dashboard, you may not be able to use the dummy
cover.
To go backward
To go backward
To go forward
To go forward

9
CD Player
Listening to a CD
Simply insert the CD.
Playback starts automatically.
Labelled side up
If a CD is already inserted, press (SOURCE)
repeatedly until “CD” appears.
To Press
Stop playback (OFF)
Eject the CD CD Z
Note
If you leave the disc in the insertion slot for more
than 15 seconds after pressing CD Z, the disc will
reinsert automatically to protect the disc.
Changing the display item
Each time you press (DSPL), the item changes
as follows:
Track number/Elapsed playing time
Y
Clock
2Press (DSPL).
The clock starts.
Note
If the POWER SELECT switch on the left side of the
unit is set to the Bposition, turn the power on
first by pressing (SOURCE), then set the clock.
Elapsed playing
time
Track number
continue to next page t

10
Cassette Player
Listening to a tape
Insert a cassette.
Playback starts automatically.
If a cassette is already inserted, press
(SOURCE) until “TAPE” appears.
The side facing up is played.
The side facing down is played.
Tip
To change the tape transport direction, press
(MODE) (o) during tape playback.
To Press
Stop playback (OFF)
Eject the cassette TAPE Z
Fast-winding the tape
During playback, press and hold either
side of (SEEK/AMS) for two seconds.
SEEK/AMS
To start playback during fast-forwarding or
rewinding, press (MODE) (o).
Locating a specific track
— Automatic Music Sensor (AMS)
During playback, press either side of
(SEEK/AMS) momentarily.
SEEK/AMS
Locating a specific point in a track
— Manual Search
During playback, press and hold either
side of (SEEK/AMS). Release the button
when you have found the desired point.
SEEK/AMS
Note
If “ ” or “ ” appears in the display,
that means you have reached the beginning or the
end of the disc and you cannot go any further.
Playing a CD in various
modes
You can play CDs in various modes:
•REPEAT (Repeat Play) repeats the current
track.
•SHUF (Shuffle Play) plays all the tracks in
random order.
Playing tracks repeatedly
— Repeat Play
Press (2) (REPEAT) during playback.
“REP 1” appears on the display and repeat
play starts.
To return to the normal playback mode, press
(2) (REPEAT) again.
Playing tracks in random order
— Shuffle Play
Press (3) (SHUF/;) during playback.
“SHUF 1” appears on the display and
shuffle play starts.
To return to the normal playback mode, press
(3) (SHUF/;) again.
To search forwardTo search backward
To locate succeeding
tracks
To locate preceding
tracks
Fast-forwardRewind

11
Playing a track repeatedly
— Repeat play
Press (2) (REPEAT) during playback.
“REP” appears on the display and repeat
play starts.
To return to the normal playback mode, press
(2) (REPEAT) again.
Playing a tape recorded in the
Dolby B NR system
Press (3) (SHUF/;) during playback.
“;” appears on the display.
To return to the normal playback mode, press
(3) (SHUF/;) again.
Playing a CrO2or metal tape
Press (4) (METAL) during playback.
“MTL” appears on the display.
To return to the normal playback mode, press
(4) (METAL) again.
Switching to the radio while fast-
winding a tape
— Automatic Tuner Activation (ATA)
Press (5) (ATA) during playback.
“ATA” appears on the display.
To return to the normal playback mode, press
(5) (ATA) again.
Skipping blanks during tape
playback — Blank skip
Press (6) (BL SKIP) during playback.
“BL SKIP” appears on the display.
To return to the normal playback mode, press
(6) (BL SKIP) again.
Locating the beginning of a track
— Automatic Music Sensor (AMS)
During playback, press either side of
(SEEK/AMS) momentarily.
SEEK/AMS
Note
The AMS function may not work when :
— the blanks between tracks are shorter than four
seconds.
— there is noise between tracks.
— there are long sections of low volume or quiet
sections.
Changing the displayed items
Each time you press (DSPL) during tape
playback, the display changes as follows:
B Tape playback B Clock B Frequency*
*While the ATA function is activated.
Playing a tape in various
modes
You can play the tape in various modes:
•REPEAT (Repeat Play) repeats the current
track.
•;(Dolby NR) lets you select the Dolby*NR
B system.
•METAL plays CrO2or metal tape.
•ATA (Automatic Tuner Activation) turns on
the tuner automatically while fast-winding
the tape.
•BL SKIP (Blank Skip) skips blanks longer
than eight seconds.
*Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing
Corporation. “DOLBY” and the double-D symbol
;are trademarks of Dolby Laboratories
Licensing Corporation.
To locate succeeding
tracks
To locate preceding
tracks

12
Radio
Memorising stations
automatically
—Best Tuning Memory (BTM)
The unit selects the stations with the strongest
signals and memorises them in the order of
their frequencies. You can store up to 6 stations
on each band (FM1, FM2, AM1, and AM2).
Caution
When tuning in stations while driving, use
Best Tuning Memory to prevent accidents.
1Press (SOURCE) repeatedly to select the
radio.
Each time you press (SOURCE), the source
changes as follows:
BCD BTAPE
Radio (band indication) b
2Press (MODE) repeatedly to select the
band.
Each time you press (MODE), the band
changes as follows:
BFM1 BFM2 BAM1 BAM2
3Press (SENS/BTM) for two seconds.
The unit stores stations in the order of their
frequencies on the number buttons.
A beep sounds when the setting is stored.
Notes
•The unit does not store stations with weak
signals. If only a few stations are received, some
number buttons will retain their former setting.
•When a number is indicated in the display, the
unit starts storing stations from the one currently
displayed.
Memorising only the
desired stations
You can store up to 6 stations on each band in
the order of your choice.
1Press (SOURCE) repeatedly to select the
radio.
2Press (MODE) repeatedly to select the
band (FM1, FM2, AM1, or AM2).
3Press either side of (SEEK/AMS) to tune
in the station that you want to store on
the number button.
4Press the desired number button ((1) to
(6)) for 2 seconds until “PRESET”
appears.
The number button indication appears in
the display.
Note
If you try to store another station on the same
number button, the previously stored station will
be erased.
Receiving the memorised
stations
1Press (SOURCE) repeatedly to select the
radio.
2Press (MODE) repeatedly to select the
band (FM1, FM2, AM1, or AM2).
3Press the number button ((1) to (6))
momentarily where the desired station is
stored.
If you cannot tune in a preset
station
Press either side of (SEEK/AMS)
momentarily to search for the station
(automatic tuning).
Scanning stops when the unit receives a
station. Press either side of (SEEK/AMS)
repeatedly until the desired station is
received.

13
Note
If the automatic tuning stops too frequently, press
(SENS/BTM) to light up “LCL”on the display (local
seek mode). Only the stations with relatively
strong signals will be tuned in.
Tips
•If you know the frequency of the station you
want to listen to, press and hold either side of
(SEEK/AMS) to locate the frequency
appoximately, then press (SEEK/AMS) repeatedly
to fine adjust to the desired frequency (manual
tuning).
•You can also select the preset stations by
pressing PRESET/DISC or .
If FM stereo reception is poor
—Monaural Mode
During FM radio reception, press
(SENS/BTM) repeatedly until “MONO”
appears.
The sound improves, but becomes
monaural (“ST”disappears).
To return to the normal mode, press
(SENS/BTM) again until “MONO”disappears.
Changing the display item
Each time you press (DSPL), the items changes
as follows:
Frequency yClock
Other Functions
You can also control the unit with a rotary
commander (optional).

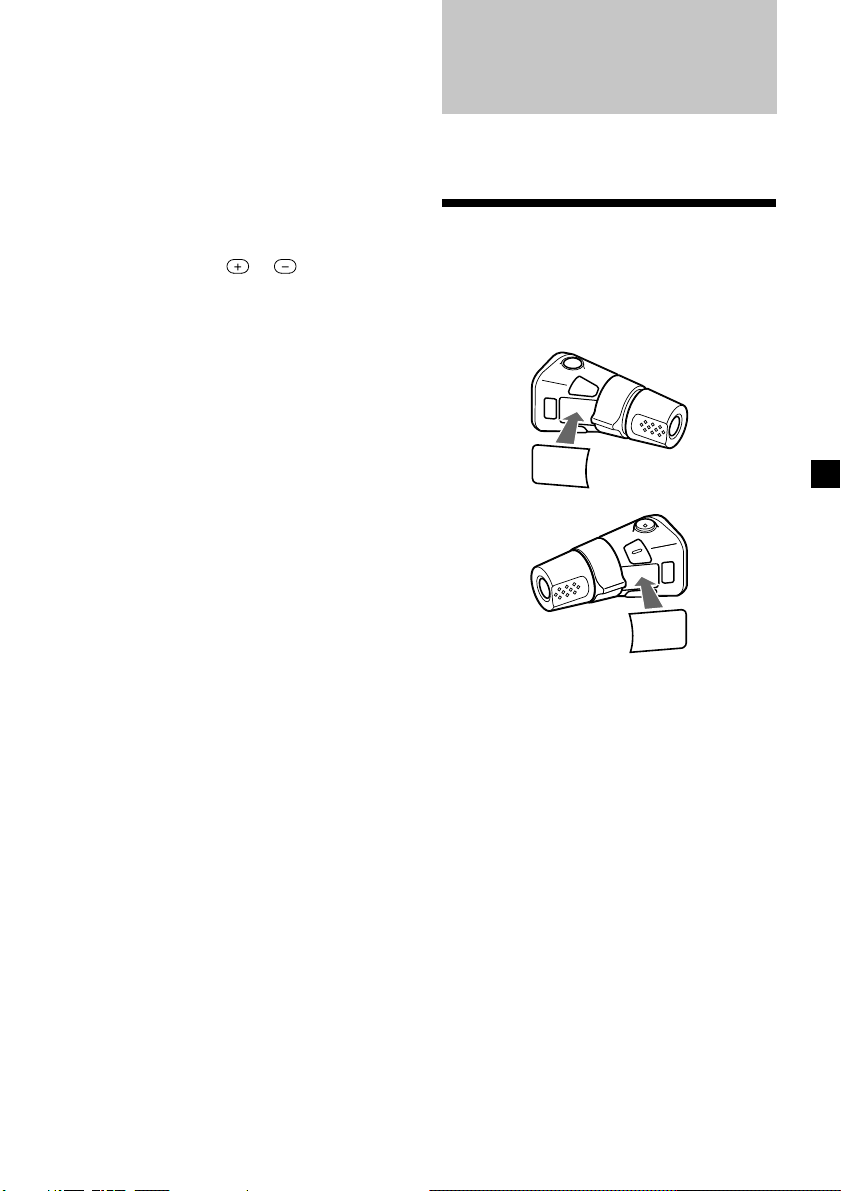

Labelling the rotary
commander
Depending on how you mount the rotary
commander, attach the appropriate label as
shown in the illustration below.
SOUND
DSPL
MODE
SOUND
DSPL
MODE

14
By rotating the control
(the SEEK/AMS control)
Rotate the control momentarily and
release it to:
•Locate the beginnings of tracks on the
tape. Rotate and hold the control, then
release it to fast-wind the tape.
•Locate a specific track on a disc. Rotate
and hold the control until you locate the
specific point in a track, then release it to
start playback.
•Tune in stations automatically. Rotate and
hold the control to find a specific station.
By pushing in and rotating the
control (the PRESET/DISC control)
Push in and rotate the control to:
•Receive the stations memorised on the
number buttons.
•Change the disc*.
*When an optional CD/MD unit is connected.
(SOURCE)
(MODE)
Using the rotary
commander
The rotary commander works by pressing
buttons and/or rotating controls.
You can control an optional CD/MD unit with
the rotary commander.
By pressing buttons
(the SOURCE and MODE buttons)
Each time you press (SOURCE), the
source changes as follows:
B Radio BCD B MD* B TAPE
*If the corresponding optional equipment is
not connected, this item will not appear.
Pressing (MODE) changes the operation
in the following ways:
• Radio: FM1 tFM2 tAM1 tAM2 tFM1
• CD unit: CD1 tCD2*t ... tCD1
• MD unit*: MD1 tMD2 t ... tMD1
• Tape: tape transport direction
*If the corresponding optional equipment is
not connected, these items will not appear.
Tip
You can turn on this unit by pressing (SOURCE) on
the rotary commander.

15
Other operations
OFF
Changing the operative direction
The operative direction of controls is factory-
set as shown below.
If you need to mount the rotary commander on
the right hand side of the steering column, you
can reverse the operative direction.
Press (SOUND) for two seconds while
pushing the VOL control.
Adjusting the sound
characteristics
1Select the item you want to adjust by
pressing (SOUND) repeatedly.
Each time you press (SOUND), the item
changes as follows:
B VOL B BAS B TRE
(volume) (bass) (treble)
FAD b BAL b
(front-rear) (left-right)
2Adjust the selected item by rotating the
jog roller.
Adjust within three seconds after selecting.
(After three seconds the jog roller will again
serve as the volume control.)
Quickly attenuating the
sound (With the rotary commander)
Press (ATT) on the rotary commander.
“ATT”flashes on the display while the
function is on.
To restore the previous volume level, press
(ATT) again.
Tip
When the interface cable of a car telephone is
connected to the ATT lead, the unit decreases the
volume automatically when a telephone call comes
in (Telephone ATT function).
Rotate the VOL control
to adjust the volume.
To increase
To decrease
Press (OFF) to
stop playback or
radio reception.
Press (ATT) to
attenuate the
sound.
Press (DSPL) to change
the display items.
Press (SOUND)
to adjust the
volume and
sound
characteristics.

16
Selecting the spectrum
analyzer
The sound signal level is displayed on a
spectrum analyzer. You can select from 8
display patterns.
During playback, press (SA) to select a
desired setting.
Each time you press (SA), the setting
changes as follows:
BSA–1 BSA–2 BSA–3
SA*bSA–8 b… b
*Patterns SA-1 to SA-8 appear for 10 seconds
each in sequence.
Adjusting the spectrum analyzer
level
You can select from three spectrum analyzer
levels.
During playback, press (SA) for two
seconds.
Each time you press and hold (SA) for two
seconds, the displayed item changes as
follows:
BL–1 BL–2*BL–3
*Factory pre-setting
Changing the brightness of
the display automatically
—Auto dimmer
If the illumination control lead is connected to
the car’s illumination signal, the display will
be dimmed when you turn the lights on.
Changing the sound and
beep tone
Boosting the bass sound — D-Bass
You can enjoy clear and powerful bass sounds.
The D-bass function boosts the low frequency
signal with a sharper curve than conventional
bass boost.
You can hear the bass line more clearly even if
the vocal sound is the same volume. You can
emphasize and adjust the bass sound easily.
0dB
D-BASS 3
D-BASS 2
D-BASS 1

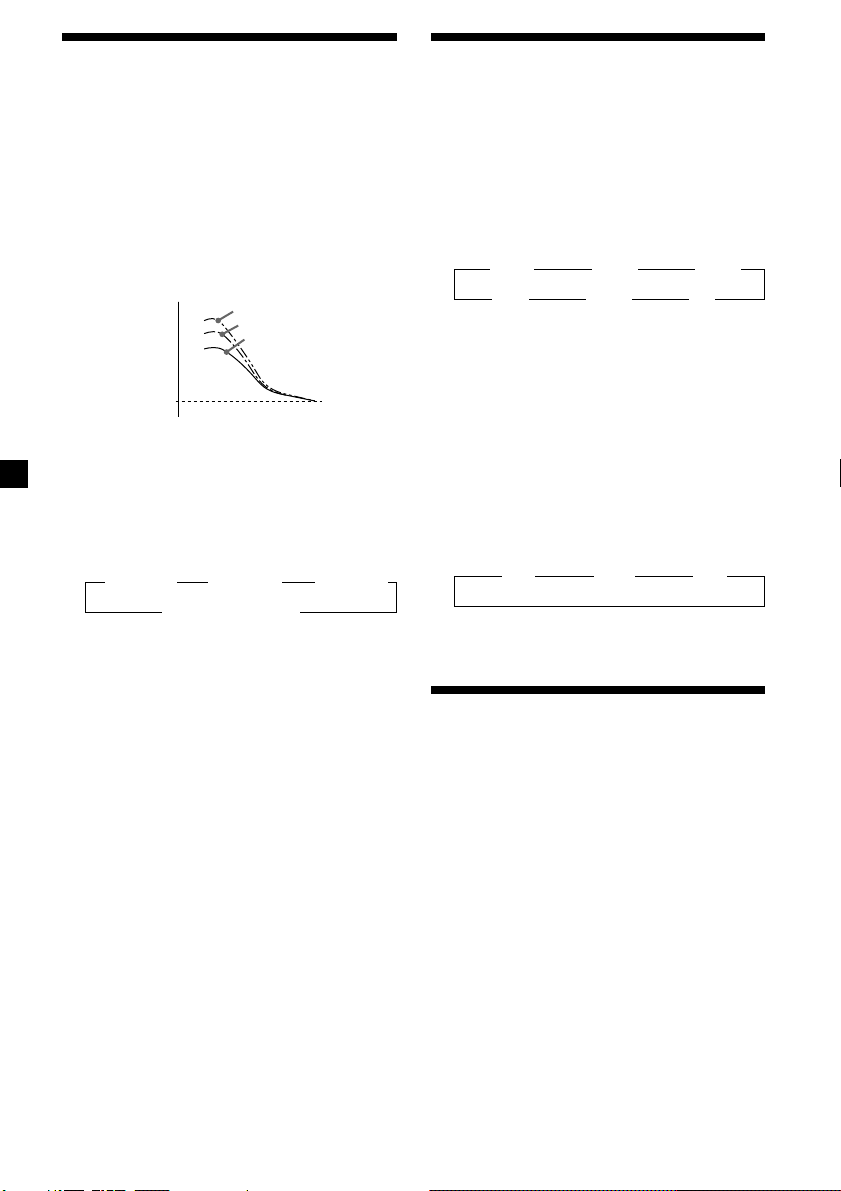

Adjusting the bass curve
Press (D-BASS) repeatedly to select the
desired bass curve.
Each time you press (D-BASS), the bass
curve changes as follows:
BD-BASS 1 BD-BASS 2 BD-BASS 3
No display (Cancel) b
As the D-BASS number increases so does
the effect.
To cancel the effect, press (D-BASS) repeatedly
until “D-BASS”disappears.
Note
The bass sound may distort at same volume. If the
bass sound distorts, select less effective bass curve.
Turning off the beep tone
Press (6) while pressing (SOUND).
To obtain the beep tone again, press these
buttons once more.
Frequency (Hz)
Level

17
With Optional Equipment
CD/MD unit
You can control two CD or MD units with this
unit.
Playing a CD or MD
1Press (SOURCE) repeatedly until “CD” or
“MD” appears.
Each time you press (SOURCE), the source
changes as follows:
B Radio BCD B MD B TAPE
2Press (MODE) repeatedly to select the
desired CD/MD changer.
CD/MD playback starts.
Switching to other discs
During playback, press PRESET/DISC
or .
DISC
PRESET/
Changing the display item
Each time you press (DSPL) during CD or MD
playback, the item changes as follows:
Disc number/
Track number/Elapsed playing time
Y
Clock
Locating a specific track
—Automatic Music Sensor (AMS)
During playback, press either side of
(SEEK/AMS) once for each track you want
to skip.
SEEK/AMS
Locating a specific point in a track
—Manual Search
During playback, press and hold either
side of (SEEK/AMS). Release the button
when you have found the desired point.
SEEK/AMS
Playing tracks repeatedly
—Repeat Play
You can select:
•REP 1 to repeat a track.
•REP 2 to repeat a disc.
•REP 3 to repeat all the discs in the current
unit.
During playback, press (2) (REPEAT)
repeatedly until the desired setting
appears.
BREP 1 BREP 2*1BREP 3*2
No display (Cancel) b
Repeat Play starts.
*1Available only when an optional CD/MD unit
is connected.
*2Available when an optional CD unit or two
or more optional MD unit is connected.
To return to the normal playback mode,
press (2) (REPEAT) repeatedly until “REP”
disappears.
Note
When you play back a CD on this unit, REP 3 has
the same function as REP 2.
To return to the previous disc
To advance to the next disc
To locate succeeding
tracks
To locate preceding
tracks
To search forwardTo search backward

18
Additional
Information
Maintenance
Fuse replacement
When replacing the fuse, be sure to use one
that matches the amperage described on the
fuse. If the fuse blows, check the power
connection and replace the fuse. If the fuse
blows again after replacement, there may be an
internal malfunction. In such a case, consult
your nearest Sony dealer.
Warning
Never use a fuse with an amperage rating
exceeding the one supplied with the unit as
this could damage the unit.
Playing tracks in random
order —Shuffle Play
You can select:
•SHUF 1 to play the tracks on the current disc
in random order.
•SHUF 2 to play the tracks in the current
changer in random order.
•SHUF All to play all the tracks in random
order.
During playback, press (3) (SHUF/;)
repeatedly until the desired setting
appears.
BSHUF 1 BSHUF 2*1BSHUF All*2
No display (Cancel) b
Shuffle Play starts.
*1Available only when an optional CD/MD unit
is connected.
*2Available when an optional CD unit or two
or more optional MD unit is connected.
To return to the normal playback mode,
press (3) (SHUF/;) repeatedly until
“SHUF”disappears.
Fuse (10 A)

19
Specifications
CD player section
Signal-to-noise ratio 94 dB
Frequency response 5 –20,000 Hz
Wow and flutter Below measurable limit
Cassette player section
Tape track 4-track 2-channel stereo
Wow and flutter 0.08 % (WRMS)
Frequency response 30 –20,000 Hz
Signal-to-noise ratio
Cassette type Dolby B NR Dolby NR off
TYPE II, IV 67 dB 58 dB
TYPE I 64 dB 55 dB
Tuner section
FM
Tuning range FM tuning interval:
50 kHz/200 kHz
switchable
87.5 –108.0 MHz
(at 50 kHz step)
87.5 –107.9 MHz
(at 200 kHz step)
Aerial terminal External aerial connector
Intermediate frequency 10.7 MHz
Usable sensitivity 9 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 65 dB (stereo),
68 dB (mono)
Harmonic distortion at 1 kHz
0.7% (stereo),
0.4% (mono)
Separation 35 dB at 1 kHz
Frequency response 30 –15,000 Hz
AM
Tuning range AM tuning interval:
9 kHz/10 kHz switchable
531 –1,602 kHz
(at 9 kHz step)
530 –1,710 kHz
(at 10 kHz step)
Aerial terminal External aerial connector
Intermediate frequency 10.71 MHz/450 kHz
Sensitivity 30 µV
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4 –8 ohms
Maximum power output 45 W ×4 (at 4 ohms)
General
Outputs Audio outputs (2)
Power aerial relay control
lead
Power amplifier control
lead
Inputs Telephone ATT control
lead
Illumination control lead
BUS audio input connector
BUS control input
connector
Power requirements 12 V DC car battery
(negative ground)
Dimensions Approx. 178 ×100 ×181 mm
(w/h/d)
Mounting dimensions Approx. 178 ×100 ×160 mm
(w/h/d)
Mass Approx. 2.2 kg
Supplied accessories Parts for installation and
connections (1 set)
Dummy cover (1)
Optional accessories Rotary commander
RM-X4S
BUS cable (supplied with
an RCA pin cord)
RC-61 (1 m), RC-62 (2 m)
BUS cable
RC-U305 (0.5 m)
Optional equipment CD changer (10 discs)
CDX-828, CDX-838,
CDX-737, CDX-636
MD changer (6 discs)
MDX-65
Source selector
XA-C30
Note
This unit cannot be connected to a digital
preamplifier or an equalizer.
Design and specifications are subject to change
without notice.

20
Troubleshooting guide
The following checklist will help you remedy the problems you may encounter with your unit.
Before going through the checklist below, check the connection and operating procedures.
General
Problem
No sound.
The clock display does not
appear when the power is on.
The contents of the memory
have been erased.
No beep tone.
Stored stations and correct time
are erased.
The fuse has blown.
Makes noise when the ignition
key is in the ON, ACC, or OFF
position.
No power is being supplied to
the unit.
The power is continuously
supplied to the unit.
The power aerial does not
extend.
Cause/Solution
•Cancel the ATT function.
•Set the fader control to the centre position for two-speaker
systems.
•Rotate the jog roller upward to adjust the volume.
The POWER SELECT switch is set to B.
tSet the POWER SELECT switch to A, then press the reset
button. (Only for cars with an accessory position on the
ignition key switch.)
•The power cord or battery has been disconnected.
•The reset button has been pressed.
tStore again into the memory.
•An optional power amplifier is connected and you are not
using the built-in amplifier.
•The beep tone is muted (page 16).
The leads are not matched correctly with the car’s accessory
power connector.
The car does not have an ACC position.
The power aerial does not have a relay box.
