Sony DSX-A30 User manual

4-408-052-12(1)
DSX-A30
FM/AM
Digital Media
Player
To switch the FM/AM tuning step, see page 4.
To cancel the demonstration (DEMO) display, see page 4.
Para cambiar el paso de sintonización de FM/AM, consulta la
página 4.
Para cancelar la pantalla de demostración (DEMO), consulte la
página 4.
Operating Instructions GB
Manual de
instrucciones
ES

2
Be sure to install this unit in the
dashboard of the car for safety.
For installation and connections,
see the supplied installation/connections
manual.
Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/or
other countries.
Warning if your car’s ignition has no
ACC position
Be sure to set the Auto Off function
(page 15). The unit will shut off
completely and automatically in the set
time after the unit is turned off, which
prevents battery drain. If you do not set
the Auto Off function, press and hold
 until the display
disappears each time you turn the
ignition off.
This product contains technology subject
to certain intellectual property rights of
Microsoft. Use or distribution of this
technology outside of this product is
prohibited without the appropriate
license(s) from Microsoft.
MPEG Layer-3 audio coding technology
and patents licensed from Fraunhofer IIS
and Thomson.

3
Table of contents
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Switching the FM/AM tuning step (for non-Argentine models) . . . . . . . . . . . . . . . . . 4
Canceling the DEMO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Detaching the front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Location of controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Main unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
RM-X211 Remote commander . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Storing and receiving stations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
RDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
USB devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Playing back a USB device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Searching and playing tracks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Playing tracks in various modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Searching a track by name — Quick-BrowZer™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Sound Settings and Setup Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Changing the sound settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Enjoying sophisticated sound functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Adjusting setup items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Using optional equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Auxiliary audio equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

4
Getting Started
Switching the FM/AM
tuning step (for non-
Argentine models)
The FM/AM tuning step is factory-set to the
50 kHz (FM)/9 kHz (AM) position. If the
frequency allocation system of your country
is based on 200 kHz (FM)/10 kHz (AM) or
100 kHz (FM)/10 kHz (AM) step, set the
tuning step before use.
This setting appears when turned off.
1Press and hold the select button.
The setup display appears.
2Rotate the control dial until “TUNER-
STP” appears, then press it.
3Rotate the control dial to select from
“50K/9K,” “100K/10K” or “200K/10K,”
then press it.
Receivable frequency by selected frequency
setup:
FM 50 kHz: 87.50 MHz, 87.55 MHz, 87.60
MHz...
FM 100 kHz: 87.5 MHz, 87.6 MHz, 87.7
MHz...
FM 200 kHz: 87.5 MHz, 87.7 MHz, 87.9
MHz...
AM 9 kHz: 531 kHz, 540 kHz, 549 kHz...
AM 10 kHz: 530 kHz, 540 kHz, 550 kHz...
Canceling the DEMO
mode
You can cancel the demonstration display
which appears during turning off.
1Press and hold the select button.
The setup display appears.
2Rotate the control dial until “DEMO”
appears, then press it.
3Rotate the control dial to select
“DEMO-OFF,” then press it.
The setting is complete.
4Press (BACK).
The display returns to normal reception/
play mode.
Setting the clock
The clock uses a 12-hour* digital indication.
* The Argentine model uses a 24-hour indication.
1Press and hold the select button.
The setup display appears.
2Rotate the control dial until “CLOCK-
ADJ” appears, then press it.
The hour indication flashes.
3Rotate the control dial to set the hour
and minute.
To move the digital indication, press
 –/+.

5
4After setting the minute, press the
select button.
The setup is complete and the clock
starts.
To display the clock, press .
Detaching the front panel
You can detach the front panel of this unit
to prevent theft.
1Press and hold .
The unit is turned off.
2Press , then pull it off towards you.
Caution alarm
If you turn the ignition switch to the OFF
position without detaching the front panel,
the caution alarm will sound for a few
seconds. The alarm will only sound if the
built-in amplifier is used.
Note
Do not subject the front panel to heat/high
temperature or moisture. Avoid leaving it in a
parked car or on a dashboard/rear tray.
Attaching the front panel
Engage part of the front panel with part
of the unit, as illustrated, and push the
left side into position until it clicks.

6
Location of controls
Main unit
This section contains instructions on the
location of controls and basic operations.
(BROWSE) button page 12
To enter the Quick-BrowZer™mode.
SOURCE/OFF button
Press to turn on the power/change the
source (Radio/USB/AUX).
Press and hold for 1 second to turn off
the power.
Press and hold for more than 2 seconds
to turn off the power and the display
disappears.
Control dial/select button page 13,
15
To adjust volume (rotate); enter sound
setting (press); enter menu (press and
hold); select setup items (press and
rotate).
MODE button page 9
Press to select the radio band (FM/AM).
Display window
(BACK) button
Press to return to the previous display.
(front panel release) button
page 5

7
SEEK –/+ buttons
Radio:
To tune in stations automatically
(press); find a station manually (press
and hold).
USB:
To skip tracks (press); skip tracks
continuously (press, then press again
within about 1 second and hold);
reverse/fast-forward a track (press and
hold).
Receptor for the remote
commander
PTY button page 10
To select PTY in RDS.
Number buttons
Radio:
To receive stored stations (press); store
stations (press and hold).
USB:
/*: ALBUM /(during MP3/
WMA/AAC playback)
To skip albums (press); skip
albums continuously (press and
hold).
: PAUSE
: SHUF page 12
DSPL (display)/SCRL (scroll) button
page 10, 11
To change display items (press); scroll
the display item (press and hold).
USB connector page 11

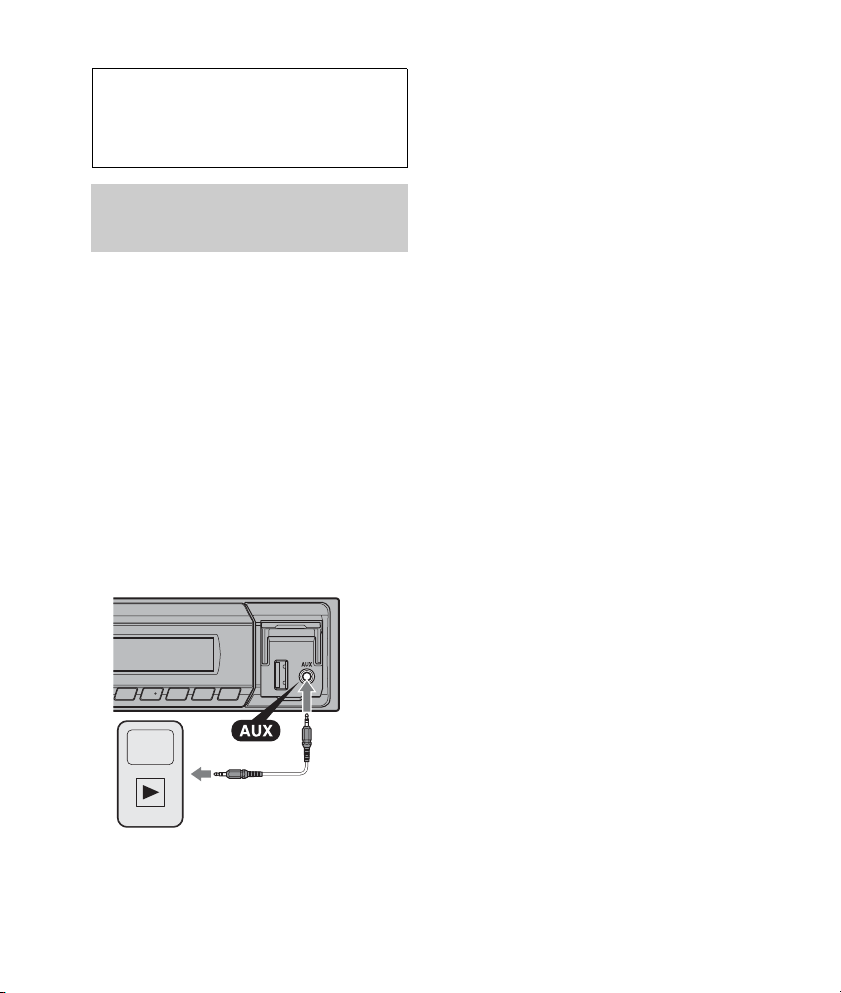

AUX input jack page 16
* This button has a tactile dot.
Note
If the unit is turned off and the display
disappears, it cannot be operated with the remote
commander unless  on the unit
is pressed.

8

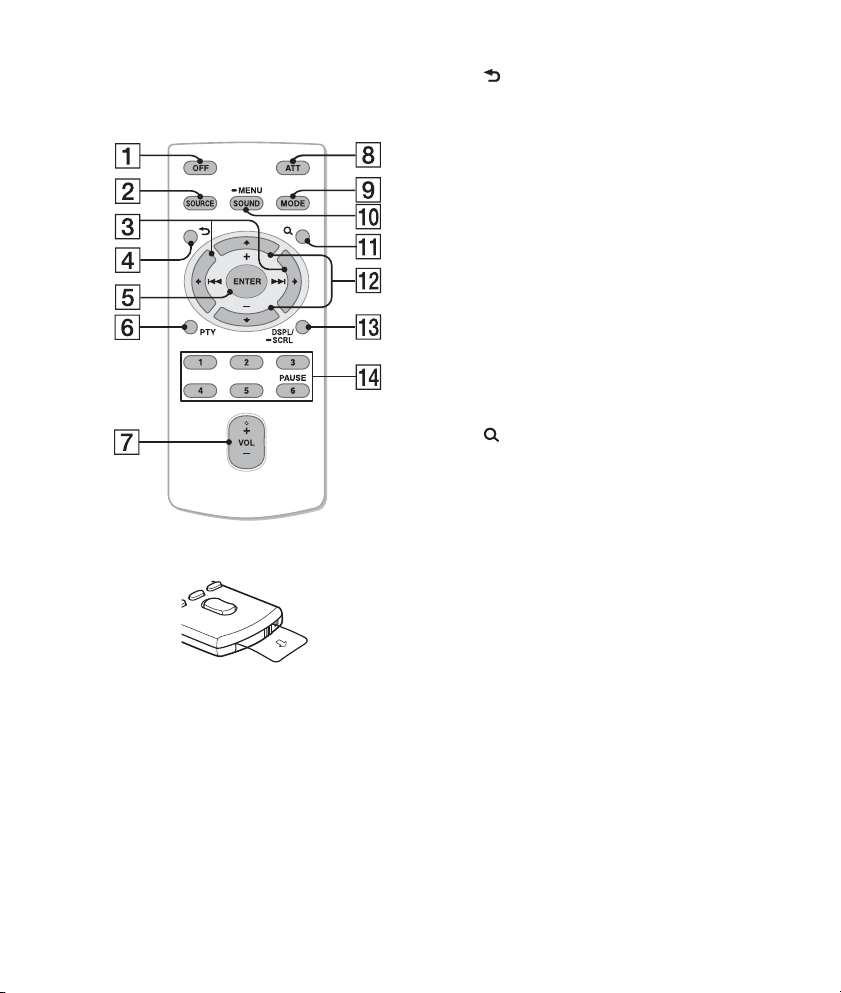

RM-X211 Remote
commander
Remove the insulation film before use.
OFF button
To turn off the power; stop the source.
SOURCE button
To turn on the power; change the
source (Radio/USB/AUX).
()/() buttons
To control Radio/USB, the same as
 –/+ on the unit.
Setup, sound setting, etc., can be
operated by .
(BACK) button
ENTER button
To apply a setting.
PTY button
VOL (volume) +*/– button
ATT (attenuate) button
To attenuate the sound. To cancel, press
again.
MODE button
Press to select the radio band (FM/AM).
SOUND/MENU button
To enter sound setting (press); enter
menu (press and hold).
(BROWSE) button
(+)/(–) buttons
To control USB, the same as /
(ALBUM /) on the unit.
Setup, sound setting, etc., can be
operated by .
DSPL/SCRL button
Number buttons
To receive stored stations (press); store
stations (press and hold).
To pause playback (press ).
* This button has a tactile dot.

9
Radio
Storing and receiving
stations
Tuning step setting is required* (page 4).
* For non-Argentine models
Notes
• If the tuning step setting is changed, the stored
stations will be erased.
• If replacing the car battery or changing the
connections, the tuning step setting will be
erased, and you will need to set again.
Caution
When tuning in stations while driving, use
Best Tuning Memory (BTM) to prevent an
accident.
Storing automatically — BTM
1Press  repeatedly until
“TUNER” appears.
To change the band, press 
repeatedly. You can select from FM1,
FM2, FM3, AM1 or AM2.
2Press and hold the select button.
The setup display appears.
3Rotate the control dial until “BTM”
appears, then press it.
The unit stores stations in order of
frequency on the number buttons.
Storing manually
1While receiving the station that you
want to store, press and hold a number
button ( to ) on the main unit
until “MEMORY” appears*.
* When the remote commander is used, the
number buttons  to  are available.
Receiving the stored stations
1Select the band, then press a number
button ( to ) on the main unit*.
* When the remote commander is used, the
number buttons  to  are available.
Tuning automatically
1Select the band, then press  +/–
to search for the station.
Scanning stops when the unit receives a
station. Repeat this procedure until the
desired station is received.
Tip
If you know the frequency of the station you want
to listen to, press and hold  +/–to locate
the approximate frequency, then press
 +/–repeatedly to fine adjust to the
desired frequency (manual tuning).

10
RDS
FM stations with Radio Data System (RDS)
service send inaudible digital information
along with the regular radio program signal.
Notes
• Depending on the country/region, not all RDS
functions may be available.
• RDS will not work if the signal strength is too
weak, or if the station you are tuned to is not
transmitting RDS data.
Changing display items
Press .
Selecting PTY (Program
Types)
Displays the currently received program
type. Also searches your selected program
type.
1Press  during FM reception.
The current program type name appears
if the station is transmitting PTY data.
2Rotate the control dial until the desired
program type appears, then press it.
The unit starts to search for a station
broadcasting the selected program type.
Type of programs
Note
You may receive a different radio program from
the one you select.
Setting CT (Clock Time)
The CT data from the RDS transmission
sets the clock.
1Set “CT-ON” in setup (page 15).
Note
The CT function may not work properly even
though an RDS station is being received.
NEWS (News), AFFAIRS (Current Affairs),
INFO (Information), SPORT (Sports),
EDUCATE (Education), DRAMA (Drama),
CULTURE (Culture), SCIENCE (Science),
VARIED (Varied), POP M (Pop Music),
ROCK M (Rock Music), EASY M (M.O.R.
Music), LIGHT M (Light classical),
CLASSICS (Serious classical), OTHER M
(Other Music), WEATHER (Weather),
FINANCE (Finance), CHILDREN
(Children’s program), SOCIAL A (Social
Affairs), RELIGION (Religion), PHONE IN
(Phone In), TRAVEL (Travel), LEISURE
(Leisure), JAZZ (Jazz Music), COUNTRY
(Country Music), NATION M (National
Music), OLDIES (Oldies Music), FOLK M
(Folk Music), DOCUMENT (Documentary)

11
USB devices
• MSC (Mass Storage Class)-type USB
devices compliant with the USB standard
can be used.
• Corresponding codec is MP3 (.mp3),
WMA (.wma) and AAC (.m4a).
• Backup of data in a USB device is
recommended.
For details on the compatibility of your USB
device, visit the support site on the back
cover.
Note
Connect the USB device after starting the engine.
Depending on the USB device, malfunction or
damage may occur if it is connected before
starting the engine.
Playing back a USB device
1Open the USB cover, then connect the
USB device to the USB connector with
its USB cable.
Playback starts.
If a USB device is already connected, to start
playback, press  repeatedly
until “USB” appears.
To stop playback, press and hold
 for 1 second.
To remove the USB device, stop the USB
playback, then remove the USB device.
Note
Do not use USB devices so large or heavy that
they may fall down due to vibration, or cause a
loose connection.
Changing display items
Displayed items may differ depending on
the USB device, recording format and
settings.
Press .
Notes
• The maximum number of displayable data is as
follows.
– folders (albums): 128
– files (tracks) per folder: 500
• It may take time for playback to begin,
depending on the amount of recorded data.
• DRM (Digital Rights Management) files may
not be played.
• During playback or fast-forward/reverse of a
VBR (Variable Bit Rate) MP3/WMA/AAC file,
elapsed playing time may not display
accurately.
• Playback of the following MP3/WMA/AAC
files is not supported.
– lossless compression
–copyright-protected

12
Searching and
playing tracks
Playing tracks in various
modes
You can listen to tracks repeatedly (repeat
play) or in random order (shuffle play).
Available play modes differ depending on
the selected sound source.
1During playback, press and hold the
select button.
2Rotate the control dial to select
“REPEAT,” then press it.
3Rotate the control dial to select the
setting, then press it.
4Press (BACK).
Repeat play
1During playback, press  (SHUF)
repeatedly until the desired play mode
appears.
Playback in selected play mode may take
time to start.
Shuffle play
Searching a track by
name — Quick-BrowZer™
You can search for a track in a USB device
easily by category.
1Press (BROWSE)*.
The unit enters the Quick-BrowZer
mode, and the list of search categories
appears.
When the track list appears, press
(BACK) repeatedly until the desired
search category appears.
* During playback, press (BROWSE) for
more than 2 seconds to directly return to the
beginning of the category list (USB only).
2Rotate the control dial to select the
desired search category, then press it to
confirm.
3Repeat step 2 until the desired track is
selected.
Playback starts.
To exit the Quick-BrowZer mode, press
(BROWSE).
Select To play
REP-OFF track in normal order
(Normal play).
REP-TRK track repeatedly.
REP-ALB album repeatedly.
Select To play
ALBUM album in random
order.
DEVICE device in random
order.
OFF track in normal order
(Normal play).

13
Note
When entering the Quick-BrowZer mode, the
repeat/shuffle setting is canceled.
Searching by skip items
— Jump mode
When many items are in a category, you can
search the desired item quickly.
1Press  + in Quick-BrowZer
mode.
The item name will appear.
2Rotate the control dial to select the
item near the one desired.
It skips in steps of 10% of the total item
number.
3Press the select button.
The display returns to the Quick-
BrowZer mode and the selected item
appears.
4Rotate the control dial to select the
desired item and press it.
Playback starts if the selected item is a
track.
To cancel Jump mode, press (BACK) or
 –.
Sound Settings and
Setup Menu
Changing the sound
settings
Adjusting the sound
characteristics
1During reception/playback, press the
select button.
2Rotate the control dial until the desired
menu item appears, then press it.
3Rotate the control dial to select the
setting, then press it.
4Press (BACK).
The following items can be set:
EQ3 PRST (EQ3 PRESET) (page 14)
EQ3 LOW*1(page 14)
EQ3 MID*1(page 14)
EQ3 HIGH*1(page 14)
BALANCE
Adjusts the sound balance: “RIGHT-15
(R15)” – “CENTER (0)” – “LEFT-15
(L15).”

14
*1 When EQ3 is activated (page 14).
*2 When AUX source is activated (page 16).
Enjoying sophisticated
sound functions
Selecting the sound quality
— EQ3 Preset
You can select an equalizer curve from 7
equalizer curves (XPLOD, VOCAL, EDGE,
CRUISE, SPACE, GRAVITY, CUSTOM or
OFF).
1During reception/playback, press the
select button.
2Rotate the control dial until “EQ3
PRST” appears, then press it.
3Rotate the control dial until the desired
equalizer curve appears, then press it.
4Press (BACK).
To cancel the equalizer curve, select “OFF”
in step 3.
Tip
The equalizer curve setting can be memorized for
each source.
Customizing the equalizer
curve — EQ3 Setting
“CUSTOM” of EQ3 allows you to make
your own equalizer settings.
1Select a source, then press the select
button.
2Rotate the control dial until “EQ3
LOW,” “EQ3 MID” or “EQ3 HIGH”
appears, then press it.
3Rotate the control dial to adjust the
selected item, then press it.
The volume level is adjustable in 1 dB
steps, from –10 dB to +10 dB.
Repeat steps 2 and 3 to adjust the
equalizer curve.
To restore the factory-set equalizer
curve, press and hold the select button
before the setting is complete.
4Press (BACK).
FADER
Adjusts the relative level: “FRONT-15
(F15)” – “CENTER (0)” – “REAR-15
(R15).”
AUX VOL*2(AUX Volume level)
Adjusts the volume level for each
connected auxiliary equipment: “+18
dB” – “0 dB” – “–8 dB.”
This setting negates the need to adjust
the volume level between sources.

15
Adjusting setup items
1Press and hold the select button.
The setup display appears.
2Rotate the control dial until the desired
item appears, then press it.
3Rotate the control dial to select the
setting, then press it*.
The setting is complete.
4Press (BACK).
* For CLOCK-ADJ, TUNER-STP and BTM
settings, step 4 is not necessary.
The following items can be set depending
on the source and setting:
*1 This feature is available on non-Argentine
models.
*2 When the unit is turned off.
CLOCK-ADJ (Clock Adjust) (page 4)
TUNER-STP*1*2(Tuner Step) (page 4)
CT (Clock Time)
Activates the CT function: “ON,” “OFF”
(page 10).
BEEP
Activates the beep sound: “ON,” “OFF.”
CAUT ALM*2(Caution Alarm)
Activates the caution alarm: “ON,”
“OFF” (page 5).
AUX-A*2(AUX Audio)
Activates the AUX source display: “ON,”
“OFF” (page 16).
AUTO OFF
Shuts off automatically after a desired
time when the unit is turned off: “NO,”
“30S (Seconds),” “30M (Minutes),” “60M
(Minutes).”
BLK OUT (Black Out)
Turns off the illumination automatically
for any source (e.g., during radio
reception, etc.) if no operation is
performed for 5 seconds: “ON,” “OFF.”
To bring the light back on, press any
button on the unit. (When activated,
remote operation is unavailable.)
DEMO
(Demonstration)
Activates the demonstration: “ON,”
“OFF.”
DIMMER
Changes the display brightness: “ON,”
“OFF.”
AUTO SCR (Auto Scroll)
Scrolls long items automatically: “ON,”
“OFF.”
REPEAT (page 12)
LOUDNESS
Reinforces bass and treble for clear
sound at low volume levels: “ON,”
“OFF.”
BTM (page 9)

16
Using optional
equipment
Auxiliary audio
equipment
By connecting an optional portable audio
device to the AUX input jack (stereo mini
jack) on the unit and then simply selecting
the source, you can listen on your car
speakers.
Connecting the portable audio device
1Turn off the portable audio device.
2Turn down the volume on the unit.
3Connect the portable audio device to the
unit with a connecting cord (not supplied)*.
* Be sure to use a straight type plug.
Adjusting the volume level
Be sure to adjust the volume for each
connected audio device before playback.
1Turn down the volume on the unit.
2Press  repeatedly until
“AUX” appears.
3Start playback of the portable audio device
at a moderate volume.
4Set your usual listening volume on the unit.
5Adjust the input level (page 14).

17
Additional
Information
Precautions
• Cool off the unit beforehand if your car has
been parked in direct sunlight.
• Do not leave the front panel or audio devices
brought in inside the car, or it may cause
malfunction due to high temperature in
direct sunlight.
• Power antenna (aerial) extends
automatically.
To maintain high sound quality
Do not splash liquid onto the unit.
Playback order of MP3/WMA/
AAC files
If you have any questions or problems
concerning your unit that are not covered in
this manual, consult your nearest Sony dealer.
Maintenance
Replacing the lithium battery of the
remote commander
When the battery becomes weak, the range
of the remote commander becomes shorter.
Replace the battery with a new CR2025
lithium battery. Use of any other battery
may present a risk of fire or explosion.
Notes on the lithium battery
• Keep the lithium battery out of the reach of
children. Should the battery be swallowed,
immediately consult a doctor.
• Wipe the battery with a dry cloth to assure a
good contact.
• Be sure to observe the correct polarity when
installing the battery.
• Do not hold the battery with metallic tweezers,
otherwise a short-circuit may occur.
• Do not expose the battery to excessive heat such
as direct sunlight, fire or the like.
Folder
(album)
MP3/WMA/
AAC file (track)
MP3/WMA/AAC
+ side up
WARNING
Battery may explode if mistreated.
Do not recharge, disassemble, or dispose
of in fire.

18
Cleaning the connectors
The unit may not function properly if the
connectors between the unit and the front
panel are not clean. In order to prevent this,
detach the front panel (page 5) and clean the
connectors with a cotton swab. Do not apply
too much force. Otherwise, the connectors
may be damaged.
Notes
• For safety, turn off the ignition before cleaning
the connectors, and remove the key from the
ignition switch.
• Never touch the connectors directly with your
fingers or with any metal device.
Specifications
Tuner section
FM
Tuning range:
For non-Argentine models:
87.5 – 108.0 MHz (at 50 kHz step)
87.5 – 108.0 MHz (at 100 kHz step)
87.5 – 107.9 MHz (at 200 kHz step)
For Argentine models:
87.5 – 107.9 MHz
FM tuning step (for non-Argentine models):
50 kHz/100 kHz/200 kHz switchable
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency: 25 kHz
Usable sensitivity: 8 dBf
Selectivity: 75 dB at 400 kHz
Signal-to-noise ratio: 80 dB (stereo)
Separation: 50 dB at 1 kHz
Frequency response: 20 – 15,000 Hz
AM
Tuning range:
For non-Argentine models:
531 – 1,602 kHz (at 9 kHz step)
530 – 1,710 kHz (at 10 kHz step)
For Argentine models:
530 – 1,710 kHz
AM tuning step (for non-Argentine models):
9 kHz/10 kHz switchable
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency:
For non-Argentine models:
9,124.5 kHz or 9,115.5 kHz/4.5 kHz
(at 9 kHz step)
9,115 kHz or 9,125 kHz/5 kHz (at 10 kHz step)
For Argentine models:
9,115 kHz or 9,125 kHz/5 kHz
Sensitivity: 26 μV
USB Player section
Interface: USB (Full-speed)
Maximum current: 500 mA
Power amplifier section
Output: Speaker outputs
Speaker impedance: 4 – 8 ohms
Maximum power output: 50 W ×4 (at 4 ohms)
General
Outputs:
Audio outputs terminal (rear)
Power antenna (aerial)/Power amplifier control
terminal (REM OUT)
Inputs:
Remote controller input terminal
Antenna (aerial) input terminal
AUX input jack (stereo mini jack)
USB signal input connector
Power requirements: 12 V DC car battery
(negative ground (earth))

19
Dimensions: Approx. 178 ×50 ×120 mm
(7 1/8×2 ×4 7/8in) (w/h/d)
Mounting dimensions: Approx. 182 ×53 ×103 mm
(7 1/4×2 1/8×4 1/8in) (w/h/d)
Mass: Approx. 0.7 kg (1 lb 9 oz)
Supplied accessories:
Remote commander: RM-X211
Parts for installation and connections (1 set)
Your dealer may not handle some of the above
listed accessories. Please ask the dealer for
detailed information.
Design and specifications are subject to change
without notice.
Troubleshooting
The following checklist will help you remedy
problems you may encounter with your unit.
Before going through the checklist below,
check the connection and operating
procedures.
For details on using the fuse and removing the
unit from the dashboard, refer to the
installation/connections manual supplied with
this unit.
If the problem is not solved, visit the support
site on the back cover.
General
No power is being supplied to the unit.
Check the connection or fuse.
If the unit is turned off and the display
disappears, it cannot be operated with the
remote commander.
–Turnontheunit.
The power antenna (aerial) does not extend.
The power antenna (aerial) does not have a
relay box.
No sound.
The ATT function is activated.
The position of the fader control “FADER” is
not set for a 2-speaker system.
No beep sound.
The beep sound is canceled (page 15).
An optional power amplifier is connected and
you are not using the built-in amplifier.
The contents of the memory have been
erased.
The power supply lead or battery has been
disconnected or it is not connected properly.
Stored stations and correct time are erased.
The fuse has blown.
Makes noise when the position of the
ignition is switched.
The leads are not matched correctly with the
car’s accessory power connector.
During playback or reception,
demonstration mode starts.
If no operation is performed for 5 minutes
with “DEMO-ON” set, demonstration mode
starts.
– Set “DEMO-OFF” (page 15).
The display disappears from/does not
appear in the display window.
The dimmer is set to “DIM-ON” (page 15).
The display disappears if you press and hold
.
– Press  on the unit until the
display appears.
The connectors are dirty (page 18).

20
The Auto Off function does not operate.
The unit is turned on. The Auto Off function
activates after turning off the unit.
– Turn off the unit.
The display disappears while the unit is
operating.
The Black Out function is set to on (page 15).
Remote commander operation is not
possible.
If the Black Out function is activated (no
lighting), remote commander operation is not
possible (page 15).
Radio reception
The stations cannot be received.
The sound is hampered by noises.
The connection is not correct.
– Connect a power antenna (aerial) control
lead (for non-Argentine models: blue/white
striped, for Argentine models: blue) or
accessory power supply lead (red) to the
power supply lead of a car’s antenna (aerial)
booster (only when your car has built-in
radio antenna (aerial) in the rear/side glass).
– Check the connection of the car antenna
(aerial).
– If the auto antenna (aerial) will not go up,
check the connection of the power antenna
(aerial) control lead.
The tuning step setting has been erased.
– Set the tuning step again (page 4).
Preset tuning is not possible.
Store the correct frequency in the memory.
The broadcast signal is too weak.
Automatic tuning is not possible.
The broadcast signal is too weak.
– Perform manual tuning.
RDS
PTY displays “- - - - - - - -.”
The current station is not an RDS station.
RDS data has not been received.
The station does not specify the program type.
USB playback
You cannot play back items via a USB hub.
This unit cannot recognize USB devices via a
USB hub.
Cannot play back items.
A USB device does not work.
–Reconnectit.
The USB device takes longer to play back.
The USB device contains files with a
complicated tree structure.
The sound is intermittent.
The sound may be intermittent at a high-bit-
rate of more than 320 kbps.
