Sony CD Walkman D-EJ611 User manual

Portable
CD Player
Operating Instructions
About the area code
The area code of the location in which you purchased the CD player
is shown on upper left of the bar code label on the package.
For accessories supplied with your CD player, check the area code
of your model and see “Accessories (supplied/optional).”
3-868-181-21 (1)
D-EJ611
D-EJ615
2000 Sony Corporation

2
WARNING
To prevent fire or shock
hazard, do not expose the unit
to rain or moisture.
To avoid electrical shock, do
not open the cabinet. Refer
servicing to qualified
personnel only.
CAUTION
The use of optical instruments with this
product will increase eye hazard.
Certain countries may regulate disposal of
the battery used to power this product. Please
consult with your local authority.

3
Table of Contents
Getting started
Locating the Controls .................................. 4
Playing a CD
1.Connect your CD player.......................... 6
2.Insert a CD. ............................................. 6
3.Play a CD. ............................................... 6
Playback options
Playing tracks repeatedly (Repeat play) ...... 9
Playing a single track (Single play)............. 9
Playing tracks in random order
(Shuffle play)........................................... 9
Playing tracks in your favorite order
(PGM play)............................................ 10
Available features
G-PROTECTION function ........................ 11
Emphasizing the bass sound (SOUND) .... 11
Protecting your hearing (AVLS)................ 12
Locking the controls (HOLD) ................... 12
Turning off the operation beep sound........ 13
Connecting your CD player
Connecting a stereo system ....................... 14
Using your CD player in a car ................... 15
Connecting a power source
Using the rechargeable batteries................ 16
Using dry batteries..................................... 18
Notes on the power source ........................ 18
Additional information
Precautions ................................................ 19
Maintenance .............................................. 19
Troubleshooting......................................... 20
Specifications ............................................ 21
Accessories (supplied/optional) ................ 22

4
Getting started
Locating the Controls
For details, see pages in parentheses.

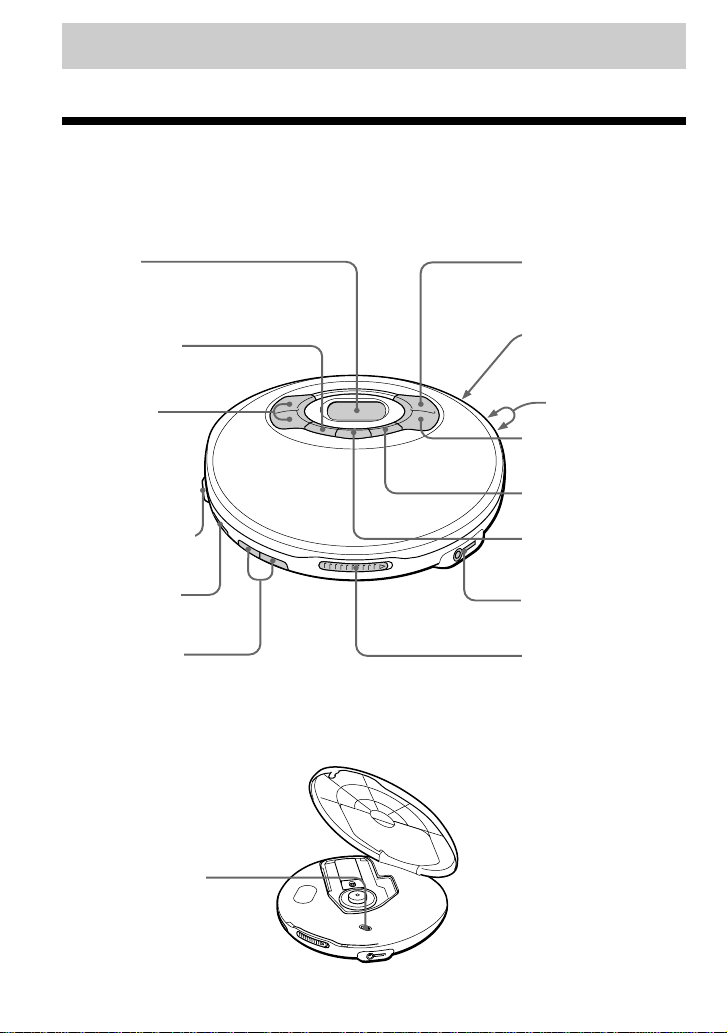

CD player (front)
CD player (inside)
qd i/REMOTE jack
(page 6)
1Display
(pages 7, 9 - 12)
6VOLUME +/–
buttons
(page 6)
5HOLD switch
(page 12)
2PLAY MODE
button
(pages 8 - 10)
qf OPEN switch
(page 6)
qs REPEAT/ENTER
button (pages 8 - 10)
qa SOUND button
(page 11)
8DC IN 4.5 V (external
power input) jack
(pages 6, 16)
7u(play/pause)
button
(pages 6, 7, 10)
q; x(stop)/CHG (charge)
button (pages 7, 13, 16)
3./>
(AMS/search)
buttons
(pages 7, 9, 10)
qg G-PROTECTION
switch
(page 11)
4LINE OUT jack
(page 14)
9Strap holes

5
Remote control (for models supplied with the remote control)
qk x(stop) button
(pages 7, 13)
ql VOL (volume)
+/– button
(page 6)
wa HOLD switch
(page 12)
w; N(play)•>
(AMS/search)
button
(pages 6, 7, 9, 10)
ws .(AMS/
search) button
(pages 7, 9, 10)
Note
Use only the supplied remote control. You cannot
operate this CD player with the remote control
supplied with other CD players.
qh AVLS switch
(page 12) qj Battery compartment
(page 16)
CD player (rear)
Getting started

6
3. Play a CD.
Adjust the volume by
pressing VOLUME + or –.
Press u.
Playing a CD
You can also use rechargeable batteries, dry batteries and a car battery as a power source.
1. Connect your CD player.
1Connect the AC power adaptor.
2Connect the headphones/earphones.
For models supplied with the remote
control.
• Connect the plug of the headphones/
earphones to the remote control.
• Connect the headphones/earphones to
the remote control firmly. A loose
connection may cause noise during
playback.
2. Insert a CD.
1Slide OPEN and raise the lid.
2Place the CD on the tray and close
the lid.
Label
side up
OPEN
switch
to i/
REMOTE
Headphones
or
Earphones
to an AC outlet
to DC IN
4.5V
ubutton
AC power
adaptor
or

7
To Press
Play/Pause u
Stop x/CHG*2
Find the beginning of the current track (AMS*1).once quickly*2
Find the beginning of the previous tracks (AMS) .repeatedly*2
Find the beginning of the next track (AMS) >once quickly*2
Find the beginning of the succeeding tracks (AMS) >repeatedly*2
Go backwards quickly Hold down .*2
Go forward quickly Hold down >*2
*1Automatic Music Sensor
*2These operations can be done during both play and pause.
About the display
• When you press u(Nfor the remote control) after changing the CD or turning off and on
the player, the total number of tracks in the CD and total playing time appear for about two
seconds.
• During play, the track number and the elapsed playing time of the current track appear.
• Between tracks, the time to the beginning of the next track appears with the “-” indication.
• During pause, the elapsed playing time flashes.
If the volume level does not increase
Is AVLS set to “LIMIT”? Set AVLS to “NORM.” For details, see “Protecting your hearing
(AVLS).”
Playback starts from the point you stopped
Your CD player can recall the playback point where you stopped and then resume playing from
the same place (resume function). There is no ON/OFF switch of the resume function on this CD
player.

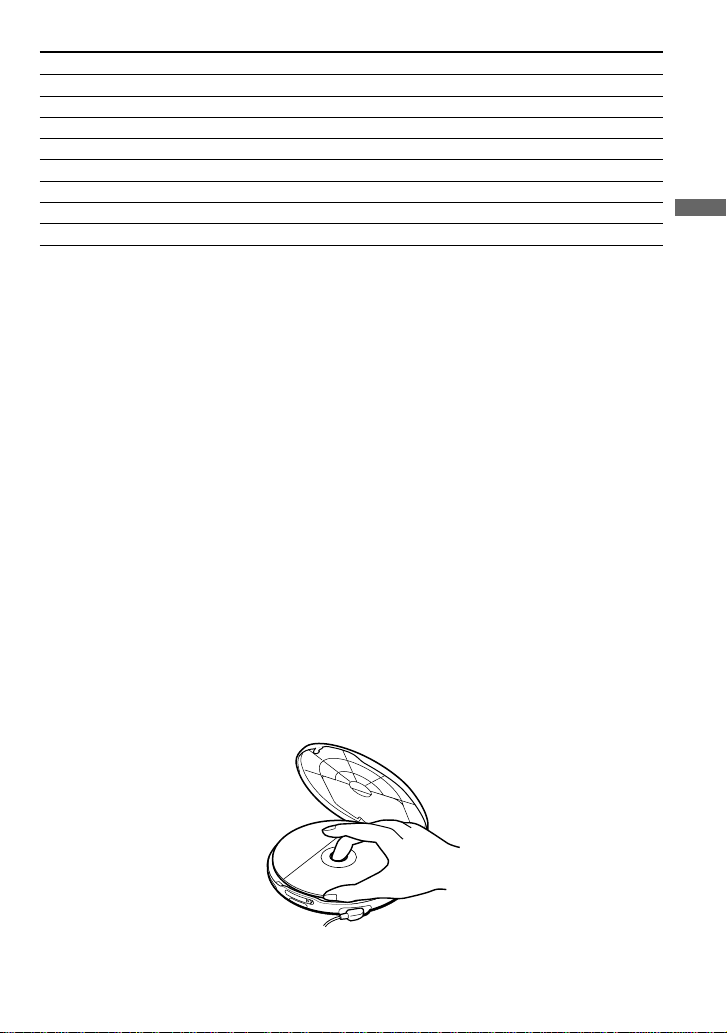

Removing the CD
Remove the CD while pressing the pivot in the center of the tray.
Playing a CD

8
Playback options

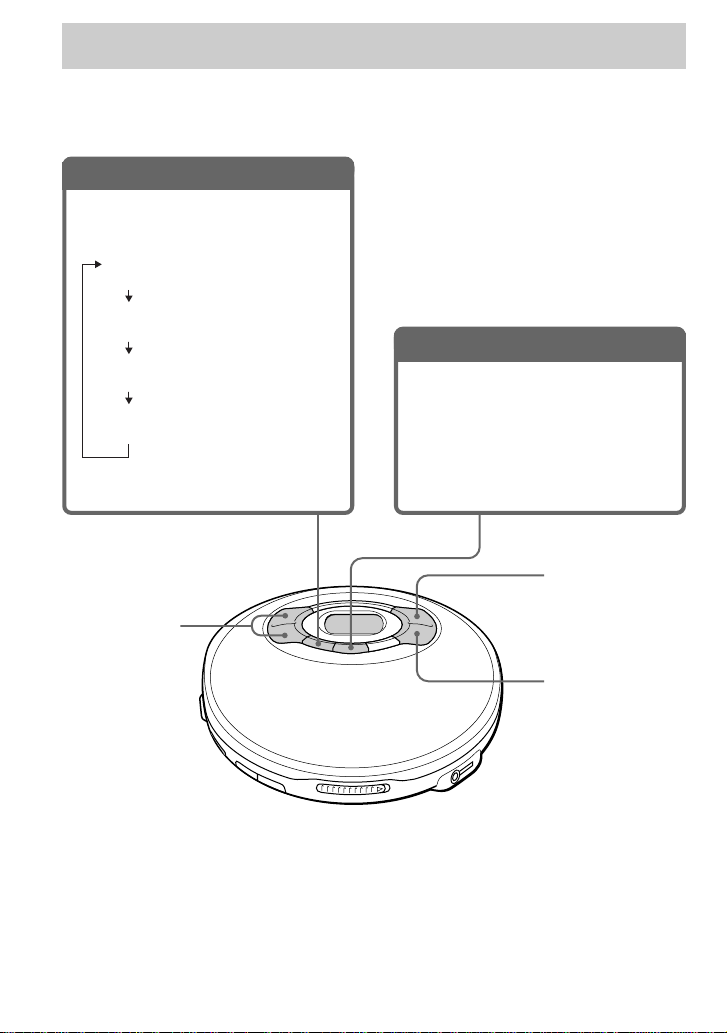

You can enjoy various ways of playback using PLAY MODE and REPEAT/ENTER.
PLAY MODE button
Each time you press the button, you can
change the playback mode.
“No indication”
(Normal play)
“1”
(Play a single track)
“SHUF”
(Play tracks in random order)
“PGM”
(Play tracks in your favorite order)
ubutton
REPEAT/ENTER button
REPEAT
You can repeat play that is selected using
PLAY MODE.
ENTER
You can select tracks for PGM play
mode.
x/CHG button
./>
buttons

9
Playing tracks repeatedly (Repeat play)
You can play tracks repeatedly in normal, single, shuffle and PGM play modes.
During playback, press REPEAT/ENTER.
Note on ./>
During Repeat play, you can locate the first track after the last track by pressing >repeatedly.
You can also locate the last track after first track by pressing .repeatedly.
Playing a single track (Single play)
During playback, press PLAY MODE
repeatedly until“1” appears.
Playing tracks in random order (Shuffle play)
During playback, press PLAY MODE
repeatedly until “SHUF” appears.
Playback options

10

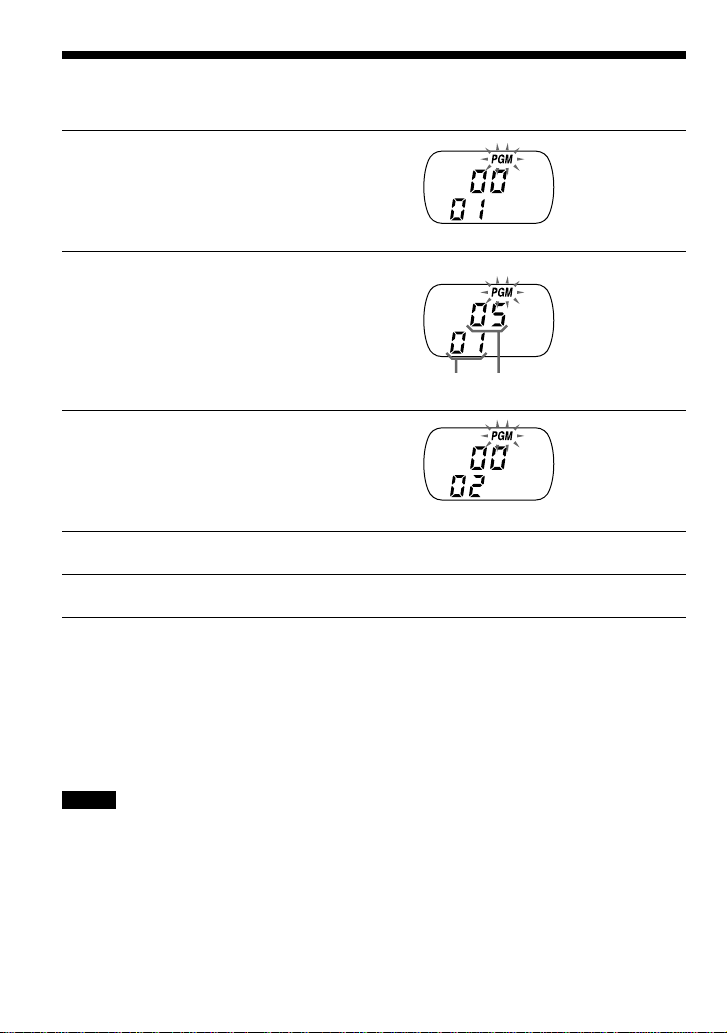

Playing tracks in your favorite order (PGM play)
You can program the CD player to play up to 64 tracks in your favorite order.
1During playback, press PLAY MODE
repeatedly until“PGM”appears.
2Press .or >to select a track.
3Press REPEAT/ENTER to enter
the selected track.
“00” appears and the playing order increases
by one.
4Repeat steps 2 and 3 to select the tracks in your favorite order.
5Press uto start the PGM play.
To check the program
During programming:
Press REPEAT/ENTER repeatedly before step 5.
During the PGM play:
Press PLAY MODE repeatedly until “PGM” flashes, then press REPEAT/ENTER.
Each time you press REPEAT/ENTER, the track number appears.
Notes
• When you finish entering the 64th track in step 3, the first selected track appears in the display.
• If you select more than 64 tracks, the first selected tracks are erased.
Track numberPlaying order

11
Emphasizing the bass
sound (SOUND)
You can emphasize the bass-boosted sound.
Press SOUND to select “BASS ” or
“BASS .”
“BASS ” enhances the bass sound
more than “BASS ”.
Note
If the sound is distorted when using the SOUND
function, turn down the volume.
The selected sound mode is displayed.
“No indication”
(Normal play)
BAvailable features
G-PROTECTION
function
The G-PROTECTION function has been
developed to provide excellent protection
against sound skipping while jogging. This
function provides a higher level of shock
protection than the traditional one.
While jogging, be sure to hold your CD
player with the OPEN switch facing upward.
Set G-PROTECTION (under the lid) to
“ON.”
To turn off the G-PROTECTION
function
Set G-PROTECTION to “OFF.”
Note
Sound may skip if:
– the CD player receives stronger continuous
shock than expected or
– a dirty or scratched CD is played.
Available features
BASS BASS

12

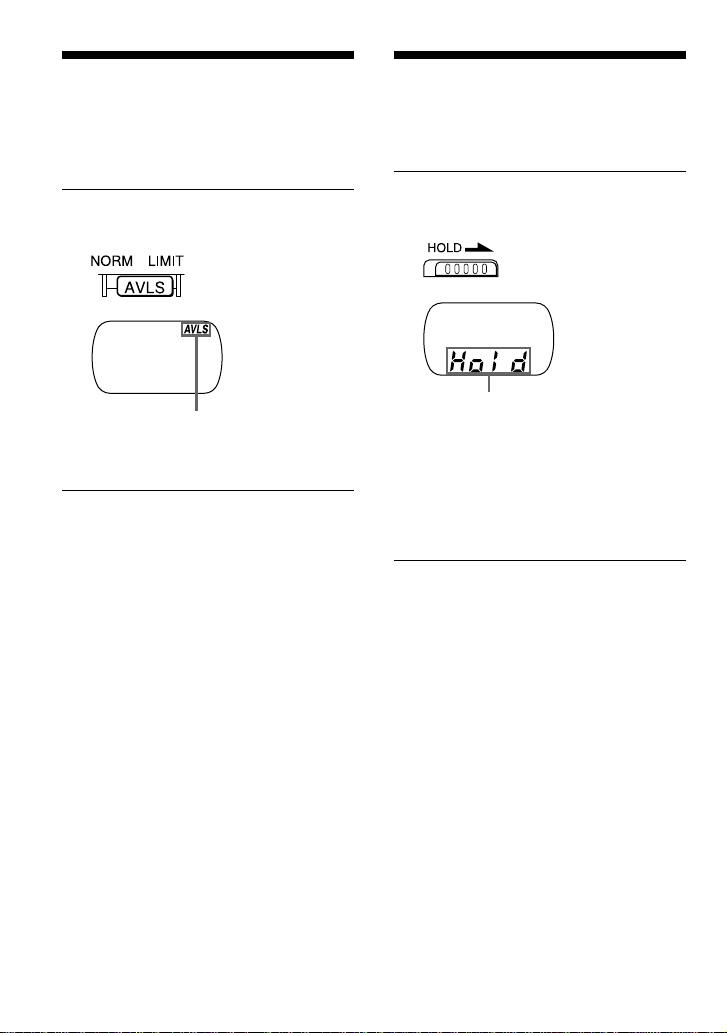

Protecting your hearing
(AVLS)
The AVLS (Automatic Volume Limiter
System) function keeps down the maximum
volume to protect your hearing.
Set AVLS (in the battery compartment)
to “LIMIT.”
To turn off the AVLS function
Set AVLS to “NORM.”
Flashes when the volume is turned up
and beyond a certain level.
Locking the controls
(HOLD)
You can lock the controls on your CD player
to prevent accidental button presses.
Slide HOLD in the direction of the
arrow.
You can use the HOLD function with both
the CD player and remote control. You can
still operate your CD player using the remote
control when HOLD on the remote control is
set to off.
To unlock the controls
Slide HOLD in the opposite direction of the
arrow.
Displayed when the HOLD function is
working.

13
Turning off the
operation beep sound
You can turn off the beep sound that is heard
from your headphones/earphones when you
operate your CD player.
1Remove the power source (AC
power adaptor, rechargeable
batteries or dry batteries) from the
CD player.
2Connect the power source while
pressing x/CHG on the CD player
or xon the remote control.
To turn on the beep sound
Remove the power source and then connect
the power source without pressing x/CHG
or x.
Available features

14
Connecting a stereo
system
You can listen to CDs through a stereo
system and record CDs on a cassette tape.
For details, see the instruction manual that
comes with the connected device.
Be sure to turn off all connected devices
before making connections.
Notes
• Before you play a CD, turn down the volume of
the connected device to avoid damaging the
connected speakers.
• Use the AC power adaptor for recording. If you
use the rechargeable batteries or dry batteries as a
power source, batteries may become completely
depleted during recording.
• Adjust the volume properly on the connected
device so that the sound will not be distorted.
When using the connecting cord
• You cannot adjust the volume of the
headphones/earphones on the CD player or
the remote control.
• If the sound is distorted, connect the device
to the i/REMOTE jack.
• The SOUND function does not work.
Stereo system,
cassette recorder,
radio cassette
recorder, etc.
BConnecting your CD player
Connecting cord
Left (white)
Right (red)
to LINE OUT

15
Connecting your CD player
Using your CD player in
a car
You can use your CD player in a car by
connecting it to the car cassette deck.
You cannot use the car mount plate for this
CD player.
When you use your CD player in a car,
install it securely in a location that does not
interfere with your driving.
Optional car accessory needed
To connect your CD player to a car cassette
deck, you need the following car accessories
in “Accessories (supplied/optional)”:
• Car battery cord, and
• Car connecting pack*
For details, see the instruction manuals that
come with the optional accessories.
* Noise may be heard if you use an optional
connecting cord. It is recommended that you use
a Sony car connecting pack to reduce noise.
Switched ignition function (when
using the car battery cord)
With this feature, your CD player stops
automatically when you turn off the car
engine (turn off the ignition key) even if the
batteries are inserted in the CD player. This
function is invalid depending on the car
models.
Note
Use only the car battery cord listed in “Accessories
(supplied/optional).” If you use any other car
battery cord, a heat, smoke or malfunction may
occur.

16
You can use the following power sources:
• Rechargeable batteries
• AC power adaptor (see “Playing a CD”)
• LR6 (sizeAA) alkaline batteries
For the battery life and charging time of the
rechargeable batteries, see “Specifications.”
Using the rechargeable
batteries
Charge the rechargeable batteries before
using them for the first time.You can use
only the following rechargeable batteries for
your CD player.
• NC-WMAA
• NH-WM2AA
1Open the battery compartment lid.
2Insert two rechargeable batteries
by matching the 3to the diagram
in the battery compartment and
close the lid.
3Connect the AC power adaptor to
the DC IN 4.5 V jack of your CD
player and an AC outlet, then
press x/CHG to start charging.
If the AC power adaptor does not fit the
AC outlet, use the AC plug adaptor.
The CD player charges the batteries. The
“CHG” indicator turns on in the display,
and the indicator sections of light
up in succession. When the batteries are
completely charged, the “CHG” and
indicators turn off.
If you press x/CHG after the charge has
already been completed, the
indicator flashes and “Full” appears in
the display.
4Disconnect the AC power adaptor.
BConnecting a power source
to an AC outlet
to DC IN 4.5 V
AC power adaptor
x/CHG button
(rear)

17
To remove the rechargeable batteries
Remove the batteries as illustrated below.
When to charge the rechargeable
batteries
You can check the remaining power of the
batteries in the display.
Battery power is full.
Battery power is getting low.
Battery power is low.
Lo batt* Batteries are depleted.
* Beep sounds.
To keep the original battery capacity for a
long time, charge the batteries only when
they are completely depleted.
Notes
• The indicator sections of roughly shows the
remaining battery power. One section does not
always indicate one-fourth of the battery power.
• Depending on operating conditions, the indicator
sections of may increase or decrease.
When to replace the rechargeable
batteries
If the battery life becomes shorter by about
half, replace the batteries with new
rechargeable batteries.
Note on the rechargeable batteries
If the battery is new or has not been used for
a long time, it may not be charged
completely until you charge and discharge it
several times.
Note on carrying the rechargeable
batteries
Use the supplied battery carrying case to
prevent unexpected heat. If the rechargeable
batteries and the metallic objects are
contacted, heat or fire may occur due to a
short circuit.
To attach the battery compartment lid
If the battery compartment lid is detached by
an accidental drop, excessive force, etc.,
attach it as illustrated below.
Connecting a power source
r
r
r
○○○○
r
○○○○
r

18
Using dry batteries
Use only the following dry battery type for
your CD player:
• LR6 (sizeAA) alkaline batteries
Note
Be sure to remove the AC power adaptor when
using the dry batteries.
1Open the battery compartment lid.
2Insert two LR6 (size AA) batteries
by matching the 3to the diagram
in the battery compartment.
To remove the batteries
Remove the batteries in the same way as
rechargeable batteries.
When to replace the batteries
You can check the remaining power of the
batteries in the display.
Battery power is full.
Battery power is getting low.
Battery power is low.
Lo batt* Batteries are depleted.
* Beep sounds.
When the batteries are depleted, replace both
batteries with new ones.
r
r
r
○○○○
Notes on the power
source
Disconnect all power sources when the CD
player is not used.
On AC power adaptor
• Use only the AC power adaptor supplied or
recommended in “Accessories (supplied/
optional).” Do not use any other AC power
adaptor. It may cause a malfunction.
Polarity of the plug
• When disconnecting the AC power adaptor
from the AC outlet, grasp the adaptor
itself. Do not pull it by the cord.
• Do not touch the AC power adaptor with
wet hands.
On rechargeable batteries
and dry batteries
• Do not charge the dry batteries.
• Do not throw the batteries into fire.
• Do not carry the batteries with coins or
other metallic objects. It can generate heat
if the positive and negative terminals of the
battery are accidentally contacted by a
metallic object.
• Do not mix rechargeable batteries with dry
batteries.
• Do not mix new batteries with old ones.
• Do not use different types of batteries
together.
• When the batteries are not to be used for a
long time, remove them.
• If battery leakage occurs, wipe off any
deposit in the battery compartment, and
install new batteries. In case the deposit
adheres to you, wash it off thoroughly.
r
○○○○
r

19
Precautions
On safety
• Should any solid objects or liquid fall into
the CD player, unplug it and have it
checked by qualified personnel before
operating it any further.
• Do not put any foreign objects in the DC
IN 4.5 V (external power input) jack.
On the CD player
• Keep the lens on the CD player clean and
do not touch it. If you do so, the lens may
be damaged and the CD player will not
operate properly.
• Do not put any heavy object on top of the
CD player. The CD player and the CD may
be damaged.
• Do not leave the CD player in a location
near heat sources, or in a place subject to
direct sunlight, excessive dust or sand,
moisture, rain, mechanical shock,
unleveled surface, or in a car with its
windows closed.
• If the CD player causes interference to the
radio or television reception, turn off the
CD player or move it away from the radio
or television.
On handling CDs
• To keep the CD clean, handle it by its
edge. Do not touch the surface.
• Do not stick paper or tape onto the CD.
• Do not expose the CD to direct sunlight or
heat sources such as hot air ducts. Do not
leave the CD in a car parked under direct
sunlight.
On headphones/earphones
Road safety
Do not use headphones/earphones while
driving, cycling, or operating any motorized
vehicle. It may create a traffic hazard and is
illegal in some areas. It can also be
potentially dangerous to play your headsets
at high volume while walking, especially at
pedestrian crossings.You should exercise
extreme caution or discontinue use in
potentially hazardous situations.
Preventing hearing damage
Avoid using headphones/earphones at high
volume. Hearing experts advise against
continuous, loud and extended play. If you
experience a ringing in your ears, reduce
volume or discontinue use.
Consideration for others
Keep the volume at a moderate level. This
will allow you to hear outside sounds and to
be considerate to the people around you.
Maintenance
To clean the casing
Use a soft cloth slightly moistened in water
or a mild detergent solution. Do not use
alcohol, benzine or thinner.
BAdditional information
Not these ways
Additional information

20
Troubleshooting
Should any problem persist after you have checked these symptoms, consult your nearest Sony
dealer.
Symptom
The volume does not increase
even if you press the VOLUME
+ button repeatedly.
No sound, or noise is heard.
The playing time is too short
when powered with the dry
batteries.
The playing time is too short
when powered with the
rechargeable batteries.
When you press u, “Lo
batt” or “00” appears in the
display. The CD does not
play.
“HI dc In” appears in the
display.
The CD does not play or
“no dISC” appears in the
display when a CD is placed
in the CD player.
“Hold” appears in the
display when you press a
button, and the CD does not
play.
Cannot adjust the volume
with the VOLUME +/– buttons
on the CD player.
The CD player does not start
charging.
Cause and/or corrective actions
cSet the AVLS switch to “NORM.” (page 12)
cThe headphones/earphones are connected to the LINE OUT jack.
Connect them to the i/REMOTE jack.
(page 6)
cConnect the plugs firmly. (page 6)
cPlugs are dirty. Clean the plugs with a dry soft cloth periodically.
cCheck that you are using alkaline batteries and not manganese
batteries. (page 18)
cReplace the batteries with new LR6 (size AA) alkaline batteries.
(page 18)
cCharge and discharge the rechargeable batteries several times.
(pages 16, 17)
cThe rechargeable batteries are used up completely. Charge the
batteries. (page 16)
cReplace the batteries with new LR6 (size AA) alkaline batteries.
(page 18)
cUse only theAC power adaptor or car battery cord in “Accessories
(supplied/optional).” (page 22)
cRemove all power sources, then insert the batteries or connect the
AC power adaptor again. (pages 6, 16, 17, 18)
cThe CD is dirty or defective. (page 19)
cCheck that the CD is inserted with the label side up. (page 6)
cMoisture condensation has occurred.
Leave the CD player aside for several hours until the moisture
evaporates.
cClose the lid of the battery compartment firmly.
(page 16)
cMake sure the batteries are inserted correctly. (pages 16 - 18)
cConnect the AC power adaptor to anAC outlet securely. (page 6)
cThe buttons are locked. Slide the HOLD switch back. (page 12)
c The CD player is connected to an audio device. Adjust the volume
using the volume control on the connected device. (page 14)
c During stop, press x /CHG. (page 16)
