SERVICE MANUAL
Sony Corporation
eVehicle Division
Published by Sony Engineering Corporation
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.
US Model
Canadian Model
FM/AM COMPACT DISC PLAYER
9-887-001-01
2005L04-1
© 2005.12
Ver. 1.0 2005.12
SPECIFICATIONS
CDX-F605X
CD player section
Signal-to-noise ratio 120 dB
Frequency response 10 – 20,000 Hz
Wow and flutter Below measurable limit
Tuner section
FM
Tuning range 87.5 – 107.9 MHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Usable sensitivity 9 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 67 dB (stereo),
69 dB (mono)
Harmonic distortion at 1 kHz
0.5% (stereo),
0.3% (mono)
Separation 35 dB at 1 kHz
Frequency response 30 – 15,000 Hz
AM
Tuning range 530 – 1,710 kHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity 30 µV
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4 – 8 ohms
Maximum power output 52 W ×4 (at 4 ohms)
General
Outputs Audio outputs terminal (front/rear)
Subwoofer output terminal (mono)
Power antenna relay control terminal
Power amplifier control terminal
Inputs Telephone ATT control terminal
Illumination control terminal
BUS control input terminal
BUS audio input/AUX IN terminal
Remote controller input terminal
Antenna input terminal
Tone controls Bass: ±10 dB at 62 Hz
Treble: ±10 dB at 16 kHz
Loudness +8 dB at 100 Hz
+2 dB at 10 kHz
Power requirements 12 V DC car battery
(negative ground)
• The tuner and CD sections have no adjustments. Model Name Using Similar Mechanism CDX-F7715X
CD Drive Mechanism Type MG-611TS-186//K
Optical Pick-up Name KSS1000E
– Continued on next page –

2
CDX-F605X
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
Dimensions Approx. 178 ×50 ×178 mm
(7 1/8 ×2 ×7 1/8 in.) (w/h/d)
Mounting dimensions Approx. 182 ×53 ×161 mm
(7 1/4 ×2 1/8 ×6 3/8 in.) (w/h/d)
Mass Approx. 1.3 kg
(2 lb. 14 oz.)
Supplied accessories Parts for installation and connections (1 set)
Front panel case (1)
Card remote commander RM-X152
US and foreign patents licensed from Dolby Laboratories.
Note
This unit cannot be connected to a digital preamplifier or an equalizer
which is Sony BUS system compatible.
Design and specifications are subject to change without
notice.
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
Notes on Chip Component Replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be damaged
by heat.
TEST DISCS
This set can playback CD-R and CD-ROM discs. The following
test discs should be used to check the capability:
CD-R test disc TCD-R082LMT (Part No. J-2502-063-1)
CD-RW test disc TCD-W082L (Part No. J-2502-063-2)
If the optical pick-up block is defective, please replace the whole
optical pick-up block.
Never turn the semi-fixed resistor located at the side of optical pick-
up block.
SERVICE NOTES
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
optical pick-up
semi-fixed resistor

3
CDX-F605X
•UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
•CD Playback:
You can play CD-DA (also containing CD TEXT*1), CD-R/CD-
RW (MP3 files also containing Multi Session and ATRAC CD
(ATRAC3 and ATRAC3plus format).
Type of discs Label on the disc
CD-DA
MP3
ATRAC CD
*1 A CD TEXT disc is a CD-DA that includes information such as
disc, artist and track name.
EXTENSION CABLE AND SERVICE POSITION
When repairing or servicing this set, connect the jig (extension cable)
as shown below.
•Connect the MAIN board (CN301) and the SERVO board (CN2)
with the extension cable (Part No. J-2502-076-1).
SERVO BOAR
D
CN2
MAIN BOARD
CNP301 J-2502-076-1

4
CDX-F605X
TABLE OF CONTENTS
1. GENERAL
Location of controls ......................................................... 5

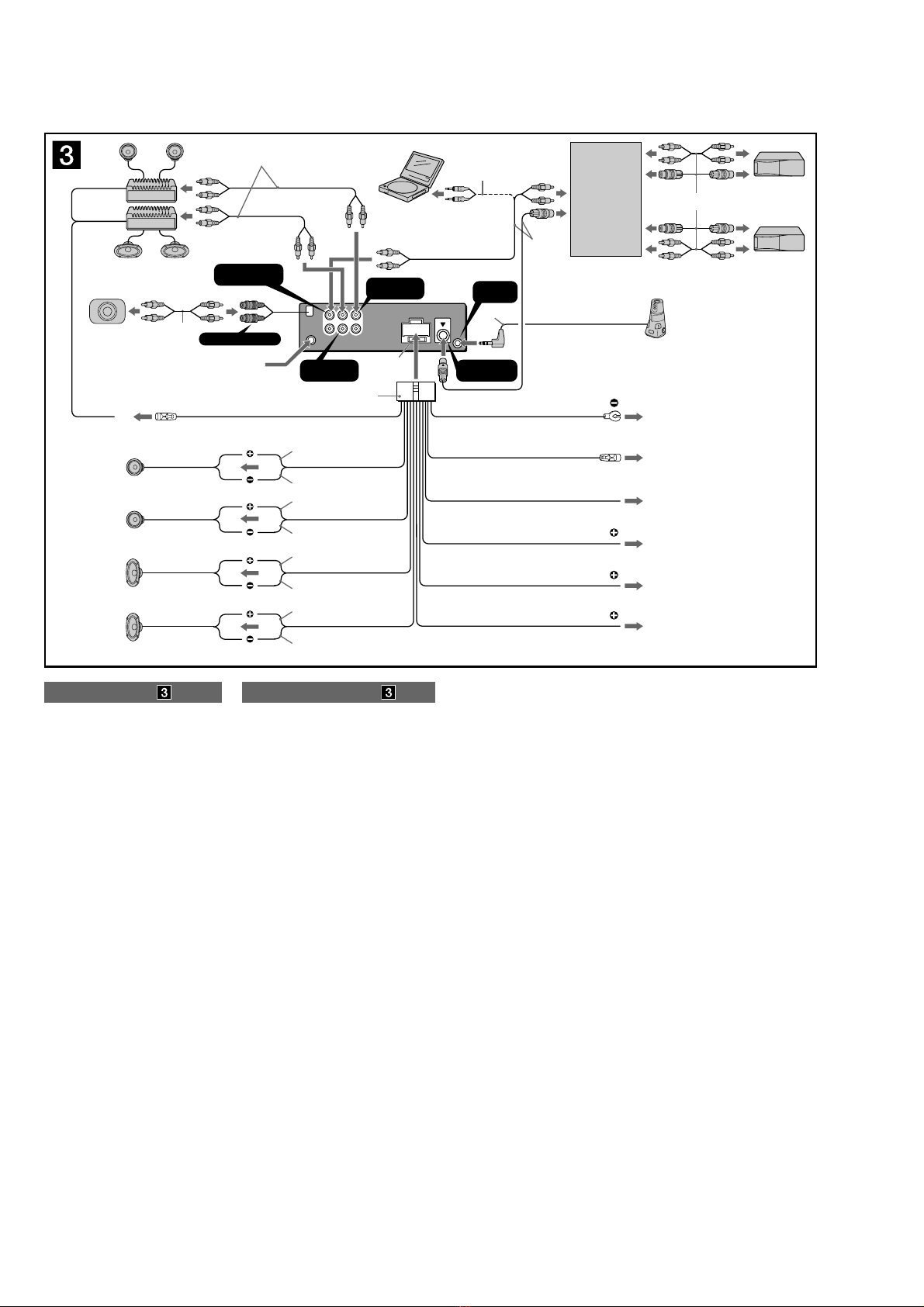

Connections ..................................................................... 7
2. DISASSEMBLY
2-1. Sub Panel Assy (CD) ....................................................... 10
2-2. CD Mechanism Block ..................................................... 10
2-3. Main Board ...................................................................... 11
2-4. Chassis (T) Sub Assy ....................................................... 11
2-5. Roller Arm Assy .............................................................. 12
2-6. Chassis (OP) Assy ........................................................... 12
2-7. Optical Pick-up ................................................................ 13
2-8. SL Motor Assy (M902) ................................................... 13
2-9. LE Motor Assy (M903) ................................................... 14
2-10. Servo Board ..................................................................... 14
3. DIAGRAMS
3-1. Block Diagram –CD Section– ......................................... 15
3-2. Block Diagram –Main Section– ...................................... 16
3-3. Block Diagram –Display Section– .................................. 17
3-4. Circuit Boards Location .................................................. 18
3-5. Printed Wiring Boards –CD Mechanism Section– .......... 19
3-6. Schematic Diagram –CD Mechanism Section (1/2)– ..... 20
3-7. Schematic Diagram –CD Mechanism Section (2/2)– ..... 21
3-8. Printed Wiring Boards –Main Section– ........................... 22
3-9. Schematic Diagram –Main Section (1/4)– ...................... 24
3-10. Schematic Diagram –Main Section (2/4)– ...................... 25
3-11. Schematic Diagram –Main Section (3/4)– ...................... 26
3-12. Schematic Diagram –Main Section (4/4)– ...................... 27
3-13. Printed Wiring Board –Relay Section– ........................... 28
3-14. Printed Wiring Board –Display Section– ........................ 29
3-15. Schematic Diagram –Display Section– ........................... 30
4. EXPLODED VIEWS
4-1. Main Section .................................................................... 40
4-2. Front Panel Section ......................................................... 41
4-3. CD Mechanism Section (1) ............................................. 42
4-4. CD Mechanism Section (2) ............................................. 43
4-5. CD Mechanism Section (3) ............................................. 44
4-6. CD Mechanism Section (4) ............................................. 45
5. ELECTRICAL PARTS LIST .................................. 46

5
CDX-F605X
SECTION 1
GENERAL
• LOCATION OF CONTROLS
This section is extracted
from instruction manual.
6
Location of controls and basic operations
Main unit
Front panel removed
Card remote commander
RM-X152
Refer to the pages listed for details. The
corresponding buttons on the card remote
commander control the same functions as those
on the unit.
ASEEK –/+ buttons
CD:
To skip tracks (press); skip tracks
continuously (press, then press again within
about 1 second and hold); fast-forward/
reverse a track (press and hold).
Radio:
To tune in stations automatically (press); find
a station manually (press and hold).
BVolume control dial/SOUND button 9
To adjust volume (rotate); select sound items
(press).
CMODE button 8, 12
To select the radio band (FM/AM)/select the
SAT tuner band (mode)*
1
/select the unit*
2
.
DDSO button 2
To select the DSO mode (1, 2, 3 or OFF).
The larger the number, the more enhanced
the effect.
P
U
S
H
S
O
U
N
D
GP/
PRESET
MODE
GP/
PRESET
SEEK
+
SEEK
– IMAGE
OFF
DSO
EQ7
SCRL
REP SHUF BBE MP PAUSE
6
OPEN
D
E
SOURCE DSPL1
S
CDX-F605X
123456 78
9q
;
q
a
q
s
q
d
q
f
q
g
RESET
qh qj qk
OFF
DSPL
REP SHUF
MENU
SCRL
LIST/
CAT
SOURCE SOUND MODE
PA U S E
132
465
AT T
VO L
+
–
+
–
ENTER
qs
wg
ql
wf
3
q;
5
w;
wa
qf
wd
ws
qd
wh
32 45

6
CDX-F605X
7
ESCRL (scroll) button 8
To scroll the display item.
FDisplay window
GOPEN button 5
HReceptor for the card remote
commander
IGP*
3
/PRESET +/– buttons
To select preset stations; skip groups (press);
skip groups continuously (press and hold).
JOFF button
To power off; stop the source.
KEQ7 (equalizer) button
To select an equalizer type (Xplod, VOCAL,
CLUB, JAZZ, NEWAGE, ROCK, CUSTOM
or OFF).
LSOURCE button
To power on; change the source (Radio/CD/
MD*
4
/AUX*
5
/SAT*
1
).
MNumber buttons
CD/MD*
4
:
(1): REP 8
(2): SHUF 8
(5): BBE MP*
6
3
To activate the BBE MP function, set
“BBE MP on.” To cancel, set “BBE MP
off.”
(6): PA U S E *
6
To pause playback. To cancel, press
again.
Radio:
To receive stored stations (press); store
stations (press and hold).
NDSPL (display) button 8, 10
To change display items.
OIMAGE button 2
To select the display image.
Space Producer mode t Wall paper mode
1-3 tSpectrum analyzer mode 1-5 t
Movie mode 1-3 tnormal play/reception
mode
PRESET button 4
QZ (eject) button 5
To eject the disc.
RDisc slot 5
To insert the disc.
The following buttons on the card remote
commander have also different buttons/functions
from the unit.
ql MENU button
To enter menu.
w; ENTER button
To complete a setting.
wa <(.)/,(>) buttons
To control radio/CD, the same as (SEEK) –/
+ on the unit.
ws VOL (volume) +/– button
To adjust volume.
wd ATT (attenuate) button
To attenuate the sound. To cancel, press
again.
wf SOUND button 9
To select sound items.
wg LIST/CAT*
1
button 9, 12
To list up.
wh M(+)/m(–) buttons
To control radio/CD, the same as
(GP/PRESET) +/– on the unit.
*1 When the SAT tuner is connected.
*2 When a CD/MD changer is connected.
*3 When an MP3/ATRAC CD is played and a changer
is not connected. If the changer is connected, the
operation is different, see page 12.
*4 When an MD changer is connected.
*5 When an optional Sony portable device is
connected.
*6 When playing back on this unit.
Note
If the unit is turned off and the display disappears, it
cannot be operated with the card remote commander
unless
(SOURCE) on the unit is pressed, or a disc is
inserted to activate the unit first.
Tip
For details on how to replace the battery, see
“Replacing the lithium battery of the card remote
commander” on page 15.

7
CDX-F605X
• CONNECTIONS
AUDIO OUT
FRONT
AUDIO OUT
REAR
SUB OUT (MONO)
BUS AUDIO IN
BUS CONTROL IN
A
B
BUS AUDIO IN
BUS CONTROL IN
* not supplied
non fourni
Source selector*
Sélecteur de source*
XA-C30
Connection example
Notes (2-A)
• Be sure to connect the ground lead before connecting the
amplifier.
• The alarm will only sound if the built-in amplifier is used.
Tip
(2-B- )
For connecting two or more CD/MD changers, the source
selector XA-C30 (optional) is necessary.
Exemple de raccordement
Remarques (2-A)
• Raccordez d’abord le câble de mise à la masse avant de
raccorder l’amplificateur.
• L’alarme est émise uniquement lorsque l’amplificateur intégré est
utilisé.
Conseil
(2-B-)
Dans le cas du raccordement de deux changeurs de CD/MD ou
plus, le sélecteur de source XA-C30 (en option) est requis.

8
CDX-F605X
L
R
31
2
4
5
6
7
AUDIO OUT
FRONT
BUS AUDIO IN
/AUX IN*
2
BUS
CONTROL IN
REMOTE
IN
AUDIO OUT
REAR
SUB OUT (MONO)
2
AMP REM
Max. supply current 0.3 A
Courant max. fourni 0,3 A
Fuse (10 A)
Fusible (10 A)
Blue/white striped
Rayé bleu/blanc
from car antenna
à partir de l’antenne de la voiture
*
1
Red
Rouge
Yellow
Jaune
White
Blanc
Green
Ve r t
Purple
Mauve
White/black striped
Rayé blanc/noir
Gray/black striped
Rayé gris/noir
Green/black striped
Rayé vert/noir
Gray
Gris
Left
Gauche
Right
Droit
Left
Gauche
Right
Droit
ANT REM
Black
Noir
Blue
Bleu
Max. supply current 0.1 A
Courant max. fourni 0,1 A
Purple/black striped
Rayé mauve/noir
*
3
*
1
RCA pin cord (not supplied)
*
2
Be sure to match the color-
coded cord for audio to the
appropriate jacks from the
unit. If you connect an optional
CD/MD changer, you cannot
use AUX IN terminal.
*
3
Auxiliary optional equipment
such as portable DVD player
(not supplied)
*
4
Supplied with the auxiliary
equipment
*
5
Supplied with XA-C30
*
6
Insert with the cord upwards.
*
1
Cordon à broche RCA (non
fourni)
*
2
Veillez à faire correspondre
le code de couleur du cordon
audio à celui des fiches
correspondantes de l’appareil.
Si vous raccordez un changeur
de CD/MD en option, vous ne
pouvez pas utiliser la borne
AU X I N.
*
3
Appareil auxiliaire en option,
par exemple un lecteur de DVD
portable (non fourni)
*
4
Fourni avec l’appareil auxiliaire
*
5
Fourni avec le XA-C30
*
6
Insérez avec le câble vers le
haut.
*
1
AT T
ILLUMINATION
Orange/white striped
Rayé orange/blanc
Light blue
Bleu ciel
Source selector
(not supplied)
Sélecteur de source
(non fourni)
Selector de fuente
(no suministrado)
XA-C30
Supplied with the CD/MD changer
Fourni avec le changeur de CD/MD
*
4
*
5
*
6
Connection diagram
1To a metal surface of the car
First connect the black ground lead, then connect the
orange/white striped, yellow, and red power input leads.
2To the power antenna control lead or power
supply lead of antenna booster amplifier
Notes
• It is not necessary to connect this lead if there is no power
antenna or antenna booster, or with a manually-operated
telescopic antenna.
• When your car has a built-in FM/AM antenna in the rear/
side glass, see “Notes on the control and power supply
leads.”
3To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting any other
system may damage the unit.
4To the interface cable of a car telephone
5To a car’s illumination signal
Be sure to connect the black ground lead to a metal surface
of the car first.
6To the +12 V power terminal which is
energized in the accessory position of the
ignition key switch
Notes
• If there is no accessory position, connect to the +12 V
power (battery) terminal which is energized at all times.
Be sure to connect the black ground lead to a metal
surface of the car first.
• When your car has a built-in FM/AM antenna in the rear/
side glass, see “Notes on the control and power supply
leads.”
7To the +12 V power terminal which is
energized at all times
Be sure to connect the black ground lead to a metal surface
of the car first.
Notes on the control and power supply leads
• The power antenna control lead (blue) supplies +12 V DC
when you turn on the tuner.
• When your car has built-in FM/AM antenna in the rear/side
glass, connect the power antenna control lead (blue) or the
accessory power input lead (red) to the power terminal of the
existing antenna booster. For details, consult your dealer.
• A power antenna without a relay box cannot be used with this
unit.
Memory hold connection
When the yellow power input lead is connected, power will
always be supplied to the memory circuit even when the ignition
switch is turned off.
Notes on speaker connection
• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ohms, and with
adequate power handling capacities to avoid its damage.
• Do not connect the speaker terminals to the car chassis, or
connect the terminals of the right speakers with those of the
left speaker.
• Do not connect the ground lead of this unit to the negative (–)
terminal of the speaker.
• Do not attempt to connect the speakers in parallel.
• Connect only passive speakers. Connecting active speakers
(with built-in amplifiers) to the speaker terminals may damage
the unit.
• To avoid a malfunction, do not use the built-in speaker leads
installed in your car if the unit shares a common negative (–)
lead for the right and left speakers.
• Do not connect the unit’s speaker leads to each other.
Note on connection
If speaker and amplifier are not connected correctly, “Failure”
appears in the display. In this case, make sure the speaker and
amplifier are connected correctly.
Schéma de raccordement
1À un point métallique de la voiture
Branchez d’abord le fil de masse noir et, ensuite, les fils d’entrée
d’alimentation rayé orange/blanc, jaune, et rouge.
2Vers le câble de commande d’antenne électrique
ou le câble d’alimentation de l’amplificateur
d’antenne
Remarques
• Il n’est pas nécessaire de raccorder ce câble s’il n'y a pas
d’antenne électrique ni d’amplificateur d’antenne, ou avec une
antenne télescopique manuelle.
• Si votre voiture est équipée d’une antenne FM/AM intégrée
dans la vitre arrière/latérale, voir « Remarques sur les câbles de
commande et d’alimentation ».
3Au niveau de AMP REMOTE IN de l’amplificateur
de puissance en option
Ce raccordement s’applique uniquement aux amplificateurs.
Le branchement de tout autre système risque d’endommager
l’appareil.
4Vers le cordon de liaison d’un téléphone de
voiture
5Vers le connecteur du signal d’éclairage de la
voiture
Raccordez d’abord le câble de mise à la masse noir à un point
métallique du véhicule.
6À la borne +12 V qui est alimentée quand la clé de
contact est sur la position accessoires
Remarques
• S’il n’y a pas de position accessoires, raccordez la borne
d’alimentation (batterie) +12 V qui est alimentée en permanence.
Raccordez d’abord le câble de mise à la masse noir à un point
métallique du véhicule.
• Si votre voiture est équipée d’une antenne FM/AM intégrée
dans la vitre arrière/latérale, voir « Remarques sur les câbles de
commande et d’alimentation ».
7À la borne +12 V qui est alimentée en permanence
Raccordez d’abord le câble de mise à la masse noir à un point
métallique du véhicule.
Remarques sur les câbles de commande et d’alimentation
• Le câble de commande d’antenne électrique (bleu) fournit une
alimentation de + 12 V CC lorsque vous mettez la radio sous tension.
• Lorsque votre voiture est équipée d’une antenne FM/AM intégrée dans
la vitre arrière/latérale, raccordez le câble de commande d’antenne
électrique (bleu) ou l’entrée d’alimentation des accessoires (rouge) à
la borne d’alimentation de l’amplificateur d’antenne existant. Pour plus
de détails, consultez votre détaillant.
• Une antenne électrique sans boîtier de relais ne peut pas être
utilisée avec cet appareil.
Raccordement pour la conservation de la mémoire
Lorsque le câble d’entrée d’alimentation jaune est raccordé, le circuit
de la mémoire est alimenté en permanence même si la clé de contact
est sur la position d’arrêt.
Remarques sur le raccordement des haut-parleurs
• Avant de raccorder les haut-parleurs, mettez l’appareil hors tension.
• Utilisez des haut-parleurs ayant une impédance de 4 à 8 ohms avec
une capacité électrique adéquate pour éviter de les endommager.
• Ne raccordez pas les bornes du système de haut-parleurs au
châssis de la voiture et ne raccordez pas les bornes des haut-
parleurs droit à celles du haut-parleur gauche.
• Ne raccordez pas le câble de mise à la masse de cet appareil à la
borne négative (–) du haut-parleur.
• N’essayez pas de raccorder les haut-parleurs en parallèle.
• Raccordez uniquement des haut-parleurs passifs. Le raccordement de
haut-parleurs actifs (avec amplificateurs intégrés) aux bornes des haut-
parleurs peut endommager l’appareil.
• Pour éviter tout dysfonctionnement, n’utilisez pas les câbles des
haut-parleurs intégrés installés dans votre voiture si l’appareil
partage un câble négatif commun (–) pour les haut-parleurs droit et
gauche.
• Ne raccordez pas entre eux les cordons des haut-parleurs de
l’appareil.
Remarque sur le raccordement
Si les haut-parleurs et l’amplificateur ne sont pas raccordés
correctement, le message « Failure » s’affiche. Dans ce cas, assurez-
vous que les haut-parleurs et l’amplificateur sont bien raccordés.

9
CDX-F605X
SECTION 2
DISASSEMBLY
Note: This set can be disassemble according to the following sequence.
2-1. SUB PANEL ASSY (CD)
(Page 10)
2-2. CD MECHANISM BLOCK
(Page 10)
SET
2-3. MAIN BOARD
(Page 11)
2-4. CHASSIS (T) SUB ASSY
(Page 11)
2-5. ROLLER ARM ASSY
(Page 12)
2-6. CHASSIS (OP) ASSY
(Page 12)
2-8. SL MOTOR ASSY (M902)
(Page 13)
2-10. SERVO BOARD
(Page 14)
2-7. OPTICAL PICK-UP
(Page 13)
2-9. LE MOTOR ASSY (M903)
(Page 14)

10
CDX-F605X
2-2. CD MECHANISM BLOCK
Note: Follow the disassembly procedure in the numerical order given.
2-1. SUB PANEL ASSY (CD)
2 two claw
s
3 two claws
5 sub panel assy (CD)
1 two screws
(+PTT 2.6
× 6)
flat cable (FFC) (22 core)
(CN601)
4
7 bracket (CD)
5 CD mechanism block
4 CNP301
3
1 screw
(+PTT 2.6 × 6
)
2 screw
(+PTT 2.6 × 6)
6 two screws
(+PTT 2.6 × 6)

11
CDX-F605X
2-4. CHASSIS (T) SUB ASSY
2-3. MAIN BOARD
1 three ground point screws
(+PTT 2.6 × 6)
3 MAIN board
5 cord (with connector)
(CN401)
4 insulating sheet
2 two screws
(+PTT 2.6
× 8)
6 screw
(+PTT 2.6
× 8
)
7 cord
5 SENSOR board
6 chassis (T) sub assy
4 claw
3 claw
1 two screws
(+P 1.7
× 2.2)
2 two screws
(+P 1.7
× 2.2)

12
CDX-F605X
2-6. CHASSIS (OP) ASSY
2-5. ROLLER ARM ASSY
3 washer (1.1-2.5)
4 gear (RA1)
5 roller arm assy
1 spring (RAL)
2 spring (RAR)
4 washer
0 coil spring (damper)
9 two coil springs (damper)
qa chassis (OP) assy
5 gear (LE1)
1 optical pick-up (16 core
)
(CN2)
lever (D)
slider (R)
6
7
8
2 Remove the six solders.
3 tension coil spring (KF60)

13
CDX-F605X
2-8. SL MOTOR ASSY (M902)
2-7. OPTICAL PICK-UP
1 tension coil spring (CHKG
)
2 chucking arm sub assy
3 screw
(+B 1.4 × 5)
4 rack (SL)
5 claw
6 main shaft
7 optical pick-up
1 screw
(+P 1.4 × 1.8
)
2 SL motor assy (M902)

14
CDX-F605X
2-10. SERVO BOARD
2-9. LE MOTOR ASSY (M903)
2 washer
4
qd
3 gear (LE1)
7 leaf spring (LE)
5
lever (D)
bracket (LEM-N)
slider (R)
6 screw
(+P 1.7
× 2.2)
8 screw
(+M 1.7
× 2.5)
qa screw
(+M 1.7
× 2.5)
qf two toothed lock screws
(+M 1.4
)
qs screw
(+M 1.7
× 2.5)
9 bearing (LEB-N)
0 gear (LE) assy
qg LE motor assy
(M903)
1 Remove the two solders.
3 optical pick-up (16 core)
(CN2)
5 claw
6 SERVO board
4 toothed lock screw
(M 1.7)
1 Remove the eight solders.
2 Remove the three solders.

CDX-F605X
15 15
CDX-F605X
3-1. BLOCK DIAGRAM — CD SECTION —
SECTION 3
DIAGRAMS
AMP
IC8
AUDIO INTERFACE
IC5
1
AU+5V AU+8.3V
79
RFO
RF AMP,DIGITAL SERVO,
DIGITAL SIGNAL PROCESSOR
IC2
87 RFEQO
3
RFRP
6
TEI
85 RFI
86 RFRPI
1RFZI
7TEZI
9F0O
PD1
PD2
E
F
I-V AMP
PD LD
DETECTOR
77
AGCI
78
RFDCI
94
96
95
97
99
98
TNI
FPI1
FNI1
FPI2
FNI2
TPI
91 LDO 92
MDI
(FOCUS)
(TRACKING)
2-AXIS DEVICE
OPTICAL
PICK-UP BLOCK
(KSS1000E)
• Signal Path
: CD PLAY
LASER DIODE
M
M
M
18
17
VO3–
VO3+
14
13
VO1+
VO1–
12
11 VO2–
VO2+
10
9
VOL+
VOL–
FWD
REV
1
28
OPIN4– 26
OPOUT4 25
10 TRO
OPIN3– 23
46 IO0(/HSO)
OPOUT3 22
12 FMO
OPOUT1 4
13 DMO
OPIN2 7
47 IO1(/UHSO)
MUTE 21
16
15
VO4–
VO4+
M903
(LOADING)
M901
(SPINDLE)
M902
(SLED)
FOCUS/TRACKING COIL DRIVE,
SLED/SPINDLE/LOADING
MOTOR DRIVE
IC1
56
MUTE
53
REQ
43
STBY
18
ZDET
42
/RST
41
/CCE
40
BUCK
39
BUS3
CD-L MAIN
SECTION
A
58 3
AOUT
59
BCKO
DATA
BCK
LRCK
SCK
RST
VOUTL+
VOUTL–
VOUTR+
VOUTR–
ZEROL
ZEROR
27 DEC SSTBY
15 CD ZDET
14 CD XRST
13 CD XCCE
1
60
LRCKO R-CH
AU+5V
IC7
5
6
17
18
13
12
23
22
53 MEC_SELFSW
45 MEC_INSW
42 MEC_LIMIT
12 CD BUCK
11 CD BUS3
38
BUS2 10 CD BUS2
37
BUS1 8CD BUS1
36
BUS0 7CD BUS0
14
SBSY 52 CD SBSY
81 X1
80 X0
MEC LOAD
43
MEC EJECT
44
CD
SYSTEM CONTROL
IC3
+1.5V REG
IC6
SYSTEM CONTROL
IC303 (1/3)
37 DEC XMUTE
23 DAC ZDETR
22 DAC ZDETL
30 DEC INT
SW2
(SELF)
46 MEC_DSW
SW1
(DOWN)
SW3
(DISC IN)
SW4
(LIMIT)
56
UNISI
25
RXD
57
UNISO
58
UNICKI
50
BUS ON
51
BU IN
75
RSTX
67
MECON CHK
1
1.5V ON
63
MECON
64
CDON
66
ZMUTE
60
A ATT
26
TXD
PD1
E
F
LD
MON OUT
FCS+
FCS–
TRK+
TRK–
PD2
AUTOMATIC
POWER
CONTROL
Q1
+1.5V ON/OFF
SWITCH
Q2,3
AU+5V REG
IC321
CRYSTAL
OSCILLATOR
16.9344MHz
IC4
• R-ch is omitted due to same as L-ch.
23
X1
12MHz
XI
MAIN
SECTION
B
UNI SI
UNI SO
ATT
59
LINK OFF LINK ON/OFF
UNI CLK
BUS ON
B/U CHECK
SYS RST
CD ON IN
VOUT
24
CDM ON IN
23
Z DET
MECHA+6V
22
68
CDON CHK
15 VDD
3
CE
SERVO+3.3V
+1.5V
+1.5V
U COM+3.3V
2
3
2
(Page 16)
(Page 16)

CDX-F605X
1616
CDX-F605X
3-2. BLOCK DIAGRAM — MAIN SECTION —
1ANT
40 TUNER LCH
ELECTRONIC VOLUME
IC401
J601
(ANTENNA)
TUX501
(TUNER UNIT)
I2C BUS CONTROLLED POWER AMP/
MULTIPLE VOLTAGE REGULATOR
IC201
SYSTEM CONTROL
IC303 (2/3)
CNP101
41 TUNER RCH
BATT
42 CD LCH
43 CD RCH
R-CH
4
3
10
VCC
11
TU VDD
15
E2P VDD
13
TU-SCL
14
TU-SDA
6
S-METER
7
TU MUTE
16
E2P SCL
17
E2P SDA
38 VSM
53 TU ATT IN
AU+8.3V
TU+5V
BU+3.3V
91 TU ATT
20 EE SCK
19 EE SIO
TUNER LCH
TUNER RCH
CD-L
R-CH
17
22
OUTSW
OUT RF
21
OUT RR
R-CH
L
R
5
3
FL+
FL–
9
7
RL+
RL–
29
27
SW1
R-CH
SW2
BATT
30
37
REG1
35
(VP)REG
20
VP1
6
VP2
REG2
31
33
REG3
REG4
34
REG5
TU+5V
14
16
SA IN
SA OUT
15
MUTE
2SDA
AU+8.3V
BU+5V
CD+3.3V
CD+6V
ILL+10V
4SCL
SDA
SCL
16 ACGND
22 STB
25 DIAG
AU+8.3V
15
13
7
10
12
11
16
1
9
2
4
3
5
6
13
12
SCL
SDA
SCL
SDA
SCL
SDA
SCL
SDA
31
I2C SCK
32
I2C SIO
93
VOL ATT
4
ATT
5
BEEP
2
STB
1
DIAG
36
SA IN
94
SA CLK
100
BUS/AUX
51
BU IN
96
TEST IN
12 INFL
3 1
AMP
IC470
FL+
FL–
RL+
RL–
FR+
FR–
RR+
RR–
AMP-REM
ANT-REM
ACC
TEST
25
OUT LF
11 INRL
24
OUT LR
MUTE
Q451
MUTE
Q181
REAR
AUDIO OUT
MUTE CONTROL
Q401,402
56
UNI SI
57
UNI SO
58
UNI CLK
28
BUS ON
29
SYS RST
10 B CHK
8DATA OUT
9DATA IN
11 CLK IN
12 BUSON
13 RST
RESET
3
5
4
7
6
2
1
3
BATT
6
DATA I/O
4
CLK
1
BUS ON
2
RST
99
ACC IN ACCESSORY CHECK
Q102
TU+5V REG
Q501
BU+3.3V
BATT
BU+5V
BATT
+3.3V REG
IC301
BATT DET
Q101
BUS INTERFACE
IC110
MUTE
Q450
ATT
97
TEL ATT TEL ATTENATION CHECK
Q103
14
95
ILL IN ILL
D401
F901
R-CH
L
R
FRONT
AUDIO OUT
R-CH
4
7
PB LCH
PB RCH R-CH
L
R
BUS
AUDIO IN
AUX IN
PJ401
CN401
(SUB OUT(MONO))
BUS
CONTROL IN
D400
D402
D304
D302
D207
D271
D105
CD
SECTION
A
DISPLAY
SECTION
C
SYS RST
LINK OFF
BUS ON
UNI SCK
UNI SO
UNI SI
ATT
BU CHK
CD
SECTION
B
TH100
CNP102
8
BATT
LINK ON/OFF
SWITCH
Q111
BUS ON SWITCH
Q110,112
ILLUMINATION CHECK
Q907
11 13
AMP
IC402
AMP
IC431
3
5
8 14
1
7
MUTE
Q171
GROUND SW
Q408
MUTE
Q470
• Signal Path
• R-CH is omitted due to same as L-CH.
: CD PLAY
: FM
: AM
(Page 15)
(Page 15)
(Page 17)

CDX-F605X
17 17
CDX-F605X
3-3. BLOCK DIAGRAM — DISPLAY SECTION —
T620
DC-DC
CONVERTER
TRANSFORMER
DC-DC
CONVERTER
IC620
D623,624
D620,621
D622
FL+4.3V
BATT
FL+1V
FL+55V
X302
32.768kHz
77
78
80
81
41
69
68
42
98
44
75
DISPLAY CONTROL
IC901
GCP
BUFFER
IC902
FL900
FLUORESCENT
INDICATOR
TUBE
KEYIN0
DISP IF
MAS IF
FL SO1
FL SO2
FL SO3
LATCH
BK
GCP
GCP1
GCP2
GCP3
GCP4
FL CKO1
KEYIN1
50 KEY ACK
BACKUP+5V
FL VDD+3.3V
BATT
45 XKEY ON
RCIN1
RCIN0
RESET
NOSE SW
2IN 1
OUT
X1A
XOA
X0
X1
X301
18.432MHz
S301
RESET
18
17
30
MAS IF
DISP IF
70
DISP FLS W 8FLMDO
SI1
SI2
SI3
LAT
BK
CLK
GCP
26
DP TX 26 BUS RX
25
DP RX 25 BUS TX
5
71
DISP RESET 14 RESET
1RESET
IC904
ILL+10V
63
SIRCS
59
FL ON
60
FSW SFT
7
FSW IN
62
FL DP POW
66
DOOR IND
1
VCC
IR
LED901–924
LED931,932
REMOTE CONTROL
SIGNAL RECEIVER
IC903
2OUT
BU+3.3V
RESET
KEY MATRIX
S901-919,
ENC901(2/2)
73
74
SYSTEM CONTROL
IC303 (3/3)
REIN0
REIN1
X901
5MHz
ROTARY
ENCODER
ENC901(1/2)
65
S300
(NOSE DET)
RESET
IC302
CNJ101
(REMOTE IN)
DOOR INDICATOR
B+ SWITCH
Q601,602
51 6
41 5
54 4
37 12
39 13
52
FL CKI3 55
FL CKI2 42
7
11
47 2
45 4
57
X1 12
X2 13
1
11
MAIN
SECTION
C
FL VDD+3.3V
REG
IC900
POWER
CONTROL
Q623,Q642
FL ON/OFF
DRIVE
Q620
DC-DC
CONVERTER
CONTROL
Q621,622
7 4
1
5
VCC
OUT
IN
CT
KEY
ACKNOWLEDGE
SWITCH
Q301
D301
(Page 16)

CDX-F605X
1818
CDX-F605X
3-4. CIRCUIT BOARDS LOCATION • NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
For schematic diagrams.
Note:
•All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
•f: internal component.
•C: panel designation.
For printed wiring boards.
Note:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•a: Through hole.
•: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
•A: B+ Line.
•B: B– Line.
•H: adjustment for repair.
•Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
•CD mechanism section (1/2), (2/2)
no mark : CD PLAY
•Main (1/4), (2/4), (3/4), (4/4) and Display sections
no mark : FM
():AM
<>:CD PLAY
∗: Impossible to measure
•Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production
tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
•Circled numbers refer to waveforms.
•Signal path.
J: CD PLAY
F: FM
f: AM
L: BUS AUDIO
Caution:
Pattern face side: Parts on the pattern face side seen from the
(Side B) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side A) parts face are indicated.
Note:
The components identi-
fied by mark 0or dotted
line with mark 0are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
Q
C
These are omitted
EB
E
These are omitted
CB
C
These are omitted
BE
MAIN board
DISPLAY board
SENSOR board
SERVO board
SPEAKER board
tuner unit
(TUX501
)
RELAY board
• WAVEFORMS
— SERVO Board —
(CD PLAY)
— MAIN Board —
1IC2 4(FEI)
Approx.
1Vp-p
0 V
0.6 Vp-p
16.9344 MHz
Approx. 100 mVp-p
50 mV/DIV, 5 msec/DIV
0.5 V/DIV, 0.5 µ sec/DIV
2IC2 6(TEI)
200 mV/DIV, 5 msec/DIV
6IC2 oh (FPI2), oj (FPI1)
0.5 V/DIV, 0.5 µ sec/DIV
Approx. 400 mVp-p
3IC2 wd (XI)
0.2 V/DIV, 0.2 µ sec/DIV
7IC3 ia (X1)
0.5 V/DIV, 0.2 µ sec/DIV
1.1 Vp-p
12 MHz
4IC2 uj (RFI)
0.5 V/DIV, 0.5 µ sec/DIV
5IC2 of (FNI2), og (FNI1)
1.5 Vp-p
1.5 Vp-p
0 V
0.6 Vp-p
5 MHz
1IC901 qs (X1)
0.2 V/DIV, 0.2 µ sec/DIV
0.7 Vp-p
32.768 kHz
1 IC303 uk (X0A)
0.2 V/DIV, 20 µ sec/DIV
1.1 Vp-p
18.432 MHz
2 IC303 i; (X0)
0.5 V/DIV, 0.1 µ sec/DIV
— DISPLAY Board —

CDX-F605X
19 19
CDX-F605X
1
A
B
C
D
E
F
G
H
234567891011 12 13 14
SW3
SW2
MAIN BOARD CNP301
TP24
TP40
TP17
TP14
TP18
TP37
TP38
TP39
TP30
FMA4
FMA6
FMA3
TP48
TP49
TP51
TP53
FMA5
C37
C9
C38
C39
C40
C41
C43
C48
R129
R99
C67
C72
FB3
R132
C82 R88
C85
R89
IC8
R111
R6
C77
IC5
R7
C86
C74
C96
C89
C90
C91
C92
C93
C94
R104
R48
R50
R16
R17
R105
R40
R41
R8
R25
R26
R84
R86
R122
Q1
IC6
SW1
(DOWN)
C106
R120
C65
C81
C64
C19
R123
C20
C61
Q3
FB4
C29
C22
R65
C32
C51
C35
C45
C62
R11
R9
C57
R10
R30
IC3
R12
FB2
R106
R107
C6
FB5
R108
R58
R42
FB8
C73
R43
R109
R94
R95
R96
R47
R54
R56
R57
R66
R68
R97
R69
R70
R73
C75
R98
R100
R101
R13
R21
R29
R37
R39
R71
R102
C66
R110
Q2
IC7
C7
R103
C101
C102
C80
C103
R130
IC1
IC4
TP4
TP3
TP5
TP33
TP34
TP35
TP36
TP41
TP42
TP47
TP46
TP25
TP26
TP27
TP21
TP22
TP68
TP93
TP15
TP64
FMB3
FMB4
TP11
TP86
TP87
TP10
TP1
TP6
TP7
TP8
TP9
TP12
TP13
TP16
TP20
TP32
TP31
TP66
TP67
TP74
TP75
TP76
TP77
TP78
TP79
TP80
TP81
TP82
TP83
TP84
TP85
TP90
TP89
TP88
TP91
TP92
TP95
TP97
TP98
TP99
TP2
TP63
TP44
TP43
TP65
TP62
FMB5
TP101
TP23
TP29
CN1
C76
R4
R115
R24
C100
C70
C84
R5
C78
R92
CN2
R93
R61
C5
R2
R3
X1
X1
IC2
R121
C10
C4
R119
C18
C47
C34
C69
R118
C17
C23
C42
C99
C16
R125
C36
R62
R117
C21
R116
C24
C31
C28
R126
C52
R127
C49
R128
C53
R63
R64
C79
C13
R28
C104
R1
R114
C27
R53 R55
R67
R60
R74
R77
R78
R80
R81
R82
R83
R90
R91
C33
R19
R22
R23
R44
R52
R72
C95
R59
C83
C105
R124
1-864-900-
22
22 1-864-900-
22
22
A
3-5. PRINTED WIRING BOARDS — CD MECHANISM SECTION — • Refer to page 18 for Circuit Boards Location. : Uses unleaded solder.
(Page 23)
IC1 G-2
IC2 B-11
IC3 D-2
IC4 C-3
IC5 C-4
IC6 D-1
IC7 D-4
IC8 D-4
Q1 B-4
Q2 C-1
Q3 C-1
• Semiconductor
Location
Ref. No. Location

CDX-F605X
2020
CDX-F605X
IC B/D
IC B/D
IC B/D
CN1
R6 R7
TP34
Q2 R86
R84
TP41
TP36
TP27
TP26
TP46
TP30
TP47
R22
R71
R72
R64
R62
R63
R61
R60
R59
R29
TP68
R37
R39
C84
R88
R26
R40
R44
C61
R25
R41
R95
R94
TP42
TP12
TP13
TP20
TP21 TP22
TP25
TP18
TP17
TP16
TP15
TP14
R125
R126
R127
R128
R129
C100
TP29
IC5
R23
R21
R24
TP93
TP95
C4
C5
C7
C27
C23
C20
C19
C17
C18
C21
C24
C28
C29
C35
C32
C34
C104
C81
C74
C78
C85
C66
C82
R93
C72 C80
Q3
C86
C70
C89
C96
R110
C92
C90
C91
C94
C102
C53
C51
C62
C49 C57
C48
C45
C42
FB2 FB3
C67
R111
R52
C52
C47
C41
C40
C39
C38
C16
C13
C31 R19
C99 FB4
C101 R123
TP35
TP33
C36
R132
R5
R4
C93
C79
C77
R92
C76
C75
C73R89
R130FB5
R124
C83
FB8
C95
Q1
C9
TP37
TP38
TP39
TP40
IC7
IC6
C22
R13
IC8
IC2
R1
C10
C33 R96
R109
R104
R105
R102
R106
R103
R98
R99 R108
R107
R97
R114
R115
IC4
3-6. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (1/2) —
• Refer to page 18 for Waveforms.
• Refer to page 31 for IC Block Diagrams.
(Page 21)
