Sony CFD-523 User manual

FIA
SONY,
CD
Radio
Cassette-Corder
Operating instructions
CFD-523
CFD-533
eo by Sony Dorpomllon

13 002
SONY/GENERAL AUDIO
04/30/97 WED 13:51 FAX [phone]

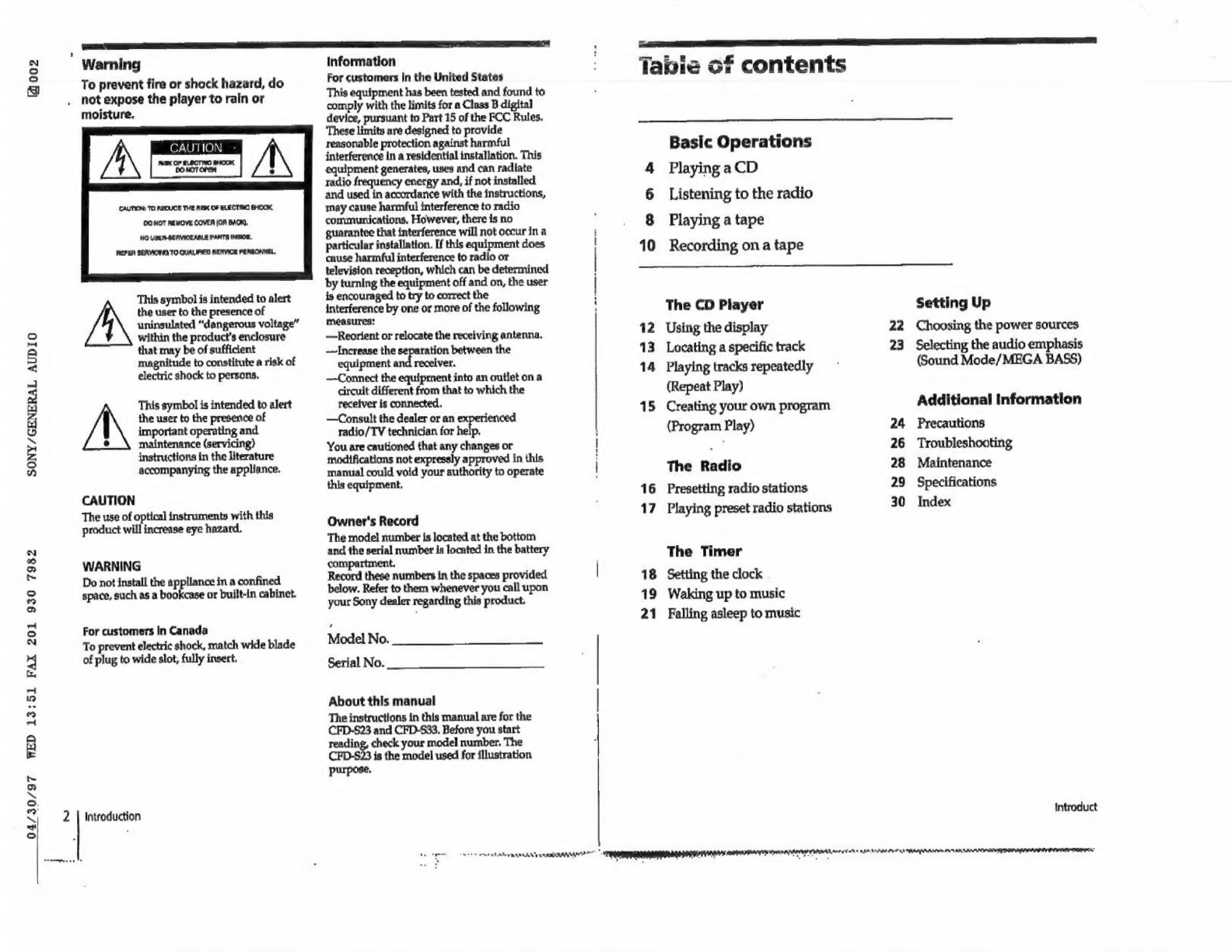

Warning
To prevent fire or shock hazard, do
not expose the player to rain or
moisture.
CAUTION -
AN
DO NOT OPEN
A
CAUTION: TO REDUCE THE RISK OF ELECTAIG SHOCK,
DO NOT REMOVE COVER (OR BACK.
NO USER-BERVICEABLE PARTS INSIDE.
REFER SEAVIOINA TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert
the user to the presence of
uninsulated “dangerous voltage”
within the product's enclosure
that may be of sufficient
magnitude to constitute a risk of
electric shock to persons,
This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
CAUTION
The use of optical instruments with this
product will increase eye hazard.
WARNING
A Gaspol itaona
space, such as a boo! or built-in cabinet.
For customers In Canada
To prevent electric shock, match wide blade
of plug to wide slot, fully insert,
2 | Introduction
Information
For customers in the United States
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications, However, there is no
guarantee that interference will not occur in a
particular installation, If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the
interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna,
— Increase the ration between the
equipment and receiver.
—Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
—Consult the dealer or an en
radio/TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment,
Owner's Record
The model number is located at the bottom
and the serial number 1s located in the battery
compartment.
Record these numbers in the spaces provided
below. Refer to them whenever you call upon
your Sony dealer regarding this product.
Model No.
Serial No.
About this manual
The instructions in this manual are for the
CFD-S23 and CFD-S33, Before you start
reading, check your model number. The
CFD-523 is the model used for illustration
purpose,
ET
en
un
FT
Tabie
of
contents
Basic Operations
Playing a CD
Listening to the radio
oO
8 Playing a tape
10 Recording on a tape
The CD Player Setting Up
12
Using
the
display
22

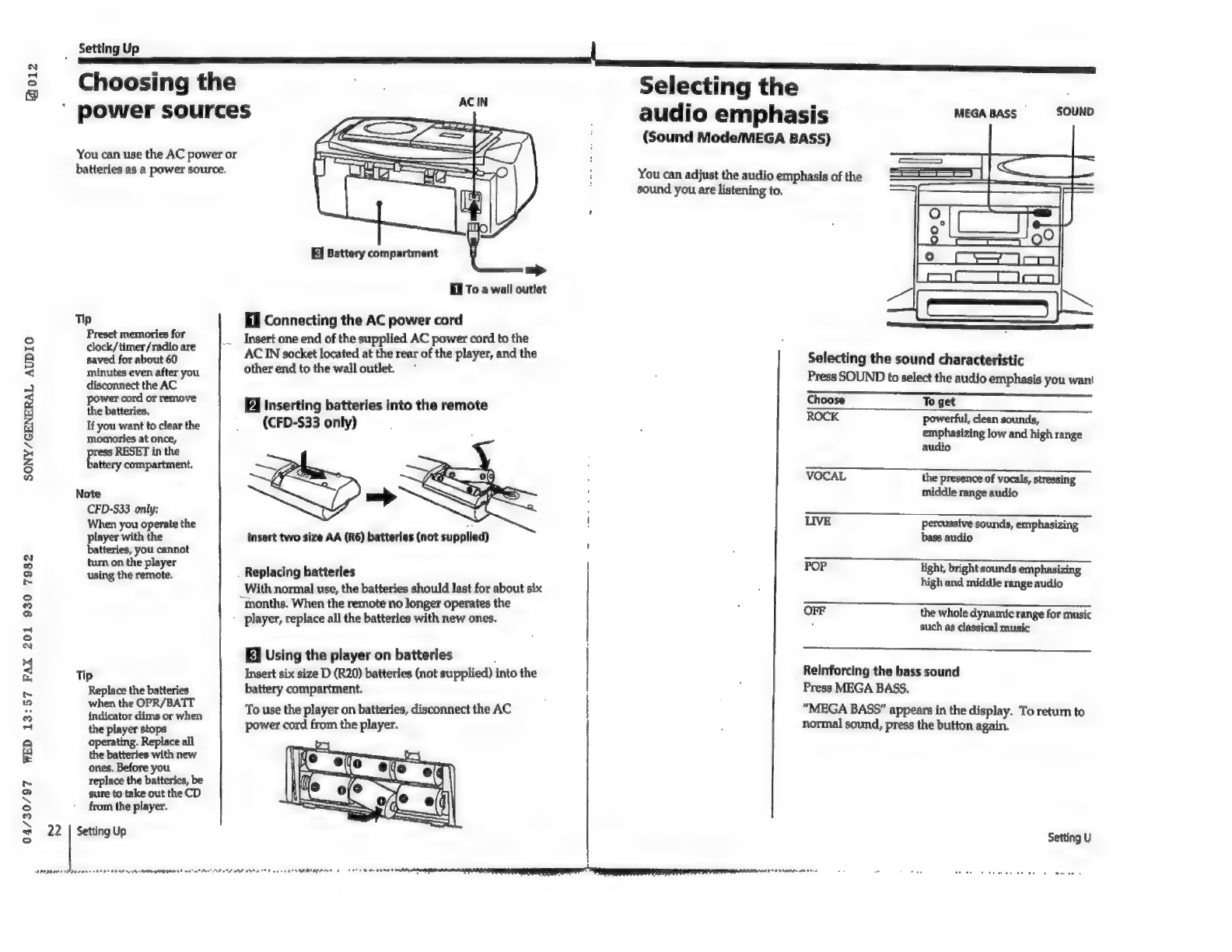

Choosing
the
power
sources
13
Locating
a
specific
track
23
Selecting
the
audio
emphasis
14
Playing
tracks
repeatedly
(Sound
Mode/MEGA
BASS)
(Repeat Play)
15
Creating
your
own
program
Additional
Information
(Program
Play)
24

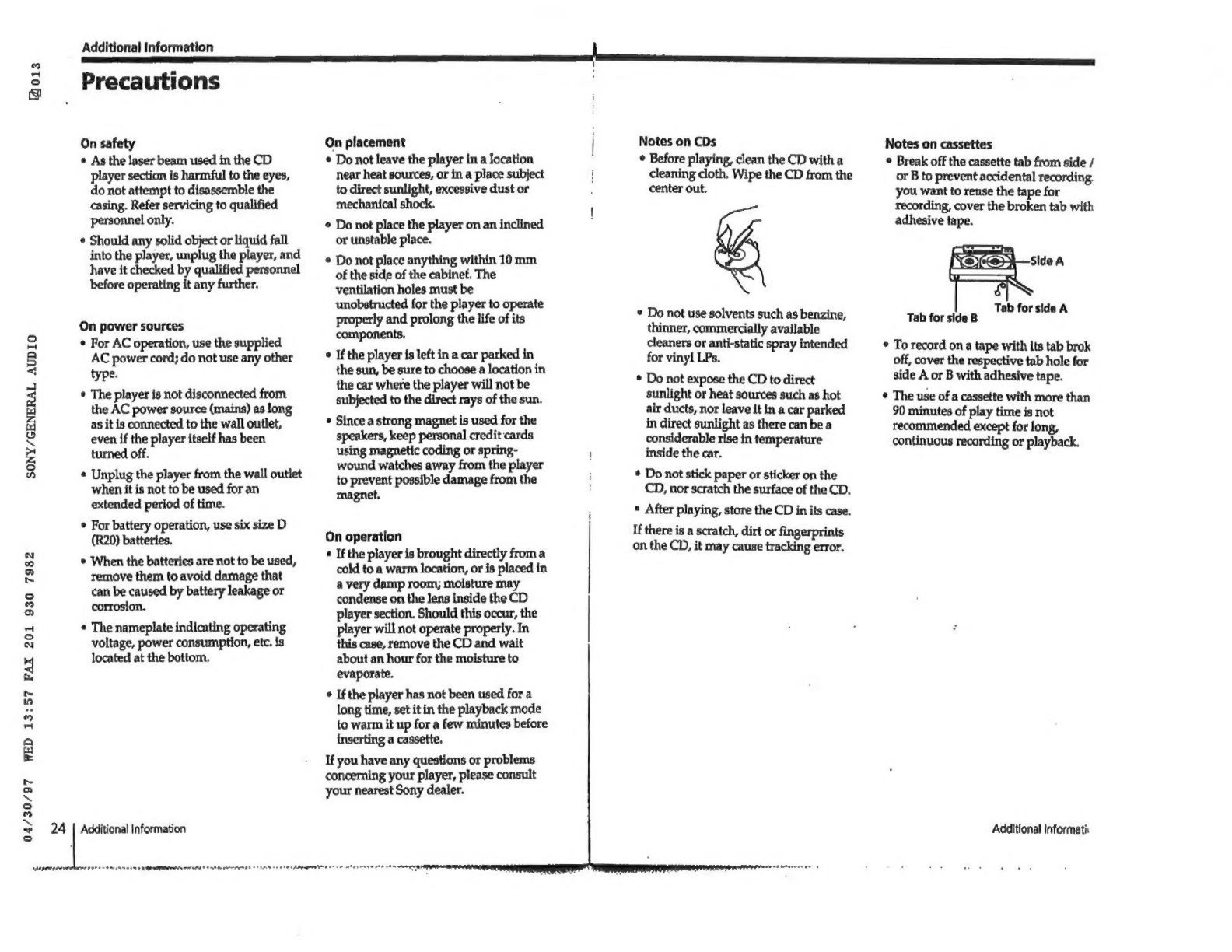

Precautions
= 26 Troubleshooting
The
Radio
28

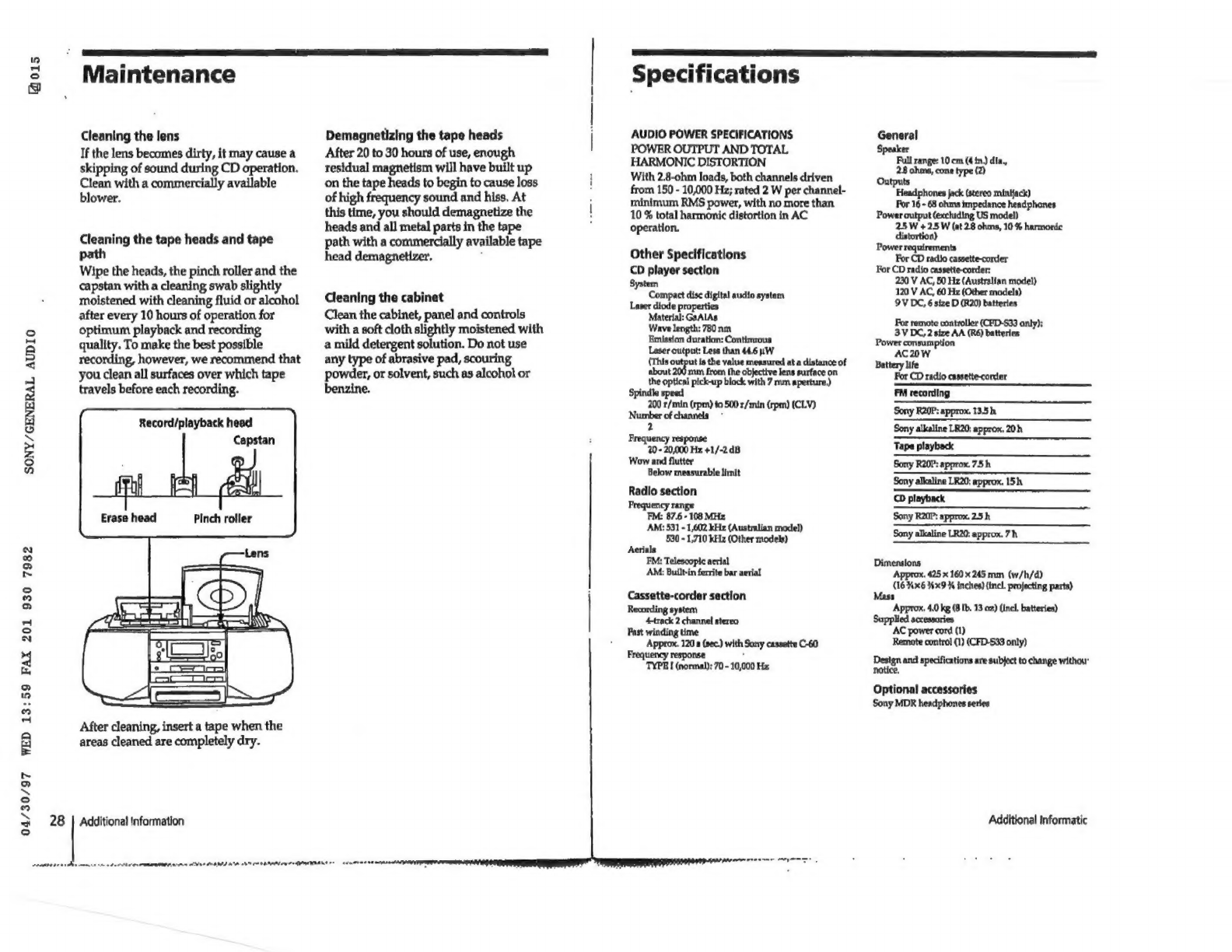

Maintenance
16
Presetting
radio
stations
29
Specifications
30

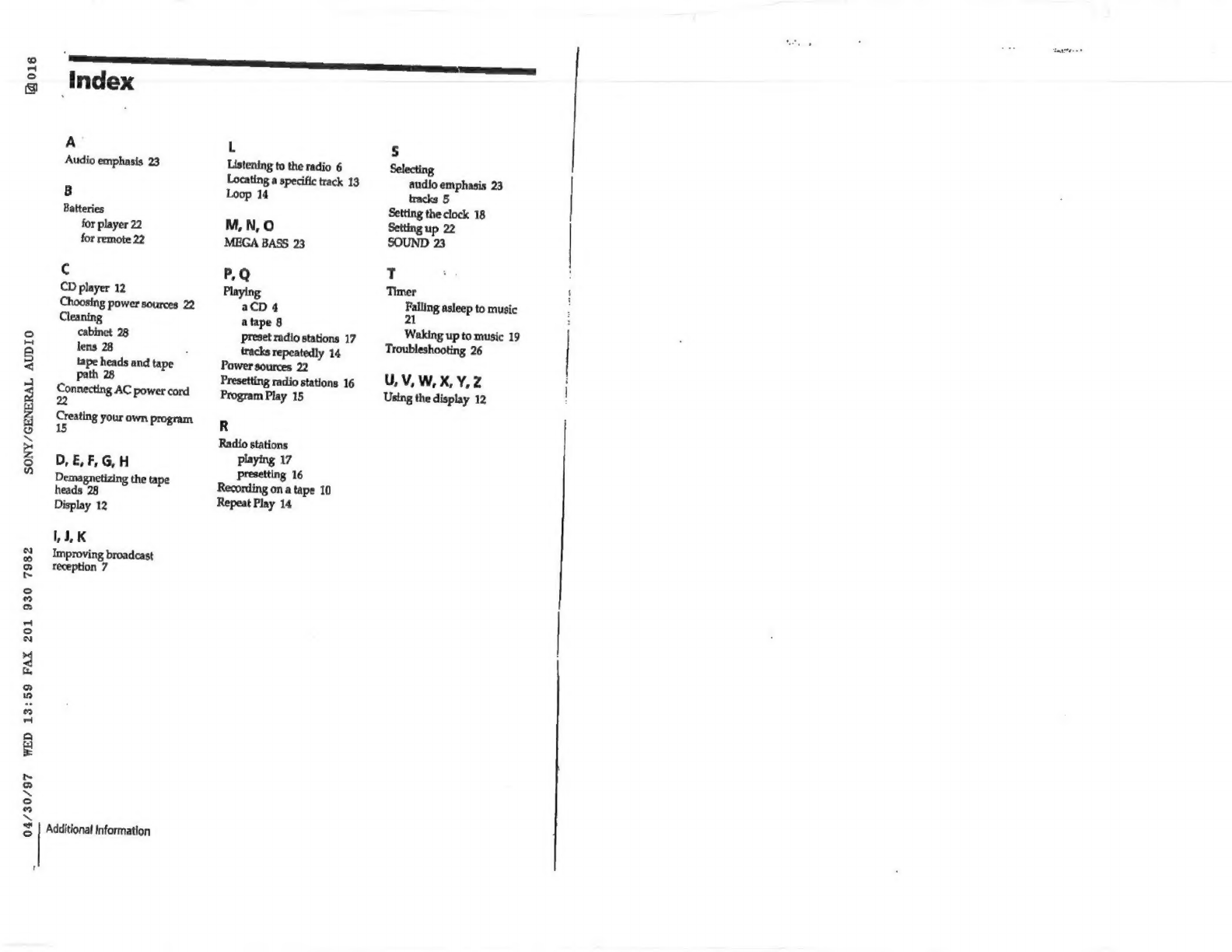

Index
17 Playing preset radio stations
The Timer

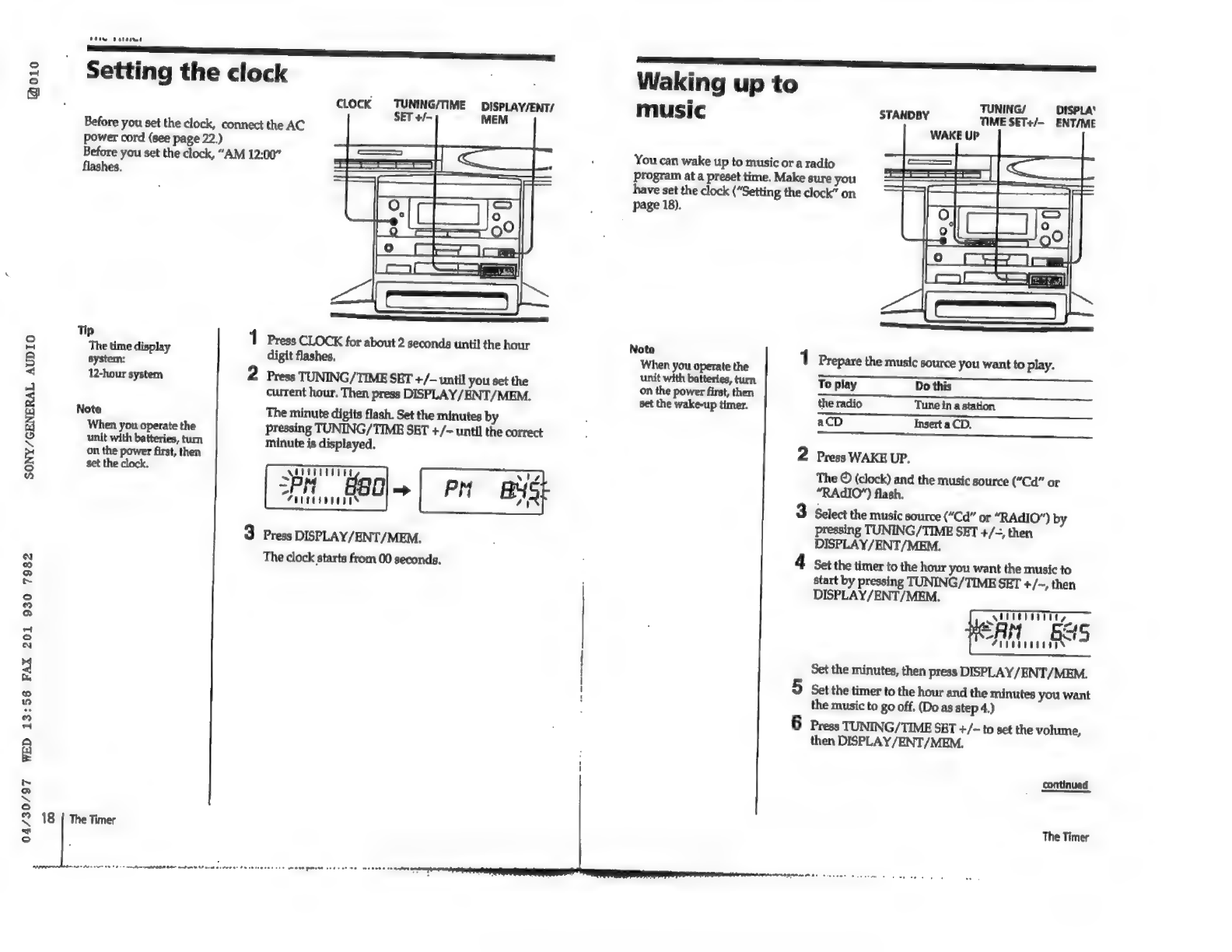

18 Setting the clock
19 Waking up to music
21 Falling asleep to music
Introduct
en
N
A"
BE
PAESANA
PAAA
40100
09
ee

—|—— os
pr nike
s Playing a CD ca
a Use these buttons for additional operations
| POWER AOPEN/CLOSE
céncal
| Femme |
| Tip To - Press
Next time you want to
=
listen
to
a
CD,
just
press
Adjust
the
volume
VOLUME
+/-
B N Pil. The player turns on back KI
2 Connect the supplied AC power cord (see page 22). : automatically and starts Stop play
| playing the CD. . Pause playback Pil
S 1 Press “OPEN/CLOSE down to Press again to resume play
2
OPEN/CLOSE
open
the
CD
compartment
and
afier
sie
9 (4) place the CD on the CD i Go to the next track Pri
= AS Go back to the previous track 144
a Remove the CD OPEN/CLOSE
Turn on/off the player POWER
With the label side up
s 2 Close the lid of the CD -
2 OPENIGLOSE compartment.
+: ©
©
o
mj
o
y I
|
€ Press Bil (direct power-on). Display |
N i
10 The player plays all the tracks M i
5 once, | |[UUUC
de 09 GIO 0 © © GĄG Y
a i
= Track number Playing time
>
o
S
> 4 | Basic Operations Basic Operatior
S
NSE | PRZE ZRZEC

[21004

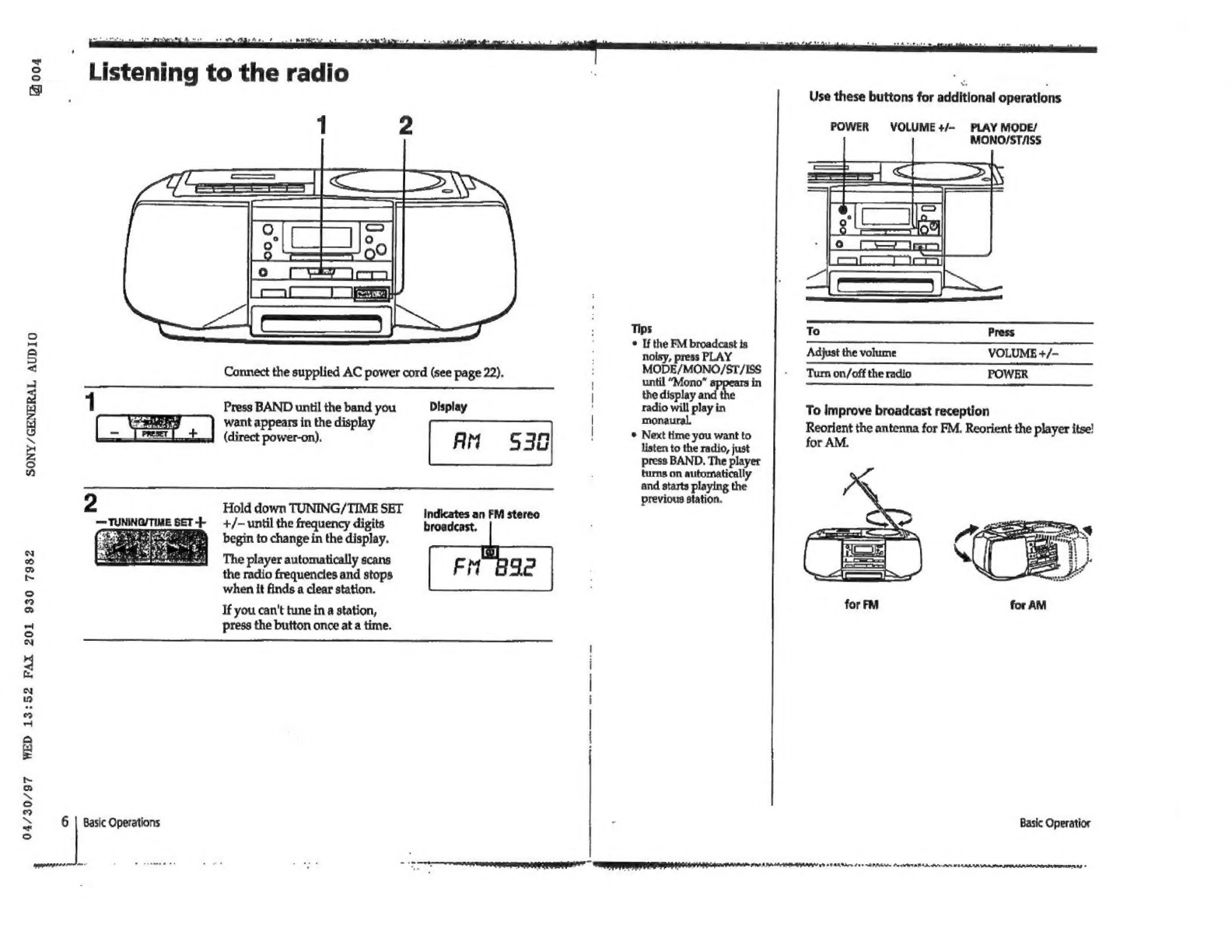

Connect the supplied AC power cord (see page 22).
Press BAND until the band you Display
FE want appears in the display
(direct power-on). AM 536
Hold down TUNING/TIME SET dicates ste
+/- until the frequency digits in e eee
begin to change in the display.
The player automatically scans
the radio frequencies and stops
when it finds a clear station.
Tf you can't tune in a station,
press the button once at a time.
SONY/GENERAL AUDIO
04/30/97 WED 13:52 FAX [phone]
| Basic Operations
Tips
* Ifthe FM broadcast is
noisy, press PLAY
MODE/MONO/ST/ISS
until “Mono” in
the display and
radio will play in
monaural.
* Next time you want to
listen to the radio, just
press BAND, The player
turns on automatically
and starts playing the
previous station.
TREE
ROM
DIANA
AA
RAIN
Poe
AID
ARAS
4
AAA
LAIA
POWA
RANE
ARI
Use these buttons for additional operations
POWER VOLUME +/- PLAY MODE/
MONO/ST/ISS
To Press
Adjust the volume VOLUME +/-
Turn on/off the radio POWER
To improve broadcast reception
Reorient the antenna for FM. Reorient the player itse!
for AM.
Basic Operatior
m

Number
kuttons
in
th
SONY /, GENERAL AUDIO
n
(FD-533)
Check
the
display
in
stop
mode,
©
locato
Press
Ifthe
CD
has
More
than
10
tracks,
“OVER
10”
appears
a
A
specifi
track
dire
n
ttonof
the
e
display,
specific
“SHUR
track,
ú
i
REP”
gr
"PGM"
2
Point
while
Listening
Pp;
(forward)
sr
Kee
‘
-
LU
off
e
sound
€
indication
b
i
3]
*
Fora
track
wh
number
jg
More
than
20
the
remainin
i
appears
as
a
|
The
CD
Player

Boos
SONY/GENERAL AUDIO
14
04/30/97 WED 13:54 FAX [phone]
q
È
Playing
tracks
|
=
EE]
repeatedly
MM
Mokorsmss
(Repeat
Play)
À
You can play tracks repeatedly in
normal, shuffle or program play modes
(see page 15).
jie
533
only:
1
Press
M.
*
To
enjoy
a
short
repeat
"Cd"
appears
in
the
display
play,
use
LOOP
on
the
2
Press
PLAY
MODE/MONC/ST/JSS
until
the
Ze
want
the
display.
pres
repeat
mode
you
wani
appears
in
the
display
and
hold
LOOP
during
To
repeat
Select
—
o
a
E,
alles
tee
gg
asingle
track
RPI
between
the
point
all
the
tracks
'
REP
ALL
a
e
BEE
ns
——
nen
tracks
in
pandom
order
_SHUFREP
about
a
second
behind.
programad
tracks
¡
PGMREP
and
then
progam
When
you
release
:
trecks
(see step
3
on
page
LOOP,
the
player
z
1%.
returns
to
normal
plny.
pO
*
On
the
remote,
use
í
,
MODE
instead
of
3
Doeither
of
the
following
to
start
repeat
play:
pi
ODE/MONG/
+
When
you've
selected
REP1,
select
the
track
by
pressing
44
or
PM
and
press
Pil.
e
When
you've
selected
REP
ALL,
SHUF
REP
or
PGMREP,
press
Pl
.
To
cancel
Repeat
Play
Press
PLAY
MODE/MONO/ST/ISS
until
“REP”
disappearsin
the
display,
The
CD
Player
Creating your
own program
{Program Play)
Pil EM PLAY MODE/ Had /P Pi
MONO/ST/ISS DISPLAY/
You can make a program of up to 20
tracks in the order you want them to be
played.
Tips
e CFD-S33 only: 1 Press™.
To create ur own “Cd” appears in the display.
DOMAMI 2. Press PLAY MODE/MONO/ST/ISS until “PGM”
1 Press M. appears in the display.
2 Press MODE until 3 Press kéd /B>łrl and press DISPLAY/ENT/MEM
ede in for the tracks you want to program in the order
Macaw you want, You can program up to 20 tracks.
buttons for the tracks
you want to
in the order you
want,
4 Press ie,
e You can play the same PRECZ Playlng order
program again, since 4 Press Pill to start program play.
the programi is saved
until you open the CD
compartment.
è You can record your
To cancel Program Play
Press PLAY MODE/MONO/ST/ISS until “PGM”
own program. After disappears from the display.
pk pm the ppe PY
program, insert a blank
tape
into
the
tape
To
check
the
order
of
tracks
before
play
compartment and press
© Pr ral on pres Press DISPLAY /ENT/MEM.
Every time you press the button, the track number
appears in the programed order.
To change the current program
Press M once if the CD is stopped and twice if the CD
is playing. The current m will be erased. Then
create a new program following the programing
procedure,
The CD Player

Moog
SONY/GENERAL AUDIO
04/30/97 WED 13:55 FAX [phone]
prarzanoce kerm
The Radio
Presetting radio Playing preset r ą
n
PRESET
+/-
BAND
TUNING/TIME
H
=
-
stations
SET
+/-
radio
stations
BAND
PRESET
+/-
DISPLAY/ENT/MEM
You can store radio stations into the ——- Once you've preset the stations, use
player's memory. You can preset up to PRESET +/- to tune in your favorite
20
radio
stations,
10
for
each
FM
and
AM
stations.
in any order.
Tip
CFD-533
only:
1
da
og
until
the
band
you
want
appears
in
CFD-S33
only:
1
Press
BAND
to
select
the
band.
To
preset
radio
BF:
To
play
preset
radio
2.
Press
PRESET
+/-
to
tune
in
a
stored
station.
stations
on
the
remote,
2
Hold
down
BAND
for
about
2
seconds
until
stations
on
the
remote,
proceed
as
follows:
“AUTO”
appears
in
the
display.
proceed
as
follows:
oe 3 Press DISPLAY/ENT/MEM. = a
ae
The
stations
are
stored
in
memory
from
the
lower
2
Press
the
number
lny.
frequencies
to
the
higher
ones,
buttons
to
tune
in
a
2
Tune
in
a
station
you
stored
station.
want.
3 Hold down the
aa dd If a statlon cannot be preset automatically
you want to preset You need to preset a station with a weak signal
the new station for manually.
about 2 seconds.
The new station 1 Press BAND to select the band.
replaces the old one. 2 Tune ina station you want.
3 Hold down DISPLAY /ENT/MEM for about 2 |
seconds.
4 Press PRESET+/- until the preset number (1 to 10)
you want for the station flashes in the music
calendar.
5 Hold down DISPLAY/ENT/MEM again.
The new station replaces the old one.
16
i
Radio
The
Radi
sie Ge EESE ANNE das eben et ÓN mm. nme Um tayuan A aretas KOR A

010
SONY/GENERAL AUDIO
04/30/97 WED 13:56 FAX [phone]
3
UEDA
Setting
the
clock
CLOCK
TUNING/TIME
DISPLAY/ENT/
SET
+/-
MEM
Before
you
set
the
clock,
connect
the
AC
power
cord
(see
page
22.)
Before
you
set
the
clock,
"AM
12:00”
flashes.
Tip
2
The
time
display
1
pics
cae
for
about
2
seconds
until
the
hour
system:
p
12-hour
system
2
Press
TUNING/TIME
SET
+/-
until
you
set
the
current
hour.
Then
press
DISPLAY
/ENT/MEM.
Note
The
minute
digits
flash.
Set
the
minutes
by
When
you
operate
the
pressing
TUNING/TIME
SET
+/-
until
the
correct
unit
with
batteries,
turn
minute
is
displayed.
on
the
power
first,
then
set
the
clock.
AO
y
-
[r
AMG
vy
3
Press
DISPLAY/ENT/MEM.
The
clock
starts
from
00
seconds.
The
Timer
PA AN A nn NA mind AMA a mm
Waking
up
to
music
TUNING/ DISPLA'
STANDBY
TIME SET+/- ENT/ME
You
can
wake
up
to
music
or
a
radio
program
at
a
preset
time,
Make
sure
you
have
set
the
clock
(“Setting
the
clock”
on
page
18).
Note
When
you
operate
the
1
Prepare
the
music
source
you
want
to
play.
pe iia ay ea To play Do this
> the ea gl En the radio Tune in a station
aCD Insert a CD.
2 Press WAKE UP.
The
©
(clock)
and
the
music
source
(“Cd”
or
“RAdIO”)
flash.
3
Select
the
music
source
(“Cd”
or
“RAdIO”)
by
pressing
TUNING/TIME
SET
+/-,
then
DISPLAY
/ENT/MEM.
4
Set
the
timer
to
the
hour
you
want
the
music
to
start
by
pressing
TUNING/TIME
SET
+/-,
then
DISPLAY
/ENT/MEM.
Set the
minutes,
then
press
DISPLAY
/ENT/MEM.
5
Set
the
timer
to
the
hour
and
the
minutes
you
want
the
music
to
go
off.
(Do
as
step
4.)
6
Press
TUNING/TIME
SET
+/-
to
set
the
volume,
then
DISPLAY
/ENT/MEM.
continued,
The Timer

[4011
SONY/GENERAL AUDIO
04/30/97 WED 13:56 FAX [phone]
a a A Aa py i a acz: A u pe a wór |
Waking up to music (continued)
Tip
You can have the
player go on the next
day at the same time.
Just press STANDBY
until the O indication
appears in the display.
The preset settings
remain until you reset
them.
Note
The timer mode is
canceled:
- when you >
button of the tape
layer while music
ee the timer
mode,
- when you select
"TAPE" using
FUNCTION on the
remote.
20 | The Timer
7 Press STANDBY.
The © indication lights up and the power goes off.
At the preset time, the power will go on, and the
music will play. Then the power will go off at the
preset time, and the player will enter into the
standby mode.
`
To check/change when the playback will start
Press WAKE UP, then DISPLAY /ENT/MEM. Each
time you press DISPLAY /ENT/MEM, a stored setting
lights up. Change the setting if you need to when the
setting lights up. When you finish checking, press
WAKE UP again.
To use the player before a tlmer playback starts
Just turn on the player, and then you can use it.
If you turn off the player before the preset time, timer
playback will start at the preset time.
In case of the radio, however, if you listen to the
station which is different from the one you tuned in in
step 1 on page 19, you will hear that station at the
preset time. Make sure to tune in the station you want
to listen to before you tum off the player.
To stop play
Press POWER.
EEE EEE CN O OTO O TAPA OPT DAN +
Falling asleep to
music
You can set the player to turn off
10, 20, 30, 60, 90 and
120
minutes,
allowing
you
to
fall
asleep
while listening to music.
automatically a
Tips
» When you are playing
radio or CD, make sure
that = of the tape
player is not depressed.
* You can fall asleep and
wake up to different
music, First, set the
wake up timer by
following steps in
“Waking up to music”
on page 19. Then, turn
the power on and
follow the steps on this
page to set the sleep
timer. When you are
listening to the radio,
make sure to tune in
the station you want to
wake up to.
Note
When you are = playing, ;
a tape using
function: A
Tf the tape length of one
side is longer than the
set time, the player will
not pa until the tape
reaches the end.
1 Play the music source you want,
2 Press SLEEP to display “SLEEP,”
3
Press
SLEEP
to
select
the
minutes
until
the
player
goes
off
automatically,
Each
time
you
press
the
button,
the
indication
changes
as
follows:
"60" — "90" — “120” — “no indication” — “107
— "20" — "30"
BU
To cancel the sleep function
Press POWER to turn off the power.
The Time

[4012
SONY/GENERAL AUDIO
04/30/97 WED 13:57 FAX [phone]
j Setting Up
22
rm Pr
ee nt ne te
Choosing the
power sources
You can use the AC power or
batteries as a power source.
Battery compartment
El To a wall outlet
Tip Connecting the AC power cord
Preset memorien for _ Insert one end of the supplied AC power cord to the
sai oc pg ACIN socket located at the rear of the player, and the
minutes even after you other end to the wall outlet. *
disconnect the AC
porrer ord ii Inserting batteries into the remote
If you want to clear the {CFD-$33 only)
momories at once,
RESET in the
attery compartment, —
Note eu
CFD-S33 only:
When you operate the =
player with the Insert two size AA (R6) batterles (not supplied)
batteries, you cannot
turn on the pla’
re psoe Replacing batteries
_With normal use, the batteries should last for about six
months. When the remote no longer operates the
* player, replace all the batteries with new ones.
Using the player on batteries |
Tip Insert six size D (R20) batteries (not supplied) into the
Replace the batteries battery compartment.
his en To use the player on batteries, disconnect the AC
the player stops power cord from the player.
operating. Replace all
the batteries with new
ones. Before you
replace the batteries, be
sure to take out the CD
from the player.
Setting Up
PAANS aSa ASP anas a PAUPAR 6 14 A er
Selecting the
audio emphasis
(Sound Mode/MEGA BASS)
SOUND
MEGA BASS ©
You
can
adjust
the
audio
emphasis
of
the
sound you are listening to.
Selecting
the
sound
characteristic
Press
SOUND
to
select
the
audio
emphasis
you
wan!
To get
ps clean sounds,
emphasizing low and high range
audio
Choose
ROCK
VOCAL
the
presence
of
vocals,
stressing
middle range audio
percussive sounds, emphasizing
bass audio
A E a ee
POP
light,
bright
sounds
emphasizing
high and middle range audio
A o es
OFF
the
whole
dynamic
range
for
music
> such as classical music
Reinforcing the bass sound
Press MEGA BASS.
"MEGA
BASS”
appears
in
the
display.
To
return
to
normal
sound,
press
the
button
again.
Setting U

9013
SONY/GENERAL AUDIO
04/30/97 WED 13:57 FAX [phone]
di
Additional Information
Precautions
On safety
« As the laser beam used in the CD
player section is harmful to the eyes,
do not attempt to disassemble the
casing. Refer servicing to qualified
personnel only.
¢ Should any solid object or liquid fall
into the player, unplug the player, and
have it checked by qualified personnel
before operating it any further.
On power sources
e For AC operation, use the supplied
AC power cord; do not use any other
type.
* The player is not disconnected from
the AC power source (mains) as long
as it is connected to the wall outlet,
even if the player itself has been
turned off.
« Unplug the player from the wall outlet
when it is not to be used for an
extended period of time.
* For battery operation, use six size D
(R20) batteries.
» When the batteries are not to be used,
remove them to avoid damage that
can be caused by battery leakage or
corrosion.
« The nameplate indicating operating
voltage, power consumption, etc. is
located at the bottom,
24 | Additional Information
ee ter Tr ne arc ati ea a tea Z WO a >
On placement
e Do not leave the player in a location
near heat sources, or in a place subject
to direct sunlight, excessive dust or
mechanical shock.
© Do not place the player on an inclined
or unstable place.
e Do not place anything within 10 mm
of the side of the cabinet. The
ventilation holes must be
unobstructed for the player to operate
properly and prolong the life of its
components.
o If the player is left in a car parked in
the sun, be sure to choose a location in
the car where the player will not be
subjected to the direct rays of the sun.
e Since a strong magnet is used for the
speakers, keep personal credit cards
using magnetic coding or spring-
wound watches away from the player
to prevent possible damage from the
magnet.
On operation
e If the player is brought directly from a
cold to a warm location, or is placed in
a very damp room; moisture may
condense on the lens inside the CD
player section. Should this occur, the
player will not operate properly. In
this case, remove the CD and wait
about an hour for the moisture to
evaporate.
e If the player has not been used for a
long time, set it in the playback mode
to warm it up for a few minutes before
inserting a cassette.
If you have any questions or problems
concerning your player, please consult
your nearest Sony dealer.
Pte.
Notes on CDs
* Before playing, clean the CD with a
cleaning cloth. Wipe the CD from the
center out.
° Do not use solvents such as benzine,
thinner, commercially available
cleaners or anti-static spray intended
for vinyl LPs.
» Do not expose the CD to direct
sunlight or heat sources such as hot
air ducts, nor leave it in a car parked
in direct sunlight as there can be a
considerable rise in temperature
inside the car.
* Do not stick paper or sticker on the
CD, nor scratch the surface of the CD.
a After playing, store the CD in its case.
If there is a scratch, dirt or fingerprints
on the CD, it may cause tracking error.
Notes on cassettes
e Break off the cassette tab from side /
or B to prevent accidental recording.
you want to reuse the tape for
recording, cover the broken tab with
adhesive tape.
Tab
Tab for skie B ab for side A
* To record on a tape with its tab brok
off, cover the respective tab hole for
side A or B with adhesive tape.
* The use of a cassette with more than
90 minutes of play time is not
recommended except for long,
continuous recording or playback.
Additional Informati:

014
SONY/GENERAL AUDIO
04/30/97 WED 13:58 FAX [phone]
General
26 | Additional Information
Troubleshooting
Symptom Remedy
The power is not on. e Connect the AC power cord to a wall outlet
securely.
© Make sure the batteries are inserted correctly.
* You cannot turn on the player with the remote
when you operate the player on batteries.
o Make sure the function you want to use appears
in the display window.
e Adjust the volume.
» Unplug the headphones when listening through
speakers.
"no
disc”
lights
in
the
display
even
—
e
Insert
the
CD
with
the
label
surface
up.
when a CDis in place.
The CD does not play.
There is no audio.
o Make sure that the CD compartment is closed.
o Place the CD with the label surface up.
' e Clean the CD. ‘
e Take out the CD and leave the CD compartment
open for about an hour to dry moisture
CD Player
The sound drops out. o Reduce the volume,
e Clean the CD, or replace it if the CD is badly
damaged
e Place the player in a location free from
. vibration.
The audio is weak or has poor « Replace all the batteries with new ones if they
quality. are weak.
e Move the player away from the TV.
« Ifyou are using the remote while listening to
AM or LW radio, noise may be heard. This is
unavoidable.
© If you are listening to an FM program near the
TV with an indoor antenna, move the player
away from the TV. :
Radio
The picture of your TV becomes
unstable.
Pree ee VE Er 7777777
Symptom Remedy
The tape does not move when you * Close the cassette compartment securely.
press an operation button.
The REC © button does not a Make sure the safety tab on the cassette is in
function/The tape does not play. place.
e Make sure “TAPE” appears in the display.
The tape does not erase completely. ® Clean the erasing head (see page 28.)
* Replace all the batteries with new ones if they
5 are weak,
= The tape does not record. e Make sure the tape is inserted properly.
2 e Make sure the safety tab of the cassette is in
e place.
The audio is weak/The audlo ® Clean the heads, pinch roller and capstan (see
quality is poor. . page 28),
© Demagnetize the heads using a demagnetizer
(see page 28).
The sound is distorted. * The TYPE II (high position) or TYPE IV (metal
tape is being used. Use TYPE I (normal) tape
* Make sure the time on the clock is correct,
© Check to see if the AC power had been cut off.
o Make sure the O (clock) indication is displaye
+ Replace all the batteries in the remote with ne‘
ones if they are weak.
e Make sure that you are pointing the remote at
the remote sensor on the player.
© Remove any obstacles in the path of the remot
and the player.
o Make sure the remote sensor is not exposed to
strong light such as direct sunlight or
fluorescent lamp light.
e Move closer to the player when using the
remote,
The timer does not operate.
mer
The remote does not function.
Remote (CFD-S33 only)
The player uses a built-in micro computer for its various operations. Due to ic, power
supp! Fe etc., operation may sometimes become unstable. After trying the above
remedies, if the player still does not function properly, RESET in the battery compartmer
with a pointed material. If the problem persists, please consult your nearest Sony dealer,
Additional Informati

1015
SONY/GENERAL AUDIO
WED 13:59 FAX [phone]
04/30/97
28
Maintenance
Cleaning the lens
If the lens becomes dirty, it may cause a
skipping of sound during CD operation.
Clean with a commercially available
blower.
Cleaning the tape heads and tape
path
Wipe the heads, the pinch roller and the
capstan with a cleaning swab slightly
moistened with cleaning fluid or alcohol
after every 10 hours of operation for
optimum playback and i
quality. To make the best possible
recording, however, we recommend that
you clean all surfaces over which tape
travels before each recording.
Record/playback head
Capstan
Erase head Pinch roller
mn
After cleaning, insert a tape when the
areas cleaned are completely dry.
Additional Information
u ann A AAA AA AS eye IÓ
Demagnetizing the tape heads
After 20 to 30 hours of use, enough
residual magnetism will have built up
on the tape heads to begin to cause loss
of high frequency sound and hiss. At
this time, you should demagnetize the
heads and all metal parts in the tape
path with a commercially available tape
head demagnetizer. i
Cleaning the cabinet
Clean the cabinet, panel and controls
with a soft cloth slightly moistened with
a mild detergent solution. Do not use
any type of abrasive pad, scouring
powder, or solvent, such as alcohol or
no se mes
A A RETTEN A ale A A e un o A an |
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION
With 2,8-ohm loads, both channels driven
from 150 - 10,000 Hz; rated 2 W per channel-
minimum RMS power, with no more than
10 % total harmonic distortion in AC
operation.
Other Speciflcatlons
CD player sectlon
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wave length: 780 nm
Emission duration: Continuous
Laser output: Less than 44,6 UW
(This m. po is the value measured at a distance of
about 200 mun from the objective lens surface on
the optical pick-up block with 7 mm aperture.)
speed
200 r/min (rpm) to 500 r/min (rpm) (CLV)
Number of channels *
2
Frequency response
20 - 20,000 Hz +1/-2dB
Wow and flutter
Below measurable limit
Radio section
lency range
FM: 87.6 - 108 MHz
AM: 531 - 1,602 kHz (Australian model)
530 - 1,710 kHz (Other models)
Aerials
FM: Telescopic aerial
AM: Built-in ferrite bar aerial
Cassette-corder section
Fast winding time
Approx. 120 s (sec) with Sony cassette C-60
Frequency response :
TYPE I (normal): 70 - 10,000 Hz
AER era sme amy cr
General
Speaker
Full range: 10 cm (4 in.) dia.,
2.8 ahms, cone type (2)
Ontputs
Headphones jack (stereo minijack)
For 16 - 68 ohms impedance headphones
Power output US model)
25 W +25 W (at 2.8 ohms, 10 % harmonic
distortion)
Power requirements
For CD radio cassette-corder
For CD radio cassette-corder:
220 V AC, 50 Hz (Australian model)
120 V AC, 60 Hz (Other models)
9 V DC, 6 size D (R20) batteries
Dimensions
Design and specifications are subject to change withow'
Optional accessories
Sony MDR headphones series
Additional Informatic

[1 018
SONY/GENERAL AUDIO
WED 13:59 FAX [phone]
04/30/97
Index
A
Audio emphasis 23
B
Batteries
for player 22
for remote 22
€
CD player 12
Choosing power sources 22
Cleaning
cabinet 28
lens 28
tape heads and tape
path 28
ran AC power cord
Creating your own program
15
D, E, F, G, H
Demagnetizing the tape
heads 28
Display 12
I, J, K
Improving broadcast
reception 7
Additional Information
L
Listening to the radio 6
Locating
a
specific
track
13
Loop 14
M, N, O
MEGA BASS 23
P,Q
Playing
aCD 4
atape 8
Preset radio stations 17
tracks repeatedly 14
Power sources 22
Presetting radio stations 16
Program Play 15
R
Radio stations
playing 17
presetting 16
Recording on a tape 10
Repeat Play 14
5
Selecting
audio emphasis 23
tracks 5
Setting the clock 18
Setting up 22
SOUND 23
T
Timer
Falling asleep to music
21
Waking up to music 19
Troubleshooting 26
U, V, W, X, Y, Z
Using the display 12
tatters
