Sony CFD-565 User manual

3-810-895-11(1)
SONY.
CD
Radio
Cassette-
Corder
Operating
Instructions
CFD-565/DW565
CFD-567
©1996
by
Sony
Corporation

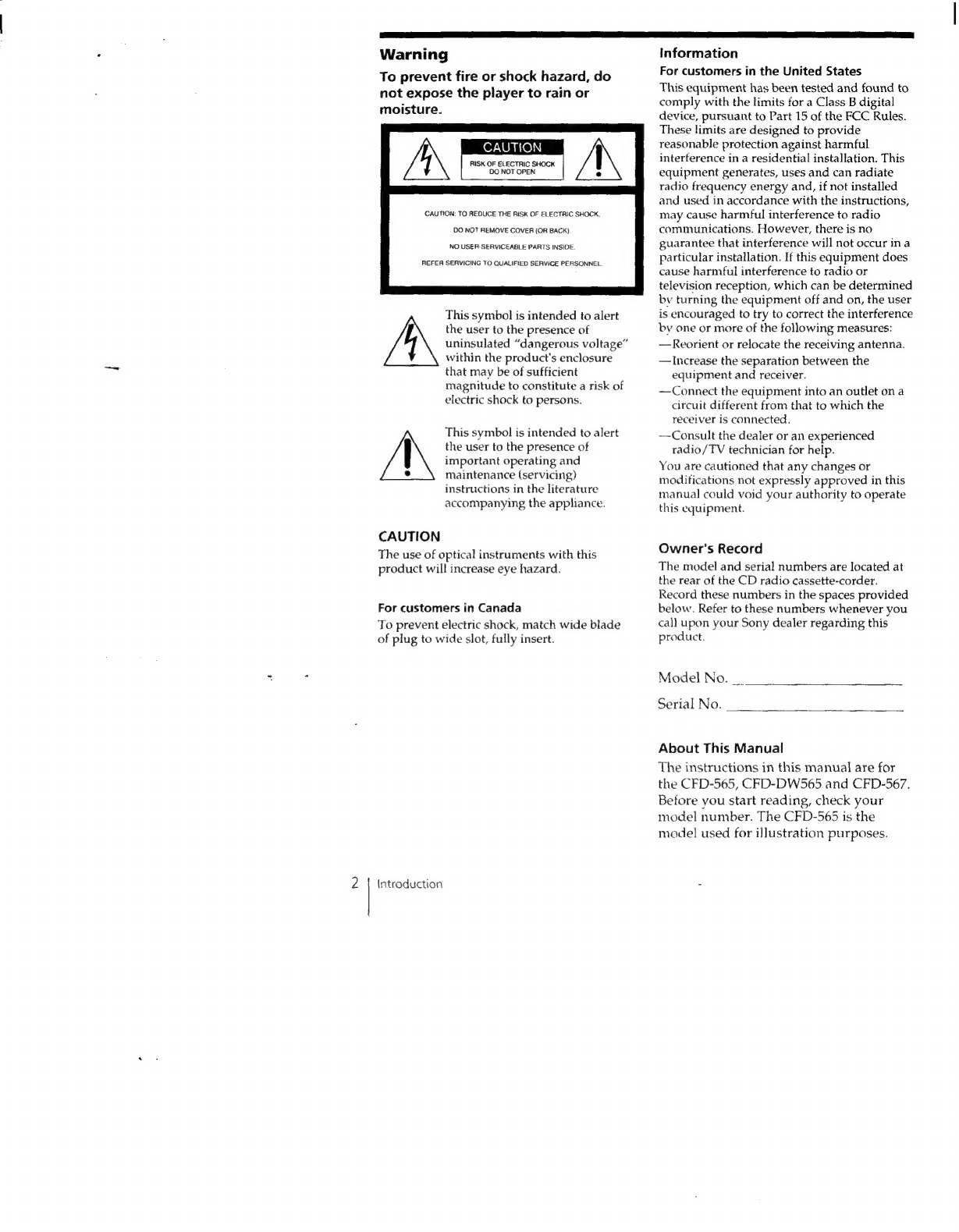

Warning
To prevent fire or shock hazard, do
not expose the player to rain or
moisture.
CAUTION
RISK OF ELECTRIC SHOCK
00 NOT OPEN
CAUTION: TO REOUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK}
NO USER-SERVICEABLE PARTS INSIDE.
REFEA SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert
the user to the presence of
uninsulated “dangerous voltage’
within the product's enclosure
that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
,
This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
CAUTION
The use of optical instruments with this
product will increase eye hazard.
For customers in Canada
To prevent electric shock, match wide blade
of plug to wide slot, fully insert.
Introduction
information
For customers in the United States
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the
equipment and receiver.
—Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
~—Consult the dealer or an experienced
radio/TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
Owner's Record
The model and serial numbers are located at
the rear of the CD radio cassette-corder.
Record these numbers in the spaces provided
below. Refer to these numbers whenever you
call upon your Sony dealer regarding this
product.
Model No. __
Serial No.
About This Manual
The instructions in this manual are for
the CFD-565, CFD-DW565 and CFD-567.
Before you start reading, check your
model number. The CFD-565 is the
model used for illustration purposes.

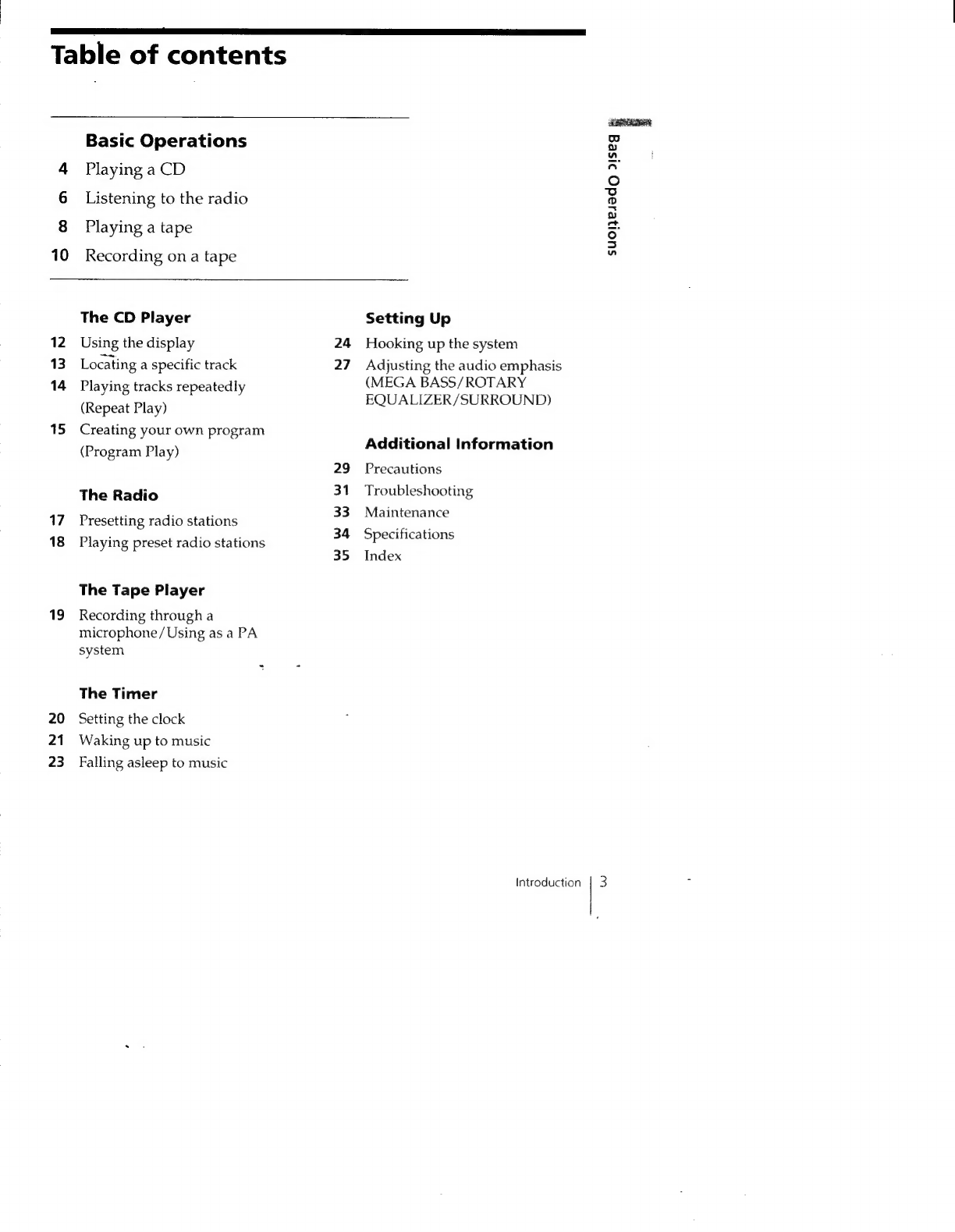

Table of contents
Basic Operations
4 Playing aCD
Listening to the radio
Playing a tape
10 Recording ona tape
The CD Player Setting Up
12 Using the display 24 Hooking up the system
13 Locating a specific track 27 Adjusting the audio emphasis
14 Playing tracks repeatedly (MEGA BASS/ROTARY
EQUALIZER/SURROUND)
(Repeat Play)
15 Creating your own program whe ;
Additional Information
(Program Play)
29 Precautions
The Radio 31 Troubleshooting
17 Presetting radio stations - hui
18 Playing preset radio stations Ape peciications
35 Index
The Tape Player
19 Recording through a
microphone/Using as a PA
system
The Timer
20 Setting the clock
21 Waking up to music
23 Falling asleep to music
Introduction
suol}esado r1Seg
3

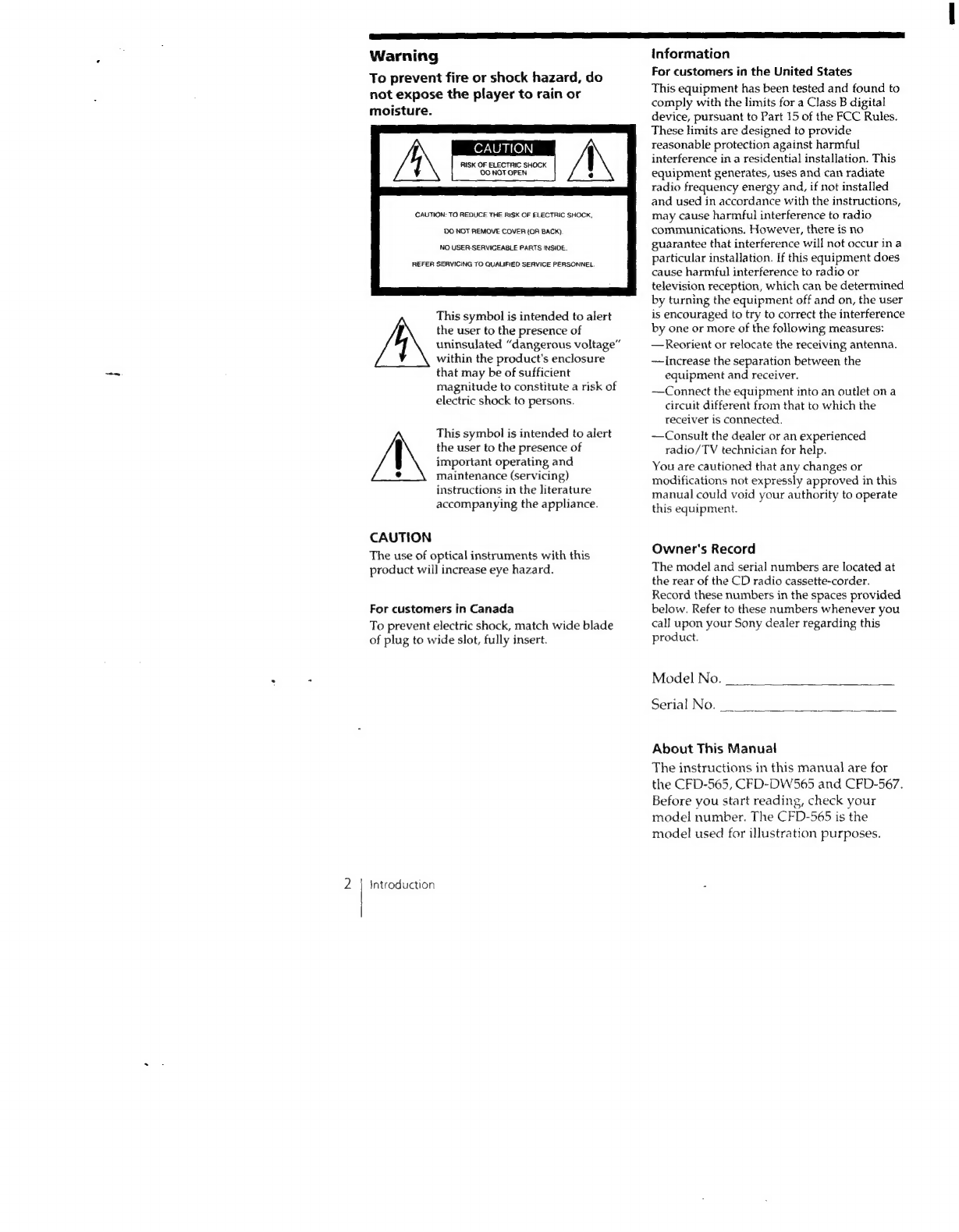

Warning
To prevent fire or shock hazard, do
not expose the player to rain or
moisture.
CAUTION
RISK OF ELECTRIC SHOCK
OO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert
the user to the presence of
uninsulated “dangerous voltage”
within the product's enclosure
that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
CAUTION
The use of optical instruments with this
product will increase eye hazard.
For customers in Canada
To prevent electric shock, match wide blade
of plug to wide slot, fully insert.
Introduction
information
For customers in the United States
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur ina
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the
equipment and receiver.
—Connect the equipment into an outlet ona
circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced
radio/TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
Owner's Record
The model and serial numbers are located at
the rear of the CD radio cassette-corder.
Record these numbers in the spaces provided
below. Refer to these numbers whenever you
call upon your Sony dealer regarding this
product.
Model No.
Serial No.
About This Manual
The instructions in this manual are for
the CFD-565, CFD-DW565 and CFD-567.
Before you start reading, check your
model number. The CFD-565 is the
model used for illustration purposes.

|
Table
of
contents
10
Basic Operations
Playing a CD
Listening to the radio
Playing a tape
Recording ona tape
12
13
14
15
17
18
19
20
21
23
The CD Player

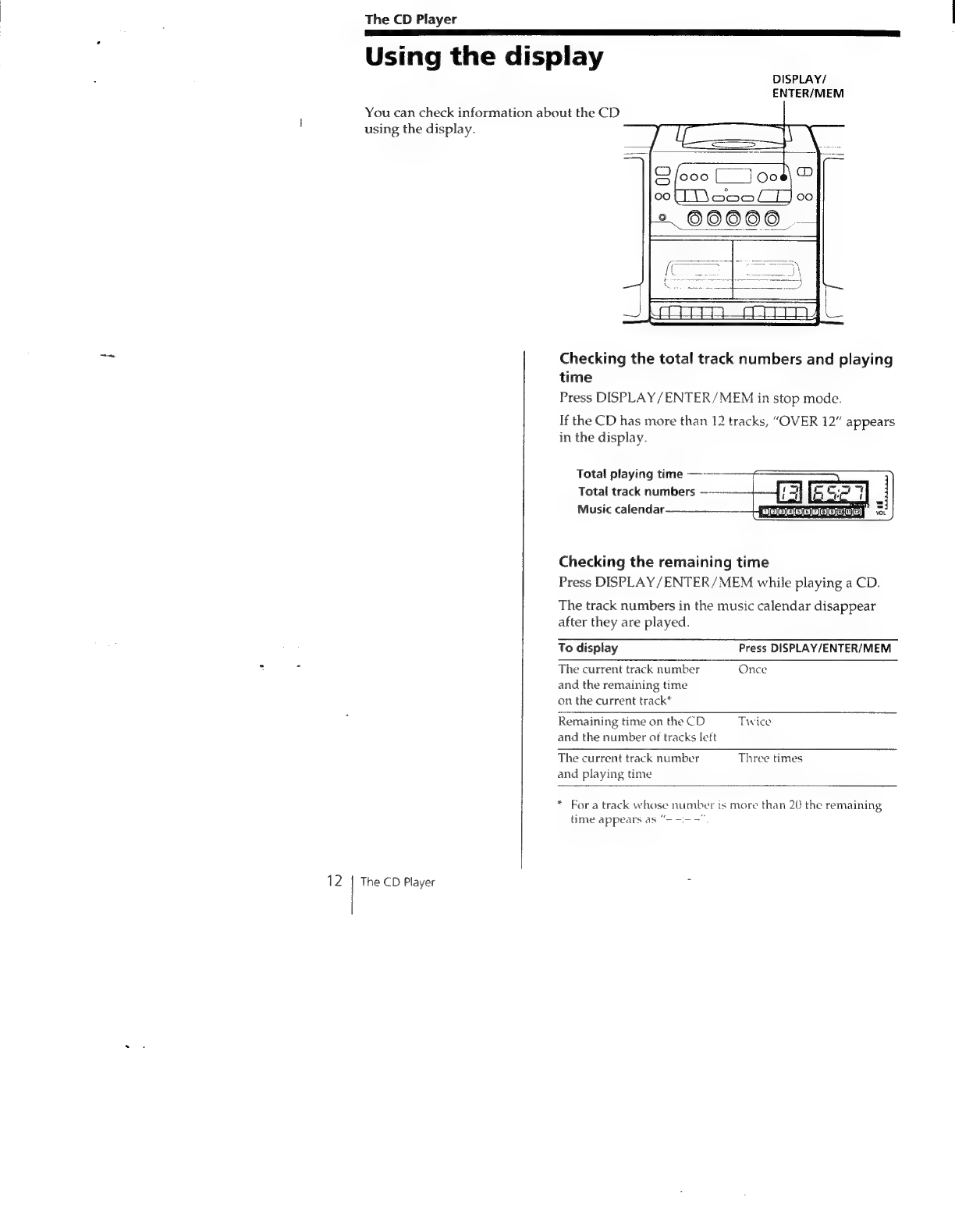

Using the display

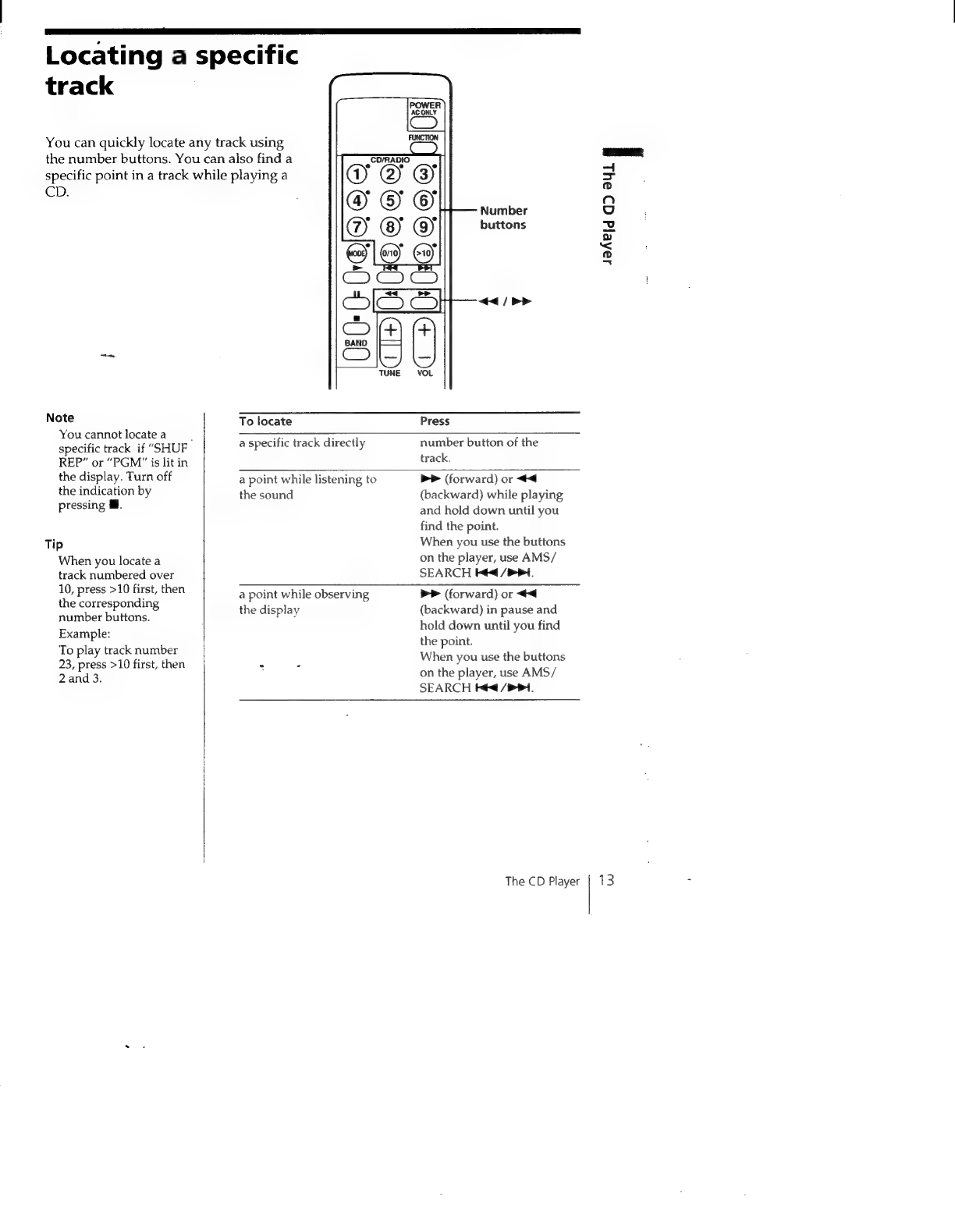

Locating a specific track
Playing tracks repeatedly
(Repeat Play)

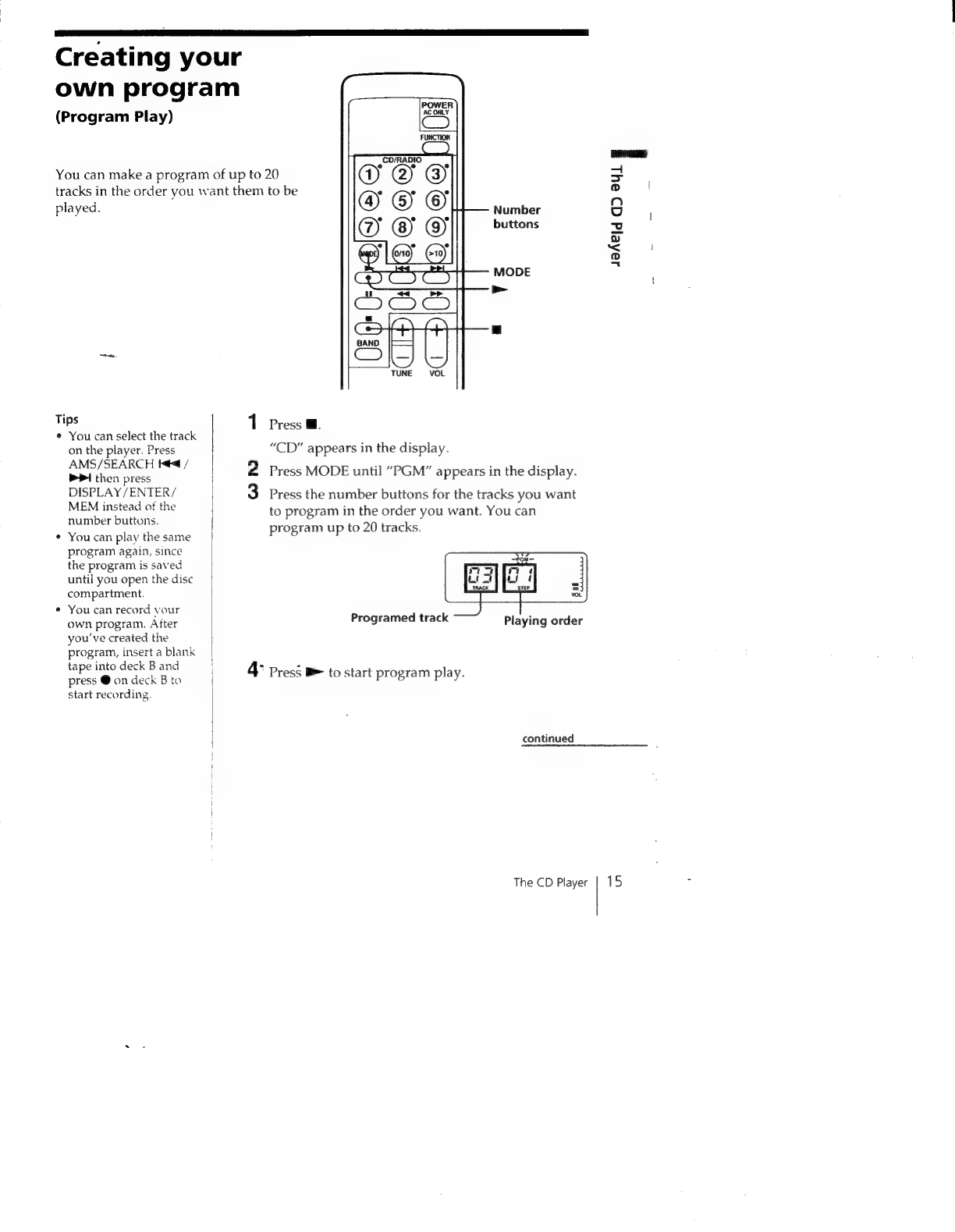

Creating your own program
(Program Play)
The Radio

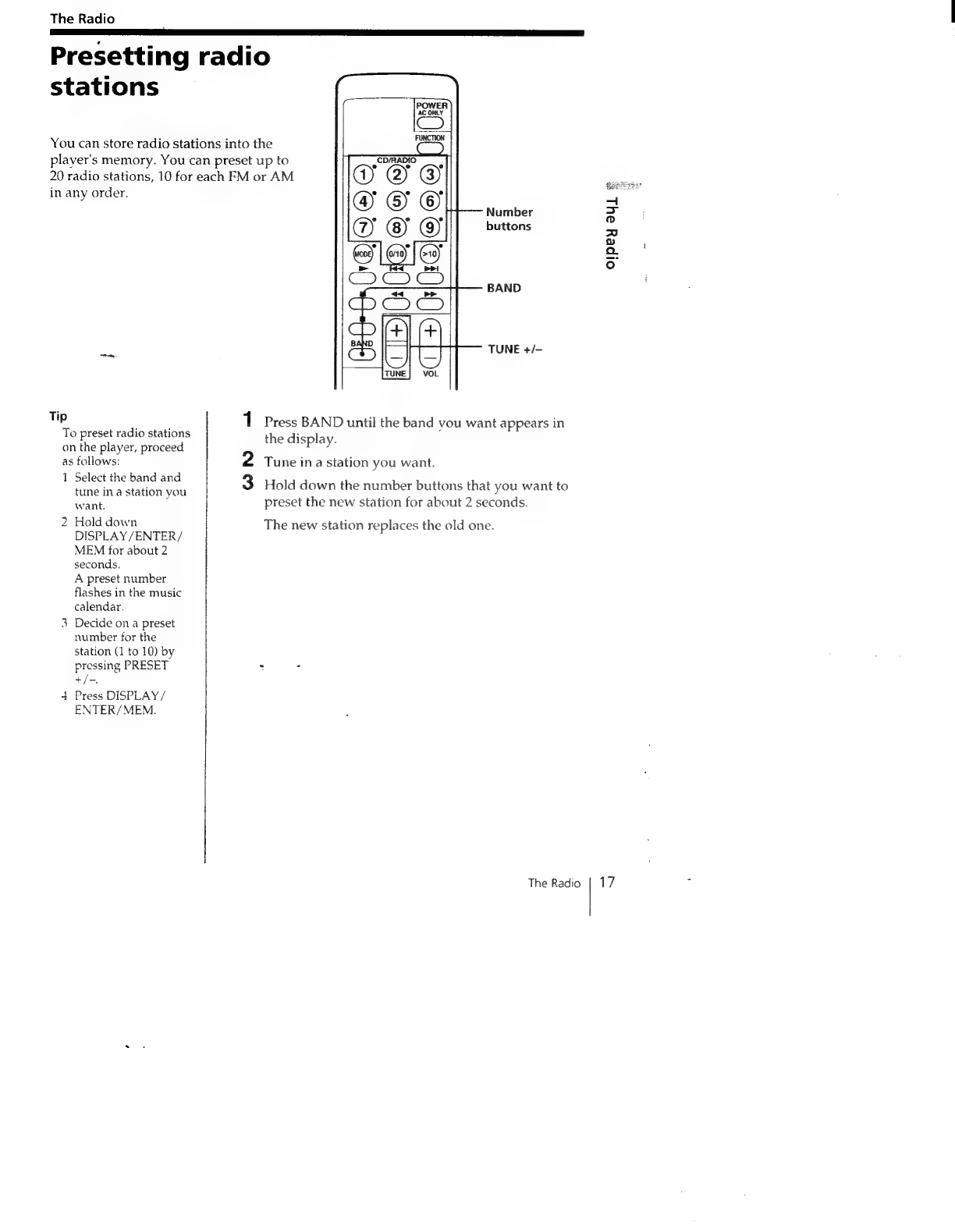

Presetting radio stations
Playing preset radio stations
The Tape Player
Recording through a
microphone/ Using as a PA
system
The Timer
Setting the clock
Waking up to music
Falling asleep to music
24
27
29
31
33
34
35
Setting Up
Hooking up the system
Adjusting the audio emphasis
(MEGA BASS/ROTARY
EQUALIZER/SURROUND)
Additional information
Precautions
Troubleshooting
Maintenance
Specifications
Index
Introduction
suoneisadg dIseg ;
3

Basic Operations
Playing a CD
EEE) ff ETT
For hookup instructions, see pages 24 — 26.
1 Press OPEN/CLOSE down to
open the CD compartment and
SOOO place the CD on the CD
compartment.
With the label side up
Close the lid of the CD
OPEN/CLOSE compartment.
ooc°o
cb
2
3
Press PH (direct power-on). Display
The player plays all the tracks —e
DOGBOODOGBAB i
!
Track number Playing time
4 | Basic Operations

Tip
Next time you want to
listen to a CD, just press
Pil. The player turns on
automatically and starts
playing the CD.
Use these buttons for additional operations
POWER OPEN/CLOSE
VOLUME +/-
AMS/SEARCH
4 /P Pi
To Press
Adjust the volume VOLUME +/-
Stop playback a
Pause playback Pil
Press again to resume play
after pause.
Go to the next track AMS/SEARCHP
Go back to the previous track |= AMS/SEARCHié¢
Remove the CD OPEN/CLOSE
Turn on/off the player POWER
Basic Operations
suoljyeiado diseg |

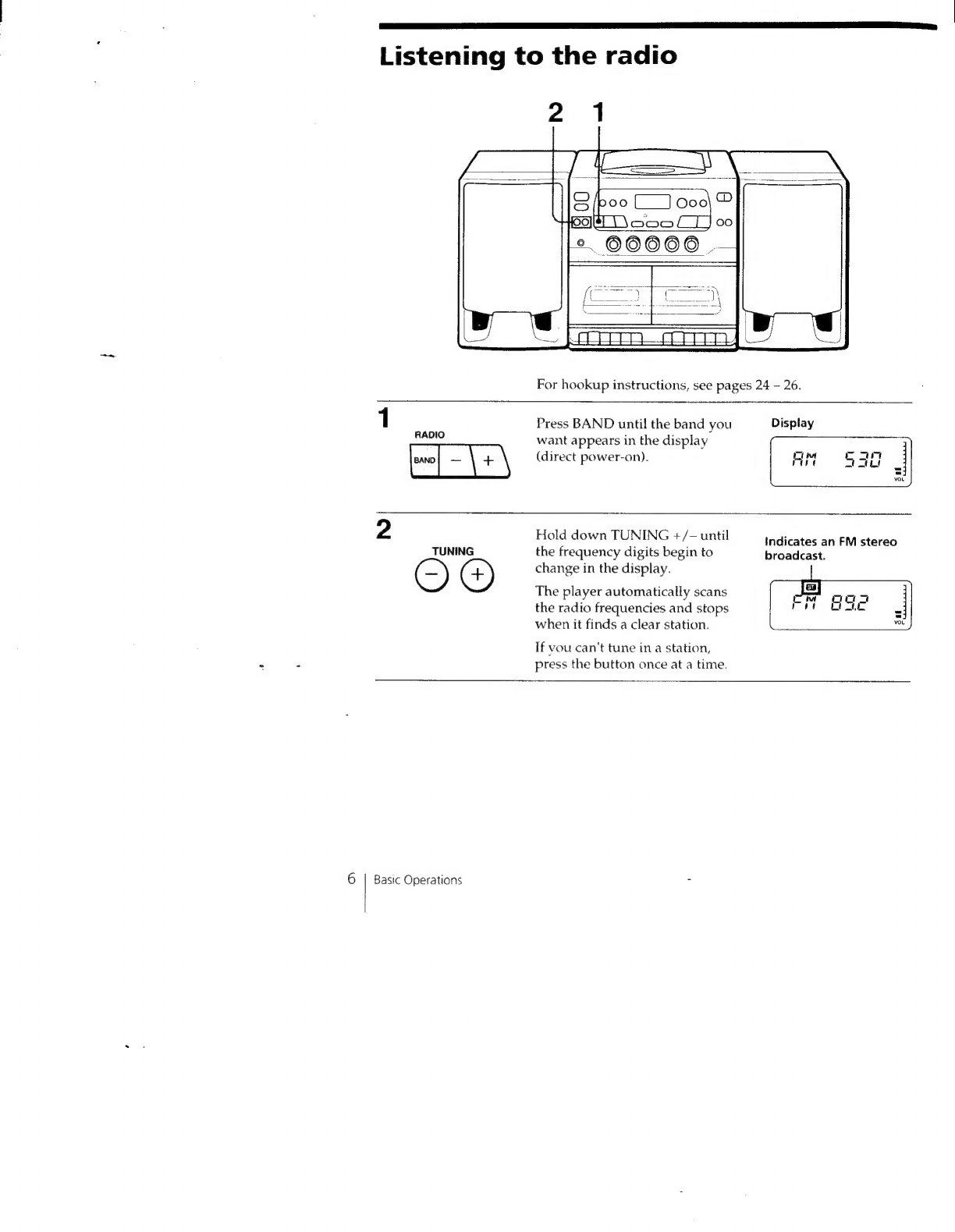

Listening to the radio
o_o}
For hookup instructions, see pages 24 — 26.
Press BAND until the band you Display
aired want appears in the display
[mo]
-
|
+)\
(direct
power-on).
AM
Sau
2 Hold down TUNING +/- until indicates an EN Stare
TUNING the frequency digits begin to broadcast.
change in the display.
The player automatically scans
the radio frequencies and stops
when it finds a clear station.
If vou can't tune ina station,
press the button once at a time.
6 | Basic Operations

Tips
¢ If the FM broadcast is
noisy, press PLAY
MODE/MONO/ST
until “Mono” appears in
the display and the
radio will play in
monaural.
Next time you want to
listen to the radio, just
press the BAND button.
The player turns on
automatically and starts
playing the previous
station.
Use these buttons for additional operations
POWER VOLUME +/-
PLAY MODE/
MONO/ST
To Press
Adjust the volume VOLUME +/-
Turn on/off the radio POWER
To improve broadcast reception
Reorient the antenna for FM. Reorient the player itself
for AM.
Basic Operations
suoieiadg r1Sseg |
7

Playing a tape
E
Alin
ili
JN
B CO
Qg
0
©q|0
|
it [ol ele.
For hookup instructions, see pages 24 - 26.
1 Press M4 to open the tape
STOP/EJECT compartment and insert a
[o> {mel a | recorded tape. Close the
Pt} compartment.
With the side you want
to play facing forward
2 Press B>.
PLAY
The player turns on (direct
power-on) and starts playing.
8 | Basic Operations

Note
During playback, do not
press buttons on the
other deck. Otherwise
the playback speed may
change.
Tips
Next time you want to
listen to a tape, just
press ®-. The player
turns on automatically
and starts playing the
tape.
For the best results, use
TYPE I (normal) tape.
Use these buttons for additional operations
POWER
To
Adjust the volume
Stop playback
Fast-forward or rewind the tape
Pause playback
VOLUME +/-
Press
VOLUME +/-
as
PP or «4
ul
Press the button again to
resume play after pause.
Eject the cassette
Turn on/off the player
as
POWER
Basic Operations
suoiesado d1seg |
9

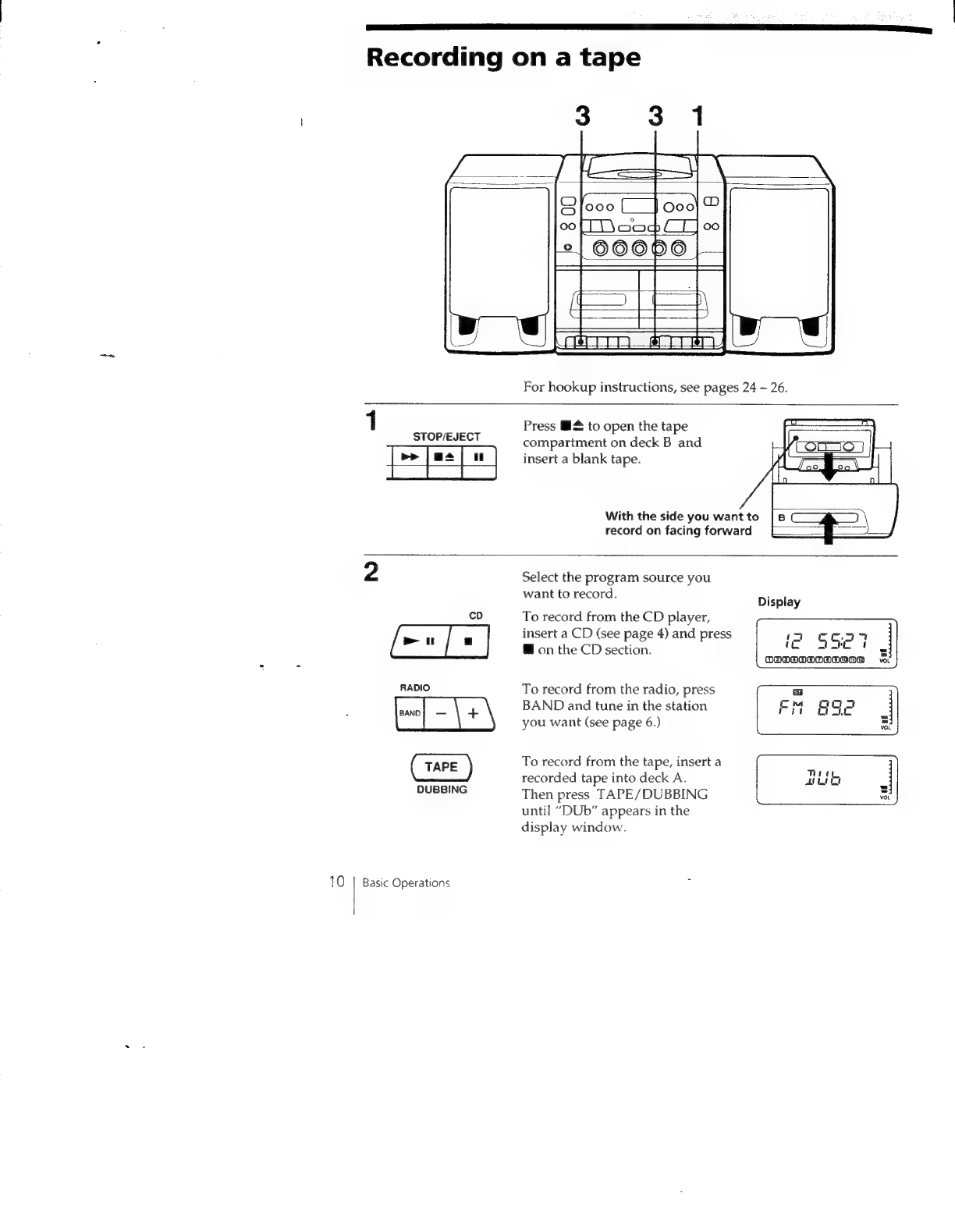

Recording on a tape
‘a
i)
I
| | | lJ
Press M& to open the tape
compartment on deck B and
insert a blank tape.
With the side you want to
record on facing forward
co
RADIO
Sen
TAPE
DUBBING
10
Basic Operations
Select the program source you
want
to
record.
Display
To record from the CD player,
insert a CD (see page 4) and press
@ on the CD section.
To record from the radio, press
BAND and tune in the station
you want (see page 6.)
To record from the tape, insert a
recorded tape into deck A. nity i
Then press TAPE/DUBBING L vot
until “DUb” appears in the
display window.

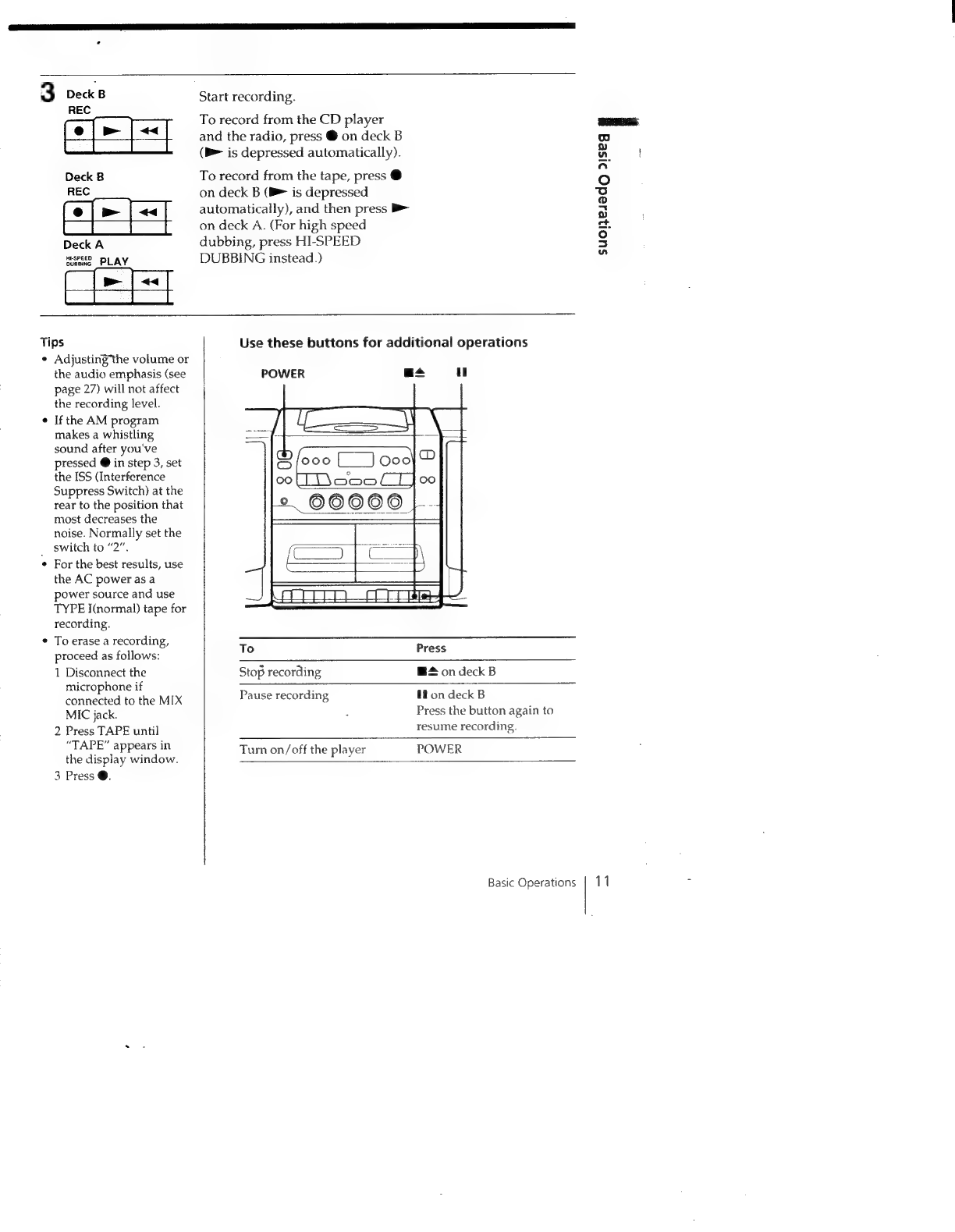

3 Deck B
REC
abe
Deck B
REC
Deck A
ouaane PLAY
Tips
¢ Adjusting the volume or
the audio emphasis (see
page 27) will not affect
the recording level.
If the AM program
makes a whistling
sound after you've
pressed @ in step 3, set
the ISS (Interference
Suppress Switch) at the
rear to the position that
most decreases the
noise. Normally set the
switch to “2”.
For the best results, use
the AC power as a
power source and use
TYPE I(normal) tape for
recording.
To erase a recording,
proceed as follows:
1 Disconnect the
microphone if
connected to the MIX
MIC jack.
2 Press TAPE until
“TAPE” appears in
the display window.
3 Press @.
Start recording.
To record from the CD player
and the radio, press @ on deck B
(B> is depressed automatically).
To record from the tape, press @
on deck B (B> is depressed
automatically), and then press B>
on deck A. (For high speed
dubbing, press HI-SPEED
DUBBING instead.)
POWER
Use these buttons for additional operations
| il
To
Stop recording
Pause recording
Press
@* on deck B
ff on deck B
Press the button again to
resume recording.
Turn on/off the player
POWER
Basic Operations
suoiesado seg !
11

The CD Player
Using the display
DISPLAY/
ENTER/MEM
You can check information about the CD
using the display.
Checking the total track numbers and playing
time
Press DISPLAY/ENTER/MEM in stop mode.
If the CD has more than 12 tracks, “OVER 12” appears
in the display.
Total playing time —---—
Total track numbers ——
Music calendar
ceoomu
Ab Se 7
DlalaloElolelaleiciole)
Checking the remaining time
Press DISPLAY/ENTER/MEM while playing a CD.
The track numbers in the music calendar disappear
after they are played.
To display Press DISPLAY/ENTER/MEM
The current track number Once
and the remaining time
on the current track*
Remaining time on the CD Twice
and the number of tracks left
The current track number Three times
and playing time
* Fora track whose number is more than 20 the remaining
time appears as “-——-—".
12 | The CD Player -

Locating a specific
track
You can quickly locate any track using
the number buttons. You can also find a
specific point in a track while playing a
CD.
Note
You cannot locate a
specific track if “SHUF ,
REP” or “PGM” is lit in
the display. Turn off
the indication by
pressing @.
Tip
When you locate a
track numbered over
10, press >10 first, then
the corresponding
number buttons.
Example:
To play track number
23, press >10 first, then
2 and 3.
a
a
Gy
U- OF Or®
@ b z o
0
To locate
Number
buttons
Press
a specific track directly
number button of the
track.
a point while listening to
the sound
a point while observing
the display
bP (forward) or <<
(backward) while playing
and hold down until you
find the point.
When you use the buttons
on the player, use AMS/
SEARCH Hed /P PI.
P&P (forward) or <4
(backward) in pause and
hold down until you find
the point.
When you use the buttons
on the player, use AMS/
SEARCH Hed /> P41.
The CD Player
42Ae Id QD P4L |
13

14
Playing tracks
repeatedly
(Repeat Play)
You can play tracks repeatedly in
normal, shuffle or program play modes
(see pages 15 and 16). Number
buttons
1 Press @.
“CD” appears in the display.
2 Press MODE until the repeat mode you want
appears in the display.
To repeat Select
a single track REP 1
all the tracks REP ALL
tracks in random order SHUF REP
programed tracks PGM REP and then progam
tracks (see step 3 on page
15).
3 Do either of the following to start repeat play:
* When you've selected REP1, select the track by
pressing the number button.
¢ When you've selected REP ALL, SHUF REP or
PGM REP, press > .
The CD Player

Creating your
own program
(Program Play)
You can make a program of up to 20
tracks in the order you want them to be
played.
Tips
* You can select the track
on the player. Press
AMS/SEARCH @< /
Pi then press
DISPLAY /ENTER/
MEM instead of the
number buttons.
¢ You can play the same
program again, since
the program is saved
until you open the disc
compartment.
¢ You can record vour
own program. After
you've created the
program, insert a blank
tape into deck B and
press @ on deck B to
start recording.
Number
buttons
1 Press @.
“CD” appears in the display.
2 Press MODE until “PGM” appears in the display.
3 Press the number buttons for the tracks you want
to program in the order you want. You can
program up to 20 tracks.
Programed track Playing order
4: Pres B to start program play.
continued
The CD Player
dakeid GD PUL i
15

aN es SL NSRP ere mm a en a S|
Creating your own program (Program Play) (continued)
To cancel Program Play
Press MODE until no indication appears in the
display.
To check the order of tracks before play
Press DISPLAY /ENTER/MEM on the player.
Every time you press the button, the track number
appears in the programed order.
To change the current program
Press M™ once if the CD is stopped and twice if the CD
is playing. The current program will be erased. Then
create a new program following the programing
procedure.
16 | The CD Player

The Radio
Presetting radio
stations
You can store radio stations into the
plaver's memory. You can preset up to
20 radio stations, 10 for each FM or AM
in any order.
Number
buttons
olpey aul #
BAND
TUNE +/-
ip ; ; 1 Press BAND until the band vou want appears in
To preset radio stations the dis la .
on the player, proceed spiey:
as follows: 2 Tune ina station you want.
1 Select the band and :
Fitie tia eeu iets 3 Hold down the number buttons that you want to
aint, ° preset the new station for about 2 seconds.
2 Hold down The new station replaces the old one.
DISPLAY/ENTER/
MEM for about 2
seconds.
A preset number
flashes in the music
calendar.
Decide on a preset
number for the
station (1 to 10) by
pressing PRESET .
+/-.
4+ Press DISPLAY /
ENTER/MEM.
w
The Radio | 17

Playing preset
radio stations
Once you've preset the stations, use the
number buttons to tune in your favorite
stations.
Number
buttons
BAND
Hp : 1 Press BAND to select the band.
You can tune ina
preset station with the 2 Press the number buttons to tune in a stored
player. Use PRESET station.
+/-—instead of the
number buttons.
18 | The Radio 3
