Sony MZ-R50 - MD Walkman MiniDisc Recorder User manual

3-861-298-32 (1)
Portable
MiniDisc Recorder
Operating instructions
Mode d’emploi
Bedienungsanleitung
Gebruiksaanwijzing
Istruzioni per l'uso
MZ-R50
1997 by Sony Corporation
Portable MiniDisc Recorder MZ-R50
E
F
D
NL
I

2-EN
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified
personnel only.
Caution
The use of optical instruments with this
product will increase eye hazard.
Listening for many hours at maximum
volume may damage your hearing.
Information
IN NO EVENT SHALL SELLER BE
LIABLE FOR ANY DIRECT,
INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE, OR
LOSSES OR EXPENSES RESULTING
FROM ANY DEFECTIVE PRODUCT
OR THE USE OF ANY PRODUCT.
"MD WALKMAN" is a trademark of Sony
Corporation.

3-EN
Welcome!
Welcome to the world of the MiniDisc!
Here are some of the capabilities and
features you'll discover with the new
MiniDisc Recorder.
• Shock-resistant memory — Offsets up
to 40 seconds of optical read errors.
• Easy operation with the new remote
control — Keep the main unit in your
pocket and operate the MiniDisc player
through the shuttle dial on the remote
control; the LCD diplays track
information, playback mode as well as
battery condition.
• High-fidelity recording — Low-noise,
low-distortion, high-fidelity recording
through the optical digital input jack.
• Vertical jog dial — You can select your
desired tracks directly by simply
rotating a dial.
• Digital synchro-recording — The
recorder automatically starts and
pauses recording in sync with
operation on the connected digital
equipment.
• Sampling rate converter — This unit
enables you to record programs from
digital equipment using other
sampling rates, such as a BS tuner or
DAT deck.
• Long-time recording with monaural
sound — You can record up to 148
minutes on a disc using monaural
recording.
• Position pointer — The display shows
you the current location on the disc.
• Date and time stamp function — The
built-in clock automatically records the
date and time whenever you make a
recording.
• Title function — You can see disc and
track titles in the display while you are
playing/recording an MD.
EN

4-EN
Table of Contents
Recording an MD right away! .................................. 6
Playing an MD right away!....................................... 8
Various ways of recording...................................... 10
Two ways of connecting to a sound source ......................................... 10
Recording with digital input ................................................................. 11
To start/stop recording in sync with the source player (Synchro-
recording) ............................................................................................. 11
Recording from a microphone............................................................... 12
Recording in monaural for double the normal recording time ........ 13
Adjusting the recording level manually (Manual recording) ........... 13
Checking the remaining time or the recording position.................... 14
On the recorder .................................................................................... 14
On the remote control ......................................................................... 15
Setting the clock to stamp the recorded time ...................................... 16
Various ways of playback ....................................... 17
Selecting the track number or track name directly............................. 17
Playing tracks repeatedly ....................................................................... 17
Emphasizing bass (DIGITAL MEGA BASS) ....................................... 18
Protecting your hearing (AVLS)............................................................ 18
Checking the remaining time or the playing position ....................... 19
On the recorder .................................................................................... 19
On the remote control ......................................................................... 19
Locking the controls (HOLD) ................................................................ 20
Connecting to a stereo system ............................................................... 20

5-EN
Editing recorded tracks ...........................................21
Erasing tracks ........................................................................................... 21
To erase a track .................................................................................... 21
To erase the whole disc ...................................................................... 21
Adding a track mark ............................................................................... 22
Erasing a track mark ............................................................................... 22
Moving recorded tracks.......................................................................... 23
Labeling recordings................................................................................. 23
Power sources.......................................................... 25
Using a lithium ion rechargeable battery............................................. 25
Using dry batteries .................................................................................. 26
Additional information ........................................... 27
Precautions ............................................................................................... 27
Troubleshooting....................................................................................... 29
System limitations ................................................................................... 31
Messages ................................................................................................... 32
Specifications............................................................................................ 34
What is an MD? ....................................................................................... 35
Looking at the controls ........................................................................... 37

6-EN

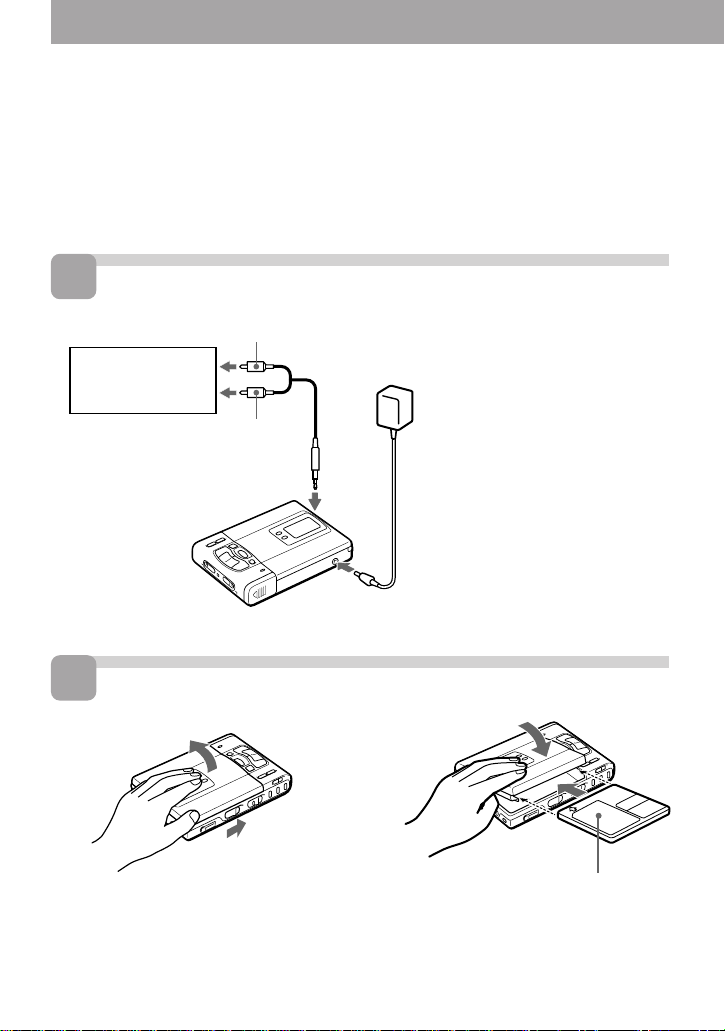

Make connections.
Insert a recordable MD.
Recording an MD right away!
Sound from CD players, cassettecorders, etc., will be sent
analogically, but recorded digitally, in stereo. To record from a digital
source, see “Recording with digital input” (page 11).
1Slide OPEN and open the lid. 2Insert a recordable MD with the
label side facing up, and press the
lid down to close.
2
1
to LINE OUT
to LINE IN (OPTICAL)
R (red)
L (white)
to DC IN 6V
AC power adaptor
(supplied)
CD player,
cassette recorder,
etc. (source)
Line cable
(RK-G129, not supplied)*
to a wall outlet
*Use the connecting cords without an
attenuator. To connect to a portable
CD player having a stereo mini-jack,
use the RK-G136 connecting cord
(not supplied).

7-EN
Record an MD.
3
1Press and slide REC to the right .
“REC” lights up and recording starts.
2Play the CD or tape you want to
record.
To stop recording, press p.
“Data Save“ or ”Toc Edit” flashes while data
of the recording (the track’s start and end
points, etc.) is being recorded. Do not move
or jog the recorder or disconnect the power
source while the indication is flashing in the
display.
CD player, cassette
recorder, etc. (source)
To
Pause
Record from the end of the
previous recording.
Record partway through the
previous recording.
Remove the MD.
Press
P1)
Press Pagain to resume recording.
END SEARCH and slide REC.
(, +or =to find the start point
of recording and press pto stop. Then
slide REC.
pand open the lid.2)
1) A track mark is added at the point where you press P; thus the remainder of the track will be
counted as a new track.
2) Once you open the lid, the point to start recording will change to the beginning of the first track.
Check the point to start recording on the display.
If the recording does not start
•Make sure the recorder is not locked (page
20).
•Make sure the MD is not record-protected
(page 28).
•Premastered MDs cannot be recorded over.
z
•The level of the recorded sound is adjusted
automatically.
•You can monitor the sound during
recording. Connect the supplied
headphones with remote control to 2/
REMOTE and adjust the volume by
pressing VOLUME +/– (VOL +/– on the
remote control). This does not affect the
recording level.
REC
p

8-EN

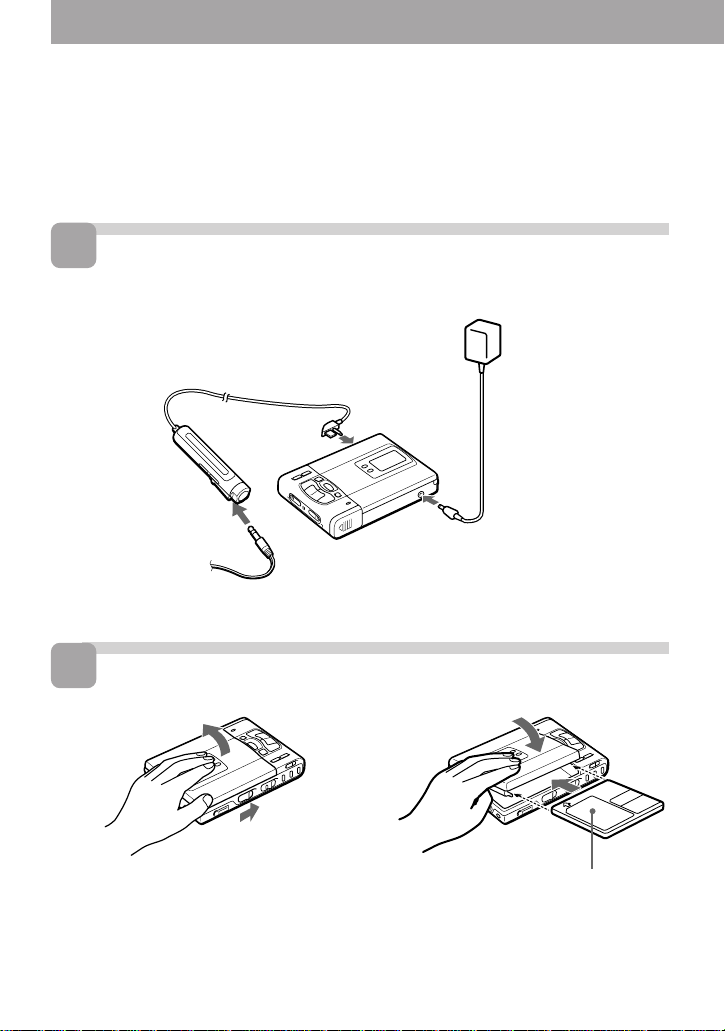

Playing an MD right away!
To use the recorder on a rechargeable battery or dry batteries, see
“Power Sources“ (pages 25, 26).
Make connections.
Insert an MD.
2Insert an MD with the label side
facing up, and press the lid down to
close.
1Slide OPEN and open the lid.
to a wall outlet
1
2
AC power adaptor
(supplied)
to DC IN 6V
to 2/REMOTE
Headphones with a
remote control
(supplied)

9-EN
Play an MD.
3
To
Pause
Find the beginning of the current track
Find the beginning of the next track
Go backwards while playing1)
Go forward while playing1)
Remove the MD
Press (Beeps in the headphones)
P(Continuous short beeps)
Press Pagain to resume play.
=once (Turn the control to =on the
remote control)
(Three short beeps)
+once (Turn the control to (•+on
the remote control)
(Two short beeps)
keep pressing =(Turn and hold the
control to =on the remote control)
keep pressing +(Turn and hold the
control to (•+on the remote control)
pand open the lid.2)
1) To go backward or forward quickly without listening, press Pand keep pressing =or +.
2) Once you open the lid, the point to start play will change to the beginning of the first track.
If the play does not start
Make sure the recorder is not locked (page
20).
When using optional headphones
Use only headphones with stereo mini plugs.
You cannot use headphones with micro
plugs.
z
Playback will switch automatically between
stereo and monaural according to the sound
source.
VOL +/–
p
(
VOLUME
+/–
To stop play, press p.
A long beep sounds in the headphones.
1Press ((Turn the control to
(•+on the remote control).
A short beep sounds in the headphones.
2Press VOLUME (VOL on the remote
control) +/– to adjust the volume.
The volume will be shown in the display.
p

10-EN
Two ways of connecting to a sound source
The input jack of this recorder works as both digital and analog input jacks. Connect the
recorder to a CD player or a cassette recorder using either digital input or analog input. To
record, see “Recording with digital input” (page 11) to record using digital input, and
“Recording an MD right away!” (page 6) to record using analog input.
Difference between digital and analog inputs
zVarious ways of recording
Connectable source
Usable cord
Signal from the source
Recorded track numbers
Recorded sound level
Analog (line) input
Equipment with an analog
(line) output jack
Line cable (with 2 phono
plugs or a stereo-mini plug)
Analog
Even when a digital source
(such as a CD) is connected,
the signal sent to the recorder
is analog.
Marked automatically
•after more than 2 seconds of
blank or low-level segment.
•when the recorder is
paused while recording.
You can erase unnecessary
marks after recording
(“Erasing a track mark”,
page 22).
Adjusted automatically. Can
also be adjusted manually
(“Adjusting the recording
level manually”, page 13).
Difference Input Digital input
Equipment with an optical
digital output jack
Digital cable (with an optical
or an optical-mini plug)
Digital
Marked (copied)
automatically
•at the same positions as the
source.
•when the recorder is
paused while recording.
Note
Track marks may be copied incorrectly :
•when you record from some CD players or multi disc players using digital input.
•when the source is in shuffle or program play mode while recording using digital input. In this
case, play the source in normal play mode.
Same as the source

11-EN
To start/stop recording in
sync with the source player
(Synchro-recording)
You can easily make digital recordings of
a digital source on an MD.
Before synchro-recording, make
connections to the digital source with a
digital cable, and insert a recordable MD.
1Slide SYNCHRO REC to ON.
“SYNC” appears in the display.
2Press and slide REC to the right.
The recorder stands by for recording.
3Play the source sound.
The recorder starts recording when it
receives the playing sound.
To stop recording, press p.
Recording with digital
input
This unit has a built-in sampling rate
converter so that you can record
programs from digital equipment using
other sampling rates, such as a BS tuner
or a DAT deck.
1Insert a recordable MD and start
recording.
For recording operations, see
“Recording an MD right away !”
(page 6). To record from a portable
CD player, set the CD player to pause
and then start recording.
LINE IN (OPTICAL) jack is for both
digital and analog input
The recorder automatically recognizes the
type of line cable and switches to digital or
analog input.
Notes
•You can make a digital recording only from an
optical type output.
•When recording from a portable CD player,
play it on AC power and disable the anti-skip
function (such as ESP*).
* Electronic Shock Protection
SYNCHRO REC
Portable CD
player, etc.
Optical
mini-
plug
Optical
plug
CD player, MD player,
digital amplifier, etc.
to LINE IN
(OPTICAL)
POC-15Betc.
(not supplied)
POC-15AB etc.
(not supplied)
CD players,
etc.
SYNC
continued

12-EN
Recording from a
microphone
Connect a stereo microphone (ECM-717,
ECM-MS907, ECM-MS957, etc.; not
supplied) to the MIC (PLUG IN POWER)
jack.
1Select the sensitivity with MIC SENS
(at the bottom of the recorder) .
Usually, set it to HIGH. When
recording loud sounds such as a live
concert, set it to LOW.
2Insert a recordable MD and start
recording.
Press and slide REC to the right.
“REC” lights up and recording starts.
For other operations, see “Recording
an MD right away! ” (page 6).
Note
To record from a microphone, you must first
disconnect any digital source. If connected,
the recorder will not switch to microphone
input.
MIC SENS (at the bottom)
to MIC
(PLUG IN
POWER)
Stereo microphone
z
•You cannot pause manually during
synchro-recording.
•When there is no sound from the player for
more than 3 seconds during synchro-
recording, the recorder goes into the
standby mode automatically. When the
sound comes from the player again, the
recorder resumes synchro-recording. If the
recorder is kept in the standby mode for 5
minutes or longer, the recorder stops
automatically.
Notes
•Do not switch SYNCHRO REC after step 2.
Recording may not be done properly.
•When recording in monaural, follow steps 1
and 2 of “Recording in monaural for double
the normal recording time” (page 13) before
synchro-recording .

13-EN
MODE P
Recording in monaural
for double the normal
recording time
For longer recordings, choose to record in
monaural. The recording time becomes
double the normal.
1While pressing P, press and slide
REC to the right.
The recorder stands by for recording.
2Press MODE.
”Mono REC” appears in the display,
and the recorder switches to
monaural recording.
Press MODE again to record in
stereo.
3Press Pagain to start recording.
4Play the sound source.
To stop recording, press p.
The recorder switches back to stereo
recording when you record the next time.
Notes
•If you record a stereo source in monaural,
the sounds from left and right will be
mixed.
•You cannot record in monaural if
SYNCHRO REC is slid to ON.
•The MDs recorded in monaural can be
played back only with an MD player/
recorder that has the monaural playing
function.
Adjusting the recording
level manually
(Manual recording)
When you record with an analog input,
the sound level is adjusted automatically.
If necessary, you can set the level
manually.
1While holding down P, press and
hold REC to the right for more than 2
seconds.
“ManualREC” appears and the
recorder stands by for recording.
To return to the automatic control,
while the recorder is in standby
mode, press and hold REC to the
right again for more than 2 seconds.
2Play the source.
=
+
RECP
REC
continued

14-EN
Checking the remaining
time or the recording
position
On the recorder
1Press DISPLAY while recording or in
stop mode. Each time you press the
button, the display changes as
follows.
B
A
B
Track number
Track number
Current date1)
A
Elapsed time
Remaining time for
recording
Current time1)
While recording
1) Appears only when the clock is set.
DISPLAY REC
indicator
3While observing the level meter in
the display, adjust the recording level
by pressing +(+) or =(–).
Set the level so that it hits the seventh
indicator from the bottom at
maximum input level.
.
Note
Adjust the recording level while the
recorder is in standby mode. You
cannot adjust it while recording.
4Press Pagain to start recording.
To stop recording, press p.
The recording level control is switched back
to automatic control.
Level meter
Volume decreases increases
z
When you record with microphone input,
select the sensitivity with MIC SENS (page
12).
Position pointer (shows the
current location on the MD)

15-EN
1)Appears only if the track has been labeled.
2) Appears only when the clock is set.
In stop mode
B
Track number
Track name1)
Disc name1)
Current date2)
A
Elapsed time
Remaining time for
recording
Remaining time
after the current
location
Current time2)
To know the recording condition
The REC indicator lights up or flashes
according to the recording condition.
Recording
condition
While recording
Recording standby
Less than 3 minutes’
recording time
available
A track mark has
been added
z
If you want to check the playing position or
track name while playing, see page 19.

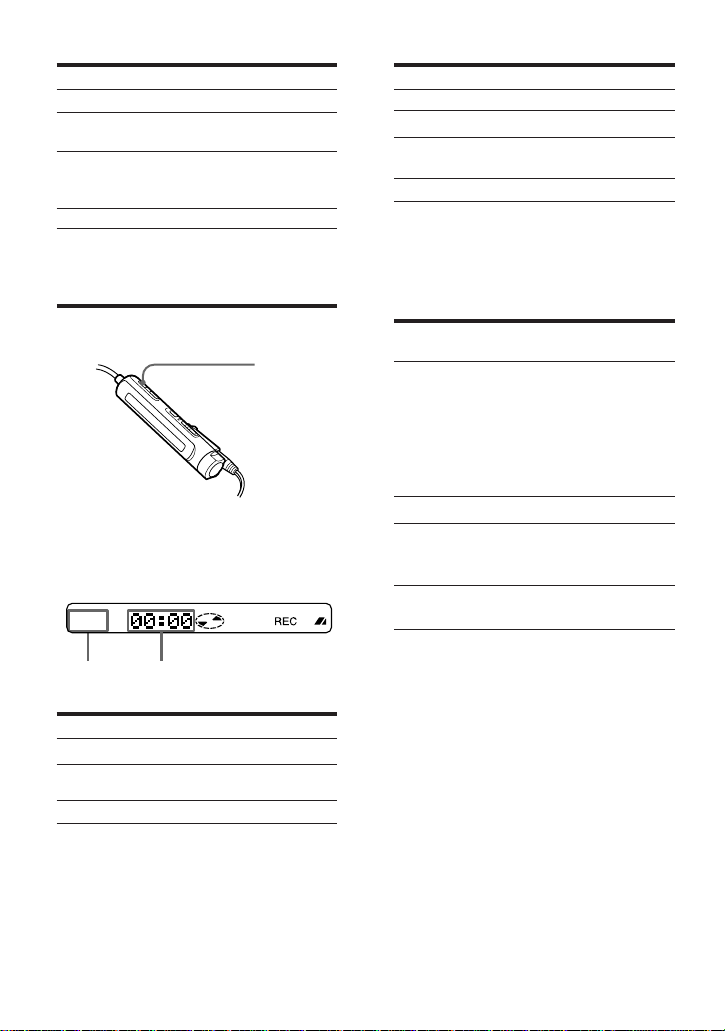

On the remote control
DISPLAY
1Press DISPLAY while recording or in
stop mode. Each time you press the
button, the display changes as
follows.
BA
B
Elapsed time
Remaining time
for recording
Current time1)
A
Track number
Track number
—
While recording
1) Appears only when the clock is set.
1)Appears only if the track has been labeled.
2) Appears only when the clock is set.
In stop mode
A
Track number
Track number
Number of tracks
in the disc
—
B
Elapsed time
Track name1)
Disc name1)
Current time2)
REC indicator
lights up
flashes according to
the loudness of the
source while
recording with a
microphone (voice
mirror)
flashes
flashes slowly
goes off
momentarily

16-EN

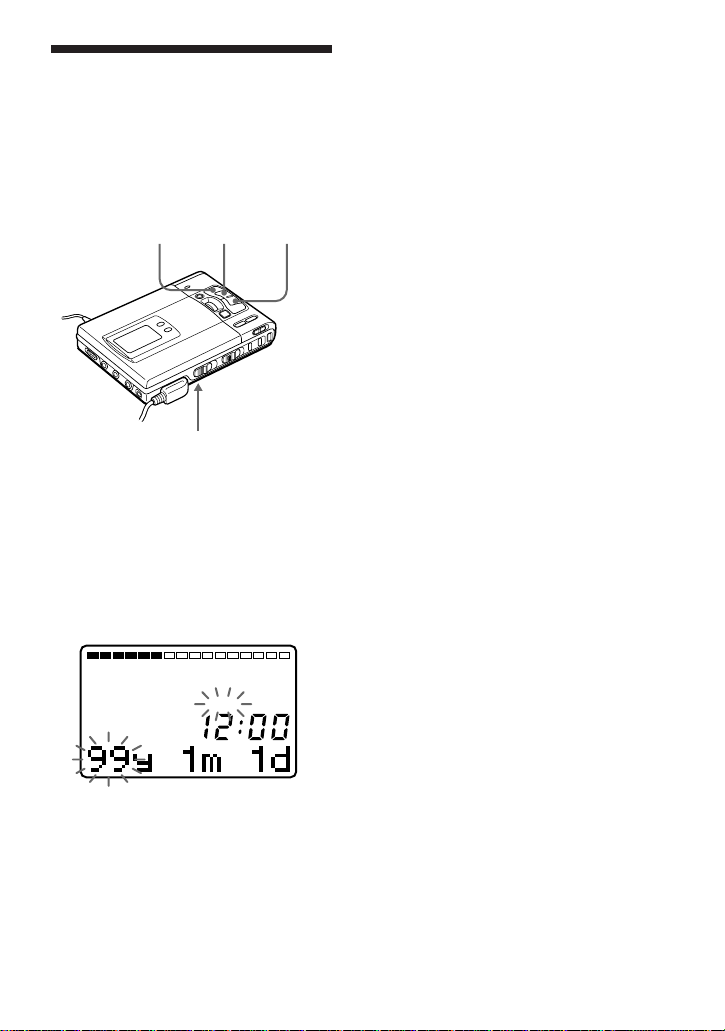

Setting the clock to
stamp the recorded
time
To stamp the date and time on the MD
when you record, you first need to set the
clock.
1Connect the power source.
Use the supplied AC power adaptor.
2Press CLOCK SET at the bottom of
the recorder.
Use a pointed object.
The digits of the year flash.
3Change the current year by pressing
=or +.
To change the digits rapidly, keep
pressing =or +.
4Press (to enter the year.
The digit of the month flashes.
5Repeat steps 3 and 4 to enter the
current month, date, hour, and
minute.
When you press (to enter the
minute, the clock starts operating.
If you make a mistake while
setting the clock
Press p, and set the clock again from step
2. You can skip a step by pressing (.
To display the current time
When the recorder is not operating or
while recording, press DISPLAY
repeatedly until the current time appears
in the display.
To display the time in the 24-
hour system
While setting the clock, press DISPLAY.
To display the time in the 12-hour system,
press DISPLAY again.
Charging the built-in battery for the
clock
When you use the recorder for the first time
or after a long period of disuse, charge the
built-in battery. After setting the clock, leave
the recorder connected to the AC power for
about 2 hours to charge the built-in battery.
Once charged, the built-in battery should last
about a month without connecting to any of
the power sources. The recorder will
automatically charge the built-in battery while
connected to AC power, dry batteries or a
rechargeable battery.
=
+
(
CLOCK SET
(at the bottom)
DATE
AM

17-EN
zVarious ways of
playback
Selecting the track
number or track name
directly
You can select the desired track directly
by using the vertical jog dial.
1Rotate the jog dial to select a track,
and press it to play the selected track.
When you rotate the jog dial, the
track name* appears in the display.
To play the selected track, press the
jog dial.
* If the track has not been labeled, only
the track number appears in the
display.
z
If you select a track in shuffle play mode,
shuffle play starts from the selected track.
Vertical jog dial
Playing tracks
repeatedly
You can play tracks repeatedly in three
ways — all repeat, single repeat, and
shuffle repeat.
Press
to play.
Rotate
to select.
Play mode
All the tracks are
played once.
All the tracks are
played repeatedly.
A single track is
played repeatedly.
All the tracks are
played repeatedly in
random order.
Indication
none
(normal play)
“f”
(all repeat)
“f 1 ”
(single repeat)
“f SHUF ”
(shuffle repeat)
1 SHUF
Play mode indication
MODE
Ex; Display on the main unit
1Press MODE (PLAY MODE on the
remote control) while the recorder is
playing an MD.
Each time you press the button, the
play mode indication changes as
follows.
PLAY
MODE

18-EN

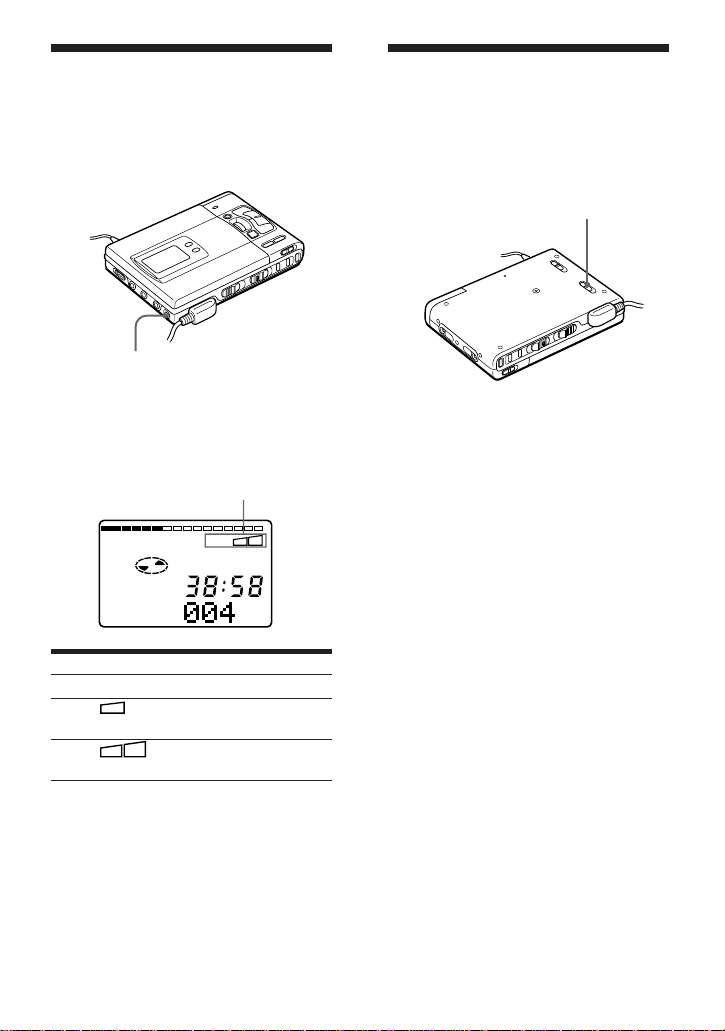

BASS
Emphasizing bass
(DIGITAL MEGA BASS)
Mega Bass function intensifies low
frequency sound for richer quality audio
reproduction. It affects only the sound
from the headphones.
1Press DIGITAL MEGA BASS.
Each time you press DIGITAL MEGA
BASS, the Mega Bass indication
changes as follows.
Protecting your hearing
(AVLS)
The AVLS (Automatic Volume Limiter
System) function keeps down the
maximum volume to protect your ears.
1Set AVLS at the bottom of the
recorder to LIMIT.
When you try to turn the volume too
high, “AVLS” appears in the display.
The volume is kept to a moderate
level.
Notes
•If the sound becomes distorted when
emphasizing bass, turn down the volume.
•Mega Bass function does not affect the
sound being recorded.
•Mega Bass does not function when a line
cable is connected to the LINE OUT jack on
the recorder.
Play mode
Normal play
Mega Bass
(moderate effect)
Mega Bass (strong
effect)
Indication
none
“BASS ”
“BASS ”
Mega Bass indication
DIGITAL MEGA BASS
AVLS

19-EN
Checking the remaining
time or the playing
position
On the recorder
DISPLAY
Position pointer (shows the
current location on the MD)
A
B
1)Appears only if the track has been labeled.
2) Appears only when the clock is set.
A
Elapsed time
Remaining time of
the current track
Remaining time
after the current
location
Recorded time2)
B
Track number
Track name1)
Disc name1)
Recorded date2)
1Press DISPLAY while playing.
Each time you press DISPLAY, the
display changes as follows.
On the remote control
1Press DISPLAY while playing.
Each time you press DISPLAY, the
display changes as follows.
DISPLAY
AB
1)Appears only if the track has been labeled.
2) Appears only when the clock is set.
z
If you want to check the remaining time or
the recording position while recording or in
stop mode, see page 14.
A
Track number
Track number
The number of
tracks in the disc
—
B
Elapsed time
Track name1)
Disc name1)
Recorded time2)

20-EN

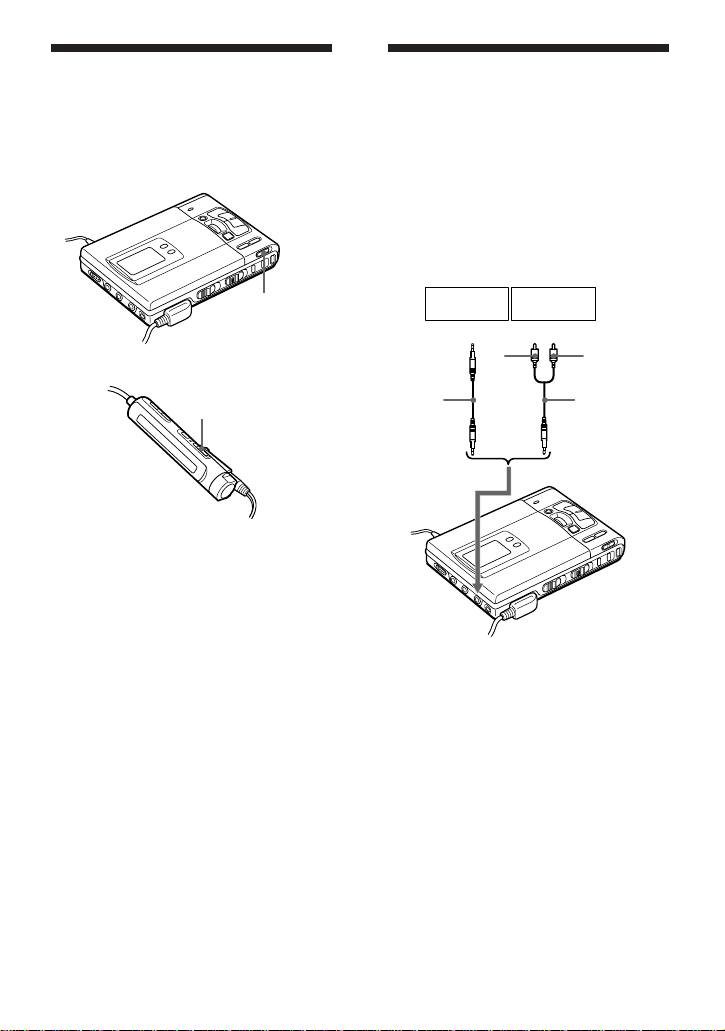

Locking the controls
(HOLD)
To prevent the buttons from being
accidentally operated when you carry the
recorder, use this function.
1Slide HOLD in the direction of the
c.
On the recorder, slide HOLD to lock
the controls of the recorder. On the
remote control, slide HOLD to lock
the controls of the remote control.
Slide HOLD in the opposite direction
of the arrow to unlock the controls.
HOLD
HOLD
Connecting to a stereo
system
Connect the LINE OUT jack of the
recorder to the LINE IN jacks of an
amplifier or a tape player with a line cable
(RK-G129 or RK-G136, not supplied). The
output is analog. The recorder plays the
MD digitally and sends analog signals to
the connected equipment.
Note
The Mega Bass does not function or will be
cancelled when the LINE OUT jack is
connected with a line cable.
Portable DAT
recorder Stereo
system, etc.
to LINE IN 2 phono plugs
Stereo
mini-plug R
(red) L (white)
RK-G136
(not
supplied)
RK-G129
(not
supplied)
to LINE OUT
