Sony VAIO PCV-RX470DS User manual

VAIO Digital Studio™
Computer QuickStart
PCV-RX470DS/PCV-RX480DS

Welcome
1
Welcome
Congratulations on your purchase of the Sony VAIO®computer! Your
new, high-performance, multimedia computer combines state-of-the-art
computer functionality with the latest audio/video and information
technology convergence features.
Features
❑i.LINK® (IEEE1394) interface — Two built-in i.LINK ports, located on
the front and rear panels, provide you with digital connection capability. The
i.LINK name and logo identify a high-speed communication interface,
which enables you to easily connect compatible digital camcorders.
❑VAIO® AV Applications — This suite of Sony original applications
includes PictureGear™, Smart Capture, DVgate™, OpenMG™ Jukebox,
MovieShaker™, VisualFlow™, and Media Bar DVD Player. Using the
i.LINK ports, you can capture, view, and share both still and video images,
then catalog everything for fast, easy storage and retrieval.
❑Exceptional performance — Your computer includes an Intel®processor,
a 10Base-T/100Base-TX Fast Ethernet interface, and a high-speed
V.90-compatible data/fax modem.*
✍i.LINK is a trademark of Sony used only to designate that a product contains an
IEEE1394 connection. The i.LINK connection may vary, depending on the software
applications, operating system and compatible i.LINK devices. All products with an
i.LINK connection may not communicate with each other.
Please refer to the documentation that came with your compatible i.LINK device for
information on operating conditions and proper connection. Before connecting
compatible i.LINK PC peripherals to your system, such as a CD-RW or Hard Disk
Drive, confirm their operating system compatibility and required operating conditions.
* Actual upload and download speeds may vary due to line conditions, ISP support, and gov-
ernment regulations.

VAIO Digital Studio™ Computer QuickStart
2
❑DVD-ROM drive —This new optical storage technology provides
increased storage capacity and a rich multimedia computing experience.
Your DVD-ROM drive plays both DVDs and CDs.
❑CD-RW drive —This drive is the ideal solution for making backups and
archiving data, with the ability to store up to 650 MB*of removable,
rewritable storage on a single rewritable CD. Save your movies to CD-R or
CD-RW media and share videos and images with family and friends.
❑VAIO Smart™keyboard —This PS/2®keyboard has programmable
shortcut buttons for launching your favorite programs or accessing the
Internet.
❑Sony audio and video quality —Take advantage of today’s advanced
multimedia applications, games, and entertainment software with Sony’s
high-fidelity audio system, high-powered 3D graphics, and “Sony-Tuned”
MPEG digital video playback.
❑Microsoft®Windows®Millennium Edition operating system —Your
system includes this latest consumer operating system from Microsoft.
❑Preinstalled software titles —All the software on your computer is
preinstalled, configured, and ready for you to use right out of the box.
❑Communications —Access popular online services, browse the Internet,
send faxes, and more.
* 530 MB after formatting with Direct CD™.

Unpacking Your Computer
3
Unpacking Your Computer
Computer and Supplied Accessories
Manuals
❑VAIO Digital Studio™ QuickStart — Contains information on unpacking
and setting up your computer, supplementary updates, and software
information.
❑VAIO Digital Studio™ User Guide — Contains features and specifications
of your computer. It also includes information on the applications included
with your system, how to contact software vendors, and solve common
problems.
❑Microsoft® Windows® Millennium Edition Getting Started — Explains
how to use the basic features of the Windows®operating system.

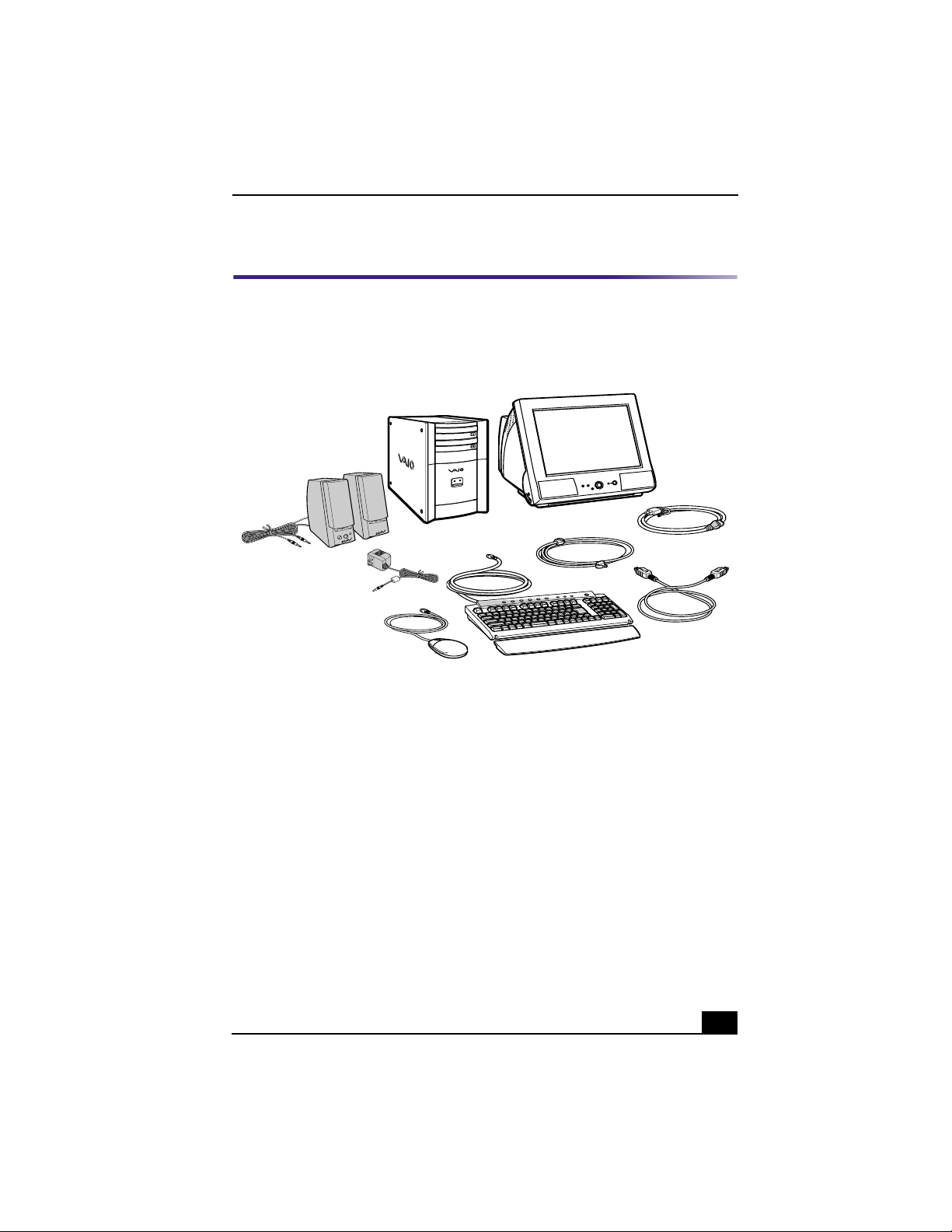

Computer and accessories (PCV-RX470DS/PCV-RX480DS)
Display (Sold separately)
Power Cord
Mouse
Modem Cable
Keyboard
Speakers
System Unit
i.LINK Cable
AC Adapter (Speaker)

VAIO Digital Studio™Computer QuickStart
4
Recovery CDs
❑System Recovery CD(s) —Enables you to restore the software titles that
shipped with your computer if they become corrupted or are erased. SRCDs
can only be used to restore the hard disk of the Sony computer you
purchased.
❑Application Recovery CD(s) —Enables you to reinstall individual
applications if they become corrupted or are erased.
❑Driver Recovery CD —Enables you to restore device drivers if they
become corrupted or are erased.
Other
Packet containing special product offers
Software Library
Software Library contains the Microsoft software license agreement, Sony end-
user license agreement, and the following CDs:
❑Microsoft®Word
❑Tomb Raider®Chronicles

Setting Up Your Computer
5
Setting Up Your Computer
This section illustrates how to set up and install your computer and peripheral
devices.
Connecting a CRT Display (PCV-RX470DS/PCV-RX480DS)
1Plug the display cable into the MONITOR port.
2If necessary, plug the display cord into the rear of the display.

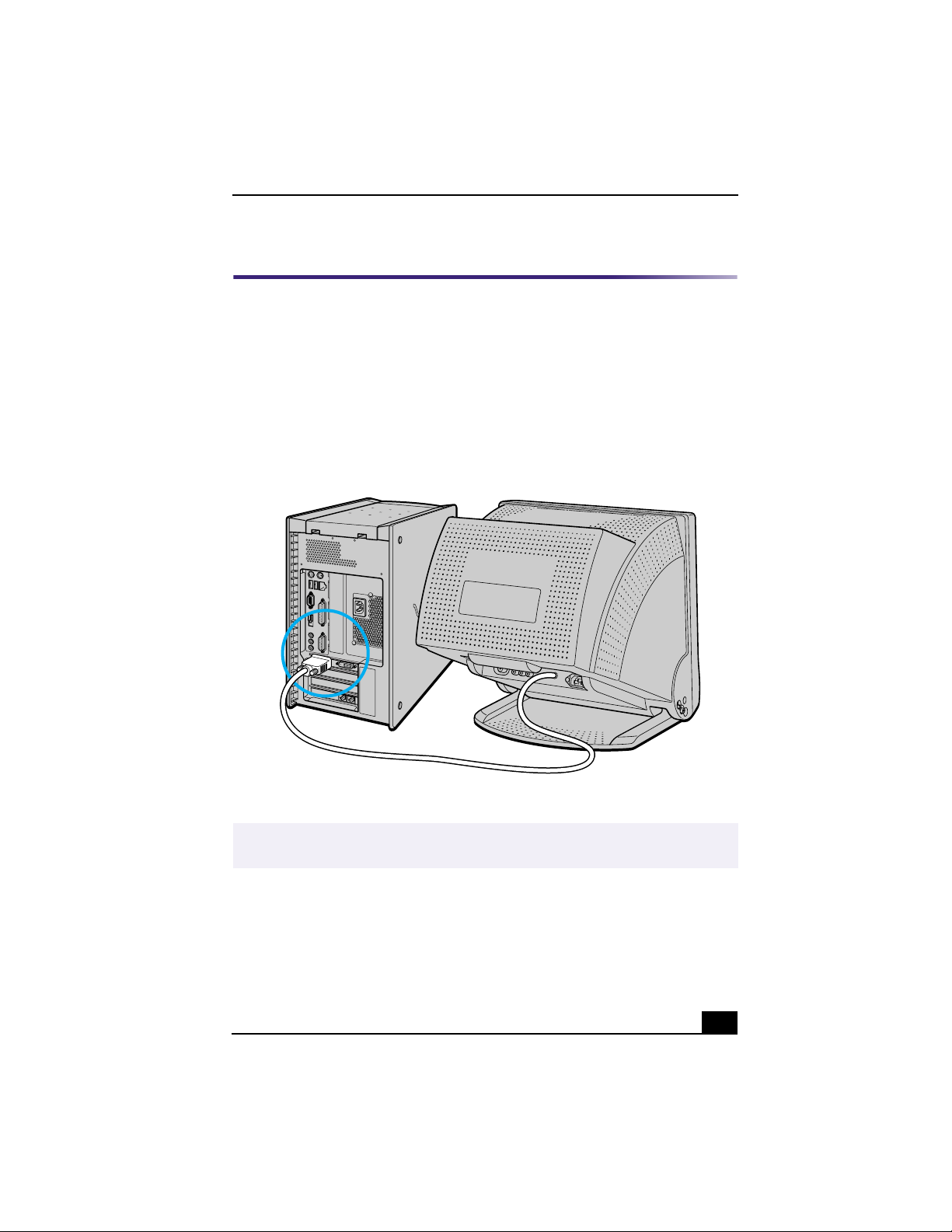

Connecting a CRT display (PCV-RX470DS/PCV-RX480DS)
✍Install your equipment so that you can easily reach the power outlet in the event of an
emergency.

VAIO Digital Studio™Computer QuickStart
6
Connecting a LCD Display (PCV-RX470DS/PCV-RX480DS)
1Plug the display cable into the DVI port.
2If necessary, plug the display cord into the rear of the display.
✍You can use the optional Sony LCD monitor (PCVA-15XD2) with this computer. See
the manual that came with your LCD monitor for more information on installation and
use.
Connecting a LCD display (PCV-RX470DS/PCV-RX480DS)

Setting Up Your Computer
7
Connecting the Speakers
1Plug the cable attached to the left speaker into the L OUT jack on the back of
the right speaker.
2Plug the cable attached to the right speaker into the HEADPHONES jack.
3Plug the jack end of the speaker power cord into the DC IN jack on the back
of the right speaker and plug the other end into a grounded AC wall outlet or
power strip.
Connecting the speakers (PCV-RX470DS/PCV-RX480DS)
HEADP
MIC
LINE IN

VAIO Digital Studio™Computer QuickStart
8
Connecting the keyboard and mouse
1Plug the keyboard cable into the PS/2®KEYBOARD port on the back of the
computer.
2Plug the mouse cable into the MOUSE port.
Connecting the keyboard and mouse (PCV-RX470DS/PCV-RX480DS)
PRINTER
SERIAL
i.LINK
S400
KEYBOARD MOUSE
USB NETWORK
ACT
LINK

Setting Up Your Computer
9
Connecting the modem cable and power cords
1Unplug your phone from the wall jack, and plug it into the TELEPHONE
jack on the computer.
2Plug the modem cable (supplied) into the LINE jack on the computer, and
then plug the other end of the cable into the wall jack.
3Plug the power cord into the back of the computer.
4Plug both the display and power cord into a grounded AC wall outlet or a
power strip.

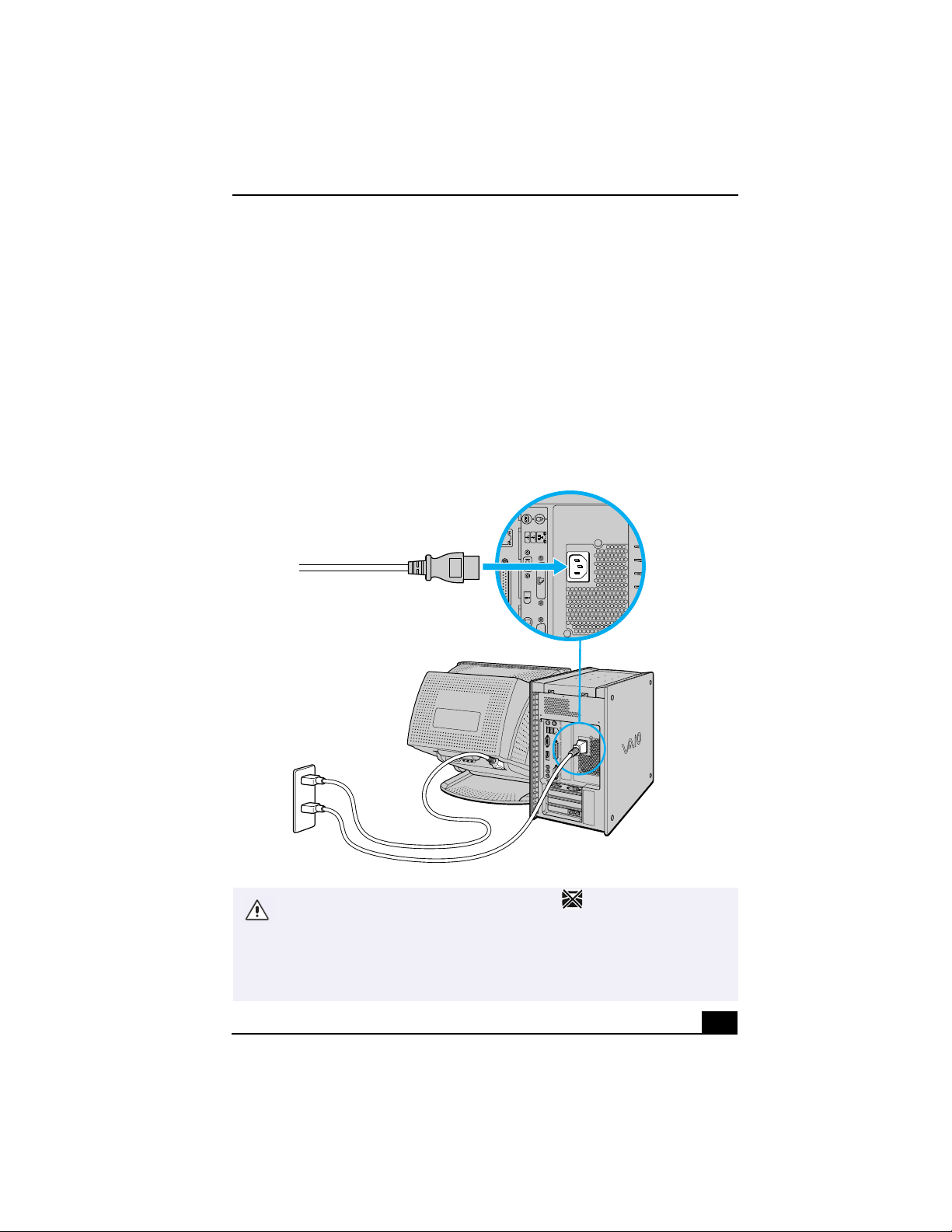

Connecting the power cords (PCV-RX470DS/PCV-RX480DS)
Warning: Your computer has a protective sticker covering the Ethernet port
located on the rear panel. Connect only 10Base-T and 100Base-TX cables to
the Ethernet port. Using other cables or a telephone cable may result in an
electric current overload and can cause a malfunction, excessive heat or fire
in the port. For help on connecting to a network, see your network
administrator.
KEYBOARD MOUSE
PRINTER
GAME
HEADPHONES
LINE IN
USB NETWORK
ACT
LINK
SERIAL
i.LINK
S400

VAIO Digital Studio™Computer QuickStart
10
Turning on your computer
1Press the power switch on the display to turn on the power.
2Press the power switch on the computer to turn on the power.
3Press the power switch on the right speaker to turn on the power.
✍When you start your system for the first time, your computer may redetect new
equipment and display a dialog box that asks you to restart your computer. Please
respond to this request immediately.
Turning on your computer (PCV-RX470DS/PCV-RX480DS)
✍You may sign up for Internet access with a Sony preferred Internet service provider.

Configuring the Wheel Mouse
11
Configuring the Wheel Mouse
To set up the mouse for left-handed use
1Click My Computer on your desktop.
2Click Control Panel and then Click Mouse. (If you don’t see the option you
need, click the hyperlink that allows you to view all Control Panel options.)
The Mouse Properties dialog box appears.
3From the Buttons tab, select Left-Handed under the Button Configuration
options.
4Click Apply and then click OK.
Registering Your Computer
Take advantage of Sony’s commitment to quality customer support and receive
these benefits by registering your computer:
❑Sony Customer Support —Talk to a Support Representative to
troubleshoot problems you may be having with your computer.
❑Limited warranty —Protect your investment. See the Warranty Card for
more details.
If you did not register when you first turned on your computer, follow these
steps to use the online computer registration service.
1Make sure your computer is connected to a phone line.
2Click the registration icon on the VAIO®desktop.
3Enter the information as requested in the first online registration form.
4Click the Next button to advance to the next form.
5Complete the remaining forms by clicking the Next button each time you
complete a form.
✍Press the tab key to move from box to box.

VAIO Digital Studio™Computer QuickStart
12
6The computer automatically transfers your registration information using
your built-in modem and a toll-free or local telephone number.
Shutting Down Your Computer
When you are ready to turn off your computer for an extended period of time, use
this procedure.
To turn off your computer
1From the Start menu, select Shut Down to display the Shut Down Windows
dialog box.
2Select the Shut Down option.
3Click OK to complete the shut down process.
4Wait for your computer to turn off automatically—the power indicator light
turns off.
5Turn off any peripheral devices connected to your computer.
About the Power Switch
If your system stops responding, press and hold the power switch for more than
four seconds to force your system to shut down. You may need to repeat this
procedure.
✍You may sign up for Internet access with a Sony-preferred Internet service provider.
To avoid loss of data, do not use the power switch to turn off the computer.
✍If you plan to turn off your computer for a short period of time, you may want to use
standby mode instead.
✍Respond to any prompts about saving documents

Using the Standby Function
13
Using the Standby Function
When you plan to stop using your computer for a short period of time, you can
put it in standby mode instead of turning it off completely. Putting the computer
in standby mode saves energy and provides a quick return to normal computer
use. You can use any of the following three methods for activating the standby
mode.
To set the computer in standby mode using the Standby key
1Save your work, close all applications, and close your dial-up Internet
connection, if applicable.
2Press the (Standby) key on the top of the keyboard.
The computer goes into standby mode.
To set the computer in standby mode using the Windows taskbar
1Save your work, close all applications, and close your dial-up Internet
connection, if applicable.
2From the Start menu on the Windows taskbar, select Shut Down.
3Select Standby.
4Click OK.
The computer goes into standby mode.
To let the computer go into standby mode automatically
1Save your work, close all applications, and close your dial-up Internet
connection, if applicable.
✍You can leave the Windows® operating system running.
✍You can leave the Windows operating system running.
✍You can leave the Windows operating system running

VAIO Digital Studio™Computer QuickStart
14
2Click My Computer on your desktop.
3Click Control Panel.
4Click Power Options.
5On the Power Schemes tab, select an option in the Power schemes
drop-down list.
6Choose settings for the power scheme you have selected.
7Type in a name.
8Click OK.
9Click Apply to finalize your power settings.
The computer will go into standby mode according to your settings.
To resume from standby mode
There are three ways to bring your computer back from the standby mode:
❑Press the space bar on your keyboard.
❑Momentarily press the power button on your computer.
❑Press Alt.
Standby Mode Indicators
You can tell which mode the computer is in by the color of the power indicator
light.
✍To save the settings under a name that is not offered in the Power schemes pulldown
menu, choose your settings and then click Save As.
Color Mode
Red Computer is in standby mode.
Blue Computer is in normal mode, ready to use.
No color Computer is turned off or in hibernate mode.

About the Software on Your Computer
15
About the Software on
Your Computer
Your VAIO®computer is ready to help you work, play, learn, and
communicate as soon as you turn it on. This section provides an overview
of the software titles included with your computer.
Adobe Acrobat®Reader™
Adobe Systems, Inc.
Acrobat Reader software allows you to view, navigate, and print electronic documents in
Adobe’s Portable Document Format (PDF), an open file format that is intended to preserve
the fidelity of documents created on all major computer platforms.
Adobe Photoshop®Elements
Adobe Systems Inc.
Using state-of-the-art image editing tools, you can unleash your artistic ability and create
digital images for print, e-mail and posting to the Web. The versatile image capturing
options allow you to start working with digital and traditional photos immediately.
Explore endless creative possibilities for your personal images with Adobe Photoshop
Elements.
Adobe Premiere®LE
Adobe Systems Inc.
Adobe Premiere LE offers interface and editing tools for producing movies for video,
multimedia, or the Web. View source clips and edited footage simultaneously on screen.
You can create your own personal video clips that are up to three hours in length, with
complete audio-video synchronization.
America Online®
America Online, Inc.
America Online is a popular Internet online service. Stay in touch with family and friends
with easy-to-use e-mail. Manage your personal finances, get the latest news and sports
scores, and chat with thousands of others who share your interests.

VAIO Digital Studio™Computer QuickStart
16
CompuServe®2000
CompuServe Interactive Services, Inc.
The all-new CompuServe 2000 delivers a powerful tool for Internet users who want timely
information, in-depth research, and professional communities backed by state-of-the-art
technologies, including high-speed access and powerful e-mail messaging.
DirectCD™
Roxio, Inc.
DirectCD allows you to drag and drop files directly to your CD-RW drive. You can save,
rename, move or delete files right from your CD-RW. DirectCD is an easy way to turn
your CD-RW drive into the perfect desktop storage device.
DVgate™
Sony Electronics, Inc.
Connect a digital video camera recorder to the i.LINK®port and capture your own video
clips and still images. You can edit clips from your video, add new clips, and combine
clips into new movie segments. You can also save your images in a variety of popular file
formats.
EarthLink™Network Total Access
EarthLink Network, Inc.
An Internet Service Provider that supplies access, information, and assistance to its
customers, introducing them to the Internet. Member benefits include e-mail, newsgroups,
a Personal Start Page, a free 6 MB Web site, a member magazine, and 24-hour technical
support.
Easy CD Creator™
Roxio, Inc.
Easy CD Creator lets you make your own data, audio and multimedia CDs. You can back
up your important files to CD, and read them back on standard CD-ROM drives. Create
your own audio CDs right on your desktop, and play them back on your home or car stereo
CD player. You can make your own personalized color jewel case inserts with custom text
and graphics. You can even make backup copies of your existing CDs.
Media Bar DVD Player
Sony Electronics, Inc.
Media Bar DVD Player is created especially for high-quality DVD playback. You can
enjoy the superior digital video quality and the effects features. Media Bar DVD Player
seamlessly integrates a premium audio/visual experience with an easy-to-use software
interface.

About the Software on Your Computer
17
Microsoft®Internet Explorer
Microsoft Corp.
Internet Explorer delivers the World Wide Web the way you want it. It's secure, easy to
use, and you can personalize how you access the Internet. Outlook Express and other
features of Internet Explorer deliver a great Internet experience.
Microsoft®Outlook®Express
Microsoft Corp.
This messaging tool that takes your e-mail and newsgroup communications to new
heights. Outlook Express is easy to set up and use, and provides you with secure,
personalized, and comprehensive features that protect and enhance your online
communication experience.
Microsoft®Word
Microsoft Corp.
Microsoft Word makes it easy to create common Web, e-mail, and print documents for use
around the world. It embraces HTML as a first-class file format and extends Word's ease-
of-use to the Web and e-mail. Word 2002 also extends that ease of use to international
users, making it easy to create multilingual documents.
MovieShaker™
Sony Electronics, Inc.
Sony’s original MovieShaker software creates personal movies that have transitions,
background music, and text. Just import your video clips and “shake”with a click of the
mouse. Your personal movies are easy to create and fun to share with family and friends.
Netscape Communicator®
Netscape Communications, Inc.
Netscape Communicator is the all-in-one Internet tool that makes it easy to browse the
Web, send Internet e-mail, chat, read newsgroups, and compose great Web documents.
Norton AntiVirus™
Symantec Corp.
Norton AntiVirus provides security for your Internet and email communications. This
powerful antivirus software works in the background to continuously protect your PC, by
scanning the files you download from the Web and receive as e-mail attachments. Each
time you connect to the Internet, Norton AntiVirus updates its virus definitions to deliver
automatic protection today and in the future.

VAIO Digital Studio™Computer QuickStart
18
OpenMG™Jukebox
Sony Electronics, Inc.
OpenMG Jukebox software enables you to import digital audio files by downloading
audio files from Electronic Music Distribution (EMD) services over digital networks, such
as the Internet. You can record audio CDs onto your hard drive in a variety of formats.
PhotoPrinter™2000 Pro
ArcSoft, Inc.
PhotoPrinter Pro is an easy-to-use, advanced printing program that lets users quickly
layout multiple images in multiple sizes on a single sheet of paper. PhotoPrinter Pro offers
a wide selection of templates including landscape, portrait, free-style, mixed sizes, custom
templates and more. The application includes enhancement tools and special effects for
improving photos while giving users the ability to add text to any image.
PictureGear
Sony Electronics, Inc.
This image management software displays images from your hard drive, a Sony digital
still camera, or a Sony Mavica®camera. The images appear in a convenient light-table
format, so that you can easily view the contents of an entire folder.
Prodigy Internet™
Prodigy Communications Corp.
Prodigy is an Internet service that helps you find what you need online faster and smarter.
Prodigy delivers powerful online content, such as sports scores, stock quotes, news, and
easy access to Excite™, plus a personal e-mail account and quality customer service—all
at a competitive price.
Quicken®2001
Intuit, Inc.
Quicken is the fastest, easiest way to organize your finances. Quicken works just like your
checkbook, so it's easy to learn and use. You can even pay your bills online. Quicken
manages all of your finances, bank accounts, credit cards, investments, and loans.
RealJukebox®
RealNetworks, Inc.
RealJukebox is a popular digital music system that gives you the ability to easily acquire,
play and manage digital music files. You can locate and download your favorite music
from the Internet and organize your own personal music collection.
