Sony VPCL12M1E/S User manual

N
User Guide
Personal Computer
VPCL12 Series

2
nN
Contents
Before Use.......................................................................... 4
Finding More about Your VAIO Computer .................... 5
Ergonomic Considerations ............................................ 7
Getting Started.................................................................... 9
Locating Controls and Ports........................................ 10
About the Indicator Lights ........................................... 14
Setting Up Your Computer .......................................... 15
Shutting Down Your Computer Safely ........................ 17
Using the Power Saving Mode .................................... 18
Updating Your Computer ............................................ 20
Using Your VAIO Computer.............................................. 21
Using the Keyboard..................................................... 22
Using the Mouse ......................................................... 28
Using the Touch Screen.............................................. 33
Using the Built-in Camera ........................................... 37
Using the Optical Disc Drive ....................................... 38
Using the TV Function................................................. 45
Using the HDMI/VIDEO Input Function....................... 48
Using the Remote Commander ...................................53
Using "Memory Stick" ..................................................57
Using Other Modules / Memory Cards ........................64
Using the Internet ........................................................68
Using the Network (LAN).............................................69
Using the Wireless LAN...............................................70
Using the Bluetooth Function ......................................75
Using Peripheral Devices ..................................................80
Connecting External Speakers or Headphones ..........81
Connecting an External Microphone ...........................82
Connecting a USB Device ...........................................83
Connecting an i.LINK Device.......................................85
Customizing Your VAIO Computer....................................87
Setting the Password...................................................88
Using Intel(R) VT .........................................................95
Using the VAIO Control Center ...................................96
Upgrading Your VAIO Computer.......................................97
Adding and Removing Memory ...................................98

3
nN
Precautions..................................................................... 104
Safety Information ..................................................... 105
Care and Maintenance Information........................... 108
Handling Your Computer........................................... 109
Handling the LCD Screen/Touch Screen .................. 111
Using the Power Source ........................................... 112
Handling the Built-in Camera .................................... 113
Handling Discs .......................................................... 114
Handling "Memory Stick"........................................... 115
Handling the Built-in Storage Device ........................ 116
Troubleshooting .............................................................. 117
Computer Operations................................................ 119
System Update / Security.......................................... 124
Recovery ................................................................... 126
Built-in Camera ......................................................... 128
Networking (LAN/Wireless LAN) ............................... 130
Bluetooth Technology ............................................... 133
Optical Discs ............................................................. 137
Display ...................................................................... 142
Printing ...................................................................... 144
Microphone................................................................145
Mouse ........................................................................146
Speakers ...................................................................148
Touch Screen ............................................................150
Keyboard ...................................................................151
Floppy Disks ..............................................................152
Audio/Video ...............................................................153
HDMI/VIDEO Input Function .....................................156
"Memory Stick" ..........................................................158
Peripherals ................................................................159
Trademarks .....................................................................160
Notice ..............................................................................162

4
nN
Before Use >
Before Use
Congratulations on your purchase of this Sony VAIO®computer and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide you with a state-of-the-art
computing experience.
!
External views illustrated in this manual may look slightly different from those of your computer.
How to find specifications
Some features, options, and supplied items may not be available on your computer.
To find out about the configuration of your computer, visit the VAIO Link web site at http://www.vaio-link.com.

5
nN
Before Use >
Finding More about Your VAIO Computer
Finding More about Your VAIO Computer
This section provides support information about your VAIO computer.
1. Printed Documentation
❑Quick Start Guide — An overview of components connection, set-up information, etc.
❑Recovery and Troubleshooting Guide
❑Regulations, Guarantee, and Service Support
2. On-screen Documentation
❑User Guide (This manual) — Features of your computer and information about solving common problems.
To view this on-screen guide:
1Click Start , All Programs, and VAIO Documentation.
2Open the folder for your language.
3Select the guide you want to read.
✍
You can manually browse to the user guides by going to Computer > VAIO (C:) (your C drive) > Documentation > Documentation and opening the
folder for your language.
❑Windows Help and Support — A comprehensive resource for practical advice, tutorials, and demonstrations to help you
learn to use your computer.
To access Windows Help and Support, click Start and Help and Support, or press and hold the Microsoft Windows
key and press the F1 key.

6
nN
Before Use >
Finding More about Your VAIO Computer
3. Support Web Sites
If you have any problem with the computer, visit the VAIO-Link web site at http://www.vaio-link.com for troubleshooting
guidance.
Some other information resources are also available:
❑The Club VAIO community at http://club-vaio.com provides the possibility to ask questions to other VAIO users.
❑For product information, you can visit our products web site at http://www.vaio.eu/, or our online store at
http://www.sonystyle-europe.com.
In case you need to contact VAIO-Link, have the serial number of your VAIO computer ready at hand. The serial number is
located on the bottom, the back panel, or inside the battery compartment of your VAIO computer. If you have problems
locating your serial number, more guidance can be found on the VAIO-Link web site.

7
nN
Before Use >
Ergonomic Considerations
Ergonomic Considerations
Whenever possible, you should attempt to take account of the following ergonomic considerations:
❑Position of your computer – Place the display directly in front of you. Keep your forearms horizontal, with your wrists in
a neutral, comfortable position while using the keyboard or the pointing device. Let your upper arms hang naturally at your
sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or
tendons.
❑Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.

8
nN
Before Use >
Ergonomic Considerations

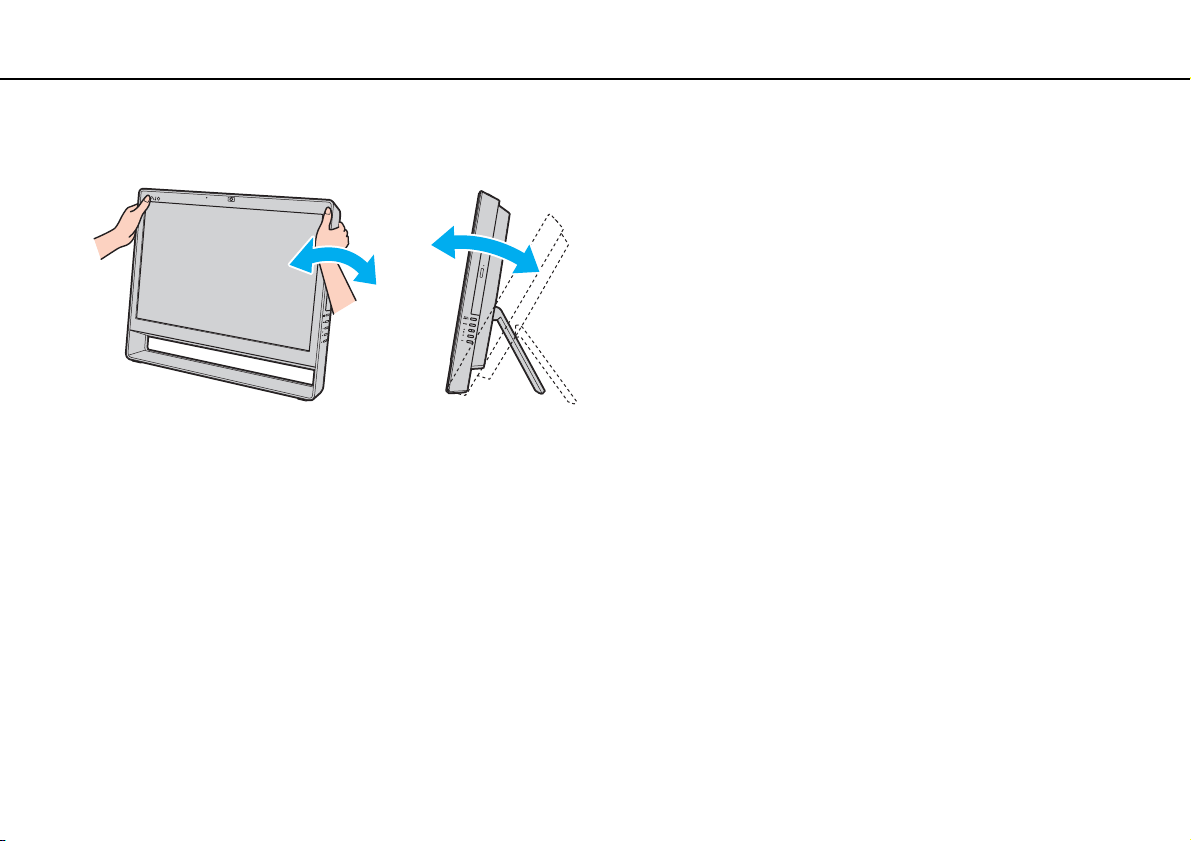

❑Viewing angle of the display – Use the display tilting feature to find the best position. You can reduce eye strain and
muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.
!
While adjusting the viewing angle, do not exert excessive pressure on your computer to eliminate a risk of mechanical damage.
❑Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.
❑Ventilation – Make sure you leave at least 10 cm of space behind and at least 20 cm of space on each side of the main
unit.

9
nN
Getting Started >
Getting Started
This section describes how to get started using your VAIO computer.
❑Locating Controls and Ports (page 10)
❑About the Indicator Lights (page 14)
❑Setting Up Your Computer (page 15)
❑Shutting Down Your Computer Safely (page 17)
❑Using the Power Saving Mode (page 18)
❑Updating Your Computer (page 20)

10
nN
Getting Started >
Locating Controls and Ports
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
!
The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary in some
countries or areas.
Front
ABuilt-in microphone (monaural)
BBuilt-in MOTION EYE camera indicator (page 14)
CBuilt-in MOTION EYE camera (page 37)
DHDMI/VIDEO input indicator*(page 14)
EWIRELESS indicator (page 14)
FDisc drive indicator (page 14)
GPower indicator (page 14)
HBuilt-in speakers (stereo)
ILCD screen/touch screen (page 33)
!
Due to the mechanical design of the touch screen of your computer, some areas
of the screen surface may become warm while you are using the computer for
an extended period of time. This is normal and does not indicate a malfunction.
JBottom chassis frame (page 105)
KRemote sensor*
Point the supplied remote commander to this sensor for
operations.
* On selected models only.

11
nN
Getting Started >
Locating Controls and Ports
Back
!
The area around the air exhaust vent (3) becomes extremely hot while your computer
is on. Be sure to wait until the computer cools down before you touch it.
APower button
BDISPLAY OFF button/DISPLAY OFF indicator (page 14)
Press this button to turn off the LCD backlight. While the HDMI
input or the video input is selected as the audio/video input
source by the INPUT SELECT button (page 12), pressing this
button also turns off the volume.
CAir exhaust vent
DMemory module compartment cover (page 98)
EVIDEO INPUT jacks*1 (page 48)
FHDMI INPUT port*1 (page 48)

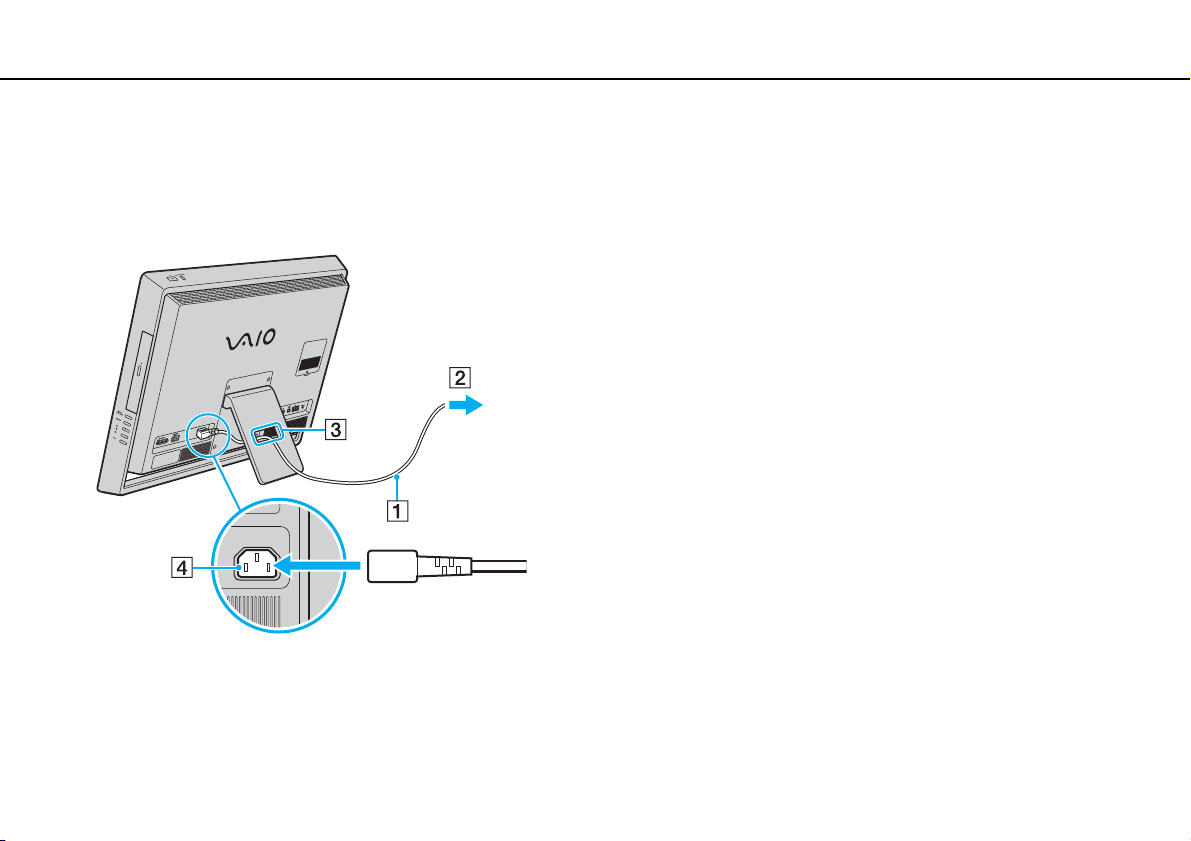

GAC input port (page 15)
HProp-up stand (page 105)
IVHF/UHF input port*1 (page 45)
JNetwork (LAN) port (page 69)
KOPTICAL OUT port (page 81)
(Output Sampling Rate: 44.1 KHz/48.0 KHz/96.0 KHz)
LUSB ports*2 (page 83)
MCONNECT button (page 27), (page 31)
*1 On selected models only.
*2 Compliant with the USB 2.0 standard and support high-/full-/low- speeds.

12
nN
Getting Started >
Locating Controls and Ports
Right
AOptical disc drive (page 38)
BManual eject hole (page 137)
CDrive eject button (page 38)
DINPUT SELECT button*(page 50)/
INPUT SELECT indicator*(page 14)
EMENU button*(page 50)
FV/v(Up/Down) buttons*(page 50)
GOK button*(page 50)
* On selected models only.

13
nN
Getting Started >
Locating Controls and Ports

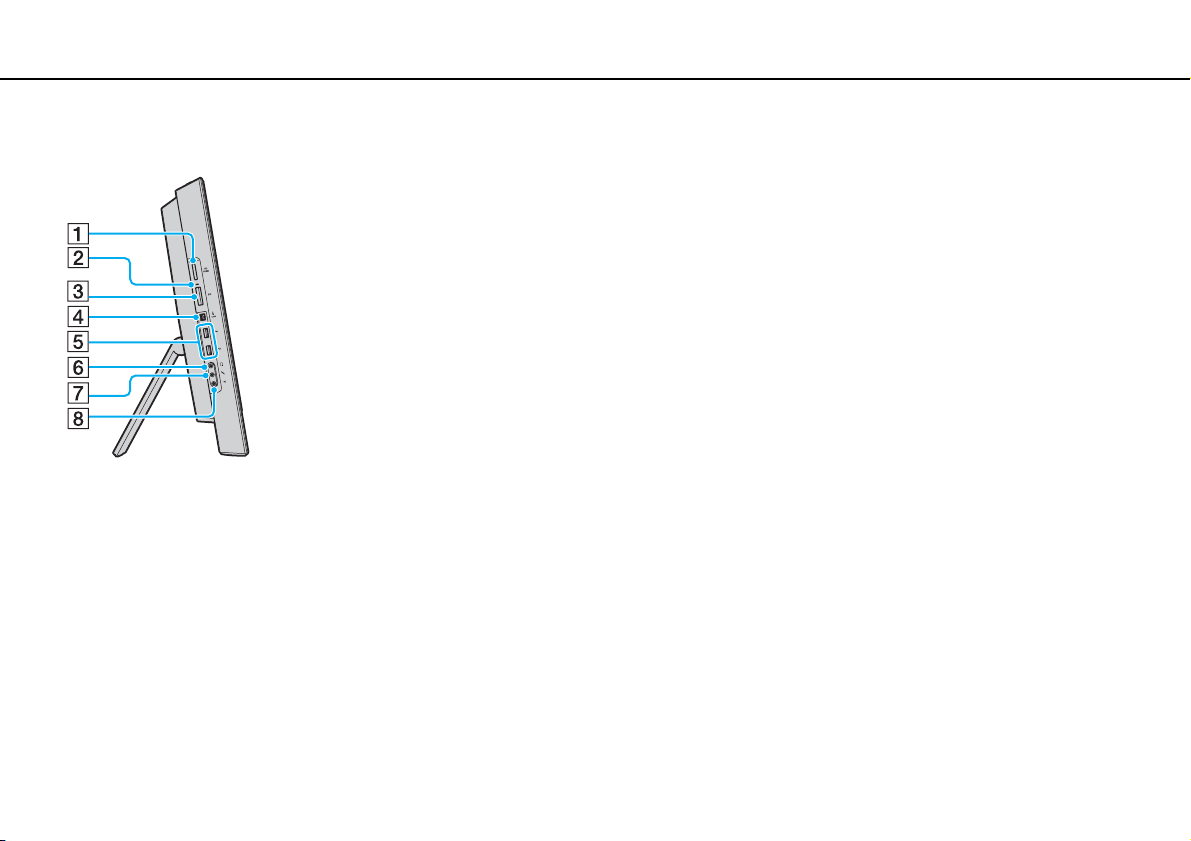

Left
A"Memory Stick Duo" slot*1(page 57)
BMedia Access indicator (page 14)
CSD memory card slot (page 64)
Di.LINK 4-pin (S400) port (page 85)
EUSB ports*2 (page 83)
FHeadphones jack (page 81)
GMicrophone jack (page 82)
HLine In jack
Connect an external audio device to receive audio signals.
*1 Your computer supports only Duo-size "Memory Stick".
*2 Compliant with the USB 2.0 standard and support high-/full-/low- speeds.

14
nN
Getting Started >
About the Indicator Lights
About the Indicator Lights
Your computer is equipped with the following indicator lights:
Indicator Functions
Power 1Illuminates in green while the computer is on, illuminates in orange while the computer is in Sleep mode, and
turns off when the computer is turned off.
HDMI/VIDEO*Illuminates in green while the HDMI input or the video input is selected as the audio/video input source.
Built-in MOTION EYE camera Illuminates while the built-in camera is in use.
Media Access Illuminates while data access to a memory card, such as "Memory Stick" and an SD memory card, is in
progress. (Do not place the computer into Sleep mode or turn it off while this indicator light is lit.) When the
indicator light is unlit, the memory card is not in use.
INPUT SELECT*Illuminates in green while the HDMI input or the video input is selected as the audio/video input source.
DISPLAY OFF Illuminates in orange while the LCD backlight is off.
Disc drive Illuminates while data access to the built-in storage device or the optical disc drive is in progress. Do not place
the computer into Sleep mode or turn it off while this indicator light is lit.
WIRELESS Illuminates while one or more wireless options are enabled.
* On selected models only.

15
nN
Getting Started >
Setting Up Your Computer
Setting Up Your Computer
Connecting a Power Source
You need a power cord to connect your computer to an AC power source.
✍
Use only the supplied power cord for your computer.

16
nN
Getting Started >
Setting Up Your Computer
To connect the power cord
1Plug one end of the power cord (1) into the AC outlet (2).
2Route the power cord through the hole (3) of the prop-up stand and plug the other end into the AC input port (4) on the
computer.
✍
To disconnect your computer completely from AC power, turn off the computer and unplug the power cord.
Make sure that the AC outlets are easily accessible.
!
If you unplug the power cord from your computer while the computer is on or in Sleep mode, you may lose all unsaved data.

17
nN
Getting Started >
Shutting Down Your Computer Safely
Shutting Down Your Computer Safely
To avoid losing unsaved data, be sure to shut down your computer properly, as described below.
To shut down your computer
1Turn off any peripherals connected to the computer.
2Click Start and the Shut down button.
3Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off
automatically.
The power indicator light turns off.

18
nN
Getting Started >
Using the Power Saving Mode
Using the Power Saving Mode
In addition to the normal operating mode, your computer has a distinct power saving mode called Sleep mode.
!
Turn off your computer if you do not intend to use it for an extended period of time.
Mode Description
Normal mode This is the normal state of your computer while it is in use. The green power indicator light is lit while the
computer is in this mode.
Sleep mode Sleep mode turns off the LCD screen and places the built-in storage device(s) and the CPU into a low power
consumption mode. The orange power indicator light illuminates while your computer is in this mode.

19
nN
Getting Started >
Using the Power Saving Mode
Using Sleep Mode
To activate Sleep mode
Click Start, the arrow next to the Shut down button, and Sleep.
✍
Alternatively, you can press the sleep button on the wireless keyboard or the remote commander (if supplied) to place your computer into Sleep mode.
To return to Normal mode
❑Press any key on the wireless keyboard or the sleep button on the remote commander (if supplied).
❑Press the power button on your computer.
!
Make sure that the batteries of your wireless keyboard and remote commander (if supplied) are properly installed and not running out of power.
If you press and hold the power button for more than four seconds, your computer will turn off automatically. You will lose all unsaved data.
If the computer is not used for a certain period of time, it will enter Sleep mode. To modify this, you can change the Sleep
mode settings.
To change the Sleep mode settings
1Click Start, Control Panel, Hardware and Sound, and Power Options.
2Click Change plan settings under the current power plan.
3Change the time to place the computer into Sleep mode and click Save Changes.

20
nN
Getting Started >
Updating Your Computer
Updating Your Computer
Be sure to update your VAIO computer with the following software applications so that the computer can run more efficiently
and securely.
The VAIO Update automatically notifies you of new updates for enhancing your computer's performance available on the
Internet, and downloads and installs them on the computer.
❑Windows Update
Click Start, All Programs, and Windows Update and then follow the on-screen instructions.
❑VAIO Update 5
Click Start, All Programs, and VAIO Update 5 and then follow the on-screen instructions.
!
Your computer must be connected to the Internet to download the updates.
