Before Use >
Before Use
Congratulations on your purchase of this Sony VAIO®computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal
computing experience.
!
External views illustrated in this manual may look slightly different from those of your computer.
How to find specifications
Some features, options, and supplied items may not be available on your computer.
To find out about the configuration of your computer, visit the VAIO Link web site at http://www.vaio-link.com.

5
nN
Before Use >
Finding More about Your VAIO Computer
Finding More about Your VAIO Computer
This section provides support information about your VAIO computer.
1. Printed Documentation
❑Quick Start Guide — An overview of components connection, set-up information, etc.
❑Troubleshooting and Recovery Guide
❑Regulations, Guarantee, EULA and Service Support
2. On-screen Documentation
❑User Guide (This manual) — Features of your computer and information about solving common problems.
To view this on-screen guide:
1Double-click the VAIO User Guide icon on the desktop.
2Open the folder for your language.
3Select the guide you want to read.
✍
You can manually browse to the user guides by going to My Computer > VAIO (C:) (your C drive) > Documentation > Documentation and opening the
folder for your language.
❑Help and Support Center — A comprehensive resource for practical advice, tutorials, and demonstrations to help you
learn to use your computer.
To access Help and Support Center, click Start and Help and Support, or press and hold the Microsoft Windows key
and press the F1 key.

6
nN
Before Use >
Finding More about Your VAIO Computer
3. Support Web Sites
If you have any problem with the computer, you can visit the VAIO-Link web site at http://www.vaio-link.com for
troubleshooting.
Before contacting VAIO-Link by telephone, try to solve the problem by reading the supplied documentation and visiting other
Sony web sites.
❑For more about VAIO and becoming part of the growing VAIO community, visit the web site at http://www.club-vaio.com.
❑For online purchases, visit the web site at http://www.sonystyle-europe.com.
❑For other Sony products, visit the web site at http://www.sony.net.
When you contact VAIO-Link by telephone, have the serial number of your VAIO computer ready at hand. The serial number
is located on the bottom, the back panel, or inside the battery compartment of your VAIO computer.

7
nN
Before Use >
Ergonomic Considerations
Ergonomic Considerations
You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations for both stationary and portable environments:
❑Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your
wrists in a neutral, comfortable position (3) while using the keyboard or the pointing device. Let your upper arms hang
naturally at your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes,
muscles, or tendons.
❑Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.

8
nN
Before Use >
Ergonomic Considerations
❑Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display
as well.
❑Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.
❑Positioning an external display – When using an external display, set the display at a comfortable viewing distance.
Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

9
nN
Getting Started >
Getting Started
This section describes how to get started using your VAIO computer.
❑Locating Controls and Ports (page 10)
❑About the Indicator Lights (page 16)
❑Connecting a Power Source (page 17)
❑Using the Battery Pack (page 18)
❑Shutting Down Your Computer Safely (page 24)
❑Updating Your Computer (page 25)

10
nN
Getting Started >
Locating Controls and Ports
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
Front
ABuilt-in MOTION EYE camera (page 29)
BBuilt-in MOTION EYE camera indicator (page 16)
CBuilt-in microphone (monaural)
DLCD screen (page 82)
EKeyboard (page 27)
FTouch pad (page 28)
GNum lock indicator (page 16)
HCaps lock indicator (page 16)
IScroll lock indicator (page 16)

11
nN
Getting Started >
Locating Controls and Ports

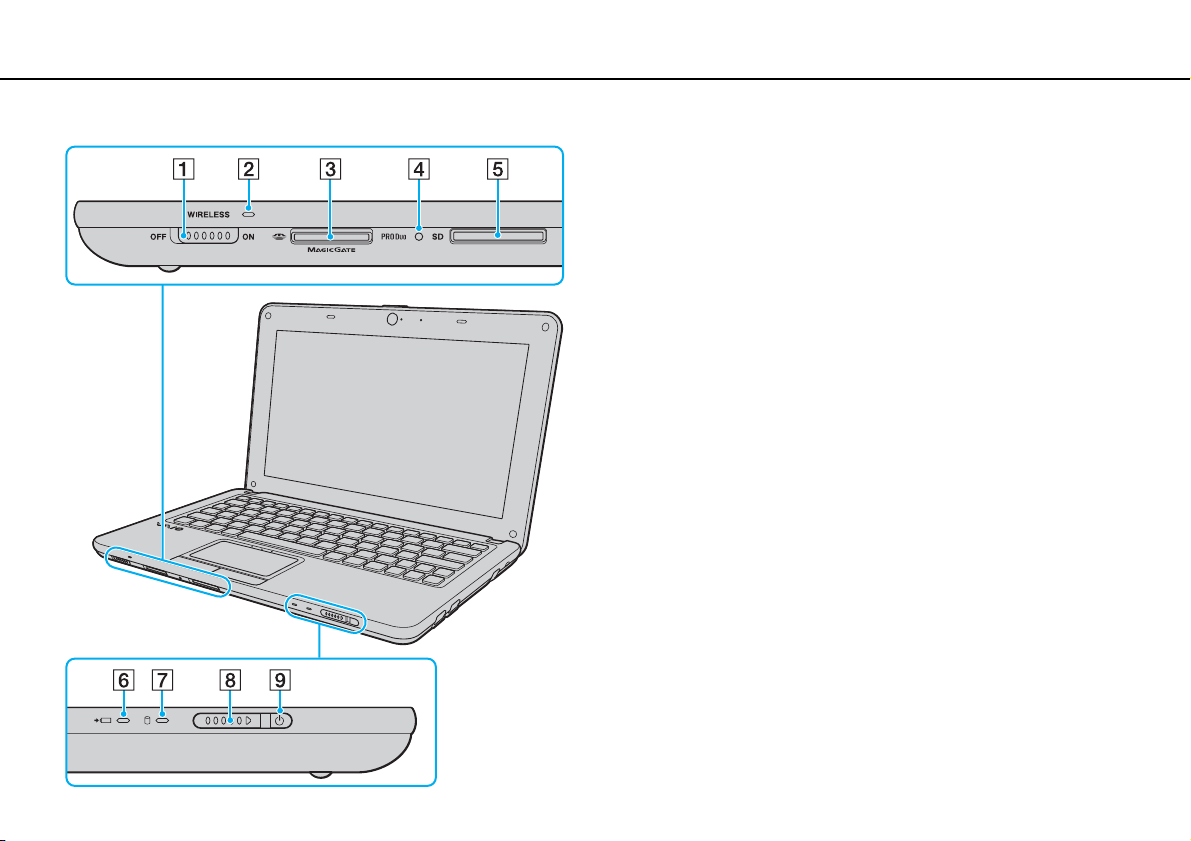

AWIRELESS switch (page 41), (page 48)
BWIRELESS indicator (page 16)
CMemory Stick Duo slot*(page 30)
DMedia Access indicator (page 16)
ESD memory card slot (page 35)
FCharge indicator (page 16)
GDisc drive indicator (page 16)
HPower switch
IPower indicator (page 16)
* Your computer supports only the Duo-size Memory Stick.

12
nN
Getting Started >
Locating Controls and Ports
Back
ABattery connector (page 18)

13
nN
Getting Started >
Locating Controls and Ports
Right
AHi-Speed USB (USB 2.0) ports*(page 67)
BNetwork (Ethernet) port (page 40)
CSecurity slot
* Support high-/full-/low- speeds.

14
nN
Getting Started >
Locating Controls and Ports
Left
ADC IN port (page 17)
BAir vent
CMonitor port (page 58)
DMicrophone jack (page 66)
EHeadphones jack (page 57)

15
nN
Getting Started >
Locating Controls and Ports
Bottom
ABuilt-in speakers (stereo)
BAir vent

16
nN
Getting Started >
About the Indicator Lights
About the Indicator Lights
Your computer is equipped with the following indicator lights:
Indicator Functions
Power 1Illuminates in green when the computer is on, blinks slowly in orange while the computer is in Standby mode,
and turns off when the computer is off or in Hibernate mode.
Charge Illuminates while the battery pack is charging. See Charging the Battery Pack (page 21) for more information.
Built-in MOTION EYE camera Illuminates while the built-in camera is in use.
Media Access Illuminates while data is being read from or written to a memory card, such as the Memory Stick and the SD
memory card. (Do not place the computer into Standby mode or turn it off when this indicator is lit.) When the
indicator is unlit, the memory card is not in use.
Disc drive Illuminates while the built-in storage device is running to read or write data.
Do not place the computer into Standby mode or turn it off when this indicator is lit.
Num lock Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.
The numeric keypad is not active when the indicator is unlit.
Caps lock Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator is lit. Press the key a second time to turn off the indicator. Normal typing resumes when the
Caps lock indicator is unlit.
Scroll lock Press the Fn+Scr Lk keys to change how you scroll the display. Normal scrolling resumes when the Scroll lock
indicator is unlit. The Scr Lk key functions differently depending on the program you are using and does not
work with all programs.
WIRELESS Illuminates when one or more wireless options are enabled.

17
nN
Getting Started >
Connecting a Power Source
Connecting a Power Source
You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.
Using the AC Adapter
✍
Use only the supplied AC adapter for your computer.
To use the AC adapter
1Plug one end of the power cord (1) into the AC adapter (3).
2Plug the other end of the power cord into an AC outlet (2).
3Plug the cable from the AC adapter (3) into the DC IN port (4) on the computer.
✍
To disconnect your computer completely from AC power, unplug the AC adapter.
Make sure that the AC outlet is easily accessible.
If you do not intend to use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 77).

18
nN
Getting Started >
Using the Battery Pack
Using the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of delivery.
Installing the Battery Pack
To install the battery pack
1Turn off the computer and close the LCD screen lid.
2Slide the battery LOCK switch (1) outward.

19
nN
Getting Started >
Using the Battery Pack
3Slide the battery pack diagonally into the battery compartment until the projection (2) on either side of the battery
compartment fits into the cut (3) on either side of the battery pack.

20
nN
Getting Started >
Using the Battery Pack
4Push the battery pack down into the compartment until it clicks into place.
5Slide the battery LOCK switch inward to secure the battery pack on the computer.
✍
When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.
!
Certain rechargeable batteries do not meet Sony quality and safety standards. For safety reasons this computer only functions with genuine Sony
battery packs designed for this model. If an unauthorized battery pack is installed, the battery will not be charged and the computer will not function.
