Contents
Before Use.......................................................................... 4
Finding More about Your VAIO Computer .................... 5
Ergonomic Considerations ............................................ 8
Getting Started.................................................................. 10
Locating Controls and Ports........................................ 11
About the Indicator Lights ........................................... 17
Connecting a Power Source ....................................... 18
Using the Battery Pack................................................ 20
Shutting Down Your Computer Safely ........................ 27
Using the Power Saving Modes .................................. 28
Keeping Your Computer in Optimum Condition .......... 31
Using Your VAIO Computer.............................................. 33
Using the Keyboard..................................................... 34
Using the Touch Pad................................................... 36
Using the Built-in Camera ........................................... 37
Using "Memory Stick".................................................. 38
Using Other Modules / Memory Cards........................ 45
Using the Internet........................................................ 49
Using the Network (LAN) ............................................ 50
Using the Wireless LAN .............................................. 51
Using the Wireless WAN............................................. 56
Using the Bluetooth Function ...................................... 60
Using Peripheral Devices ..................................................66
Connecting an Optical Disc Drive ................................67
Connecting External Speakers or Headphones ..........69
Connecting an External Display ..................................70
Selecting Display Modes .............................................72
Using the Multiple Monitors Function ..........................73
Connecting a USB Device ...........................................75
Customizing Your VAIO Computer....................................77
Setting the Password...................................................78
Using Intel(R) VT .........................................................89
Using the VAIO Control Center ...................................90
Using the VAIO Power Management...........................91

3
nN
Precautions....................................................................... 93
Safety Information ....................................................... 94
Care and Maintenance Information............................. 97
Handling Your Computer............................................. 98
Handling the LCD Screen ......................................... 100
Using the Power Source ........................................... 101
Handling the Built-in Camera .................................... 102
Handling Discs .......................................................... 103
Using the Battery Pack.............................................. 104
Handling "Memory Stick"........................................... 105
Handling the Built-in Storage Device ........................ 106
Troubleshooting .............................................................. 107
Computer Operations................................................ 109
System Update / Security.......................................... 116
Recovery ................................................................... 118
Battery Pack.............................................................. 121
Built-in Camera ......................................................... 123
Networking (LAN/Wireless LAN) ............................... 125
Wireless WAN ........................................................... 128
Bluetooth Technology ............................................... 129
Optical Discs ............................................................. 133
Display ...................................................................... 134
Printing ...................................................................... 137
Microphone ............................................................... 138
Speakers ...................................................................139
Touch Pad .................................................................141
Keyboard ...................................................................142
Floppy Disks ..............................................................143
Audio/Video ...............................................................144
"Memory Stick" ..........................................................146
Peripherals ................................................................147
Trademarks .....................................................................148
Notice ..............................................................................150

4
nN
Before Use >
Before Use
Congratulations on your purchase of this Sony VAIO®computer and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide you with a state-of-the-art
computing experience.
!
External views illustrated in this manual may look slightly different from those of your computer.
How to find specifications
Some features, options, and supplied items may not be available on your computer.
To find out about the configuration of your computer, visit the VAIO Link web site at http://support.vaio.sony.eu/.

5
nN
Before Use >
Finding More about Your VAIO Computer
Finding More about Your VAIO Computer
This section provides support information about your VAIO computer.
1. Printed Documentation
❑Quick Start Guide — An overview of components connection, set-up information, etc.
❑Recovery, Backup and Troubleshooting Guide
❑Regulations, Guarantee and Service Support
✍
Before activating the wireless functions such as the wireless LAN and Bluetooth technology, read the Regulations, Guarantee and Service Support
carefully.

6
nN
Before Use >
Finding More about Your VAIO Computer
2. On-screen Documentation
❑User Guide (This manual) — Features of your computer and information about solving common problems.
To view this on-screen guide:
1Click Start , All Programs, and VAIO Documentation.
2Open the folder for your language.
3Select the guide you want to read.
✍
You can manually browse to the user guides by going to Computer > VAIO (C:) (your C drive) > Documentation > Documentation and opening the
folder for your language.
❑Windows Help and Support — A comprehensive resource for practical advice, tutorials, and demonstrations to help you
learn to use your computer.
To access Windows Help and Support, click Start and Help and Support, or press and hold the Microsoft Windows
key and press the F1 key.

7
nN
Before Use >
Finding More about Your VAIO Computer
3. Support Web Sites
If you have any problem with the computer, visit the VAIO-Link web site at http://support.vaio.sony.eu/ for troubleshooting
guidance.
Some other information resources are also available:
❑The Club VAIO community at http://club-vaio.com provides the possibility to ask questions to other VAIO users.
❑For product information, you can visit our products web site at http://www.vaio.eu/, or our online store at
http://www.sonystyle-europe.com.
In case you need to contact VAIO-Link, have the serial number of your VAIO computer ready at hand. The serial number is
located on the bottom, the back panel, or inside the battery compartment of your VAIO computer. If you have problems
locating your serial number, more guidance can be found on the VAIO-Link web site.

8
nN
Before Use >
Ergonomic Considerations
Ergonomic Considerations
You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations for both stationary and portable environments:
❑Position of your computer – Place the computer directly in front of you. Keep your forearms horizontal, with your wrists
in a neutral, comfortable position while using the keyboard or the pointing device. Let your upper arms hang naturally at
your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or
tendons.
❑Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.

9
nN
Before Use >
Ergonomic Considerations
❑Viewing angle of the computer display – Use the display tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display
as well.
❑Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.
❑Positioning an external display – When using an external display, set the display at a comfortable viewing distance.
Make sure the display screen is at or slightly below eye level when you are sitting in front of the monitor.

10
nN
Getting Started >
Getting Started
This section describes how to get started using your VAIO computer.
❑Locating Controls and Ports (page 11)
❑About the Indicator Lights (page 17)
❑Connecting a Power Source (page 18)
❑Using the Battery Pack (page 20)
❑Shutting Down Your Computer Safely (page 27)
❑Using the Power Saving Modes (page 28)
❑Keeping Your Computer in Optimum Condition (page 31)

11
nN
Getting Started >
Locating Controls and Ports
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
!
The appearance of your computer may be different from those illustrated in this manual due to variations in specifications.
Front

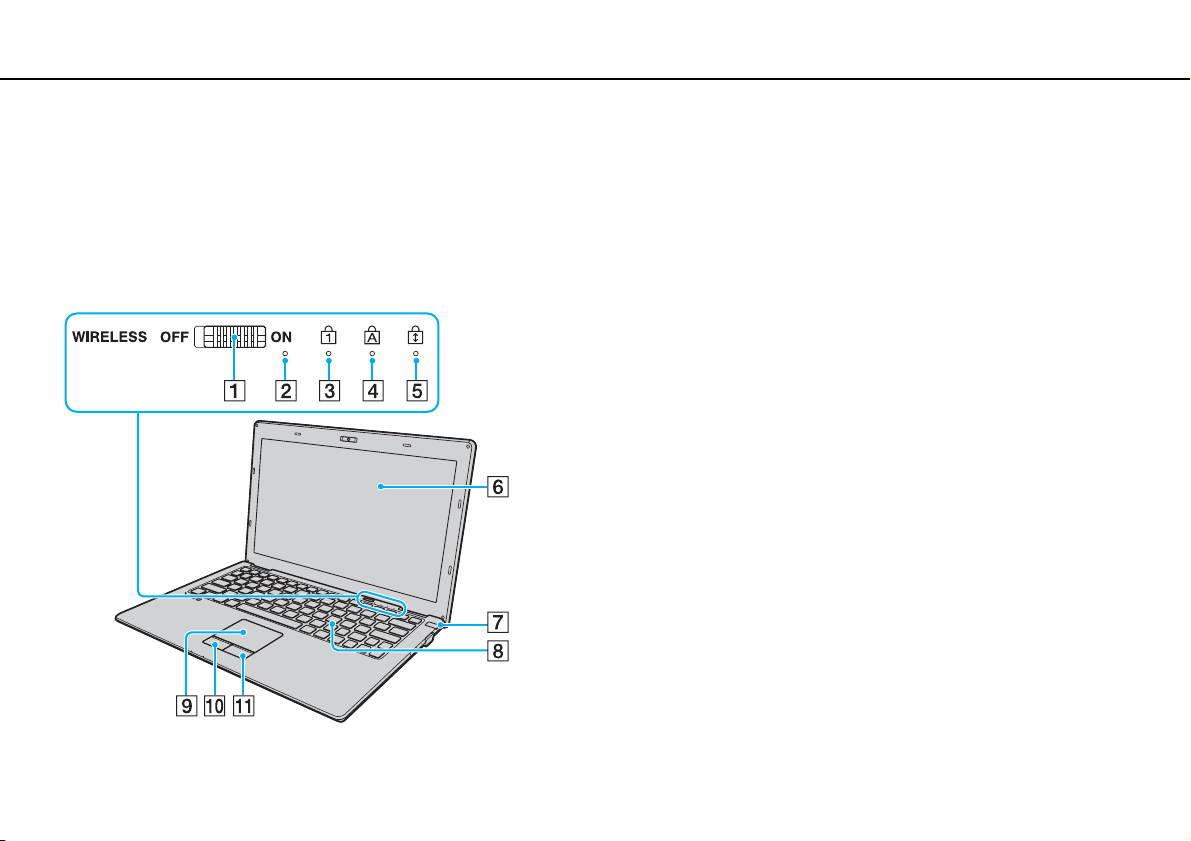

AWIRELESS switch (page 51), (page 56), (page 60)
BBuilt-in microphone (monaural)
CNum lock indicator (page 17)
DCaps lock indicator (page 17)
EScroll lock indicator (page 17)
FLCD screen (page 100)
GPower button/Power indicator (page 17)
HKeyboard (page 34)
ITouch pad (page 36)
JLeft button (page 36)
KRight button (page 36)

12
nN
Getting Started >
Locating Controls and Ports

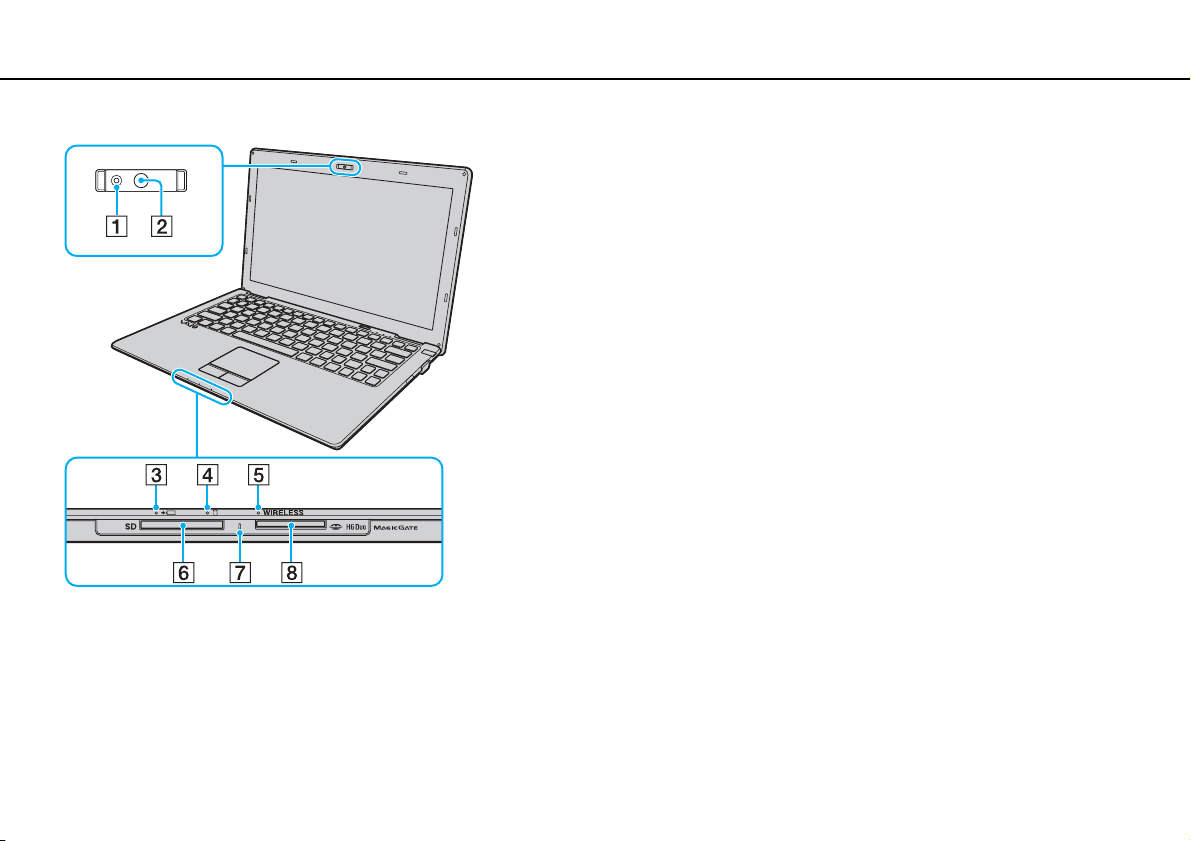

ABuilt-in MOTION EYE camera indicator (page 17)
BBuilt-in MOTION EYE camera (page 37)
CCharge indicator (page 17)
DDisc drive indicator (page 17)
EWIRELESS indicator (page 17)
FSD memory card slot (page 45)
GMedia Access indicator (page 17)
H"Memory Stick Duo" slot*(page 38)
* Your computer supports only Duo-size "Memory Stick".

13
nN
Getting Started >
Locating Controls and Ports
Back
AAir vent

14
nN
Getting Started >
Locating Controls and Ports
Right
ANetwork (LAN) port (page 50)
Pull the port cover down before using the network (LAN) port.
When the port cover disengages:
The port cover may disengage if you exert pressure on it when
opening it or disconnecting a LAN cable. To attach the port
cover, align the cover with the edge (1) of the port and push the
cover down until it clicks into place.
BMonitor port (page 70)

15
nN
Getting Started >
Locating Controls and Ports
Left
ADC IN port (page 18)
BSecurity slot
CUSB ports*(page 75)
DHeadphones jack (page 69)
* Compliant with the USB 2.0 standard and support high-/full-/low- speeds.

16
nN
Getting Started >
Locating Controls and Ports
Bottom
ATilt feet
Unfold the tilt feet to adjust the angle of your computer before
using the network (LAN) port and the monitor port.
When the tilt foot disengages:
The tilt foot may disengage if you exert pressure on it when
unfolding it. To attach the tilt foot, push it down while aligning the
snap-fit joint (1) with the projections (2) until it snaps into place.
BBuilt-in speaker (monaural)
CSIM card slot*(page 56)
DBattery connector (page 20)
EAir vent
* On selected models only.

17
nN
Getting Started >
About the Indicator Lights
About the Indicator Lights
Your computer is equipped with the following indicator lights:
Indicator Functions
Power 1Illuminates in green while the computer is in Normal mode, blinks slowly in orange while the computer is in Sleep
mode, and turns off when the computer is turned off or enters Hibernate mode.
Charge Illuminates while the battery pack is charging. See Charging the Battery Pack (page 23) for more information.
Built-in MOTION EYE camera Illuminates while the built-in camera is in use.
Media Access Illuminates while data access to a memory card, such as "Memory Stick" and an SD memory card, is in
progress. (Do not place the computer into Sleep mode or turn it off while this indicator light is lit.) When the
indicator light is unlit, the memory card is not in use.
Disc drive Illuminates while data access to the built-in storage device is in progress. Do not place the computer into Sleep
mode or turn it off while this indicator light is lit.
Num lock Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.
The numeric keypad is not active when the indicator light is unlit.
Caps lock Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator light is lit. Press the key a second time to turn off the indicator light. Normal typing resumes
when the Caps lock indicator light is turned off.
Scroll lock Press the Fn+Scr Lk keys to change how you scroll the display. Normal scrolling resumes when the Scroll lock
indicator light is turned off. The Scr Lk key functions differently depending on the program you are using and
does not work with all programs.
WIRELESS Illuminates while one or more wireless options are enabled.

18
nN
Getting Started >
Connecting a Power Source
Connecting a Power Source
You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer. Before using the
computer for the first time, you need to connect an AC adapter to your computer.
!
Do not use your computer without installing the battery pack as it may cause the computer to malfunction.
Using the AC Adapter
While your computer is directly connected to an AC power source and has a battery pack installed, it uses power from the
AC outlet.
✍
Use only the supplied AC adapter for your computer.
To use the AC adapter
1Plug one end of the power cord (1) into the AC adapter (3).
2Plug the other end of the power cord into an AC outlet (2).
3Plug the cable from the AC adapter (3) into the DC IN port (4) on the computer.
!
The shape of the DC In plug varies depending on the AC adapter.

19
nN
Getting Started >
Connecting a Power Source
✍
To disconnect your computer completely from an AC power source, unplug the AC adapter from the AC outlet.
Make sure that an AC outlet is easily accessible.
If you do not intend to use your computer for an extended period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page
30).

20
nN
Getting Started >
Using the Battery Pack
Using the Battery Pack
The battery pack is already installed on your computer at the time of delivery but is not fully charged.
!
Do not use your computer without installing the battery pack as it may cause the computer to malfunction.
Installing/Removing the Battery Pack
To install the battery pack
1Turn off the computer and close the LCD screen lid.

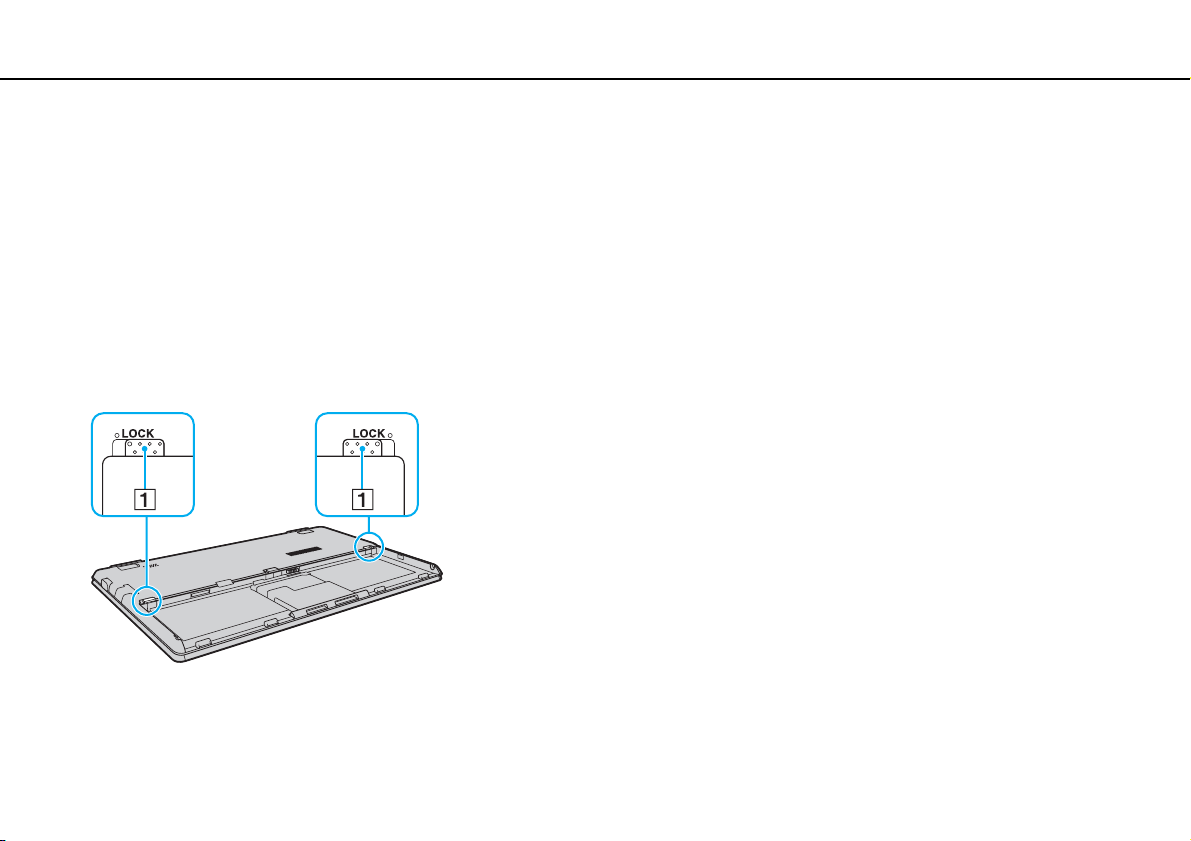

2Slide the battery LOCK switches (1) inward.
