Sony HT-CT660 User manual

Home Theatre
System O_ero_,oO,o_.o_,oo_0_'::!
_o_e_'e_.,o,,.':_!
Moooo,deiostrocciooesESiii!:

To reduce the risk of fire or
electric shock, do not expose this
apparatus to rain or moisture.
The unit is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the
unit itself has been turned off.
To reduce the risk of fire, do not cover the
ventilation opening ofthe appliance with
newspapers, tablecloths, curtains, etc.
Do not expose the appliance to naked
flame sources (for example, lighted
candles).
To reduce the risk of fire or electric shock,
do not expose this appliance to dripping
or splashing, and do not place objects
filled with liquids, such as vases, on the
appliance.
As the main plug is used to disconnect
the unit from the mains, connect the unit
to an easily accessible AC outlet. Should
you notice an abnormality in the unit,
disconnect the main plug from the AC
outlet immediately.
Do not install the appliance in a confined
space, such as a bookcase or built-in
cabinet.
Do not expose batteries or appliances
with battery-installed to excessive heat,
such as sunshine and fire.
In door use only.
For the customers in the U.S.A
This symbol is intended to alert
the user to the presence of
uninsulated "dangerous
voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
Owner's Record
The model and sedal numbers ale
located on the rear oblique down-facing
surface of the unit. Record the serial
numbers in the space provided below.
Refer to them whenever you call upon
your Sony dealer regarding this product.
Model No. HT-CT660
Serial No.
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
:3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean onlywith dry cloth.
7) Do not block anyventilation
openings. Install in accordance with
the manufacturer's instructions.
8) Do not install near any heat sources
such as radiators, heat registers,
stoves, or other apparatus (including
amplifiers) that produce heat.
2us

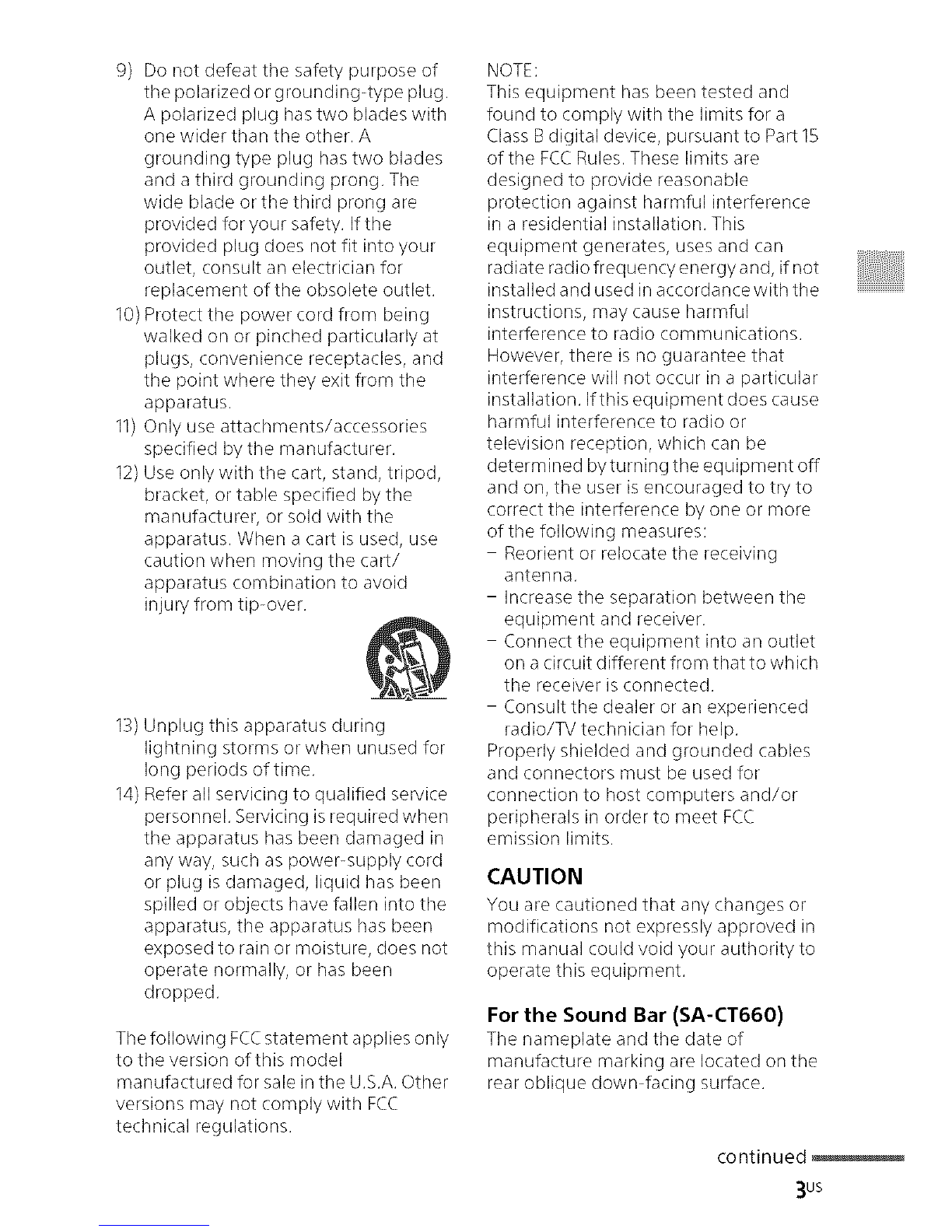

9) Do not defeat the safety purpose of
the polarized or grounding-type plug,
A polarized plug has two blades with
one wider than the other. A
grounding type plug has two blades
and a third grounding prong. The
wide blade or the third prong are
provided for your safety. If the
provided plug does not fit into your
outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
11) Only use attachments/accessories
specified by the manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during
lightning storms or when unused for
long periods of time.
14) Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in
any way, such as power-supply cord
or plug is damaged, liquid has been
spilled or objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does not
operate normally, or has been
dropped.
The following FCCstatement applies only
to the version of this model
manufactured for sale in the U.S.A.Other
versions may not comply with FCC
technical regulations.
NOTE:
This equipment has been tested and
found to comply with the limits for a
Class Bdigital device, pursuant to Part 15
of the FCCRules.These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, ifnot
installed and used in accordance with the
instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. Ifthis equipment does cause
harmful interference to radio or
television reception, which can be
determined byturning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving
antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet
on acircuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced
radio/TV technician for help.
Properly shielded and grounded cables
and connectors must be used for
connection to host computers and/or
peripherals in order to meet FCC
emission limits.
CAUTION
You ale cautioned that ally changes ol
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
For the Sound Bar (SA-CT660)
The nameplate and the date of
manufacture marking are located on the
rear oblique down-facing surface,
continued
3us

This equipment must not be co-located
or operated in conjunction with any other
antenna or transmitter.
This equipment complies with F¢C
radiation exposure limits set forth for an
uncontrolled environment and meetsthe
F¢C radio frequency (RF)Exposure
Guidelines in Supplement ¢to OET6S.
This equipment has very low levels of RF
energythat it deemed to complywithout
maximum permissive exposure
evaluation (MPE). But it is desirable that it
should be installed and operated
keeping the radiator at least 20 cm or
more away from person's body
(excluding extremities: hands, wrists,
feet and ankles).
For the customers in the Canada
Properly shielded and glounded cables
and connectors must be used for
connection to host computers and/or
peripherals.
Operation is subject to the following two
conditions:
(1)this device may not cause
interference, and (2)this device must
accept any interference, including
interference that may cause undesired
operation of the device.
This equipment complies with I¢
radiation exposure limits set forth for an
uncontrolled environment and meets
RSS-102of the I¢ radio frequency (RE)
Exposure rules.
This equipment has very low levels of RF
energy that it deemed to comply without
maximum permissive exposure
evaluation (MPE). But it is desirable that it
should be installed and operated
keeping the radiator at least 20 cm or
more away from person's body
(excluding extremities: hands, wrists,
feet and ankles).
Precautions
On safety
• Should any solid object ol liquid fall into
the system, unplug the system and
have it checked by qualified personnel
before operating it any further.
• Do not climb on the Sound Bar orthe
subwoofer, as you may fall down and
injure yourself, or system damage may
result.
On power sources
• Before operating the system, check that
the operating voltage is identical to
your local power supply. The operating
voltage is indicated on the nameplate
at the rearofthe Sound Bar.
• Ifyou are not going to use the system
for a long time, be sure to disconnect
the system from the wall outlet (mains).
To disconnect the AC power cord
(mains lead), graspthe plug itself; never
pull the cord.
• One blade of the plug iswiderthan the
other for the purpose of safety and will
fit into the wall outlet (mains) only one
way. Ifyou are unableto insert the plug
fully into the outlet, contact your dealer.
• ACpower cord (mains lead) must be
changed only at the qualified service
shop.
On heat buildup
Although tile system heats up dudng
operation, this is not a malfunction. Ifyou
continuously use this system at a large
volume, the system temperature of the
back and bottom rises considerably. To
avoid burning yourself, do not touch the
system.
4us

On placement
• Place the system in a location with
adequate ventilation to prevent heat
buildup and prolong the life of the
system.
• Do not place the system near heat
sources, or in a place subject to direct
sunlight, excessive dust, or mechanical
shock.
• Do not place anything at the rear of the
Sound Bar that might block the
ventilation holes and cause
malfunctions.
• Ifthe system is being used in
combination with aTV, VCR,or tape
deck, noise may result, and picture
quality may suffer. In this case, place
the system away from the TV,VCR,or
tape deck.
• Use caution when placing the system
on surfaces that have been specially
treated (with wax, oil, polish, etc.) as
staining or discoloration of the surface
may result.
• Take care to avoid any possible injury
on the corners of the Sound Bar or the
subwoofer.
On operation
Before connecting othel equipment, be
sure to turn off and unplug the system.
If you encounter color
irregularity on a nearby TV
screen
Colol irregularities may be observed on
certain types of TV sets.
If color irregularity is
observed...
Turn offtheTV set, then turn it on again
after 15to 30 minutes.
If color irregularity is observed
again...
Place the system further away from the
TV set.
On cleaning
Clean the system with a soft dly cloth. Do
not use any type of abrasive pad,
scouring powder or solvent such as
alcohol or benzine.
If you have any question or problem
concerning your system, please consult
your nearest Sony dealer.
This system incorporates Dolby* Digital
and the DTS** Digital Surround System.
* Manufactured under license from
Dolby Laboratories.
Dolby, and the double-D symbol are
trademarks of Dolby Laboratories.
** Manufactured under license under
U.S.Patent Nos: 5,956,674; 5,974,380;
6,226,616; 6,487,535; 7,212,872;
7,333,929; 7,392,195; 7,272,567 &
other U.S. and worldwide patents
issued & pending. DTS-HD, the
Symbol, & DTS-HD and the Symbol
together are registered trademarks of
DTS,Inc.
Product includes software. © DTS,Inc.
All Rights Reserved.
The BLUETOOTH_word mark and Iogos
are registered trademarks owned by
Bluetooth SIG,Inc. and any use of such
marks by Sony Corporation is under
license.
This system incorporates High-Definition
Multimedia Intelface (HDMITM )
technology.
The terms HDMI and HDMI High-
Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered
trademarks of HDMI Licensing LLCin the
United States and other countries.
"BRAVIA" logo is a trademark of Sony
Corporation,
continued
5us

"x.v.Color" and "x.v.Color" logo are
trademarks of Sony Corporation.
"WALKMAN" and "WALKMAN" logo are
registered trademarks of Sony
Corporation.
"PlayStatiom" is a registered trademark
of Sony Computer Entertainment Inc.
The N Mark is a trademark or registered
trademark of NFCForum, Inc. in the
United States and in other countries.
Android is a trademark of Google Inc.
Other trademarks and trade names are
those of their respective owners.
BLUETOOTHwireless
technology
Supported BLUETOOTH version
and profiles
Profile refers to a standard set of
capabilities for various BLUETOOTH
product capabilities. See
"Specifications" (page 34) on the
BLUETOOTH version and profiles
supported by this system
• For you to use the BLUETOOTH
function, the BLUETOOTHdevice to be
connected must support the same
profile as this system. Even if the device
supports the same profile, the functions
may differ because of the specifications
of the BLUETOOTHdevice.
• The audio playback on this system may
be delayed from that on the
BLUETOOTHdevice because of the
characteristics of the BLUETOOTH
wireless technology.
Effective communication range
BLUETOOTH devices should be used
within approximately 10 meters
(33 feet)(unobstructed distance) of
each other. The effective
communication range may become
shorter under the following
conditions.
• When a person, metal object, wall or
other obstruction is between the
devices with a BLUETOOTH
connection
• Locations where a wireless LAN is
installed
• Around microwave ovens that are in
use
• Locations where other
electromagnetic waves occur
Effects of other devices
BLUETOOIH devices and wireless LAN
(IEEE802.11b/g) use the same
frequency band (2.4 GHz). When using
your BLUETOOTH device near a device
with wireless LAN capability,
electromagnetic interference may
occur,
This could result in lower data transfer
rates, noise, or inability to connect. If
this happens, try the following
remedies:
• Try connecting this system and
BLUETOOTH mobile phone or
BLUETOOTH device when you are at
least 10 meters (33 feet) away from
the wireless LAN equipment.
• Turn off the power to the wireless
LAN equipment when using your
BLUETOOTH device within 10 meters
(33 feet).
6us

Effects on other devices
The radio waves broadcast by this
system may interfere with the
operation of some medical devices.
Since this interference may result in
malfunction, always turn offthe power
on this system, BLUETOOTH mobile
phone and BLUETOOTH device in the
following locations:
• In hospitals, on trains, in airplanes, at
gas stations, and any place where
flamrT]able gasses may be present
• Near automatic doors or fire alarms
• Noise may occur or the audio may cut
off depending on the BLUETOOTH
device connected with this system, the
communications environment, or
surrounding conditions.
• This system supports security functions
that comply with the BLUETOOTH
specification as a means of ensuring
security during communication using
BLUETOOTHtechnology. However, this
security may be insufficient depending
on the setting contents and other
factors, so always be careful when
performing communication using
BLUETOOTHtechnology.
• Sony cannot be held liable in anyway
for damages or other loss resulting
from information leaks during
communication using BLUETOOTH
technology.
• BLUETOOTHcommunication is not
necessarily guaranteed with all
BLUETOOTHdevices that have the
same profile as this system.
• BLUETOOTHdevices connected with
this system must comply with the
BLUETOOTHspecification prescribed by
the Bluetooth SIG,inc., and must be
certified to comply. However, even
when a device complies with the
BLUETOOTHspecification, there may be
cases where the characteristics or
specifications ofthe BLUETOOTHdevice
make it impossible to connect, or may
result in different control methods,
display or operation.
7us

Precautions ................................ 4
BLUETOOTH wireless
technology ........................... 6
Getting Started
Unpacking .................................. 9
Index to parts and controls ....10
Connecting a TV, player,
etc....................................... 14
Positioning the system ........... 16
Setting up the Wireless
System ............................... 18
Operations and Features
Operating the system
using the supplied
remote control .................. 19
Using the Control for HDMI
function .............................. 19
Using "BRAVIA" Sync
features ............................. 20
Setting up the sound output
of the connected
equipment ......................... 21
BLUETOOTH Function
Using the BLUETOOTH
function ................................
Surround Function
Enjoying the surround
effect .................................. 26
Advanced Settings
Settings and adjustments
using the AMP menu ........27
Linking the system (LINK) ...... 30
Additional Information
Troubleshooting ...................... 31
Specifications .......................... 34
Index ........................................ 37
8us

Unpacking
• Subwoofer (SA WCT660) (1)
• Sound Bar (SA CF660) (1)
• Digital optical cable for a TV (1)
• Side stand (for fronbfacing
installation) (2)
iiii!;l il!,
Insert two R6 (size AA) batteries
(supplied) by matching the O and Q m,
ends on the batteries to the diagram ,,_
inside the battery compartment of the
remote control. To use the remote "
control, point it at the remote control _,
sensor I_ at the front of the Sound Bar. '"
• Side stand (for upward tilting
installation) (2)
• Remote control (RM ANP105) (1)
• R6 (size AA) batteries (2)
• Operating Instructions (1)
• Do not leave the remote control in an
extremely hot or humid place.
• Do not use a new batten/with an old
one.
• Do not drop any foreign object into the
remote control casing, particularly
when replacing the batteries.
• Do not expose the remote control
sensor to direct sunlight or lighting
apparatus. Doing so may cause a
malfunction.
• Ifyou do not intend to use the remote
control for an extended period of time,
remove the batteries to avoid possible
damage from battery leakage and
corrosion.
9us

Index to parts and controls
For more information, see tile pages indicated in parentheses
NI_HT H_IVll
[_ I/_ (on/standby) button
[_ PAIRING button (page 23)
[_ INPUT button
Press to select tile input source to
play back
[_ VOL (volume) +/- buttons
[_ Nmark
[_ [] (remote control sensor)
[_ Illumination LED
Lights up in white when the
system is on
Lights up in blue in BLUETOOIH
mode.
[_ Front panel display
[_] Message display area
Displays volume, selected input
source, etc.
[_ NIGHT (page 28)
Lights up in NIGHr mode
[_ HDMI
Lights up when an I---tDMIsignal is
selected as the input source
[_ OPT
Lights up when the signal from the
OPTICAL INjack is selected
lOUS

[_ AC power cord (mains lead)
(page 14)
[_ HDMI IN l/IN 2jacks (page 14)
[_ ANALOG IN jack (page 15)
[_ OPTICAL IN jack (page 14, 15)
[_ HDMI TV OUT (ARC)jack
(page 14)
[_ HDMI IN 3 jack (page 14) D.
[_ I/(_ (on/standby) indicator
[_ I/_ (on/standby) button
[_ LINK button (page 30)
[_ AC power cord (mains lead)
(page 14)
continued
11us

This section describes how to operate
the subwoofer, Sound Bar, and
connected equipment using the
remote control supplied. If you cannot
operate the connected equipment,
use the remote control of the
equipment.
• Point the remote control towards the
remote control sensor (m) of the Sound
Bar.
TV T I/O
* The _ andVOL + buttons have a
tactile dot. Use it as a guide during
operation.
To control the system
[_ INPUT (page 19)
Press to select tile equipment you
want to use
[_ I/_ (on/standby)
[_ SOUND FIELD +I- (page 26)
[_ SOUND FIELD (page 26)
[_ DISPLAY
Each time you press tile button,
the display turns on or off
When the system is operated, the
display is lit for several seconds
[_ MUTING
[_ VOL (volume) +*/-
[_ AMP MENU (page 27)
[_ PAIRING (page 23)
[_] RETURN button
Returns to tile previous screen of
any displayed menu.
[_ • (return)/'l" 4, (select)/
÷(proceed) or _(enter)
Press •, t', 4, or ÷ to select the
menu items. Then press _) to
enter the selection
[_ SPEAKER _ _ AUDIO
Press to switch the output sound
(TV or this system) from the
speakers
To control a TV
[_ TV VOL (volume) +/-
Adjusts the volume
[_ TV CH (channel) +/-
Selects the next (+) or previous (-)
channel.
[_ TV INPUT
Selects input
[_ TV I/_ (onlstandby)
Turns orl or off the TV that the
remote control is assigned to
operate
12us

To control a BLUETOOTH device
% _,l/,,._i
To go to the beginning of the
previous or next music.
To fast reverse or to fast forward
the music when pressed during
playback.
[_ Playback operation
I_* (playback)/ll (pause)/
•(stop)
Starts/pauses/stops playback
To resume normal playback
during pause, press II (pause)
again.
The above explanations are intended to
serve as an example only. Depending on
the equipment, the above operations
may not be possible, or may operate
differently than described.
t_
IWhile holding down the TV I/_
button, press the button
corresponding to the
manufacturer.
Manufacturer Button
SONY [] TVVOL +
Samsung [] TV CH +
LG [] SOUND FIELD+
Panasonic [] TV VOL-
VIZIO [] TV CH -
Sharp [] SOUND FIELD-
Toshiba [] STD
FUNAI [] MOVIE
2While keeping TV I/_ held
down, press _.
3Release "IV I/_.
13us

Connecting a TV, player, etc.
Before connecting the AC power cord (mains lead)to a wall outlet (mains),
connect all other equipment and a TV to the system. No cable connection is
required between the Sound Bar and the subwoofer because they can be
connected wirelessly
Connecting a TV
If you connect tile system to a lV compatible with the Audio Return Channel
(ARC) technology via an HDMI input jack with "ARC" indicated, you do not need
to connect a digital optical cable.
If the digital optical cable has a cap, remove it before connecting the cable
HDMIcable 1
(not supplied) HDMI IN(ARC)
® D c3
TV0UT Digital Audio OUT
t._Rcl (optical)
® D
0PTICALINDigital optical cable for a TV
(supplied) TV
• You can see the letters "ARC" beside the TV's HDMIjack if it is compatible with the
Audio Return Channel (ARC) technology. Even if you connect an HDMI cable to the
jack, if the HDMI input jack is not compatible with the Audio Return Channel (ARC)
technology, you cannot use the Audio Return Channel (ARC)technology.
• The Audio Return Channel (ARC)technology is available only when the Control for
HDMI function is set to on. Ifthe Control for HDMI function is set to off, use a digital
optical cable.
• The HDMI jack connections have priority asthe default setting when you connect
different equipment to the system using the OPTICALIN and HDMI INjacks.
14us

ID
• Even ifthe system isturned off (active standby mode), the HDMI signal will be sent
from the connected equipment to the TVvia the HDMI connection. You can enjoy
image and sound from the equipment on the TV.
Connecting equipment with an HDMI jack
IN 1
(_ _ DHDMI cable
IN2 (not supplied)
®®iJN3
CHDMIOUT ]
V
"PlayStation_.3," Blu-ray Disc TM player,
DVD player, satellite tuner, cable
television tuner, etc.
Connecting audio equipment
® ©
ANALOGIN
Smartphone, "Walkma n," or
other audio equipment
• When you connect a portable music player, etc. via its headphone jack to the ANALOG
INjack of the system, adjust the volume on the portable music player to eliminate the
volume difference when you switch between the portable music player and other
input sources.
15us

Positioning the system
The illustrations below are examples of how to install tile Sound Bar
•Installing the Sound Bar on a rack
(page 17) • Installing the Sound Bar on a wall (page 17)
•Take following precautions when installing the Sound Bar and the subwoofer,
- Do not block the ventilation holes on the rear panel.
- Do not place the Sound Bar and the subwoofer in a metal cabinet.
- Do not place an object such as an aquarium between the Sound Bar and the
subwoofer.
- Placethe subwoofer close to the Sound Bar in a same room.
•When the Sound Bar is placed in front ofa TV,the TV may not be controlled with the
remote control of the TV. Inthat case, place the Sound Bar away from the TV. Ifthe
remote control of the TVstill cannot control the TV, set "IR REP"of the AMP menu to
"ON" (page 29).
• Make sure that the remote control of the TV cannot control the TV, then set "IR REP"
to "ON'. If it is set to "ON" when the remote control can control the TV, appropriate
operation may not be obtained, because of the interference between the direct
command from the remote control and the command via the Sound Bar.
16us

To install the Sound Bar facing
front
1 Attach a side stand (for front-
facing installation) to each side.
2Attach a side stand (for upward-
tilting installation) to each side.
You can install the Sound Bar on the
wall.
To install the Sound Bar tilting
upward
1Remove the center stand.
stand
• Use screws that are suitable for the wall
material and strength. As a plaster
board wall is especially fragile, attach
the screws securely to awall beam.
Install the Sound Bar on avertical and
flat reinforced area of the wall.
• Be sure to subcontract the installation
to Sony dealers or licensed contractors
and pay special attention to safety
during the installation.
• Sony is not responsible for accidents or
damage caused by improper
installation, insufficient wall strength,
improper screw installation or natural
calamity, etc.
continued
17us

Prepare screws (not supplied)
that are suitable for the holes on
the back of the Sound Bar.
..............4ram
(3/16 inches)
More than 25mm (1inch)
4Hang the Sound Bar onto the
screws.
Align tile holes on the back of the
Sound Bar to the screws, then
hang the Sound Bar onto the
2 screws
2
Hole onthe back of the Sound Bar
Fasten the screws to the wall,
The screws should protrude 6 to
7 mm (approx. 1/4 inches).
680 mm
(263/4 inches)
Remove the center stand.
Setting up the Wireless
System
The Sound Bar transmits sound from
the equipment to the subwoofer by
wireless communication
2
Connect the AC power cord
(mains lead) of the Sound Barto
a wall outlet (mains).
Connect the AC power cord
(mains lead) of the subwoofer
to a wall outlet (mains).
the I/O indicator of tile
subwoofer lights up in red.
If it does not light up, press the
I/O button of the subwoofer and
wait for the indicator to light up in
red
Press the I/_) button of the
Sound Bar.
When tile wireless connection is
made, the I/_ indicator of the
subwoofer turns green. If it does
not turn green, perform the
operations of "Linking the system
(LINK)" (page 30)
18us

Operating the system
using the supplied
remote control
1
2Turn on the system.
Press INPUT to display the input
source on the front panel
display of the Sound Bar.
Input source Playable equipment
TV TV connected to the
HDMI TV OUT (ARC) or
OPTICAL INjack
HDMI 1 Equipment connected
to the HDMI IN l jack
HDMI 2 Equipment connected
to the HDMI IN 2jack
HDMI 3 Equipment connected
to the HDMI IN 3jack
ANALOG Equipment connected
to the ANALOG INjack
BT AU BLUETOOTH device
connected
Adjust the volume by pressing
VOL +/-.
°The sound may be output from the TV's
speaker. Inthis case,turn the volume of
the TV's speaker down to minimum.
Using the Control for
HDMI function
By enabling the Control for HDMI
function (CTRL, page 28), and
connecting equipment that is
compatible with the Control for HDMI
function via an HDMI cable, operation
is simplified with the features below.
When you turn off the TV using the
power button on the lV's remote
control, the system and the connected
equipment turn off automatically.
If you turn on the system while you are
watching the TV, the TV sound is
outp ut fro m th e spea kers of the
system automatically. The volume of
the system is adjusted when you
adjust the TV volume.
If the TV sound was output from the
speakers of the system the last time
you turned off the TV, the system is
turned on automatically when you
turn on the TV again, and the TV sound
is output from the speakers of the
system automatically.
t_
P_
If the TV is compatible with the Audio
Return Channel (ARC)technology, an
HDMI cable connection also sends a
digital audio signal from the TV to the
system. You do not need to make a
separate audio connection for
listening to TV sound from the system
(ARC, page 28).
continued
19us

When you play the equipment
connected to the system with an HDMI
cable, the connected TV is turned on
automatically and the input signal of
the system is switched to the
appropriate HDMI input
• The above features may not operate
with certain equipment.
• Depending on the settings of the
connected equipment, the Control for
HDMI function may not work correctly.
Refer to the operating instructions of
the equipment.
Using "BRAVIA" Sync
features
The original Sony functions listed
below can also be used with products
that are compatible with "BRAVIA"
Sync.
If a "BRAVIA" Sync compatible TV is
connected to the system, the power
consumption is reduced in standby
mode by stopping HDMI signal
transmission when TV is turned off
(P. THRU, page 28).
If a "Scene Select"compatible TV is
connected to the system, the sound
field changes automatically,
optimized according to the program
currently playing on the connected TV.
• Use a High Speed HDMI cable. If you
use a Standard HDMI cable, 1080p,
Deep Color, or 3D/4K images may
not be displayed properly.
• We recommend that you use an
HDMI authorized cable or a Sony
HDMI cable.
• We do not recommend using an
HDMI DVI conversion cable.
• Check the setup of the connected
equipmentifan image is poor or the
sound does not come out of the
equipment connected via the HDMI
cable.
• Audio signals (sampling frequency,
bit length, etc.)transmitted from an
20us
