Welcome
Congratulations on your purchase of this Sony VAIO®computer, and welcome to the online VAIO®Computer User Guide.
This user guide provides detailed information on all aspects of using your new VAIO computer, from keyboard functions to
preinstalled software programs.
In the left navigation window, click the topics you want to learn more about, and that information will be displayed in this
main window.
View the Electronic Flyer, which provides updates and supplemental information about your computer.
Go to the Sony Online Support site to view the VAIO®Computer Specifications, which list your computer's hardware
specifications and preinstalled software information.
For Sony software information, click Start and select Welcome to VAIO Life.
Page 1

Caring for Your Computer
This section provides information on how to safely use your Sony computer.
Applying Ergonomics
Storing Your Computer
Using Cables and Connections
Cleaning Your Computer
Handling the LCD Screen
Page 2

Applying Ergonomics
Your computer is a portable device and can be used in a variety of environments. Whenever possible, you should apply the
following ergonomic considerations:

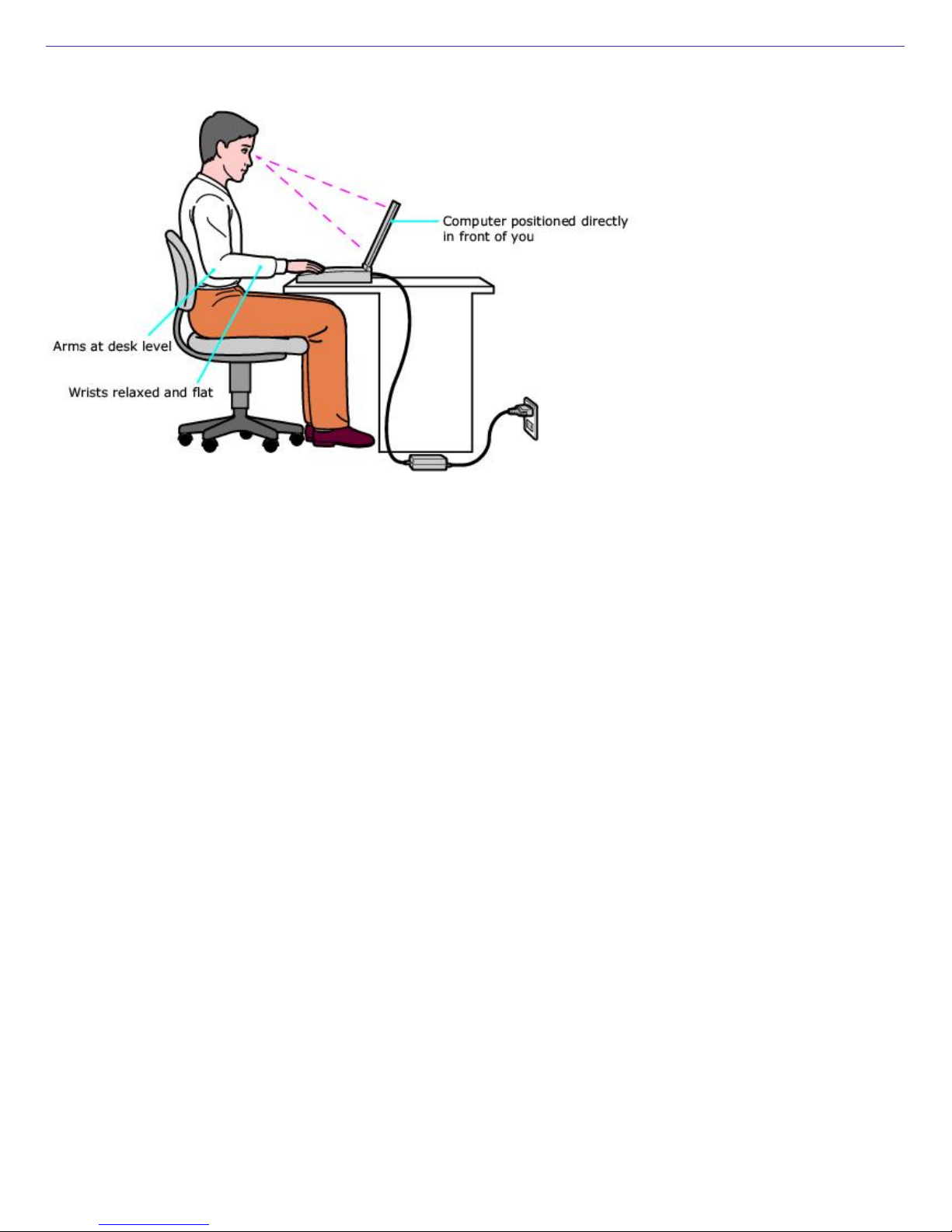

Position of your computer —Place the computer directly in front of you as you work. Keep your forearms
horizontal, with your wrists in a neutral, comfortable position while using the keyboard, touch pad, or external
mouse. Let your upper arms hang naturally at your sides. Take breaks during sessions with your computer.
Excessive use of the computer may strain muscles or tendons.
Furniture and posture —Sit in a chair with good back support and armrests. Adjust the level of the chair so your
feet are flat on the floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid
slouching forward or leaning far backward.
Viewing angle of the computer's display —Tilt the display to find the best viewing angle. Also try adjusting the
brightness setting of the display. Following these suggestions can reduce eye strain and muscle fatigue.
Lighting —Choose a location where windows and lights do not create glare or reflection on the display. Use indirect
lighting to avoid bright spots on the display. You can purchase accessories for your display that help reduce glare.
Proper lighting adds to your comfort and work effectiveness.
Placement of an external display —When using an external display, set the display at a comfortable viewing
distance. Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.
Page 3

Storing Your Computer
Do not use or store your computer in a location subject to:
Heat sources, such as radiators or air ducts
Direct sunlight
Excessive dust
Moisture or rain
Mechanical vibration or shock
Strong magnets or speakers that are not magnetically shielded
Ambient temperature higher than 95ºF (35ºC) or less than 40ºF (5ºC)
High humidity
Do not place electronic equipment near your computer. When running, the computer's electromagnetic field may
cause other electronic equipment in close proximity to malfunction.
Provide adequate air circulation to prevent internal heat buildup. Do not place your computer on porous surfaces
such as rugs or blankets, or near materials such as curtains or draperies that may block ventilation. Leave a space
of at least 8 inches (20 cm) behind the back of the computer.
If the computer is brought directly from a cold location to a warm one, moisture may condense inside your computer.
In this case, allow at least one hour before turning on your computer. If any problems occur, unplug your computer,
and contact your Sony Service Center.
The computer uses high-frequency radio signals and may interfere with radio or TV reception. Should this occur,
move the computer a suitable distance away from the radio or TV.
Do not drop the computer or place heavy objects on top of the computer.
Page 4

Using Cables and Connections
Use only specified peripheral equipment and interface cables.
Do not use cut or damaged connection cables.
If the telephone company makes a service call to your home or office and determines that your computer is
responsible for a problem, the telephone company may bill you for the service call. Also, if you do not disconnect
your computer when it is adversely affecting a telephone line, the telephone company has the right to disconnect
your service until you correct the problem.
Page 5

Cleaning Your Computer
Clean the computer with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use
any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish
of your computer. You can use canned compressed air, specifically for computers, to remove dust.
If a solid object falls onto the computer or a liquid leaks into the computer, immediately turn off and unplug the
computer. It is best to have the computer checked by qualified personnel before you use it again.
Avoid rubbing the LCD screen as this can damage the screen. Use a soft, dry cloth to wipe the LCD screen, or
canned compressed air.
Always disconnect the power cord before cleaning the computer.
Page 6

Handling the LCD Screen
Direct sunlight can damage the LCD. Be careful when using the computer near a window.
Do not scratch the LCD or exert pressure on it. This can cause a malfunction.
Using the computer in low temperature conditions may produce a residual image on the screen. This is not a
malfunction. When the computer returns to normal temperature, the screen returns to normal.
The screen becomes warm during operation. This is normal and does not indicate a malfunction.
The LCD is manufactured using high-precision technology. You may, however, see tiny black points and/or bright
points (red, blue, or green) that continuously appear on the LCD. This is a normal result of the manufacturing
process and does not indicate a malfunction.
Page 7

Powering Your Computer
Your VAIO®computer comes with a battery and an AC adapter. This chapter explains how to install and use these supplied
accessories to power your computer. It also describes ways you can efficiently utilize the battery as a power source.
Using AC Power
Using the Battery
Conserving Battery Power
Page 8

Using AC Power
The supplied battery is not charged when you receive your computer. To use your computer immediately, use the supplied
AC adapter as the power source. While the computer uses AC power it automatically charges the battery if it is inserted.
See Using the Battery for more information on installing and using your battery.
Connecting the AC adapter
Turning on the computer
Page 9

Connecting the AC adapter
To connect the AC adapter
1. Plug the AC adapter cable into the DC IN port.
Connecting the AC Adapter to the Computer
2. Plug the power cord into the AC adapter and an AC outlet.
Use only the supplied AC adapter with your computer.
Page 10

Turning on the computer
To open and turn on the computer
1. Lift the cover while holding the bottom of the computer firmly.
Opening the Computer
2. Press the power button on the right until the power indicator turns on.
Turning on the Computer
If you continue to press the power button, the computer turns off.
3. If the computer screen is too dark or too bright, follow these steps to adjust the brightness:
To increase brightness, press the Fn and F5 keys, and then press the Up Arrow or the Right Arrow
key.
To decrease brightness, press the Fn and F5 keys, and then press the Down Arrow or the Left
Arrow key.
Page 11

Using the Battery
Your computer comes equipped with one battery bay. For information on how to extend the life of the battery, see
Conserving Battery Power.
Inserting a battery
Removing a battery
Locating battery information
Charging a battery
Notes on batteries
Frequently asked questions
When operating your computer on battery power, your computer's CPU speed is reduced.
The battery that comes with your computer is not fully charged at the time of purchase.
The brightness of your computer screen automatically dims when you switch from AC power to battery power. To
increase the brightness, press the Fn and F5 keys, and then press the Up Arrow or Right Arrow key.
For safety and/or optimum performance, Sony recommends using genuine Sony rechargeable battery packs.
Page 12

Inserting a battery
To insert a battery
1. Turn the computer over, and slide the UNLOCK/LOCK latch on the bottom of the computer to the UNLOCK
position.
2. Align the grooves on the battery with the tabs on the back of the computer.
Inserting a Battery
3. Slide the battery into the computer until it clicks into place.
4. Slide the UNLOCK/LOCK latch into the LOCK position.
If a port replicator is attached to your computer, do not insert or remove the battery. Lifting and turning the computer
with a port replicator attached could cause a temporary loss of power.
Some programs and attached devices prevent the system from automatically entering Hibernate mode. If you are using
battery power, save your data frequently to avoid data loss and manually activate a power saving mode. See Using power
saving modes for more information.
Page 13

Removing a battery
If you are not using the computer for an extended period of time, remove the battery from the computer to avoid damaging
the battery. Remove the battery when the computer is off.
To remove a battery
1. Turn the computer over, and slide the UNLOCK/LOCK latch on the bottom of the computer to the UNLOCK
position.
2. Push and hold the RELEASE latch.
3. While holding the RELEASE latch, slide the battery away from the computer.
Remov ing a Battery
Page 14

Locating battery information
You can view the remaining battery charge and other miscellaneous battery information on the Battery Information toolbar,
PowerPanel window, and Power Meter window.
The battery icons that appear on the Taskbar Notification area and Power Meter window indicate the current status of the
installed battery.
Power icon Power status
Computer is using AC power.
Computer is using AC power and charging the battery.
Battery is charging.
Battery is fully charged.
Battery is discharging.
No battery is inserted in the computer.
To view the Battery Information toolbar
1. Right-click the center of the Windows®taskbar.
2. Point to Toolbars from the shortcut menu, and click Battery Information. The Battery Information toolbar
appears on the taskbar.
If the Battery Information toolbar is hidden behind the taskbar icons, right-click the taskbar and click to cancel Lock
the Taskbar. Drag the edge of the Battery Information toolbar to the left until it is in clear view.
The total charge remaining in the battery is listed in percent and real-time values. The following toolbar indicates there is
100 percent or approximately 4 hours and 19 minutes of battery charge remaining.
Battery Information Toolbar
Percentage indicator —Displays the percentage of the remaining charge.
Time indicator —Displays estimated time (hours : minutes) remaining before the battery fully discharges, also
known as the time-to-empty.
To close the Battery Information toolbar
1. Right-click the Battery Information toolbar.
2. Select Toolbars from the shortcut menu, and click to cancel Battery Information. The Battery Information
toolbar disappears from the toolbar.
To view the PowerPanel window
Double-click the CPU icon on the Taskbar Notification area. The PowerPanel window appears.
PowerPanel
Page 15

To view the Power Meter window if you are using battery power
Double-click the battery icon in the Taskbar Notification area. The Power Meter window appears.
Power Meter
Page 16

Charging a battery
You will need to charge the battery if battery power drops below 10 percent or you have not used the battery for a long
time. The lithium-ion battery supplied with your computer may be recharged at any time, whether you wait until the battery
is completely or partially discharged. Charging a partially discharged battery does not affect battery life. If you charge the
battery and find that battery power is still low, the battery may be reaching the end of its life, and you may need to replace
it.
The battery supplied with your computer is not charged at the time of purchase.
To charge a battery
You can charge the battery when the computer is on or off. However, the battery will charge faster when the computer is
off. Charging the battery takes several hours.
Charge the battery at temperatures between 50°F and 80°F (10°C to 30°C). Lower temperatures require more time
to charge.
1. Insert the battery into the battery bay.
2. Connect the AC adapter to the computer. The computer automatically charges the battery as long as the
computer is using AC power.
The battery indicator blinks while the battery charges. The battery indicator stops blinking when the battery is fully
charged.
Battery Indicator
Battery indicator status Description
On The computer is using battery power.
Single blink The battery is running out of power.
Double blink The battery is charging.
Off The computer is using AC power.
Page 17

Notes on batteries
Never leave the battery in temperatures above 140°F (60°C), such as under direct sunlight or in a car parked in the
sun.
While the battery is in use or being discharged, the battery heats up. This is normal and is not cause for concern.
Keep the battery away from all sources of heat.
Keep the battery dry.
Do not open or disassemble the battery.
Do not expose the battery to any mechanical shock.
Battery life is shorter in a cold environment because of decreased battery efficiency at low temperatures.
Page 18

Frequently asked questions
How do I know when the battery is charged?
To determine the remaining battery charge, see Locating battery information.
When is the computer using AC power?
When the computer is directly connected to the AC adapter, it uses AC power, even if a battery is installed.
When should I recharge the battery?
When the battery level falls below 10 percent.
When both the battery and power indicators blink.
When you have not used the battery for a long time.
When should I replace the battery?
If, after charging the battery, the battery power is still low, the battery may be reaching the end of its life and should be
replaced.
Should I be concerned that the installed battery is warm?
No, it is normal for the battery to be warm when it is powering the computer.
Page 19

Conserving Battery Power
You may use the power saving modes and PowerPanel utility or power schemes to conserve battery power. Conserving
battery power may significantly extend your computing time, depending on how you use your computer.
Using power saving modes
Using PowerPanel utility
Frequently asked questions
Page 20
