N
Sony Notebook
User Guide
PCG-F104K
© 2000 by Sony Corporation.

Sony Notebook User Guide
2
nN
Notice to users
© 2001 Sony Corporation. All rights reserved. This manual and the software described herein, in whole or
in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written
approval.
Sony Corporation provides no warranty with regard to this manual, the software, or other information
contained herein and hereby expressly disclaims any implied warranties or merchantability or fitness for
any particular purpose with regard to this manual, the software or such other information. In no event shall
Sony Corporation be liable for any incidental, consequential, or special damages, whether based on tort,
contract, or otherwise, arising out of or in connection with this manual, the software, or other information
contained herein or to use thereof.
Sony Corporation reserves the right to make any modification to this manual or the information contained
herein at any time without notice. The software described herein is governed by the terms of a separate user
license agreement.
Sony, DVgate, i.LINKTM, Mavica, PictureGear, Memory Stick and the Memory Stick logo, VAIO and the
VAIO logo are trademarks of Sony Corporation. The Windows and the Windows 2000 logos are registered
trademarks of Microsoft Corporation.
Intel, MMX, Celeron and Pentium are trademarks of Intel Corporation.
All other trademarks are trademarks of their respective owners.
Specifications are subject to change without notice.

Sony Notebook User Guide
3
nN
As an Energy Star Partner, Sony has determined that this product meets the Energy Star guidelines for
energy efficiency.
The International Energy Star Office Equipment Program is an international program that promotes energy
saving through the use of computers and their office equipment. The program backs the development and
dissemination of products with functions that effectively reduce energy consumption. It is an open system
in which business proprietors can participate voluntarily. The targeted products are office equipment such
as computers, displays, printers, facsimiles and copiers. Their standards and logos are uniform among
participating nations.
Energy Star is a U.S. registered mark.

Sony Notebook User Guide
4
nN
Safety information
Owner’s record
The model number and serial number are located on the bottom of your Sony notebook. Record the serial
number in the space provided here. Refer to the model and serial number when you call VAIO-Link.
Serial number:________________________
Model number:
PCG-9326
WARNINGS
General
 Opening the unit, for whatever reason, could lead to damages that are not covered by the guarantee.
 To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
 To prevent fire or shock hazard, do not expose your VAIO notebook to rain or moisture.
 Avoid using the modem during an electrical storm.
 If reporting a gas leak, do not use a modem or a telephone in the vicinity of the leak.
DVD-ROM
 The use of the optical instrument installed in your notebook will cause eye hazard. As the laser beam
used in this product is harmful to eyes, do not attempt to disassemble the cabinet. For servicing, refer
to qualified personnel only.
 TherearevisibleandinvisibleradiationswhentheDVD-ROMdriveisopen:avoiddirectexposureto
the laser beam.
Audio/Video
 Audio and picture distortion may occur if this equipment is positioned in close proximity to any
equipment emitting electromagnetic radiation.

Sony Notebook User Guide
5
nN
Connectivity
 Never install modem or telephone wiring during a lightning storm.
 Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
 Use caution when installing or modifying telephone lines.
 Use your notebook only with the supplied AC adapter. To disconnect your notebook completely from
mains voltage, unplug the AC adapter.
 Please make sure that the socket outlet is easily accessible.
 Never touch uninsulated telephone wire or terminals unless the telephone line has been disconnected
at the network interface.

Sony Notebook User Guide
6
nN
Regulatory information
This product conforms to the following European Directives:
73/23/EEC (Low Voltage Directive)
89/336/EEC, 92/31/EEC (EMC Directives)
93/68/EEC (CE Marking Directive)
1999/5/EC (radio equipment and telecommunications terminal equipment Directive)
This product complies with EN 55022 Class B and EN 50082-1 for use in following areas: residential,
commercial and light-industrial.
This product has been tested and found compliant with the limits set out in the EMC Directive for using
connection cables shorter than 3 metres (9.8 feet)
The DVD-ROM is classified as a CLASS 1 LASER PRODUCT and complies with the Laser Product Safety
Standard EN 60825-1. Repair and maintenance only by authorized Sony technicians. Improper repairs and
use can create safety hazards.
CLASS 1
LASER PRODUCT
TO EN 60825-1

Sony Notebook User Guide
7
nN
Disposal of lithium ion battery
!Do not handle damaged or leaking Lithium ion batteries. Dispose of promptly and properly.
!Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions (see
below).
!The battery pack used in this device may present a fire or chemical burn hazard if mistreated. Do not
disassemble, heat above 100°C (212°F) or incinerate. Dispose of used battery promptly.
!Keep away from children.
!Your notebook is equipped with an internal backup memory battery. For changing this battery, please contact
VAIO-Link.
 Disposal of lithium ion batteries
Dispose of properly at end-of-life.
In some areas the disposal of
lithium ion batteries in
household or business waste
may be prohibited.
Please use the public collection
system.

Welcome
Sony Notebook User Guide
8
nN
Welcome
Congratulations on purchasing a Sony VAIO notebook. Sony has combined leading-
edge technology in audio, video, computing and communications to provide you with
state-of-the-art personal computing.
Here are just some of the features your VAIO notebook has to offer (read the details in
the Specifications chapter of this guide).
 Exceptional performance - Your PC includes a fast processor, a fast DVD-ROM
drive and an internal modem.
 Portability - The rechargeable battery pack provides hours of use without AC
power.
 Sony audio and video quality - A high-resolution LCD screen enables you to take
advantage of today’s advanced multimedia applications, games, and
entertainment software.
 Multimedia features - Enjoy the speaker(s) to listen to audio and video CDs.
 Windows®- Your system includes the latest operating system from Microsoft.
 Communications - Access popular online services, send and receive e-mails,
browse the Internet...
 Excellent customer support - If you are experiencing any problems with your
computer, please check the VAIO-Link Website for a possible solution:
http://www.vaio-link.com.
Before contacting VAIO-Link, you may try to solve the problem by reading your
User Guide (troubleshooting chapter) or the manuals and Help files for the
peripherals or software.

Welcome
About the User Guides
Sony Notebook User Guide
9
nN
About the User Guides
Your Documentation Pack contains paper and online user guides on a Documentation
CD-ROM:
Printed Documentation:
 AGetting Started brochure and a Customer Guide, where you will find all the
basic information to start using your notebook;
 A complete Regulatory and safety information poster;
 AModem Regulations Flyer applying to the internal modem;
 You r Sony Guarantee conditions.
Online Documentation:
1This User Guide:
 Using Your Sony Notebook shows you how to use the standard components of
your system.
 Connecting Peripheral Devices explains how you can add functionality by
connecting various peripherals.
 Getting Help explains the support options available to you, and offers basic
troubleshooting tips.
 Notes on Use provides facts and advice about using your notebook.
 Specifications provides details on your computer, drivers and accessories.

Welcome
About the User Guides
Sony Notebook User Guide
10
nN
2Refer to your Software Guide for information on the bundled software and the
Sony applications.
 About the Software is a short description of the features of the software pre-
installed on your system.
 Customizing your Notebook explains how to set your system and power
management with Sony Notebook Setup, VAIO Action Setup, PowerPanel,
BatteryScope, etc.
 Using the Product Recovery CD-ROMs explains how to perform a system and an
application recovery.
3Consult the Online Help files of the software you are using, for detailed
information on features and troubleshooting.
4Refer to the Microsoft Getting Started manual for more information on
Windows®.

Welcome
Unpacking your notebook
Sony Notebook User Guide
11
nN
Unpacking your notebook

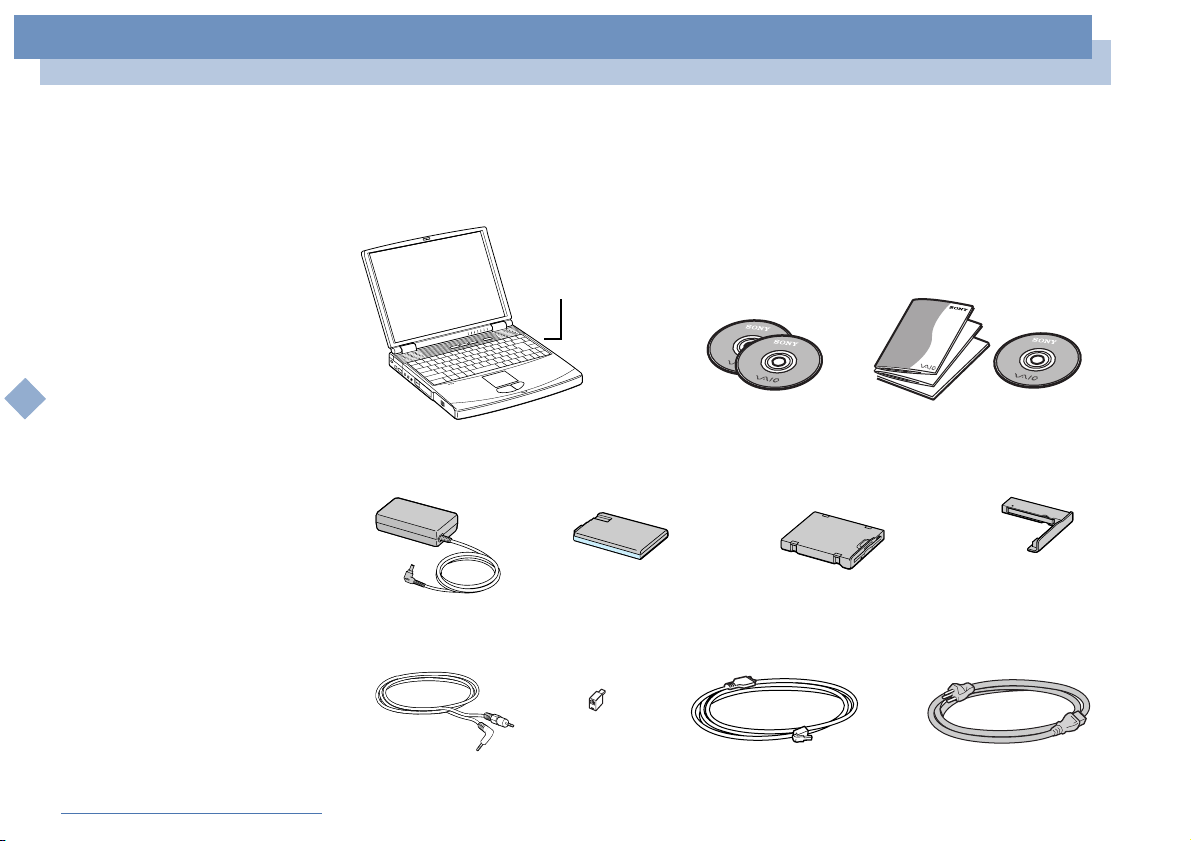

Remove the following hardware items from the box:
Phone cable
Rechargeable
battery pack
Floppy disk drive
(installed at factory)
Weight Saver
Product Recovery
CD-ROMs
Documentation Pack
AC adapter
Power cord
Phone plug
(country specific)
Main unit
Video cable
DVD-ROM drive
(installed at factory)

Welcome
Ergonomic considerations
Sony Notebook User Guide
12
nN
Ergonomic considerations
You will be using your notebook as a portable device in a variety of environments.
Whenever possible, you should attempt to take account of the following ergonomic
considerations to both stationary and portable environments:

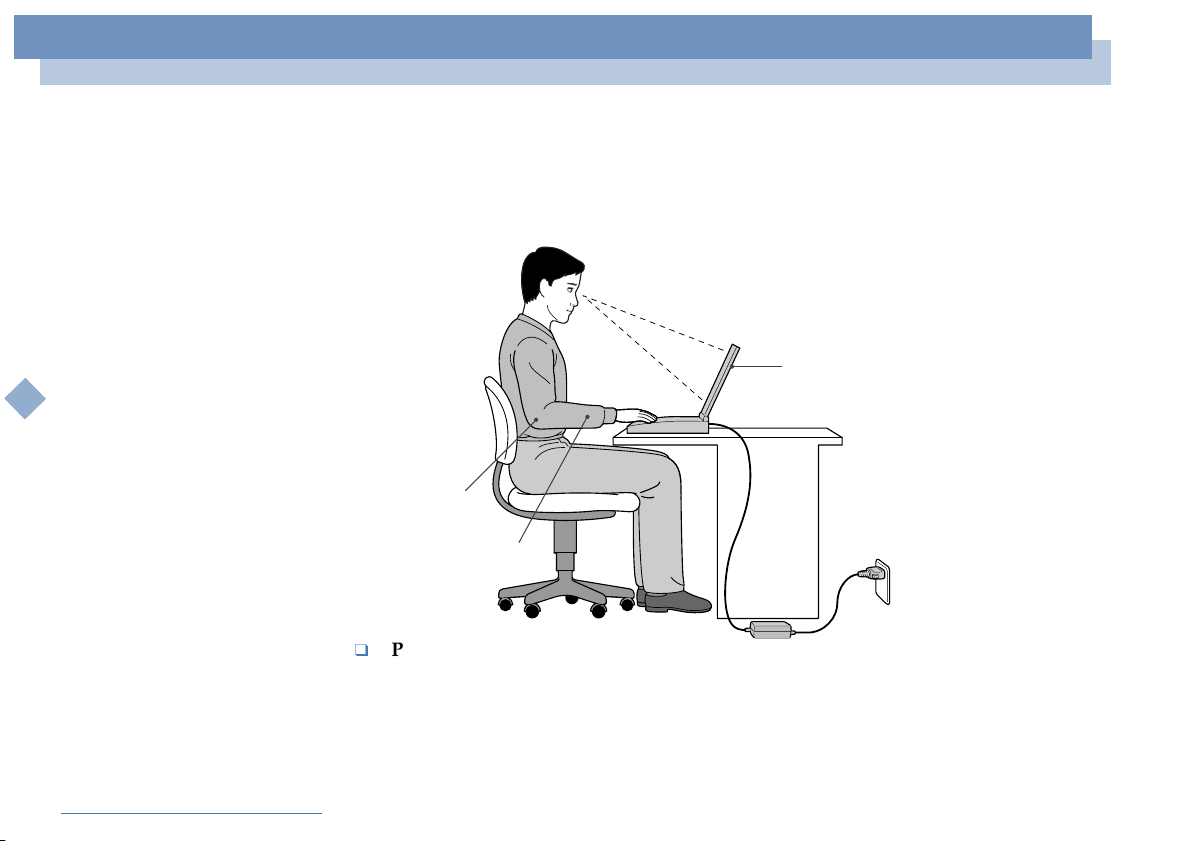

 Position of your computer – Place the computer directly in front of you as you
work. Keep your forearms horizontal, with your wrists in a neutral, comfortable
position while using the keyboard, touchpad, or external mouse. Let your upper
arms hang naturally at your sides. Take breaks during sessions with your
computer. Excessive use of the computer may strain muscles or tendons.
Computer positioned directly
in front of you
Arms at desk level
Wrists relaxed and flat

Welcome
Ergonomic considerations
Sony Notebook User Guide
13
nN
 Furniture and posture – Sitinachairwithgoodbacksupport.Adjustthelevelof
the chair so your feet are flat on the floor. A footrest may make you more
comfortable. Sit in a relaxed, upright posture and avoid slouching forward or
leaning far backwards.
 Viewing angle of the computer’s display – Usethedisplay’stiltingfeaturetofind
the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt
of the display to the proper position. Adjust the brightness setting of the display
as well.
 Lighting – Choose a location where windows and lights do not create glare and
reflection on the display. Use indirect lighting to avoid bright spots on the display.
You can also purchase accessories for your display that help reduce glare. Proper
lighting adds to your comfort and work effectiveness.
 Position of an external display – When using an external display, set the display
at a comfortable viewing distance. Make sure the display screen is at eye level or
slightly lower when you are sitting in front of the monitor.
 Tilt stands – You use the tilt stands to place the computer at an angle that allows
comfortable typing.

Using your notebook
Locating the controls and connectors
Sony Notebook User Guide
14
nN
Using your notebook
This section describes how to start using your computer and how to use your
computer’s internal devices, such as the touchpad, the disk drives and the battery.
Locating the controls and connectors
Right
PPK buttons (page 44) DVD-ROM drive (page 38)
Power button (page 25) Multi-purpose bay (page 35)
(page 53)
1 3
2 4

Using your notebook
Locating the controls and connectors
Sony Notebook User Guide
15
nN

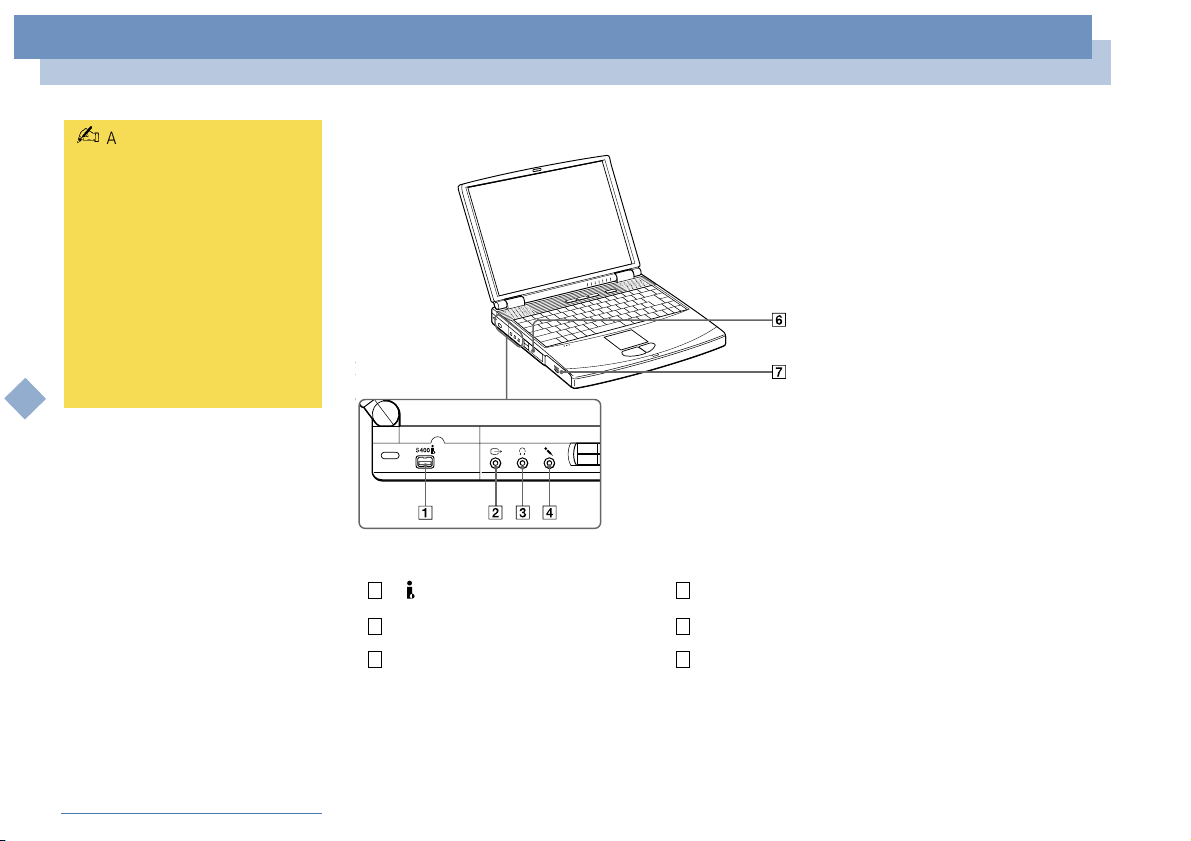

Left
S400 i.LINKTM connector (page 67) mMicrophone connector (page 75)
TV Out Connector (page 65) PC Card slots (page 41)
iHeadphone connector (page 74) Battery bay (page 20)
 AC adapter mains connector
and power cord: hazardous
voltage, according to EN 60950.
Phone cable and connectors are
TNV (Telecommunications
Network Voltage), according to
EN60950.
All other connectors for this
notebook are SELV (Safety Extra
Low Voltage), according to
EN 60950.
1 4
2 5
3 6

Using your notebook
Locating the controls and connectors
Sony Notebook User Guide
16
nN

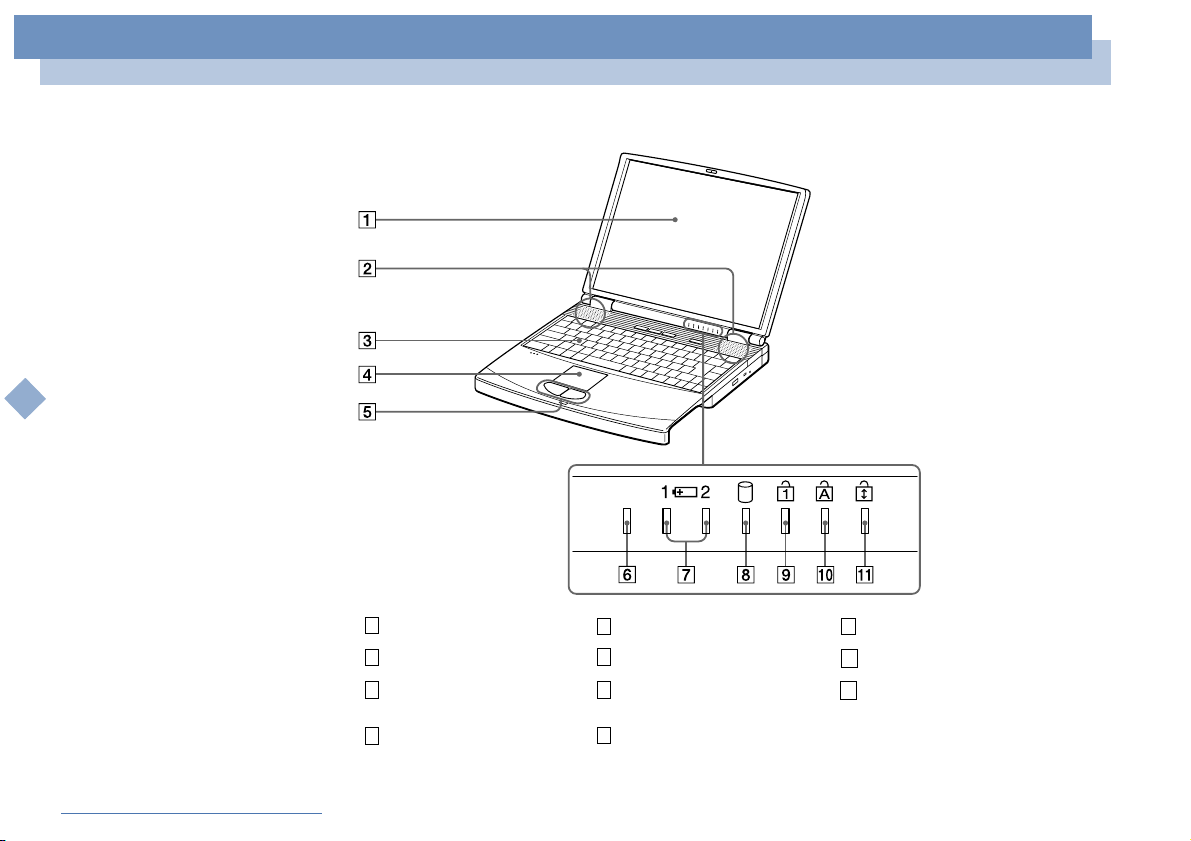

Front
LCD screen (page 32) Left/right buttons (page 34) Num Lock indicator (page 31)
Speakers (page 32) ! Power indicator (page 25) Caps Lock indicator (page 31)
Keyboard (page 28) Battery 1 and 2
indicators (page 31) Scroll Lock indicator (page 31)
Touchpad (page 34) Hard disk drive
indicator (page 31)
!
159
2610
3 7 11
48

Using your notebook
Locating the controls and connectors
Sony Notebook User Guide
17
nN

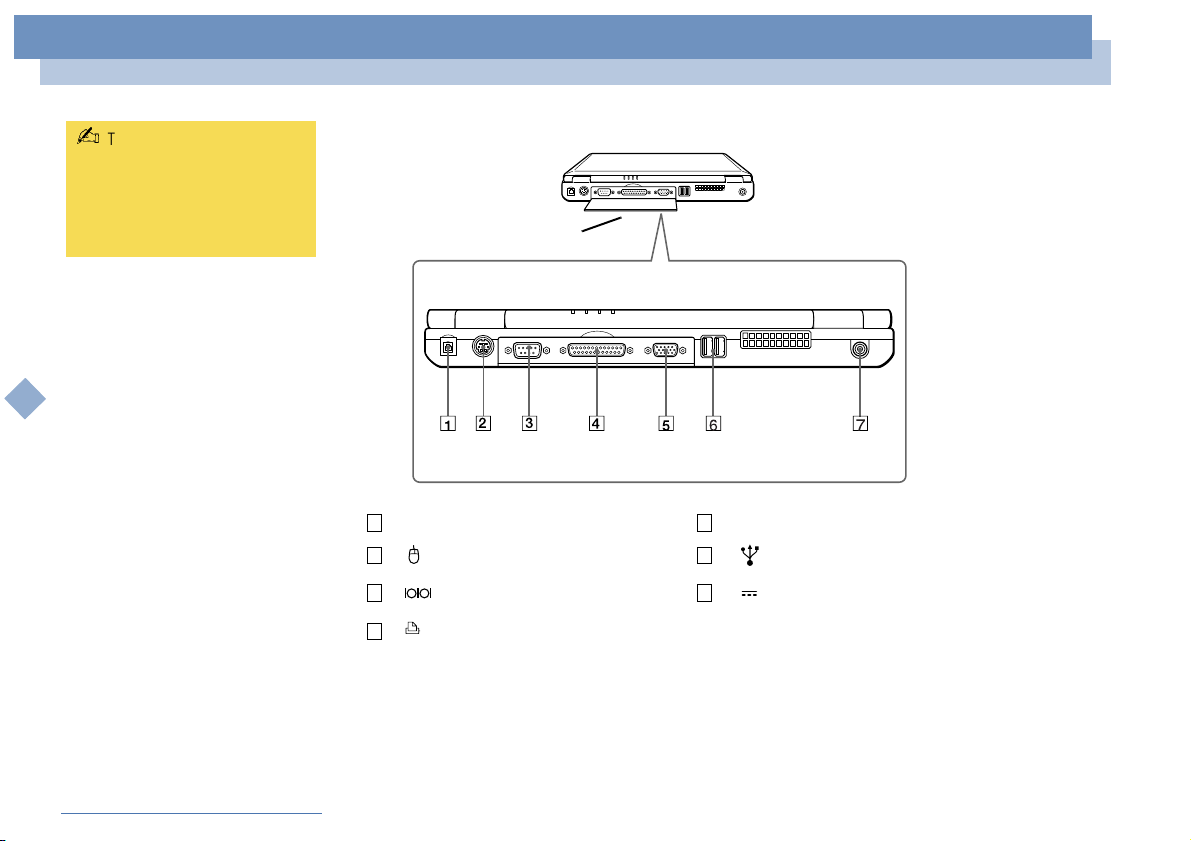

Back
Phone Line jack (page 46) a Monitor connector (page 62)
Mouse connector (page 72) USB connectors (page 73)
Serial connector (page 60) DC In (page 19)
Printer (page 60)
Cover
 There is a ventilation slot
located near the USB
connector. Do not cover the
ventilation slot when your
computer is on.
1 5
2 6
3 7
4

Using your notebook
Locating the controls and connectors
Sony Notebook User Guide
18
nN
Bottom
Port replicator connector cover Tilt stands
Release lever
1
3
2

Using your notebook
Connecting a power source
Sony Notebook User Guide
19
nN
Connecting a power source
You can use either AC power or a rechargeable battery pack as a power source.
Using the AC adapter
1Plug the cable attached to the AC adapter into the DC In connector on the
computer.
2Plug one end of the power cord into the AC adapter.
3Plug the other end of the power cord into an AC outlet.
 Use your notebook only with
the supplied AC adapter.
To disconnect your notebook
completely from mains voltage,
unplug the AC adapter.
Please make sure that the
socket outlet is easily
accessible.
 See the Compatibility table to
verify which peripheral devices
are compatible with your
notebook.
1
3
2
SELV according to EN 60950
Power cord (hazardous voltage
according to EN 60950)
(supplied)
Notebook
AC adapter
(supplied)
DC in

Using your notebook
Connecting a power source
Sony Notebook User Guide
20
nN
Using battery power
You can use one or two batteries as a source of power. You can insert the second battery
pack into the multi-purpose bay on the right side of the computer (See Locating the
controls and connectors on page 14). Additional battery packs are available as a
separate option.
The battery pack supplied with your computer is not fully charged at the time of
purchase. Follow the steps below to insert and charge the battery pack.

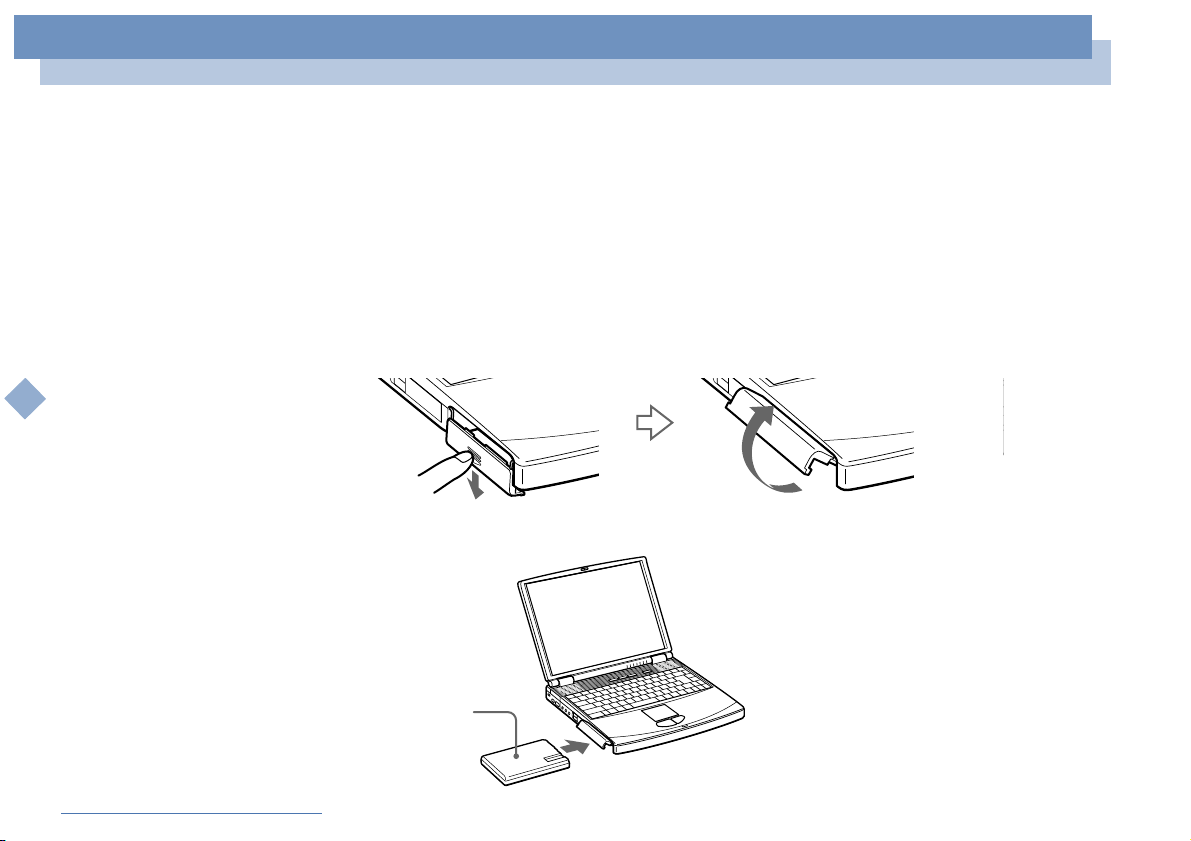

To insert the battery pack
1Open the cover of the battery bay.
2Insert the battery pack into the battery bay on the left side of the computer.
3Close the cover of the battery bay until it clicks.
Battery pack
(supplied)
Label facing down
