Sony VAIO PCG-Z600NEK User manual

nN
Sony Notebook
Computer
User Guide
PCG-Z600NE (Windows® 98)
PCG-Z600NEK (Windows® 2000 Professional)
© 2000 by Sony Corporation.

Sony Notebook Computer User Guide
2
nN
Notice to Users
©2000 Sony Corporation. All rights reserved. This manual and the software described herein, in whole or
in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written
approval.
Sony Corporation provides no warranty with regard to this manual, the software, or other information
contained herein and hereby expressly disclaims any implied warranties or merchantability or fitness for
any particular purpose with regard to this manual, the software or such other information. In no event shall
Sony Corporation be liable for any incidental, consequential, or special damages, whether based on tort,
contract, or otherwise, arising out of or in connection with this manual, the software, or other information
contained herein or to use thereof.
Sony Corporation reserves the right to make any modification to this manual or the information contained
herein at any time without notice. The software described herein is governed by the terms of a separate
user license agreement.
Sony, DVgate, i.LINKTM, Mavica, PictureGear, Memory Stick and the Memory Stick logo, VAIO and the
VAIO logo are trademarks of Sony Corporation. Windows, the Windows 98 and the Windows 2000 logos
are registered trademarks of Microsoft Corporation.
Intel, MMX, Celeron and Pentium are trademarks of Intel Corporation.
All other trademarks are trademarks of their respective owners.
Specifications are subject to change without notice.

Sony Notebook Computer User Guide
3
nN
Safety Information
Owner’s Record
The model number and serial number are located on the bottom of your Sony notebook computer. Record
the serial number in the space provided here. Refer to the model and serial number when you call VAIO-
Link.
Serial number:________________________
Model number:
PCG-5291
PCG-5292
WARNINGS
General
 Opening the unit, for whatever reason, could lead to damages that are not covered by the guarantee.
 To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
 To prevent fire or shock hazard, do not expose your VAIO notebook computer to rain or moisture.
 Avoid using the modem during an electrical storm.
 Do not use the modem or a telephone to report a gas leak in the vicinity of the leak.
CD-ROM/DVD-ROM
 The use of the optical instruments intalled in your notebook computer will increase eye hazard. As the
laser beam used in this product is harmful to eyes, do not attempt to disassemble the cabinet. For
servicing, refer to qualified personnel only.
As an ENERGY STAR Partner, Sony
has determined that this product
meets the ENERGY STAR guidelines
for energy efficiency.
The International ENERGY STAR
Office Equipment Program is an
international program that
promotes energy saving through
the use of computers and their
office equipment. The program
backs the development and
dissemination of products with
functions that effectively reduce
energy consumption. It is an open
system in which business
proprietors can participate
voluntarily. The targeted products
are office equipment such as
computers, displays, printers,
facsimiles and copiers. Their
standards and logos are uniform
among participating nations.
ENERGY STAR is an U.S. registered
mark.

Sony Notebook Computer User Guide
4
nN
DVD-ROM ( for models equipped with a DVD-ROM drive)
 TherearevisibleandinvisibleradiationswhentheDVD-ROMdriveisopen:avoiddirectexposureto
the laser beam.
Audio/Video
 Audio and picture distortion may occur if this equipment is positioned in close proximity to any
equipment emitting electromagnetic radiation.
Connectivity
 Never install modem or telephone wiring during a lightning storm.
 Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations
 Use caution when installing or modifying telephone lines.

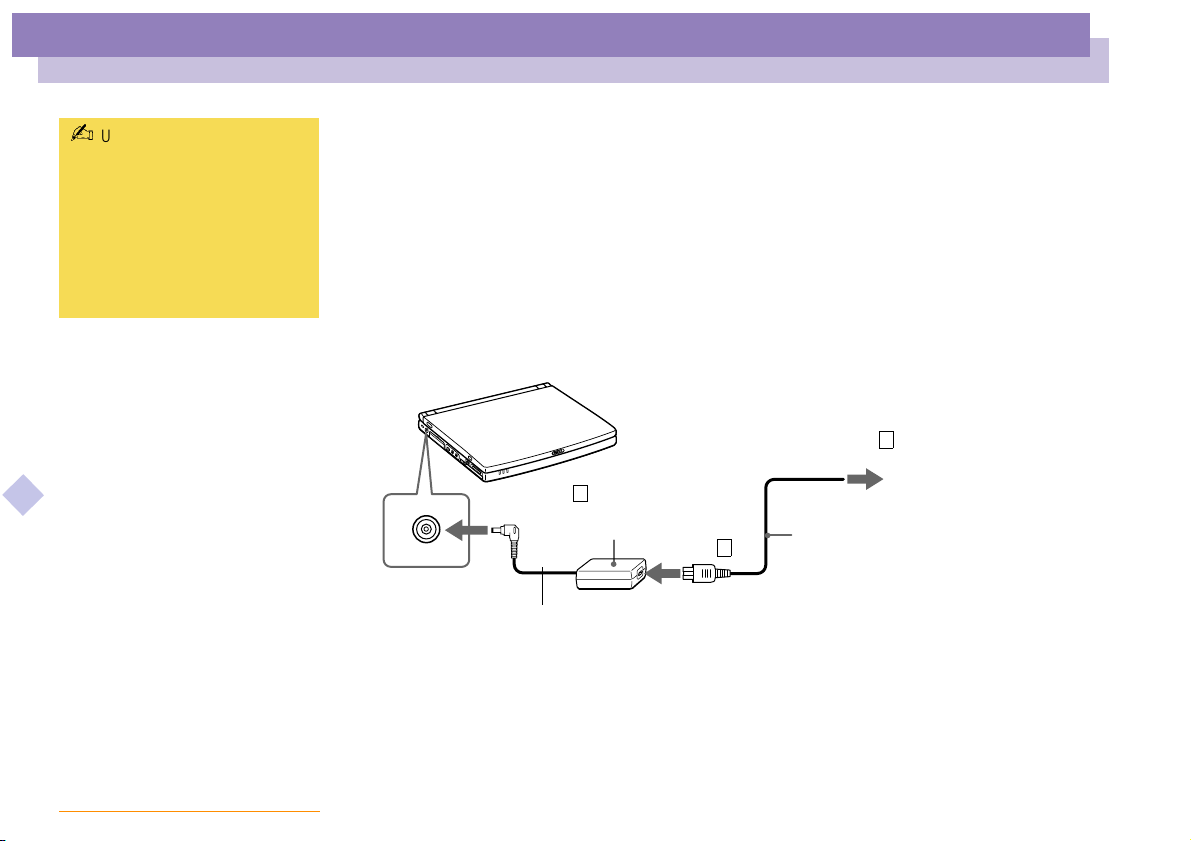

 Use your notebook only with the supplied AC adapter. To disconnect your notebook completely from
mains voltage, unplug the AC adapter.
 Please make sure that the socket outlet is easily accessible.
 Never touch uninsulated telephone wire or terminals unless the telephone line has been disconnected
at the network interface.

Sony Notebook Computer User Guide
5
nN
Regulatory Information
This product conforms to the following European Directives:
73/23/EEC (Low Voltage Directive)
89/336/EEC, 92/31/EEC (EMC Directives)
93/68/EEC (CE Marking Directive)
This product complies with EN 55022 Class B and EN 50082-1 for use in following areas: residential,
commercial and light-industrial.
This product has been tested and found compliant with the limits set out in the EMC Directive for using
connection cables shorter than 3 metres (9.8 feet)

Sony Notebook Computer User Guide
6
nN
DISPOSAL OF LITHIUM ION BATTERY
!Do not handle damaged or leaking Lithium ion batteries. Dispose of promptly and properly.
!Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions (see
below).
!The battery pack used in this device may present a fire or chemical burn hazard if mistreated. Do not
disassemble, heat above 100°C (212°F) or incinerate. Dispose of used battery promptly.
!Keep away from children.
!Your notebook is equipped with an internal backup memory battery. For changing this battery, please contact
VAIO-Link.
 Disposal of Lithium ion
batteries
Dispose of properly at end-of-
life.
In some areas the disposal of
lithium ion batteries in
household or business waste
may be prohibited.
Please use the public collection
system.

Welcome
Sony Notebook Computer User Guide
7
nN
Welcome
Congratulations on purchasing a Sony VAIO notebook computer. Sony has combined
leading-edge technology in audio, video, computing and communications to provide
you with state-of-the-art personal computing.
Here are just some of the features your VAIO notebook computer has to offer (read
the details in the Specifications chapter of this guide).
 Exceptional performance - Your PC includes a fast Intel®processor, a fast
CD-ROM or DVD-ROM drive (depending on the model), and an internal modem.
 Portability - The rechargeable battery pack provides hours of use without AC
power.
 Sony audio and video quality - A high-resolution LCD screen enables you to
take advantage of today’s advanced multimedia applications, games, and
entertainment software.
 Windows®- Your system includes the latest operating system from Microsoft.
 Communications - Access popular online services, send and receive e-mails,
browse the Internet...
 Excellent customer support-Ifyouhaveanyproblemwithyourcomputer,you
can contact VAIO-Link by Internet and e-mail (see your Customer Service Guide
for addresses). Before contacting VAIO-Link, you may try to solve the problem
by reading your User Guide (troubleshooting chapter) or the manuals and Help
files for the peripherals or software.

Welcome
About the User Guides
Sony Notebook Computer User Guide
8
nN
About the User Guides
Your Documentation Pack contains paper and on-line user guides on a
Documentation CD-ROM:
Printed Documentation:
 ASetting Up poster in colour and a Getting Started brochure; a Customer
Guide, where you will find all the basic information to start using your notebook
computer;
 A complete Regulatory and safety information poster;
 A Modem Regulations Flyer applying to the internal modem;
 Your Sony Guarantee conditions.
On-line Documentation:
1This User Guide:
 Using Your Sony Notebook Computer shows you how to use the standard
components of your system.
 Connecting Peripheral Devices explains how you can add functionality by
connecting various peripherals.
 Getting Help explains the support options available to you, and offers basic
troubleshooting tips.
 Notes on Use provides facts and advice about using your notebook computer.
 Specifications provides details on your computer, drivers and accessories.

Welcome
About the User Guides
Sony Notebook Computer User Guide
9
nN
2Refer to your Software Guide for information on the bundled software and the
Sony applications.
 About the Software is a short description of the features of the software pre-
installed on your system.
 Customizing your notebook explains how to set your system and power
management with Sony Notebook Setup, VAIO Action Setup, PowerPanel,
BatteryScope, etc.
Learn how to set your display with NeoMagic®and enjoy the Dual Screen
Display option (Windows®98 only).
3Consult the On-line Help files of the software you're using for detailed
informationonfeaturesandtroubleshooting.

Welcome
Unpacking Your Notebook Computer
Sony Notebook Computer User Guide
10
nN

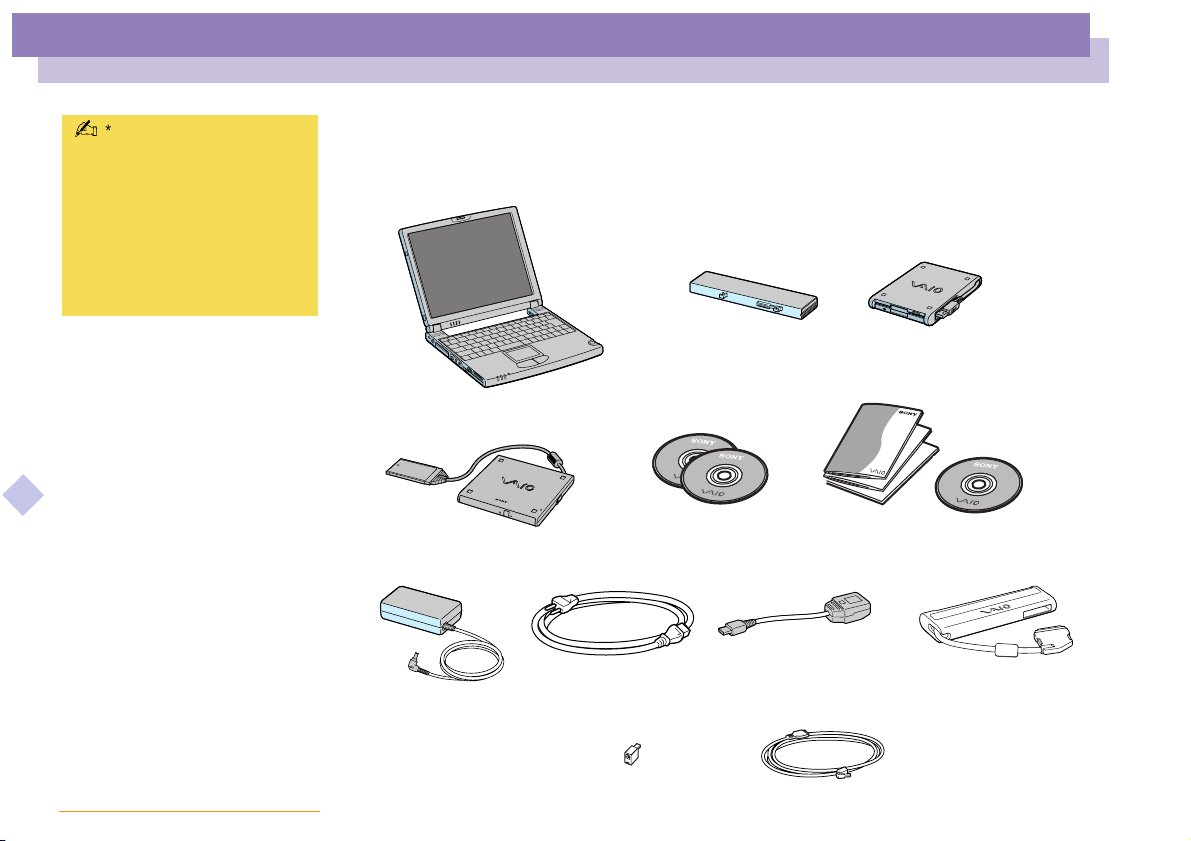

Unpacking Your Notebook Computer
Remove the following hardware items from the box:
 *Depending on the type of
Sony notebook computer you
have purchased, some
accessories may be optional.
However, you need to have
these peripherals to enjoy some
of the features described in this
manual.
Rechargeable
battery pack
USB floppy disk drive
Product Recovery
CD-ROMs
AC adapter Power cord
Phone plug
(country
specific)
*Phone cable
Main unit
CD-ROM drive *
i.LINK™Port replicator
USB - Mini USB converter
Documentation Pack

Welcome
Ergonomic Considerations
Sony Notebook Computer User Guide
11
nN

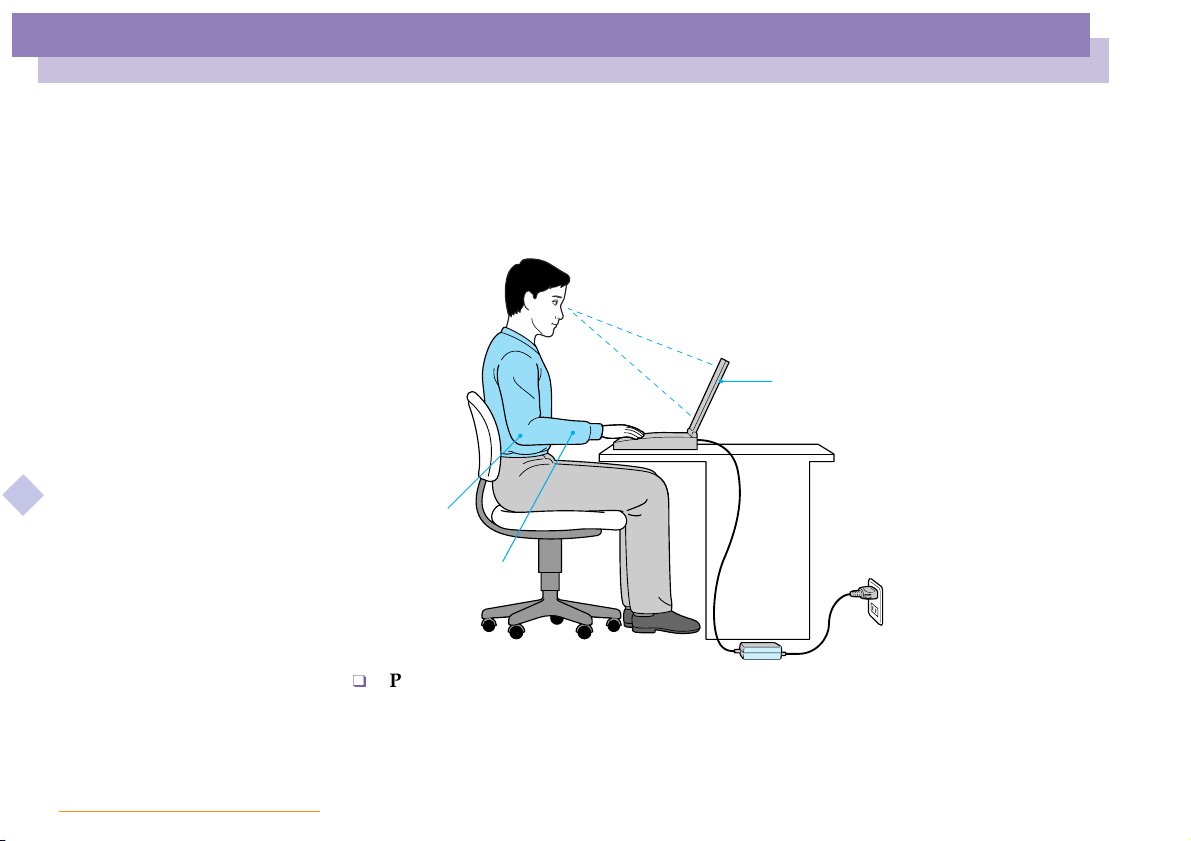

Ergonomic Considerations
You will be using your notebook computer as a portable device in a variety of
environments. Whenever possible, you should attempt to take account of the
following ergonomic considerations to both stationary and portable environments:
 Position of your computer –Place the computer directly in front of you as you
work. Keep your forearms horizontal, with your wrists in a neutral, comfortable
position while using the keyboard, touchpad, or external mouse. Let your upper
arms hang naturally at your sides. Take breaks during sessions with your
computer. Excessive use of the computer may strain muscles or tendons.
Computer positioned directly
in front of you
Arms at desk
level
Wrists relaxed and flat

Welcome
Ergonomic Considerations
Sony Notebook Computer User Guide
12
nN
 Furniture and posture –Sit in a chair with good back support. Adjust the level of
the chair so your feet are flat on the floor. A footrest may make you more
comfortable. Sit in a relaxed, upright posture and avoid slouching forward or
leaning far backwards.
 Viewing angle of the computer’sdisplay–Use the display’s tilting feature to
find the best position. You can reduce eye strain and muscle fatigue by adjusting
the tilt of the display to the proper position. Adjust the brightness setting of the
display as well.
 Lighting –Choose a location where windows and lights do not create glare and
reflection on the display. Use indirect lighting to avoid bright spots on the
display. You can also purchase accessories for your display that help reduce
glare. Proper lighting adds to your comfort and work effectiveness.
 Placement of an external display –When using an external display, set the
display at a comfortable viewing distance. Make sure the display screen is at eye
level or slightly lower when you are sitting in front of the monitor.

Using Your Notebook Computer
Locating the Controls and Connectors
Sony Notebook Computer User Guide
13
nN
Using Your Notebook Computer
This section describes how to start using your computer and how to use your
computer’s internal devices, such as the touchpad, the disk drives and the battery...

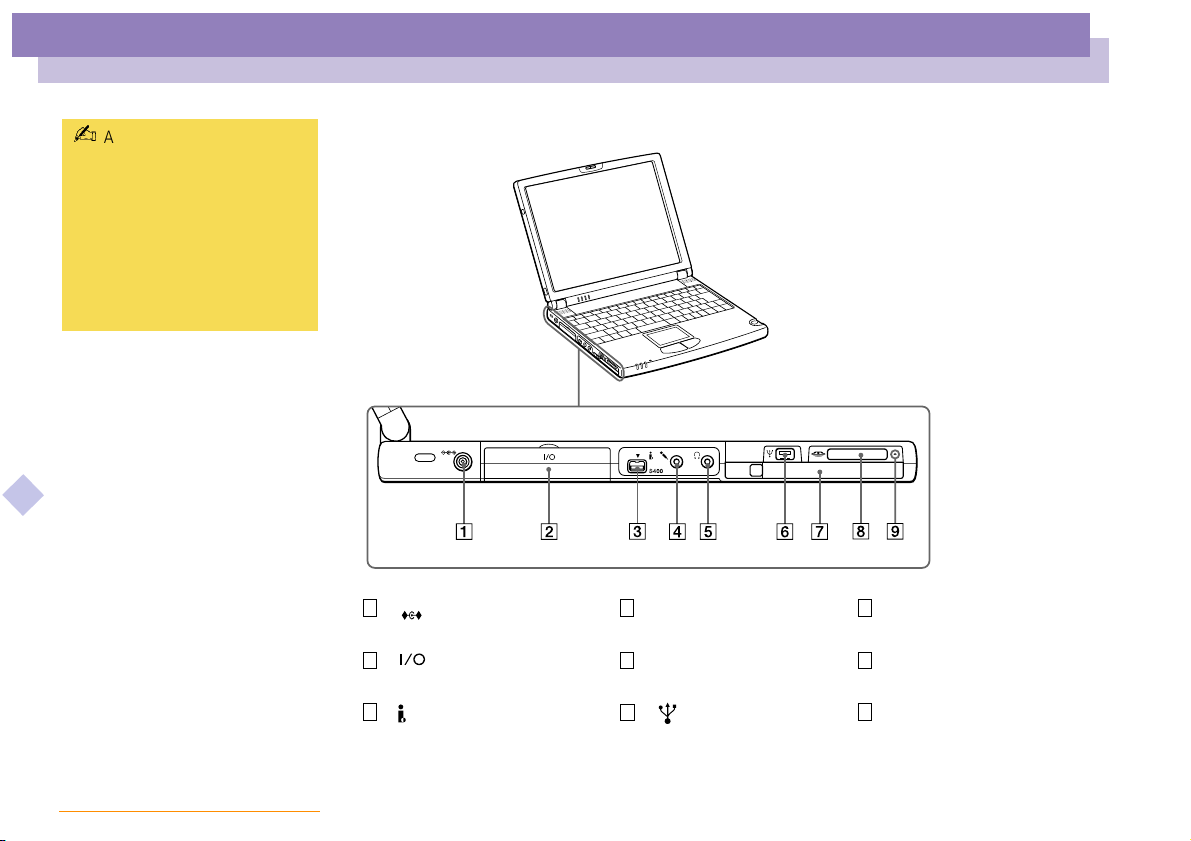

Locating the Controls and Connectors
Right
Jog Dial (page 34) Ventilation slot Phone Line jack (page 48)
USB connector (page 72) 1Power switch (page 22)
Ethernet Network
connector (page 55) Infrared port (page 50)
 The mini USB connector of the
computer is disabled when the
port replicator is connected.
 Phone cable and connectors are
TNV (Telecommunications
Network Voltage), according to
EN60950.
1 4 7
2 5
3 6

Using Your Notebook Computer
Locating the Controls and Connectors
Sony Notebook Computer User Guide
14
nN
Left
DC In (page 17) mMicrophone
connector (page 71) PC card slot (page 45)
i.LINKTM Port
Replicator connector (page 56) iHeadphone
connector (page 71) Memory Stick™slot (page 42)
S400 i.LINKTM
connector (page 66) Mini USB
connector (page 72) Memory Stick™
indicator (page 42)
 AC adapter mains connector
and power cord: hazardous
voltage, according to
EN 60950.
All other connectors for this
notebook are SELV (Safety Extra
Low Voltage), according to
EN 60950.
1 4 7
2 5 8
369

Using Your Notebook Computer
Locating the Controls and Connectors
Sony Notebook Computer User Guide
15
nN

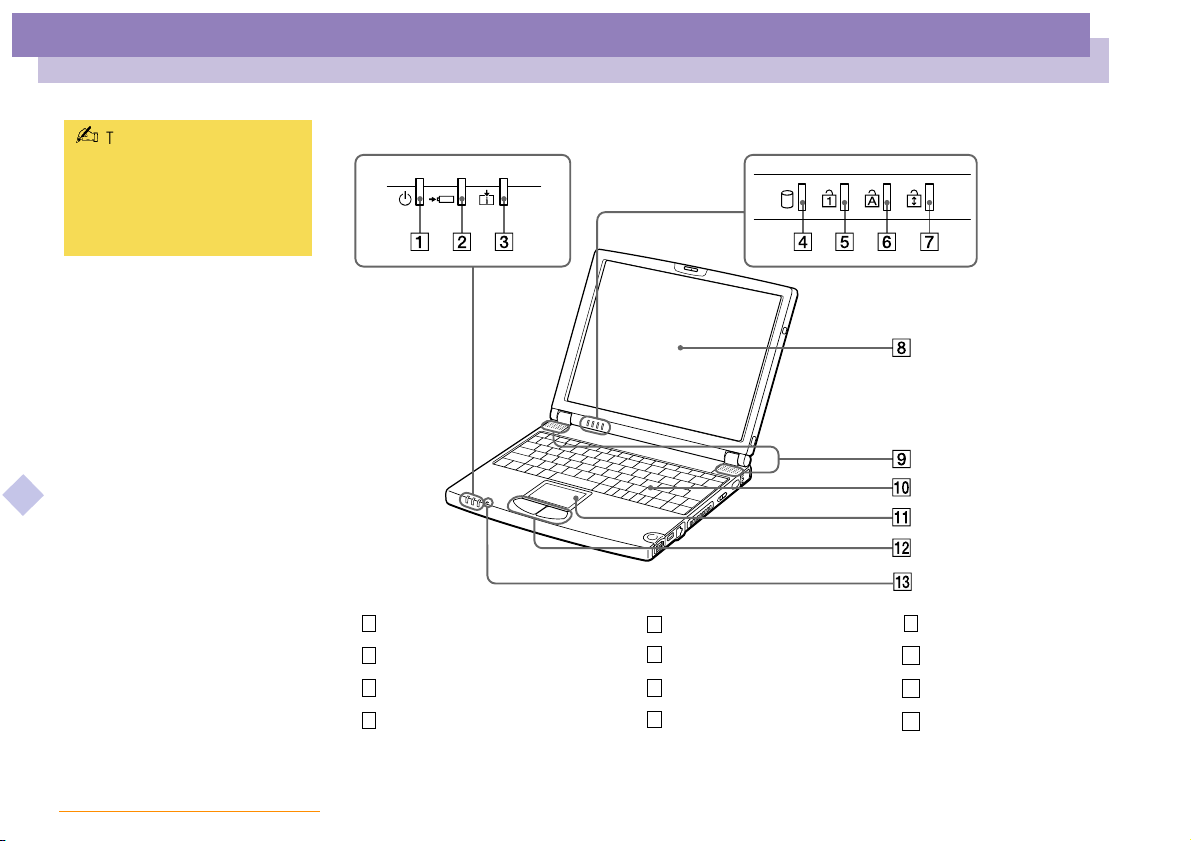

Front
Power indicator (page 28) Num Lock indicator (page 28) Speaker (page 30)
Battery indicator (page 28) Caps Lock indicator (page 28) Keyboard (page 25)
Information indicator (page 28) Scroll Lock indicator (page 28) Touchpad (page 37)
Hard disk drive indicator (page 28) LCD screen (page 30) Left/right
buttons (page 37)
 There is a ventilation slot
located near the Power
switch. Do not cover the
ventilation slot when your
computer is on.
159
2610
3 7 11
4812

Using Your Notebook Computer
Locating the Controls and Connectors
Sony Notebook Computer User Guide
16
nN
Back
Bottom
Battery connector (page 18)
Battery release lever (page 18) Reset switch
Battery lock lever (page 18)
1
1 3
2

Using Your Notebook Computer
Connecting a Power Source
Sony Notebook Computer User Guide
17
nN
Connecting a Power Source
You can use either AC power or a rechargeable battery pack as a power source.
Using the AC Adapter
1Plug the cable attached to the AC adapter into the DC In connector on the
computer.
2Plug one end of the power cord into the AC adapter.
3Plug the other end of the power cord into an AC outlet.
 Use your notebook only with the
supplied AC adapter.
To disconnect your notebook
completely from mains voltage,
unplug the AC adapter.
Please make sure that the socket
outlet is easily accessible.
1
3
2
SELV according to EN 60950
Notebook computer
AC adapter
(supplied)
DC in
Power cord (hazardous voltage
according to EN 60950)
(supplied)

Using Your Notebook Computer
Connecting a Power Source
Sony Notebook Computer User Guide
18
nN
Using Battery Power
Youcanusea batterypackasasourceofpower.
The battery pack supplied with your computer is not fully charged at the time of
purchase. Follow the steps below to insert and charge the battery pack.

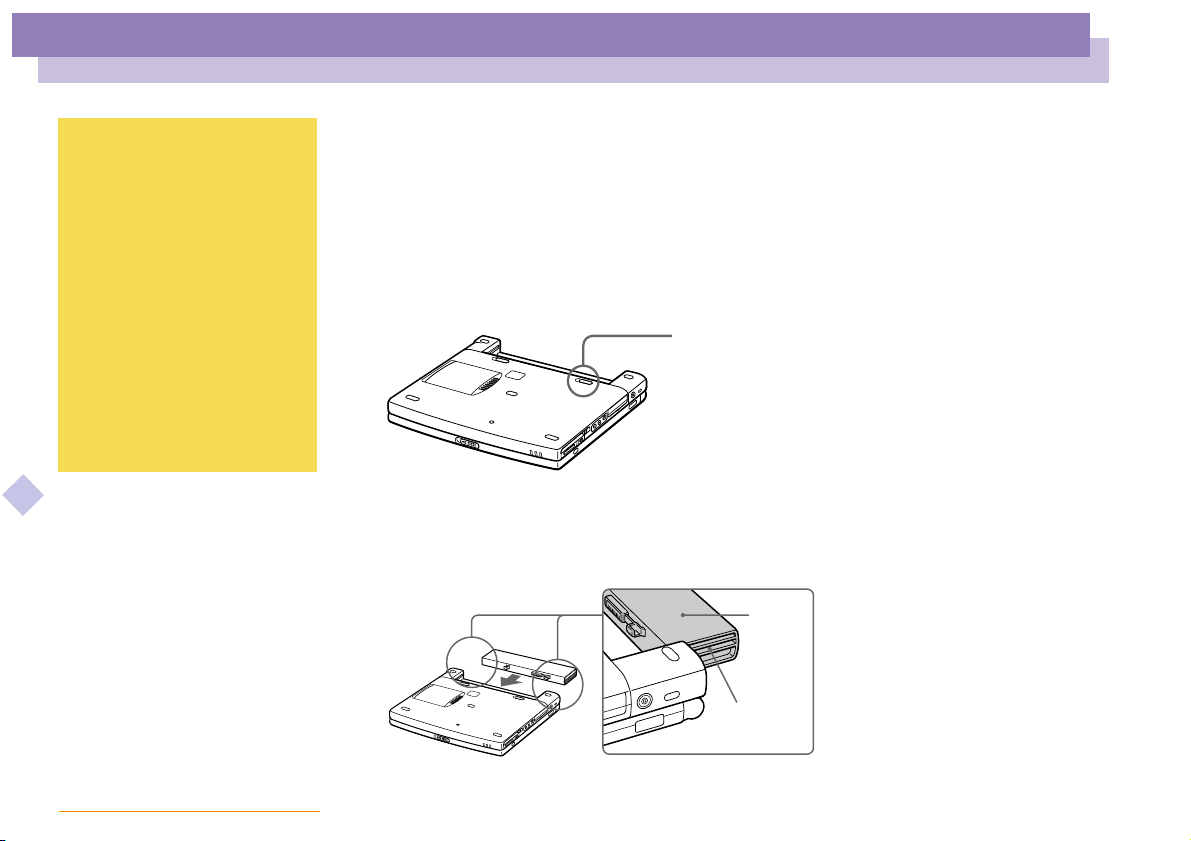

To insert the battery pack
1Move the lock lever on the bottom of the computer to the UNLOCK position.
2Align the grooves and tabs on the battery with the tabs and notches on the back of
the computer, and then slide the battery towards the computer until it clicks into
place.
3Slide the lock lever into the LOCK position to secure the battery on the computer.
!You may lose data if you remove
the battery pack while the
computer is on and not
connected to the AC adapter or
if you remove the battery while
the computer is in system
suspend mode.
You can remove the battery
pack without turning off the
computer when it is connected
to the mains voltage (AC
adapter).
Before you remove/insert the
battery pack, close the cover.
Battery lock lever
Battery
pack
Grooves

Using Your Notebook Computer
Connecting a Power Source
Sony Notebook Computer User Guide
19
nN

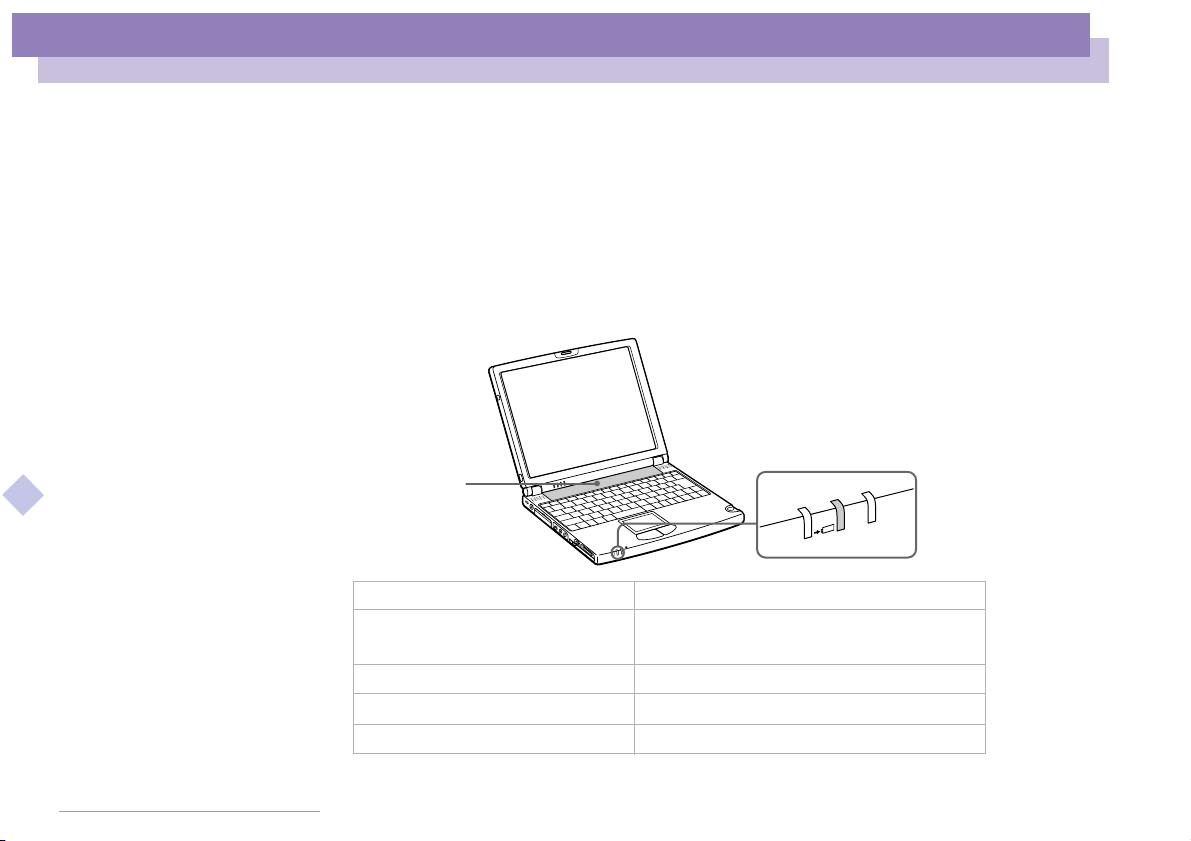

To charge the battery pack
1Connect the AC adapter to the computer.
2Insert the battery pack.
The computer automatically charges the battery (the battery indicator light flashes in
a double blink pattern as the battery charges). When the battery is 85% full, the
battery indicator light turns off. This process takes approximately one and one half
hours. To charge the battery completely, continue charging for an additional hour.
Battery Indicator Light Status Meaning
On The computer is using battery
power.
Single blink The battery is running out of power.
Double blink The battery is charging.
Off The computer is using AC power.
Battery pack
(supplied)
Battery indicator

Using Your Notebook Computer
Connecting a Power Source
Sony Notebook Computer User Guide
20
nN
 When the battery is running out of power, both the battery and power indicators blink.
To determine the time the battery lasts, please refer to "Displaying Battery information" in your Software
Guide.
Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues
to charge while you are using the computer.
If the battery level falls to below 10%, you should either attach the AC adapter to recharge the battery or
shut down your computer and insert a fully charged battery.
You can extend battery life by changing the power management modes in the PowerPanel utility. See your
Software guide, in “Controlling Power Management".
The battery pack supplied with your computer is a lithium ion battery and can be recharged any time.
Charging a partially discharged battery does not affect battery life.
The battery indicator light is on while you use the battery pack as a power source. When the battery life is
nearly depleted, the battery indicator starts flashing.
For some software applications and some peripheral devices, your computer may not enter system
hibernation mode when battery life is low. To avoid loss of data when using battery power, you should save
your data frequently and manually activate a power management mode, such as system suspend or system
hibernation.
