VGN-AWxx Series Solid State Drive
Replacement Instructions
FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST
P/N 994660400 Rev. A 1/2

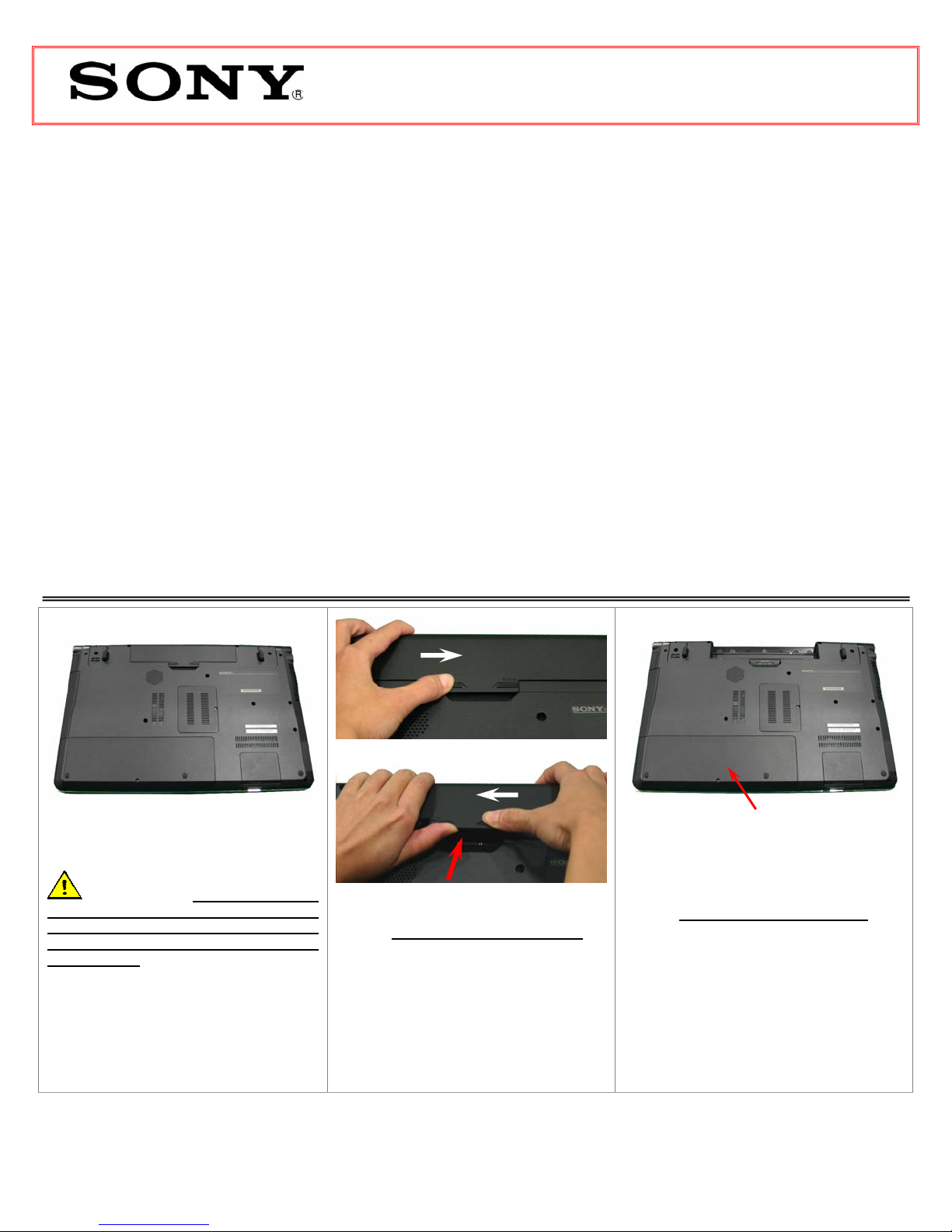

Step 1. Prepare the Computer.
CAUTION: Make sure the
computer is turned off, the lid is closed,
and the AC Adapter is disconnected.
Failure to do so can result in damage to
the computer.
Place the computer upside down on a
protected surface with the front edge
facing you.
Step 2. Remove the Battery Pack.
1. Slide the left battery tab to the
unlock position.
2. With your right thumb, slide the
right battery tab in the release
direction and hold.
3. Remove the battery by lifting the
side where the arrow is pointing.
(SSD Removal) Steps 3-8
Step 3. Locate the SSD/HDD Bay.
Place the computer on the protected
surface with the Solid State Drive / Hard
Disk Drive (SSD/HDD) Bay facing you
as shown in the picture.
These easy instructions are intended to guide you through the replacement process. If you need additional
help, please call 1-866-651-7669 for technical support from 9:00 am to 11:00 pm EST.
9To avoid electric shock, please make sure product is turned off and AC Adaptor is disconnected
from the power source. Remove jewelry before you begin work to avoid scratching the surface of
your notebook computer.*
9Place your notebook computer on a clean, stable and covered surface to avoid damage to the
computer’s case.*
9Follow the ESD (Electrostatic Discharge) damage prevention instructions:
oHold parts by the edges, away from exposed circuitry when possible.
oDo not walk around excessively as this promotes static build-up.
9The appearance of the electronic components shown in the illustrations may be different from the
components shipped. This slight difference does not affect the accuracy of these instructions.
* Sony is not responsible for any loss of data associated with your computer or any dama
g
e caused by incorrect handlin
g
of
the computer under these procedures. The terms of your Sony limited warranty continue to apply.
IMPORTANT!
PLEASE READ BEFORE YOU START
HDD Ba
y
Push left tab in the unlock position
Lift to remove
1.
2
.
3
.

VGN-AWxx Series Solid State Drive
Replacement Instructions
FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST
P/N 994660400 Rev. A 2/2
Step 5. Using the enclosed magnetic
screwdriver, remove the screw securing the
SSD/HDD access cover.
Step 6. Remove the SSD/HDD access
cover by sliding it in the direction of the
arrows shown above.
Step 7. Using the enclosed magnetic
screwdriver, remove the three (3) screws
securing the SSD assembly.
Step 8. To remove the drive(s), carefully
detach the SSD from the connector in the
direction shown. Some force may be
needed to unlock the SSD assembly from
the connector. Remove the drive by holding
on the black plastic tab and housing.
(SSD Reinstallation) Steps 9-12
Step 9. Replace the old SSD assembly
with the new one. Carefully place the SSD
assembly on the SSD bay.
Step 10. Attach the drive(s) to the SSD
connector by moving the new SSD assembly
in the direction of the arrows shown in the
picture.
Step 13. Reinstall the battery pack and
reconnect the AC Adaptor.
Continue with the recovery process by
following the instructions described on the
back of the recovery disk’s case.
Return the old SSD to Sony following the
included shipping instructions.
Step 11. Reinstall the three (3) previously
removed screws to secure the SSD
assembly in place.
Step 12. Re-attach the SSD/HDD access
cover and secure it with the screw shown
in the picture.
