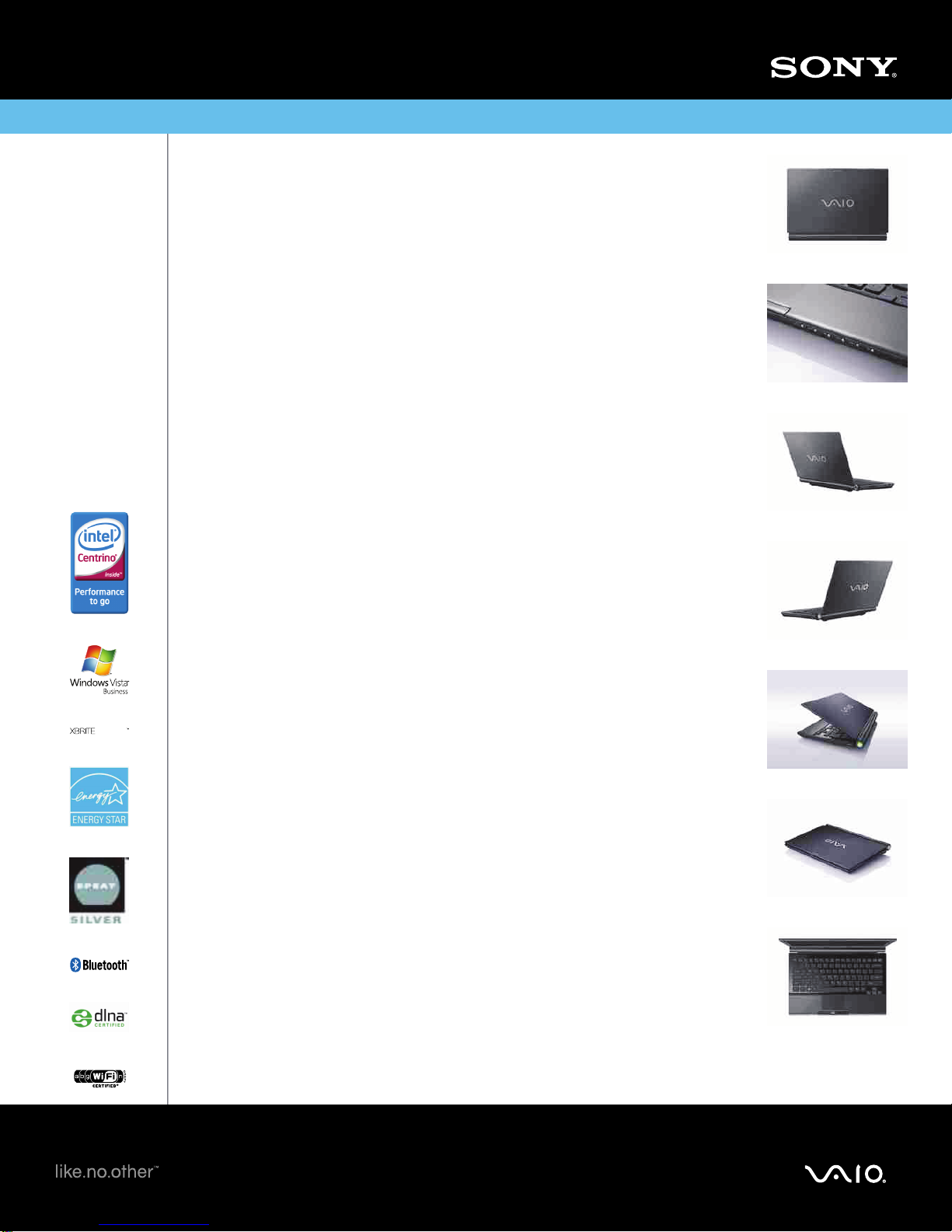

VGN-TZ340NCB
VAIO® TZ Series Notebook PC
Ultra - portable, ultra - sleek, ultra - powerful
MAXIMUM MOBILE PERFORMANCE
Packed with cutting - edge mobile technology and pre - loaded with 2GB of system
memory, experience the performance of an Intel ® Core™2 Duo U7700 processor
(1.33GHz ) powered by Intel ® Centrino ® Processor technology
A perfect mix of power, style and design, the VAIO ® TZ is a slim, lightweight PC
measuring less than 1 ” thin , wrapped in a durable yet stylish Black carbon - fiber casing
while weighing a very feathery 2.65 lbs. (with standard battery) .
The VAIO ® TZ notebook comes pre - installed with Genuine Microsoft ® Windows Vista ®
Business with Service Pack 1.
Get the most from your VAIO ® TZ notebook while on - the - go. An ultra - efficient power
system and superior battery technology lets you enjoy 4.0 to 8.5 hours of standard
battery life .
WIRELESS FREEDOM
Offering a massive boost in wireless connection speed and range, work and play quicker
virtually anywhere within your office or café hotspot using next - generation 802.11n
integrated wireless LAN technology .
Go beyond LAN networks and café hotspots and find the internet virtually anywhere with
integrated Wireless Wide Area Network (WWAN) technology through optional Sprint ®
Mobile Broadband service.
Extend the reach of your TZ notebook with Stereo A2DP Bluetooth ® technology that is
ideal for advanced wireless communication and streaming uncompromised CD - quality
stereomusic to Bluetooth ® technology enabled speakers or headphones.
ENDLESS FEATURES
Watch all your favorite movies in stunning clarity on the 11.1 ” widescreen display using
XBRITE - HiColor™technology so you can see deeper blacks, brighter whites, true - to - life
color and razor - sharp detail from almost any angle.
Stay connected to colleagues, friends and family at the office or on - the - go with real - time
video conferencing using the integrated MOTION EYE ® camera and microphone.
Whether it ’ s for YouTube™ , a company project or for sharing with family and friends,
editing digital video captured by your Sony Handycam ® is quick and easy with VAIO ®
Movie Story software. You choose the supplied template and professional - looking
cutaways, cross - fades and soundtrack syncing are automatically done for you.
ENVIRONMENTALLY ENGINEERED FEATURES
By using a mercury - free backlit LCD display, the VAIO ® TZ keeps one less chemical out
of both your home and the landfills.
The TZ notebook is ENERGY STAR ® qualified, which means that it uses less power and
reduces greenhouse gas emissions by meeting strict efficiency guidelines set by the
Environmental Protection Agency and the Department of Energy.
The VAIO ® TZ notebook holds an environmental rating of Silver from EPEAT™
At 2.65 lbs. (with standard battery) with 4.5 to 8.5 hours of standard battery life
and durable carbon - fiber casing, the VAIO ® TZ notebook is built for ultra - portable
performance. And with an 11.1”display with XBRITE - HiColor™LCD technology, an
Intel ® Core ™2 Duo processor and advanced wireless technologies , you ’ ll be able
to stay connected and productive virtually anywhere.
1
8
7
11
3
15
16
6
4
7
11
6
15
-HiColor

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 10/21/2008
VGN-TZ340NCB
VAIO® TZ Series Notebook PC
Specifications
General
Computer Type: Notebook
Type of Use: Ultra Portable
Action Buttons: Play/Pause/Stop, Fast Forward, Rewind,
AV Instant Mode, WLAN/Bluetooth® on/off, S1
Pointing Device: Electro-Static touch pad
Security: Biometric Fingerprint Sensor
Trusted Platform Module (TPM) TCG Ver.1.2 compliant
Hardware
Keyboard: QWERTY, 82 keys with 1.7mm stroke and
17mm pitch
Camera: Built -in 1.3 megapixel MOTION EYE® camera
and microphone
Processor
Type: Intel® Core™2 Duo Processor U7700
Speed: 1.33GHz
Front Side Bus Speed: 533MHz
L2 Cache: 2MB
Technology: Intel® Centrino® Duo Processor
Technology
Memory
Type: DDR2
Installed: 2GB PC2 - 4200 (2GBx1)
Maximum: 2GB
Speed: 533MHz
Hard Drive
Capacity: 120GB
Speed: 4200rpm
Interface: Ultra ATA
Impact Protection: G -Sensor™Shock Protection -Hard
Disk Drive Protection
Optical Drive #1
DVD+R DL Write: 4x max
DVD+R Write: 8x max
DVD+RW Write: 8x max
DVD -R Write: 8x max
DVD -RW Write: 6x max
CD -R Write: 24x max
CD -RW Write: 16x max
DVD ±RW: Yes (DVD ±R DL/ DVD±RW/ RAM)
CD Read: 24x max
DVD Read: 8x max
DVD -RAM Write: 5x max
DVD -R DL Write: 4x max
DVD -RAM Read: 5x max
Expansion Slots
Multimedia Card Reader: One Memory Stick Duo™
media slot with MagicGate® functionality
One ExpressCard® / 34 slot
One Secure Digital (SD™memory card) media slot
Audio
Sound System: Intel® High Definition Audio
Display
Screen Size: 11.1"
Resolution: 1366 x 768
XBRITE- HiColor ™Technology: Yes
Technology: WXGA
Graphics
Processor: Intel® Graphics Media Accelerator 950 with
Total Available Graphics Memory of 256MB (max.)
Chipset: Intel® 945GMS
Interface: VGA out with Smart Display Sensor
1
2
5
6
10
Inputs and Outputs
Headphone Jack: 1
Modem Jack: 1
Microphone Input: 1
Port Replicator Connector(s): 1 (Bottom)
USB Port(s): 2 (2.0 compliant)
VGA Output(s): 1
DC -In: 1
i.LINK® Connection: 1 (4pin) i.LINK® connector (IEEE
1394)
Ethernet Connection (s): 1
Networking/Modem
Ethernet Protocol: 10Base - T/100Base - TX/1000Base -T
Ethernet Speed: Fast Ethernet (RJ- 45)
Modem Type: Integrated V.92/V.90 Modem (RJ- 11)
Wireless LAN: Intel® PRO/Wireless 4965AGN Network
Connection (802.11a/b/g/n)
Wireless WAN: Optional Sprint® Mobile Broadband
service
Bluetooth® Technology: Integrated Stereo A2DP
Bluetooth® Technology
Power
Battery Type: Standard Capacity Lithium-ion Battery
(VGP- BPL11)
Estimated Battery Life: 4.5 -8.5 hours Standard Capacity
Battery
7.0 -13.0 hours Large Capacity Battery
Power Requirements: 68W + 10%
Software
Operating System: Genuine Microsoft® Windows Vista®
Business with SP1
Internet Services: AOL® 90 -Day Risk Free Trial -New Users
Only
Supplied Software: Microsoft® Works SE 9.0 w/ 60 - Day
Trial Version of Microsoft® Office Small Business 2007
Security and Anti -Virus Software: Microsoft® Windows
Live™OneCare™Trial Version
The VAIO® Software Experience: Click to Disc™ Editor -
DVD Creation
VAIO Movie Story -Movie Creation
VAIO Music Box -Playlist Creation
*Please access VAIO® Help and Support from your
PC for a complete list of software applications and
trials.
Service and Warranty Information
Telephone Support: 1 year toll -free technical telephone
assistance, available 24/7
Online and Email Support: Support available from
http://www.esupport.sony.com/EN/VAIO
Limited Warranty Term: 3 year limited warranty . See
actual warranty for details.
Environmental Information
EPEAT ™: Meets Silver EPEAT™Rating
RoHS®: Compliant
For more information: www.sony.com/vaioeco
Regulation and Standard Compliance
Energy Star® Compliant: 4.0
Dimensions
Weight: 2.65 lbs. (with standard battery)
Measurements: 10.9"(W) x 0.88 - 1.17"(H) x 7.8"(D)
Supplied Accessories
Standard Capacity Lithium-ion Battery (VGP- BPL11)
AC Adapter (VGP- AC16V13)
Power Cord
Cleaning cloth
Optional Accessories
Large Capacity Battery (VGP- BPX11)
9
3
15
16
11
11
14
13
12
7
8
Additional Standard Lithium-ion Battery (VGP- BPL11)
Stick AC Adapter (VGP- AC16V10)
Port Replicator (VGP-PRTZ1)
Bluetooth® Laser Mouse (VGP- BMS33/B)
Bluetooth® Presentation Controller (VGP-BRMP10)
USB Portable Speaker (VGP- USP1)
100GB Portable Hard Drive with Wireless Keys (VGP-
UHDM10/B)
Black Leather Proctection Case (VGP-CKTZ2/B)
Neoprene Notebook and AC Adapter Case (VGP-AMC6)
Color: Black
UPC Code: 27242746183
1.GHzdenotesmicroprocessorinternalclockspeed;otherfactorsmay
affectapplication performance. CPU speed will be reduced under
certain operating conditions.
2.GBmeansonebillion bytes when referring to hard drive capacity.
Accessiblecapacitymayvary.Aportionof hard disk space is
reservedasarecoverypartition.
3.Requires802.11ncompatibleaccesspoint.Somefunctionalitymay
requireInternet services, which may require a fee.
4.BroadbandInternetservicerequiredalongwiththirdpartyservices
whichmay require a subscription or other servicefee.
5.DVD media/formats are not universally compatible.
6. Viewable area measured diagonally.
7.Non - metricweights and measures are approximate and mayvary.
8.Measuredatthenarrowestpoint
9.i.Linkisa trademark of Sony used only to designate that a product
containsanIEEE1394connector.Allproductswithani.LINK
connectormaynotcommunicatewitheachother.
10.Total Available Graphics Memory refers to the newWindowsVista ®
classificationofgraphics memory, which is the total of Dedicated
VideoMemory,SystemVideoMemoryandShared System Memory.
SharedSystem Memory variesdependingon the operating
condition,driversoftwareversionandsystemmemorysize.
11.Actualbatterylifemayvarybasedonproductsettings,usage
patternsand environmental conditions. Batterylifewillbe shorter with
models equipped with Instant Mode features.
12.Seeactuallimitedwarrantyfordetails.ForacopyofSony'swarranty,
pleasevisit www.sony.com/pcsupport, call toll - free888 - 476 - 6972
(888 - 4SONYPC)or write toSonyElectronics, 12451 Gateway
Boulevard,FortMyers,FL33913.
13.Forcertainthirdpartysoftware applications, Sony provides first level
phonesupport.Additional telephone support may be available from
theapplicable3rdpartyvendor. Availability and schedule for any
suchsupport is determined by the aplicable software vendor.
14.60 - DayTrial Version of Microsoft ® Office2007 - Thistrial softwarewill
workonlyfor60daysafteryou first use it. You will not be able to use
thesoftwareifyoudontactivateitasdescribedthefirsttimeyouuse
thesoftware. You can activatethesoftwareby Internet: Internet
servicechargesmayapply.Ifyouwant to keep using the software
afterthe60 - daytrial period, youmustconvertto the perpetual
version.Youcanconvertonlinebyfollowingtheconversion
instgructions presented during setup and paying the required fees.
15.FreeMonth Offer: Limited time offer. Subject to change. You willbe
chargedaregularmonthlyfeeforyourselectedconnectioncard
plan.Aonemonthservice credit will be applied to your account
within1 - 3billcycles.Servicecredit will be for the amount of the
monthlyrate charge only.Seewww.sony.com/sprint for complete
offerdetails, price plans, service terms and conditions,andcoverage
map.ClicktheSprinticononyourVAIOnotebook ’ sdesktopfor
serviceactivation. Coveragenotavailable everywhere – see
coveragemapfordetails.Creditapproval and $200 early termination
feeappliesif not cancelled within the first 30 days. Servicedefaultsto
NationwideSprint PCS Network,whereavailable,if Sprint Mobile
BroadbandNetworkisunavailable.Notavailablewhile roaming.
Terms&Conditionsandadditionalrestrictionsapply. May not be
combinedwith other offers.
16.Interoperability and compatibility among Bluetooth ® devicesvaries.
ComputerInterface: For this producttherearea multitude of varying
software packages and add - onhardwareoptions.Thisproductisnot
manufacturedtoworkwith any specific software, and Sony does not and
cannotmake any warranty orrepresentationwithrespect to the
performanceofthisproductwithanyparticularsoftwarepackages
and/or non - Sony add - onhardwareoptionsexceptthose mentioned here.
Sonyhereby disclaims anyrepresentationsorwarranties that this
product is compatible with any combination of non - Sonyproductsyou
maychoose to connect toit.WhileSony representatives or Sony
authorizeddealersmaybeableto assist you and may make
recommendations,they are NOT authorizedtovaryor waive this
disclaimer.Purchasersmust determine for themselves the suitability and
compatibilityofthehardwareandsoftwareineachandevery particular
instance.Software titles pre - installedon the Sony computer are subject
tochangewithoutnotice.Preinstalledsoftwaremaynotbeidenticalto
retailversionsorhave all documentation. Features and specifications are
subjecttochangewithout notice. This product meets the standards of the
InternationalEnergyStarProgramforenergyefficiency.
©2008Sony Electronics Inc. Allrightsreserved.Reproduction in whole or
inpartwithoutwrittenpermissionisprohibited.Sony,VAIO, the VAIO logo,
XBRITE - HiColor,Memory Stick Duo,MagicGate,MOTIONEYE, i.LINK and
Clickto Disc are trademarks of SonyintheU.S. and in other coutries.
Microsoft,WindowsLive,OneCare,WindowsVistaaretrademarksofthe
MicrosoftCorporationintheU.S.andin other countries. Intel and
Centrinoare registered trademarks and Coreisatrademark of the Intel
CorporationintheU.S.andinothercountries. Bluetooth is a registered
trademarkof SIG, Inc. Sprint and the “ MovingForward ” logoare
trademarksof Sprint Nextel. Energy StarandtheEnergy Star mark are
registeredU.S. marks All othertrademarksaretrademarks of their
respectiveowners.
PrintedinU.S.A.06/08.
16
16
9
