Sony VGN-S170B User manual

Welcome
Congratulations on your purchase of this Sony VAIO®computer, and welcome to the online VAIO®Computer User Guide.
This user guide provides detailed information on all aspects of using your new VAIO computer, from keyboard functions to
preinstalled software programs.
In the left navigation window, click the topics you want to learn more about, and that information will be displayed in this
main window.
View the Electronic Flyer, which provides updates and supplemental information about your computer.
Go to the Sony Computing Support Web site to view the VAIO®Computer Specifications, which list your computer's
hardware specifications and preinstalled software information.
For Sony software information, click Start and select Welcome to VAIO life.
Page 1

Ergonomics and Caring for Your Computer
This section provides information on how to safely use your Sony computer.
Page 2

Applying Ergonomics
Your computer is a portable device and can be used in a variety of environments. Whenever possible, you should apply the
following ergonomic considerations:
Position of your computer —Place the computer directly in front of you as you work. Keep your forearms
horizontal, with your wrists in a neutral, comfortable position while using the keyboard, touch pad, or external
mouse. Let your upper arms hang naturally at your sides. Take breaks during sessions with your computer.
Excessive use of the computer may strain muscles or tendons.
Furniture and posture —Sit in a chair with good back support and armrests. Adjust the level of the chair so your
feet are flat on the floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid
slouching forward or leaning far backward.
Viewing angle of the computer's display —Tilt the display to find the best viewing angle. Also try adjusting the
brightness setting of the display. Following these suggestions can reduce eye strain and muscle fatigue.
Lighting —Choose a location where windows and lights do not create glare or reflection on the display. Use indirect
lighting to avoid bright spots on the display. You can purchase accessories for your display that help reduce glare.
Proper lighting adds to your comfort and work effectiveness.
Placement of an external display —When using an external display, set the display at a comfortable viewing
distance. Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.
Page 3

Storing Your Computer
Do not use or store your computer in a location subject to:
Heat sources, such as radiators or air ducts
Direct sunlight
Excessive dust
Moisture or rain
Mechanical vibration or shock
Strong magnets or speakers that are not magnetically shielded
Ambient temperature higher than 95ºF (35ºC) or less than 40ºF (5ºC)
High humidity
Do not place electronic equipment near your computer. When running, the computer's electromagnetic field may
cause other electronic equipment in close proximity to malfunction.
Provide adequate air circulation to prevent internal heat buildup. Do not place your computer on porous surfaces
such as rugs or blankets, or near materials such as curtains or draperies that may block ventilation. Leave a space
of at least 8 inches (20 cm) behind the back of the computer.
If the computer is brought directly from a cold location to a warm one, moisture may condense inside your computer.
In this case, allow at least one hour before turning on your computer. If any problems occur, unplug your computer,
and contact your Sony Service Center.
The computer uses high-frequency radio signals and may interfere with radio or TV reception. Should this occur,
move the computer a suitable distance away from the radio or TV.
Do not drop the computer or place heavy objects on top of the computer.
Page 4

Using Cables and Connections
Use only specified peripheral equipment and interface cables.
Do not use cut or damaged connection cables.
If the telephone company makes a service call to your home or office and determines that your computer is
responsible for a problem, the telephone company may bill you for the service call. Also, if you do not disconnect
your computer when it is adversely affecting a telephone line, the telephone company has the right to disconnect
your service until you correct the problem.
Page 5

Cleaning Your Computer
Clean the computer with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use
any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish
of your computer. You can use canned compressed air specifically for computers to remove dust.
If a solid object falls onto the computer or a liquid leaks into the computer, immediately turn off and unplug the
computer. It is best to have the computer checked by qualified personnel before you use it again.
Avoid rubbing the LCD screen as this can damage the screen. Use a soft, dry cloth to wipe the LCD screen or
canned compressed air.
Always disconnect the power cord before cleaning the computer.
Page 6

Handling the LCD Screen
Direct sunlight can damage the LCD. Be careful when using the computer near a window.
Do not scratch the LCD or exert pressure on it. This can cause a malfunction.
Using the computer in low temperature conditions may produce a residual image on the screen. This is not a
malfunction. When the computer returns to normal temperature, the screen returns to normal.
The screen becomes warm during operation. This is normal and does not indicate a malfunction.
The LCD is manufactured using high-precision technology. You may, however, see tiny black points and/or bright
points (red, blue, or green) that continuously appear on the LCD. This is a normal result of the manufacturing
process and does not indicate a malfunction.
Page 7

Locating Controls and Ports
Congratulations on your purchase of the Sony®VAIO®computer. Sony has combined leading-edge technology in audio,
video, computing, and communications to provide state-of-the-art personal computing.
Front
1Computer screen (LCD) 7Hard disk drive indicator
2Power button 8Optical drive indicator
3Keyboard 9Memory Stick®media indicator
4Left and right buttons 10 Wireless LAN indicator1
5Power indicator 11 Bluetooth®indicator1
6Battery indicator 12 Wireless switch1
1Wireless LAN and Bluetooth capabilities are available on selected models only.
Front
Page 8

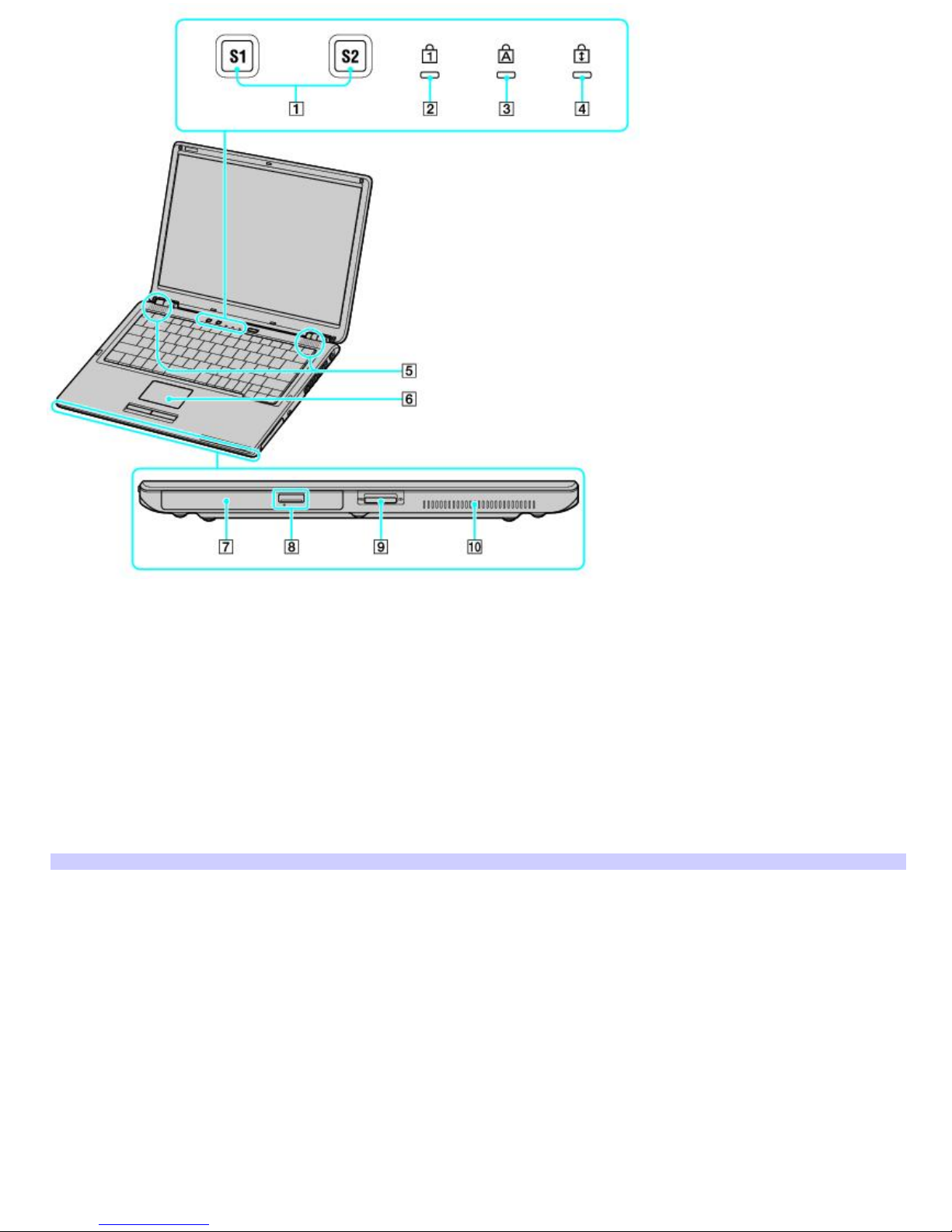

1S1 and S2 programmable buttons 6Touch pad
2Num lock indicator 7Optical drive
3Caps lock indicator 8Optical drive eject button
and manual eject hole
4Scroll lock indicator 9Memory Stick®media slot
5Speakers 10 Air vent
Left
Page 9

1Network (Ethernet) port 5Monitor (VGA) port
2Modem jack 6PC Card slot
3Microphone jack 7PC Card eject button
4 Headphone jack
Gently pull the protective tab away from the computer to find the Ethernet port and modem jack.
Only connect 10BASE-T or 100BASE-TX cables to the Network (Ethernet) port. Do not connect any
other type of network cable or any telephone line to this port. Connecting cables other than those listed above may
result in an electric current overload and could cause a malfunction, excessive heat, or fire in the port. To connect the
unit to a network, see Network Connections or contact your network administrator.
Right
Page 10

1i.LINK®(IEEE 1394) S400 port 3Air Vent
2USB 2.0 ports 4DC IN port
Gently pull the protective tab away from the computer to find the i.LINK S400 and USB 2.0 ports.
Back
1Battery connector
Bottom
1Reset button 3Port replicator connector
Page 11

2Memory module cover 4Air vent
Page 12

About the Indicator Lights
Indicator Function
Power
Turns on when the power to the computer is on, blinks in Standby mode, and turns off when the computer is
in Hibernate mode or off.
Battery
Turns on when the computer is using battery power, blinks when the battery is running out of power,
double-blinks when the battery is charging.
Optical Drive
Turns on when data is read from or written to the optical drive. Do not enter Standby mode or turn off the
computer when this indicator is on.
Memory Stick®
Turns on when data is read from or written to the Memory Stick media. (Do not enter Standby mode or turn off
the computer when this indicator is on.) When the indicator is off, the Memory Stick media is not being used.
Hard Disk
Turns on when data is read from or written to the hard disk. Do not enter Standby mode or turn off the
computer when this indicator is on.
Num Lock
Press this key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad. The
numeric keypad is not active when the indicator is off.
Caps Lock
Press this key to type letters in uppercase. Letters appear in lowercase if you press Shift while the indicator is
on. Press the key a second time to turn off the indicator. Normal typing resumes when the Caps Lock indicator is off.
Scroll Lock
Press this key to change how you scroll the display. Normal scrolling resumes when the Scroll Lock indicator is
off. The Scroll Lock key functions differently depending on the program you are using and does not work with all programs.
Bluetooth®1Turns on when the wireless switch is set to ON and Bluetooth technology is enabled.
Wireless
LAN1Turns on when the wireless LAN function is running.
1O n selected models only.
See Internet and Network Connections for more information about Bluetooth and wireless technology.
Page 13

Using S1 and S2 Buttons
The S1 and S2 buttons are pre-programmable buttons that enable you to quickly enter a power saving mode, switch
between displays, launch an application, alter the sound, or increase the screen's brightness.
Page 14

About the S1 and S2 buttons
The following information shows where the S1 and S2 buttons are located, and briefly describes their functionality.
Page 15

Locating the S1 and S2 buttons
The S1 and S2 buttons are located just above the keyboard.
Locating the S1 and S2 buttons
Using the S1 and S2 buttons
To assign a function to the button
1. Click Start, and point to All Programs and then Sony Notebook Setup.
2. From the Sony Notebook Setup submenu, click Sony Notebook Setup.
3. Click to select the S Button tab.
Sony Notebook Setup
4. Click to select a key assignment from the S1 or S2 drop-down menu.
5. Click Apply.
Depending on the key assignment, you may be able to customize the S1 and S2 buttons further by clicking Advanced,
if it becomes available, in the Current Settings box.
Page 16

Using the Touch Pad
Describing the Touch Pad
A pointing device called a touch pad is located in front of the keyboard. You can point to, select, drag, and scroll objects on
the screen using the built-in touch pad.
Page 17

Using the Touch Pad
Describing the Touch Pad
A pointing device called a touch pad is located in front of the keyboard. You can point to, select, drag, and scroll objects on
the screen using the built-in touch pad.
Page 18

Locating and using the touch pad
Locating the Touch Pad
Touch Pad Action Description
Sliding one finger Equivalent to using a mouse to place the pointer on an item.
Tapping once Equivalent to pressing the left button once.
Tapping twice Equivalent to pressing the left button twice.
Sliding one finger while pressing the left button Equivalent to using the mouse to drag an item.
Moving your finger along the right edge of the touch pad Equivalent to scrolling vertically. (The scroll function is available
only with programs that support a touch pad scroll feature.)
Moving your finger along the bottom to scroll horizontally Equivalent to scrolling horizontally. (The scroll function is
available only with programs that support a touch pad scroll feature.)
Page 19

Customizing the touch pad
Sony Notebook Setup lets you customize, enable, or disable the touch pad. Open the Mouse Properties dialog box to set
your touch pad and mouse preferences, such as changing pointers, enabling or disabling the tapping feature, clicking both
buttons simultaneously, and adjusting the touch pad speed.
To customize the touch pad and mouse
Right-click the Touchpad icon on the Taskbar Notification area, and click Mouse Properties from the shortcut
menu. The Mouse Properties dialog box appears.
To enable the touch pad
1. Press the Windows key . The Start menu appears.
2. Press Puntil All Programs is selected, and press Enter.
3. Press Suntil Sony Notebook Setup is selected, and press Enter. A submenu appears with Sony Notebook
Setup preselected.
4. Press Enter. The Sony Notebook Setup dialog box appears.
5. Press the Right Arrow key to select the Device tab.
6. Press the Tab key to select the Default button, and press Enter. A pop-up window appears.
7. Press the Left Arrow key to select OK, and press Enter. The Enable Touchpad option is automatically
selected.
8. Press the Tab key to select the Apply button, and press Enter.
9. Click OK.
To disable the touch pad
1. Click Start on the Windows®taskbar, and point to All Programs.
2. Point to Sony Notebook Setup, and click Sony Notebook Setup in the submenu. The Sony Notebook Setup
dialog box appears.
3. Click the Device tab.
4. In the left panel, click to cancel the Pointing Device check box.
5. Click Apply. A Sony Notebook Setup message appears.
6. Click Yes.
