Sony VGN-X505ZP VAIO User manual

Welcome
Congratulations on your purchase of this Sony VAIO®computer, and welcome to the online VAIO®Computer User Guide.
This user guide provides detailed information on all aspects of using your new VAIO computer, from keyboard functions to
preinstalled software programs.
In the left navigation window, click the topics you want to learn more about, and that information will be displayed in this
main window.
View the Electronic Flyer, which provides updates and supplemental information about your computer.
Go to the Sony Computing Support Web site to view the VAIO®Computer Specifications, which list your computer's
hardware specifications and preinstalled software information.
For Sony software information, click Start and select Welcome to VAIO life.
Page 1

Ergonomics and Caring for Your Computer
This section provides information on how to safely use your Sony computer.
Page 2

Applying Ergonomics
Your computer is a portable device and can be used in a variety of environments. Whenever possible, you should apply the
following ergonomic considerations:
Position of your computer —Place the computer directly in front of you as you work. Keep your forearms
horizontal, with your wrists in a neutral, comfortable position while using the keyboard, touch pad, or external
mouse. Let your upper arms hang naturally at your sides. Take breaks during sessions with your computer.
Excessive use of the computer may strain muscles or tendons.
Furniture and posture —Sit in a chair with good back support and armrests. Adjust the level of the chair so your
feet are flat on the floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid
slouching forward or leaning far backward.
Viewing angle of the computer's display —Tilt the display to find the best viewing angle. Also try adjusting the
brightness setting of the display. Following these suggestions can reduce eye strain and muscle fatigue.
Lighting —Choose a location where windows and lights do not create glare or reflection on the display. Use indirect
lighting to avoid bright spots on the display. You can purchase accessories for your display that help reduce glare.
Proper lighting adds to your comfort and work effectiveness.
Placement of an external display —When using an external display, set the display at a comfortable viewing
distance. Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.
Page 3

Storing Your Computer
Do not use or store your computer in a location subject to:
Heat sources, such as radiators or air ducts
Direct sunlight
Excessive dust
Moisture or rain
Mechanical vibration or shock
Strong magnets or speakers that are not magnetically shielded
Ambient temperature higher than 95ºF (35ºC) or less than 40ºF (5ºC)
High humidity
Do not place electronic equipment near your computer. When running, the computer's electromagnetic field may
cause other electronic equipment in close proximity to malfunction.
Provide adequate air circulation to prevent internal heat buildup. Do not place your computer on porous surfaces
such as rugs or blankets, or near materials such as curtains or draperies that may block ventilation. Leave a space
of at least 8 inches (20 cm) behind the back of the computer.
If the computer is brought directly from a cold location to a warm one, moisture may condense inside your computer.
In this case, allow at least one hour before turning on your computer. If any problems occur, unplug your computer,
and contact your Sony Service Center.
The computer uses high-frequency radio signals and may interfere with radio or TV reception. Should this occur,
move the computer a suitable distance away from the radio or TV.
Do not drop the computer or place heavy objects on top of the computer.
Page 4

Using Cables and Connections
Use only specified peripheral equipment and interface cables.
Do not use cut or damaged connection cables.
If the telephone company makes a service call to your home or office and determines that your computer is
responsible for a problem, the telephone company may bill you for the service call. Also, if you do not disconnect
your computer when it is adversely affecting a telephone line, the telephone company has the right to disconnect
your service until you correct the problem.
Page 5

Cleaning Your Computer
Clean the computer with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use
any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish
of your computer. You can use canned compressed air specifically for computers to remove dust.
If a solid object falls onto the computer or a liquid leaks into the computer, immediately turn off and unplug the
computer. It is best to have the computer checked by qualified personnel before you use it again.
Avoid rubbing the LCD screen as this can damage the screen. Use a soft, dry cloth to wipe the LCD screen or
canned compressed air.
Always disconnect the power cord before cleaning the computer.
Page 6

Handling the LCD Screen
Direct sunlight can damage the LCD. Be careful when using the computer near a window.
Do not scratch the LCD or exert pressure on it. This can cause a malfunction.
Using the computer in low temperature conditions may produce a residual image on the screen. This is not a
malfunction. When the computer returns to normal temperature, the screen returns to normal.
The screen becomes warm during operation. This is normal and does not indicate a malfunction.
The LCD is manufactured using high-precision technology. You may, however, see tiny black points and/or bright
points (red, blue, or green) that continuously appear on the LCD. This is a normal result of the manufacturing
process and does not indicate a malfunction.
Page 7

Caution Notes
Your computer is a high-precision machine with unique characteristics. Although it is manufactured to withstand a lot of
various stress factors, great care must also be taken in how it is handled and operated. For general safety guidelines, see
Ergonomics and Caring for Your Computer.
Page 8

Sensitive areas
Temperature notes

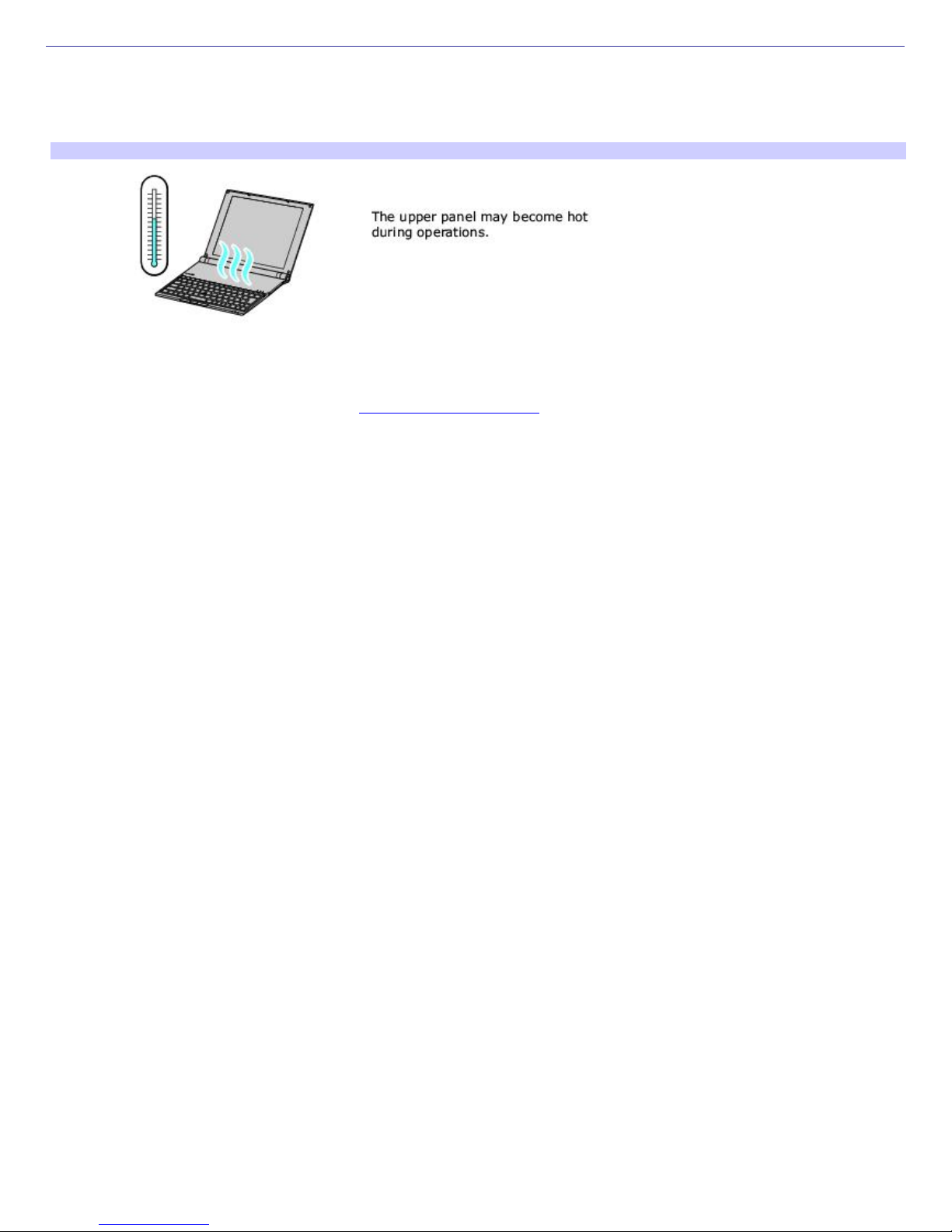

Take care when touching the upper panel, above the keyboard. This area may become hot during computer operations.
High temperatures
The computer may become hot during use; this is normal, and not an indication of a malfunction. You can attempt to cool
down the computer by doing the following:
Change the power scheme settings. See Conserving Battery Power for more information.
Disconnect any USB peripherals that may be connected to the computer.
Disconnect a PC Card or Wireless LAN PC Card, if one is inserted into the computer's PC Card drive.
Set the computer to Hibernate mode when not in use.
Page 9

Sensitive areas
Temperature notes
Take care when touching the upper panel, above the keyboard. This area may become hot during computer operations.
High temperatures
The computer may become hot during use; this is normal, and not an indication of a malfunction. You can attempt to cool
down the computer by doing the following:
Change the power scheme settings. See Conserving Battery Power for more information.
Disconnect any USB peripherals that may be connected to the computer.
Disconnect a PC Card or Wireless LAN PC Card, if one is inserted into the computer's PC Card drive.
Set the computer to Hibernate mode when not in use.
Page 10

Magnetism notes
Do not expose your computer to magnetic sources, as internal components such as the hard disk drive may be damaged. If
exposed to magnetism, information stored on the hard disk drive may be lost, and other internal components may be
damaged as well.
Magnetic sensitivity
Page 11

Weight pressure notes
Do not put any pressure on the computer or place any heavy objects, such as books or other items, on top of the computer.
If the computer is subjected to heavy pressure from objects or mishandling, internal components may become damaged.
Pressure sensitivity
Page 12

Holding your computer
When moving your computer, always hold it securely with both hands.
Holding the computer
Page 13

Before transporting the computer
When preparing to transport your computer, place the computer into the supplied carrying case.
Using the carrying case
This carrying case is intended to protect your computer from scratches, and will not protect it from shock-related
malfunctions.
Before placing the computer into the carrying case, please remove the AC adapter and PC Card.
Page 14

Locating Controls and Ports
The following illustrations show locations for controls and ports on your computer.

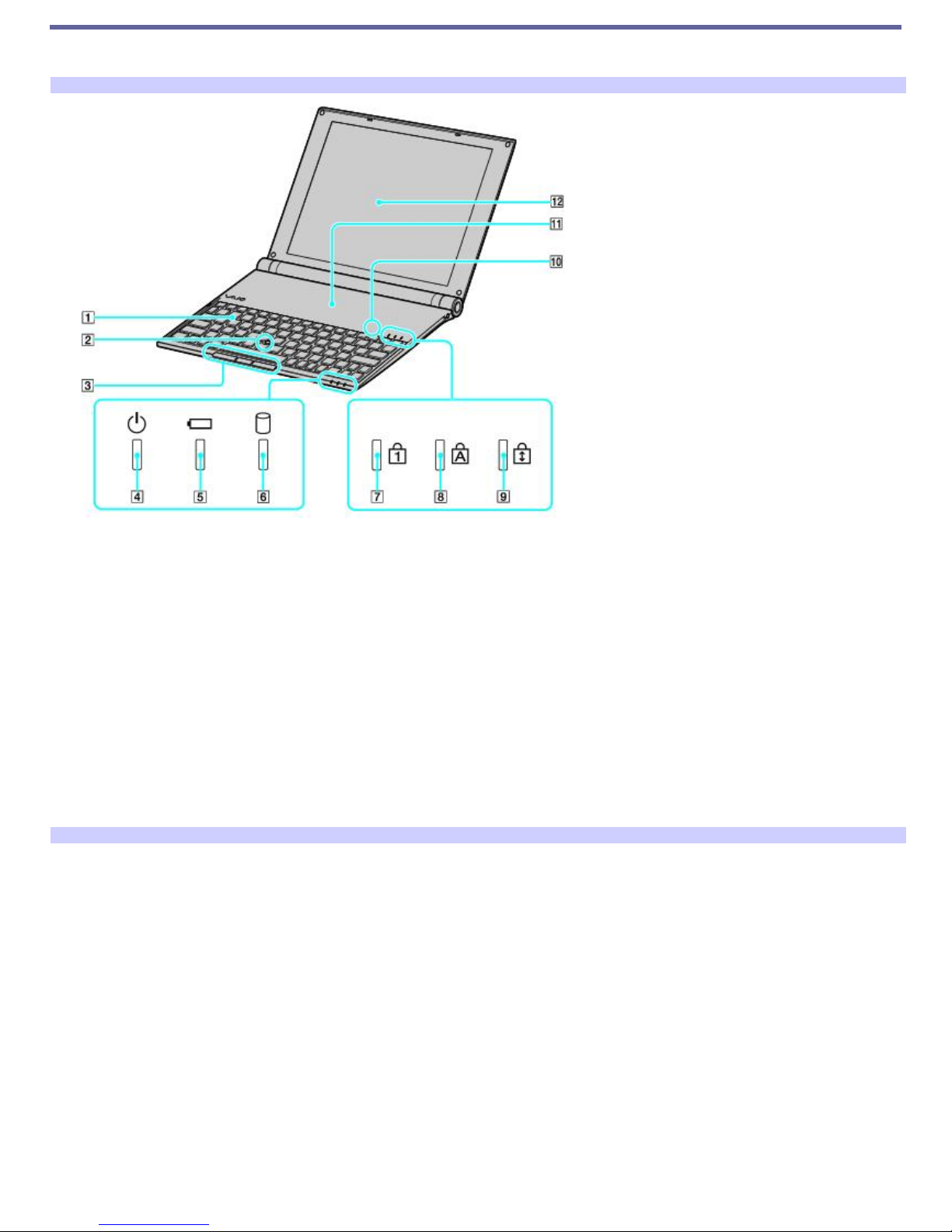

Front
1Keyboard 7Num lock indicator
2Pointing device 8Caps lock indicator
3Left, center, and right buttons 9Scroll lock indicator
4Power indicator 10 Built-in speaker
5Battery indicator 11 Upper panel
6Hard disk drive indicator 12 Computer screen (LCD)
Left
Page 15

1DC In port 4i.LINK®(IEEE 1394) port
2Multipurpose port for VGA/Ethernet adapter 5DC Out port for i.LINK®device
3USB 2.0 ports
Only connect 10BASE-T or 100BASE-TX cables to the Network (Ethernet) port. Do not connect any
other type of network cable or any telephone line to this port. Connecting cables other than those listed above may
result in an electric current overload and could cause a malfunction, excessive heat, or fire in the port.
Right
Page 16

1PC Card eject button 3Headphone jack
2PC Card slot 4Power switch
Bottom
1Model number 2Battery release latches
Page 17

Using the Pointing Device
The pointing device on the keyboard enables you to point to, select, drag, and scroll for, objects on the screen.
Page 18

Describing the pointing device
Locating the Pointing Device
Action Description
Point Press the pointing device in any direction to move the on-screen pointer toward an on-screen item or object.
Click Press the left button once.
Double-click Press the left button twice.
Right-click Press the right button once. In many applications, this action displays a shortcut menu of context-sensitive
choices.
Drag Press the pointing device in a direction to place the pointer on an on-screen item or object. While holding the left
button, press the pointing device in a direction, and then release it at the desired point.
Scroll Press the pointing device while pressing the center button.
The scroll function is available only with applications that support a scroll feature. Pressing the pointing device too
hard may damage it.
Page 19

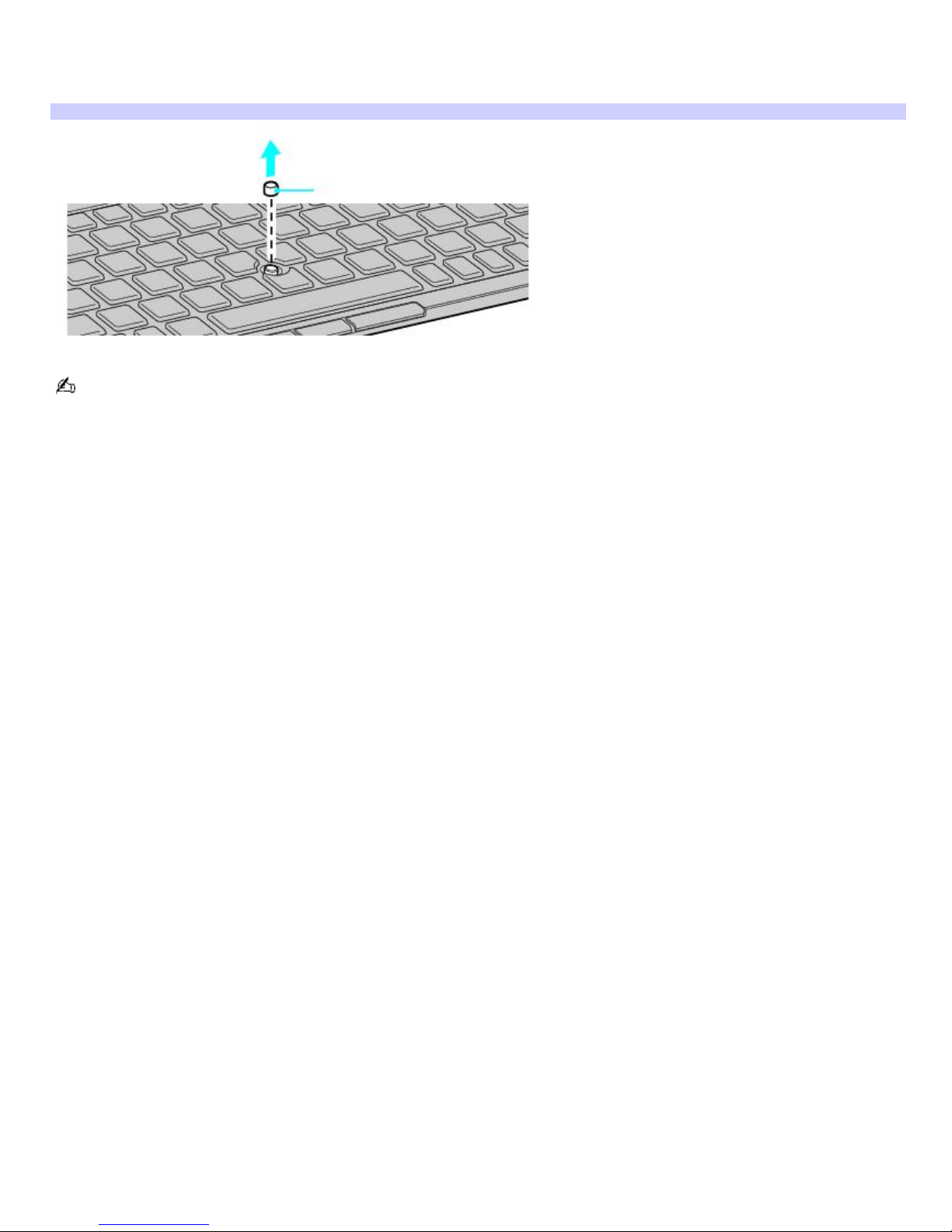

Replacing the pointing device cover
Over time, the pointing device cover may wear out from extensive use. You can take off the pointing device cover and
replace it with the spare cover supplied with your computer.
Replacing the Pointing Device Cover
Make sure the cover is tightly secured to prevent damage to the screen when you close the computer.
