About this manual
(Operating Instructions)
This manual explains how to set up your TV. For more
information on how to use your BRAVIA TV, refer to the
“Electronic manual”.
Operating Instructions
Electronic manual
(i-Manual)
Explains how to set up your TV such as connections,
initial set-up, and basic operations.
For more information, see the i-Manual
Explains how to use all the features. See page 23 on
how to use the i-Manual.
Images and illustrations used in this manual may differ from
the actual screen.

D:\_SONY TV\SY140205_LOTUS 3 (Rev-4)\4528369E51\GB01TOC.fm
KDL-65W950B/55W950B
4-528-369-E5(1)
7GB
Table of Contents
Getting Started
Checking the accessories......................................................................... 8
Inserting batteries into the remote control................................................. 8
1: Attaching the Table-Top Stand ............................................................. 9
2: Connections ........................................................................................ 10
3: Preventing the TV from toppling over..................................................13
4: Bundling the cables ............................................................................ 14
5: Connecting the TV to the Internet........................................................ 15
6: Performing the initial set-up.................................................................16
Watching TV ............................................................................................ 17
Using the remote control ......................................................................... 18
Using Your BRAVIA TV
Discovering the contents you like (Discover).......................................... 20
Enjoying social networking while watching TV (Social Viewing) ............. 20
Selecting various contents and tools (Home Menu) ............................... 21
Looking for Instructions
Looking for instructions in the
electronic manual
(i-Manual)
B .................................. wd
Additional Information
Troubleshooting....................................................................................... 25
Specifications .......................................................................................... 27
Installing Wall-Mount Attachment for Wall-Mount Bracket ...................... 30
Safety Information.................................................................................... 32
Precautions.............................................................................................. 34

D:\_SONY TV\SY140205_LOTUS 3 (Rev-4)\4528369E51\GB03STU.fm
KDL-65W950B/55W950B
4-528-369-E5(1)
8GB
Getting Started
Checking the
accessories
IR Remote Control (1)
Touchpad Remote Control (1)
Size AAA batteries (R03 type) (4)
Cable clamper (2)
Table-Top Stand (2)
Fixing screws for Table-Top Stand
(M5 × 16) (4)
Wall-Mount Attachment (M6) (long) (2)
Wall-Mount Attachment (M5) (short) (2)
Passive 3D Glasses (1)
Isolator (1)
Operating Instructions (this manual) and
other documents
Inserting
batteries into the
remote control
Insert two size AAA batteries (supplied) by
matching eand Eon the batteries to the
diagram inside the battery compartment of
the remote control.
Touchpad Remote Control
1Remove the protection sheet.
2Press the latch and lift the cover to
open.
IR Remote Control
1Remove the protection sheet.
2Push and slide the cover to open.
OR

Getting Started
D:\_SONY TV\SY140205_LOTUS 3 (Rev-4)\4528369E51\GB03STU.fm
KDL-65W950B/55W950B
4-528-369-E5(1)
9GB
1: Attaching the
Table-Top
Stand
xRecommended (edge position)
Refer to the supplied Table-Top Stand
leaflet for proper attachment.
1Remove the cushion of the right side 1,
and attach the Table-Top Stand to the
TV 2.
2Repeat step 1 for the left side.
3Fix the TV to the Table-Top Stand using
the supplied screws.
The arrow marks indicate the
location of the screw holes used for
securing the Table-Top Stand.
~
•If using an electric screwdriver, set the
torque at approximately 1.5 N·m {15 kgf·cm}.
•Two or more people are needed to carry out
this installation.
•Be careful not to pinch the finger during
installation.
xAlternative (middle position)
You can change the Table-Top Stand from
the edge to the middle position by referring
to the instructions below.
1
2




Middle position
1
2
3
Thick cushion
1
3
2
(Continued)

D:\_SONY TV\SY140205_LOTUS 3 (Rev-4)\4528369E51\GB03STU.fm
KDL-65W950B/55W950B
4-528-369-E5(1)
10 GB
~
•Ensure that there are no objects in front of the TV.
To detach the Table-Top Stand from the TV,
remove the screws .
~
•Do not remove the Table-Top Stand for any
reason other than to install corresponding
accessories on the TV.
•For bracket installation, refer to the instruction
guide provided by the Wall-Mount Bracket model
for your TV. Sufficient expertise is required in
installing this TV, especially to determine the
strength of the wall for withstanding the TV’s
weight.

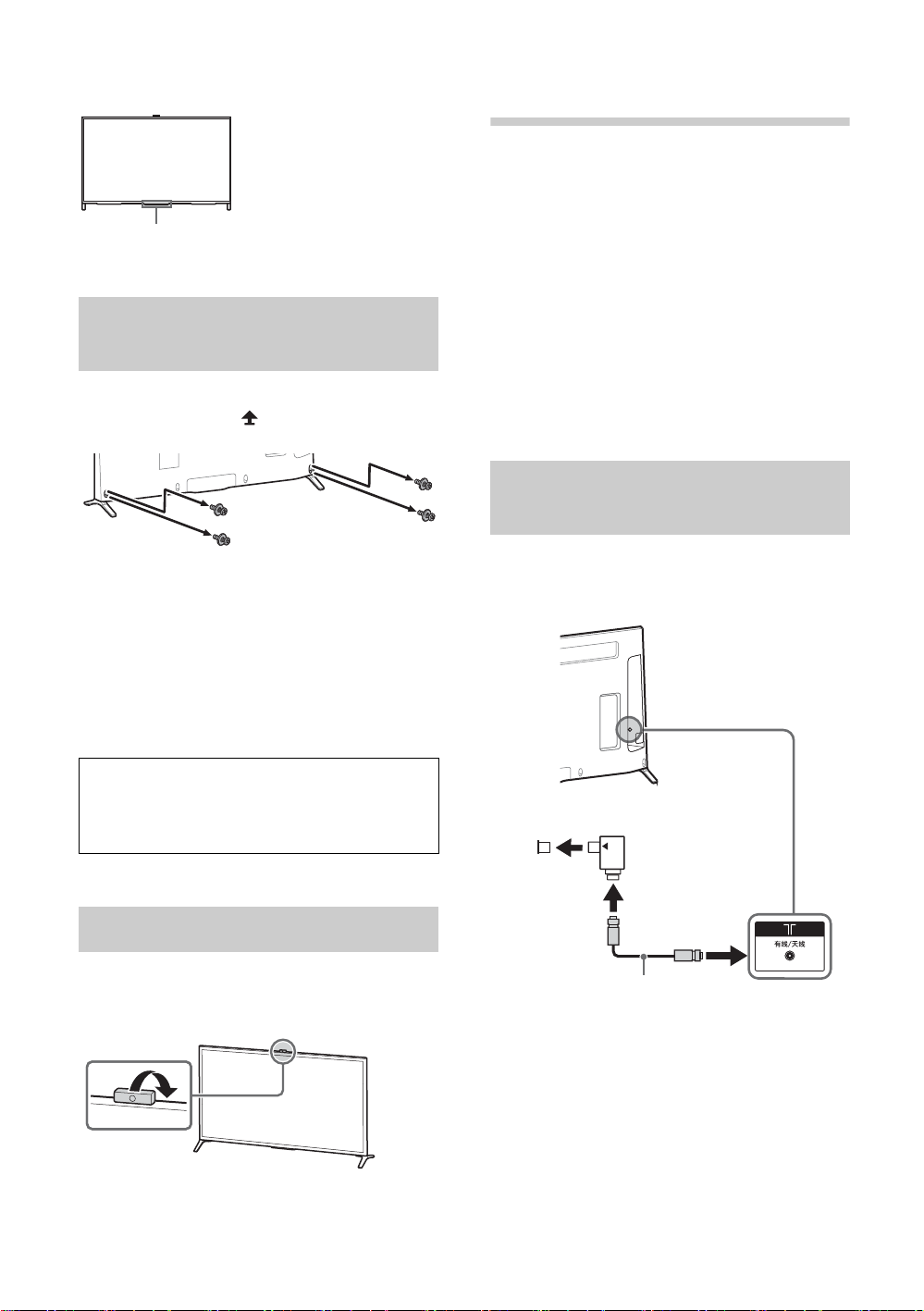

If you do not wish to use the camera, hide it
as illustrated.
2: Connections
~
•Use an antenna (aerial) cable connector no
greater than 14 mm in thickness.
•Use an HDMI cable connector within 12 mm
(thickness) × 21 mm (width).
•在将电视机与有线网络连接时，请务必在天线电缆
与有线网络端子之间接入随机提供的天线隔离器。
否则可能会引起着火等危险。
•如果有线网络端子的形状特殊、无法与天线隔离器
连接，请另行购买可将二者匹配的转接头连接使
用。
•To select an input device connected to the TV,
press 输入选择 .
•For more information on connections, refer to the
i-Manual.
xTo connect an antenna (aerial)/
cable
Detaching the Table-Top
Stand from the TV
For product protection and safety reasons,
Sony strongly recommends that you use
the Wall-Mount Bracket model designed for
your TV and the wall-mounting of your TV
should be performed by Sony dealers or
licensed contractors.
Hiding the camera
IR Sensor
Connecting an antenna
(aerial)/cable/VCR
Antenna (aerial) cable
(not supplied)
天线隔离器
（随机提供）
有线
网络
端子

Getting Started
D:\_SONY TV\SY140205_LOTUS 3 (Rev-4)\4528369E51\GB03STU.fm
KDL-65W950B/55W950B
4-528-369-E5(1)
11 GB
xTo connect a Set Top Box/
recorder (e.g. DVD recorder)
with HDMI
xTo connect an antenna (aerial)/
cable and Set Top Box/VCR
Set Top Box/recorder (e.g. DVD recorder)
Antenna (aerial) cable
(not supplied)
HDMI cable
(not supplied)
Antenna (aerial)
cable (not supplied)
Antenna (aerial)
cable (not supplied)
AV composite cable
(not supplied)
Set Top Box/VCR
(Continued)

D:\_SONY TV\SY140205_LOTUS 3 (Rev-4)\4528369E51\GB03STU.fm
KDL-65W950B/55W950B
4-528-369-E5(1)
12 GB
The TV simultaneously charges the
MHL-compatible connected device while
playing album/music/video files. You can
use the TV remote control to control the
connected MHL-compatible device.
~
•If “Auto Input Change (MHL)” is set to “On”, the
TV automatically switches to HDMI 输入 1/MHL
from other input when MHL-compatible device is
connected to HDMI 输入 1/MHL jack. The
availability of “Auto Input Change (MHL)”
depends on whether the MHL-compatible device
can support this feature.
•If “MHL Charging during Standby” is set to “On”,
you can continue charging the MHL-compatible
device even when the TV is in standby mode.
Connecting audio/video
devices
Component
cable
(not supplied)
Antenna
(aerial) cable
(not supplied)
DVD Player
Antenna
(aerial) cable
(not supplied)
Connecting MHL device
Use authorized
MHL 2 CABLE
with MHL logo
(not supplied) MHL device
SD HD
Picture Quality
• AV composite cable
• Antenna (aerial) cable
Standard definition (SD) videos have
picture signals with a vertical resolution
of 480 (NTSC) or 576 (PAL/SECAM) lines.
• Component cable • HDMI cable
High definition (HD) videos have
picture signals with a vertical
resolution of 720 or 1080 lines.

Getting Started
D:\_SONY TV\SY140205_LOTUS 3 (Rev-4)\4528369E51\GB03STU.fm
KDL-65W950B/55W950B
4-528-369-E5(1)
13 GB
3: Preventing the
TV from
toppling over
1Install the machine screws* (M4, not
supplied) into the screw holes of the TV
and tie with a strong cord (not
supplied).
2Install a wood screw* (not supplied) in
the TV stand. Then, tie the strong cord
to the wood screw.
* TV securing accessories package (sold separately)
~
•Please place the TV set on a stable, level
surface, if place on an unstable place, it may
cause TV set to topple over, fall down, and
cause injuries to people.
•Install the TV so that the TV's Table-Top Stand
does not protrude out from the TV stand (not
supplied). If the Table-Top Stand protrudes out
from the TV stand, it may cause the TV set to
topple over, fall down, and cause injuries to
people.
•For safety reasons, recommend to use securing
method as illustrated. Regarding the securing
accessories, it is recommended to buy from
those sold in market or buy the TV securing
accessories package which is sold separately
by Sony. If required, please contact Sony
customer service centre for help. Please refer
“after sales service website” for details (supplied
leaflet).
The length of the M4 machine screw
differs depending on the cord diameter.
Please see below illustration.


Screw M4
Cord
TV’s rear cover
6-8 mm

D:\_SONY TV\SY140205_LOTUS 3 (Rev-4)\4528369E51\GB03STU.fm
KDL-65W950B/55W950B
4-528-369-E5(1)
14 GB

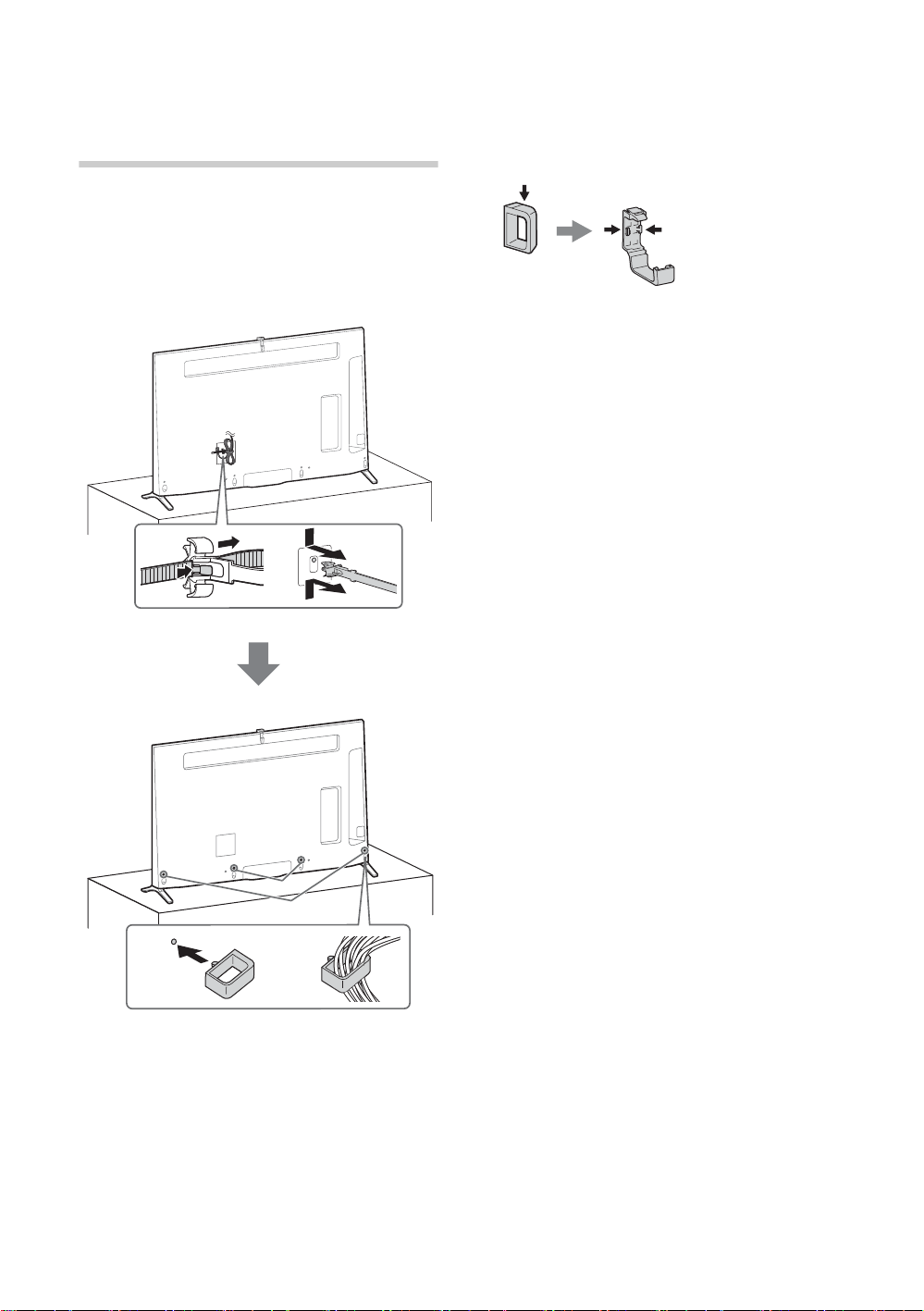

4: Bundling the
cables
Before bundling the cables, remove the
cable holder from the AC cover.
~
•Do not bundle the AC power cord (mains lead)
together with other cables.
*1Location of cable clamper when the Table-Top
Stand is attached to edge position.
*2Location of cable clamper when the Table-Top
Stand is attached to middle position.
~
•To detach the cable clamper from the TV, press
the top of the clamper 1, then pinch 2as
illustrated.


*1
*2


Getting Started
D:\_SONY TV\SY140205_LOTUS 3 (Rev-4)\4528369E51\GB03STU.fm
KDL-65W950B/55W950B
4-528-369-E5(1)
15 GB
5: Connecting
the TV to the
Internet
When you connect this TV to the Internet,
you can enjoy multiple functions. For
details on the functions, refer to the
i-Manual.
~
•You will need to contract with an Internet service
provider to connect to the Internet.
•For more information, refer to the 操作指南 , then
select “Table of Contents” t“Connecting to the
Internet”.
~
•For LAN connections, use a Category 7 cable
(not supplied).
The built-in Wi-Fi device allows you to
access the Internet and your home
network. With this feature, you can connect
to a wireless network and enjoy the
benefits of networking in a cable-free
environment.
Before setting up the Wi-Fi function of the
TV, be sure to set up a wireless router
(access point).
Preparing a wired
network
TV
Internet
Modem
with router
functions
Router
Modem
Internet
or
Preparing a Wi-Fi
connection
Wireless
router
(access
point)
Modem
Internet
TV

D:\_SONY TV\SY140205_LOTUS 3 (Rev-4)\4528369E51\GB03STU.fm
KDL-65W950B/55W950B
4-528-369-E5(1)
16 GB
6: Performing the
initial set-up
1Connect the TV to your AC power outlet
(mains socket).
2Press 电视电源 on the Touchpad
Remote Control.
The illumination LED will light up in
white.
When you switch on the TV for the first
time, the Language menu appears on
the screen.
~
•The illumination LED lights up in different
colours according to the status of the TV. If
you do not wish to light up the illumination
LED, you can turn it off later. Press 主菜单 ,
then select “Settings” t “System
Settings” t “General Set-up” t
“Illumination LED” t“Off”. You can also
press 选项 , then select “Illumination LED” t
“Off”.
3Slide up/down/left/right to select an
item, then press the touchpad (press
V/v/B/b, then press if using IR
Remote Control).
Follow the instructions on the screen.
4Set up the Internet connection by
selecting “Wi-Fi” or “Wired LAN”. If you
will not be using the network features of
the TV, or to set up later, select “Skip”.
~
•The TV will automatically detect and setup the
network when a wired connection is made
before the initial set-up.
•For customers who need to setup their
network connection with a Static IP address
and/or a Proxy server, select “Skip”. After
completing the initial set-up, press 主菜单 ,
then select “Settings” t“Network”
t“Network Set-up” t“Set up network
connection” t“Expert”.
•If you use WEP security, select “Wi-Fi” t
“Connect by scan list”. Then, select the
network name (SSID) you want to connect to.
If you cannot find the required network name,
select “[Manual Entry]” and press the
touchpad (press if using IR Remote
Control) to enter network name.
•To perform “Network Set-up” later, press 主菜
单, then select “Settings” t
“Network” t“Network Set-up”.
•The TV will automatically search for a
software update after the network is setup
and will try to automatically detect your
region.



Getting Started
D:\_SONY TV\SY140205_LOTUS 3 (Rev-4)\4528369E51\GB03STU.fm
KDL-65W950B/55W950B
4-528-369-E5(1)
17 GB
Watching TV

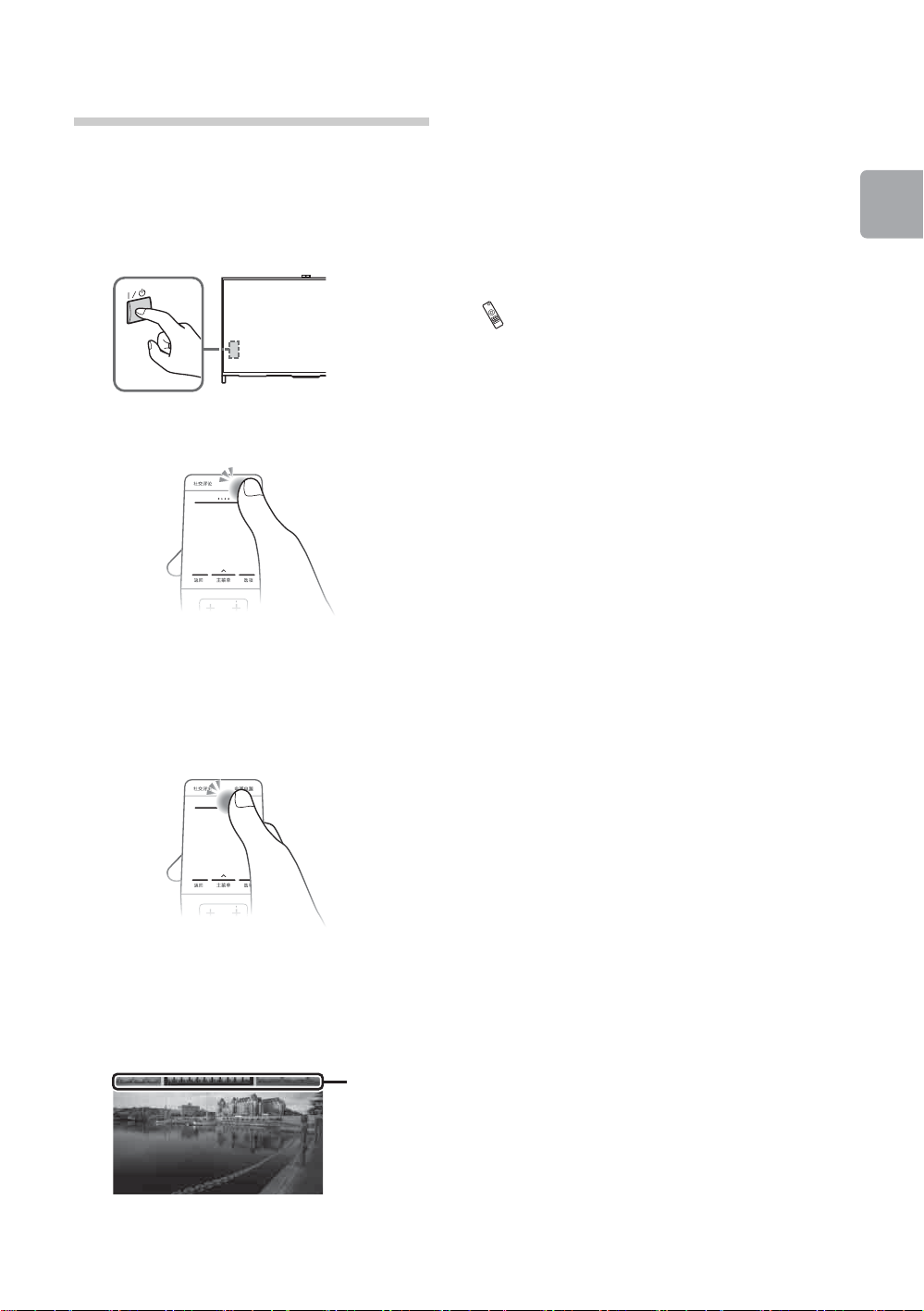

1Turn on the TV.
Press "/1 on the TV or 电视电源 on
the Touchpad Remote Control to turn
on the TV.
or
2Press Control Bar (....).
The Screen Key Pad is displayed on
the screen.
3Slide left/right to select “ 数
字/模拟”, then press the
touchpad to select a mode.
4Press Control Bar (....).
Slide left/right to select a TV
channel or input, then
press the touchpad.
xTo select digital channels
Use 0-9 on the Screen Key Pad. For
channel numbers 10 and above, select the
next digit quickly then press the touchpad.
When using IR Remote Control
1Press "/1 on the TV or 电视电源 on the
remote control to turn on the TV.
2Press 模拟 /数字 to select a mode.
3Press 频道 +/-, 0-9 or 输入选择 to select
a TV channel or select an input.
Use 0-9 to select digital channels. For
channel numbers 10 and above, press the
next digit quickly.
Screen
Key Pad

D:\_SONY TV\SY140205_LOTUS 3 (Rev-4)\4528369E51\GB03STU.fm
KDL-65W950B/55W950B
4-528-369-E5(1)
18 GB
Using the remote
control
You can operate the TV by using the
supplied Touchpad Remote Control or IR
Remote Control.
~
•Touchpad Remote Control can only be used after
registration with the TV. You can register the
Touchpad Remote Control by pressing
主菜单 , then select “Settings” t
“System Settings” t“Touchpad Remote
Control Setup”.
IR Remote Control
Touchpad
Remote Control
IR
Remote Control
Frequently used buttons
2
5
1
3
4

Getting Started
D:\_SONY TV\SY140205_LOTUS 3 (Rev-4)\4528369E51\GB03STU.fm
KDL-65W950B/55W950B
4-528-369-E5(1)
19 GB

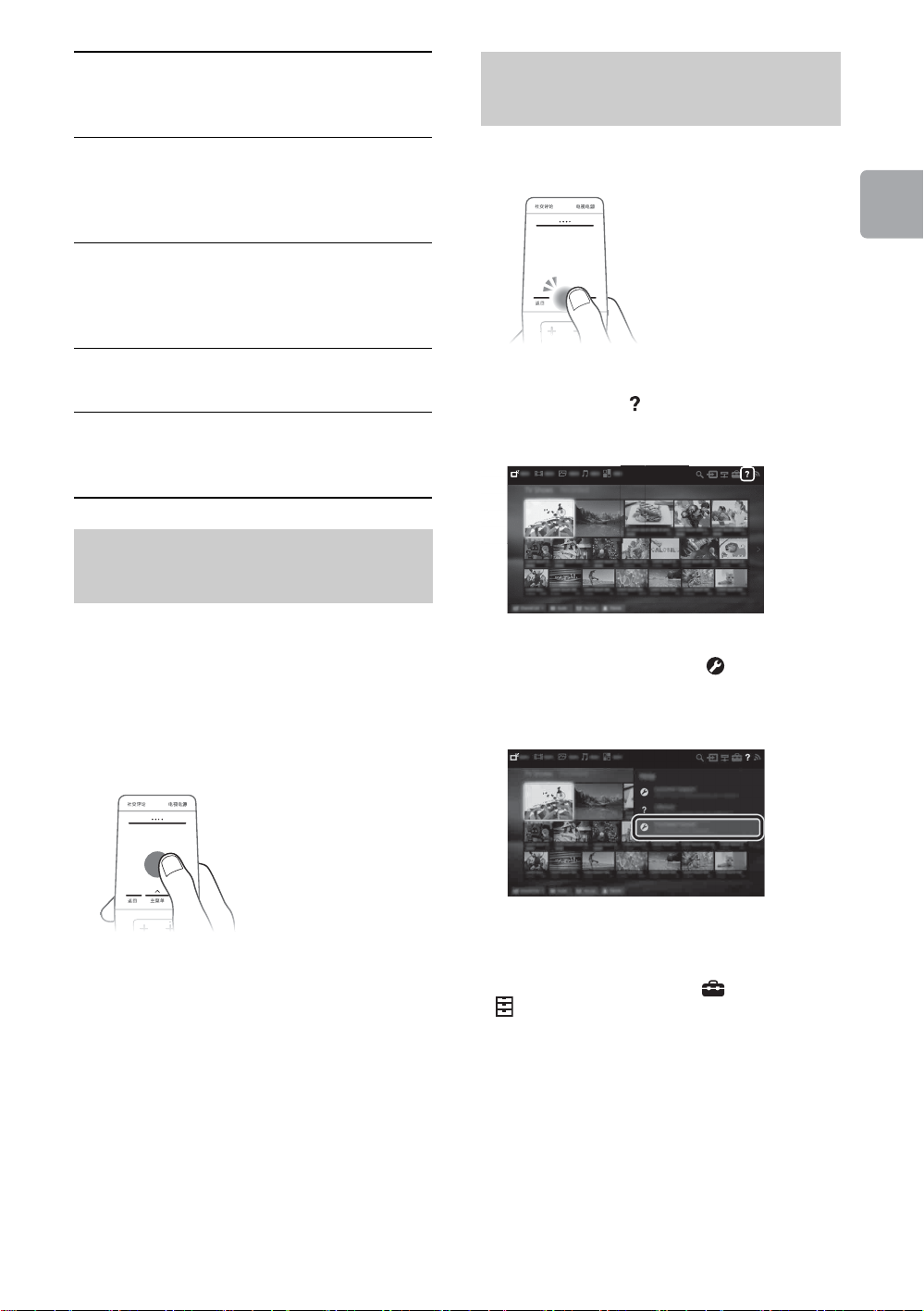

Touchpad Operation Guide allows you to
see the main gesture commands that are
available for the current TV screen.
1Touch and keep your finger on the
centre of the touchpad to display the
Touchpad Operation Guide.
1Press 主菜单 .
2Slide to select “Help”, then press the
touchpad.
3Slide up/down to select “Touchpad
Tutorial”, then press the touchpad.
Follow the instructions on the screen.
~
•You can also launch the Touchpad Tutorial by
pressing 主菜单 , then select “Settings” t
“System Settings” t“Touchpad
configurations” t“Start Tutorial”.
1字幕设定
You can turn subtitles on/off while
watching digital broadcasting.
2声音切换
You can select the sub sound or
secondary language while watching
multiplex broadcasts.
3Colour buttons
When the colour buttons are available,
an operation guide appears on the
screen.
4电子节目指南
Displays the digital programme guide.
5屏显
Displays channel number, programme
details, and the clock.
Displaying the Touchpad
Operation Guide
Launching the Touchpad
Tutorial

D:\_SONY TV\SY140205_LOTUS 3 (Rev-4)\4528369E51\GB04SAF.fm
KDL-65W950B/55W950B
4-528-369-E5(1)
20 GB
Using Your BRAVIA TV
Discovering the
contents you like
(Discover)
You can use Discover to search for content
(such as TV programmes, Internet
contents, etc.). Contents that appear in
Discover vary depending on your TV
model/region/country.
1Slide up from the bottom
area.
2Slide up/down to select the
desired category.
3Slide left/right to select the
desired item, then press the
touchpad.
The selected content is displayed.
When using IR Remote Control
1Press 兴趣探索 .
2Press V/vto select the desired
category.
3Press B/bto select the desired item,
then press . The selected content is
displayed.
Enjoying social
networking while
watching TV
(Social Viewing)
Social Viewing brings the benefits of social
networking to your TV viewing experience.
Press 社交评论 to check what others are
saying about the show from on-screen
comments. The available features in Social
Viewing may vary depending on your TV
model/region/country. You will need a
broadband Internet connection. For details,
see page 15 (5: Connecting the TV to the
Internet). Then, go to “Network Set-up” and
follow the on-screen instructions to connect
your TV to the Internet.
~
•You may need to update the TV’s software to use
this function. Press 主菜单, select “Help” t
“Customer Support” t“Software Update”.
