Sony BRAVIA XBR-48A9S User manual

XBR-48A9S
5-014-798-11(2)
XBR-48A9S
Reference Guide
Manuel de référence
Guía de referencia
US
FR
ES
C:\Users\User\Desktop\SONY TV\NDL\SY20_NDL_UCM_RG_112\01GB\UCM
US\5014798112_US.fm
master page: Cover
5-014-798-11(2)
Television
Téléviseur
Televisor digital a
color con pantalla
de diodo orgánico
de emisión de luz
(OLED)
Service à la clientèle Sony
Canada :
http://www.sony.ca/support
États-Unis :
http://www.sony.com/tvsupport
Canada États-Unis
1.877.899.SONY 1.800.222.SONY
Appelez le numéro de téléphone qui
apparaît sur votre carte/police de garantie.
Ne retournez pas le produit au magasin.
Sony Customer Support
U.S.A.:
http://www.sony.com/tvsupport
Canada:
http://www.sony.ca/support
United States Canada
1.800.222.SONY 1.877.899.SONY
Call the telephone number that appears on
your warranty card/policy.
Please do not return the product to the store.
Centro de Asistencia de Sony
http://esupport.sony.com/ES/LA/
Llame al número de teléfono que aparece
en su tarjeta/póliza de garantía.
Por favor no devuelva el producto a la
tienda donde adquirió el producto.
Lea este manual antes de usar el producto
Read this manual before using this product
Lisez ce manuel avant d’utiliser le produit

C:\Users\User\Desktop\SONY TV\NDL\SY20_NDL_UCM_RG_112\01GB\UCM
US\5014798112_US.fm
master page: Left
XBR-48A9S
5-014-798-11(2)
2US
Note
• Images and illustrations used in the Setup Guide and this
manual are for reference only and may differ from the
actual product.
Location of the identification label
Labels for the TV Model No. and Power Supply rating are
located on the rear of the TV. They can be found by
removing the terminal cover .
IMPORTANT NOTICE
IMPORTANT NOTICE TO MEXICO
This equipment operation is subject to the following two
conditions: (1) It is possible that this equipment or device
may not cause harmful interference, and (2) this equipment
or device must accept any interference, including
interference that may cause undesired operation.
For information related to certificate number, refer to the
package label and/or product.
Note: This product uses the following module for wireless
functionalities:
Model: DHUR-SY63
Brand: Wistron NeWeb Corporation
CAUTION
To prevent electric shock and blade exposure, do not use
this AC plug with an extension cord, receptacle or other
outlet unless the blades can be fully inserted.
• Operate the TV only on 110 V – 240 V AC (U.S.A./Canada
120 V AC)
Note
This television includes a QAM demodulator which should
allow you to receive unscrambled digital cable television
programming via subscription service to a cable service
provider. Availability of digital cable television
programming in your area depends on the type of
programming and signal provided by your cable service
provider.
Safety Information
Notice for customers in the United States
of America
About Manuals
This TV comes with the following manuals. Please retain the manuals for future reference.
Setup Guide
• TV installation and setup.
Reference Guide (this manual) / Safety Documentation
• Safety information, remote control, troubleshooting, wall-mount
installation, specification, etc.
Help Guide (On screen Manual)
• Settings, Android TV functions,
Internet connection,
troubleshooting, etc.
• To open it, press the HELP
button on the remote control
and select Help Guide.
• You can refer to the Help Guide with your
smartphone.
https://rd1.sony.net/
help/tv/husltn1/
h_usltn/
IMPORTANT - Read the End User Software License
Agreement before using your Sony product. Using your
product indicates your acceptance of the End User
Software License Agreement. The software license
agreement between you and Sony is available online at
Sony website (http://www.sony.net/
tv-software-licenses/) or on your product screen. Go to
[Settings] t[Device Preferences] t[About] t[Legal
information] t[End user license agreement].
The 48” class has a 47.5 inch (120.7 cm) viewable image
size (measured diagonally).
Owner’s Record
The model and serial numbers are located at the side
and/or rear of the TV. Record these numbers in the
spaces provided below. Refer to them whenever you call
upon your Sony dealer regarding this TV.
Model Name
Serial No.
CA
Supplier’s Declaration of Conformity
Trade Name: SONY
Model: XBR-48A9S
Responsible Party: Sony Electronics Inc.
Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230

C:\Users\User\Desktop\SONY TV\NDL\SY20_NDL_UCM_RG_112\01GB\UCM
US\5014798112_US.fm
master page: Right
XBR-48A9S
5-014-798-11(2)
3US
FCC Related Information
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Safety and Regulatory
5 GHz bands are restricted to indoor operations only.
Notice for customers in Canada
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including
interference that may cause undesired operation of the
device.
To prevent radio interference to the licensed service, this
device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or its
transmit antenna) that is installed outdoors is subject to
licensing.
High-power radars are allocated as primary users (i.e.
priority users) of the bands 5250-5350 MHz and
5650-5850 MHz and that these radars could cause
interference and/or damage to LE-LAN devices.
Notice for customers in the United States
of America and Canada
This equipment complies with FCC/IC radiation exposure
limits set forth for an uncontrolled environment and meets
the FCC radio frequency (RF) Exposure Guidelines and
RSS-102 of the IC radio frequency (RF) Exposure rules. This
equipment should be installed and operated keeping the
radiator at least 20 cm or more away from person’s body
(excluding extremities: hands, wrists, feet and ankles).
This device and its antenna(s) must not be co-located or
operating with any other antenna or transmitter except
Grant condition.
Compatible Wall-Mount Bracket
Information
Use the following Sony Wall-Mount Bracket with your TV
model.
Use with other Wall-Mount Brackets*2may cause instability
and could result in property damage or injury.
*1 Only on limited region/country/TV model.
*2 For instructions on using the Wall-Mount bracket with
your TV please go to https://www.sony.com/am/
support for your TV model and download “Wall-Mount
Bracket”.
To Customers
Sufficient expertise is required for TV installations. Be sure
to subcontract the installation to a Sony dealer or licensed
contractor and pay adequate attention to safety during the
installation.
Before setting up your TV
Some TV models are packaged with a detached Table-Top
Stand so you can mount your TV to a wall right away. See
“Installing the TV to the Wall” if you want to mount the TV
to a wall. If you are not mounting the TV to a wall, you will
need to attach the Table-Top Stand (refer to the Setup
Guide).
Be sure to consider the following while setting up your TV:
• Disconnect all cables when carrying the TV.
• Before transporting the TV set, remove the stand cover
and terminal covers.
• Carry the TV with the adequate number of people; larger
size TVs require two or more people.
• Correct hand placement while carrying the TV is very
important for safety and to avoid damage.
• Ensure your TV has adequate ventilation, refer to the
safety documentation.
• For best picture quality, do not expose the screen to direct
illumination or sunlight.
• Avoid installing the TV in a room with reflective wall and
floor materials.
• Avoid moving the TV from a cold area to a warm area.
Sudden room temperature changes may cause moisture
condensation. This may cause the TV to show poor
picture and/or poor color. Should this occur, allow
moisture to evaporate completely before powering the TV
on.
Pursuant to FCC regulations, you are cautioned that any
changes or modifications not expressly approved in this
manual could void your authority to operate this
equipment.
Sony TV Model No.
XBR-48A9S
Sony Wall-Mount
Bracket Model No. SU-WL855*1
• When handling or mounting
the TV set, do not lay down
the TV.
US

C:\Users\User\Desktop\SONY TV\NDL\SY20_NDL_UCM_RG_112\01GB\UCM
US\5014798112_US.fm
master page: Left
XBR-48A9S
5-014-798-11(2)
4US
Securing the TV
Preventing the TV from Toppling
• Secure the TV to a wall and/or Stand.
• Do not allow children to play or climb on furniture and TV
sets.
• Avoid placing or hanging items on the TV.
• Never install the TV on:
slippery, unstable and/or uneven surfaces.
furniture that can easily be used as steps, such as a
chest of drawers.
• Install the TV where it cannot be pulled, pushed, or
knocked over.
• Install the TV so that the TV’s Table-Top Stand does not
protrude out from the Stand (not supplied). If the
Table-Top Stand protrudes out from the Stand, it may
cause TV set to topple over, fall down, and cause personal
injury or damage to the TV.
• Route all AC power cords and connecting cables so that
they are not accessible to curious children.
Recommended Measures to Secure the
TV
Consider the following measures when securing your TV to
a Stand (not supplied).
1Secure the Stand for the TV.
Make sure the Stand can adequately support the weight
of the TV. Use two angle braces (not supplied) to secure
the Stand. For each angle brace use the appropriate
hardware to:
• Attach one side of the angle brace to the wall stud.
• Attach the other side to the Stand.
2Secure the TV to the Stand.
Use the optional hardware listed as follows (not
supplied):
• M4 machine screw (screwed into the TV’s stand base).
• A screw or similar (attach it to the Stand).
• Rope or chain (strong enough to support the weight of
the TV). Make sure that there is no excess slack in the
rope or chain.
The length of the M4 machine screw differs depending
on the rope or chain diameter. Please refer to below
illustration.
3Anchor the TV to the wall by using bolts, wall anchor and
chain (or rope).
Sony strongly recommends taking
measures to prevent the TV from
toppling over.
Unsecured TVs may topple and result in
property damage, serious bodily injury
or even death.
Angle brace
(not supplied)
Stand




M4 machine screw
(not supplied)
Rope or chain (not
supplied)
Screw (not
supplied)
1.5 N·m
{15 kgf·cm}
Screw hole on the stand base
6 mm – 7 mm
Screw (M4)
TV’s stand base
Rope or chain
Wall-mount holes
Rope or
chain (not
supplied)
M6 eye bolts (not supplied)

C:\Users\User\Desktop\SONY TV\NDL\SY20_NDL_UCM_RG_112\01GB\UCM
US\5014798112_US.fm
master page: Right
XBR-48A9S
5-014-798-11(2)
5US
Please refer to below illustration for M6 eye bolt length.
Note
• Your TV is shipped with screws attached to the rear of the
TV depending on the TV model. (They are fastened in the
screw holes for wall mounting.) Be sure to remove the
upper two screws prior to anchoring the TV to a wall.
• Securing the TV to the Stand without securing the TV and
the Stand to the wall provides minimum protection
against the TV toppling over. For further protection, be
sure to follow the three measures recommended.
Note
• For details of supported formats, refer to the
“Specifications” in this manual.
• For supported PC formats, refer to the Help Guide.
Wall-anchor
(not supplied)
9 mm – 13 mm
TV’s rear cover
M6 eye bolt
The BRAVIA®4K TV Experience
Thank you for choosing Sony! Your new BRAVIA® TV
opens the door to the “4K TV Experience”. This
document will help you get the most out of your TV.
Please take a moment to register your TV at:
U.S.A.: http://productregistration.sony.com
Canada: http://www.sony.ca/registration
Four Steps to a 4K TV Experience
Set, Source, Sound, and Setup.
1Set
Now that you have made the best selection in OLED
TV technology, be sure to remove all of the
accessories from the packaging before setting up
your TV.
2Source
To experience the stunning detail of your BRAVIA TV,
you need access to HD programming.
• Upgrade your signal or content source to
high-definition (4K) by contacting your HD service
provider.
• Bring the astonishing resolution of your Sony 4K
Ultra HD TV to life with Sony 4K Ultra HD Blu-ray
Player. (The availability depends on region)
• Receive over-the-air HD broadcasts with an
HD-quality antenna connected directly to the back
of your TV.
Visit http://www.antennaweb.org for more
information on antenna selection and setup.
• Discover the wealth of entertainment now available
on super-high resolution Blu-ray Disc™ player and
other Sony HD equipment.
3Sound
Complete the high-definition experience with a
BRAVIA Sync™ surround sound system or A/V
receiver from Sony.
4Setup
Install your TV and connect your sources. To help
assure the highest quality for your HD experience,
use Premium High Speed HDMI (High-Definition
Multimedia Interface) cables.
To learn more about 4K TV, visit:
U.S.A.: http://www.sony.com/HDTV
Canada: http://www.sony.ca/hdtv
This TV displays all video input signals in a resolution of
3,840 dots × 2,160 lines.
US

C:\Users\User\Desktop\SONY TV\NDL\SY20_NDL_UCM_RG_112\01GB\UCM
US\5014798112_US.fm
master page: Left
XBR-48A9S
5-014-798-11(2)
6US
Precautions to Protect the Screen from
Damage
Image retention
OLED TV’s are susceptible to image retention (burn-in) due
to the characteristics of the materials used. Image retention
may occur if images are displayed in the same location on
the screen repeatedly or over extended periods of time.
This is not a malfunction of the TV. Avoid displaying images
that may cause image retention.
The following are examples of images that
may cause image retention:
• Content with black bars either on the top and bottom
and/or the left and right sides of the screen. (for example,
Letterboxed, 4:3 screen, Standard definition)
• Static images such as photos.
• Video games that might have static content in some part
of the screen.
• On-screen menus, program guides, channel logos etc.
• Static content from applications.
• On-screen tickers, such as those used for news and
headlines.
To reduce the risk of image retention:
• Sony recommends that you turn off the TV normally by
pressing the power button on the remote control or the
TV.
• Fill the screen by changing [Wide mode] to eliminate the
black bars. Select [Wide mode] other than [Normal].
• Turn off the OSD (On Screen Display) by pressing the
DISPLAY button, and turn off the menus from connected
equipment. For details, refer to the instruction manuals
for the connected equipment.
• Avoid displaying static images with bright colors
(including white), clocks or logos on any portion of the
screen.
• Set the picture settings based on the ambient conditions.
The Standard Picture is recommended for home use and
when viewing content that often displays the station
logos, etc.
The TV has following features to help reduce/prevent
image retention.
Panel refresh
A panel refresh will adjust the panel uniformity. Panel
refresh can be performed and should only be used when
image retention is very noticeable.
Caution:
• The Panel refresh function may affect the panel. Do not
perform Panel refresh more than once a year as it may
affect the usable life of the panel.
• Panel refresh takes about one hour to complete.
• A white line may be displayed on the screen during the
Panel refresh, this is not a malfunction of the TV.
• Panel refresh will only work when the room temperature
is between 50 ºF and 104 ºF (10 ºC and 40 ºC).
Pixel shift
Automatically moves the image on the screen to prevent
image retention.
Other feature
The screen brightness is automatically reduced when
displaying still images, clocks, bright colors or logos etc.
Remote Control and TV
The remote control shape, location,
availability and function of remote
control buttons may vary depending on
your region/country/TV model.
(The Google Assistant) /
(Microphone): Use the Google
Assistant*1*2or voice search*2. For hints
on how to control your TV press (the
Google Assistant) / (Microphone)
button and speak the phrase “voice
hints”.*1
////:On screen menu
navigation and selection.
TV: Display TV channel list or switch to
input.
(TV standby)
Number buttons
(dot)
APPS: Display a list of installed apps.
Google Play / NETFLIX*1/ Color
buttons
GUIDE: Display the digital program
guide of TV or Cable/Satellite box*1*3.
DVR: Display the Rec list of DVR*3.
Protecting the TV Screen (OLED TV)
MIC
Ȫ
ȫ
Ȭ
ȭ
Ȯ
ȩ

C:\Users\User\Desktop\SONY TV\NDL\SY20_NDL_UCM_RG_112\01GB\UCM
US\5014798112_US.fm
master page: Right
XBR-48A9S
5-014-798-11(2)
7US
INPUT: Display and select the input
source, etc.
(Quick settings): Display Quick
Settings.
BACK
HOME
VOL +/– (Volume)
JUMP
MUTE*4
CH +/– (Channel)
AUDIO: Select the sound of
multilingual source or dual sound
(depend on program source).
SUBTITLE/CC
HELP: Display the Help menu.
///
REC: Record the currently viewed
program on DVR*3.
DISPLAY: Display information.
Guidelines for IR Remote Control
• Point your remote control directly at the
IR sensor located on your TV.
• Make sure that no objects are blocking
the path between the remote control and
the IR sensor on your TV.
• Fluorescent lamps can interfere with your
remote control; try turning off the
fluorescent lamps.
• If you are having problems with the
remote control, reinsert or replace your
batteries and make sure that they are
correctly inserted.
(Power)
Remote Control sensor / Light
sensor / LED
*1 Only on limited region/country/TV model/
language.
*2 The Google Assistant or voice search requires
an Internet connection.
*3 [Cable/Satellite box setup] setting is required.
*4 Accessibility shortcut is available by pressing
and holding MUTE.
Installing the TV to the Wall
Using the optional Wall-Mount Bracket
(SU-WL855 only)*(not supplied)
To Customers:
For product protection and safety reasons,
Sony strongly recommends that installation
of your TV be performed by Sony dealers or
licensed contractors. Do not attempt to
install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the
installation, periodic maintenance and
examination of this product.
Wall-Mount Bracket Installation
Information
This TV’s instruction manual only provides
the steps to prepare the TV for Wall-Mount
installation before it is installed on the wall.
For instructions on Wall-Mount Bracket
installation, see the Installation Information
(Wall-Mount Bracket) on the Sony Customer
Support website for your TV model at the
following address.
https://www.sony.com/am/support
For more information,
refer to the Help Guide.
Ȱ

US

C:\Users\User\Desktop\SONY TV\NDL\SY20_NDL_UCM_RG_112\01GB\UCM
US\5014798112_US.fm
master page: Left
XBR-48A9S
5-014-798-11(2)
8US
Preparing for Wall-Mount Installation
You can use the Wall-Mount Bracket
SU-WL855 (not supplied) to install the TV to
the wall. Make sure to attach the Table-Top
Stand before installing the TV to the wall by
referring to the Setup Guide.
• Prepare the TV for the Wall-Mount Bracket
before making cable connections.
• Follow the instruction guide provided
with the Wall-Mount Bracket for your
model. Sufficient expertise is required in
installing this TV, especially to determine
the strength of the wall for withstanding
the TV’s weight.
• Be sure to entrust the attachment of this
product to the wall to Sony dealers or
licensed contractors and pay adequate
attention to safety during the installation.
Sony is not liable for any damage or injury
caused by mishandling or improper
installation.
• The length of the screw for Wall-Mount
Bracket differs depending on the
Wall-Mount Bracket thickness. Please
refer to below illustration.
• Be sure to store the unused screws and
Table-Top Stand in a safe place until you
are ready to attach the Table-Top Stand.
Keep the screws away from small
children.
Note
• Read the supplied Safety Booklet for additional
safety information.
* Only on limited region/country/TV model.
1Remove the stand cover and
terminal covers.
2Remove the screws from the rear of
the TV.
Note
• Be sure to store the removed screws and reuse
when attaching the Wall-Mount Bracket to the
TV set. Keep the screws away from small
children.
Using the optional Wall-Mount Bracket
(Except SU-WL855) (not supplied)
This TV’s instruction manual only provides
the steps to prepare the TV for Wall-Mount
installation before it is installed on the wall.
Your TV can be mounted to a wall using a
suitable Wall-Mount Bracket (not supplied).
If the Table-Top Stand is attached to the TV,
the TV may require detaching the Table-Top
Stand; see “Detaching the Table-Top Stand
from the TV”.
Prepare the TV for the Wall-Mount Bracket
before making cable connections.
9 mm – 13 mm
Screw (M6)
Wall-Mount Bracket
TV’s rear cover




C:\Users\User\Desktop\SONY TV\NDL\SY20_NDL_UCM_RG_112\01GB\UCM
US\5014798112_US.fm
master page: Right
XBR-48A9S
5-014-798-11(2)
9US
For product protection and safety
reasons, Sony strongly recommends that
installation of your TV on the wall be
performed by qualified professionals. Do
not attempt to install it yourself.
• Follow the instruction guide provided
with the Wall-Mount Bracket for your
model. Sufficient expertise is required in
installing this TV, especially to determine
the strength of the wall for withstanding
the TV’s weight.
• The screws for Wall-Mount Bracket are
not supplied.
• The length of the screw for Wall-Mount
Bracket differs depending on the
Wall-Mount Bracket thickness. Please
refer to below illustration.
• Refer to the following table for
wall-mount hole pattern.
• Be sure to store the unused screws and
Table-Top Stand in a safe place until you
are ready to attach the Table-Top Stand.
Keep the screws away from small
children.
Note
• Read the supplied Safety Booklet for additional
safety information.
• For more detailed information, visit Sony
Customer Support website.*
* Only on limited region/country/TV model.
1Remove the screws from the rear of
the TV.
2Attach the Wall-Mount Bracket (not
supplied) using the screws (not
supplied).
Note
• If using an electric screwdriver, set the
torque at approximately 1.5 N·m {15 kgf·cm}.
Model Name
Wall-mount hole
pattern
×
XBR-48A9S 300 × 300 mm
9 mm – 13 mm
Screw (M6)
Wall-Mount Bracket
TV’s rear cover
Wall-Mount Bracket (not supplied)
Screw (not supplied)
US

C:\Users\User\Desktop\SONY TV\NDL\SY20_NDL_UCM_RG_112\01GB\UCM
US\5014798112_US.fm
master page: Left
XBR-48A9S
5-014-798-11(2)
10US
Detaching the Table-Top Stand from
the TV
To detach the Table-Top Stand from the TV,
remove the screws .
Note
• Do not remove the Table-Top Stand for any
reason other than to install corresponding
accessories on the TV.
• Be sure the TV is vertical before turning on. To
avoid uneven picture uniformity do not power
on the TV with the panel facing down.
• When attaching the Table-Top Stand again, be
sure to fasten the screws (previously removed)
to the original holes on the rear of the TV.
Troubleshooting
General troubleshooting for issues like:
black screen, no sound, frozen picture, TV
does not respond, or network is lost, do the
following steps.
1Restart your TV by pressing the power
button on the remote control for about
five seconds. The TV will restart. If the TV
does not recover, try unplugging the AC
power cord. Then press the power
button on the TV, and release it. Wait for
two minutes, and plug in the AC power
cord.
2Refer to the Help menu by pressing HELP
on the remote control.
3Connect your TV to the Internet and
perform a software update. Sony
recommends you to keep your TV
software updated. Software updates
provide new features and performance
improvements.
4Visit Sony support website (information
provided at the end of this manual).
5Perform the factory data reset.
When you plug in the TV, the TV may not
be able to turn on for a while even if you
press the power button on the remote
control or the TV.
It takes time to initialize the system. Wait
for about one minute, then operate it
again.
How to reset the TV to factory settings
WARNING: The reset will clear all of your
customized settings including the parental
lock setting.
• You can reset the TV to factory settings by
selecting [Factory data reset]. How to
select [Factory data reset], refer to the
Help Guide.
• To force factory data reset, unplug the AC
power cord. Press and hold button on
the TV, then plug in the AC power cord.
• For security purposes, be sure to remove
all personal and account information
before discarding, selling or passing your
TV to someone else by: unlinking/
unregistering, signing out of and
deactivating all network services as well
as factory reset the TV.
The remote control does not function.
• Replace the batteries.
The parental lock password has been
forgotten.
• Enter 4357 for the PIN and enter the new
PIN.
The restricted profile password has been
forgotten.
• Perform the force factory data reset.
The screen becomes darker while
watching TV.
• If the whole image or part of the image
remains still, the screen brightness will be
gradually reduced to prevent image
retention. This is not a malfunction of the
TV.
You are concerned about image
retention.
If the same image is displayed repeatedly
or for long periods of time, image retention
may occur. To reduce image retention, we
recommend that you turn off the TV
normally by pressing the power button on
the remote control or the TV.

C:\Users\User\Desktop\SONY TV\NDL\SY20_NDL_UCM_RG_112\01GB\UCM
US\5014798112_US.fm
master page: Right
XBR-48A9S
5-014-798-11(2)
11US
Note
• Perform Panel refresh only when image
retention is particularly noticeable. Avoid
performing Panel refresh more than once a year
because it may affect the usable life of the
panel.
• Images that include clocks, logos and bright
colors (including white) easily cause image
retention. Avoid displaying these types of
images for long periods of time, otherwise
image retention may occur.
A white line appears on the screen.
• Panel refresh automatically runs after the
TV has been used for long periods of time
to reduce image retention. Panel refresh
starts after the TV is turned off and takes
about one hour to complete. A white line
may be displayed on the screen during
the Panel refresh. This is not a
malfunction of the TV.
The message [Panel refresh did not
finish…] is displayed.
When i) the TV is turned on, ii) the AC
power cord is unplugged, or iii) the room
temperature falls outside of the range
between 50 ºF and 104 ºF (10 ºC and 40 ºC)
during the Panel refresh, the Panel refresh
is not completed. Please avoid the above
three conditions during the Panel refresh.
Specifications
System
Television system
NTSC: American TV Standard
ATSC (8VSB Terrestrial): ATSC compliant
8VSB
QAM on cable: ANSI/SCTE 07 2000 (Does
not include CableCARD functionality)
Channel coverage
Analog terrestrial: 2 – 69 / Digital
terrestrial: 2 – 69
Analog Cable: 1 – 135 / Digital Cable: 1 –
135
Panel system: OLED (Organic Light Emitting
Diode) Panel
Speaker output: 10 W + 10 W + 5 W
Wireless technology
Protocol IEEE 802.11a/b/g/n/ac
Bluetooth® Version 4.2
Input/Output jacks
CABLE/ANTENNA
75 ohm external terminal for RF inputs
/VIDEO IN
Video/Audio input (mini jack)
HDMI IN 1/2/3/4 (support 4K resolution,
HDCP 2.3-compatible)
Video:
4096 × 2160p (60 Hz)*1*2, 4096 × 2160p
(24 Hz)*1, 3840 × 2160p (60 Hz)*2, 3840 ×
2160p (24, 30 Hz), 1080p (30, 60,
120 Hz), 1080/24p, 1080i (60 Hz), 720p
(30, 60 Hz), 720/24p, 480p, PC
Formats*3
Audio:
In eARC (Enhanced Audio Return
Channel) mode
Refer to the Help Guide for details.
Except eARC mode
5.1 channel linear PCM: 32/44.1/48/
88.2/96/176.4/192 kHz 16/20/24 bits,
Dolby Audio, Dolby Atmos, DTS
eARC/ARC (Enhanced Audio Return
Channel/Audio Return Channel) (HDMI IN 3
only)*4
In eARC mode
Refer to the Help Guide for details.
In ARC mode
Two channel linear PCM: 48 kHz 16 bits,
Dolby Audio, Dolby Atmos, DTS
For more information on
troubleshooting, refer to
the Help Guide.
US

C:\Users\User\Desktop\SONY TV\NDL\SY20_NDL_UCM_RG_112\01GB\UCM
US\5014798112_US.fm
master page: Left
XBR-48A9S
5-014-798-11(2)
12US
DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear
PCM: 48 kHz 16 bits, Dolby Audio, DTS)
(Stereo mini jack)
Headphone
1, 2, 3
USB port 1 and 2 support High Speed USB
(USB 2.0)
USB port 3 supports Super Speed USB
(USB 3.1 Gen 1)
LAN
10BASE-T/100BASE-TX connector
(Depending on the operating
environment of the network, connection
speed may differ. The communication
rate and quality are not guaranteed.)
Refer to the Help Guide for supported
files and formats in Home Network.
REMOTE
RS-232C mini jack, IR IN mini jack
These jacks are for receiving the external
control signal.
Power and others
Power requirements
110V–240VAC,50/60Hz(U.S.A./
Canada 120 V AC, 60 Hz)
Power consumption
In use
268 W
In standby*5*6
Less than 0.5 W with 120 V AC and less
than 0.5 W with 240 V AC
Screen size (measured diagonally) (Approx.)
120.7 cm / 47.5 inches (48" class)
Display resolution
3,840 dots (horizontal) × 2,160 lines
(vertical)
Output Rating
USB 1/2
5 V , 500 mA MAX
USB 3
5 V , 900 mA MAX
Dimensions (Approx.) (w × h × d) (mm) /
(inches)
with stand (without stand)
1,069 × 629 × 255 / 42 1/8× 24 7/8× 10 1/8
(1,069 × 624 × 58 / 42 1/8× 24 5/8× 2 3/8)
wall-mount hole pattern
300×300mm
wall-mount screw size (mm)
M6 (length: see “Installing the TV to the
Wall”.)
Mass (Approx.) (kg) / (lb.)
with stand (without stand)
17.6 / 38.8 (13.9 / 30.7)
Others
Optional accessories
Wall-Mount Bracket: SU-WL855
Operating temperature: 0 ºC – 40 ºC / 32 ºF
– 104 ºF
*1 When 4096 × 2160p is input and [Wide mode]
is set to [Normal], the resolution is displayed as
3840 × 2160p. To display 4096 × 2160p, set
[Wide mode] setting to [Full 1] or [Full 2].
*2 To support 18 Gbps, set [HDMI signal format] to
[Enhanced format].
*3 Refer to the online Help Guide for details.
*4 Connect your audio system to the HDMI IN 3 to
route TV audio to your audio system.
*5 Specified standby power is reached after the
TV finishes necessary internal processes.
*6 Standby power consumption will increase
when your TV is connected to the network.
Note
• Optional accessories availability depends on
countries/region/TV model/stock.
• Design and specifications are subject to change
without notice.
• Subscriptions for services and applications may
be required and additional terms, conditions
and/or charges may apply when using the
Google Assistant.
Licensing Information
• The terms HDMI, HDMI High-Definition
Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks
of HDMI Licensing Administrator, Inc.
• Dolby, Dolby Vision, Dolby Atmos, Dolby
Audio, and the double-D symbol are
trademarks of Dolby Laboratories.
Manufactured under license from Dolby
Laboratories. Confidential unpublished
works. Copyright © 2012-2018 Dolby
Laboratories. All rights reserved.
• Gracenote, the Gracenote logo and
logotype, “Powered by Gracenote” logo
are either registered trademarks or
trademarks of Gracenote, Inc. in the
United States and/or other countries.
• Google, Google Play, Chromecast,
YouTube, Android TV and other related
marks and logos are trademarks of
Google LLC.

C:\Users\User\Desktop\SONY TV\NDL\SY20_NDL_UCM_RG_112\01GB\UCM
US\5014798112_US.fm
master page: Right
XBR-48A9S
5-014-798-11(2)
13US
• For DTS patents, see http://
patents.dts.com. Manufactured under
license from DTS, Inc. DTS, the Symbol,
DTS and the Symbol together, and Digital
Surround are registered trademarks or
trademarks of DTS, Inc. in the United
States and/or other countries. © DTS, Inc.
All Rights Reserved.
• Netflix is a registered trademark of Netflix,
Inc.
• TUXERA is a registered trademark of
Tuxera Inc. in the US and other countries.
• All other trademarks are the property of
their respective owners.
US

For Your Convenience
Online
Registration:
Be sure to register your TV.
United States
Canada
http://productregistration.sony.com
http://www.sony.ca/registration
Pour votre commodité
Enregistrement
en ligne
:
Faire en sorte de compléter l’enregistrement de votre
téléviseur.
Canada
États-Unis
http://www.sony.ca/registration
http://productregistration.sony.com
Para su conveniencia
Registro en
línea:
Registre su televisor en:
http://esupport.sony.com/LA/perl/registration.pl
Support Assistance Soporte
http://www.sony.com/tvsupport http://www.sony.ca/support http://esupport.sony.com/ES/LA/
C:\Users\User\Desktop\SONY TV\NDL\SY20_NDL_UCM_RG_112\01GB\UCM
US\BCO.fm
master page: Cover
XBR-48A9S
5-014-798-11(2)
© 2020 Sony Corporation Printed in Mexico

SONY.
Television
Setup Guide
Televiseur
Televisor digital a color con pantalla de diodo organico de emisi6n de luz (OLEO)
Televisor
■ Setup Guide
Iii Manuel de configuration
■ Guia de configuraci6n
iiiGuia de Configurac;ao
Sony Customer Support
U.S.A.:
http://www .sony. com/tvsupport
Canada:
http://www .sony. ca/support
United States
1.800.222.SONY
Canada
1.877.899 . SONY
Please Do Not Return the Product to the Store
Service ala clientele Sony
Canada :
http:/ /www.sony.ca/support
Etats-Unis :
http:/ /www.sony.com/tvsuppo rt
Canada
1.877.899.SONY
ttats- Unis
1. 800 . 222.SONY
Ne retournez pas le produit au magasin
✓
ILea este manual antes de usar el producto
Centro de Asistencia de Sony
http://esupport.sony.com/ES/LA/
Llame al numero telef6nico que aparece en
su p61iza de garantia.
Por favor no devuelva el producto a la tienda
donde adq uiri6 el producto .
Suporte ao Cliente Sony
https: / /www.sony . com . br /electronics/support
Por favor, nao devolva o produto aloja
5-017-247-11(1)
BRAVIA
OLEO
XBR-48A9S

© 2020 Sony Corporation Printed in Mexico
*1Only on limited region/country/TV model. / Uniquement pour certaines régions/pays/modèles de
téléviseurs. / Solo en regiones/países limitados/Modelo de TV. / Somente para determinadas regiões/
países/modelos de TV.
2 31
4
1.5 N∙m/1,5 N∙m
{15 kgf∙cm}
x 4
M5L14
*1
5 6
SN
M5L14
SB
SB
IM
SN M5L14
CA CB CD • •
• •
~~
f -~
-
=
+
ID
-
0 . . -.c_
~ ~
& -==---==--
&

CATV
1234
CATV
*3
*3 *2*4*5
*4*4*5
*2

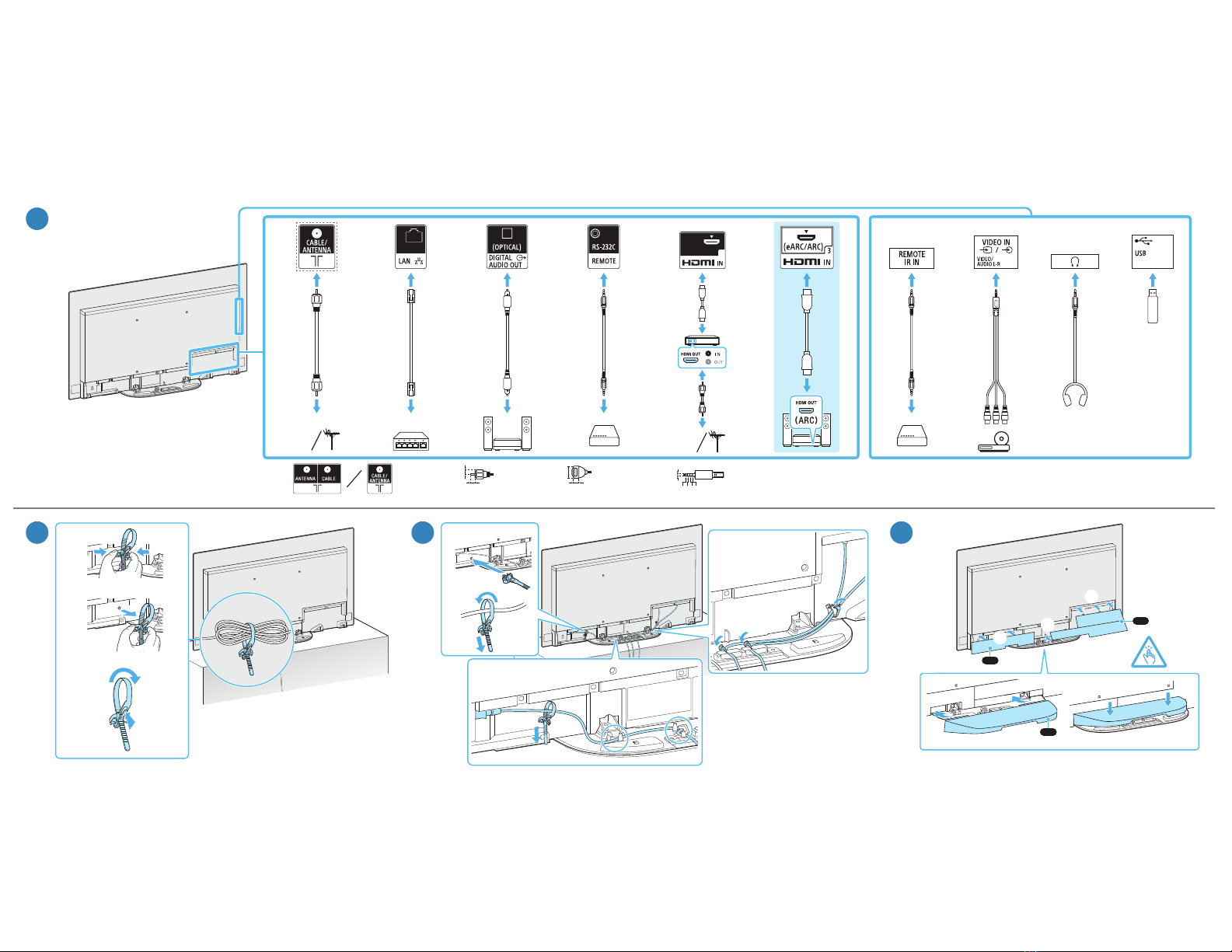

< 7 mm
< 1.5/1,5 mm
< 21 mm 3.5/3,5 mm
< 12 mm
7
1 : L / G / L (Izq.) / L (E)
2 : Video / Vidéo / Vídeo
3 : GND / Tierra
4 : R / D / R (Der.) / R (D)
ʖ
ʕ

ʓ
ʓ
108ʓ
ʔ
ʕ
ʔ
ʓ
CA
CB
9
CD
• I
t t
• •
0
y a
l= F§J>
I:@)-
• '
I
~
'
l!i
+ t
~
~
♦
t
•
1,~
•
t 0 t Li t
□
.,~ =-- ~
,------~
~~

11
2
1
12
ʓ
ʔ
ʔ
•

http://www.sony.net/tv-how-to-videos
Tips / Conseils / Consejos / DicasHelp / Aide / Ayuda / Ajuda
000
I I I
C)C)C)C)
000
~
~
ogo
o o @i,:;...---
o o o
0 0 0
