KDS- 60A2020
60" Diagonal SXRD– Rear Projection Television
Key Features
Full HD (1920 x 1080)Picture Resolution with SXRD™ chip
3 SXRD™chips (R/G/B), Over 2 Million Pixels each
Contrast Ratio up to 10000:1 (with Advanced Iris)
1
1080p Input for Full HD via HDMI™ rear connections (x2)
Black Paint finish: Sleek and Stylish Design
3 SXRD Full HD Resolution (1920 x 1080/0.61 ” SXRD chip)
WEGA Engine ™System
Advanced Iris function
ATSC Integrated Tuner
HDMI x 2 inputs for digital connectivity (1080p input)
Key Technologies
SXRD™Chips SXRD technology is the latest display technology developed by the legendary television engineers at Sony to meet
and exceed the demands of a High Definition image at its full 1080 line resolution. Digitally transmitted High Definition signals can
contain over 2 million individual detail points that need to be displayed accurately and rapidly. SXRD displays those 2 million detail
points per SXRD panel accurately since the 3 SXRD chips actually contain enough pixels to fully display a 1080 line picture without
interlacing it.
SXRD technology has the speed to create a smooth, film like image. The SXRD chips have a blistering response time (less than 5ms
total rise and fall time), which exceeds the demands of even the most rapidly moving High Definition images. And SXRD creates highly
accurate, natural colors because the 3 -chip design displays all the colors, all the time.
Advanced Iris Advanced Iris Function -The Advanced Iris function is a special Sony function designed to improve contrast
expression especially in darker scenes. The Advanced Iris function is enabled by using either one of two modes - Auto and Manual. The
Auto Mode has two settings designed to work best with video content such as movies that vary between bright scenes and dark
scenes. Auto 1 is for programs that have a wide range of brightness from scene to scene. Auto 2 is for programs that have less variation
between brightness levels from scene to scene.
The Manual mode is used to help deliver optimum contrast levels under different room lighting conditions. The High mode offers
maximum screen brightness and works well when a room is brightly lit. The Medium mode is for average levels of light. And the Low
mode offers the maximum amount of contrast and works best under low light conditions. The key benefits are deep blacks and
improved brightness and overall contrast.
WEGA Engine™Video Processor Leveraging Sony’ s TV heritage and engineering expertise, the latest generation of Sony ’ s
exclusive WEGA Engine™is born. Its fully digital signal-processing path includes video processing functions that are designed to
improve overall picture quality. Among the key functions that have been added to the WEGA Engine are:> Green, blue and white color
enhancer circuit, which selectively adjusts common natural colors like green, white and blue color levels for a more vivid image,
> Digital MPEG Noise Reduction Circuit, which reduces MPEG artifacts such as “block noise”and mosquito noise”caused by
compression used in digital broadcasts used to maximize bandwidth.
> Digital Contrast Enhancer circuit processes every field automatically selecting out details and optimizing contrast for each scene.
Adaptive processing improves the low contrast parts of the picture providing crisp and vivid images with high contrast.
The overall result of WEGA Engine has to be seen to be believed.
HDMI™and PC Inputs Designed for maximum versatility, Sony’s Grand WEGA™line is equipped with a comprehensive range of
input interfaces. The HDMI (High -Definition Multimedia Interface) is the first industry-supported, uncompressed, all-digital audio/video
interface. HDMI technology supports enhanced or High Definition video, together with multi-channel digital audio to provide
matchless image and sound reproduction. A D-Sub 15 input also allows connection to your PC , allowing you to use your high
resolution Grand WEGA TV as a computer monitor.
5

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 05/23/2008
KDS- 60A2020
60" Diagonal SXRD– Rear Projection Television
Please visit the Dealer Network for current
information at www.sony.com/dn
Features
General
VideoLabel: Yes
Closed Captions (CC): Yes
Video
VideoProcessing: Yes (WEGA Engine™
System)
ColorTemperature: Cool, Neutral, Warm
NoiseReduction: Yes
BlackCorrector: High, Medium, Low, Off
ClearWhite: On, Off
GammaCompensation: High, Medium,
Low, Off
CineMotion ® Reverse 3:2 Pulldown
Technology: Yes
AdvancedIris: Yes
DRC ® MultiFunctionCircuitry: Yes (DRC MF
V1.0)
DRC ® Mode: Mode 1, Mode 2, CineMotion ®
Technology
DRC ® PalettePresets: Custom 1, Custom
2, Custom 3
DirectMode: On, Off
GameMode: On/Off
Auto Adjustment (PC): Yes
Advanced Video Menu: Yes
PictureModes: Vivid, Standard, Custom
DetailEnhancer: High, Medium, Low, Off
ColorSystem: ATSC, NTSC
DisplayTechnology: SXRD™Technology
HighDefinition: Yes (Full HD 1080)
3D Comb Filter: Yes
Audio
MTS Stereo Decoder: Yes
A/V Synch: Off/1/2/3
AudioMute: Yes
AutoSAP: Yes
Steady Sound ® AutomaticVolume
Control: Yes
Dolby ® : Dolby ® Digital (AC3/ATSC only)
Convenience
FavoriteChannel: Yes
Speed Surf™ChannelSelection: Yes
Program Guide Access: Yes
Parental Control (V - Chip): Yes
InfoBanner: Yes
ProgrammableTimer: Yes
SleepTimer: 15, 30, 45, 60, 90, Off
TimerEvents: Timer 1, Timer 2
Power Save Mode: Standard, Reduced,
Picture Off
PictureFreeze: Yes
RemoteControl: Yes
ID - 1Detection: Yes
Specifications
General
AspectRatio: 16:9
TelevisionType: Micro Display HDTV
Display
Screen Size (measured diagonally): 60"
class (59.5")
NativeResolution: 1920 x 1080
DisplayResolution: 1920 x 1080p (Full HD)
TV System
Tuner(Cable): hybrid with Clear QAM
Tuner(Terrestrial): NTSC, ATSC (8 VSB)
Video
Display Response Time: 2.5ms (rise and
fall)
VerticalSize: Yes
VerticalCenter: Yes
HorizontalCenter: Yes
Audio
Audio Power Output: 24W (12W x2)

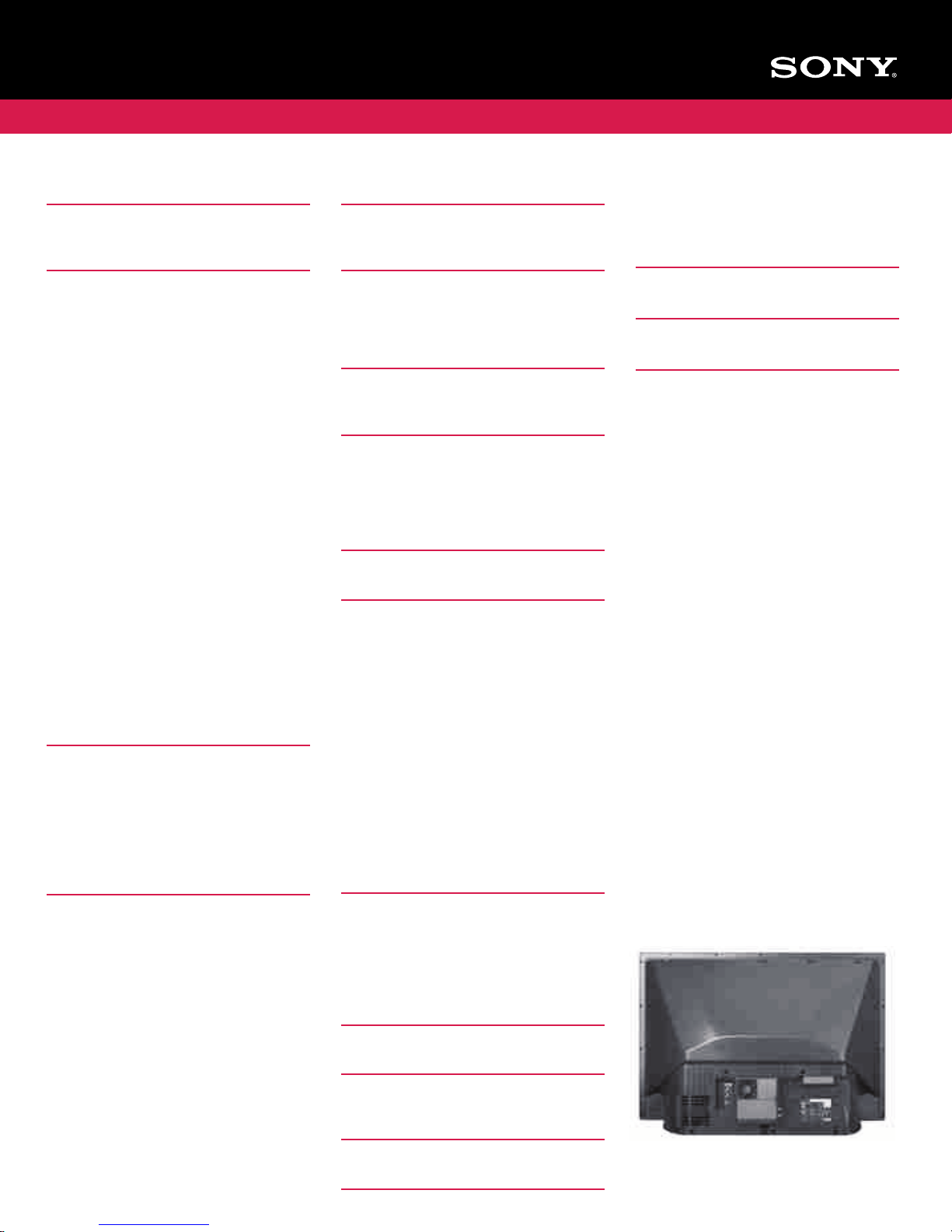

Inputs and Outputs
Component Video (Y/Pb/Pr ) Input(s): 3
(1 Front/2 Rear)
Composite Video Input(s): 3 (1 Front/2
Rear)
Digital Audio Output(s): 1 (Rear) Dolby ®
Digital Optical Output
RF Connection Input(s): 1 (Rear)
S- VideoInput(s): 1 (Rear)
PC Audio Input(s): 1 (Rear)
PC Video Input(s): 1 (Rear)
Analog Audio Input(s) (Total): 5 (1
Front/4 Rear)
AudioOut: 1 (Rear)
HDMI™Connection(s)(Total): 2 (Rear)
HDMI™Connection(s) (w/ Analog Audio
In): 1 rear input included L/R audio inputs
Power
Power Consumption (in Operation): 210W
Power Consumption (in Standby): 0.5W
PowerManagement: Yes
Power Requirements (voltage): AC 120V,
60Hz
Regulation and Standard
Compliance
Energy Star ® Compliant: Yes
Service and Warranty Information
LimitedWarranty: 1 Year Parts / 1 Year
Labor
Dimensions
Weight: 94lbs 13oz (43 kg)
Supplied Accessories
Remote Control (RM - YD010)
5
5
4
Operating Instructions
Quick Start Guide
Batteries (AA x2)
Warranty
Product Registration Card
Optional Accessories
SU - RS11X (AV Stand)
XL - 5200 (120W Replacement Lamp)
Color: Black
UPC Code: 027242714830
1.WithAdvancedIrisON
2.Dependingon usage, the lamp will require periodic replacement to
maintainoptimumpicturequality.Itisrecommendedthatthelamp
be exchanged after 8,000 hours of use.
3.Screen Size measured diagonally
4.Foradditionalwarrantytermsandinformationpleaserefertothe
LimitedWarrantyCardincludedwiththisproduct or visit
http://esupport.sony.com
5.Limitedtoresolutionssupportedbyboth the PC and the Sony TV. See
SonyTVusersmanualandPC documentation for supported
resolutions
©2007SonyElectronicsInc.Allrightsreserved.
Sony,GrandWEGA, Steady Sound, WEGA Engine, Speed Surf,
SXRD,CineMotionand DRC are trademarksofSony.SRS and the SRS
symbol,andTruSurround are trademarks of SRS Labs, Inc. This TV
incorporates High - DefinitionMultimediaInterface(HDMI™ ) technology.
HDMI, the HDMI logo and High - DefinitionMultimedia Interfaceare
trademarksor registered trademarks ofHDMILicensingLLC. All other
trademarksarepropertyoftheirrespectiveowners.
Features and specifications are subject to change without notice. Non -
metricweights and measures are approximate.
Lampinthisproductcontainsmercury.Disposalofthesematerialsmay
beregulateddue to environmental considerations. For disposal or
recyclinginformation,pleasecontact your local authorities or the
ElectronicIndustries Alliance (www.eiae.org)
