Sony SRS-D4 User manual
Active Speaker System
SRS-D4
4-260-411-51(1) English
Before operating the system, please
read this manual thoroughly and retain
it for future reference.
WARNING
To reduce the risk of fire or electric
shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical shock,
do not open the cabinet.
Refer servicing to qualified personnel
only.
To reduce the risk of fire, do not cover
the ventilation opening of the
apparatus with newspapers,
tablecloths, curtains, etc.
Do not place the naked flame sources
such as lighted candles on the
apparatus.
To reduce the risk of fire or electric
shock, do not expose this apparatus to
dripping or splashing, and do not place
objects filled with liquids, such as
vases, on the apparatus.
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
As the main plug of AC power adaptor
is used to disconnect the AC power
adaptor from the mains, connect it to
an easily accessible AC outlet.
Should you notice an abnormality in it,
disconnect it from the AC outlet
immediately.
The system is not disconnected from
the mains as long as it is connected to
the AC outlet, even if the system itself
has been turned off.
Important Safety
Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near
water.
6) Clean only with dry cloth.
7) Do not block any ventilation
openings.
Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat
sources such as radiators, heat
registers, stoves, or other apparatus
(including amplifiers) that produce
heat.
9) Do not defeat the safety purpose of
the polarized or grounding-type
plug. A polarized plug has two
blades with one wider than the
other. A grounding type plug has
two blades and a third grounding
prong. The wide blade or the third
prong are provided for your safety.
If the provided plug does not fit
into your outlet, consult an
electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being
walked on or pinched particularly
at plugs, convenience receptacles,
and the point where they exit from
the apparatus.
11) Only use attachments/accessories
specified by the manufacturer.
12) Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during
lightning storms or when unused
for long periods of time.
14) Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such as
power-supply cord or plug is
damaged, liquid has been spilled or
objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does
not operate normally, or has been
dropped.
Note
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
Reorient or relocate the receiving
antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
This Class B digital apparatus complies
with Canadian ICES-003.
Precautions
On safety
The dating code and the nameplate are
located on the bottom exterior of the
subwoofer.
Before operating the system, be sure
that the operating voltage of the
system is identical to that of your
local power supply.
Where purchased
Operating voltage
All countries/regions 100 V – 240 V AC,
50/60 Hz
Use only the supplied AC power
adaptor.
On operation
Should any solid object or liquid fall
into the system, have the system
checked by qualified personnel
before operating it any further.
Although the satellite speakers are
magnetically shielded, the subwoofer
is not, so do not leave recorded
tapes, watches, personal credit cards,
or floppy disks with magnetic
coding in front of the system for an
extended period of time.
On placement
Do not set the system in an inclined
position.
Do not place the system on rough
ground, especially the subwoofer
since the speaker grille is on the
bottom exterior.
Do not leave the system in a location
near heat sources, or in a place
subject to direct sunlight, excessive
dust, moisture, rain or mechanical
shock.
On cleaning
Do not use alcohol, benzine or thinner
to clean the cabinet.
If the TV picture or monitor
display is magnetically
distorted
Although the satellite speakers are
magnetically shielded, the subwoofer is
not, and there may be cases that the
picture on some TV sets/personal
computers may become magnetically
distorted. In such a case, turn off the
power of the TV set/personal
computer once, and after 15 to 30
minutes turn it on again. In the case of
a personal computer, take appropriate
measures such as data storage before
turning off.
If no improvement is apparent, locate
the system farther away from the TV
set/personal computer. Furthermore,
be sure not to place objects in which
magnets are attached or used, such as
audio racks, TV stands, toys, etc., near
the TV set/personal computer. These
may cause magnetic distortion to the
picture due to magnetic interaction.
If you have any questions or problems
concerning this system that are not
covered in this manual, please consult
your nearest Sony dealer.
Identifying parts
(See fig. )
Power indicator
(power) button
VOLUME (volume) control
BASS (bass) control
Rch (right speaker) jack
Lch (left speaker) jack
DC IN 12V jack
INPUT (input) jack
Power Sources
(See fig. )
Connect the AC power adaptor
to the DC IN 12V jack.
Notes on the AC power adaptor
Use only the supplied AC power
adaptor. To avoid damaging the
system do not use any other AC
power adaptor.
Polarity of the plug
Plug the AC power adaptor into a
nearby AC output. In the case of a
problem, unplug from the AC outlet
immediately.
Do not place the AC power adaptor
on a bookshelf or in a confined
place, such as a cabinet.
To avoid fire or electric shock do not
use the AC power adaptor in a place
subject to liquid or moisture.
Furthermore, do not place liquid-
filled vessels, such as vases, etc., on
the AC power adaptor.
Hooking up the
system (See fig. )
1Connect the satellite speakers
(L/R) to the subwoofer.
Either satellite speaker can be used
for the right and left channels.
When connecting to the
subwoofer, the speaker connected
to the Rch jack outputs the right
channel sound, and the speaker
connected to the Lch jack outputs
the left channel sound.
Set the satellite speaker connected
to the Rch jack to your right, and
set the satellite speaker connected
to the Lch jack to your left.
2Connect the system to a source
device.
Use the audio cable to connect.
When the system is connected
to the monaural jack of a
source device
The sound may not come through the
satellite speaker connected to the Rch
jack.
Notes
If the PC volume adjustment (master
volume, WAV volume, etc.) is low, sound
may be insufficient. If so, turn up the
sound of the PC. For details on volume
adjustment on your PC, refer to its
operating instructions.
Make sure the connection of the audio
cable and the jack of the source device is
made properly.
If connecting the system via a device with
a built-in radio or tuner, radio broadcasts
or TV sound may not be received, or
sensitivity may be reduced significantly.
If you remove the audio cable while the
source device (PC, etc) is working, the
equipment or your ears may be damaged
by unexpected loud sound. Be sure to
lower the volume of the source device (PC,
etc) and turn off the system when
removing the audio cable from the source
device.
Listening to the
sound
First, turn down the volume on this
system. When connecting the system
to the headphones output, turn down
the volume of the source device.
1Press the button to turn on.
The power indicator lights up.
2Start playback of the source
device.
3Adjust the volume.
VOLUME control: Adjusts the
overall volume.
BASS control: Adjusts the low tone
of the subwoofer.
4Press the button to turn off
after use.
The power indicator goes off.
To adjust the bass volume level
Turn the BASS control on the
subwoofer to adjust the bass volume.
Set the bass volume to an undistorted
level to prevent system damage.
Notes
If the source device has a bass boost
function or equalizer function, set to off. If
these functions are on, sound may be
distorted.
Although this system is designed to be
used with a PC or a portable audio device,
if the system volume and the bass volume
are high, depending on the volume setting,
the operating software, and the devices
being connected, the satellite speaker
sound may be paused. This is caused by
the protection circuit, and it’s not a
malfunction. Turn down the volume and
the bass volume during use.
Turning the system
on/off automatically
How the Auto Power function
works
This feature is only available when
the button is in the ON position.
If a signal is input, the system turns
on automatically.
If no signal is input for about 25
minutes or more*, the system turns
off automatically.
* This may vary according to how the
system is used.
Notes
If the input signal level is too low, the
system will not turn on automatically.
If a device that generates microwaves, such
as a mobile phone, is nearby, the system
may be turned on unintentionally by the
device.
If a mobile phone is connected to the
system, the system may be turned on
unintentionally by noise or an incoming
call. When connecting a mobile phone,
turn on/off the system manually by the
button.
The system may not turn off automatically
because of received noise, depending on
the source device.
If no device is connected, the system may
not turn off automatically, or it may turn
on unintentionally.
The beginning of the input signal may not
be heard, depending on the input signal
level.
When leaving the system unattended, press
the button to OFF to prevent
malfunction.
If the power is turned off automatically, the
button remains on, but the power
indicator turns off. The system turns on
automatically after receiving an input
signal (such as a music signal), and then
the power indicator turns on. Even with no
input signal (e.g., music signal), you can
turn on by turning off and then on again.
If no signal is input for about 25 minutes
or more, the system turns off automatically
again.
Troubleshooting
Should you experience any problems
with your speaker system, check the
following list and take the suggested
measures. If the problem persists,
consult your nearest Sony dealer.
No sound
Check that both this system and the
source device are turned on.
Turn up the volume of the system.
Turn up the volume of the source
device as high as possible before the
onset of distortion. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
Make sure all connections have been
correctly made.
If the mute function of the volume
adjustment of your PC is set, cancel
it.
Disconnect the audio cable from the
system and the PC or source device;
then, firmly reconnect the audio
cable to the system’s INPUT jack and
the headphone jack (stereo mini
jack) of the PC or source device.
Low sound level
Turn up the volume of the source
device as high as possible before the
onset of distortion. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
Turn up the volume of the system.
Ensure that your PC sound balance
is set to the center.
Disconnect the audio cable from the
system and the PC or source device;
then, firmly reconnect the audio
cable to the system’s INPUT jack and
the headphone jack (stereo mini
jack) of the PC or source device.
Distorted sound
Turn down the volume of the source
device to the point where the sound
is no longer distorted. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
If the source device has a bass boost
function, set it to off.
Turn down the volume of the
system.
There is hum or noise in the
system output.
Make sure all connections have been
correctly made.
Make sure no audio devices are
positioned too close to the TV set.
The brightness of the power
indicator is unstable.
The brightness of the power indicator
may become unstable when the
volume is turned up.
The sound comes through only
one satellite speaker.
If connecting the system to the
monaural jack of a source device, the
sound may come through only one
satellite speaker.
Specifications
Speaker section
Speaker system
Satellite speaker (2): 46 mm
(1 13/16 in), full range,
magnetically shielded
Subwoofer (1): 95 mm
(3 3/4in)
Enclosure type
Satellite speaker: Closed
Subwoofer: Bass reflex
Impedance
Satellite speaker: 10
Subwoofer: 5
Amplifier section
Reference output power
Satellite speaker: 7 W + 7 W
(10 % T.H.D., 1 kHz, 10 )
Subwoofer: 13 W (10 %
T.H.D., 100 Hz, 5 )
Input Stereo mini jack × 1
Input impedance
5 k (at 1 kHz)
General
Power DC 12 V (supplied AC
power adaptor)
Dimensions (w/h/d)
Satellite speaker: Approx.
94 × 176 × 119 mm (3 3/4×
7 × 4 3/4in)
Subwoofer: Approx.
200 × 196 × 213 mm (7 7/8×
7 3/4× 8 1/2in)
Mass Satellite speaker:
Approx. 400 g (14 oz)
Subwoofer: Approx. 1,300 g
(2 lb 14 oz)
Supplied accessories
AC power adaptor (AC-E1215) (1)
Operating Instructions (1)
Audio cable (stereo-mini plug
stereo-mini plug, approx. 2 m,
78 3/4in) (1)
Design and specifications are subject
to change without notice.
Operating Instructions
Mode d’emploi
Manual de instrucciones
©2010 Sony Corporation Printed in China

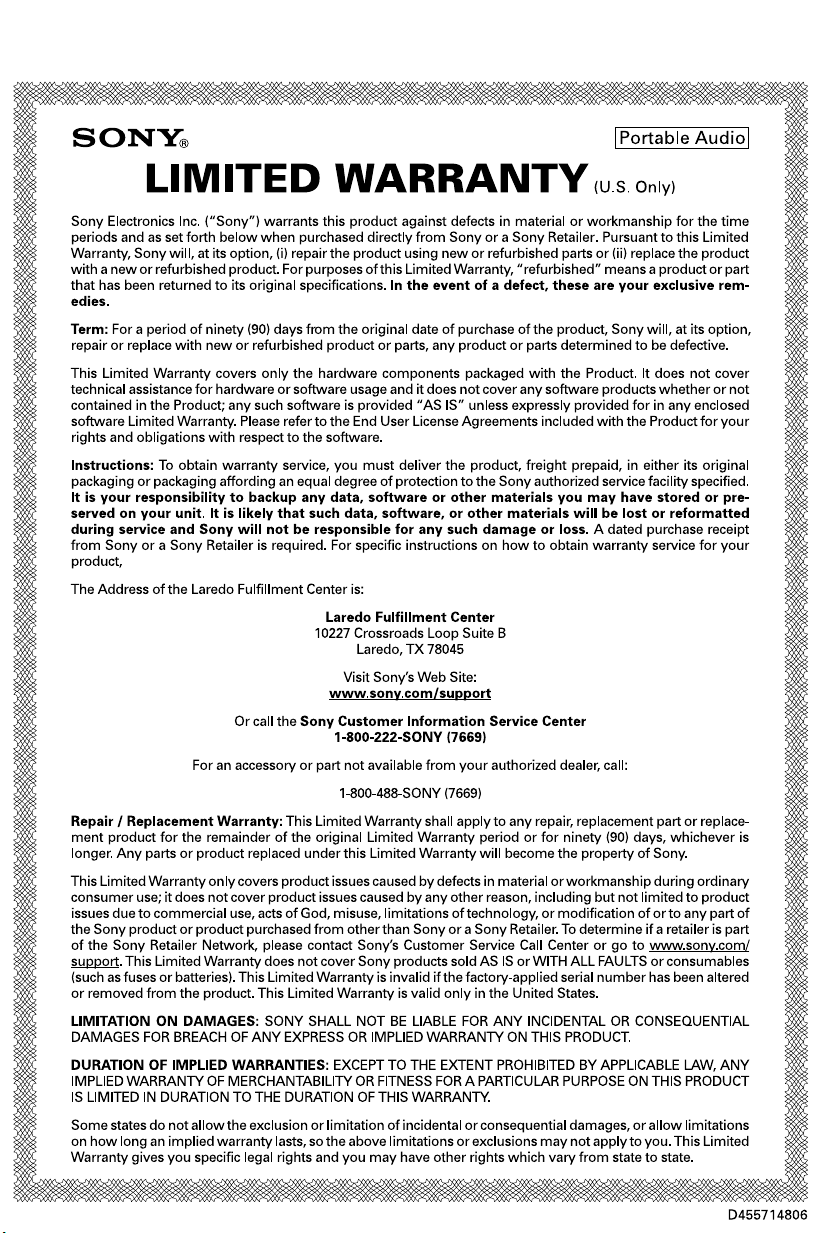

This warranty is valid only in the United States.
Cette garantie ne s’applique qu’aux États-Unis.
Esta garantía sólo es válida en Estados Unidos.
Subwoofer (front)
Subwoofer (rear)
Satellite speaker (R)
(front)
Satellite speaker (L)
(front)
AC power adaptor
(supplied)
to wall outlet
to DC IN 12V jack
Subwoofer (rear)
to headphones jack (stereo mini jack)
Portable audio
device, etc.
to Rch jack
Subwoofer (rear)
PC, etc.
to INPUT jack
Satellite speaker (R)
(rear)
Satellite speaker (L)
(rear)
to Lch jack
audio cable
(supplied)
Correct Incorrect
Gray plug
If connecting the system via a device with a built-in radio or tuner, radio broadcasts or
TV sound may not be received, or sensitivity may be reduced significantly.
Active Speaker System
SRS-D4
4-260-411-51(1) English
Before operating the system, please
read this manual thoroughly and retain
it for future reference.
WARNING
To reduce the risk of fire or electric
shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical shock,
do not open the cabinet.
Refer servicing to qualified personnel
only.
To reduce the risk of fire, do not cover
the ventilation opening of the
apparatus with newspapers,
tablecloths, curtains, etc.
Do not place the naked flame sources
such as lighted candles on the
apparatus.
To reduce the risk of fire or electric
shock, do not expose this apparatus to
dripping or splashing, and do not place
objects filled with liquids, such as
vases, on the apparatus.
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
As the main plug of AC power adaptor
is used to disconnect the AC power
adaptor from the mains, connect it to
an easily accessible AC outlet.
Should you notice an abnormality in it,
disconnect it from the AC outlet
immediately.
The system is not disconnected from
the mains as long as it is connected to
the AC outlet, even if the system itself
has been turned off.
Important Safety
Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near
water.
6) Clean only with dry cloth.
7) Do not block any ventilation
openings.
Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat
sources such as radiators, heat
registers, stoves, or other apparatus
(including amplifiers) that produce
heat.
9) Do not defeat the safety purpose of
the polarized or grounding-type
plug. A polarized plug has two
blades with one wider than the
other. A grounding type plug has
two blades and a third grounding
prong. The wide blade or the third
prong are provided for your safety.
If the provided plug does not fit
into your outlet, consult an
electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being
walked on or pinched particularly
at plugs, convenience receptacles,
and the point where they exit from
the apparatus.
11) Only use attachments/accessories
specified by the manufacturer.
12) Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during
lightning storms or when unused
for long periods of time.
14) Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such as
power-supply cord or plug is
damaged, liquid has been spilled or
objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does
not operate normally, or has been
dropped.
Note
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
Reorient or relocate the receiving
antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
This Class B digital apparatus complies
with Canadian ICES-003.
Precautions
On safety
The dating code and the nameplate are
located on the bottom exterior of the
subwoofer.
Before operating the system, be sure
that the operating voltage of the
system is identical to that of your
local power supply.
Where purchased
Operating voltage
All countries/regions 100 V – 240 V AC,
50/60 Hz
Use only the supplied AC power
adaptor.
On operation
Should any solid object or liquid fall
into the system, have the system
checked by qualified personnel
before operating it any further.
Although the satellite speakers are
magnetically shielded, the subwoofer
is not, so do not leave recorded
tapes, watches, personal credit cards,
or floppy disks with magnetic
coding in front of the system for an
extended period of time.
On placement
Do not set the system in an inclined
position.
Do not place the system on rough
ground, especially the subwoofer
since the speaker grille is on the
bottom exterior.
Do not leave the system in a location
near heat sources, or in a place
subject to direct sunlight, excessive
dust, moisture, rain or mechanical
shock.
On cleaning
Do not use alcohol, benzine or thinner
to clean the cabinet.
If the TV picture or monitor
display is magnetically
distorted
Although the satellite speakers are
magnetically shielded, the subwoofer is
not, and there may be cases that the
picture on some TV sets/personal
computers may become magnetically
distorted. In such a case, turn off the
power of the TV set/personal
computer once, and after 15 to 30
minutes turn it on again. In the case of
a personal computer, take appropriate
measures such as data storage before
turning off.
If no improvement is apparent, locate
the system farther away from the TV
set/personal computer. Furthermore,
be sure not to place objects in which
magnets are attached or used, such as
audio racks, TV stands, toys, etc., near
the TV set/personal computer. These
may cause magnetic distortion to the
picture due to magnetic interaction.
If you have any questions or problems
concerning this system that are not
covered in this manual, please consult
your nearest Sony dealer.
Identifying parts
(See fig. )
Power indicator
(power) button
VOLUME (volume) control
BASS (bass) control
Rch (right speaker) jack
Lch (left speaker) jack
DC IN 12V jack
INPUT (input) jack
Power Sources
(See fig. )
Connect the AC power adaptor
to the DC IN 12V jack.
Notes on the AC power adaptor
Use only the supplied AC power
adaptor. To avoid damaging the
system do not use any other AC
power adaptor.
Polarity of the plug
Plug the AC power adaptor into a
nearby AC output. In the case of a
problem, unplug from the AC outlet
immediately.
Do not place the AC power adaptor
on a bookshelf or in a confined
place, such as a cabinet.
To avoid fire or electric shock do not
use the AC power adaptor in a place
subject to liquid or moisture.
Furthermore, do not place liquid-
filled vessels, such as vases, etc., on
the AC power adaptor.
Hooking up the
system (See fig. )
1Connect the satellite speakers
(L/R) to the subwoofer.
Either satellite speaker can be used
for the right and left channels.
When connecting to the
subwoofer, the speaker connected
to the Rch jack outputs the right
channel sound, and the speaker
connected to the Lch jack outputs
the left channel sound.
Set the satellite speaker connected
to the Rch jack to your right, and
set the satellite speaker connected
to the Lch jack to your left.
2Connect the system to a source
device.
Use the audio cable to connect.
When the system is connected
to the monaural jack of a
source device
The sound may not come through the
satellite speaker connected to the Rch
jack.
Notes
If the PC volume adjustment (master
volume, WAV volume, etc.) is low, sound
may be insufficient. If so, turn up the
sound of the PC. For details on volume
adjustment on your PC, refer to its
operating instructions.
Make sure the connection of the audio
cable and the jack of the source device is
made properly.
If connecting the system via a device with
a built-in radio or tuner, radio broadcasts
or TV sound may not be received, or
sensitivity may be reduced significantly.
If you remove the audio cable while the
source device (PC, etc) is working, the
equipment or your ears may be damaged
by unexpected loud sound. Be sure to
lower the volume of the source device (PC,
etc) and turn off the system when
removing the audio cable from the source
device.
Listening to the
sound
First, turn down the volume on this
system. When connecting the system
to the headphones output, turn down
the volume of the source device.
1Press the button to turn on.
The power indicator lights up.
2Start playback of the source
device.
3Adjust the volume.
VOLUME control: Adjusts the
overall volume.
BASS control: Adjusts the low tone
of the subwoofer.
4Press the button to turn off
after use.
The power indicator goes off.
To adjust the bass volume level
Turn the BASS control on the
subwoofer to adjust the bass volume.
Set the bass volume to an undistorted
level to prevent system damage.
Notes
If the source device has a bass boost
function or equalizer function, set to off. If
these functions are on, sound may be
distorted.
Although this system is designed to be
used with a PC or a portable audio device,
if the system volume and the bass volume
are high, depending on the volume setting,
the operating software, and the devices
being connected, the satellite speaker
sound may be paused. This is caused by
the protection circuit, and it’s not a
malfunction. Turn down the volume and
the bass volume during use.
Turning the system
on/off automatically
How the Auto Power function
works
This feature is only available when
the button is in the ON position.
If a signal is input, the system turns
on automatically.
If no signal is input for about 25
minutes or more*, the system turns
off automatically.
* This may vary according to how the
system is used.
Notes
If the input signal level is too low, the
system will not turn on automatically.
If a device that generates microwaves, such
as a mobile phone, is nearby, the system
may be turned on unintentionally by the
device.
If a mobile phone is connected to the
system, the system may be turned on
unintentionally by noise or an incoming
call. When connecting a mobile phone,
turn on/off the system manually by the
button.
The system may not turn off automatically
because of received noise, depending on
the source device.
If no device is connected, the system may
not turn off automatically, or it may turn
on unintentionally.
The beginning of the input signal may not
be heard, depending on the input signal
level.
When leaving the system unattended, press
the button to OFF to prevent
malfunction.
If the power is turned off automatically, the
button remains on, but the power
indicator turns off. The system turns on
automatically after receiving an input
signal (such as a music signal), and then
the power indicator turns on. Even with no
input signal (e.g., music signal), you can
turn on by turning off and then on again.
If no signal is input for about 25 minutes
or more, the system turns off automatically
again.
Troubleshooting
Should you experience any problems
with your speaker system, check the
following list and take the suggested
measures. If the problem persists,
consult your nearest Sony dealer.
No sound
Check that both this system and the
source device are turned on.
Turn up the volume of the system.
Turn up the volume of the source
device as high as possible before the
onset of distortion. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
Make sure all connections have been
correctly made.
If the mute function of the volume
adjustment of your PC is set, cancel
it.
Disconnect the audio cable from the
system and the PC or source device;
then, firmly reconnect the audio
cable to the system’s INPUT jack and
the headphone jack (stereo mini
jack) of the PC or source device.
Low sound level
Turn up the volume of the source
device as high as possible before the
onset of distortion. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
Turn up the volume of the system.
Ensure that your PC sound balance
is set to the center.
Disconnect the audio cable from the
system and the PC or source device;
then, firmly reconnect the audio
cable to the system’s INPUT jack and
the headphone jack (stereo mini
jack) of the PC or source device.
Distorted sound
Turn down the volume of the source
device to the point where the sound
is no longer distorted. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
If the source device has a bass boost
function, set it to off.
Turn down the volume of the
system.
There is hum or noise in the
system output.
Make sure all connections have been
correctly made.
Make sure no audio devices are
positioned too close to the TV set.
The brightness of the power
indicator is unstable.
The brightness of the power indicator
may become unstable when the
volume is turned up.
The sound comes through only
one satellite speaker.
If connecting the system to the
monaural jack of a source device, the
sound may come through only one
satellite speaker.
Specifications
Speaker section
Speaker system
Satellite speaker (2): 46 mm
(1 13/16 in), full range,
magnetically shielded
Subwoofer (1): 95 mm
(3 3/4in)
Enclosure type
Satellite speaker: Closed
Subwoofer: Bass reflex
Impedance
Satellite speaker: 10
Subwoofer: 5
Amplifier section
Reference output power
Satellite speaker: 7 W + 7 W
(10 % T.H.D., 1 kHz, 10 )
Subwoofer: 13 W (10 %
T.H.D., 100 Hz, 5 )
Input Stereo mini jack × 1
Input impedance
5 k (at 1 kHz)
General
Power DC 12 V (supplied AC
power adaptor)
Dimensions (w/h/d)
Satellite speaker: Approx.
94 × 176 × 119 mm (3 3/4×
7 × 4 3/4in)
Subwoofer: Approx.
200 × 196 × 213 mm (7 7/8×
7 3/4× 8 1/2in)
Mass Satellite speaker:
Approx. 400 g (14 oz)
Subwoofer: Approx. 1,300 g
(2 lb 14 oz)
Supplied accessories
AC power adaptor (AC-E1215) (1)
Operating Instructions (1)
Audio cable (stereo-mini plug
stereo-mini plug, approx. 2 m,
78 3/4in) (1)
Design and specifications are subject
to change without notice.
Operating Instructions
Mode d’emploi
Manual de instrucciones
©2010 Sony Corporation Printed in China
This warranty is valid only in the United States.
Cette garantie ne s’applique qu’aux États-Unis.
Esta garantía sólo es válida en Estados Unidos.
Subwoofer (front)
Subwoofer (rear)
Satellite speaker (R)
(front)
Satellite speaker (L)
(front)
AC power adaptor
(supplied)
to wall outlet
to DC IN 12V jack
Subwoofer (rear)
to headphones jack (stereo mini jack)
Portable audio
device, etc.
to Rch jack
Subwoofer (rear)
PC, etc.
to INPUT jack
Satellite speaker (R)
(rear)
Satellite speaker (L)
(rear)
to Lch jack
audio cable
(supplied)
Correct Incorrect
Gray plug
If connecting the system via a device with a built-in radio or tuner, radio broadcasts or
TV sound may not be received, or sensitivity may be reduced significantly.
Active Speaker System
SRS-D4
4-260-411-51(1) English
Before operating the system, please
read this manual thoroughly and retain
it for future reference.
WARNING
To reduce the risk of fire or electric
shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical shock,
do not open the cabinet.
Refer servicing to qualified personnel
only.
To reduce the risk of fire, do not cover
the ventilation opening of the
apparatus with newspapers,
tablecloths, curtains, etc.
Do not place the naked flame sources
such as lighted candles on the
apparatus.
To reduce the risk of fire or electric
shock, do not expose this apparatus to
dripping or splashing, and do not place
objects filled with liquids, such as
vases, on the apparatus.
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
As the main plug of AC power adaptor
is used to disconnect the AC power
adaptor from the mains, connect it to
an easily accessible AC outlet.
Should you notice an abnormality in it,
disconnect it from the AC outlet
immediately.
The system is not disconnected from
the mains as long as it is connected to
the AC outlet, even if the system itself
has been turned off.
Important Safety
Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near
water.
6) Clean only with dry cloth.
7) Do not block any ventilation
openings.
Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat
sources such as radiators, heat
registers, stoves, or other apparatus
(including amplifiers) that produce
heat.
9) Do not defeat the safety purpose of
the polarized or grounding-type
plug. A polarized plug has two
blades with one wider than the
other. A grounding type plug has
two blades and a third grounding
prong. The wide blade or the third
prong are provided for your safety.
If the provided plug does not fit
into your outlet, consult an
electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being
walked on or pinched particularly
at plugs, convenience receptacles,
and the point where they exit from
the apparatus.
11) Only use attachments/accessories
specified by the manufacturer.
12) Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during
lightning storms or when unused
for long periods of time.
14) Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such as
power-supply cord or plug is
damaged, liquid has been spilled or
objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does
not operate normally, or has been
dropped.
Note
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
Reorient or relocate the receiving
antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
This Class B digital apparatus complies
with Canadian ICES-003.
Precautions
On safety
The dating code and the nameplate are
located on the bottom exterior of the
subwoofer.
Before operating the system, be sure
that the operating voltage of the
system is identical to that of your
local power supply.
Where purchased
Operating voltage
All countries/regions 100 V – 240 V AC,
50/60 Hz
Use only the supplied AC power
adaptor.
On operation
Should any solid object or liquid fall
into the system, have the system
checked by qualified personnel
before operating it any further.
Although the satellite speakers are
magnetically shielded, the subwoofer
is not, so do not leave recorded
tapes, watches, personal credit cards,
or floppy disks with magnetic
coding in front of the system for an
extended period of time.
On placement
Do not set the system in an inclined
position.
Do not place the system on rough
ground, especially the subwoofer
since the speaker grille is on the
bottom exterior.
Do not leave the system in a location
near heat sources, or in a place
subject to direct sunlight, excessive
dust, moisture, rain or mechanical
shock.
On cleaning
Do not use alcohol, benzine or thinner
to clean the cabinet.
If the TV picture or monitor
display is magnetically
distorted
Although the satellite speakers are
magnetically shielded, the subwoofer is
not, and there may be cases that the
picture on some TV sets/personal
computers may become magnetically
distorted. In such a case, turn off the
power of the TV set/personal
computer once, and after 15 to 30
minutes turn it on again. In the case of
a personal computer, take appropriate
measures such as data storage before
turning off.
If no improvement is apparent, locate
the system farther away from the TV
set/personal computer. Furthermore,
be sure not to place objects in which
magnets are attached or used, such as
audio racks, TV stands, toys, etc., near
the TV set/personal computer. These
may cause magnetic distortion to the
picture due to magnetic interaction.
If you have any questions or problems
concerning this system that are not
covered in this manual, please consult
your nearest Sony dealer.
Identifying parts
(See fig. )
Power indicator
(power) button
VOLUME (volume) control
BASS (bass) control
Rch (right speaker) jack
Lch (left speaker) jack
DC IN 12V jack
INPUT (input) jack
Power Sources
(See fig. )
Connect the AC power adaptor
to the DC IN 12V jack.
Notes on the AC power adaptor
Use only the supplied AC power
adaptor. To avoid damaging the
system do not use any other AC
power adaptor.
Polarity of the plug
Plug the AC power adaptor into a
nearby AC output. In the case of a
problem, unplug from the AC outlet
immediately.
Do not place the AC power adaptor
on a bookshelf or in a confined
place, such as a cabinet.
To avoid fire or electric shock do not
use the AC power adaptor in a place
subject to liquid or moisture.
Furthermore, do not place liquid-
filled vessels, such as vases, etc., on
the AC power adaptor.
Hooking up the
system (See fig. )
1Connect the satellite speakers
(L/R) to the subwoofer.
Either satellite speaker can be used
for the right and left channels.
When connecting to the
subwoofer, the speaker connected
to the Rch jack outputs the right
channel sound, and the speaker
connected to the Lch jack outputs
the left channel sound.
Set the satellite speaker connected
to the Rch jack to your right, and
set the satellite speaker connected
to the Lch jack to your left.
2Connect the system to a source
device.
Use the audio cable to connect.
When the system is connected
to the monaural jack of a
source device
The sound may not come through the
satellite speaker connected to the Rch
jack.
Notes
If the PC volume adjustment (master
volume, WAV volume, etc.) is low, sound
may be insufficient. If so, turn up the
sound of the PC. For details on volume
adjustment on your PC, refer to its
operating instructions.
Make sure the connection of the audio
cable and the jack of the source device is
made properly.
If connecting the system via a device with
a built-in radio or tuner, radio broadcasts
or TV sound may not be received, or
sensitivity may be reduced significantly.
If you remove the audio cable while the
source device (PC, etc) is working, the
equipment or your ears may be damaged
by unexpected loud sound. Be sure to
lower the volume of the source device (PC,
etc) and turn off the system when
removing the audio cable from the source
device.
Listening to the
sound
First, turn down the volume on this
system. When connecting the system
to the headphones output, turn down
the volume of the source device.
1Press the button to turn on.
The power indicator lights up.
2Start playback of the source
device.
3Adjust the volume.
VOLUME control: Adjusts the
overall volume.
BASS control: Adjusts the low tone
of the subwoofer.
4Press the button to turn off
after use.
The power indicator goes off.
To adjust the bass volume level
Turn the BASS control on the
subwoofer to adjust the bass volume.
Set the bass volume to an undistorted
level to prevent system damage.
Notes
If the source device has a bass boost
function or equalizer function, set to off. If
these functions are on, sound may be
distorted.
Although this system is designed to be
used with a PC or a portable audio device,
if the system volume and the bass volume
are high, depending on the volume setting,
the operating software, and the devices
being connected, the satellite speaker
sound may be paused. This is caused by
the protection circuit, and it’s not a
malfunction. Turn down the volume and
the bass volume during use.
Turning the system
on/off automatically
How the Auto Power function
works
This feature is only available when
the button is in the ON position.
If a signal is input, the system turns
on automatically.
If no signal is input for about 25
minutes or more*, the system turns
off automatically.
* This may vary according to how the
system is used.
Notes
If the input signal level is too low, the
system will not turn on automatically.
If a device that generates microwaves, such
as a mobile phone, is nearby, the system
may be turned on unintentionally by the
device.
If a mobile phone is connected to the
system, the system may be turned on
unintentionally by noise or an incoming
call. When connecting a mobile phone,
turn on/off the system manually by the
button.
The system may not turn off automatically
because of received noise, depending on
the source device.
If no device is connected, the system may
not turn off automatically, or it may turn
on unintentionally.
The beginning of the input signal may not
be heard, depending on the input signal
level.
When leaving the system unattended, press
the button to OFF to prevent
malfunction.
If the power is turned off automatically, the
button remains on, but the power
indicator turns off. The system turns on
automatically after receiving an input
signal (such as a music signal), and then
the power indicator turns on. Even with no
input signal (e.g., music signal), you can
turn on by turning off and then on again.
If no signal is input for about 25 minutes
or more, the system turns off automatically
again.
Troubleshooting
Should you experience any problems
with your speaker system, check the
following list and take the suggested
measures. If the problem persists,
consult your nearest Sony dealer.
No sound
Check that both this system and the
source device are turned on.
Turn up the volume of the system.
Turn up the volume of the source
device as high as possible before the
onset of distortion. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
Make sure all connections have been
correctly made.
If the mute function of the volume
adjustment of your PC is set, cancel
it.
Disconnect the audio cable from the
system and the PC or source device;
then, firmly reconnect the audio
cable to the system’s INPUT jack and
the headphone jack (stereo mini
jack) of the PC or source device.
Low sound level
Turn up the volume of the source
device as high as possible before the
onset of distortion. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
Turn up the volume of the system.
Ensure that your PC sound balance
is set to the center.
Disconnect the audio cable from the
system and the PC or source device;
then, firmly reconnect the audio
cable to the system’s INPUT jack and
the headphone jack (stereo mini
jack) of the PC or source device.
Distorted sound
Turn down the volume of the source
device to the point where the sound
is no longer distorted. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
If the source device has a bass boost
function, set it to off.
Turn down the volume of the
system.
There is hum or noise in the
system output.
Make sure all connections have been
correctly made.
Make sure no audio devices are
positioned too close to the TV set.
The brightness of the power
indicator is unstable.
The brightness of the power indicator
may become unstable when the
volume is turned up.
The sound comes through only
one satellite speaker.
If connecting the system to the
monaural jack of a source device, the
sound may come through only one
satellite speaker.
Specifications
Speaker section
Speaker system
Satellite speaker (2): 46 mm
(1 13/16 in), full range,
magnetically shielded
Subwoofer (1): 95 mm
(3 3/4in)
Enclosure type
Satellite speaker: Closed
Subwoofer: Bass reflex
Impedance
Satellite speaker: 10
Subwoofer: 5
Amplifier section
Reference output power
Satellite speaker: 7 W + 7 W
(10 % T.H.D., 1 kHz, 10 )
Subwoofer: 13 W (10 %
T.H.D., 100 Hz, 5 )
Input Stereo mini jack × 1
Input impedance
5 k (at 1 kHz)
General
Power DC 12 V (supplied AC
power adaptor)
Dimensions (w/h/d)
Satellite speaker: Approx.
94 × 176 × 119 mm (3 3/4×
7 × 4 3/4in)
Subwoofer: Approx.
200 × 196 × 213 mm (7 7/8×
7 3/4× 8 1/2in)
Mass Satellite speaker:
Approx. 400 g (14 oz)
Subwoofer: Approx. 1,300 g
(2 lb 14 oz)
Supplied accessories
AC power adaptor (AC-E1215) (1)
Operating Instructions (1)
Audio cable (stereo-mini plug
stereo-mini plug, approx. 2 m,
78 3/4in) (1)
Design and specifications are subject
to change without notice.
Operating Instructions
Mode d’emploi
Manual de instrucciones
©2010 Sony Corporation Printed in China
This warranty is valid only in the United States.
Cette garantie ne s’applique qu’aux États-Unis.
Esta garantía sólo es válida en Estados Unidos.
Subwoofer (front)
Subwoofer (rear)
Satellite speaker (R)
(front)
Satellite speaker (L)
(front)
AC power adaptor
(supplied)
to wall outlet
to DC IN 12V jack
Subwoofer (rear)
to headphones jack (stereo mini jack)
Portable audio
device, etc.
to Rch jack
Subwoofer (rear)
PC, etc.
to INPUT jack
Satellite speaker (R)
(rear)
Satellite speaker (L)
(rear)
to Lch jack
audio cable
(supplied)
Correct Incorrect
Gray plug
If connecting the system via a device with a built-in radio or tuner, radio broadcasts or
TV sound may not be received, or sensitivity may be reduced significantly.
Active Speaker System
SRS-D4
4-260-411-51(1) English
Before operating the system, please
read this manual thoroughly and retain
it for future reference.
WARNING
To reduce the risk of fire or electric
shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical shock,
do not open the cabinet.
Refer servicing to qualified personnel
only.
To reduce the risk of fire, do not cover
the ventilation opening of the
apparatus with newspapers,
tablecloths, curtains, etc.
Do not place the naked flame sources
such as lighted candles on the
apparatus.
To reduce the risk of fire or electric
shock, do not expose this apparatus to
dripping or splashing, and do not place
objects filled with liquids, such as
vases, on the apparatus.
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
As the main plug of AC power adaptor
is used to disconnect the AC power
adaptor from the mains, connect it to
an easily accessible AC outlet.
Should you notice an abnormality in it,
disconnect it from the AC outlet
immediately.
The system is not disconnected from
the mains as long as it is connected to
the AC outlet, even if the system itself
has been turned off.
Important Safety
Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near
water.
6) Clean only with dry cloth.
7) Do not block any ventilation
openings.
Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat
sources such as radiators, heat
registers, stoves, or other apparatus
(including amplifiers) that produce
heat.
9) Do not defeat the safety purpose of
the polarized or grounding-type
plug. A polarized plug has two
blades with one wider than the
other. A grounding type plug has
two blades and a third grounding
prong. The wide blade or the third
prong are provided for your safety.
If the provided plug does not fit
into your outlet, consult an
electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being
walked on or pinched particularly
at plugs, convenience receptacles,
and the point where they exit from
the apparatus.
11) Only use attachments/accessories
specified by the manufacturer.
12) Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during
lightning storms or when unused
for long periods of time.
14) Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such as
power-supply cord or plug is
damaged, liquid has been spilled or
objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does
not operate normally, or has been
dropped.
Note
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
Reorient or relocate the receiving
antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
This Class B digital apparatus complies
with Canadian ICES-003.
Precautions
On safety
The dating code and the nameplate are
located on the bottom exterior of the
subwoofer.
Before operating the system, be sure
that the operating voltage of the
system is identical to that of your
local power supply.
Where purchased
Operating voltage
All countries/regions 100 V – 240 V AC,
50/60 Hz
Use only the supplied AC power
adaptor.
On operation
Should any solid object or liquid fall
into the system, have the system
checked by qualified personnel
before operating it any further.
Although the satellite speakers are
magnetically shielded, the subwoofer
is not, so do not leave recorded
tapes, watches, personal credit cards,
or floppy disks with magnetic
coding in front of the system for an
extended period of time.
On placement
Do not set the system in an inclined
position.
Do not place the system on rough
ground, especially the subwoofer
since the speaker grille is on the
bottom exterior.
Do not leave the system in a location
near heat sources, or in a place
subject to direct sunlight, excessive
dust, moisture, rain or mechanical
shock.
On cleaning
Do not use alcohol, benzine or thinner
to clean the cabinet.
If the TV picture or monitor
display is magnetically
distorted
Although the satellite speakers are
magnetically shielded, the subwoofer is
not, and there may be cases that the
picture on some TV sets/personal
computers may become magnetically
distorted. In such a case, turn off the
power of the TV set/personal
computer once, and after 15 to 30
minutes turn it on again. In the case of
a personal computer, take appropriate
measures such as data storage before
turning off.
If no improvement is apparent, locate
the system farther away from the TV
set/personal computer. Furthermore,
be sure not to place objects in which
magnets are attached or used, such as
audio racks, TV stands, toys, etc., near
the TV set/personal computer. These
may cause magnetic distortion to the
picture due to magnetic interaction.
If you have any questions or problems
concerning this system that are not
covered in this manual, please consult
your nearest Sony dealer.
Identifying parts
(See fig. )
Power indicator
(power) button
VOLUME (volume) control
BASS (bass) control
Rch (right speaker) jack
Lch (left speaker) jack
DC IN 12V jack
INPUT (input) jack
Power Sources
(See fig. )
Connect the AC power adaptor
to the DC IN 12V jack.
Notes on the AC power adaptor
Use only the supplied AC power
adaptor. To avoid damaging the
system do not use any other AC
power adaptor.
Polarity of the plug
Plug the AC power adaptor into a
nearby AC output. In the case of a
problem, unplug from the AC outlet
immediately.
Do not place the AC power adaptor
on a bookshelf or in a confined
place, such as a cabinet.
To avoid fire or electric shock do not
use the AC power adaptor in a place
subject to liquid or moisture.
Furthermore, do not place liquid-
filled vessels, such as vases, etc., on
the AC power adaptor.
Hooking up the
system (See fig. )
1Connect the satellite speakers
(L/R) to the subwoofer.
Either satellite speaker can be used
for the right and left channels.
When connecting to the
subwoofer, the speaker connected
to the Rch jack outputs the right
channel sound, and the speaker
connected to the Lch jack outputs
the left channel sound.
Set the satellite speaker connected
to the Rch jack to your right, and
set the satellite speaker connected
to the Lch jack to your left.
2Connect the system to a source
device.
Use the audio cable to connect.
When the system is connected
to the monaural jack of a
source device
The sound may not come through the
satellite speaker connected to the Rch
jack.
Notes
If the PC volume adjustment (master
volume, WAV volume, etc.) is low, sound
may be insufficient. If so, turn up the
sound of the PC. For details on volume
adjustment on your PC, refer to its
operating instructions.
Make sure the connection of the audio
cable and the jack of the source device is
made properly.
If connecting the system via a device with
a built-in radio or tuner, radio broadcasts
or TV sound may not be received, or
sensitivity may be reduced significantly.
If you remove the audio cable while the
source device (PC, etc) is working, the
equipment or your ears may be damaged
by unexpected loud sound. Be sure to
lower the volume of the source device (PC,
etc) and turn off the system when
removing the audio cable from the source
device.
Listening to the
sound
First, turn down the volume on this
system. When connecting the system
to the headphones output, turn down
the volume of the source device.
1Press the button to turn on.
The power indicator lights up.
2Start playback of the source
device.
3Adjust the volume.
VOLUME control: Adjusts the
overall volume.
BASS control: Adjusts the low tone
of the subwoofer.
4Press the button to turn off
after use.
The power indicator goes off.
To adjust the bass volume level
Turn the BASS control on the
subwoofer to adjust the bass volume.
Set the bass volume to an undistorted
level to prevent system damage.
Notes
If the source device has a bass boost
function or equalizer function, set to off. If
these functions are on, sound may be
distorted.
Although this system is designed to be
used with a PC or a portable audio device,
if the system volume and the bass volume
are high, depending on the volume setting,
the operating software, and the devices
being connected, the satellite speaker
sound may be paused. This is caused by
the protection circuit, and it’s not a
malfunction. Turn down the volume and
the bass volume during use.
Turning the system
on/off automatically
How the Auto Power function
works
This feature is only available when
the button is in the ON position.
If a signal is input, the system turns
on automatically.
If no signal is input for about 25
minutes or more*, the system turns
off automatically.
* This may vary according to how the
system is used.
Notes
If the input signal level is too low, the
system will not turn on automatically.
If a device that generates microwaves, such
as a mobile phone, is nearby, the system
may be turned on unintentionally by the
device.
If a mobile phone is connected to the
system, the system may be turned on
unintentionally by noise or an incoming
call. When connecting a mobile phone,
turn on/off the system manually by the
button.
The system may not turn off automatically
because of received noise, depending on
the source device.
If no device is connected, the system may
not turn off automatically, or it may turn
on unintentionally.
The beginning of the input signal may not
be heard, depending on the input signal
level.
When leaving the system unattended, press
the button to OFF to prevent
malfunction.
If the power is turned off automatically, the
button remains on, but the power
indicator turns off. The system turns on
automatically after receiving an input
signal (such as a music signal), and then
the power indicator turns on. Even with no
input signal (e.g., music signal), you can
turn on by turning off and then on again.
If no signal is input for about 25 minutes
or more, the system turns off automatically
again.
Troubleshooting
Should you experience any problems
with your speaker system, check the
following list and take the suggested
measures. If the problem persists,
consult your nearest Sony dealer.
No sound
Check that both this system and the
source device are turned on.
Turn up the volume of the system.
Turn up the volume of the source
device as high as possible before the
onset of distortion. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
Make sure all connections have been
correctly made.
If the mute function of the volume
adjustment of your PC is set, cancel
it.
Disconnect the audio cable from the
system and the PC or source device;
then, firmly reconnect the audio
cable to the system’s INPUT jack and
the headphone jack (stereo mini
jack) of the PC or source device.
Low sound level
Turn up the volume of the source
device as high as possible before the
onset of distortion. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
Turn up the volume of the system.
Ensure that your PC sound balance
is set to the center.
Disconnect the audio cable from the
system and the PC or source device;
then, firmly reconnect the audio
cable to the system’s INPUT jack and
the headphone jack (stereo mini
jack) of the PC or source device.
Distorted sound
Turn down the volume of the source
device to the point where the sound
is no longer distorted. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
If the source device has a bass boost
function, set it to off.
Turn down the volume of the
system.
There is hum or noise in the
system output.
Make sure all connections have been
correctly made.
Make sure no audio devices are
positioned too close to the TV set.
The brightness of the power
indicator is unstable.
The brightness of the power indicator
may become unstable when the
volume is turned up.
The sound comes through only
one satellite speaker.
If connecting the system to the
monaural jack of a source device, the
sound may come through only one
satellite speaker.
Specifications
Speaker section
Speaker system
Satellite speaker (2): 46 mm
(1 13/16 in), full range,
magnetically shielded
Subwoofer (1): 95 mm
(3 3/4in)
Enclosure type
Satellite speaker: Closed
Subwoofer: Bass reflex
Impedance
Satellite speaker: 10
Subwoofer: 5
Amplifier section
Reference output power
Satellite speaker: 7 W + 7 W
(10 % T.H.D., 1 kHz, 10 )
Subwoofer: 13 W (10 %
T.H.D., 100 Hz, 5 )
Input Stereo mini jack × 1
Input impedance
5 k (at 1 kHz)
General
Power DC 12 V (supplied AC
power adaptor)
Dimensions (w/h/d)
Satellite speaker: Approx.
94 × 176 × 119 mm (3 3/4×
7 × 4 3/4in)
Subwoofer: Approx.
200 × 196 × 213 mm (7 7/8×
7 3/4× 8 1/2in)
Mass Satellite speaker:
Approx. 400 g (14 oz)
Subwoofer: Approx. 1,300 g
(2 lb 14 oz)
Supplied accessories
AC power adaptor (AC-E1215) (1)
Operating Instructions (1)
Audio cable (stereo-mini plug
stereo-mini plug, approx. 2 m,
78 3/4in) (1)
Design and specifications are subject
to change without notice.
Operating Instructions
Mode d’emploi
Manual de instrucciones
©2010 Sony Corporation Printed in China
This warranty is valid only in the United States.
Cette garantie ne s’applique qu’aux États-Unis.
Esta garantía sólo es válida en Estados Unidos.
Subwoofer (front)
Subwoofer (rear)
Satellite speaker (R)
(front)
Satellite speaker (L)
(front)
AC power adaptor
(supplied)
to wall outlet
to DC IN 12V jack
Subwoofer (rear)
to headphones jack (stereo mini jack)
Portable audio
device, etc.
to Rch jack
Subwoofer (rear)
PC, etc.
to INPUT jack
Satellite speaker (R)
(rear)
Satellite speaker (L)
(rear)
to Lch jack
audio cable
(supplied)
Correct Incorrect
Gray plug
If connecting the system via a device with a built-in radio or tuner, radio broadcasts or
TV sound may not be received, or sensitivity may be reduced significantly.
Active Speaker System
SRS-D4
4-260-411-51(1) English
Before operating the system, please
read this manual thoroughly and retain
it for future reference.
WARNING
To reduce the risk of fire or electric
shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical shock,
do not open the cabinet.
Refer servicing to qualified personnel
only.
To reduce the risk of fire, do not cover
the ventilation opening of the
apparatus with newspapers,
tablecloths, curtains, etc.
Do not place the naked flame sources
such as lighted candles on the
apparatus.
To reduce the risk of fire or electric
shock, do not expose this apparatus to
dripping or splashing, and do not place
objects filled with liquids, such as
vases, on the apparatus.
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
As the main plug of AC power adaptor
is used to disconnect the AC power
adaptor from the mains, connect it to
an easily accessible AC outlet.
Should you notice an abnormality in it,
disconnect it from the AC outlet
immediately.
The system is not disconnected from
the mains as long as it is connected to
the AC outlet, even if the system itself
has been turned off.
Important Safety
Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near
water.
6) Clean only with dry cloth.
7) Do not block any ventilation
openings.
Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat
sources such as radiators, heat
registers, stoves, or other apparatus
(including amplifiers) that produce
heat.
9) Do not defeat the safety purpose of
the polarized or grounding-type
plug. A polarized plug has two
blades with one wider than the
other. A grounding type plug has
two blades and a third grounding
prong. The wide blade or the third
prong are provided for your safety.
If the provided plug does not fit
into your outlet, consult an
electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being
walked on or pinched particularly
at plugs, convenience receptacles,
and the point where they exit from
the apparatus.
11) Only use attachments/accessories
specified by the manufacturer.
12) Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during
lightning storms or when unused
for long periods of time.
14) Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such as
power-supply cord or plug is
damaged, liquid has been spilled or
objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does
not operate normally, or has been
dropped.
Note
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
Reorient or relocate the receiving
antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
This Class B digital apparatus complies
with Canadian ICES-003.
Precautions
On safety
The dating code and the nameplate are
located on the bottom exterior of the
subwoofer.
Before operating the system, be sure
that the operating voltage of the
system is identical to that of your
local power supply.
Where purchased
Operating voltage
All countries/regions 100 V – 240 V AC,
50/60 Hz
Use only the supplied AC power
adaptor.
On operation
Should any solid object or liquid fall
into the system, have the system
checked by qualified personnel
before operating it any further.
Although the satellite speakers are
magnetically shielded, the subwoofer
is not, so do not leave recorded
tapes, watches, personal credit cards,
or floppy disks with magnetic
coding in front of the system for an
extended period of time.
On placement
Do not set the system in an inclined
position.
Do not place the system on rough
ground, especially the subwoofer
since the speaker grille is on the
bottom exterior.
Do not leave the system in a location
near heat sources, or in a place
subject to direct sunlight, excessive
dust, moisture, rain or mechanical
shock.
On cleaning
Do not use alcohol, benzine or thinner
to clean the cabinet.
If the TV picture or monitor
display is magnetically
distorted
Although the satellite speakers are
magnetically shielded, the subwoofer is
not, and there may be cases that the
picture on some TV sets/personal
computers may become magnetically
distorted. In such a case, turn off the
power of the TV set/personal
computer once, and after 15 to 30
minutes turn it on again. In the case of
a personal computer, take appropriate
measures such as data storage before
turning off.
If no improvement is apparent, locate
the system farther away from the TV
set/personal computer. Furthermore,
be sure not to place objects in which
magnets are attached or used, such as
audio racks, TV stands, toys, etc., near
the TV set/personal computer. These
may cause magnetic distortion to the
picture due to magnetic interaction.
If you have any questions or problems
concerning this system that are not
covered in this manual, please consult
your nearest Sony dealer.
Identifying parts
(See fig. )
Power indicator
(power) button
VOLUME (volume) control
BASS (bass) control
Rch (right speaker) jack
Lch (left speaker) jack
DC IN 12V jack
INPUT (input) jack
Power Sources
(See fig. )
Connect the AC power adaptor
to the DC IN 12V jack.
Notes on the AC power adaptor
Use only the supplied AC power
adaptor. To avoid damaging the
system do not use any other AC
power adaptor.
Polarity of the plug
Plug the AC power adaptor into a
nearby AC output. In the case of a
problem, unplug from the AC outlet
immediately.
Do not place the AC power adaptor
on a bookshelf or in a confined
place, such as a cabinet.
To avoid fire or electric shock do not
use the AC power adaptor in a place
subject to liquid or moisture.
Furthermore, do not place liquid-
filled vessels, such as vases, etc., on
the AC power adaptor.
Hooking up the
system (See fig. )
1Connect the satellite speakers
(L/R) to the subwoofer.
Either satellite speaker can be used
for the right and left channels.
When connecting to the
subwoofer, the speaker connected
to the Rch jack outputs the right
channel sound, and the speaker
connected to the Lch jack outputs
the left channel sound.
Set the satellite speaker connected
to the Rch jack to your right, and
set the satellite speaker connected
to the Lch jack to your left.
2Connect the system to a source
device.
Use the audio cable to connect.
When the system is connected
to the monaural jack of a
source device
The sound may not come through the
satellite speaker connected to the Rch
jack.
Notes
If the PC volume adjustment (master
volume, WAV volume, etc.) is low, sound
may be insufficient. If so, turn up the
sound of the PC. For details on volume
adjustment on your PC, refer to its
operating instructions.
Make sure the connection of the audio
cable and the jack of the source device is
made properly.
If connecting the system via a device with
a built-in radio or tuner, radio broadcasts
or TV sound may not be received, or
sensitivity may be reduced significantly.
If you remove the audio cable while the
source device (PC, etc) is working, the
equipment or your ears may be damaged
by unexpected loud sound. Be sure to
lower the volume of the source device (PC,
etc) and turn off the system when
removing the audio cable from the source
device.
Listening to the
sound
First, turn down the volume on this
system. When connecting the system
to the headphones output, turn down
the volume of the source device.
1Press the button to turn on.
The power indicator lights up.
2Start playback of the source
device.
3Adjust the volume.
VOLUME control: Adjusts the
overall volume.
BASS control: Adjusts the low tone
of the subwoofer.
4Press the button to turn off
after use.
The power indicator goes off.
To adjust the bass volume level
Turn the BASS control on the
subwoofer to adjust the bass volume.
Set the bass volume to an undistorted
level to prevent system damage.
Notes
If the source device has a bass boost
function or equalizer function, set to off. If
these functions are on, sound may be
distorted.
Although this system is designed to be
used with a PC or a portable audio device,
if the system volume and the bass volume
are high, depending on the volume setting,
the operating software, and the devices
being connected, the satellite speaker
sound may be paused. This is caused by
the protection circuit, and it’s not a
malfunction. Turn down the volume and
the bass volume during use.
Turning the system
on/off automatically
How the Auto Power function
works
This feature is only available when
the button is in the ON position.
If a signal is input, the system turns
on automatically.
If no signal is input for about 25
minutes or more*, the system turns
off automatically.
* This may vary according to how the
system is used.
Notes
If the input signal level is too low, the
system will not turn on automatically.
If a device that generates microwaves, such
as a mobile phone, is nearby, the system
may be turned on unintentionally by the
device.
If a mobile phone is connected to the
system, the system may be turned on
unintentionally by noise or an incoming
call. When connecting a mobile phone,
turn on/off the system manually by the
button.
The system may not turn off automatically
because of received noise, depending on
the source device.
If no device is connected, the system may
not turn off automatically, or it may turn
on unintentionally.
The beginning of the input signal may not
be heard, depending on the input signal
level.
When leaving the system unattended, press
the button to OFF to prevent
malfunction.
If the power is turned off automatically, the
button remains on, but the power
indicator turns off. The system turns on
automatically after receiving an input
signal (such as a music signal), and then
the power indicator turns on. Even with no
input signal (e.g., music signal), you can
turn on by turning off and then on again.
If no signal is input for about 25 minutes
or more, the system turns off automatically
again.
Troubleshooting
Should you experience any problems
with your speaker system, check the
following list and take the suggested
measures. If the problem persists,
consult your nearest Sony dealer.
No sound
Check that both this system and the
source device are turned on.
Turn up the volume of the system.
Turn up the volume of the source
device as high as possible before the
onset of distortion. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
Make sure all connections have been
correctly made.
If the mute function of the volume
adjustment of your PC is set, cancel
it.
Disconnect the audio cable from the
system and the PC or source device;
then, firmly reconnect the audio
cable to the system’s INPUT jack and
the headphone jack (stereo mini
jack) of the PC or source device.
Low sound level
Turn up the volume of the source
device as high as possible before the
onset of distortion. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
Turn up the volume of the system.
Ensure that your PC sound balance
is set to the center.
Disconnect the audio cable from the
system and the PC or source device;
then, firmly reconnect the audio
cable to the system’s INPUT jack and
the headphone jack (stereo mini
jack) of the PC or source device.
Distorted sound
Turn down the volume of the source
device to the point where the sound
is no longer distorted. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
If the source device has a bass boost
function, set it to off.
Turn down the volume of the
system.
There is hum or noise in the
system output.
Make sure all connections have been
correctly made.
Make sure no audio devices are
positioned too close to the TV set.
The brightness of the power
indicator is unstable.
The brightness of the power indicator
may become unstable when the
volume is turned up.
The sound comes through only
one satellite speaker.
If connecting the system to the
monaural jack of a source device, the
sound may come through only one
satellite speaker.
Specifications
Speaker section
Speaker system
Satellite speaker (2): 46 mm
(1 13/16 in), full range,
magnetically shielded
Subwoofer (1): 95 mm
(3 3/4in)
Enclosure type
Satellite speaker: Closed
Subwoofer: Bass reflex
Impedance
Satellite speaker: 10
Subwoofer: 5
Amplifier section
Reference output power
Satellite speaker: 7 W + 7 W
(10 % T.H.D., 1 kHz, 10 )
Subwoofer: 13 W (10 %
T.H.D., 100 Hz, 5 )
Input Stereo mini jack × 1
Input impedance
5 k (at 1 kHz)
General
Power DC 12 V (supplied AC
power adaptor)
Dimensions (w/h/d)
Satellite speaker: Approx.
94 × 176 × 119 mm (3 3/4×
7 × 4 3/4in)
Subwoofer: Approx.
200 × 196 × 213 mm (7 7/8×
7 3/4× 8 1/2in)
Mass Satellite speaker:
Approx. 400 g (14 oz)
Subwoofer: Approx. 1,300 g
(2 lb 14 oz)
Supplied accessories
AC power adaptor (AC-E1215) (1)
Operating Instructions (1)
Audio cable (stereo-mini plug
stereo-mini plug, approx. 2 m,
78 3/4in) (1)
Design and specifications are subject
to change without notice.
Operating Instructions
Mode d’emploi
Manual de instrucciones
©2010 Sony Corporation Printed in China
This warranty is valid only in the United States.
Cette garantie ne s’applique qu’aux États-Unis.
Esta garantía sólo es válida en Estados Unidos.
Subwoofer (front)
Subwoofer (rear)
Satellite speaker (R)
(front)
Satellite speaker (L)
(front)
AC power adaptor
(supplied)
to wall outlet
to DC IN 12V jack
Subwoofer (rear)
to headphones jack (stereo mini jack)
Portable audio
device, etc.
to Rch jack
Subwoofer (rear)
PC, etc.
to INPUT jack
Satellite speaker (R)
(rear)
Satellite speaker (L)
(rear)
to Lch jack
audio cable
(supplied)
Correct Incorrect
Gray plug
If connecting the system via a device with a built-in radio or tuner, radio broadcasts or
TV sound may not be received, or sensitivity may be reduced significantly.
Active Speaker System
SRS-D4
4-260-411-51(1) English
Before operating the system, please
read this manual thoroughly and retain
it for future reference.
WARNING
To reduce the risk of fire or electric
shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical shock,
do not open the cabinet.
Refer servicing to qualified personnel
only.
To reduce the risk of fire, do not cover
the ventilation opening of the
apparatus with newspapers,
tablecloths, curtains, etc.
Do not place the naked flame sources
such as lighted candles on the
apparatus.
To reduce the risk of fire or electric
shock, do not expose this apparatus to
dripping or splashing, and do not place
objects filled with liquids, such as
vases, on the apparatus.
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
As the main plug of AC power adaptor
is used to disconnect the AC power
adaptor from the mains, connect it to
an easily accessible AC outlet.
Should you notice an abnormality in it,
disconnect it from the AC outlet
immediately.
The system is not disconnected from
the mains as long as it is connected to
the AC outlet, even if the system itself
has been turned off.
Important Safety
Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near
water.
6) Clean only with dry cloth.
7) Do not block any ventilation
openings.
Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat
sources such as radiators, heat
registers, stoves, or other apparatus
(including amplifiers) that produce
heat.
9) Do not defeat the safety purpose of
the polarized or grounding-type
plug. A polarized plug has two
blades with one wider than the
other. A grounding type plug has
two blades and a third grounding
prong. The wide blade or the third
prong are provided for your safety.
If the provided plug does not fit
into your outlet, consult an
electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being
walked on or pinched particularly
at plugs, convenience receptacles,
and the point where they exit from
the apparatus.
11) Only use attachments/accessories
specified by the manufacturer.
12) Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during
lightning storms or when unused
for long periods of time.
14) Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such as
power-supply cord or plug is
damaged, liquid has been spilled or
objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does
not operate normally, or has been
dropped.
Note
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
Reorient or relocate the receiving
antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
This Class B digital apparatus complies
with Canadian ICES-003.
Precautions
On safety
The dating code and the nameplate are
located on the bottom exterior of the
subwoofer.
Before operating the system, be sure
that the operating voltage of the
system is identical to that of your
local power supply.
Where purchased
Operating voltage
All countries/regions 100 V – 240 V AC,
50/60 Hz
Use only the supplied AC power
adaptor.
On operation
Should any solid object or liquid fall
into the system, have the system
checked by qualified personnel
before operating it any further.
Although the satellite speakers are
magnetically shielded, the subwoofer
is not, so do not leave recorded
tapes, watches, personal credit cards,
or floppy disks with magnetic
coding in front of the system for an
extended period of time.
On placement
Do not set the system in an inclined
position.
Do not place the system on rough
ground, especially the subwoofer
since the speaker grille is on the
bottom exterior.
Do not leave the system in a location
near heat sources, or in a place
subject to direct sunlight, excessive
dust, moisture, rain or mechanical
shock.
On cleaning
Do not use alcohol, benzine or thinner
to clean the cabinet.
If the TV picture or monitor
display is magnetically
distorted
Although the satellite speakers are
magnetically shielded, the subwoofer is
not, and there may be cases that the
picture on some TV sets/personal
computers may become magnetically
distorted. In such a case, turn off the
power of the TV set/personal
computer once, and after 15 to 30
minutes turn it on again. In the case of
a personal computer, take appropriate
measures such as data storage before
turning off.
If no improvement is apparent, locate
the system farther away from the TV
set/personal computer. Furthermore,
be sure not to place objects in which
magnets are attached or used, such as
audio racks, TV stands, toys, etc., near
the TV set/personal computer. These
may cause magnetic distortion to the
picture due to magnetic interaction.
If you have any questions or problems
concerning this system that are not
covered in this manual, please consult
your nearest Sony dealer.
Identifying parts
(See fig. )
Power indicator
(power) button
VOLUME (volume) control
BASS (bass) control
Rch (right speaker) jack
Lch (left speaker) jack
DC IN 12V jack
INPUT (input) jack
Power Sources
(See fig. )
Connect the AC power adaptor
to the DC IN 12V jack.
Notes on the AC power adaptor
Use only the supplied AC power
adaptor. To avoid damaging the
system do not use any other AC
power adaptor.
Polarity of the plug
Plug the AC power adaptor into a
nearby AC output. In the case of a
problem, unplug from the AC outlet
immediately.
Do not place the AC power adaptor
on a bookshelf or in a confined
place, such as a cabinet.
To avoid fire or electric shock do not
use the AC power adaptor in a place
subject to liquid or moisture.
Furthermore, do not place liquid-
filled vessels, such as vases, etc., on
the AC power adaptor.
Hooking up the
system (See fig. )
1Connect the satellite speakers
(L/R) to the subwoofer.
Either satellite speaker can be used
for the right and left channels.
When connecting to the
subwoofer, the speaker connected
to the Rch jack outputs the right
channel sound, and the speaker
connected to the Lch jack outputs
the left channel sound.
Set the satellite speaker connected
to the Rch jack to your right, and
set the satellite speaker connected
to the Lch jack to your left.
2Connect the system to a source
device.
Use the audio cable to connect.
When the system is connected
to the monaural jack of a
source device
The sound may not come through the
satellite speaker connected to the Rch
jack.
Notes
If the PC volume adjustment (master
volume, WAV volume, etc.) is low, sound
may be insufficient. If so, turn up the
sound of the PC. For details on volume
adjustment on your PC, refer to its
operating instructions.
Make sure the connection of the audio
cable and the jack of the source device is
made properly.
If connecting the system via a device with
a built-in radio or tuner, radio broadcasts
or TV sound may not be received, or
sensitivity may be reduced significantly.
If you remove the audio cable while the
source device (PC, etc) is working, the
equipment or your ears may be damaged
by unexpected loud sound. Be sure to
lower the volume of the source device (PC,
etc) and turn off the system when
removing the audio cable from the source
device.
Listening to the
sound
First, turn down the volume on this
system. When connecting the system
to the headphones output, turn down
the volume of the source device.
1Press the button to turn on.
The power indicator lights up.
2Start playback of the source
device.
3Adjust the volume.
VOLUME control: Adjusts the
overall volume.
BASS control: Adjusts the low tone
of the subwoofer.
4Press the button to turn off
after use.
The power indicator goes off.
To adjust the bass volume level
Turn the BASS control on the
subwoofer to adjust the bass volume.
Set the bass volume to an undistorted
level to prevent system damage.
Notes
If the source device has a bass boost
function or equalizer function, set to off. If
these functions are on, sound may be
distorted.
Although this system is designed to be
used with a PC or a portable audio device,
if the system volume and the bass volume
are high, depending on the volume setting,
the operating software, and the devices
being connected, the satellite speaker
sound may be paused. This is caused by
the protection circuit, and it’s not a
malfunction. Turn down the volume and
the bass volume during use.
Turning the system
on/off automatically
How the Auto Power function
works
This feature is only available when
the button is in the ON position.
If a signal is input, the system turns
on automatically.
If no signal is input for about 25
minutes or more*, the system turns
off automatically.
* This may vary according to how the
system is used.
Notes
If the input signal level is too low, the
system will not turn on automatically.
If a device that generates microwaves, such
as a mobile phone, is nearby, the system
may be turned on unintentionally by the
device.
If a mobile phone is connected to the
system, the system may be turned on
unintentionally by noise or an incoming
call. When connecting a mobile phone,
turn on/off the system manually by the
button.
The system may not turn off automatically
because of received noise, depending on
the source device.
If no device is connected, the system may
not turn off automatically, or it may turn
on unintentionally.
The beginning of the input signal may not
be heard, depending on the input signal
level.
When leaving the system unattended, press
the button to OFF to prevent
malfunction.
If the power is turned off automatically, the
button remains on, but the power
indicator turns off. The system turns on
automatically after receiving an input
signal (such as a music signal), and then
the power indicator turns on. Even with no
input signal (e.g., music signal), you can
turn on by turning off and then on again.
If no signal is input for about 25 minutes
or more, the system turns off automatically
again.
Troubleshooting
Should you experience any problems
with your speaker system, check the
following list and take the suggested
measures. If the problem persists,
consult your nearest Sony dealer.
No sound
Check that both this system and the
source device are turned on.
Turn up the volume of the system.
Turn up the volume of the source
device as high as possible before the
onset of distortion. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
Make sure all connections have been
correctly made.
If the mute function of the volume
adjustment of your PC is set, cancel
it.
Disconnect the audio cable from the
system and the PC or source device;
then, firmly reconnect the audio
cable to the system’s INPUT jack and
the headphone jack (stereo mini
jack) of the PC or source device.
Low sound level
Turn up the volume of the source
device as high as possible before the
onset of distortion. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
Turn up the volume of the system.
Ensure that your PC sound balance
is set to the center.
Disconnect the audio cable from the
system and the PC or source device;
then, firmly reconnect the audio
cable to the system’s INPUT jack and
the headphone jack (stereo mini
jack) of the PC or source device.
Distorted sound
Turn down the volume of the source
device to the point where the sound
is no longer distorted. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
If the source device has a bass boost
function, set it to off.
Turn down the volume of the
system.
There is hum or noise in the
system output.
Make sure all connections have been
correctly made.
Make sure no audio devices are
positioned too close to the TV set.
The brightness of the power
indicator is unstable.
The brightness of the power indicator
may become unstable when the
volume is turned up.
The sound comes through only
one satellite speaker.
If connecting the system to the
monaural jack of a source device, the
sound may come through only one
satellite speaker.
Specifications
Speaker section
Speaker system
Satellite speaker (2): 46 mm
(1 13/16 in), full range,
magnetically shielded
Subwoofer (1): 95 mm
(3 3/4in)
Enclosure type
Satellite speaker: Closed
Subwoofer: Bass reflex
Impedance
Satellite speaker: 10
Subwoofer: 5
Amplifier section
Reference output power
Satellite speaker: 7 W + 7 W
(10 % T.H.D., 1 kHz, 10 )
Subwoofer: 13 W (10 %
T.H.D., 100 Hz, 5 )
Input Stereo mini jack × 1
Input impedance
5 k (at 1 kHz)
General
Power DC 12 V (supplied AC
power adaptor)
Dimensions (w/h/d)
Satellite speaker: Approx.
94 × 176 × 119 mm (3 3/4×
7 × 4 3/4in)
Subwoofer: Approx.
200 × 196 × 213 mm (7 7/8×
7 3/4× 8 1/2in)
Mass Satellite speaker:
Approx. 400 g (14 oz)
Subwoofer: Approx. 1,300 g
(2 lb 14 oz)
Supplied accessories
AC power adaptor (AC-E1215) (1)
Operating Instructions (1)
Audio cable (stereo-mini plug
stereo-mini plug, approx. 2 m,
78 3/4in) (1)
Design and specifications are subject
to change without notice.
Operating Instructions
Mode d’emploi
Manual de instrucciones
©2010 Sony Corporation Printed in China
This warranty is valid only in the United States.
Cette garantie ne s’applique qu’aux États-Unis.
Esta garantía sólo es válida en Estados Unidos.
Subwoofer (front)
Subwoofer (rear)
Satellite speaker (R)
(front)
Satellite speaker (L)
(front)
AC power adaptor
(supplied)
to wall outlet
to DC IN 12V jack
Subwoofer (rear)
to headphones jack (stereo mini jack)
Portable audio
device, etc.
to Rch jack
Subwoofer (rear)
PC, etc.
to INPUT jack
Satellite speaker (R)
(rear)
Satellite speaker (L)
(rear)
to Lch jack
audio cable
(supplied)
Correct Incorrect
Gray plug
If connecting the system via a device with a built-in radio or tuner, radio broadcasts or
TV sound may not be received, or sensitivity may be reduced significantly.
Other manuals for SRS-D4
2
Table of contents
Other Sony Speakers System manuals
Sony
Sony SA-G700 User manual
Sony
Sony SS-V230 User manual
Sony
Sony SS-FCR115 User manual
Sony
Sony MJ-L1 MJ-L1A User manual
Sony
Sony CMT-101 User manual
Sony
Sony SS-MB105 Speaker System Instructions (primary... Instruction Manual
Sony
Sony SS-CN250 User manual
Sony
Sony SA-EX100 User manual
Sony
Sony PMC-D305L User manual
Sony
Sony HT-CT291 User guide
