Sorama CAM iV64 User manual

Sorama CAM iV64 – User Manual
Document version 1.0 - 10/05/2022

Page 2of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
Contents
Contents.............................................................................................................................................2
Conformity .........................................................................................................................................4
Safety Information..............................................................................................................................5
Battery................................................................................................................................................6
Contacts .............................................................................................................................................7
1 Description..................................................................................................................................8
1.1 Features ..............................................................................................................................8
2 Technical Data.............................................................................................................................8
2.1 Physical Properties ..............................................................................................................8
2.2 Storage................................................................................................................................8
2.3 Display & Camera ................................................................................................................9
2.4 Microphones .......................................................................................................................9
2.5 Measurement Features .......................................................................................................9
3 Environment .............................................................................................................................10
3.1 Ambient Temperature.......................................................................................................10
3.2 Protection .........................................................................................................................10
4 Getting Started..........................................................................................................................11
4.1 List of Items.......................................................................................................................11
4.2 Hardware feature and configuration..................................................................................12
4.3 Terms to know...................................................................................................................13
4.4 Power up and LED Indicator...............................................................................................14
4.5 Home screen .....................................................................................................................14
4.6 Menu.................................................................................................................................15
4.6.1 Turn off......................................................................................................................17
4.6.2 Spectrum ...................................................................................................................17
4.6.3 Spectrogram ..............................................................................................................18
4.6.4 SLM mode..................................................................................................................19
4.6.5 Recording ..................................................................................................................21
4.7 Memory ............................................................................................................................22
4.7.1 Settings......................................................................................................................24
4.7.2 Acoustic settings........................................................................................................27
4.7.3 Special measurements...............................................................................................30

Page 3of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
5 Operation..................................................................................................................................35
5.1 Basics ................................................................................................................................35
5.2 Mount iV64 on a tripod .....................................................................................................37
5.3 Sorama Portal....................................................................................................................37
5.3.1 Uploading measurement data to Sorama Portal.........................................................38
5.3.2 Portal Analysis Modules.............................................................................................38
5.3.3 Exporting measurement results from Portal...............................................................39
6 Data Transfer ............................................................................................................................39
6.1 How to save the data and what is the format type? .......................................................39
6.2 How to export measurement data? ...............................................................................39
7 Firmware Update / Factory Reset..............................................................................................40
8 Maintenance.............................................................................................................................41
8.1 The imager ........................................................................................................................41
8.2 The case ............................................................................................................................41
8.3 Acoustic sensor care..........................................................................................................41
8.4 Environmental...................................................................................................................41
8.5 Service...............................................................................................................................41
8.6 Specifications ....................................................................................................................41

Page 4of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
Conformity
Sorama B.V.
Achtseweg Zuid 153H
5651 GW Eindhoven
The Netherlands
This document is subject to change without notice.
Declare under our sole responsibility that the products:
Product name
Acoustic Camera
Model number
CAM iV64
Are in conformity with the requirements of the following EU Directive or other normative
documents. This declaration is based on the full compliance of the products with the following
European standards:
-General Safety
▪IEC 61010-1
-For Electromagnetic compatibility directive (EMC)
▪EN 301 489-17 V3.2.4 referring to EN 301 489-1 V2.2.3
▪EN 55032:2015 Class B
▪EN 61000-4-3:2006
▪EN 61000-4-2:2009
-RoHS3 Restriction of Hazardous Substances
▪EU2011/65/EU RoHS2
▪EU2015/863
Technical Compliance Data held by:
Sorama B.V.
Achtseweg Zuid 153H
5651 GW Eindhoven, NL
https://www.sorama.eu/
[email protected]
Signed for and on behalf of Sorama B.V.
Address: Achtseweg Zuid 153H, 5651 GW, Eindhoven

Page 5of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
Safety Information
This document contains important information, which should always be available to the operator(s)
of the instrument during its operational life. Eventual updates to this digital manual will be added
regularly. It is therefore always advised to consult the latest available version of the manual which
can be found on the Sorama website. The revision number and date can be found on the first page of
this document. The instrument can only be operated in accordance with these instructions and local
safety regulations.
This instrument is intended only for the measurement of sound and vibration. The instrument
operates reliably in demanding conditions as described in the manual. Compliance with the operating
instructions is necessary to ensure the expected results.
Replacement Parts and Accessories
Use only original parts and accessories approved by the manufacturer. The use of other products can
compromise the operation safety and functionality of the instrument.
To prevent possible electrical shock, fire, or personal injury follow these guidelines:
• Read all safety information before you use the Product.
• Use the Product only as specified, or the protection supplied by the Product can be compromised.
• Do not use the Product around explosive gases, vapor, or in damp or wet environments.
• Do not use and disable the Product if it is damaged.
• Do not use the Product if it operates incorrectly.
• Do not disassemble or crush battery cells and battery packs.
• Batteries contain hazardous chemicals that can cause burns or explode. If exposure to chemicals
occurs, clean with water and get medical aid.
• Have an approved technician repair the Product.
•Contact Sorama when the battery leaks.
• Remove the batteries if the Product is not used for an extended period of time, or if stored in
temperatures above 35 °C. The Product can be damaged If the batteries are not removed.
• Use only Sorama approved power adapters to charge the battery.
• Do not keep cells or batteries in a container where the terminals can be shorted.
• Do not short circuit the battery terminals together.
• Do not put battery cells and battery packs near heat or fire. Do not put in sunlight.
• Disconnect the battery charger and move the Product or battery to a cool, non-flammable location
if the rechargeable battery becomes hot (>50 °C) during the charge period.

Page 6of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
Battery
󱛻󱛼󱛽󱛻󱛼󱛽Warning
To prevent personal injury and for safe operation of the Product:
•Do not put battery cells and battery packs near heat or fire.
•Do not put in sunlight.
•Do not disassemble or crush battery cells and battery packs.
•Remove batteries to prevent battery leakage and damage to the Product if it is not used for
an extended period.
•Connect the battery charger to the main power outlet before the charger.
•Use only the power adapters approved by Sorama to charge the battery.
•Keep cells and battery packs clean and dry. Clean dirty connectors with a dry, clean cloth.
󱛻󱛼󱛽Caution
To prevent damage to the battery:
•Do not expose battery to heat sources or high-temperature environments such as an
unattended vehicle in the sun.
•Do not store the battery on the charger for more than 24 hours as reduced battery life may
result.
•Charge the battery for a two-hour minimum at six-month intervals for maximum battery life.
Without use, the battery will self-discharge in approximately six months.
•Always operate in the specified temperature range.
•Do not incinerate the Product and/or battery.
A Li-ion battery powers the Acoustic Camera. The Acoustic Camera includes two batteries for a quick-
change during operation.
The battery charges on a single bay charging base. The power supply powers the charging base.
Country-specific adapters are included.
The battery is successfully tested and complies with:
•UN Model regulations, Manual of Tests and Criteria Part III Subsection 38.3
•FCC part 15
•UL2054/UL60950-1
•IEC62133
•RoHS
•CE
And has been manufactured under a quality management program as specified in 2.9.4 of the UN
Model regulations.

Page 7of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
Contacts
Supplier will, during the warranty period in office hours (GMT +1), provide the required first line
support when possible technical faults occur. Customers can request support by sending an email to
[e-mail]. After receiving the defect checklist, the customer should send this document
filled out back to [e-mail]. Sorama will then evaluate the problem. When the issue does
not have any relation to the services of Sorama or is outside the warranty period, costs will be charged
to the customer.

Page 8of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
1Description
The Sorama CAM iV64 is a state-of-the-art acoustic camera, which enables you to show both highly
accurate sound levels and localize where sound is coming from on the 7-inch touch display.
Specifically designed for users who want mobility and have instant reliable acoustic information
available to them, in order to perform in-field measurements with confidence.
1.1 Features
•Class 1 performing sound level meter functionalities
•Realtime spectrum
•Realtime spectrogram
•Far-Field sound source localization and visualization
•Measurement workflows for norm measurements
•Sorama Portal compatible data for in-depth analysis
2Technical Data
2.1 Physical Properties
Size (LxWxD)
42 x 32 x 16 cm
L x W x D
Weight
2.31 kg
Including battery
Connectivity
USB-C
USB 3.0
Battery
Rechargeable & swappable
smart battery
Battery life ±4 hours
Hardware connections
1/4” screw connection
Tripod mountable
2.2 Storage
Internal
Approx. 7Gb
External
Up to 1Tb
Storage expandable with USB-
C fast drive or Additional
purchasable SSD storage
memory
Storage formats
Sorama File Format (.sor file)
containing video-, acoustic
data and measurement specific
metadata. And .Jpeg or .PNG
image files.
Sorama data format is
compatible with Sorama Portal
for data analysis

Page 9of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
2.3 Display & Camera
Touch display
7-inch LCD capacitive touchscreen
Display resolution
720x1280
Camera Resolution
1280x960
2.4 Microphones
Type
MEMS
Digital Bottom Port
SNR (A-weighted, at 1 kHz)
66 dB for 94 dB SPL
At 1 kHz per channel
Sensitivity
-37 dBFS +/- 1 dB
At 1 kHz, 94 dB SPL
Acoustic Overload Point
132 dB SPL
At 1 kHz, <10% THD
2.5 Measurement Features
Sampling rate
240 kHz
Spectrum analysis
29 Hz –27 kHz*
Spectrogram analysis
0-10s+
29 Hz - 27 kHz*
Streaming + recording
Beamforming (far-field)
500 Hz –27 kHz*
Streaming + recording
*Upgradeable frequency ranges up to 54 kHz or up to 108 kHz on special request

Page 10 of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
3Environment
3.1 Ambient Temperature
The CAM iV64 is capable of operating in ambient temperatures between -10°C to 50°C (14°F to
122°F). Note that water can cause condensation, which can lead to damage in the device, the
ambient operating relative humidity is between 10-100% RH (non-condensing).
3.2 Protection
󱛻󱛼󱛽Warning
The AOP (Acoustic Overload Point) of the microphones is 132 dB and a user could potentially damage
the microphones if the microphones are subjected to sound sources higher than the AOP.
The CAM iV64 complies with the international protection standard IP54. Please be aware that the
Product is not watertight but splash-proof. The effectiveness against splashing under IP54 is possible,
only if the device is inspected periodically.
Any water entering the MEMS microphones may cause the device to show incorrect measurement
output values. Water entering the holes of the microphones should always be avoided. In case water
was in contact with the microphones, place the sensor head such that any water can drip out from
the microphone holes and let it dry in this position.

Page 11 of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
4Getting Started
4.1 List of Items
Items listed below are included when you receive the Product.
Number
Description
Quantity
1
External Battery Charger
1
2
Rechargeable Lithium-ion Battery Pack
2
3
Country-Specific Adapters for Battery Charger
1
4
USB-C to USB-A Cable (1.5m)
1
5
CAM iV64 Acoustic Camera
1
6
Protective Case
1
7
Accessory Bag
1
8
Shoulder Strap
1
9
Hand Strap
1

Page 12 of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
4.2 Hardware feature and configuration
Item
Function
Item
Function
1
LED Indicator
5
Battery Compartment/ Tripod
Connector
2
USB-C Connector
6
Acoustic Sensor/ Webcam
3
Touchscreen Display
7
- Power on / Measurement Trigger
Button
- Force Shut Down
4
Shoulder Strap Anchor
8
Hand Strap Anchor and Screw Point

Page 13 of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
4.3 Terms to know
1. Sound Pressure Level
The sound is defined as pressure variations in the air which is generally quantified by the
sound pressure. Sound Pressure Level (SPL) is a weighted sum of the frequency components
of acoustic signals. SPL is expressed in decibels (dB SPL).
2. SLM (Sound Level Meter)
Sound Level Meter indicates the Sound Pressure Level (SPL) as measured by the Product.
3. Frequency Spectrum
Frequency Spectrum is the distribution of the amplitudes (dB SPL) of each frequency
component against frequency (Hz). In other words: Your signal recording consists of different
frequency components which all contribute to the sound.
4. Spectrogram
Spectrogram can show a sudden onset of a sound. Often it can be easier to see clicks and
other glitches in this view rather than in a time or spectrum analysis.
5. Field of view (FOV)
Horizontal/Vertical observation angels of the webcam. The FOV depends on how many
features are opened (Spectrum, Spectrogram and dB SPL meter). When opening more
features on the Sorama CAM iV64 screen, the horizontal FOV will increase and the vertical
FOV will reduce slightly.
No features open: Horizontal FOV 23.8° and Vertical FOV 41°
All features open: Horizontal FOV 53° and Vertical FOV 38.2°.
6. Beamforming
A signal processing technique used to identify the location of sound by using an array of
microphones. The localization of sound is determined by the difference in time at which
sound reaches the microphones in the array.
7. Frequency and Time Weightings
When measuring sound pressure level variations, it is important that the sound level meter
can give an accurate representation of what the human ear hears. Frequency weightings are
used to correlate the SPL at each frequency component for different applications. Frequency
weightings that can be applied are Z, A, B and C.
The streaming SPL varies rapidly in time on display, time weightings act like a buffer for
desired time-engagement. The time weightings that can be applied are Impulse, Fast and
Slow.
8. Frequency Band Selection
Frequency band selection acts like a window, focusing on the selected frequency range in the
spectrum, the frequency ranges of the sound, other than the selection are filtered out and
not visible on the display.

Page 14 of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
4.4 Power up and LED Indicator
Push the trigger button on the pistol grip to power up the device. The led above the USB-C connector
will indicate that the device is turned on.
The CAM iV64 currently has 3 LED colors. The table below explains the meaning of each color.
LED Color
Description
Red
The device is booting
Green
The device is fully booted, and the default user interface is running
Blue
The device is still switched ON, but the default UI is not running anymore

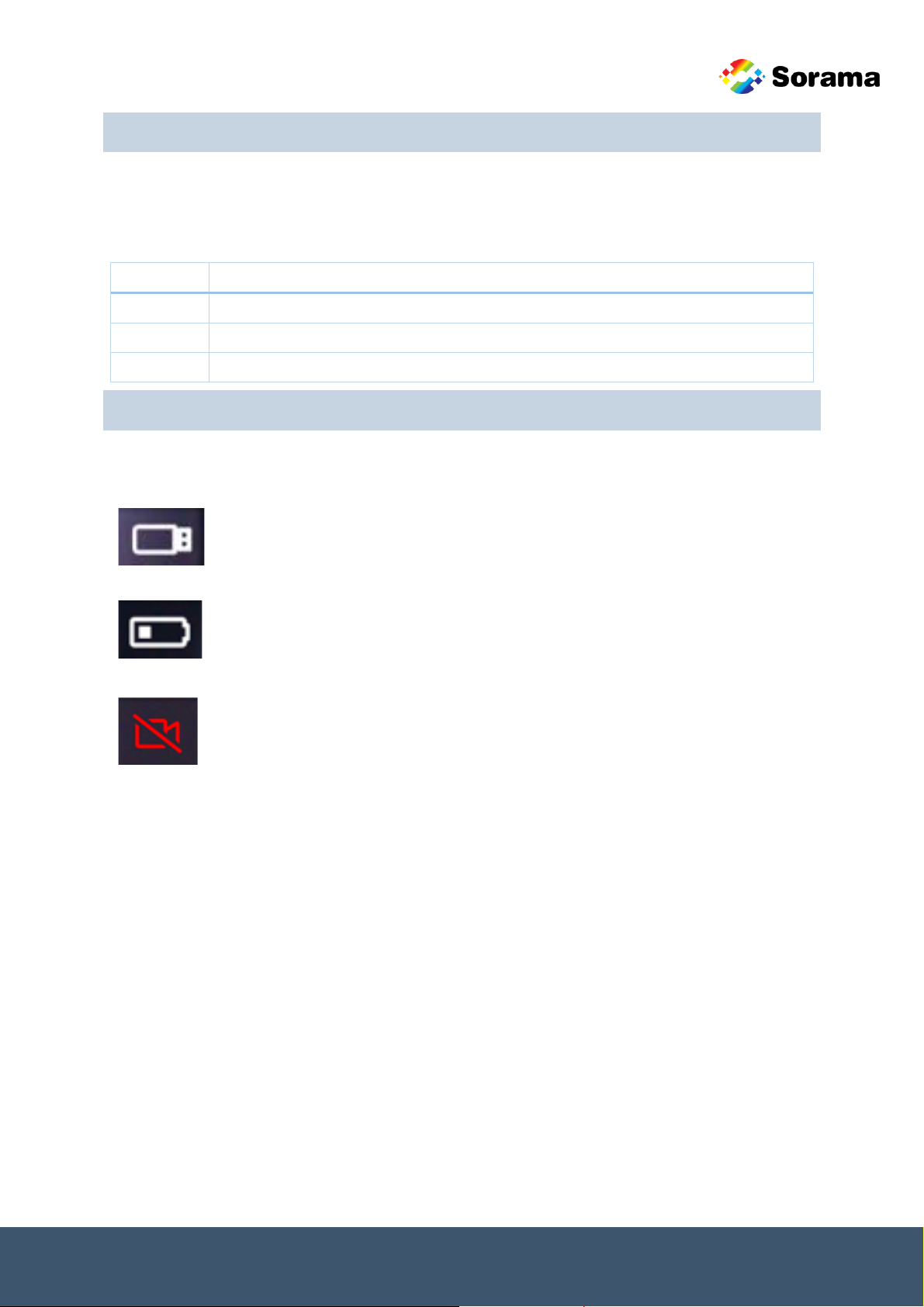

4.5 Home screen
When the device is fully booted, the home screen contains several icons. The meaning of the icons is
as follows;
External USB drive connected
Battery level
Recording disabled, because the memory is full.

Page 15 of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
4.6 Menu
To reveal the menu, swipe down from the top. The following menu is shown.
You can easily gain access to the different features and settings of the device. The required feature or
setting can be selected by touching the related icon on the device. When the icon is selected it will
turn orange (upper row) or white (bottom row). You can touch the icon again or press the “X” to
close the feature or setting.

Page 16 of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
The following features and settings are included.
Turn off: with this feature the device can be turned off
Spectrum: this feature shows the spectrum of the microphone data obtained by the
microphone array
Spectrogram: this feature shows the spectrogram of the microphone data obtained by
the microphone array
SLM Mode: this feature shows the sound pressure levels of the microphone data
obtained by the microphone array Recording: In this menu the type and duration of a
sound measurement can be set.
Recording: In this menu the type and duration of a sound measurement can be set.
Memory: This is the menu showing the saved recordings and enables to transfer,
rename and/or delete recordings.
Settings: In this menu the settings of the device can be viewed and/or adjusted
Acoustic Settings: In these menus you can adjust the acoustic settings of the device
Special Measurements: with this feature the formats for special measurements can be
chosen

Page 17 of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
4.6.1 Turn off
Tap
to power off the device.
When a hard reset is needed for the device, press the trigger button for 5 sec.
4.6.2 Spectrum
Tap
to view the spectrum. This feature shows the spectrum of the sound.
The microphone data obtained by the microphone array can be shown on the screen for a specific
frequency bandwidth. When the spectrum is visible in the display, the bandwidth can be selected by
touching the orange dot and drag this dot to the preferred frequency. Execute this for the lower and
higher frequency. You can also move the selected frequency band by touching it in the middle and
drag it to the preferred area of the spectrum.
Spectrum zoom
By double tapping in the spectrum module you can zoom in on the selected frequency band for a
more detailed view.

Page 18 of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
4.6.3 Spectrogram
Tap
to view the spectrogram.
To select a specific bandwidth, please review the explanation described in the previous paragraph
§4.5.3 Spectrum Basics.

Page 19 of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
4.6.4 SLM mode
Tap
to view the sound pressure level of the microphone data obtained by the
microphone array.
Tap
to add another weighting for the SPL measurement.
Frequency Weighting
Choose a weighting (Z, A, B or C), SLM target (‘Updating’ or ‘Measurement’) and choose the option
‘Full Spectrum’ or ‘Selected Frequency’.
SLM Target
Selecting ‘Updating’SLM target, will refresh the displayed dB value every second. Selecting
‘Measurement’SLM target, will start to collect dB levels when a measurement is started until the
measurement is stopped. After the measurement is stopped it will average these levels over the
measurement duration and show the corresponding value.

Page 20 of 41
Achtseweg Zuid 153H /Eindhoven /The Netherlands / T [phone] / E [e-mail] / W www.sorama.eu
‘Full spectrum’ will collect sound pressure level data for frequencies over the entire spectrum
available on the device. ‘Selected Frequency’ will only take the frequencies into account that are
currently selected (selectable in spectrum and spectrogram modules). By changing the selected
frequencies, the selection in this SLM entry will automatically change too.
Press ‘Add’ to add the new entry into the SLM module.
Adjusting SPL values
Tap
to adjust the settings in the screen.
Tap
to close the tab or
to remove the SPL mode.
