Sound Freaq SFQ-03I User manual

SFQ-03I
Sound Stack

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Safety Information
WARNINGS:
.1.
The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
DO NOT REMOVE COVER or OPEN THE CABINET.
Dangerous high voltages are present inside the enclosure.
No user serviceable parts inside. Leave all servicing to
qualified service personnel.
10. Protect the power cord from being walked
on or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
11. Only use attachments/accessories specified
by the manufacturer.
12. Use only with the cart, stand, tripod, bracket
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods of
time.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is damaged,
liquid has been spilled or objects have
fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not
operate normally, or has been dropped.
15. Apparatus shall not be exposed to dripping
or splashing and no objects filled with
liquids, such as vase,shall not be placed on
the apparatus.
16. The mains plug is used as disconnect device
and it shall remain readily operable during
intended use. In order to disconnect the
mains plug from the mains completely, the
mains plug should be disconnected from
the mains socket outlet completely.
17. The batteries (battery pack & batteries installed)
shall not be exposed to excessive heat such
as sunshine, fire or the like.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install
in accordance with the manufacturer's
instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the
polarized or grounding - type plug. A polarized
plug has two blades with one wider than
the other. A grounding type plug has two
blades and a third grounding prong. The
wide blade or the third prong is provided for
your safety. If the provided plug does not fit
into your outlet, consult an electrician for
replacement of the obsolete outlet.
PORTABLE CART WARNING
(Symbol provided by RETAC)

.2.
For compatibility between the SFQ-03I system
and another device with Bluetooth technology,
consult the device's documentation and dealer.
In some countries, there may be restrictions on
using Bluetooth devices. Check with your local
authorities.
Bluetooth is a registered trademark of Bluetooth
SIG, Inc
Please read rating label at the bottom of system
for power input and other safety information.
FCC and IC Information:
This device complies with Part 15 of the FCC
Rules and RSS-210 of the IC Rules. Operation is
subject to the following two conditions: (1) This
device may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
Warning: Changes or modifications to this unit
not expressly approved by the party responsible
for compliance could void the user's authority to
operate the equipment.
Note: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful interference
in a residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio TV
technician for help.
Warnings: The device meets the exemption
from the routine evaluation limits in section 2.5
of RSS 102 and users can obtain Canadian
information on RF exposure and compliance
from the Canadian Representative Burnport
Holdings Ltd. 72MT Belcher Pls, East, Calgary,
Alberta, T2Z 2G1, CANADA. Tel: [phone]
FCC&IC Radiation Exposure Statement
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment and meets the exemption from
the routine evaluation limits in section 2.5 of
RSS 102.
1. This Transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.
2. This equipment complies with FCC RF
radiation exposure limits set forth for an
uncontrolled environment. This equipment
should be installed and operated with a
minimum distance of 20 centimeters from
user and bystanders.
18. Do not place any naked flame sources,such
as lighted candles, on the apparatus.
19. The battery used in this product must be
properly recycled or disposed of. Please
contact your local recycling center for proper
battery handling and disposal instructions.

.3.
15 cm
(5-15/16")
15 cm
(5-15/16")
10 cm
(3-15/16")
15 cm
(5-15/16")
15 cm
(5-15/16")
15 cm
(5-15/16")
Front View:
Side View:
Front side Back side
QDID: B018369
CAUTION - Proper Installation
Install the system in a place which is level, dry
and neither too hot nor too cold.The appropriate
temperature is between 5 oC and 35 oC.
Install the system in a location with adequate
ventilation to prevent internal heat from
building up inside the unit.
Leave sufficient distance between the system
and TV.
Keep the system away from TV to avoid
interference with TV.
CAUTION - Proper Ventilation
To avoid risk of electric shock and fire, and to
prevent damage, locate the apparatus as
follows:
Front:No obstructions and open spacing.
Sides / Top / Back: No obstructions should be
placed in the areas shown by the dimensions
below.
Bottom: Place on the level surface. Maintain an
adequate air path for ventilation by placing on a
stand with a height of 10 cm (3-15/16") or more.
Information for Users on Disposal of Old
Equipment
[European Union]
This symbol indicates that the
electrical and electronic equipment
should not be disposed as
general household waste at its
end-of-life. Instead, the product
should be handed over to the
applicable collection point for
the recycling in accordance
with your national legislation.
By disposing of this product correctly, you will
help to conserve natural resources and will help
prevent potential negative effects on the
environment and human health that could
otherwise be caused by inappropriate waste
handling of this product. For more information
about collection point and recycling of this
product, please contact your local municipal
office, your household waste disposal service or
the shop where you purchased the product.
Penalties may be applicable for incorrect
disposal of this waste, in accordance with
national legislation.
[Other Countries outside the European
Union]
If you wish to dispose of this product, please do
so in accordance with applicable national
legislation or other rules in your country for the
treatment of old electrical and electronic
equipment.
Attention:
This symbol is
only valid in the
European Union.

.4.
Getting Started
Package Contents
Installing/Replacing the Batteries
Connecting the AC Adapter
Using the Remote Control
System Overview
Front View
Back View
Remote Control
Selecting the Sound Source
Playing back from iPad/iPhone/iPod
Setting an iPod on the Unit
Listening to an iPod
Charging an iPod
Playing back via Bluetooth
Downloading the SoundFreaq App
Using Multiple Bluetooth Devices
Playing back from Macbook or Macbook Pro
Playing back from PC/Notebook
Playing back from External Source
Listening to an External Audio Device
Playing back via Digital Optical
Listening to an Optical Audio Device
Optimizing Sound Quality
Troubleshooting
Technical Specifications
5
5
5
6
7
8
8
8
9
9
10
10
10
11
12
12
13
13
13
14
14
14
14
15
16
17
Contents

.5.
Package Contents
Examine whether the following package contents are all included:
Main Unit Remote Control
Getting Started
+
C 2025
3V
R
It is loaded on the remote
control at the factory.
Lithium Coin Battery
CR2025
Installing/Replacing the Batteries
CAUTION: Danger of explosion if battery is
incorrectly replaced. Replace only with the
same or equivalent type.
1. Squeeze and pull to release the battery cover
latch. You can remove the battery door with
your fingernails by using the spaces set back
in wall.
2. Match the polarity on the Lithium Cell with a
plus sign (+) on the battery tray.
3. Slide the tray with new battery into the
battery compartment until you hear a click
sound.
+
C 2025
3V
R
DOCK
PAIR OPTICAL AUX
VOLUME
Adapter CableSwitch Mode Power Supply
1
2
Squeeze
Pull
Warning - When Using the Battery
Store the battery in a place where children
cannot reach. If a child accidentally swallows
the battery, consult a doctor immediately.
Do not recharge, short circuit, disassemble,
heat the battery, or dispose the battery in
fire.
Do not leave the battery with other metallic
materials.
When throwing away or saving the battery,
wrap it in tape and insulate; otherwise, the
battery may start to give off heat, crack, or
start a fire.
Do not poke the battery with tweezers or
similar tools.
Dispose of battery in the proper manner,
according to federal, state, and local
regulations.
This product contains a CR Coin Cell Lithium
Battery that contains Perchlorate Material, so
that special handling may apply.

.6.

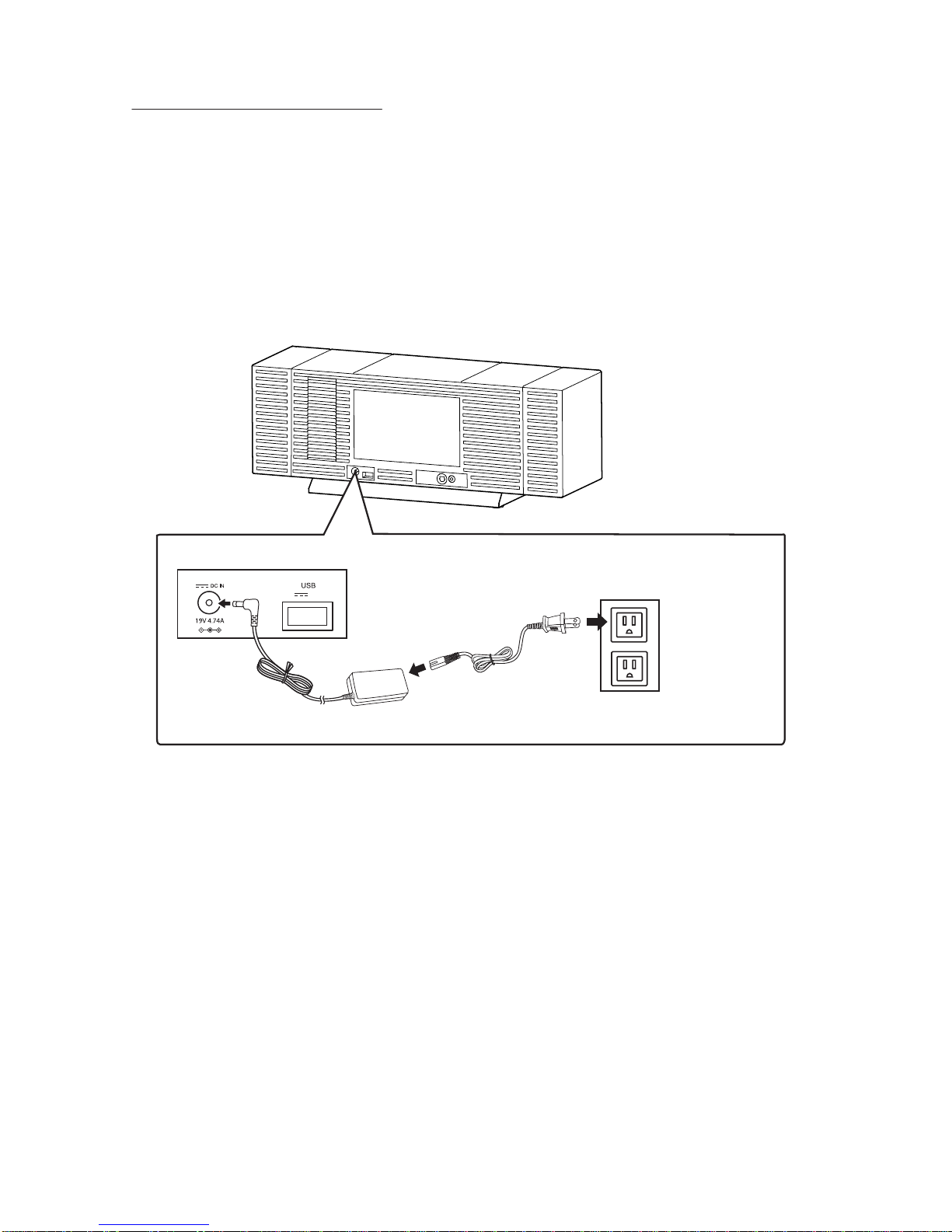

Connecting the AC Adapter
WARNING! For optimal performance, use only
the supplied AC adapter.
Ensure that power supply outlet matches with
the unit AC's input 100-240V~, 50/60Hz
before connection.
Plug the AC
adapter only
after all other
connections are
completed.
1. Insert the Switch Mode Power Supply into
19V/4.74A DC IN jack of the unit.
2. Insert one end of the Adapter Cable into the
end of the Switch Mode Power Supply and
the other end into an electrical outlet only
after all other connections are completed.
5V 500mA

.7.
Using the Remote Control
Using the remote control
Remove the insulation sheet before using for
the first time.
Aim the remote control at the IR sensor on
the front lens within an approximate
distance of 7m (23 feet) away.
IR Sensor
Remote Control Storage Area
Handling the Remote Control
To avoid possible failure, read the following
instructions and handle the remote control
properly.
Do not drop or cause impact to the remote
control.
Do not spill water or any liquid on the remote
control.
Do not place the remote control on a wet
object.
Do not place the remote control under the
direct sunlight or near sources of excessive
heat.
Note: If you are not going to use the remote
control for a long time, remove the battery to
avoid any damage that may be caused by
leakage and corrosion.
Storing the remote control
A remote control storage area is designed on
the back of the unit. The remote control can be
conveniently held in the storage area
(magnetically).

1. SOURCE button
Toggle among iPod, AUX, Optical and
Bluetooth modes.
2. (Previous) / (Next) button
Skip to the previous/next track in iPod and
Bluetooth modes.
3. (Play/Pause) button
Press to play or pause a track.
4. PAIR button
Put the system into Bluetooth mode.
5. Indicators
Lights when the UQ3 is activated.
Lights in iPod mode
Lights in AUX mode
Lights in opticle mode
Lights in Bluetooth mode
6. 30-pin Apple connector
Connect with iPod.
7. Pair indicator
To indicate the Bluetooth connection status.
8. (on/Standby) button
Switch between standby and power-on
modes.
.8.
System Overview
Front View
7
9. U-Cubed button
Press to activate or deactivate the U-Cubed
(High Definition Wide Stereo) sound effect.
10. Vol +/- button
Press to increase (+) or decrease (-) the
volume level.
11. Remote control storage location
12. DC IN jack
13. USB power jack
The jack can be used to charge most devices
that allow for USB charging (including many
mobile phones, smart phones and wireless
headsets).
Note: Please use the USB power cord that
came with your device to connect to Sound
Stack to charge.
14. OPT IN optical input jack
For connecting a digital optical device (such
as Apple TV or Blu Ray player).
Note: Simply insert an optical cable and the
plastic door will open into the jack.
15. AUX IN jack
For transmitting an audio input signals from
auxiliary source.
Back View
1
2 3
4
VOL
OPT
OPT
910
11
8
6
5
14 15
12 13
5V 500mA

.9.
1. (On/Standby) button
Switch between standby mode and
power-on mode.
2. DOCK button
Switch to iPod mode.
3. Bluetooth button
Switch to Bluetooth mode.
4. PAIR button
Put the system into Bluetooth mode.
5. OPTICAL button
Switch to optical mode.
6. AUX button
Switch to AUX mode.
7. (Previous) / (Next) button
Skip to the previous/next track in iPod and
Bluetooth modes.
8. (Play/Pause) button
Play/pause a track when listening to a track.
9. VOLUME +/- button
Press to increase (+) or decrease (-) the
volume level.
10. U-Cubed button
Activate or deactives U-Cubed (High
Definition Wide Stereo) sound effect.
11. MUTE button
Turn off the sound. Press again to restore
the sound output.
Remote Control
Selecting the Sound Source
On the Unit
On the Remote Control
This system enables you to access one of four basic functions
- iPod, AUX, Optical and Bluetooth.
Press the SOURCE button on the unit or the DOCK, AUX,
OPTICAL and Bluetooth buttons on the remote
control/remote App to select one of the sound sources.
or
7
8
4
5
3
2
1
1011
9
6

.10.
Playing back from iPad/iPhone/iPod
Setting an iPod on the Unit
 Compatible iPod models are including:
Most Apple iPod models with 30-pin dock
connectors as follows: iPad, iPod nano 6th
generation, iPod nano 5th generation (video
camera), iPod nano 4th generation (video),
iPod nano 3rd generation (video), iPod nano
2nd generation (aluminum), iPod nano 1st
generation, iPod 4th generation (color
display), iPhone, iPhone 3G/3GS, iPhone 4,
iPod classic, iPod 5th generation (video), iPod
4th generation, iPod touch 4th generation,
iPod touch 3rd generation, iPod touch 2nd
generation, iPod touch 1st generation, iPod
mini.
1. Remove the dock cover from the iPod
connector.
2. Connect your iPod. Make sure the connector
plug of unit is firmly inserted into the
connector port of iPod.
Note： In this user manual, “iPod” is used as a
general reference to functions on an iPod, iPhone
or iPad, unless otherwise specied by the text or
illustrations.
Notes:
If you are docking your device with a case,
you can remove the spacer pad to secure a
better t and connection. Both the dock
cover and spacer pad can be conveniently
stuck along the ribs on the back of Sound
Stack.
Always set volume to the minimum when
connecting or disconnecting the other
equipment.
When you connect your iPod to unit, make
sure you insert it all the way.
When placing or removing the iPod, hold the
iPod at the same angle as that of the
connector on this unit, and do not twist or
bend the iPod as connector damage may
result.
 Before disconnecting the iPod,pause playback.
If the battery of your iPod is extremely low,
charge it for a while before operation.
Listening to an iPod
1. Press the " " button to power on the system.
2. Set an iPod on the unit and press the
SOURCE button on the unit or DOCK button
on the remoter control to switch to the iPod
mode if the unit is not in the iPod mode.
3. Press the “ ”button to play the track.
SOURCE Button
iPod Connector
Dock Cover
Spacer Pad
Back of Unit
Top
Bottom
Stick
Dock Cover

.11.
Notes for Caring Your iPod:
The connector plug is protected with a cover
when it is first purchased. Please remove the
cover before operating the unit.
Do not carry the unit with iPod connected.
You might drop it down or it might cause
damages to the connector part.
Do not touch or hit the iPod terminal pins or
the connector pins directly. It might cause
damages to the connector part.
If the iPod does not play correctly, please
update your iPod software to the latest
version. - For details about updating your
iPod, check on the Apple web site
<http://www.apple.com>.
iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
iPhone is a trademark of Apple Inc.
iPad is a trademark of Apple Inc.
We are not responsible for any loss of or
damage to iPod that might result from the
use of this product.
Sound distortion may occur when playing back
audio sources with high recording levels.
When distortion occurs, it is recommended
to turn off the equalizer of the iPod. For
information on operating the iPod, see the
iPod instruction manual.
"Made for iPod" and "Made for iPhone" and
"Made for iPad" mean that an electronic
accessory has been designed to connect
specifically to iPod/iPhone/iPad and has
been certified by the developer to meet
Apple performance standards.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
Charging an iPod
The battery of the iPod is always charged
through the unit when it is connecting to a wall
outlet.
Charging begins when the iPod is set on the
dock.
The charging status appears in the display on
iPod.
Make sure the AC adapter is connected to the
unit.
The iPod is charged regardless of the sound
source selected on the unit.
See the iPod instruction manual about the
details of iPod charging.

.12.
Notes:
If your mobile phone supports A2DP protocol,
its music will play through the unit.
You can make a Bluetooth connection with a
mobile phone, an iPhone/iPad/iPod touch or
any other Bluetooth-enabled devices.
1. Press the " " button to power on the unit.
The pair indicator is solid on when the unit is
powered on.
2. Press the PAIR button on the unit to put the
unit into the pair mode.
The Pair indicator starts blinking at a fast rate.
If you hold the PAIR button for more than 2
seconds during the process of pairing, the
operation will be cancelled.
3. During this period,you can operate the mobile
phone,iPad or Bluetooth-enabled device to
pair with the unit within a 33 feet (10m) range.
Please check the user manual of the iPad or
Bluetooth-enabled device with which you
are initiating pair to learn about Bluetooth
connection with any other devices.
4. Once the unit is detected and its name
"Sound Stack" appears on the display of your
Bluetooth-enabled device, key in the default
password "1234" if a prompt requests it.
Playing back via Bluetooth
Downloading the SoundFreaq App
We have developed an App to give you
full control from your iPhone/iPad/iPod
touch while playing audio over the
Bluetooth wireless connection, please
download the "SoundFreaq Remote" App
for FREE.
After you make a Bluetooth connection
between your iPhone/iPad/iPod touch
and Sound Stack, a prompt will be
displayed on your iPhone/iPad/iPod
touch asking you if you would like to
install our App, click "Yes" to install the
APP. After a while, "For his Accessory"
page will appear on your iPhone/iPad/
iPod touch. Enter the "User Name" and
"Password" in the iTune. After pressing the
"FREE" button, press the "INSTALL APP"
button that will appear to install the APP
for your unit. When the installation is
finished, you can control the playback
from your iPhone/iPad/iPod touch.
PAIR Button Pair Indicator
Source Button
Main Unit
Warning: Do not unplug the AC adapter from
the unit when playing back a track via the
Bluetooth connection.

.13.
The pair indicator starts blinking quickly to
indicate that the unit and your device have
put into the connection mode.
When a Bluetooth connection is established
successfully, the indicator will be solid on.
5. Select Bluetooth mode by repeatedly pressing
the SOURCE button on the unit or pressing
the Bluetooth button on remote control.
6. Select the desired music and press "Play"
button on your device. The unit automatically
starts playing the audio.
Try again above steps 2 to 5 if the pair
indicator turns solid after blinking for 3
minutes, the pair was unsuccessful.
Using Multiple Bluetooth Devices
Only one device can be used at a time, but you
can switch between different Bluetooth devices.
Make sure each device you want to use has
already been paired, to switch devices:
1. On Sound Stack, press the pair button.
2. On Bluetooth device, select the connection to
Sound Stack.
This device is now the connected device to Sound
Stack,(the previous connected device is now
disconnected). Repeat those steps to switch
the connected device again.
Note: If the unit has no sound output, please
check if the volume level of your Bluetooth
device connected to the unit is set to the
minimum, or the Bluetooth device is muted.
PlayingbackfromMacbookorMacbook
Pro
1. In the desktop screen, Select the “Open
Bluetooth Preference”.
2. If there is any old“Sound Stack”records, remove
it. And then select “Setup New Device”again.
3. Select “Sound Pla” and the type should be
“Audio” in the latest SFQ-03I unit.
Click the“Continue”to proceed pairing process.
4. Once completed, the pairing success screen
will come out.
Note: Don’t quit the page immediately. You
may notice that the previous dialog screen
still shows the device not connected. Just
ignore it. It’s confusing to the user. In fact,
it’s connected already.
5. Open iTune, play a song. Then use mouse to
click the Bluetooth icon and the top right
hand corner of the desktop screen, select
the“Sound Stack”option and then select the
“Use as Audio Device (Stereo)”. After a while (a
few seconds), the music will come out
from the SFQ-03I. If not, retry to select the
“Use as Audio Device (Stereo)” once again.
The Sound Quality should be good.
Playing back from PC/Notebook
1. Press the “Start”button to open the “Device
and Printers” dialog box.
2. Turn on the SFQ-03I system and press
the PAIR button on the unit to put the unit
into the pair mode.
3. Select the “Add a device”in the“Device and
Printer” dialog box. The “Sound Stack” icon
will appear on the display.
4. Double click the “Sound Stack” icon and wait
until the device has been added successfully.
5. Click the “Close” button to close the “Device
and Printer”dialog box. A ”Sound Stack”icon
appears in the dialog box.
6. Double click the “Sound Stack”icon and the
device connection screen will be shown.
7. Click the “Connect” button in the “Music and
Audio” option.
8. Once connected, the pair indicator on the
unit will be solid on and the connection
success screen will be shown.

.14.
1. Turn the unit power on.
2. Set the volume to the minimum position.
3. Select AUX mode with the AUX button on the
remote control or the SOURCE button on
the unit.
4. Start playback on the external device.
5. Adjust the volume level if need.
1. Turn the unit power on.
2. Set the volume to the minimum position.
3. Select optical mode with the SOURCE button
on the unit or the OPTICAL button on the
remote control.
4. Start playback on the optical device.
5. Adjust the volume level to the level that you
want to listen to.
Playing back via Digital Optical
Listening to an External Audio
Device
You can enjoy the sound from an optional
component such as a portable digital music
player through the speakers of this unit. Be sure
to turn off the power of each component
before making any connections. For details,
refer to the instruction manual of the
component to be connected.
Connect an external device to the AUX IN jack
on the back panel of the unit using a stereo
mini plug cord (not supplied).
To audio
output such
as CD/MD/
digital music
player, etc.
Listening to an Optical Audio Device
You can enjoy the sound from a digital optical
device (such as Apple TV or Blu Ray player).
Connect the two ends of an optical audio cable
(not supplied) separately to the OPT IN jack of
the unit and an optical output jack of your
digital device.
Playing back from External Source

.15.
Optimizing Sound Quality
"U-Cubed" is an proprietary technology designed to create an ultra wide stereo sound
field in digital music systems. With exceptional natural sound reproduction of high definition and
fidelity, we create a listening experience where you feel like your speakers are separated much more
than they are.
To activate UQ3 on:
The unit, press the " " button to activate, press again to deactivate.
On the remote control or remote App, press the " " button to activate and deactivate.
Tip: To achieve optimal acoustic performance of Sound Stack's hi-fidelity speakers, we recommend
playing your Sound Stack for four (4) continuous hours upon initial usage to condition the
drivers.
Tip: Sound Stack has been tuned for balanced acoustic profile. You can use the EQ settings on your
playback device to customize the EQ balance to suit your personal preference. Note: Some
custom EQ settings when combined with UQ3 enhancement may cause distortion.
Tip: For playback via Bluetooth or Aux mode, the output volume is set by both the volume control
on Sound Stack and the source device. Both may be adjusted to set your preferred listening
volume. Typically, sound quality is best when the volume of the source device is between
70-90%. Note: As with any speaker system, if the volume on both your source device and the
speaker are at maximum output, it is possible to overdrive the speakers and cause distortion.
When using an iOS device or other device that offers a "volume limit" feature, turn this setting
off for higher volume listening with in Bluetooth or Aux mode.
Tip: Sound Stack is capable of reproducing a broad range of sound frequencies. Using lossless or
high quality digital music files with low compression will improve acoustic performance. Note:
Sound Stack is compatible with lossless transfer of AAC files offered on iOS devices. With
Bluetooth playback on an iOS device (iPod touch, iPhone or iPad) there is no degradation of the
quality of the music file.
TM

.16.
Troubleshooting
In These Cases Check the following points
Check this list for a possible troubleshooting solution before calling for service.
• Is the selected dock adapter compatible to your iPad/iPhone/iPod?
• Is the dock adapter properly mounted on the unit? Make sure to mount the
dock adapter properly.
• AC adapter is not inserted securely. Plug in securely.
• Is the connector plug of the unit firmly inserted into the connector port of
the iPad/iPhone/iPod?
• Is the iPad/iPhone/iPod properly functioning? Test the iPad/iPhone/iPod
functions in stand-alone condition.
• Is the connector plug of the unit firmly inserted into the connector port
of the iPad/iPhone/iPod?
• Is the AC adapter plug firmly inserted into DC IN jack of the unit?
• The path between the remote control and the sensor on the unit is
blocked.
• The battery of remote control is exhausted.
• Remove and reconnect the AC power plug and turn on the system again.
No sound output.
No sound output is via Bluetooth
or Bluetooth connection cannot
be restored automatically.
Cannot set the
iPad/iPhone/iPod.
Power does not come on.
Cannot operate
iPad/iPhone/iPod.
iPad/iPhone/iPod cannot be
charged.
The system does not react
when the buttons are
pressed.
Unable to operate the
System from the remote
control.
• Check if the volume level is set to the minimum.
• Check if the volume level of your Bluetooth device connected to the system
is set to the minimum.
• Check if the volume level is muted. Press MUTE button on the remote
control again to restore the sound output.
• Check to make sure your Bluetooth device is not muted.
The system is suddenly
powered off.
• The system enters the protection mode. The unit may have a short circuit.
Unplug the AC adapter immediately. You need to consult your seller and
leave all servicing to the qualified personnel.
• The unit may be powered off and powered on when playing back a track via
Bluetooth connection. You need to make the connection again.
All the indicators on the
system start blinking quickly
at the same time when iPod/
iPhone is charging.
• The system enters the saving energy mode. The unit does not connect with
any audio source for more than 20 minutes. Turn on the system again and
play back an audio source.
• Maybe your USB cable is not supported by the system, please try to use
another USB cable.
If you find USB charging
cannot perform after
connecting your device to the
USB jack on the unit.

.17.
External DC IN (for AC adapter), AUX IN
DC 19 V 4.74 A (External DC IN)
Input: AC 100-240V, 50/60Hz
Output: DC 19 V 4.74 A
440mm (W) * 162mm (H) * 190mm (D)
3.18Kg
Model
Type
Support Bluetooth
Support Profile
Bluetooth 1.2, 2.0 and 2.1 compliant
Sound Stack
A2DP
Input Sensitivity/Impedance AUX Input 1200 mV
Input Terminal
Power Source
AC Adapter
Dimensions (Approx.)
Weight
Technical Specifications
SFQ-03I
a. Right click the “Sound Stack”icon in the “Device and Printer”dialog box.
b. Open the“Sound Stack Properties”dialog box and select the “Services” tab.
c. Put the ticks on the “Audio Sink” and “Remote Control”boxes.
d. Press the“Apply”button and the exclamation mark of the“Sound Stack”
driver icon will be cleared.
Bluetooth connection cannot
be established between the
system and your Lenovo PC
with Win 7 OS.
In These Cases Check the following points
Bluetooth connection cannot
be established.
• When making a Bluetooth connection between the unit and your device for
the first time, if the connection is fail, you need to power off your device and
power on again to clear the device name, and make the connection again.
• You need to reset the unit first and then make the Bluetooth connection
again.
Using the below method to reset the unit:
a. Set the unit to standby mode.
b. Press the Vol +, U-Cubed and buttons simultaneously. All the source
indicators near the iPod docking should be lit up, indicating that the
resetting is successful.

Save this manual
