Sound Magus SE90.2 User manual
SE90.2 / SE150.2/SE90.4 / SE150.4
SE800.1 / SE1500.1/SE2000.1 / SE3500.1
DSP DIGITAL POWER AMPLIFIERS
OWNER'S MANUAL
2
FEATURES
Overload, shortcircuit, thermal, low voltage protection
Power Supply Design: Full MOSFET DC-DC PWM Power Supply
Double side FR-4 PCB,High quality SMD components
Delay Time (0-20ms / 0.02ms step) & Delay Time Trim set adjustable;
4 bands Customized EQ with adjustable Q factor;27 bands fixed EQ with
fixed Q factor
Full range Crossover Slope 6dB - 48dB（HP/ BP/ LP）
All settings stored in the amps will be saved as presets for the next turn-
on.
All settings can be saved and upload to software as a preset, convenient to
offer long-distance aids to customers.
Professional software with intuitive user interface,Supporting multiple
operation systems like Windows XP/ vista / Win7, Android & Apple OS
Wireless remote controller to switch 4 settings in real-time
Special WIFI adapter to actualize the wireless communications with
software
4 Settings Memory Stored Function
Built-in Professional DSP circuit
Congratulations on your purchase of a SOUNDMAGUS state-of-the-art
power amplifier with digital signal processing. At SOUNDMAGUS Mobile
Audio we strive to provide some of the latest technology tools that make
the quest for “the perfect tune” so much easier. Our goal was to develop
technologically advanced amplifiers completely adjustable to the acoustics
of each vehicle.
INTRODUCTION
A power amplifier’s performance is only as good as its installation.
Proper installation will maximize the system’s overall performance. It is
recommended that you have our product installed by an authorized
SOUNDMAGUS retailer. However, if you decide to install it by yourself,
please carefully read through this manual and take your time to do a
qualified installation.
RECOMMENDATION
1
2
FEATURES
Overload, shortcircuit, thermal, low voltage protection
Power Supply Design: Full MOSFET DC-DC PWM Power Supply
Double side FR-4 PCB,High quality SMD components
Delay Time (0-20ms / 0.02ms step) & Delay Time Trim set adjustable;
4 bands Customized EQ with adjustable Q factor;27 bands fixed EQ with
fixed Q factor
Full range Crossover Slope 6dB - 48dB（HP/ BP/ LP）
All settings stored in the amps will be saved as presets for the next turn-
on.
All settings can be saved and upload to software as a preset, convenient to
offer long-distance aids to customers.
Professional software with intuitive user interface,Supporting multiple
operation systems like Windows XP/ vista / Win7, Android & Apple OS
Wireless remote controller to switch 4 settings in real-time
Special WIFI adapter to actualize the wireless communications with
software
4 Settings Memory Stored Function
Built-in Professional DSP circuit
Congratulations on your purchase of a SOUNDMAGUS state-of-the-art
power amplifier with digital signal processing. At SOUNDMAGUS Mobile
Audio we strive to provide some of the latest technology tools that make
the quest for “the perfect tune” so much easier. Our goal was to develop
technologically advanced amplifiers completely adjustable to the acoustics
of each vehicle.
INTRODUCTION
A power amplifier’s performance is only as good as its installation.
Proper installation will maximize the system’s overall performance. It is
recommended that you have our product installed by an authorized
SOUNDMAGUS retailer. However, if you decide to install it by yourself,
please carefully read through this manual and take your time to do a
qualified installation.
RECOMMENDATION
1
SE800.1/SE1500.1/SE2000.1/SE3500.1
CONTROLS & FUNCTIONS
SE90.2/SE150.2
SE800.1/SE1500.1
SE2000.1/SE3500.1SE90.2/SE150.2 SE90.4/SE150.4
3
Connect speakers/subwoofers to these terminals. Be sure to check wire for proper
polarity. Never connect the speaker cables to chassis ground.
123 4
587 6
1. SPEAKERS
587 6
123 4
SE90.4/SE150.4
CONTROLS & FUNCTIONS
the vehicle battery or the positive terminal of an isolated audio system battery.
Connect this terminal through a FUSE or CIRCUIT BREAKER to the positive terminal of
2. +12 Volt Power
remote turn on lead of the head unit or signal source.
This terminal turns on the amplifier when (+)12 volt is applied to it . Connect it to the
3.Remote Turn On
stripped of all paint down to the bare metal. Use the shortest distance possible. It is always a
good idea to replace the factory ground at this time with a larger cable equal to the new amplifier
power cable or larger.
CAUTION: Do not connect this terminal directly to the vehicle battery ground terminal or any
other factory ground points.
Connect this cable directly to the frame of the vehicle. Make sure the metal frame has been
4.GND
123 4
587 6
4
SE800.1/SE1500.1/SE2000.1/SE3500.1
CONTROLS & FUNCTIONS
SE90.2/SE150.2
SE800.1/SE1500.1
SE2000.1/SE3500.1SE90.2/SE150.2 SE90.4/SE150.4
3
Connect speakers/subwoofers to these terminals. Be sure to check wire for proper
polarity. Never connect the speaker cables to chassis ground.
123 4
587 6
1. SPEAKERS
587 6
123 4
SE90.4/SE150.4
CONTROLS & FUNCTIONS
the vehicle battery or the positive terminal of an isolated audio system battery.
Connect this terminal through a FUSE or CIRCUIT BREAKER to the positive terminal of
2. +12 Volt Power
remote turn on lead of the head unit or signal source.
This terminal turns on the amplifier when (+)12 volt is applied to it . Connect it to the
3.Remote Turn On
stripped of all paint down to the bare metal. Use the shortest distance possible. It is always a
good idea to replace the factory ground at this time with a larger cable equal to the new amplifier
power cable or larger.
CAUTION: Do not connect this terminal directly to the vehicle battery ground terminal or any
other factory ground points.
Connect this cable directly to the frame of the vehicle. Make sure the metal frame has been
4.GND
123 4
587 6
4
6
PREINSTALLATION
Please prepare sufficiently to layout your car space before installation. We
recommend to have the installation done by an Autho rized SOUNDMAGUS
Dealer.
Please use good insulated power cable to endure longterm above 40A
electronical current. The +12 Volt power cable must be connected with a
fuse in line near 20cm of battery+ terminal. Required current, power
cable and proper external fuse listed as following:
MODEL
CABLE
FUSE
SE800.1
4 #
80 A
SE1500.1
2 - 4 #
120 A
SE2000.1
0 - 4 #
200 A
SE3500.1
0 - 2 #
300 A
SE90.2
8 #
30 A
SE150.2
4 - 8 #
40 A
SE90.4
40 A
SE150.4
4 - 6 #
60 A
4 - 8 #
Please use car audio RCA cables, otherwise it may be disturbed. Keep
these cables as short as possible. To avoid disturbances from your car
electronics, please don`t close the existing car cables when you install
the RCA cables.
Don't expose any cables out of car. Please take care insulated cables to
avoid damaging when cables pass through metal, rubber and plastic
etc. Don't install all cables too tight.
The ground wire should be connected directly with the chassis of your
vehicle which should be metal to metal ground point connection.
The amplifier must be mounted securely at a solid, dry and low vibration
surface in the trunk or passenger area. Fix the amplifier in an open air
area to insure proper heat dissipation.
5
CONTROLS & FUNCTIONS
SE800.1/SE1500.1
SE2000.1/SE3500.1SE90.2/SE150.2 SE90.4/SE150.4
with a minimum level of 200mV is required for proper operation. The use of high quality twisted
pair cables is recommended to decrease the possibility of radiated noise entering the system.
These RCA input jacks are for use with source units that have RCA outputs. A source unit
5. RCA Input Jacks
The red LED will light up and will be flashing if there is a fault presented to the amplifier.
Please disconnect the amplifier and resolve the fault before reconnecting the amplifier.
7. Alarm Indicator
This LED will light up when amplifier works properly.
8. RUN
WI - FI adapter. Connection amplifier and adapter wap - set crossover and function. Once set
up completed, WI - FI adapter can be pulled out, latest settings will be saved in the amplifier.
6. I/O PORT
6
PREINSTALLATION
Please prepare sufficiently to layout your car space before installation. We
recommend to have the installation done by an Autho rized SOUNDMAGUS
Dealer.
Please use good insulated power cable to endure longterm above 40A
electronical current. The +12 Volt power cable must be connected with a
fuse in line near 20cm of battery+ terminal. Required current, power
cable and proper external fuse listed as following:
MODEL
CABLE
FUSE
SE800.1
4 #
80 A
SE1500.1
2 - 4 #
120 A
SE2000.1
0 - 4 #
200 A
SE3500.1
0 - 2 #
300 A
SE90.2
8 #
30 A
SE150.2
4 - 8 #
40 A
SE90.4
40 A
SE150.4
4 - 6 #
60 A
4 - 8 #
Please use car audio RCA cables, otherwise it may be disturbed. Keep
these cables as short as possible. To avoid disturbances from your car
electronics, please don`t close the existing car cables when you install
the RCA cables.
Don't expose any cables out of car. Please take care insulated cables to
avoid damaging when cables pass through metal, rubber and plastic
etc. Don't install all cables too tight.
The ground wire should be connected directly with the chassis of your
vehicle which should be metal to metal ground point connection.
The amplifier must be mounted securely at a solid, dry and low vibration
surface in the trunk or passenger area. Fix the amplifier in an open air
area to insure proper heat dissipation.
5
CONTROLS & FUNCTIONS
SE800.1/SE1500.1
SE2000.1/SE3500.1SE90.2/SE150.2 SE90.4/SE150.4
with a minimum level of 200mV is required for proper operation. The use of high quality twisted
pair cables is recommended to decrease the possibility of radiated noise entering the system.
These RCA input jacks are for use with source units that have RCA outputs. A source unit
5. RCA Input Jacks
The red LED will light up and will be flashing if there is a fault presented to the amplifier.
Please disconnect the amplifier and resolve the fault before reconnecting the amplifier.
7. Alarm Indicator
This LED will light up when amplifier works properly.
8. RUN
WI - FI adapter. Connection amplifier and adapter wap - set crossover and function. Once set
up completed, WI - FI adapter can be pulled out, latest settings will be saved in the amplifier.
6. I/O PORT
8
4) After The Plastic Cap Is Stick To The Amp, Holding Two Ends Of The Plastic
Caps( As Shown In Figure 3 ) And Push them down to the same horizontal level ( As
Shown In The Figure 3).
Holding both ends of the plastic cap,
push down together with same strength.
Figure 3:
6) When removing the plastic end caps,hold two ends of the plastic cap(as shown in
the following figure) and pull them up about 2mm from the amp.Then they can be
taken away parallelly.
Holding both ends of plastic
cap and remove it parallelly
5) Plastic cap installation completed.
7
AMPLIFIERS INSTALLATION
2 ) Using attached screws to fix the amplifier to the chosen place.(As shown in figure 1)
3 ) Each plastic end cap has 5 buckles that match 5 buckle holes on the amplifier.
Hold two ends of the plastic end cap and push it towards the amps horizontally.(As
shown in figure 2)
1 ) Choosing a flat and ventilated place to install amplifier.
Be sure to carefully read and understand the instructions before attempting to
install the Amplifier.
1.Installation steps
Horizontal push direction
Horizontal push direction
Figure 1 :
Figure 2 :
Plastic End Caps Fastening Illustration
8
4) After The Plastic Cap Is Stick To The Amp, Holding Two Ends Of The Plastic
Caps( As Shown In Figure 3 ) And Push them down to the same horizontal level ( As
Shown In The Figure 3).
Holding both ends of the plastic cap,
push down together with same strength.
Figure 3:
6) When removing the plastic end caps,hold two ends of the plastic cap(as shown in
the following figure) and pull them up about 2mm from the amp.Then they can be
taken away parallelly.
Holding both ends of plastic
cap and remove it parallelly
5) Plastic cap installation completed.
7
AMPLIFIERS INSTALLATION
2 ) Using attached screws to fix the amplifier to the chosen place.(As shown in figure 1)
3 ) Each plastic end cap has 5 buckles that match 5 buckle holes on the amplifier.
Hold two ends of the plastic end cap and push it towards the amps horizontally.(As
shown in figure 2)
1 ) Choosing a flat and ventilated place to install amplifier.
Be sure to carefully read and understand the instructions before attempting to
install the Amplifier.
1.Installation steps
Horizontal push direction
Horizontal push direction
Figure 1 :
Figure 2 :
Plastic End Caps Fastening Illustration
10
WIRING DIAGRAM
SE90.2/SE150.2 Amplifier wiring
CD
speaker impedance
2~4Ohm
Input 2 Channel Mode
Bridged Mode
Stereo Mode
speaker impedance
2~4Ohm
SUB WOOFER
speaker impedance
4~8Ohm
9
WIRING DIAGRAM
SE800.1/1500.1/2000.1/3500.1 Amplifier wiring
CD
SUB WOOFER
speaker impedance
1~4Ohm
SUB WOOFER
speaker impedance
2~8Ohm
SUB WOOFER
speaker impedance
2~8Ohm
Single channel input Mode
Two Woofer Load Mode
One Woofer Load Mode
10
WIRING DIAGRAM
SE90.2/SE150.2 Amplifier wiring
CD
speaker impedance
2~4Ohm
Input 2 Channel Mode
Bridged Mode
Stereo Mode
speaker impedance
2~4Ohm
SUB WOOFER
speaker impedance
4~8Ohm
9
WIRING DIAGRAM
SE800.1/1500.1/2000.1/3500.1 Amplifier wiring
CD
SUB WOOFER
speaker impedance
1~4Ohm
SUB WOOFER
speaker impedance
2~8Ohm
SUB WOOFER
speaker impedance
2~8Ohm
Single channel input Mode
Two Woofer Load Mode
One Woofer Load Mode
12

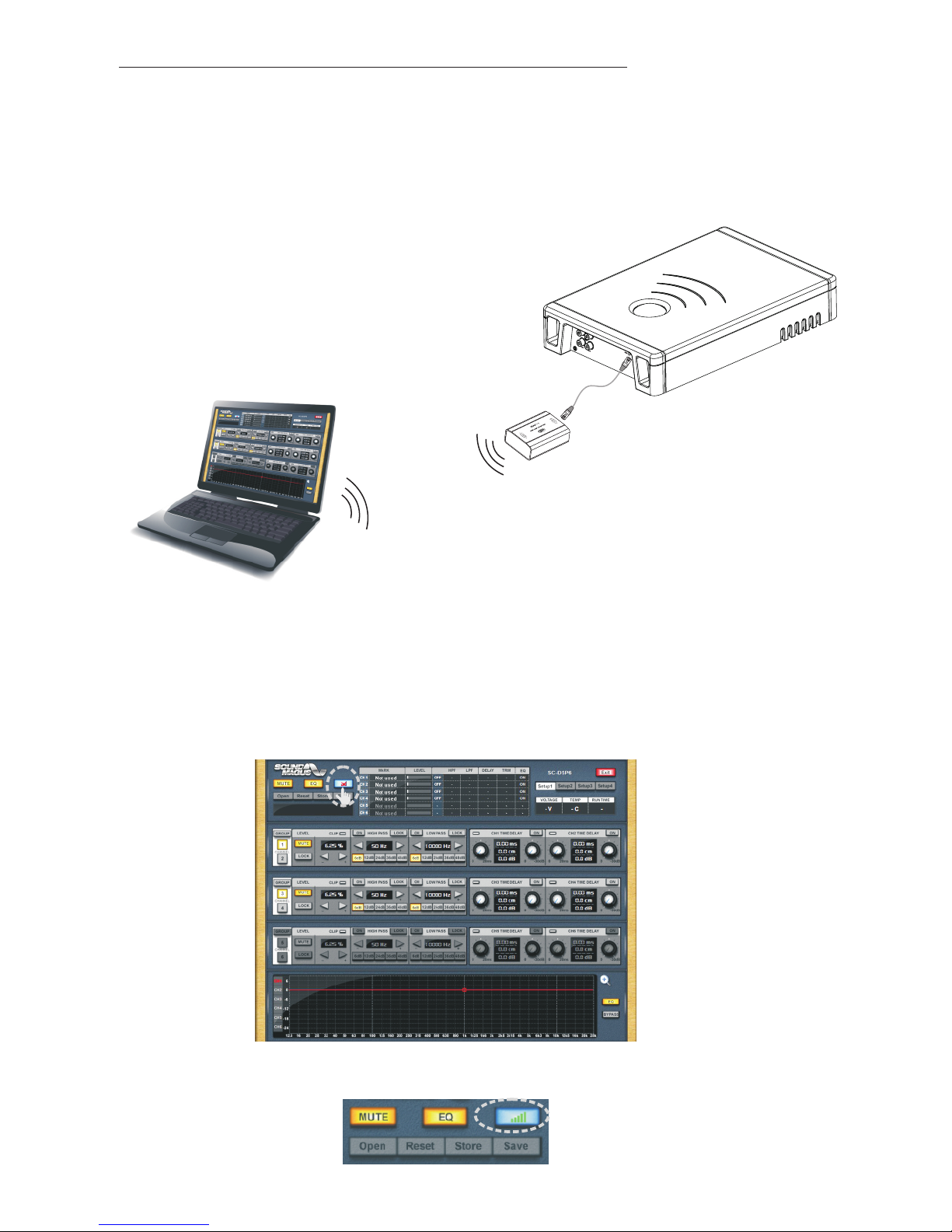

AMPLIFIER AND WIFI WIRING DIAGRAM
WAP-1 And amplifier connection steps
Connection steps
1. Make sure of correct wiring of amplifier (Such as 9 ~ 11 page).
2. Using special connecting line will wi - fi adapter (WAP -1) and amplifier connection.
3. Start the amplifier to work normally.
Wireless Connecting with PC and software steps
1. Link the DSP AMP Wi-Fi on PC with password.
2. Click on open DSP operating software, into the DSP interface.
4. When the wireless icon shows green, it indicates successful connection and you can
3. Right-click the DSP software interface the top left corner of the wireless icon, click
"select device", select the popup menu in the connection Wi - Fi equipment, Click on
the "selete" connection.
begin your setup.
11

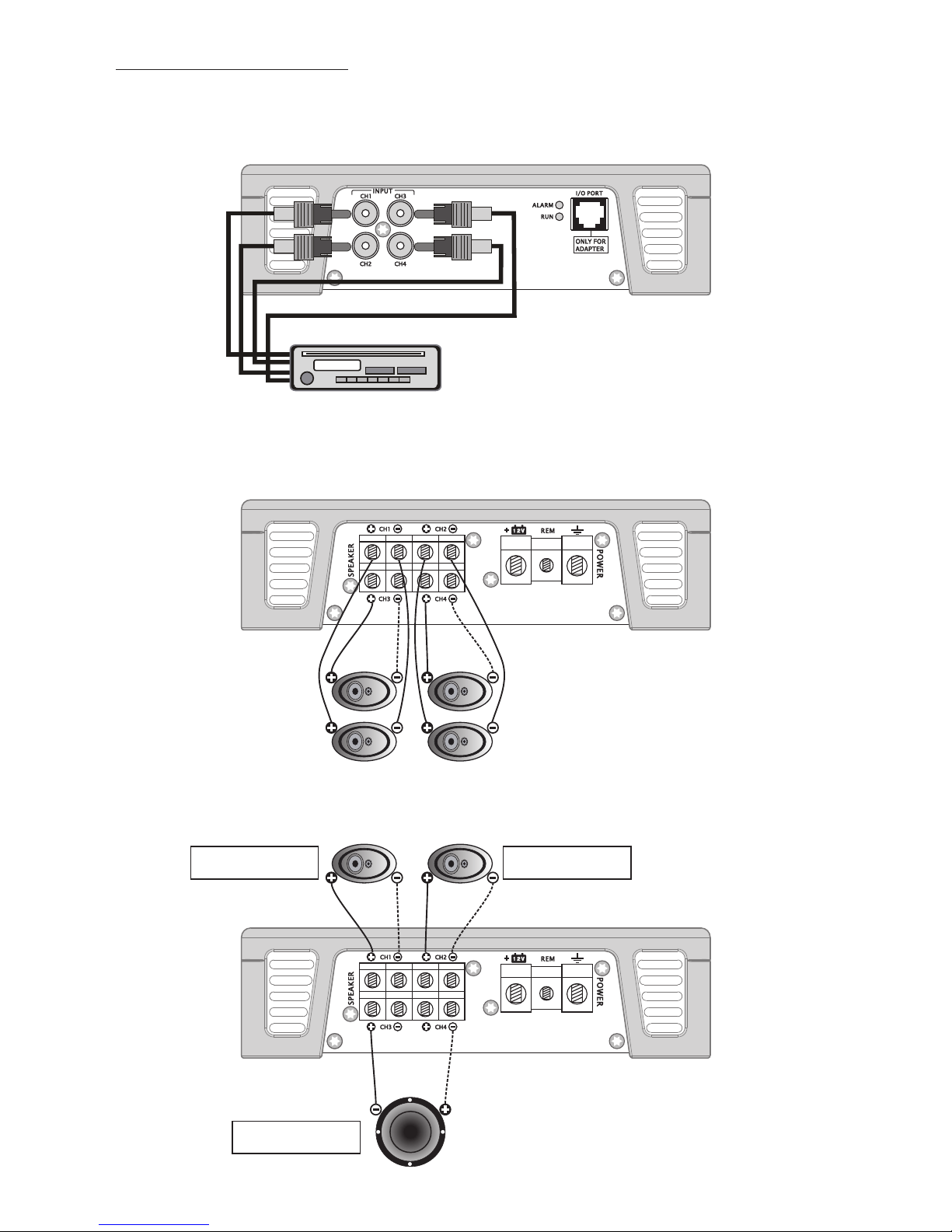

WIRING DIAGRAM
SE90.4/SE150.4 Amplifier wiring
Input 4 Channel Mode
3 - Channel Mode
4 - Channel Mode
SUB WOOFER
speaker impedance
4~8Ohm
CD
2~4Ohm
speaker impedance
2~4Ohm
speaker impedance
2~4Ohm
2~4Ohm
2~4Ohm 2~4Ohm
Bridged
12
AMPLIFIER AND WIFI WIRING DIAGRAM
WAP-1 And amplifier connection steps
Connection steps
1. Make sure of correct wiring of amplifier (Such as 9 ~ 11 page).
2. Using special connecting line will wi - fi adapter (WAP -1) and amplifier connection.
3. Start the amplifier to work normally.
Wireless Connecting with PC and software steps
1. Link the DSP AMP Wi-Fi on PC with password.
2. Click on open DSP operating software, into the DSP interface.
4. When the wireless icon shows green, it indicates successful connection and you can
3. Right-click the DSP software interface the top left corner of the wireless icon, click
"select device", select the popup menu in the connection Wi - Fi equipment, Click on
the "selete" connection.
begin your setup.
11
WIRING DIAGRAM
SE90.4/SE150.4 Amplifier wiring
Input 4 Channel Mode
3 - Channel Mode
4 - Channel Mode
SUB WOOFER
speaker impedance
4~8Ohm
CD
2~4Ohm
speaker impedance
2~4Ohm
speaker impedance
2~4Ohm
2~4Ohm
2~4Ohm 2~4Ohm
Bridged
13
规格参数
附表 1
附表 2
若有其它问题请联系“圣坛美歌指定安装店”或登陆官方网www..com获
得相关技术支持。
SOUNDMAGUS
型号 通道 4欧姆
额定负载
2欧姆
额定负载 最大 功率
SE90.2
SE150.2
SE90.4
SE150.4
2
2
4
4
80W x 2
135W x 2
80W x 4
135W x 4
120W x 2
160W x 2
120W x 4
160W x 4
4欧姆
桥接负载
230W x 1
320W x 1
230W x 2
320W x 2
480W
640W
960W
1280W
243 x 202 x56
263 x 202 x56
313 x 202 x56
380 x 202 x56
尺寸(毫米)
(长) x (宽) x (高)
320W x 1
580W x 1
660W x 1
580W x 1
550W x 1
980W x 1
1150W x 1
1150W x 1
型号 通道 4欧姆
额定负载
2欧姆
额定负载 最大 功率 尺寸(毫 米)
(长) x (宽) x (高)
SE800.1
SE1500.1
SE2000.1
SE3500.1
单声道
3100W x 1
1600W
3000W
4000W
7200W
351 x 202 x56
428 x 202 x56
445 x 202 x56
588 x 202 x56
1欧姆
额定负载
0.5欧姆
额定负载
800W x 1
1400W x 1
1900W x 1
1900W x 1
单声道
单声道
单声道
故障对策
电源指示灯不亮
检查音频信号源的音量控制器
电源指示灯亮，
但仍没有声音
检查PC软件的MUTE功能是否开启
检查音频信号线及其连接情况
检查扬声器是否损坏及其连接线是否正确
检查电源线和接地线是否正确连接
检查开关控制线是否和机头的音源设备正确连接
检查所有的保险管是否损坏
检查蓄电池电压是否过低
功放处于保护状态
检查功放扬声器输出端是否短路，扬声器是否损坏
检查功放温度是否过高
检查扬声器阻抗是否正确
检查电池电压是否过低
音色失真
检查音源设备音量是否过大，超出了本机或扬声器的正
常工作范围
检查PC软件电平GAIN是否处在合适的数值
检查扬声器是否已损坏
功放不停的开关
检查功放接地线是否接触良好
检查蓄电池接线端子和电源端子是否接触良好
检查蓄电池电源电压是否过低
遥控开关机的连接线接触不良
故 障 检测方法
一个声道不工作
检查此声道的音频信号线的连接情况
检查此声道扬声器输出端子的连接情况
检查音源声道平衡调节器是否调整到中间
检测此声道对应的扬声器是否损坏
检测PC软件是否将一个声道静音
13
Symptom Possible Remedy
Amplifier
will not
power up
Check to make sure you have a good ground connection.
Check that there is battery power on the (+)terminal .
Check all fuses, replace if necessary .
Make sure that the Protection LED is not illuminated.
Protection
LED Comes on
Check for short circuits on speaker leads.
Check the speaker load not beyond the minimum load.
Remove speaker lead, and reset the amplifier. If the protection LED still
Comes on, then the amplifier is faulty and needs servicing .
No output
Check that the RCA audio cables are plugged into the proper inputs.
Check all speakers wiring.
Check the headunit output and the amplifier level setting.
Low output Reset the level Control.
Check the Crossover Control settings.
High hiss in
The speakers
Check the RCA cable is not shorted to power ground at amplifier side.
Check the amplifier grounding.
Distorted sound
Check that the Input level control is set to match the signal level of the head unit. Always
try to set the Input level as low as possible.
Check that all crossover frequencies are properly set.
Check for short circuits on the speaker leads.
Amplifier gets
Very hot
Check that the minimum load impedance for the amplifier model is correct.
Check that there is good air circulation around the amplifier. In some applications, It may
be necessary to add an external cooling fan.
TROUBLE SHOOTING
If your amplifier is still malfunction after checking through the troubleshooting
section, please contact our authorized SOUNDMAGUS dealer.
SPECIFICATIONS
Table 1
Table 2
MODEL CHANNEL RMS@4Ohm RMS@2Ohm Mas Power DIMENSIONS(mm)
(L) x (W) x (H)
SE90.2
SE150.2
SE90.4
SE150.4
2
2
4
4
80W x 2CH
135W x 2CH
80W x 4CH
135W x 4CH
120W x 2CH
160W x 2CH
120W x 4CH
160W x 4CH
Bridged
@4Ohm
230W x 1CH
320W x 1CH
230W x 2CH
320W x 2CH
480W
640W
960W
1280W
243 x 202 x56
263 x 202 x56
313 x 202 x56
380 x 202 x56
320W x 1CH
580W x 1CH
660W x 1CH
580W x 1CH
550W x 1CH
980W x 1CH
1150W x 1CH
1150W x 1CH
MODEL CHANNEL RMS@4Ohm RMS@2Ohm Mas Power DIMENSIONS(mm)
(L) x (W) x (H)
SE800.1
SE1500.1
SE2000.1
SE3500.1
MONO
MONO
MONO
MONO 3100W x 1CH
1600W
3000W
4000W
7200W
351 x 202 x56
428 x 202 x56
445 x 202 x56
588 x 202 x56
RMS@1Ohm RMS@0.5Ohm
800W x 1CH
1400W x 1CH
1900W x 1CH
1900W x 1CH
This manual suits for next models
7
Table of contents
Other Sound Magus Amplifier manuals
