SIIG AV-GM0573-S1 User manual

1x8 DVI Distribution Amplifier with HDCP
Support
P/N: AV-GM0573-S1

Safety and Notice
The AV-GM0573-S1 1x8 DVI Distribution Amplifier with HDCP Support has been tested for
conformance to safety regulations and requirements, and has been certified for international
use. However, like all electronic equipments, the AV-GM0573-S1 should be used with care.
Please read and follow the safety instructions to protect yourself from possible injury and to
minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
TABLE OF CONTENTS
INTRODUCTION.................................................................................................................1
FEATURES.........................................................................................................................1
PACKAGE CONTENTS......................................................................................................1
SPECIFICATIONS..............................................................................................................2
PANEL DESCRIPTIONS.....................................................................................................3
HARDWARE INSTALLATION.............................................................................................5
CONNECTION DIAGRAM ..................................................................................................5
NOTICE..............................................................................................................................6
WARRANTY .......................................................................................................................7

1
INTRODUCTION
The AV-GM0573-S1 1x8 DVI Distribution Amplifier with HDCP Support provides the most cost
effective and advanced DVI splitter solution on the market, by which the high definition video can
be transmitted to 8 different locations without losing quality. To equip with HDMI compliant splitter
chipsets, AV-GM0573-S1 is also good to be used as an advanced HDMI 8 port splitter.
AV-GM0573-S1 is suitable for high quality PC broadcasting, digital signage and education
applications!
FEATURES
●DVI 1.1 / Support HDMI Deep Color & 3D
●HDCP 1.2 compliant
●Wide Frequency Range: 25MHz ~ 225MHz
●Video bandwidth: 6.75Gbps
●Resolution up to 1080p or WUXGA [1920x1200@60]
●Automatic EDID learning
●USB firmware update for expanding compatibility
●Wall-mount housing design for easy installation
PACKAGE CONTENTS
●1x AV-GM0573-S1
●1x 5V power supply unit
●1x User Manual
Automatic EDID learning will detect all the connected DVI / HDMI equipped monitors and
analyze all the content of EDID. The EDID with minimal resolution support will be the
reference EDID for incoming DVI / HDMI source players.

2
SPECIFICATIONS
Model Name
AV-GM0573-S1
Technical
Role of usage
1x8 Distribution Amplifier (Splitter)
DVI compliance
DVI 1.1
HDMI compliance
HDMI Deep Color & 3D
HDCP compliance
Yes
Video bandwidth
Single-link 225MHz [6.75Gbps]
Video support
Up to WUXGA [1920x1200@60Hz] & UXGA [1600x1200@60Hz]
Audio support
DTS-HD Master Audio, Dolby TrueHDM
Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
ESD protection
[1] Human body model —±19kV [air-gap discharge] & ±12kV [contact
discharge]
[2] Core chipset —±2kV
PCB stack-up
4-layer board [impedance control —differential 100Ω; single 50Ω]
Firmware update
Feasible via USB-port
Input TMDS signal
1.2 Volts [peak-to-peak]
Input DDC signal
5 Volts [peak-to-peak, TTL]
Input
1x DVI / HDMI [7.1ch audio & video]
Output
8x DVI / HDMI [7.1ch audio & video]
DVI connector
DVI-I [29-pin female digital only]
USB connector
Standard type-B [square shape]
Mechanical
Housing
Metal enclosure
Dimension
s
[L x W x H]
Model
340 x 95 x 45mm [1’1.4” x 3.8” x 1.8”]
Package
510 x 230 x 70mm [1’8” x 9.1” x 2.7”]
Carton
510 x 410 x 252mm [1’8” x 1’5” x 1’3”]
Weight
Model
910g [2 lbs]
Package
1.7g [3.7 lbs]
Fixedness
Wall-mounting case with screws
Power supply
5V 4A DC

3
Power consumption
7 Watt [max]
Operation
temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
PANEL DESCRIPTIONS
Rear Panel
1. DVI OUT: distributed DVI outputs
2. DVI IN: DVI input source
3. USB IN: for firmware update use only
4. Green LED: Signal indicator LED
Red LED: Power indicator LED
5. +5V DC: connect to 5V 4A interlocking power supply unit
6. Push Button: Enter firmware update mode

4
When the connected DVI / HDMI monitor is verified as DVI or HDMI and HDCP compliant,
the corresponding green LED will blink.

5
HARDWARE INSTALLATION
Broadcasts DVI signal to 8 DVI displays!
1. Switch off all devices, including monitors.
2. Connect to the receivers.
3. Connect a DVI source (such as a Blu-ray Disc player or PC) to the DVI In.
4. Plug in 5V DC power supply unit.
5. Power on the DVI monitors.
6. Power on the DVI source.
CONNECTION DIAGRAM

6
NOTICE
1. While connecting a new monitor to the splitter, experiencing a short period of time no display
may be expected. Automatic EDID learning will analyze the newly connected monitor to see if
the EDID for the DVI input is necessary to update!
2. For long range high definition DVI transmission applications, please adopt CAT5/6 cable based
DVI extenders.

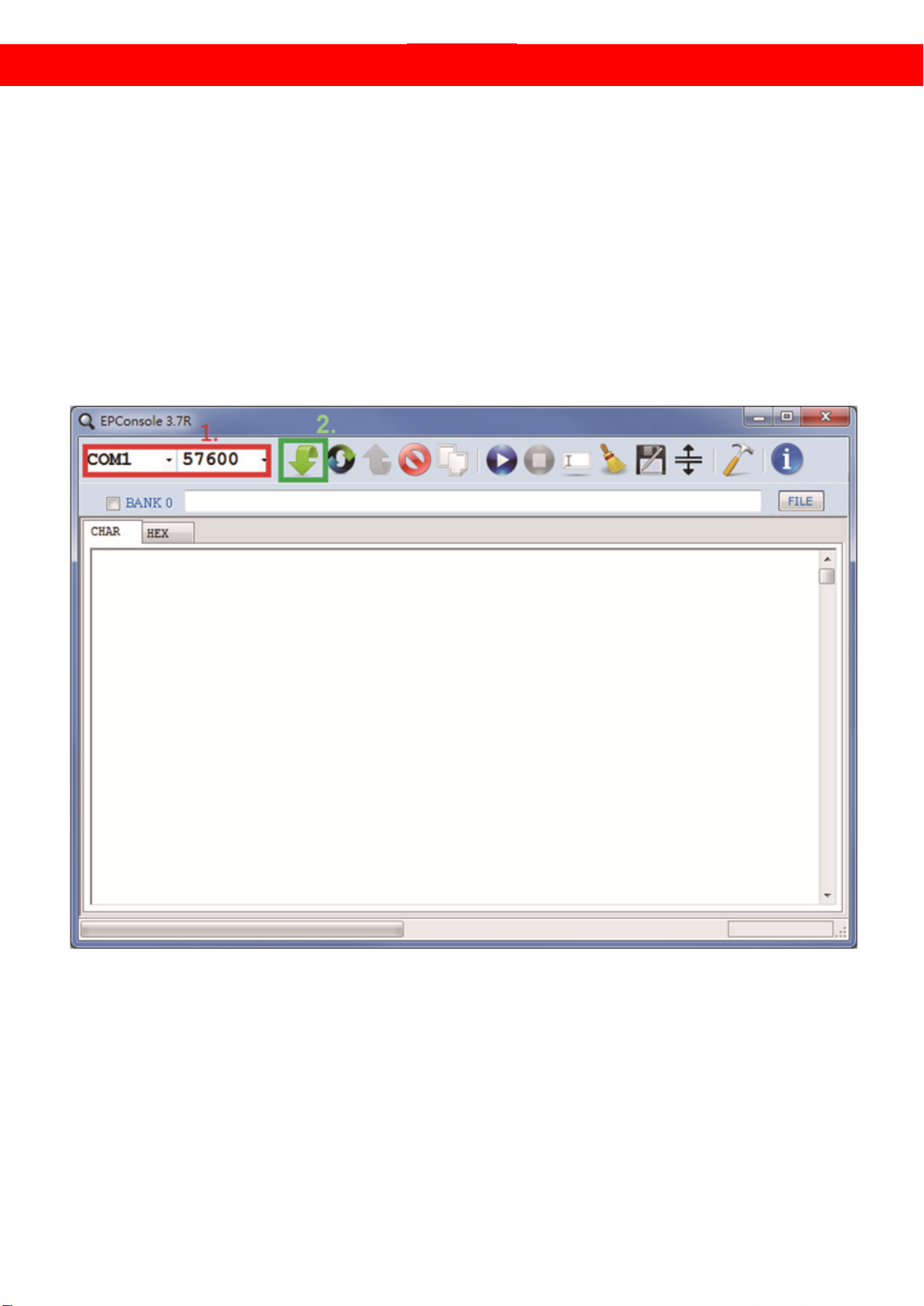

3. For firmware update through USB, users MUST turn the power off, press the push button until
users power on device, and then connect the USB cable between PC and device. Open the
firmware update software, [1] set the correct com port and baud rate (57600 is recommended),
[2] click the “File” button to direct to the firmware HEX or BIN file and press “Program MCU”
symbol to firmware update. Once update process is done, please power off the device.

7
WARRANTY
The SELLER warrants the AV-GM0573-S1 1x8 DVI Distribution Amplifier with HDCP Support free
from defects in the material and workmanship for 3 years from the date of purchase from the
SELLER or an authorized dealer. Should this product fail to be in good working order within 3 years
warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not
been subjected to accident, disaster, abuse or any unauthorized modifications including static
discharge and power surge. This warranty is offered by the SELLER for its BUYER with direct
transaction only. This warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day
of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or
assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted
without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without
limitations, any other implied warranty or fitness or merchantability for any particular purpose, all
of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables and power adapters are limited to
a 30 day warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual.
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages
resulting from any defect or omission in this manual, even if advised of the possibility of such
damages. Also, the technical information contained herein regarding the AV-GM0573-S1 features
and specifications is subject to change without further notice.
April, 2018
Support
For more info or tech support
http://www.siig.com/support
