Soundchoice PROAudio T6221 User manual
OPERATION MANUAL
www.scpaudio.com
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
T6221
COMMERCIAL SERIES |CD/MP3 Player
page 2 T6221 CD/MP3 Player www.scpaudio.com Sound Choice Pro Audio
TABLE OF CONTENTS
1. Safety Precautions 3
2. Attention 4
3. General Description 5
4. Features 5
5. Functions (Front & Rear panel) 6
6. Remote Control 7
7. CD Operation 8
8. Applications 9
9. Specications 10
10. Installing Method 11
Sound Choice Pro Audio www.scpaudio.com T6221 CD/MP3 Player page 3
• Be sure to read through all the instructions in this Manual before using the product.
• Please ensure that you observe the instructions in this Manual, especially those highlighted by Safety Symbols and Safety
Messages.
• Please retain this Manual in a safe place for future reference.
Safety Symbol and Safety Message Conventions
The Safety Symbols and Safety Messages described below have been included in this Manual to prevent possible bodily injury
and property damage which could result from mishandling. Please read through this Manual and become familiar with all
Safety Symbols and Safety Messages , before operating this product.
When Installing the Unit
• Do not expose the unit to rain or an environment where
it may be splashed by water or other liquids, as doing so
may result in re or electric shock.
• Use the unit only with the voltage specied on the unit.
Using a voltage higher than that which is specied may
result in re or electric shock.
• Do not cut, kink, or otherwise damage, nor modify the
power supply cord. In addition, avoid using the power
cord in close proximity to heaters, and never place heavy
objects -- including the unit itself -- on the power cord, as
doing so may result in re or electric shock.
• Be sure to replace the unit’s terminal cover after
connection completion. Because high voltage is applied
to the speaker terminals, never touch these terminals to
avoid electric shock.
• Be sure to ground to the safety ground (earth) terminal
to avoid electric shock. Never ground to a gas pipe as a
catastrophic disaster may result.
• Avoid installing or mounting the unit in unstable
locations, such as on a rickety table or a slanted surface.
Doing so may result in the unit falling down, causing
personal injury and/or property damage.
When the Unit is in Use
• Should any of the following irregularities be found
during use, immediately switch o the power, disconnect
the power supply plug from the AC outlet and contact
your nearest Sound Choice dealer. Make no further
attempt to operate the unit in this condition as this may
cause re or electric shock.
- If you detect smoke or a strange smell coming from
the unit.
- If water or any metallic object gets into the unit
- If the unit falls, or the unit case breaks
- If the power supply cord is damaged (exposure of the
core, disconnection, etc.)
- If it is malfunctioning (no tone sounds.)
• To prevent a re or electric shock, never open
nor remove the unit case as there are high voltage
components inside the unit. Refer all servicing to your
nearest Sound Choice dealer.
• Do not place cups, bowls, or other containers of liquid
or metallic objects on top of the unit. If they accidentally
spill into the unit, this may cause a re or electric shock.
• Do not insert nor drop metallic objects or ammable
materials in the ventilation slots of the unit’s cover, as this
may result in re or electric shock.
1. SAFETY INSTRUCTIONS
WARNING
WARNING
CAUTION
Indicates a potentially hazardous situation which, if mishandled, could result in death
or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could result in
moderate or minor personal injury, and/or property damage.
page 4 T6221 CD/MP3 Player www.scpaudio.com Sound Choice Pro Audio
2. ATTENTION
When Installing the Unit
• Never plug in nor remove the power supply plug with
wet hands, as doing so may cause electric shock.
• When unplugging the power supply cord, be sure to
grasp the power supply plug; never pull on the cord
itself. Operating the unit with a damaged power supply
cord may cause a re or electric shock.
• When moving the unit, be sure to remove its power
supply cord from the wall outlet. Moving the unit with
the power cord connected to the outlet may cause
damage to the power cord, resulting in re or electric
shock. When removing the power cord, be sure to hold
its plug to pull.
• Do not block the ventilation slots in the unit’s cover.
Doing so may cause heat to build up inside the unit and
result in re.
• Avoid installing the unit in humid or dusty locations,
in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke or
steam as doing otherwise may result in re or electric
shock.
When the Unit is in Use
• Do not place heavy objects on the unit as this may
cause it to fall or break which may result in personal
injury and/or property damage. In addition, the object
itself may fall o and cause injury and/or damage.
• Make sure that the volume control is set to minimum
position before power is switched on. Loud noise
produced at high volume when power is switched on
can impair hearing.
• Do not operate the unit for an extended period of
time with the sound distorting. This is an indication of a
malfunction, which in turn can cause heat to generate
and result in a re.
• Contact your Sound Choice dealer as to the cleaning.
If dust is allowed to accumulate in the unit over a long
period of time, a re or damage to the unit may result.
• If dust accumulates on the power supply plug or in the
wall AC outlet, a re may result. Clean it periodically. In
addition, insert the plug in the wall outlet securely.
• Switch o the power, and unplug the power supply
plug from the AC outlet for safety purposes when
cleaning or leaving the unit unused for 10 days or more.
Doing otherwise may cause a re or electric shock.
Due to product upgrades, some of the features and specications in the user manual may not match the actual functions. We
are sorry for any inconvenience this may cause, and thank you for your kind understanding.
CAUTION
An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in the electrical
installation of the building.
Sound Choice Pro Audio www.scpaudio.com T6221 CD/MP3 Player page 5

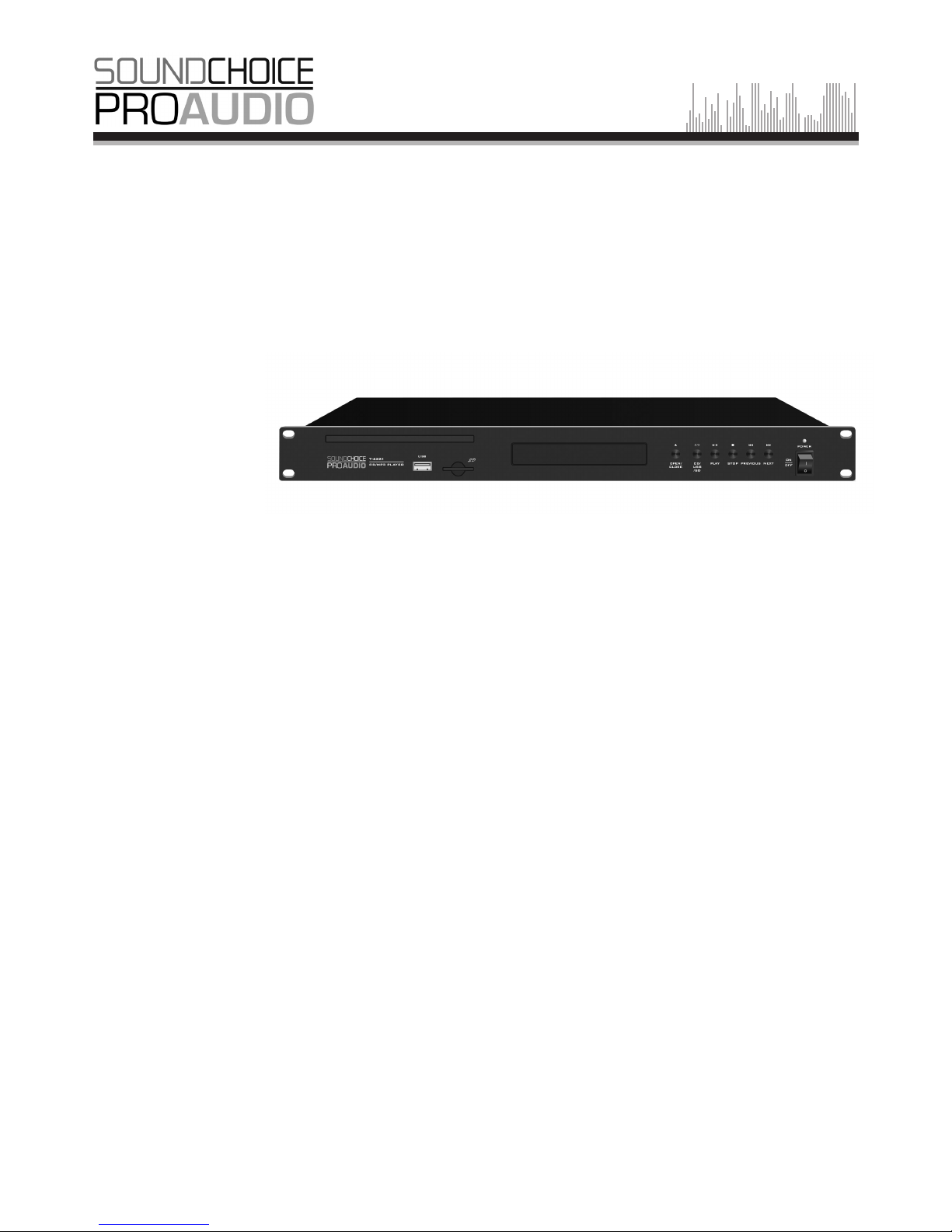

3. GENERAL DESCRIPTION
4. FEATURES
1. The standard chassis design, 1U aluminium alloy panels, beautiful and practical
2. Microcomputer control, touch keys
3. High brightness VFD dynamic uorescent display, clearly visible
4. Imported digital movement, system + ESS decoding, super error correction
5. Automatic playback controls
6. Can play: CD/VCD/MP3/DVD disc
7. Channel audio signal left and right channels (L/R) output
This Sound Choice Pro Audio product ts into the Commercial Series range.
The T6221 is a 1U rack mounted integrated CD and MP3 player. This device is ideal for using in many audio installation
locations. Its relatively small size and rack mounting makes it ideal for many permanent and ‘on the road’systems.
page 6 T6221 CD/MP3 Player www.scpaudio.com Sound Choice Pro Audio
5. FUNCTIONS (Front & Rear Panel)
1. Disk slot
CD and DVD disks can be loaded and unloaded
through this slot
2. USB Interface
3. SD slot
4. CD Screen
This displays the working state of this device
5. Open/Close
6. Operating Mode Selection Button
7. Play/Pause
13. AC Power Input
240V 50Hz
14. Audio Output
1 pair of RCA sockets
8. Stop/Return
Track search button (CD)
9. Previous
Previous track search button (CD)
10. Next
Next track search button
11. Power Switch
Press‘|’ to turn the power ON .
Press‘O’to turn the power OFF
12. Power
Power indicator
15. Monitor Volume
Sound Choice Pro Audio www.scpaudio.com T6221 CD/MP3 Player page 7

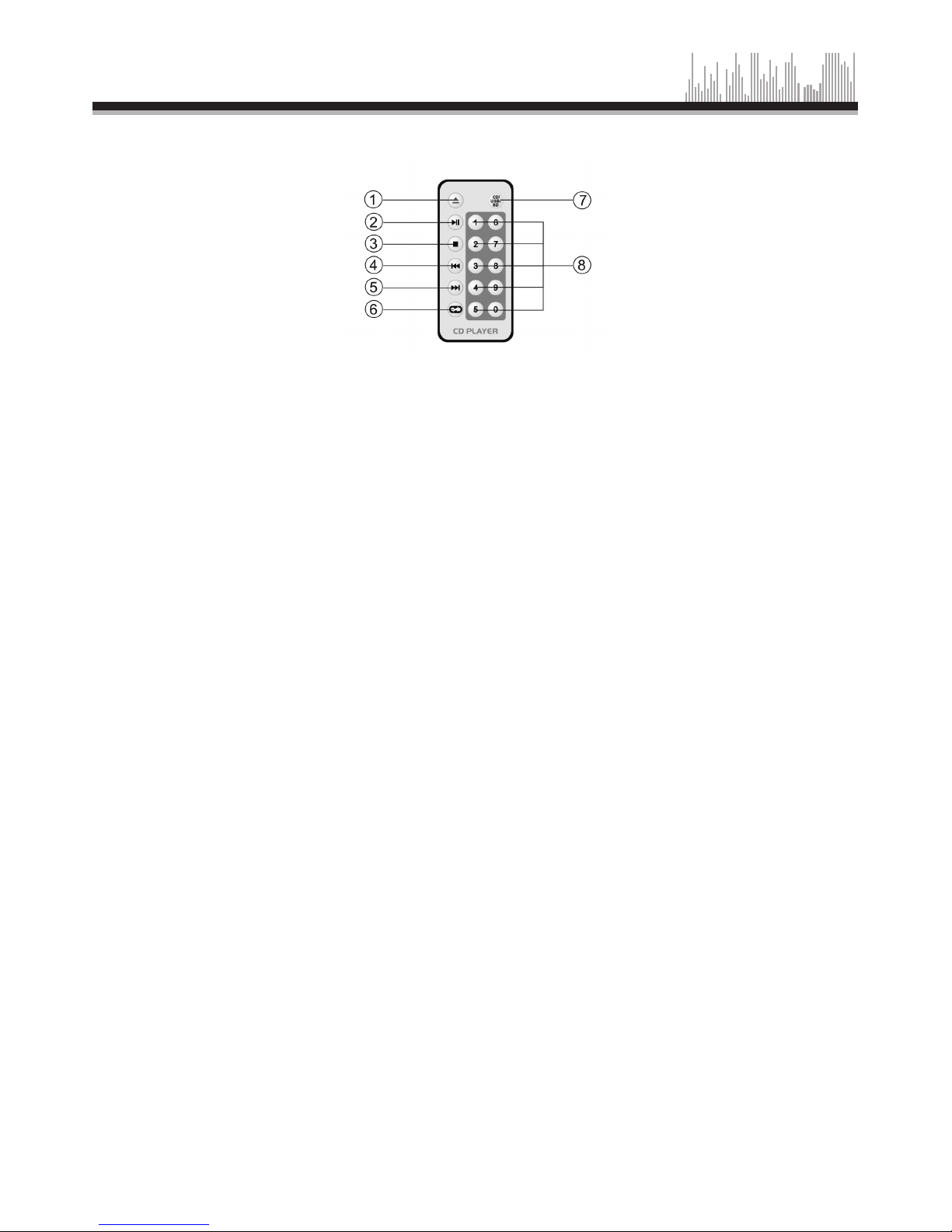

6. REMOTE CONTROL
1. In / Out positions
2. Play / Pause / Conrm button
3. Stop / Back button
4. Last
5. Next
6. CD Player operating mode selection button
7. SD / USB audio input mode selection button
8. (0-9) Number control
Note:
To select the track number press the corresponding number on the Remote Control. If number includes 2 or more digits
then press these numbers on the Remote Control in sequence.
page 8 T6221 CD/MP3 Player www.scpaudio.com Sound Choice Pro Audio
7. CD OPERATION
1. Press‘Power’ switch to activate power to device
2. Button Function
3. Place Disks into tray with top up
4. Press key‘open/close’tray to close and read disk
5. Play disk
4; Play / Pause
gStop / Return
9Previous
:Next
6. Playing a CD
Place disk into the slot and allow unit to read contents. Then using either the buttons on the front of the unit, or on the
Remote Control determine which action you want.
By using the various buttons you can negotiate through the various tracks to determine which one to play.
Sound Choice Pro Audio www.scpaudio.com T6221 CD/MP3 Player page 9

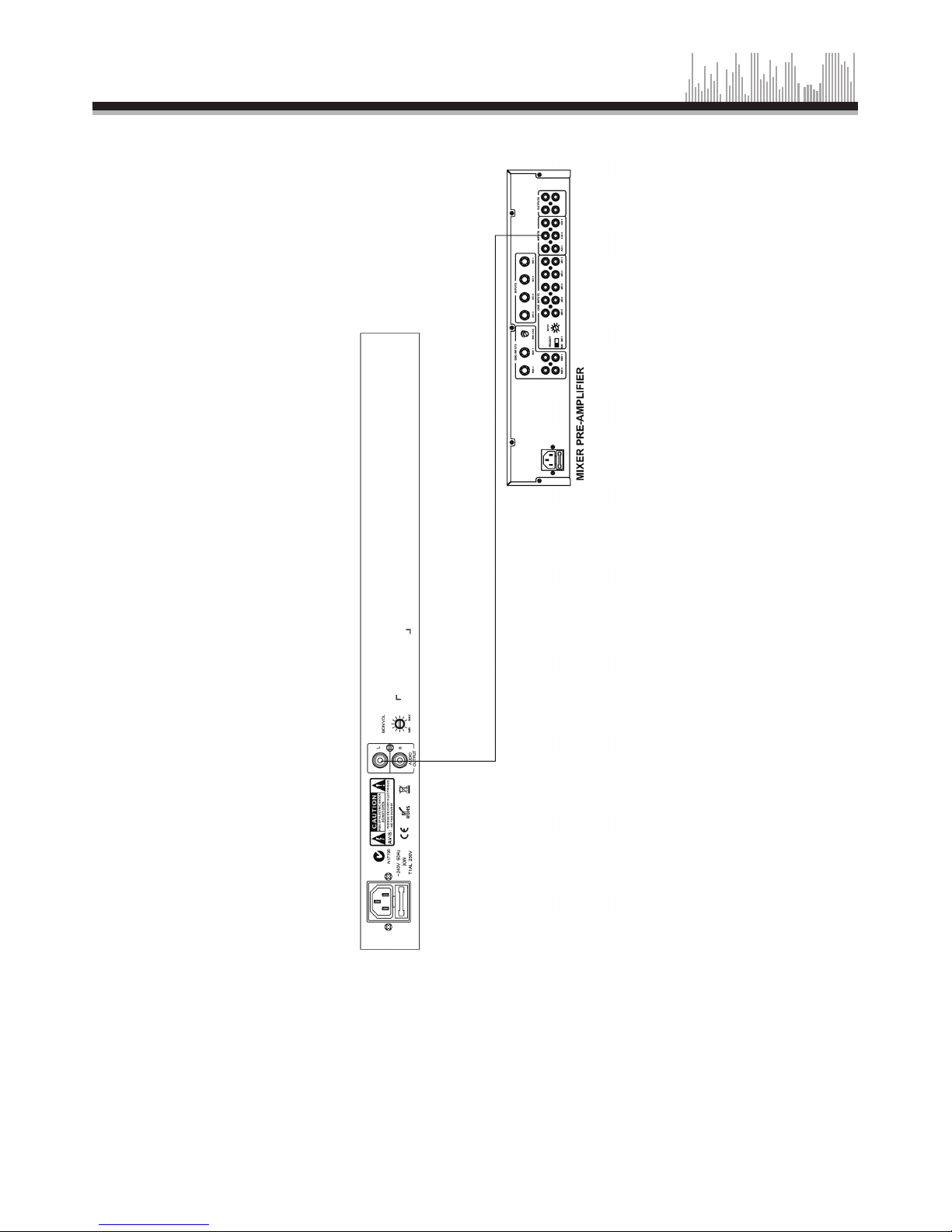

8. APPLICATIONS
page 10 T6221 CD/MP3 Player www.scpaudio.com Sound Choice Pro Audio
9. SPECIFICATIONS
MODEL T6221
Frequency Response 20Hz-20KHz (-1.5dB)
Power Requirements 240V 50Hz
Power Consumption 30W
Dimensions (mm) 484(D) x 220(W) x 44(H)
Weight 3.6Kg
Sound Choice Pro Audio www.scpaudio.com T6221 CD/MP3 Player page 11

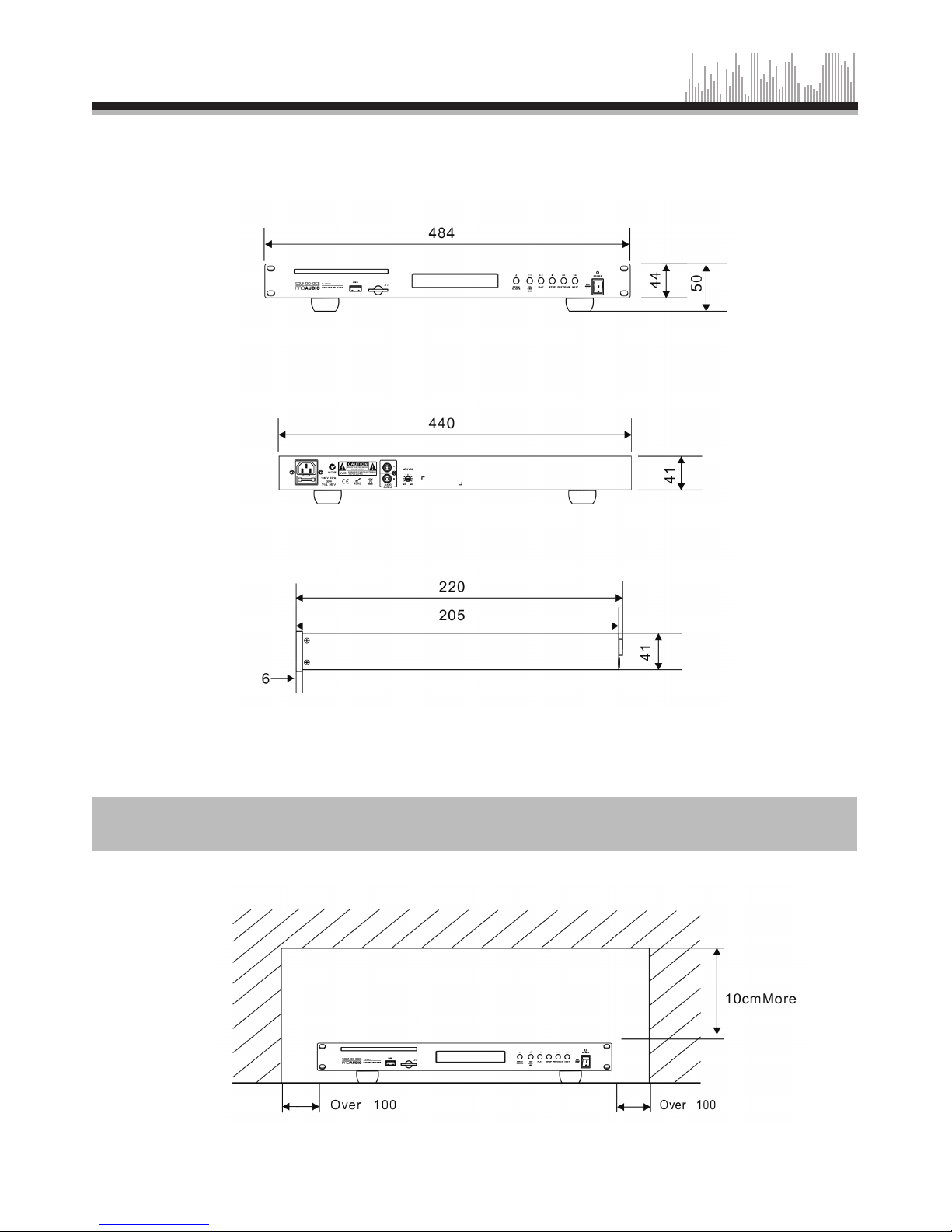

10. INSTALLING METHOD
Unit: mm
NOTE: Please ensure that the unit has at least a 10cm gap from any object on all sides, so as not obstruct the air ow and
cause the unit to overheat.
