SOUNDIMPRESS PU400-1CH MONO User manual

SoundImpress – because the best is just about good enough.
PU400-1CH MONO
USER MANUAL
English

• State of the Art class-D Amplier
• Puri Eigentakt technology
• High quality aluminum chassis
• Dimmable LED
• Balanced analog input (XLR)
• Banana-plug speaker connector
• Assembled by hand in the Netherlands
• 5 year Warranty
This High-end class-D mono amplier,
based on the Eigentakt technology from
Puri Audio, offers its users a powerful
425W channel. Making this SoundImpress
amplier very capable and higlhy affordable.
The SoundImpress brand stands for
outstanding quality, timeless designs, and
Dutch craftsmanship. This amplier is
built to last as it is extensively tested and
manually assembled to ensure every last
detail is checked.
SoundImpress PU400-1CH Mono
1 x 400W | Eigentakt | Powered by Puri
PU400-1CH
INTRODUCING

04
05
06
07
10
11
INTRODUCTION
SAFETY INSTRUCTIONS
WARRANTY TERMS
DISPLAY OF CONTROL FUNCTIONS
GET STARTED
SPECIFICATIONS
TABLE OF CONTENTS

SoundImpress PU400 Mono Amplier
1 x 400W | Eigentakt | Powered by Puri
The SoundImpress PU400 mono amplier is
made by audio enthusiasts for audiophiles.
It is known that this mono amplier has one
of the biggest impacts on how the music
sounds. Even high-end woofers from superb
brands such as Scan-Speak hold back on their
true potential when connected to an inferior
amplier. This state-of-the-art class-D amplier
from SoundImpress ensures that you squeeze
the absolute maximum out of your speakers!
State of the art class-D amplier
By SoundImpress
Thanks to high precision parts such as op-
amps, high voltage gate drivers and high
current MOSFETs, this amplier can power
almost any speaker. Be it a single subwoofer
or your sophisticated 3-way tower. Thanks
to the efciency a high loop gain can be
obtained, creating an unparalleled performance.
The Eigentakt implementation from Puri is
one the best amplier technologies available.
This class-D technology meets high standards
and gives super performance at any playback
level, regardless of load. This results in a
stable, dynamic and realistic sound image, at
any music genre. This amplier will squeeze
(with a proper music source and proper pre-
amplication) all the dynamics out of your
music without distortion, and at any volume.
SoundImpress
PU400-1CH
INTRODUCTION
Minimalistic but powerful
Packed within a minimalastic high quality
aluminum chassis, this is more than just another
powerful amplier. Gone are the days of needing
to have a massive heavy weighted mono power
amplier to have excellent sound and achieve some
volume. The amplier can deliver all its power
from as low as 2 ohm impedance combined with
low idle loss, very low distortion and noise levels!
In addition, this amplier has a nice appearance,
an imposing look that takes away all the
attention from your other home audio devices.
A minimalistic design without compromising on
performance or additions of cooling elements.
Every amplier comes with our own stamp
of approval, our iconic “S”-logo, on the front
plate. This branding ensures that you own
a piece of real quality, that is built to last. A
small (dimmable) LED displays is implemented
to show when the device is on or off.
But not only the case is puristic; the mono
amplier features the input and outputs your
speaker set-up deserves. The amplier features
XLR balanced inputs. Convenient banana-plug
speaker connectors have been chosen as outputs.
This 400 watt mono class-D amplier is ready to
bring new life to any system!
PU400-1CH | Page 4

SAFETY INSTRUCTIONS
SAVE THESE SAFETY REQUIREMENTS FOR FUTURE REFERENCE. HEED ALL WARNINGS
AND SAFETY REQUIREMENTS MARKED IN THIS MANUAL AND ON THE AMPLIFIER.
CLEANING - Unplug this product from the
electrical outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.
VENTILATION - Slots and openings in
the casing serve for ventilation and reliable
operation of the product. They also protect
the product from overheating. These openings
must not be blocked or covered. These openings
should never be blocked by placing the product
on a bed, sofa mat or the like. Also, this product
should not be placed in an enclosed space such
as a bookcase or shelf unless proper ventilation
is provided or the manufacturer's instructions
are carefully followed.
POWER SOURCES - This product should be
connected only to the power source indicated
on the label. If you are not sure which power
source is used in your home, contact the dealer
or the local power company. The best way to
disconnect the amplier from power supply is to
remove the power plug from the outlet. Unplug
the power cord from the outlet if the unit will not
be used for several months or longer.
OV E R LOA D I N G - Ensure that outlets, extension
cords, and built-in additional connections are not
overloaded as this may result in re or electric
shock.
OBJECTS AND LIQUIDS - Never push objects
of any kind into this product as they may touch
dangerous voltage points or short-circuit which
may result in re or electric shock. Never spill
liquid on this product.
WARNING: Do not expose this amplier to
water, spills or splashes and do not place objects
lled with liquids, such as vases, on the device.
As with all electronic products, take care not to
spill liquids into any part of the system. Liquids
can cause malfunction and/or cause a re.
PU400-1CH | Page 5

WARRANTY TERMS
LIMITED WARRANTY - Sound Imports warrants this device for a period
of ve years after the original date of purchase against defects due to faulty
workmanship or materials arising from Normal Use of the device. The warranty
covers working parts that affect the function of the device. It does NOT cover
cosmetic deterioration caused by fair wear and tear, or damage caused by
accident, misuse or neglect. Any attempt to modify or take apart the device (or
its accessories) will void the warranty.
If you discover a defect, notify SoundImports during the warranty period.
Claims under warranty must be supported by reasonable evidence that the date
of the claim is within the warranty period. To validate your warranty, please
keep your original purchase receipt together with these warranty conditions
for the duration of the warranty period. Replacement products claimed under
warranty are not entitled to renewed 5-year warranty coverage.
If you discover a defect, notify SoundImports during the warranty period.
Claims under warranty must be supported by reasonable evidence that the date
of the claim is within the warranty period. To validate your warranty, please
keep your original purchase receipt together with these warranty conditions
for the duration of the warranty period. Replacement products claimed under
warranty are not entitled to renewed 5-year warranty coverage.
SUPPORT - We are continuously working to enhance your experience with
our products. If you have any comments, remarks or have found a defect,
please contact us. If you have any problems with your amplier please check
this user manual. If this manual is not sufcient to troubleshoot your problem
contact SoundImports support department. The latest datasheets and
manuals can be found on our website. If you can't nd the answer there, you
can also contact us and we will be happy to help!
PU400-1CH | Page 6

1. Balanced input
2. Channel output (+)
3. Channel output (-)
4. On / off switch
5. Fuse tray '
6. Power input "
' The fuse is supplied as standard. When replacing it, only use the original value.
" Attention: Risk of electric shock.
WARRANTY TERMS DISPLAY OF CONTROL FUNCTIONS
PU400-1CH | Page 7

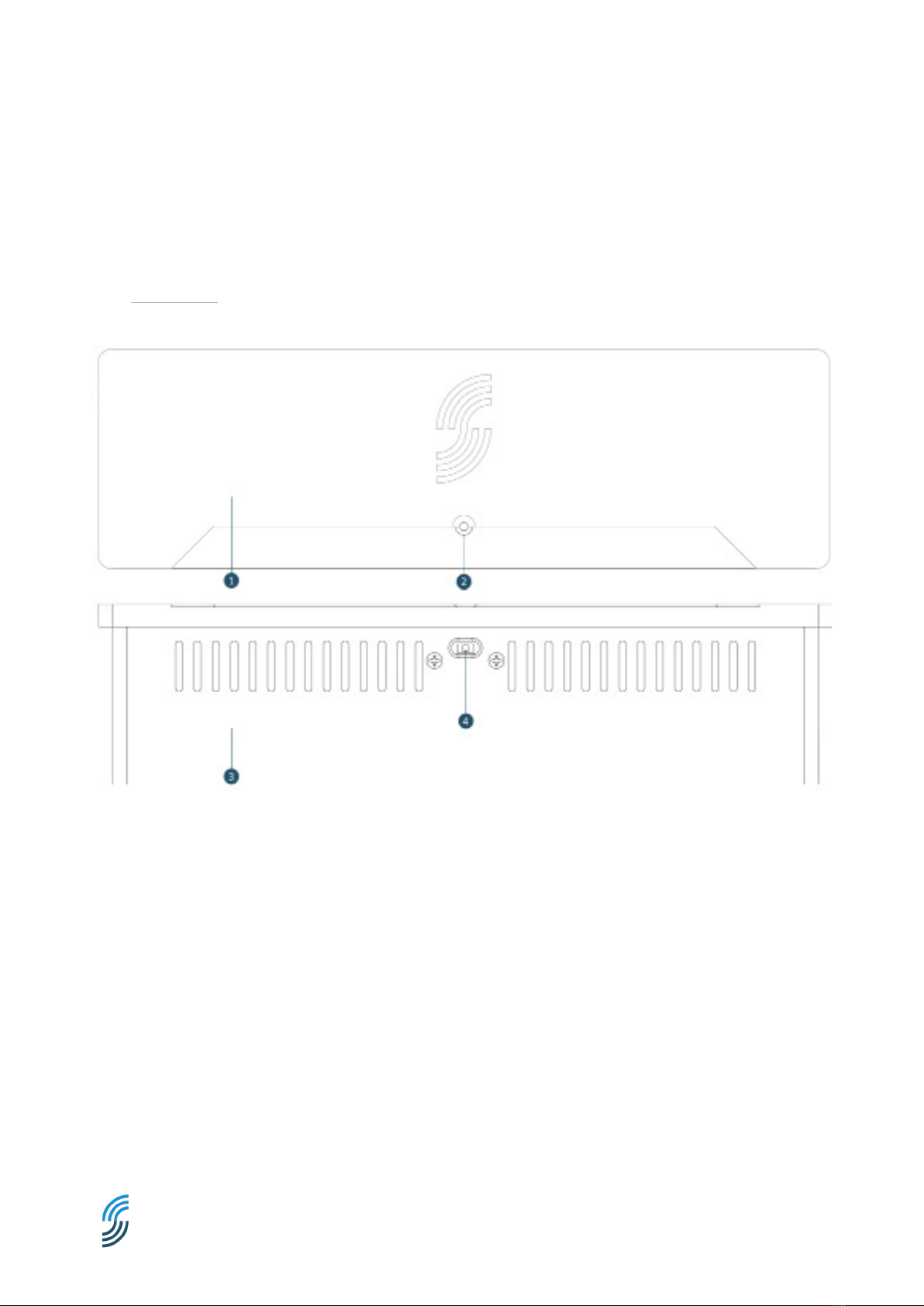

1. Front panel with engraved logo
2. Dimmable LED indicator
3. Bottom view
4. Switch for LED indicator '
' See the next page for an explanation of the LED switch.
DISPLAY OF CONTROL FUNCTIONS
PU400-1CH | Page 8

DISPLAY OF CONTROL FUNCTIONS
0 --- LED OFF
1 --- Normal brightness
2 --- Max brightness
DISPLAY OF CONTROL FUNCTIONS
PU400-1CH | Page 9

GET STARTED
START - Before turning on your new amplier, rst make all connections. Ensure that
the volume on your pre-amplier or playback device is set to a minimum.
PLAY - Turn on the amplier. Slowly increase the volume while playing some
music.
ENJOY!
CONNECTION - The PU400-1CH has one set of speaker connections. Connect the
speaker terminals marked “+” and “-” to the corresponding “+” and “-“ terminals of your
designated speaker.
This amplier will work with both balanced and unbalanced inputs.
For single-ended sources you can use a RCA to XLR cable or converter plug. The cable or
converter should short signal ground (XLR pin 1) with negative signal input (XLR pin 3).
PU400-1CH | Page 10

GET STARTED SPECIFICATIONS
Rated power output (RMS) 425 watts at 4 ohms
227 watts at 8 ohms
450 watts at 2 ohms
Minimum load 2 ohms
Signal-to-noise ratio (SNR) 131 dB
Distortion 0.00017 % THD+N at 20-20,000 Hz, 4 ohms,
100 watts
Efciency > 94%
Frequency response 0 - 60,000 Hz
Input impedance 4.4k ohms (14 dB) / 10.2k ohms (27 dB)
Circuit Topology Eigentakt
Amplier classication Class D
Speaker output channels 1
Input connection type XLR
Speaker output connection type Banana
Power requirements 110 / 230 VAC (symmetric supply +/-)
Power inlet connector IEC C14
Dimensions (D x W x H) 200 x 65 x 325 mm
Case material Aluminum
PU400-1CH | Page 11

Do you wish to read this manual in a
different language? Or prefer a digitial
version? Scan the QR code!
