SOUNDIMPRESS HY122-4CH QUAD User manual

SoundImpress – because the best is just about good enough.
HY122-4CH QUAD
USER MANUAL
English

• Ncore® technology
• Impressive performance despite load
• High quality aluminum chassis
• Compact design
• Dimmable LED
• XLR input, binding posts output
• Assembled by hand in the Netherlands
• 5 year Warranty
This SoundImpress amplier is a self-
contained high-end class-D four channel
amplier intended for a wide range of
audio applications, ranging from public
address systems to ultrahigh-delity
replay systems for studio and home use.
The SoundImpress brand stands for
outstanding quality, timeless designs, and
Dutch craftsmanship. This amplier is
built to last as it is extensively tested and
manually assembled to ensure every last
detail is checked.
SoundImpress HY122-4CH Quad
125WPC | Ncore® | Powered by Hypex
HY122-4CH
INTRODUCING

04
05
06
07
10
11
INTRODUCTION
SAFETY INSTRUCTIONS
WARRANTY TERMS
DISPLAY OF CONTROL FUNCTIONS
GET STARTED
SPECIFICATIONS
TABLE OF CONTENTS

SoundImpress HY122 Quad Amplier
125WPC | Ncore® | Powered by Hypex
The HY122-4CH is a compact, high performance,
four channel and no-nonsense class-D power
amplier. It incorporates the proven and renown
Hypex Ncore® technology for nothing less than
impressive performance!
The performance stands out with authoritative
and tightly controlled low registers, high
dynamics and crystal clear mid- and high-
frequencies. The super-low noise level generates
a completely black background to reveal the
tiniest of details in every recording.
All SoundImpress ampliers are hand assembled
in the Netherlands. The custom milled aluminum
enclosure houses the Hypex NC122MP amplier
module, the best thermal material for audio
devices. The in- and output connections are
provided through high-quality binding posts
from CMC and XLR-chassis from Neutrik and
wiring from Mogami and Belden. It can operate
from both 110 and 230 VAC mains voltage
due to it's universal mains input compatibility
featuring an automatic input voltage doubler.
SoundImpress
HY122-4CH
INTRODUCTION
Small and powerfull
This amplier can deliver all its power from as
low as 2 ohm impedance combined with low
idle loss, very low distortion and noise levels.
Chief distinguishing features are at frequency
response irrespective of load impedance, nearly
frequency independent distortion behaviour
and very low radiated and conducted EMI.
Tthis results in performances such as the
max output power of 125 Wrms at 4 ohm per
channel, a Signal-to-Noise Ratio (SNR) of 118
dB and astonishing distorting level of 0.0015%.
An amplier is only as good as the power supply
it contains. In this SoundImpress amplier,
the power supply and amplier are located on
one board. The switched-mode power supply
(SMPS) providing the power for the amplier is a
compact, high power, highly efcient, regulated
half bridge converter with synchronous
rectication on the main output rails. These
properties make this technology ideal for
powering class-D audio ampliers.
HY122-4CH | Page 4

SAFETY INSTRUCTIONS
SAVE THESE SAFETY REQUIREMENTS FOR FUTURE REFERENCE. HEED ALL WARNINGS
AND SAFETY REQUIREMENTS MARKED IN THIS MANUAL AND ON THE AMPLIFIER.
CLEANING - Unplug this product from the
electrical outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.
VENTILATION - Slots and openings in
the casing serve for ventilation and reliable
operation of the product. They also protect
the product from overheating. These openings
must not be blocked or covered. These openings
should never be blocked by placing the product
on a bed, sofa mat or the like. Also, this product
should not be placed in an enclosed space such
as a bookcase or shelf unless proper ventilation
is provided or the manufacturer's instructions
are carefully followed.
POWER SOURCES - This product should be
connected only to the power source indicated
on the label. If you are not sure which power
source is used in your home, contact the dealer
or the local power company. The best way to
disconnect the amplier from power supply is to
remove the power plug from the outlet. Unplug
the power cord from the outlet if the unit will not
be used for several months or longer.
OV E R L OA D I N G - Ensure that outlets, extension
cords, and built-in additional connections are not
overloaded as this may result in re or electric
shock.
OBJECTS AND LIQUIDS - Never push objects
of any kind into this product as they may touch
dangerous voltage points or short-circuit which
may result in re or electric shock. Never spill
liquid on this product.
WARNING: Do not expose this amplier to
water, spills or splashes and do not place objects
lled with liquids, such as vases, on the device.
As with all electronic products, take care not to
spill liquids into any part of the system. Liquids
can cause malfunction and/or cause a re.
HY122-4CH | Page 5

WARRANTY TERMS
LIMITED WARRANTY - Sound Imports warrants this device for a period
of ve years after the original date of purchase against defects due to faulty
workmanship or materials arising from Normal Use of the device. The warranty
covers working parts that affect the function of the device. It does NOT cover
cosmetic deterioration caused by fair wear and tear, or damage caused by
accident, misuse or neglect. Any attempt to modify or take apart the device (or
its accessories) will void the warranty.
If you discover a defect, notify SoundImports during the warranty period.
Claims under warranty must be supported by reasonable evidence that the date
of the claim is within the warranty period. To validate your warranty, please
keep your original purchase receipt together with these warranty conditions
for the duration of the warranty period. Replacement products claimed under
warranty are not entitled to renewed 5-year warranty coverage.
If you discover a defect, notify SoundImports during the warranty period.
Claims under warranty must be supported by reasonable evidence that the date
of the claim is within the warranty period. To validate your warranty, please
keep your original purchase receipt together with these warranty conditions
for the duration of the warranty period. Replacement products claimed under
warranty are not entitled to renewed 5-year warranty coverage.
SUPPORT - We are continuously working to enhance your experience with
our products. If you have any comments, remarks or have found a defect,
please contact us. If you have any problems with your amplier please check
this user manual. If this manual is not sufcient to troubleshoot your problem
contact SoundImports support department. The latest datasheets and
manuals can be found on our website. If you can't nd the answer there, you
can also contact us and we will be happy to help!
HY122-4CH | Page 6

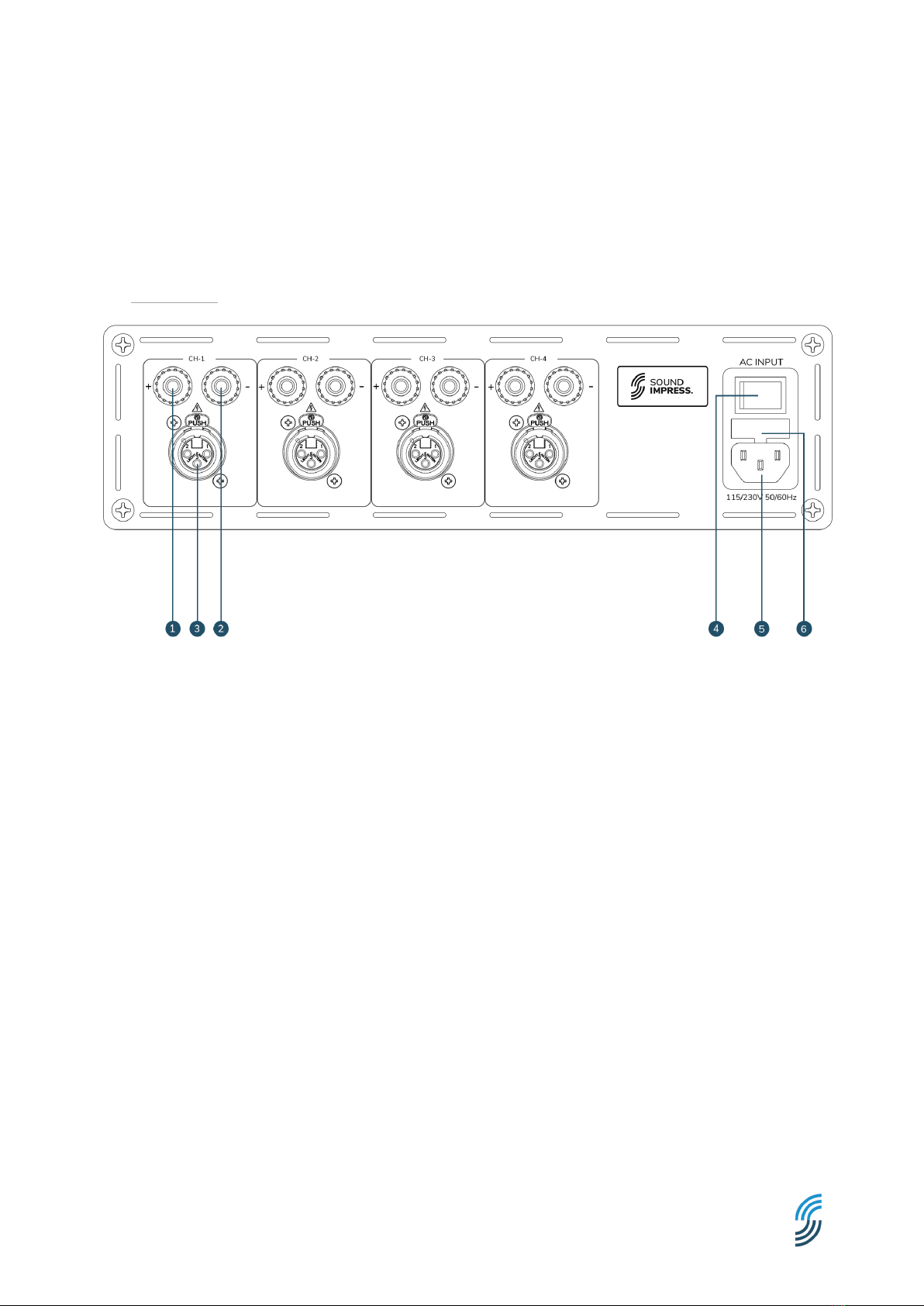

1. Channel output (+)
2. Channel output (-)
3. Balanced input
4. On / off switch
5. Power input '
6. Fuse tray "
' Attention: Risk of electric shock.
" The fuse is supplied as standard. When replacing it, only use the original value.
WARRANTY TERMS DISPLAY OF CONTROL FUNCTIONS
HY122-4CH | Page 7

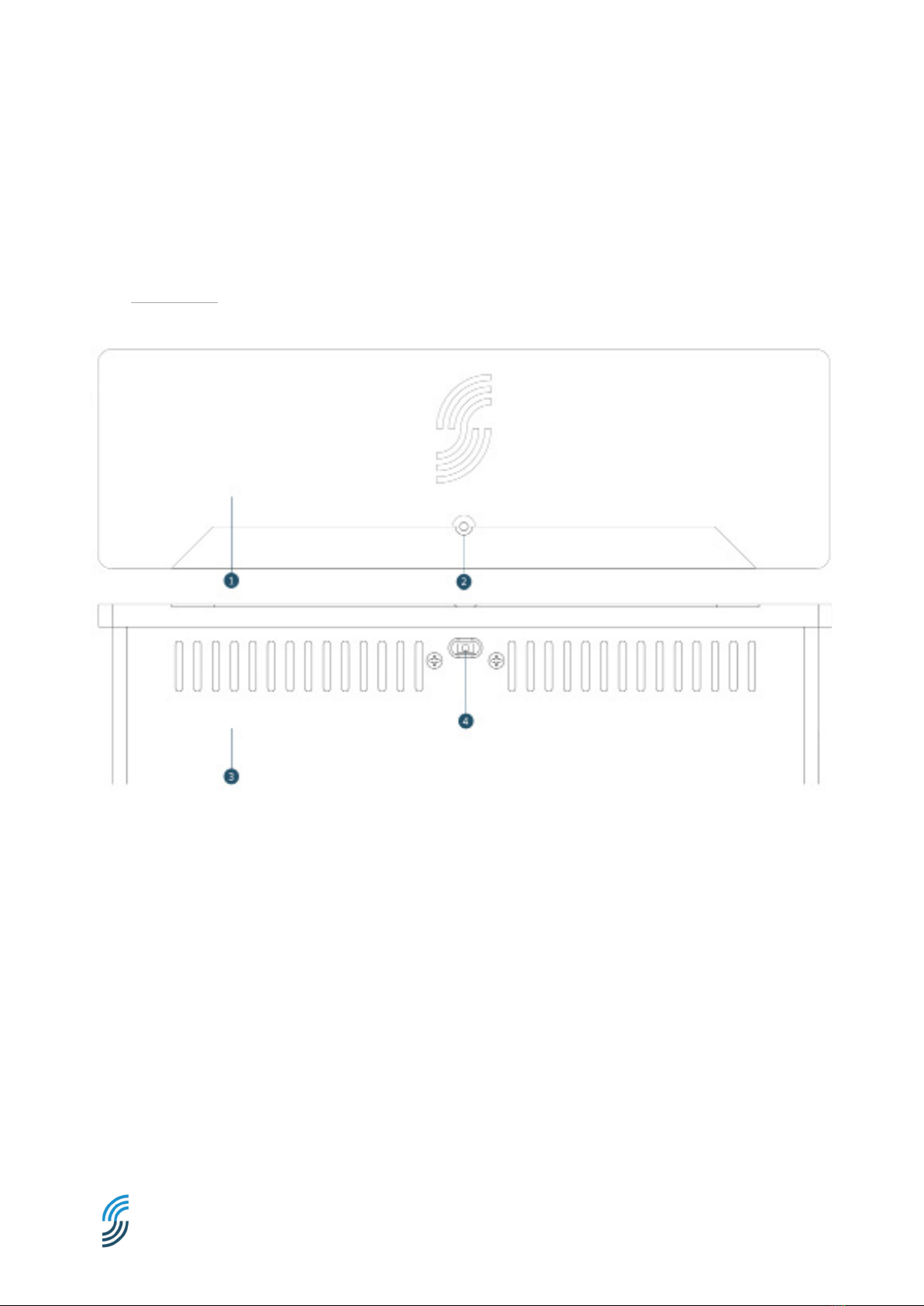

1. Front panel with engraved logo
2. Dimmable LED indicator
3. Bottom view
4. Switch for LED indicator '
' See the next page for an explanation of the LED switch.
DISPLAY OF CONTROL FUNCTIONS
HY122-4CH | Page 8

DISPLAY OF CONTROL FUNCTIONS
0 --- LED OFF
1 --- Normal brightness
2 --- Max brightness
DISPLAY OF CONTROL FUNCTIONS
HY122-4CH | Page 9

GET STARTED
START - Before turning on your new amplier, rst make all connections. Ensure that
the volume on your pre-amplier or playback device is set to a minimum.
PLAY - Turn on the amplier. Slowly increase the volume while playing some
music.
ENJOY!
CONNECTION - The HY122-4CH has four sets of speaker connections. Connect the
speaker terminals marked “+” and “-” to the corresponding “+” and “-“ terminals of your
designated speaker. Repeat the same for the other speaker terminals and corresponding
speaker.
This amplier will work with both balanced and unbalanced inputs.
For single-ended sources you can use a RCA to XLR cable or converter plug. The cable or
converter should short signal ground (XLR pin 1) with negative signal input (XLR pin 3).
HY122-4CH | Page 10

GET STARTED SPECIFICATIONS
Rated power output (RMS) 2 x 250 watts at 4 ohms
x150 watts at 8 ohms
180 watts at 2 ohms
Minimum load
Signal-to-noise ratio (SNR) 131 dB
Distortion 0.00017 % THD+N at 20-20,000 Hz, 4 ohms,
100 watts
Efciency > 94%
Frequency response 0 - 60,000 Hz
Input impedance 4.4k ohms (14 dB) / 10.2k ohms (27 dB)
Circuit Topology Eigentakt
Amplier classication Class D
Speaker output channels 2
Input connection type XLR
Speaker output connection type Banana
Power requirements 110 / 230 VAC (symmetric supply +/-)
Power inlet connector IEC C14
Dimensions (D x W x H) 260 x 78 x 325 mm
Case material Aluminum
HY122-4CH | Page 11
