SOUNDLIGHT 3206R-H RDM User manual

OPERATING MANUAL
DMX Relay Interface 3206R-H RDM
VERSION 3206R-H Mk8.10 115-230V AC
(C) SOUNDLIGHT 1996-2023 * ALL RIGHTS RESERVED * NO PART OF THIS MANUAL MAY BE RE-
PRODUCED, DUPLICATED OR USED COMMERCIALLY WITHOUT THE PRIOR WRITTEN CONSENT OF
THE OWNER * ALL STATEMENTS WITHIN THIS MANUAL HAVE BEEN CHECKED CAREFULLY AND
ARE BELIEVED TO BE ACCURATE, HOWEVER SOUNDLIGHT DOES NOT ASSUME ANY RESPONSIBI-
LITY FOR ERRORS OR OMISSIONS. * THE USER HAS TO CHECK THE SUITABILITY OF THE EQUIP-
MENT FOR THE INTENDED USE. SOUNDLIGHT EXPRESSLY EXCLUDES ANY RESPONSIBILITY FOR
DAMAGES - DIRECT OR INDIRECT - WHICH MAY OCCUR DUE TO MISUSE, UNPROPER INSTALLATI-
ON, WRONG OPERATING CONDITIONS AND NON-COMPLIANCE TO THE INSTRUMENT'S INSTRUCTI-
ONS, AS WELL AS DISREGARD OF EXISTING SAFETY STANDARDS AND REGULATIONS.
SOUNDLIGHT The DMX Company Bennigser Strasse 1 D-30974 Wennigsen Tel. [phone]

Thank you for choosing a SOUNDLIGHT device.
The SOUNDLIGHT DMX Relay Card 3206R-H is an intelligent DMX demultiplexer decoding digital
data complying with standards USITT DMX512 and DIN 56930-2. The card drive six changeover
contact relay outputs. The decoder can be used with all standard light control systems. Its special
advantages include:
-universal protocol decoding
Recognizes all variants of the protocol as defined by USITT / ESTA / DIN
-future-proof
The unit is software controlled an can easily be adapted to any change in protocol
definition.
-integrated hysteresis
Adjustable hysteresis(for settings selactable) ensures flicker free switching
-simple supply
The power supply is from standard mains voltage 115...230V AC 50/60 Hz
-signal loss
In the case of a loss of the drive signal a pre-definable action will be taken.
-cost-effective
The SOUNDLIGHT 3206R-H is a cost-effective solution for many purposes.
APPLICATIONS
The DMX relay decoder 3206R-H is ideally suited for all kinds of signal switching applications. It
features six potential-free high-power N.O./N.C. output contacts and high noise immunity. Applica-
tions include signal switching and power switching in entertainment lighting systems for theatre,
stage and television.
NOMENCLATURE
These symbols are used within this manual:
DANGER ! May cause harm to user and/or equipment
INFO: How to setup your device
INFO: Status information

UNPACKING
Please unpack carefully and check that all items are intact. When leaving our factory, the card has
been in good condition. In case of damage during transport please notify the carrier immediately.
Please note that individual deadlines may apply to claim transport damages. We will only be able
to replace goods damaged during transit if we receive a written and signed confirmation issued by
the freight forwarder. Make sure you receive such a document and send to us a.s.a.p.
When unpacking, you should identify these items:
* the interface card 3206R-H RDM
* a product data sheet
Please note that a programming adaptor (e.g. 3000P) is NOT included with DIN rail mount devices.
All settings can be configured using DMX RDM. For manual setup, a programming adaptor (re-
quired to set DMX start address, DMX personlity and DMX HOLD mode) must be ordered separa-
tely. If you already have it, there is no need to buy again: the start address board can be used for
all our DMX interfaces, pcb and DIN rail mount alike.
SAFE SWITCHING
The 3206R-H Mk8 has been designed to provide the hightest performance level and safe swit-
ching. Please note, that DMX512 data transmission must be considered as being a standard for
fast entertainment lighting effects. Data transmission is fast but not safe since there is no checks-
um and corrupted data packets may result in wrong switching. Thus hazardous effects must NOT
be controlled by DMX512 without additional safety precautions.
To minimize erroneous switching, the 3206R-H Mk8.10 uses these features:
- 1. Multiple packet evaluation
Multiple DMX data packets must be received ana analyzed befor a switching action takes
place. This causes a slight delay but guarantuees a highly improved performance. The mul-
tiple packet analyzer can be switched off by setting the FAST MODE parameter. Use your
RDM controller to change the setting.
Our website http://www.rdm.soundlight.eu/how_to/index.htm shows some examples how
to change settings.
- 2. DMX startup delay
The relay module will only operate after a safe DMX data transmission has been detected.
Thus relay switching is prohibited for about 3 seconds after applying a valid DMX signal. Af-
ter that period of time, instantanous switching is allowed.

CONNECTORS
The decoder 3206R-H consists of these input and output connectors:
CN13 POWER SUPPLY 115...230V AC
1 L, 115-230V AC 50/60 Hz
2 N, 115-230V AC 50/60 Hz
CN8 Switching output 1
1 COMMON
2 N.O.
3 N.C.
CN7 Switching output 2
1 COMMON
2 N.O.
3 N.C.
CN6 Switching output 3
1 COMMON
2 N.O.
3 N.C.
CN5 Switching output 4
1 COMMON
2 N.O.
3 N.C.
CN4 Switching output 5
1 COMMON
2 N.O.
3 N.C.
CN3 Switching output 6
1 COMMON
2 N.O.
3 N.C.
CN10 DMX Input
1 GND
2 DMX - (signal complement)
3 DMX + (signal true)
CN101 DMX Thru
1 GND
2 DMX - (signal complement)
3 DMX + (signal true)

SIGNAL INDICATORS
The state of the demultiplexer card is signalled with three indicator LEDs.
green: OPERATION
red: ERROR (blinking)
Error blinking at data errors or loss of communication.
yellow: RDM detected (blinking)
RDM configuration active, address switches locked (steady)
START ADDRESS SETTING
All settings of the
3206R-H can be modi-
fied using a suitable
DMX RDM controller. We recom-
mend to use the JESE GET/SET
controller being the most versatile
device available. Alternatively,
some parameters (DMX start ad-
dress, personality, HOLD mode)
can be changed using a start ad-
dress board 3006P.
DIN rail decoders do not come with start address boards; if needed this must be purchased separa-
tely. Start address boards are valuable tools and can be used wit many SOUNDLIGHT devices.
The DMX relay decoder 3206R-H has been preset to DMX start address 001. If another start ad-
dress is required, it must be set using a start address board 3000P, 3003P, 3005P, 3006P or
3008P. SD-models require using a 3006P-SD or 3008P-SD. Start address boards are optionally
available. The 3206R-H can be operated with or without start address board attached.
The 3006P-SD start address board features a SubDevice mode and can be used to set the host
device in either Root mode or SubDevice mode (SD type Relay modules only!) . Changing from
Root mode to SubDevice mode must be performed by RDM.
DMX PERSONALITY
The DMX personality selects the trip pont of the relays.
Four settings are available:
PERSONALITY trip points DIP3 DIP 4
1 50% / 51% off off
2 25% / 75% off on
3 3% / 97% on off
4 0% / 1% on on
The DMX personality can either be set using DMX RDM or locally using a start address board

3000P (mechanical switches), 3003P (LED display), 3005P,
3006P (character LCD) or 3008P (graphics LCD).

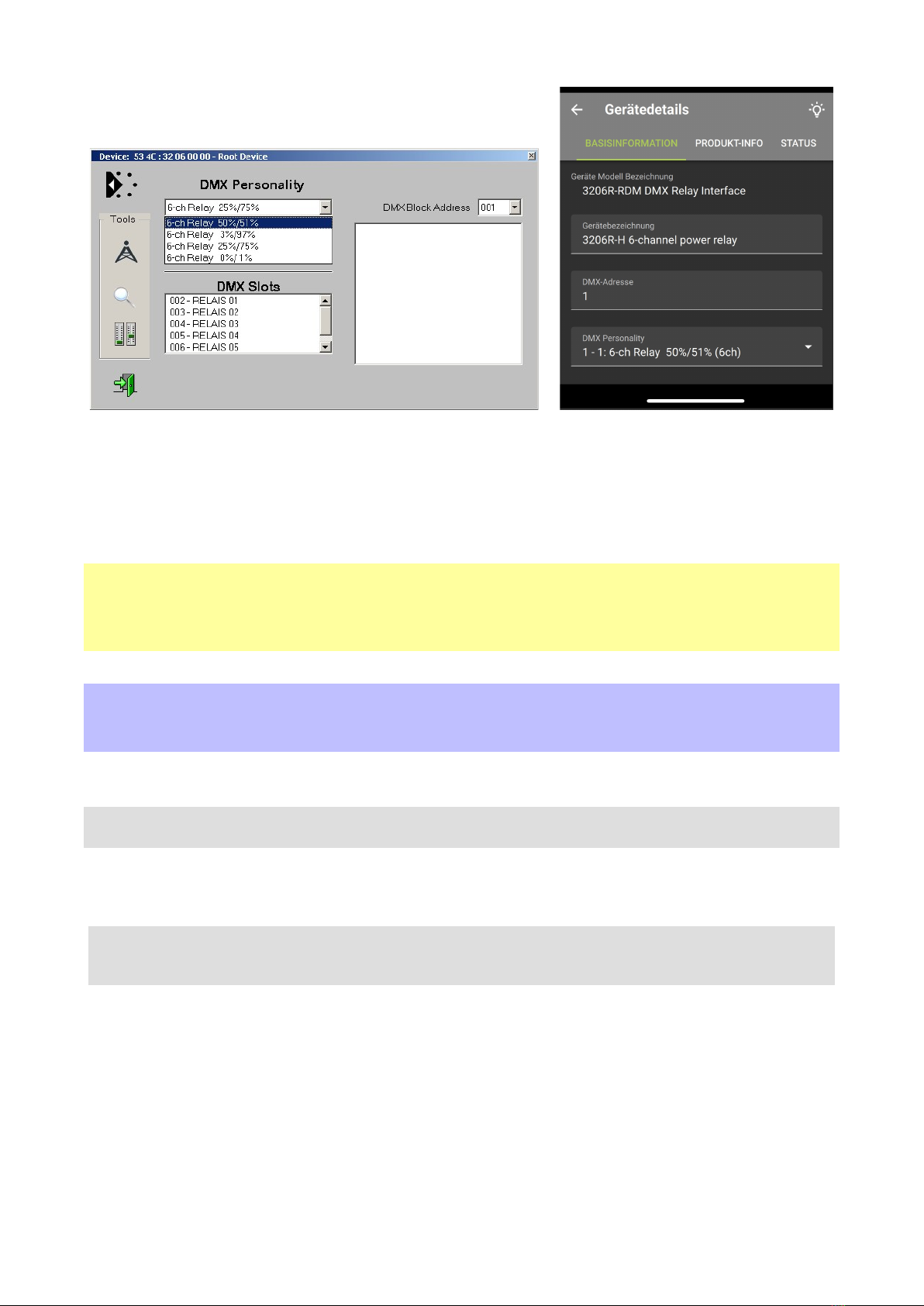

Setting the DMX personality: using the JESE controlller (top left) or the DMXcat controller (top right)
SETTING THE PERSONALITY BY START ADDRESS BOARD
When using a start address board 3000P, use DIP switches 3 and 4 to set the desired personality.
Refer to the personality table above. Start address boards 3005Ü thru 3008P are menu driven; use
setting „Personality“
NOTICE:
Once settings have been changed using DMX RDM, the address switches of a startaddress board
3000P become inactive (blocked). To re-enable the start address switches, temporarily set any ad-
dress from 900...999 (simply set the hundreds digit to „9“ temporarily). This will re-enable switches.
RDM FUNCTIONS:
For a full description of all RDM functions available pls refer to our RDM MANUAL, which is availa-
ble for free download at www.soundlight.eu/produkte/manuals
FUNCTION PROGRAMMING
If you do not own a DMX RDM controller, some options may be programmed using a standard start
address board 3000P.
CAUTION: Function programming only takes place when powering up the relay module. the pro-
cedure runs automatically, but the start address board must have been connected and set to the
respective programming code.
Addresses beyond the valid DMX start address range (1...512) are used as programming codes:
Procedure: 1. unpower the module (e.g. remove mains supply)
2. Connect address board 3000P
3. Set the desired programming code
4. Power up module (reconnect mains)
5. A programming cycle takes place (LEDs red/green blink 4x)
6. Reset to standard DMX start address

PROGRAMMING CODES:
:
700: set to standard mode / factory defaults
705: set to FAST MODE
706: set to EXCLUSIVE MODE
707: Disable RDM (set to Standard DMX mode)
708: set ConfigAccess lock immediately
709: reset ConfigAccess lock
777 Enable RDM
900: re-enable Addressboard (remove RDM lock)
Be careful using above code. You may disable complete RDM functionality using code 707, but
then your device cannot be discovered anymore or configured by RDM. If locked, there would be
no chance to unlock, since there is no RDM access possible. A „Reset“ or „Factory Defaults“ will
not help. Re- enable RDM using code 777 to gain access again.
RELAY TYPES
This decoder is fitted with contact relays designed for a switching current of max 16A at 230V (re-
sistive load only!). When selecting and ordering the appropriate relay card, please note, that all da-
ta given by the relay manufacturers are for RESISTIVE LOAD only. Incandescent lamps may be
considered resistive loads. Switching inductive loads, such as transformers or solenoids, requires
lower loads - we strongly recommend not to exceed 50% of the resistive load data. Besides, con-
tacts may burn due to inductive spikes and sparks. Make sure to add protective circuitry (RC com-
binations, VDR resistors) if switching inductive loads. Switching inductive loads on the mains power
supply may also generate high frequence noise and degrade the power supply quality. If switching
capacitive loads (electronic ballasts or psu) inrush current limiting devices may be required to pre-
vent contact damage. If in doubt pls consult the relay maker data sheet (OMRON, Type G2R-1-
ASI, available at http://components.omron.eu/en/products/catalogue/relays/pcb_power_re-
lays/up_to_16a/g2r/default.html).
DMX RDM
The 3206R-H RDM ist kompatible with ANSI E1-20 DMX RDM Version 1.0. Please note some spe-
cial properties of devices complying with DMX RDM:
- DMX HOLD properties are not supported by RDM standard ANSI E1-20. A factory specific com-
mand (DMX HOLD) has been added to compensate these restraints. Use parameters 0...2 to set
the desired HOLD mode:
RDM Setting Function . DIP1 DIP2
0 (00hex): no HOLD, all outputs OFF upon loss of signal off off
1 (01hex): no HOLD, all Outputs ON upon loss of signal off on
2 (02hex): DMX HOLD (last look remains active) on off
- Setting the DMX hold mode reflects setting of DIP switches 1 and 2 (and vice versa).
- Setting the DMX personality reflects setting of DIP switches 3 and 4 (and vice versa).
NOTICE:
Once settings have been changed using DMX RDM, the address switches of start address board
3000P become inactive (blocked). To re-enable start address switches, temporarily set any ad-
dress from 900...999 (simply set the hundreds digit to „9“). This will re-enable switches.

TECHNICAL DATA
Dimensions: 115 mm (W) x 67 mm (H) x 113 mm (D)
Power supply: 230V AC (208-264V) 50/60 Hz typ appox. 3,5W (full load)
<0,5W (idle)
DMX IN: 1 Unit Load
DMX OUT: fed-thru
DMX Data Format: DMX512/1990, DMX512-A, DIN56930-2, ANSI E1-20, ANSI E1-37
Switch Out: max. 10A @ 230V resistive load
Storage Temperature: 0...70°C
Operating Temperature: 0...50°C
Order code: 3206R-H RDM
CE CONFORMITY
This DMX relay interface is microprocessor controlled and uses high frequency
(8 MHz quartz). The interface has been tested in our EMC lab to comply with
EN55015 and IEC65/144.
To ensure the best performance regarding radiated and conducted emissions we
suggest to install the interface in a closed, conductive (e.g. metal) housing, which
must be connected to GND.
Please make sure that shielded data cable is used and the shield is connected
properly to the GND pin. Shield must never make contact to other signal lines.
FCC STATEMENT
This product has been tested and complies with the specifications for a Class B digital device, pur-
suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used according to the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which is found by tur-
ning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance
FCC Caution: Any change or modification to the product not expressly approved by SLH could void
the user’s authority to operate the device.

DISTURBANCES
If a trouble-free operation cannot be guaranteed, disconnect the relay card interface and secure it
against unwanted operation. This is especially necessary, when
- the unit has visible damages;
- the unit does not operate;
- internal parts are loose;
- connection cables show visible damages.
LIMITED WARRANTY
This DMX interface ist warranted against defects in metarials and workmanship for a period of 12
month, beginning with the date of purchase. The warranty is limited to repair or exchange of the
hardware product; no further liability is assumed. SOUNDLIGHT is not responsible for damages or
for loss of data, sales or profit which arise from usage or breakdown of the hardware product. In
Germany, SOUNDLIGHT will repair or replace established defects in hardware, provided that the
defective part is sent in, freight paid, through the responsible dealer along with warranty card
and/or sales receipt prior to expiration of warranty.
Warranty is void:
- when modifying or trying to repair the unit without authorisation;
- modification of the circuitry;
- damages by interference of other persons;
- operation which is not in arccordance with the manual;
- connection to wrong voltage or current;
- misuse.
SERVICE
There are no parts within the DMX relais card 3206R-H which require the user's attention. Should
your unit require servicing, please send it to the factory, freight paid.
END OF LIFETIME
When the useful lifetime of this product has been reched, it must be disposed of
properly. Electronic devices must not be placed in domestic waste. Consult your lo-
cal authorities to find the nearest collection point of used electric and electronic de-
vices. SOUNDLIGHT is a WEEE registered company (Reg No. DE58883929).
INTERNET-HOTLINE
Please check our internet domain http://www.soundlight.eu for new versions, updates etc. If you
have any comments which may be worth considering, please send a message to sup-
[e-mail]. We will check your message and reply accordingly.
Updated and foreign laguage manuals can be downloaded from our website:
www.soundlight.eu/produkte/manuals
There you can also download a copy of the RDM Manual explaining many RDM commands in mo-
re detail.
Check our domain www.soundlight.eu/rdm for more information on the new DMX RDM standard.
