Soundstream MTR-25-10W-RGBW User manual

MTR-25-10W-RGBW
25 X 10W RGBW 4IN1 LED Slim MATRIX BLINDER
Please read this manual carefully and proper take care of this manual
USER MANUAL

2
ENGLISH

3
ENGLISH
Dear customer,
First of all thanks far purchasing a SOUNDSATION® product. Our mission is to satisfy all possible
needs of musical instrument and professional audio and lighting users offering a wide range of
products using the latest technologies.
We hope you will be satised with this item and, if you want to collaborate, we are looking for a
feedback from you about the operation of the product and possible improvements to introduce in
the next future. Go to our website www.soundsationmusic.com and send an e-mail with your
opinion, this will help us to build instruments ever closer to customer’s real requirements.
One last thing: read this manual before using the instrument, an incorrect operation can cause
damages to you and to the unit. Take care!
The SOUNDSATION Team

4
ENGLISH

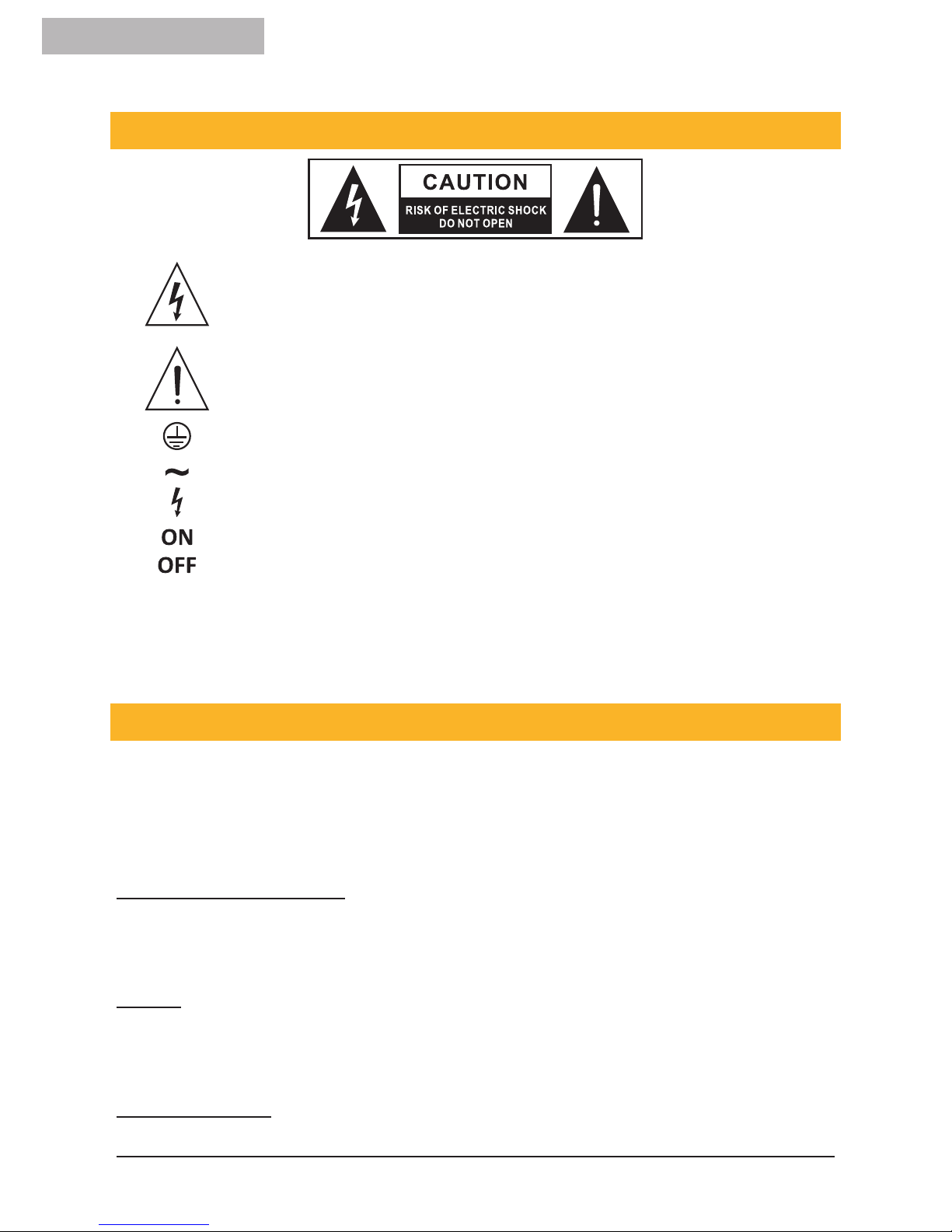

IMPORTANT SAFETY SYMBOLS
The symbol is used to indicate that some hazardous live terminals are
involved within this apparatus, even under the normal operating condi-
tions, which may be sufcient to constitute the risk of electric shock or
death.
The symbol is used in the service documentation to indicate that spe-
cic component shall be replaced only by the component specied in
that documentation for safety reasons.
Protective grounding terminal
Alternating current/voltage
Hazardous live terminal
Denotes the apparatus is turned on
Denotes the apparatus is turned off
WARNING: Describes precautions that should be observed to prevent the danger
of injury or death to the operator.
CAUTION: Describes precautions that should be observed to prevent danger of
the apparatus.
IMPORTANT SAFETY INSTRUCTIONS
fRead these instructions
fKeep these instructions
fHeed all warning
fFollow all instructions
Water / Moisture
This lighting is intended to indoor use only. To prevent risk of re or shock, do not
expose xture to rain or moisture. Make sure there are no ammable, explosive or
corrosive materials surrounded in 10 meters while operating.
Heat
The apparatus should be located away from heat sources such as radiators, stoves or
other appliances that produce heat. Fixture may carry high heat, do not aim at objective
exceeding 2 minutes.
Ventilation
The unit must be installed in a location with adequate ventilation, at least 5m away from

5
ENGLISH
adjacent surfaces. Be sure that no ventilation slots are blocked.
Object and Liquid Entry
Objects do not fall into and liquids are not spilled into the inside of the apparatus for
safety.
Power Cord and Plug
Protect the power cord from being walked on or pinched particularly at plugs, conve-
nience receptacles, and the point where they exit from the apparatus. Do not defeat the
safety purpose of the polarized or grounding-type plug. A polarized plug has two poles;
a grounding-type plug has two poles and a third grounding terminal. The third prong
is provided for your safety. If the provided plug does not t into your outlet, refer to an
electrician for replacement.
Power Supply
Always make sure that you are connecting to the proper voltage and the line voltage
not higher than stated on the decal or rear panel of the xture. Unplug this apparatus
during lightning storms or when unused for long periods of time.
Fuse
To prevent the risk of re and damaging the unit, please use only of the recommended
fuse type as described in the manual. Before replacing the fuse, make sure the unit
turned off and disconnected from the AC outlet.
Electrical Connection
Always disconnect from the power source before servicing or replacing fuse/lamp and
be sure to replace with same fuse/lamp size and type. Cut off power before moving, re-
pairing and cleaning the machine. Improper electrical wiring may invalidate the product
warranty.
To avoid electric shock, all xtures must be connected to circuits with a suitable ground.
Do not power on and power off the xture in a short time.
DMX connection
When use DMX controller, please make sure that there is no interference sources (e.g.
intercom, high frequency radio waves and radiation source.
Servicing
In case of failure or mis-function occurred, stop using the unit immediately. Never try to
repair the unit by yourself. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized technical assistance center. Buy
the same spare parts/components from manufacturer directly.
Any damage that cased by violating this manual is out of insurance, our company will
not take the responsibility.

6
ENGLISH
MTR-25-10W-RGBW User manual
TABLE OF CONTENTS
1. PRODUCT SPECIFICATION....................................................................................7
2. SETUP......................................................................................................................8
2.1. Installation .............................................................................................................................8
2.2. Module Mechanical Connection ............................................................................................9
2.3. Connections ........................................................................................................................ 11
3. LED DISPLAY ........................................................................................................13
3.1. LED display function............................................................................................................13
3.2. Display function description.................................................................................................15
4. DEVICE USE AND SETTING.................................................................................17
4.1. 1pc use and display settings ...............................................................................................17
4.2. 4pcs use and display settings .............................................................................................17
4.3. 16pcs use and display settings ...........................................................................................18
4.4. LED Operation.....................................................................................................................19
4.5. DMX Controller or PC software...........................................................................................19
5. CHANNEL MODES ................................................................................................22
5.1. 1CH Mode ...........................................................................................................................22
5.2. 4CH Mode ...........................................................................................................................22
5.3. 5CH Mode ...........................................................................................................................22
5.4. 25CH Mode .........................................................................................................................23
5.5. 75CH Mode .........................................................................................................................24
5.6. 100CH Mode .......................................................................................................................24
6. WARRANTY AND SERVICE..................................................................................25
7. WARNING ..............................................................................................................26

7
ENGLISH
MTR-25-10W-RGBW User manual
1. PRODUCT SPECIFICATION
fLight source: 25 x 10W RGBW 4in1 High Brightness LED
fPixel by pixel control, delivering versatile effects
fCoupling system cabinet to create structures with more units (max 4x4 = 16 units)
fFlight case to transport 4 units and store accessories (optional)
fControl modes: Sound Active, LED Auto Run, DMX Master/slave, ArtNet
fDMX Channel Modes: 1CH, 4CH, 5CH, 25CH, 75CH and 100CH
fControllable by external controllers or computers (this requires third party equip-
ment)
fSmooth 0-100% dimmer
fVersatile Strobe Effects
fFlicker Free
fLED display interface, easy to control
fLED self test: R, G, B, W, RGBW
fVoltage: AC100-240V 50/60HZ
fPower Consumption: 300W
fData In/Out: 3-Pin XLR and RJ45
fFuse: F5A, 250V
fSize: 58 x 58 x 12cm
fWeight: 13kg

8
ENGLISH
MTR-25-10W-RGBW User manual
2. SETUP
2.1. Installation
Pay attention to safety! Please respectively consider the EN 60598-2-17 and
the national standard during the installation. The authorized dealer must
only carry out the installation.
The installation of the xture has to be built and constructed in a way that it can hold
10 times the weight for 1 hour without any harming demolition. The installation must
always be secured with a secondary safety attachment, e.g. an appropriate catch net.
This secondary safety attachment must be constructed in a way that no part of the
installation can fall down if the main attachment fails.
When rigging, de-rigging or servicing the xture staying in the area below the instal-
lation place, on bridges, under high working places and other endangered areas is
forbidden. The operator has to make sure that the safety measure and the machine’s
technical installation is approved by an expert before taking into operation for the rst
time and after changes before taking into operation anther time. He has also to make
sure that an expert approves safety measure and the machine’s technical installation
once a years.
 WARNING:Thextureshouldbeinstalledoutsideareaswherepersonsmay
walkbyorbeseated.
 IMPORTANT:Overheadriggingrequiresextensiveexperience,including
(butnotlimitedto)calculatingworkingloadlimits,installationmaterial
beingused,andperiodicsafetyinspectionofallinstallationmaterialand
theprojector.Ifyoulackthesequalications,donotattempttheinstallation
yourself,butinsteaduseaprofessionalstructuralrigger.Improperinstalla-
tioncanresultinbodilyinjuryorpropertyloss.
If the xture shall be lowered from the ceiling or high joists, professional trussing
systems have to be used. The xture must never be xed swinging freely in the room.
Before rigging make sure that the installation area can hold a minimum point load of 10
times the projector’s weight.
 CAUTION:Fixturemaycausesevereinjurieswhencrashingdown.Ifyou
havedoubtsconcerningthesafetyofapossibleinstallation,donotinstall
thexture!
 CAUTION:Usetwoappropriateclampstorigthextureonthetruss.Follow
theinstructionsmentionedatthebottomofthebase.Makesurethatthe
deviceisxedproperly!Ensurethatthestructure(truss)towhichyouare
attachingthexturesissecure.
 DANGEROFFIRE!Wheninstallingthedevice,makesurethereisnohighly

9
ENGLISH
MTR-25-10W-RGBW User manual
inammablematerial(decorationarticles,etc.)withinadistanceofminimum
0.5 meter.
2.2. Module Mechanical Connection
Each module can be used either individually or in blocks of several modules. In the
case of Master/Slave mode, the maximum number is 16; in the case of external com-
puter software (not supplied), the maximum number is dened by the capacity of the
software and the number of DMX outputs of the DMX control unit connected from the
computer to the modules. For more information, refer to the section “4.5. DMX Control-
ler or PC software” on page 16.
Single module Use

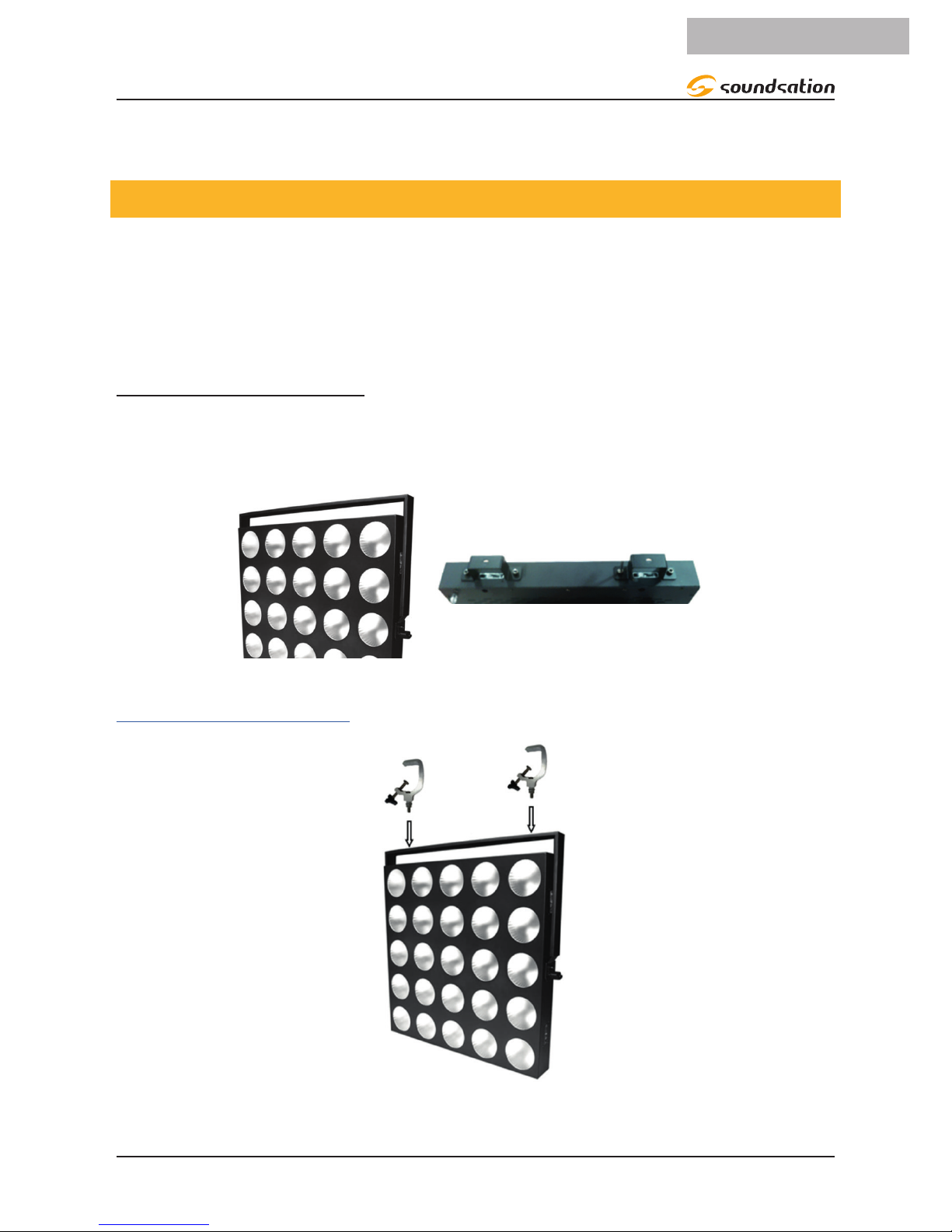

As you can see from the following gure, the cabinet of each module is provided with a
swivel bracket and 2 small brackets for truss mounting. The screws on each side of the
swivel brackets allow the user to block the module in the desired position.
In the case of truss mounting with the brackets, it also advisable to use hooks (see
www.soundsationmusic.com website for details on available models) connected to the

10
ENGLISH
MTR-25-10W-RGBW User manual
Multiple Module Use
Each module, in addition, is equipped with 4 rotatable hooks (1 to 4 in the gure) which
can be hooked to 4 pins (5 to 8).
8
7
12
3
4
6
5
Bracket
In this way, each module can be easily xed to another by simply turning the 4 hooks
with a hex key.
Each module, in addition, is equipped with 4 rotatable hooks (1 to 4 in the gure)
which can be hooked to 4 pins (5 to 8). In this way, each module can be easily xed to
another by simply turning the 4 hooks with a hex key (9). Of course, in this case, the
adjustable bracket must be removed and only the small brackets have to be mounted
on the upper row of modules as shown below.
